7*24hours 32 43 inch Interactive LED Screen 2GB 16GB Wall Mounted Digital Signage Display Android Kiosk Touch Screen with CMS
- Category: >>>
- Supplier: Shenzhen Ranboda Technology Co. Ltd
Share on (1601018946657):
Product Overview
Description
Product Description
7*24hours 32 43 inch Interactive LED Screen 2GB 16GB Wall Mounted Digital Signage Display Android Kiosk Touch Screen with CMS
Main Features:
Product Name | 32 43 inch 1080P Touch Screen Wall Mounted LED Display |
OS | Android 9.0 |
CPU | A53 Quad Core, 1.5GHz |
RAM/ROM | 2GB/16GB |
WiFi | 2.4GHz |
Resolution | 1920*1080P (32'' 43'')/ 3840*2160P(50" 55" 65'') |
Interfaces | 2x USB2.0, 1x RJ45 LAN, 1xHD Input, TF Card Slot, Earphone Jack, DC IN |
Features | 7*24Hours, RTC, timing power on/off |
Display | Portrait/Landscape, Split Screen Display, Video/picture/rolling/text. |
Service | OEM/ODM |
1. Android 9.0 with 4 cores CPU
Stable Android version with faster processing speed, the system smoothly than ever.
2. FHD Display with high brightness and Color Gamut
1080P resolution with 350cd/m2 brightness and color gamut enhance, make your picture more actively.

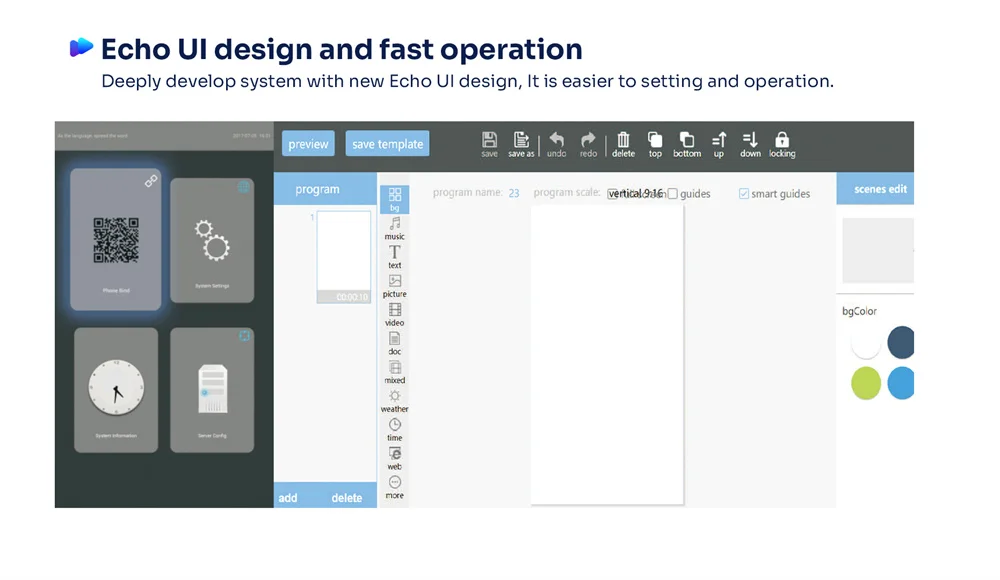

3. Echo UI design and fast operation
Deeply develop system with new Echo UI design, it is easier to setting and operation.
4. Durable and Fast repair window
Aluminum cabinet, Industrial grade power board, etc. help to extend the machine lift time. You have the fast repair window if the display has any issue.
Stable Android version with faster processing speed, the system smoothly than ever.
2. FHD Display with high brightness and Color Gamut
1080P resolution with 350cd/m2 brightness and color gamut enhance, make your picture more actively.
3. Echo UI design and fast operation
Deeply develop system with new Echo UI design, it is easier to setting and operation.
4. Durable and Fast repair window
Aluminum cabinet, Industrial grade power board, etc. help to extend the machine lift time. You have the fast repair window if the display has any issue.
5. Tempered glass protection
3mm hardened Safety Class (Mohs 7) Tempered glass protect the device.
3mm hardened Safety Class (Mohs 7) Tempered glass protect the device.
Detailed Images
Specifications
Display | ||||
Sizes | 32” | 43” | ||
Panel Brand | BOE /AUO/CSOT/LG | |||
Active Area (V*H mm) | 697.4*391.8 | 940.2*528.4 | ||
Resolution | 1080*1920 | |||
Brightness (nits) | 350cd/m2 | |||
Display Ratio | 16:09 | |||
Contrast | 1400:01:00 | |||
Response Time | 8ms | |||
Color | 8-bit | |||
Uniformity of Backlight | 75% | |||
Backlight Type | LED | |||
Viewing Angle | 178°(V)/178°(H) | |||
LED Backlist Lifetime(H) | ≧60000hrs | |||
Android system | ||||
OS | CPU | A55 * 4, 1.5GHz | ||
System | Android 9.0 | |||
GPU | Mali G53 | |||
DDR | 2GB | |||
EMMC | 16GB | |||
Wi-Fi | 2.4 GHz | |||
USB Format | Movie | MPEG2、AVI、MP4、DIV、TS、TP、TRP、MKV、MOV、DAT、ASF、WMV、RM、RMVB | ||
Music | MP3、MP2、WMA、WAV | |||
Photo | JPEG、PNG | |||
Text | WORD, EXCEL, PPT, PDF, TXT | |||
Audio | Output | 8W*2 | ||
Surround Sound | Yes | |||
Connectivity | ||||
I/O | USB 2.0 | 2 | ||
LAN | 1 | |||
HDMI IN | 1 | |||
TF CARD | 1 | |||
EARPHONE | 1 | |||
DC IN | 1 | |||
Wi-Fi | 802.11b/gn | |||
Touch | ||||
Touch Points | 20 points | |||
Surface Hardness | Mohs class 7 | |||
Response Speed | ≤8ms | |||
Touch sizes Required | ≥2.5mm | |||
Positioning Accuracy | ±2.5mm | |||
Cursor Speed | ≥120 min/sec | |||
Feature | ||||
Display | Landscape/Portrait, Split Screen Display, Video, Picture, Rolling Text, RTC , Timer power on/off ,etc | |||

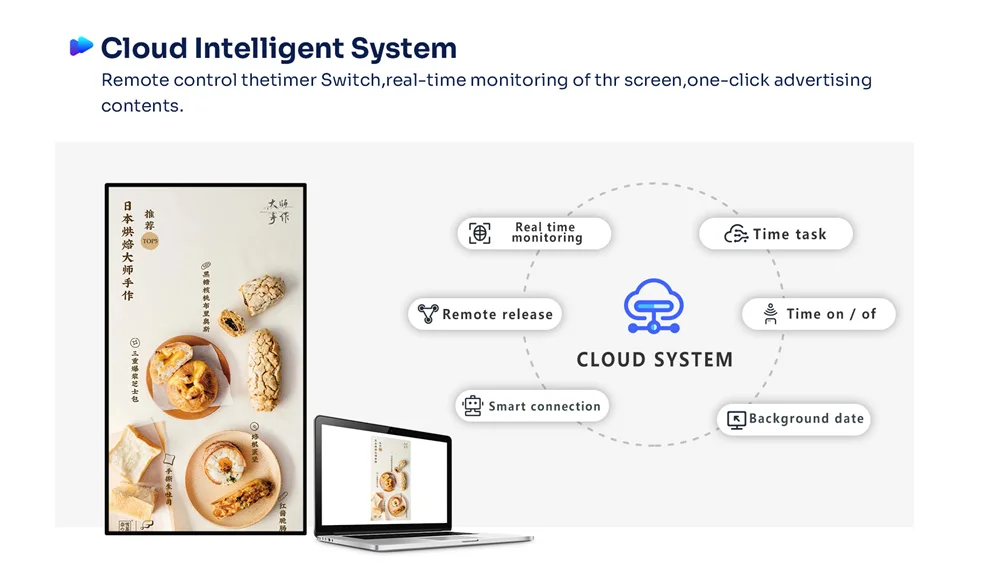

Program Management | Edit, Schedule, Remote Publish (option), Object Carousel, etc | |||
7*24hours | Yes | |||
Power Management | Yes | |||
Others | ||||
Power | 50W | 80W | ||
Working Temperature | -10℃~+50℃ | |||
Working Humidity | 0% - 90% | |||
Storage Temperature | -20℃~+60℃ | |||
Storage Humidity | 10% - 95% | |||
Tempered Glass | Yes | |||
Frame color | Silver or Black | |||
Product Size(mm) | 742*436.5*59 | 984.8*573.5*60.3 | ||
Box Size(mm) | TBD | TBD | ||
VESA Size(mm) | 400*200 | 400*400 | ||
N.W.(KGS) | TBD | TBD | ||
G.W.(KGS) | TBD | TBD | ||
Package | Displayer * 1pcs, Wall mount* 1, Power cord *1, Remote control *1 | |||
Packing & Shipping
1. Packaging: 1pc/ Color Box, 20/30/40 pcs per export outer carton
2. Lead Time: within 1-3 days after payment
3. Shipment Time: Express: DHL(2-6 days); Fedex (3-8 days) ; UPS, TNT (3-10 days); Special Line(9-15 days)
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
ShenZhen Ranboda Technology Co., Ltd is a professional manufacturer of audio and video consumer electronics. Product line include: Android TV box,Video game console,air mouse, speakers, headphones etc. Company core member is a team of electronics engineers who has more than 10 years experience in electronic field.
After years of development, we have established an ISO9001 standard factory with 4000 square meters, equip with advanced production and testing machine , nearly 200 hard working employees, our R & D Center has 30 hardware and software engineers.Products have been sold more than 60 countries and won high reputation.
Adhering to the "professional, efficient, honest, win-win" business philosophy, Ranboda Technology will continue to create great value to our customers, employees, investors and society, and strive to make itself to be first-class enterprise in Consumer electronics industry!
Our Team
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1: What is your MOQ?
No MOQ for standard products, MOQ for OEM/ODM order will depend on your specific requirements, usually 100 to 500pcs.
Q2: How long can I get the goods?
Standard products can be sent out within 2 days . OEM/ODM order lead time is 7 to 10 days, and it will take another 3 to 5 days to your door by DHL,UPS, Fedex, TNT etc
Q3: What payment method do you accept?
We accept TT, Paypal, Western union, LC, Alibaba trade assurance.
Q4: What is the quality warranty?
All products have 2 years warranty. If there is no man-made problem,we Will replace or repair for you freely. We want long term cooperation with you, not one time business, we will always take responsibility until meeting your satisfaction.
Q5: What OEM/ODM services can you offer?
OEM: logo printing on housing, Customized package, Booting image, UI, APP, Function...
ODM:PCBA design, Housing design, Software /GUI/Launcher Customization,Multi Language support.
