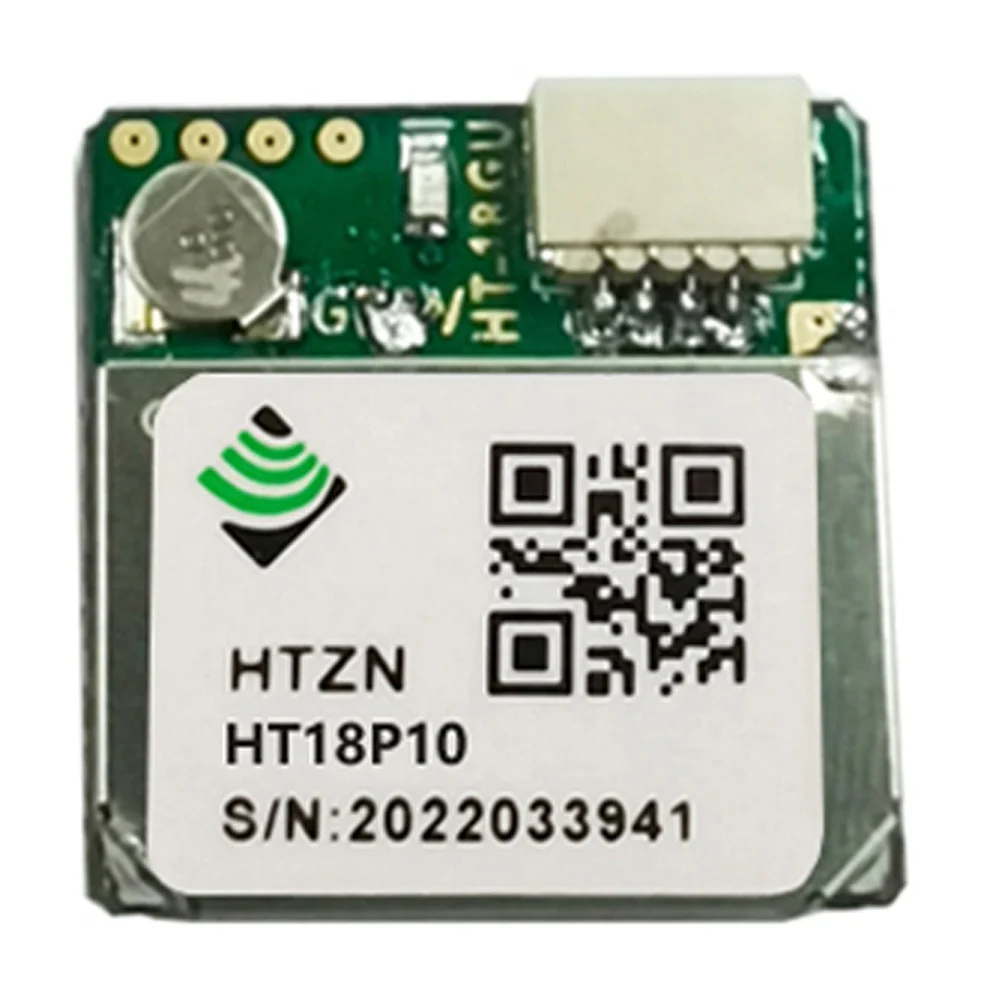

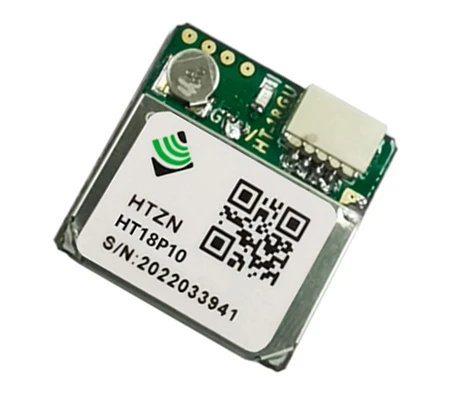

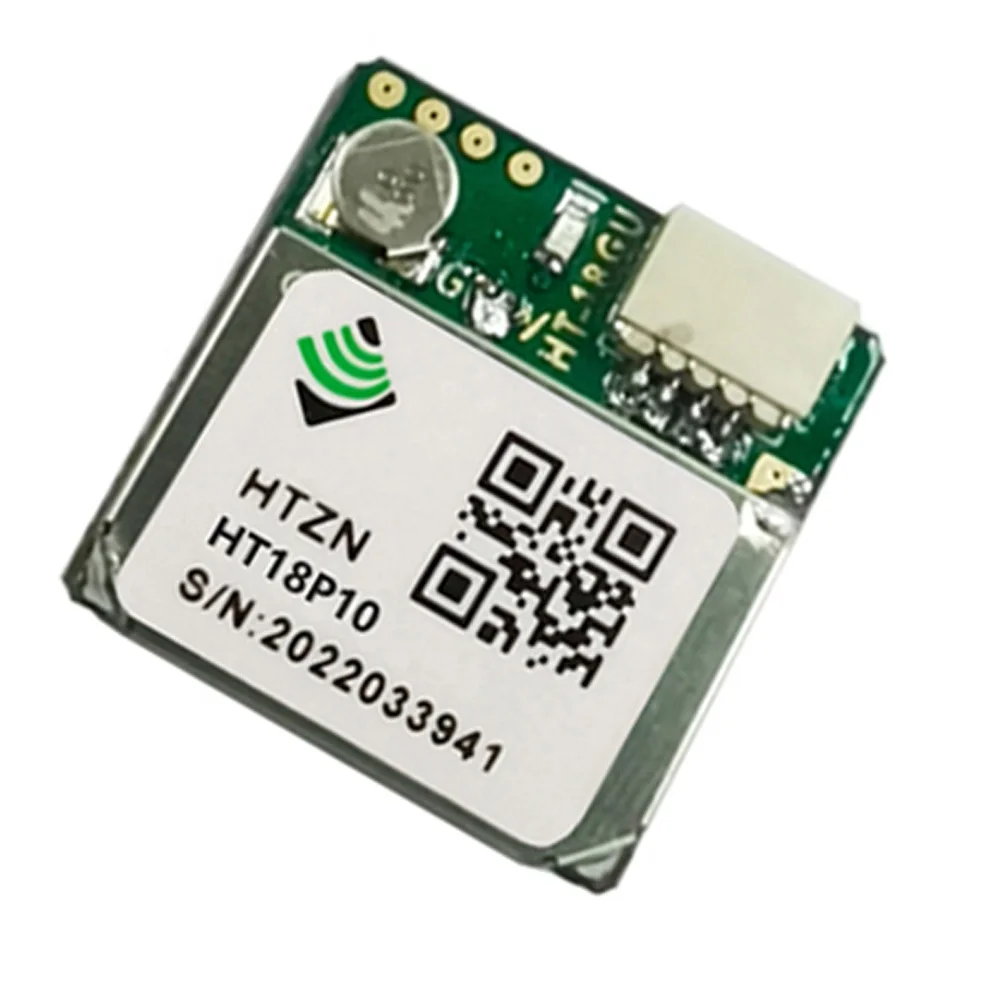

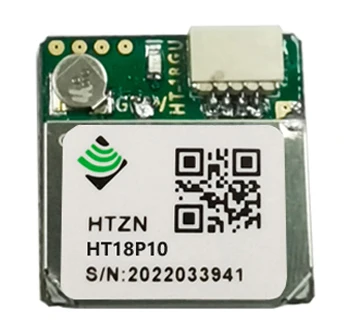

Four channel positioning GPS tracking Module with Antenna HT18P10 GPS Module with Good Price
- Category: >>>
- Supplier: Shenzhen Chuangdajia Technology Co. Ltd
Share on (1601018964305):
Product Overview
Description
Product Description
item | GPS Module |
Model Number | HT18P10 |
Type | Tracking power module |
Brand Name | HTZN |
Configuration | standard |
chip: | UBLOX 1050-KB |
C/A (Data Rate): | 0.25-10Hz |
Receiving Frequency : | L1, 1575.42MHz |
Cold start | Average 32 seconds |
Warm start | Average 10 seconds |
Hot start | Average 1 second |
Max Speed : | 5 00 m/s |
Time precisin | 30 ns |
Applications range | car navigation, security systems, map making, agricultural |
Output protocol | NMEA0183 Standard protocol/UBX |
Place of Origin | China |
Highlights

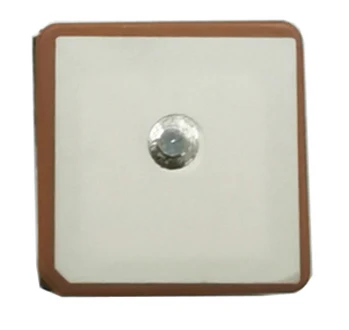

Industry standard 18*18*4MM high sensitivity GPS antenna
* Adopt 0.5PPM high precision TCXO
* Built-in RTC crystal and picofarad capacitors for faster hot start
* Built-in LNA, low noise signal amplifier
* Using UBLOX 1050-KB chip, support warm boot
* With flash, support 0.25-10Hz positioning update rate, modify and save
* Support A-GPS services such as AssistNow Online and AssistNow Offline Service
* GPS, BDS, GLONASS, Galileo (WAAS, EGNOS, MSAS, GAGAN) hybrid engine
* Adopt 0.5PPM high precision TCXO
* Built-in RTC crystal and picofarad capacitors for faster hot start
* Built-in LNA, low noise signal amplifier
* Using UBLOX 1050-KB chip, support warm boot
* With flash, support 0.25-10Hz positioning update rate, modify and save
* Support A-GPS services such as AssistNow Online and AssistNow Offline Service
* GPS, BDS, GLONASS, Galileo (WAAS, EGNOS, MSAS, GAGAN) hybrid engine
Application
* GPS, PDA、Pocket PCand other portable devices.
* Track tracking products such as personal positioning and car positioning
* Surveying and mapping products such as area measurement and distance measurement, mu meter
* Law enforcement recorder, driving recorder, advertising machine, external antenna and other products
* Track recording and GPS/BDS data point calibration and other products
* Track tracking products such as personal positioning and car positioning
* Surveying and mapping products such as area measurement and distance measurement, mu meter
* Law enforcement recorder, driving recorder, advertising machine, external antenna and other products
* Track recording and GPS/BDS data point calibration and other products
