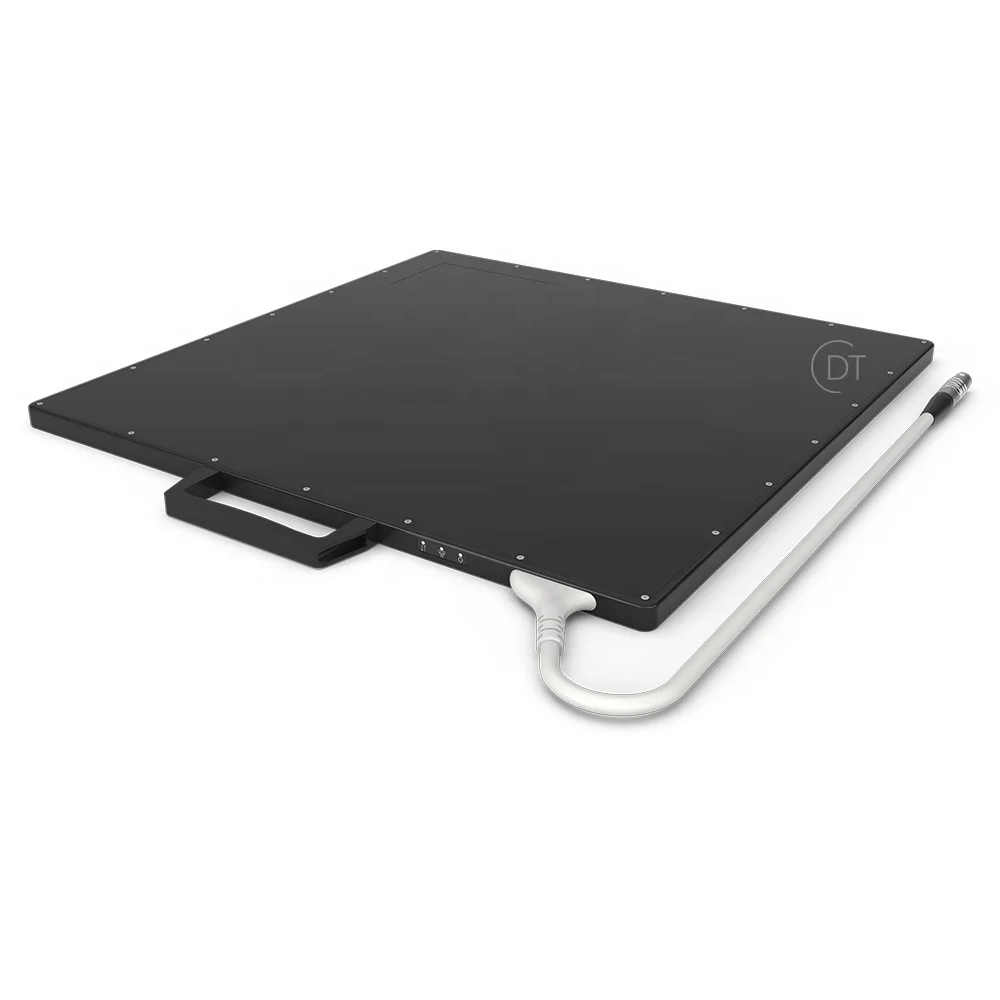

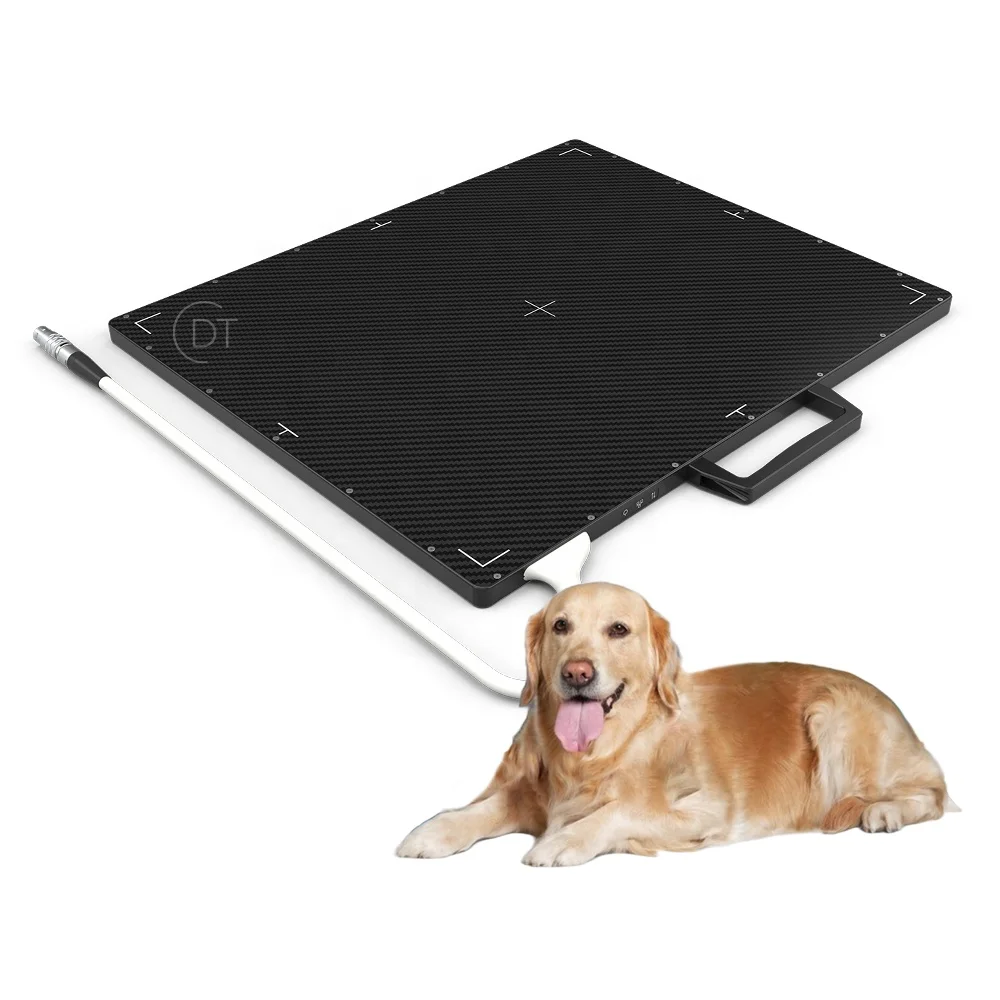

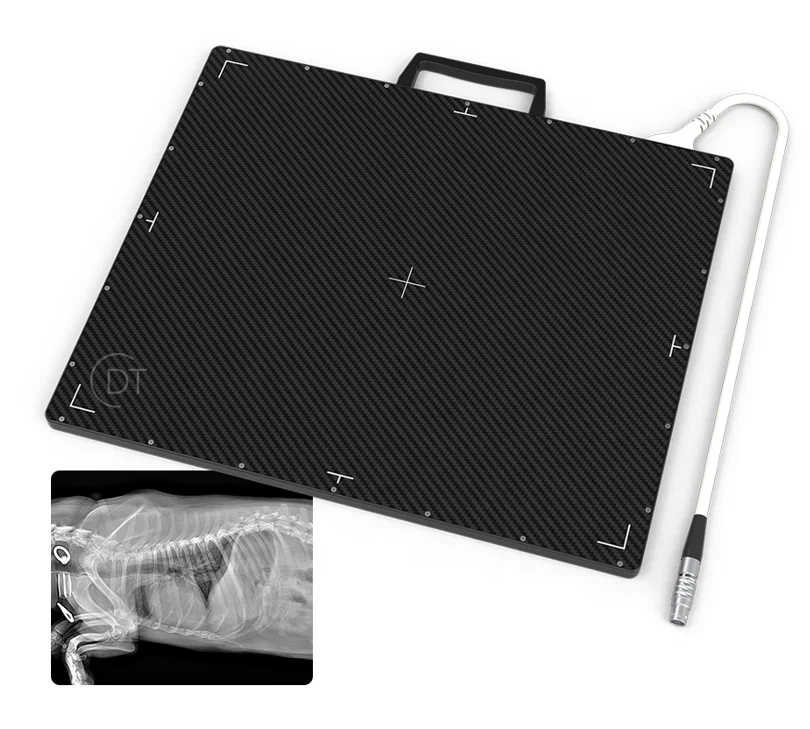

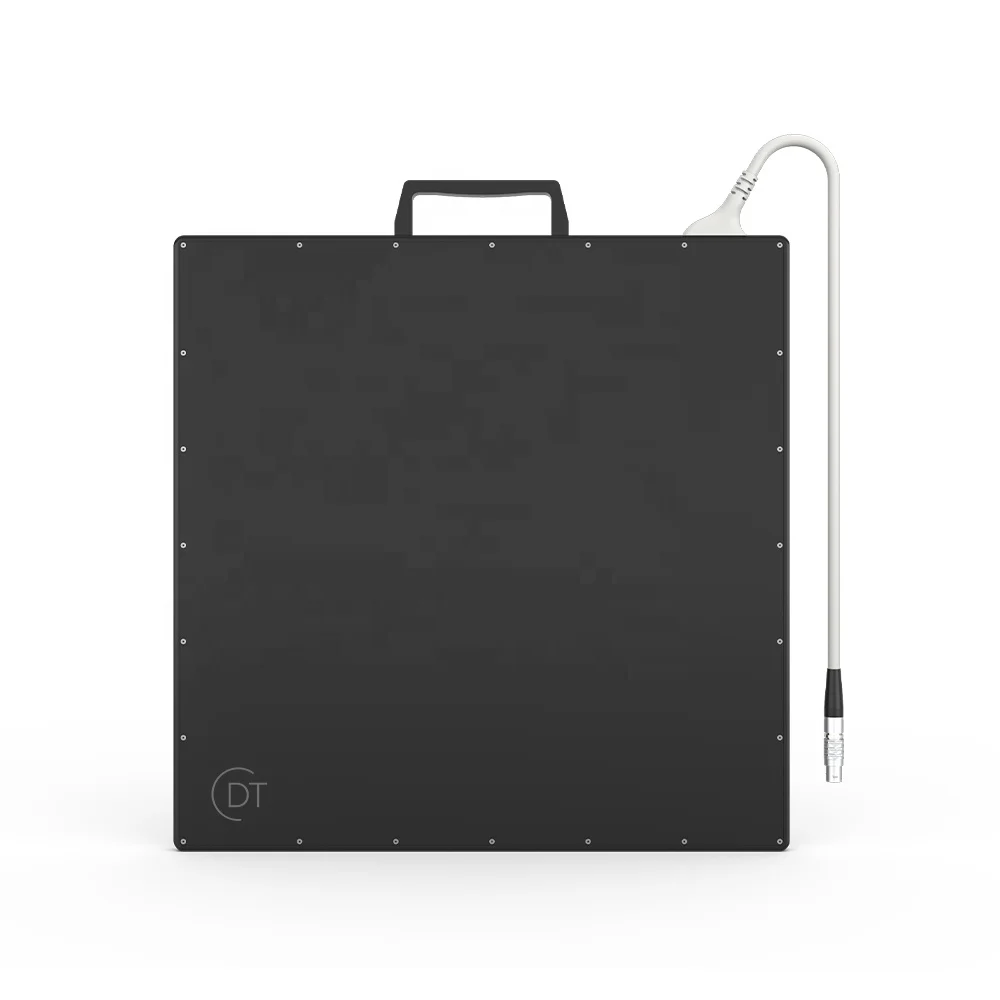

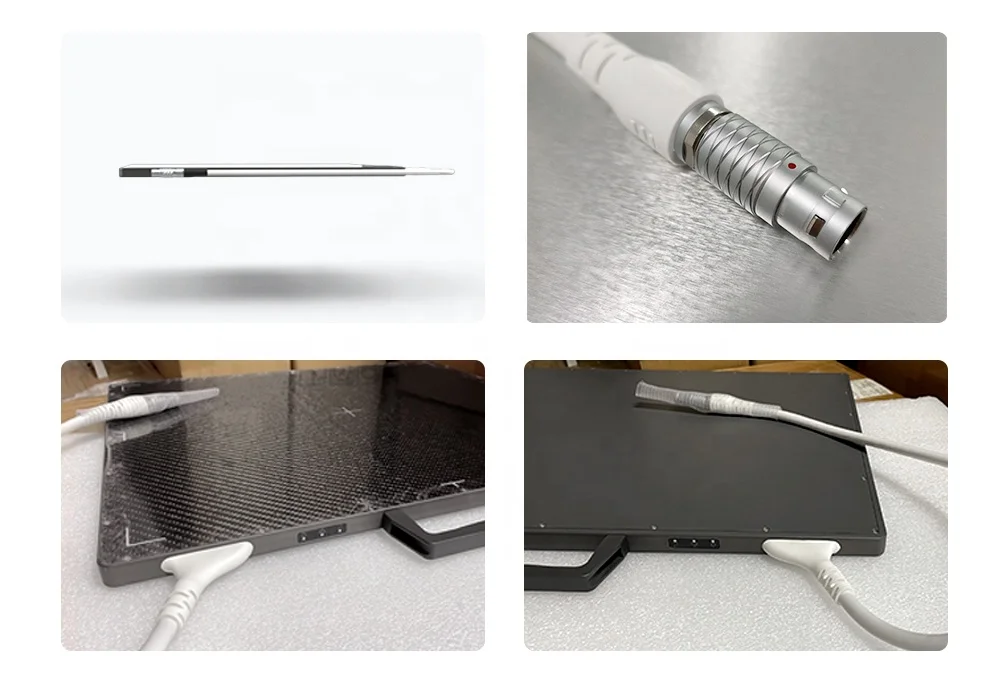

CsI a Si Portable Veterinary Dog horse DR Detector for Animal x Ray equipment X ray Flat Panel Detector
- Category: >>>
- Supplier: Dt Imaging Technology (shanghai) Co. Ltd.
Share on (1601018970804):
Product Overview
Description
FEATURES AT A GLANCE

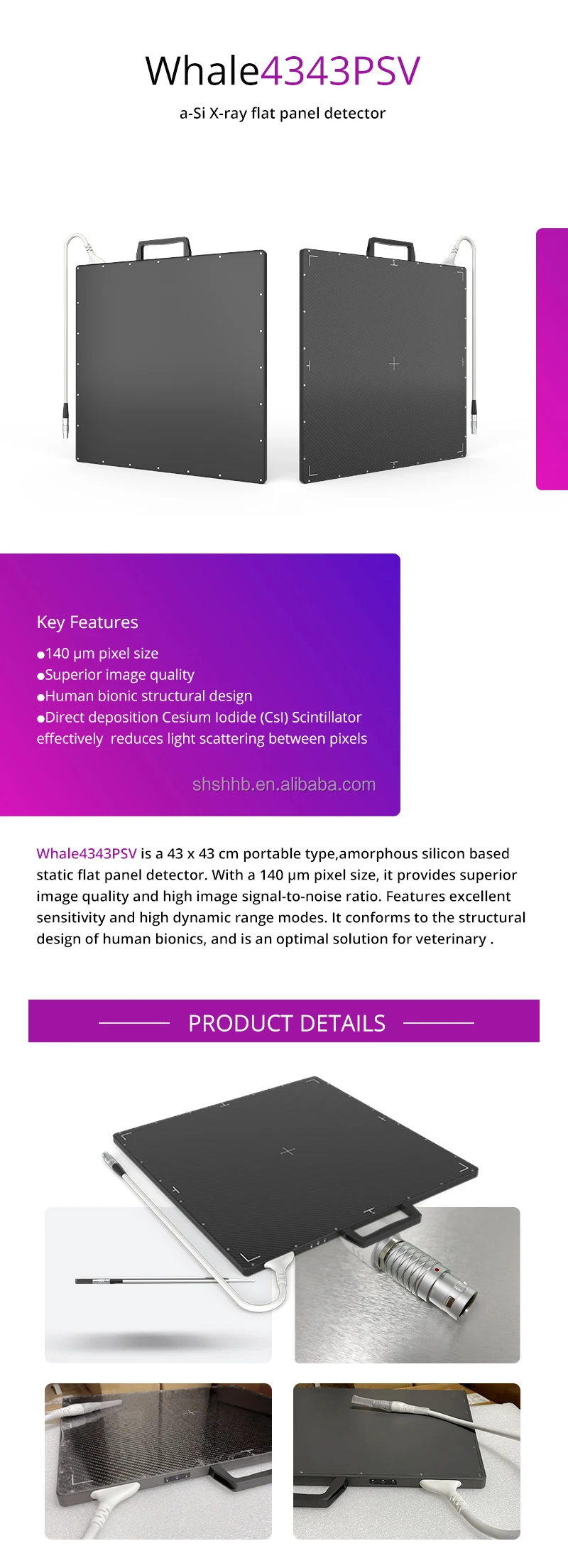

Name | 17*17 Inch Portable X Ray Flat Panel Detector |
Model Number | Whale4343PSV |
Sensor | A-Si |
Active Area | 430 x 430 mm |
Communication Interface | Gigabit Ethernet |
High technology research & development capability
High R&D investment
Innovation consciousness
Market competitiveness
Development potential
Operation and management ability
Production and Package
Technology | ||
Sensor | A-Si | |
Scintillator | GOS / CSI | |
Active Area | 430 x 430 mm | |
Pixel Matrix | 3072 x 3072 | |
Pixel Pitch | 140 μm | |
AD Conversion | 16 bits | |
Interface | ||
Communication Interface | Gigabit Ethernet | |
Exposure Control | Prepare / Ready / X Ray On(Edge or Level) | |
Image Acquisition Time | ≤1 seconds | |
Operating System | Windows7 / Windows10 OS 32 bits or 64 bits | |
Technical Performance | ||
Resolution | 3.5 lp/mm | |
Energy Range | 40-160 KV | |
0.8Lag | 0.8% 1st frame | |
Dynamic Range | ≥86dB | |
Sensitivity | 540 lsb/uGy | |
SNR | 48 dB @(20000lsb) | |
MTF | 72% @(1 lp/mm) | |
44% @(2 lp/mm) | ||
25% @(3 lp/mm) | ||
DQE | 64% @(0 lp/mm) | |
41% @(1 lp/mm) | ||
28% @(2 lp/mm) | ||
Mechanical | ||
Dimension(H x W x D) | 460 x 460 x 15 mm | |
Weight | 4.6 Kg | |
Sensor Protection Material | Carbon Fiber | |
Housing Material | High Strength Aluminum Alloy | |
Environmental | ||
Temperature Range | 10~35℃(operating); -10~50℃(storage) | |
Humidity | 30~70% RH(non-condensing) | |
Vibration | IEC/EN 60721-3 class 2M3(10~150 Hz,0.5 g) | |
Shock | IEC/EN 60721-3 class 2M3(11 ms,2 g) | |
Dust and Water Resistant | IP41 | |
Power | ||
Supply | 100~240 VAC | |
Frequency | 50/60 Hz | |
Consumption | 14W | |
Application | ||
Medical | Digital Radiography, Pet medical imaging | |
Certifications
We have obtained 28 patents
9 utility model patents
19 software Copyrights
19 software Copyrights

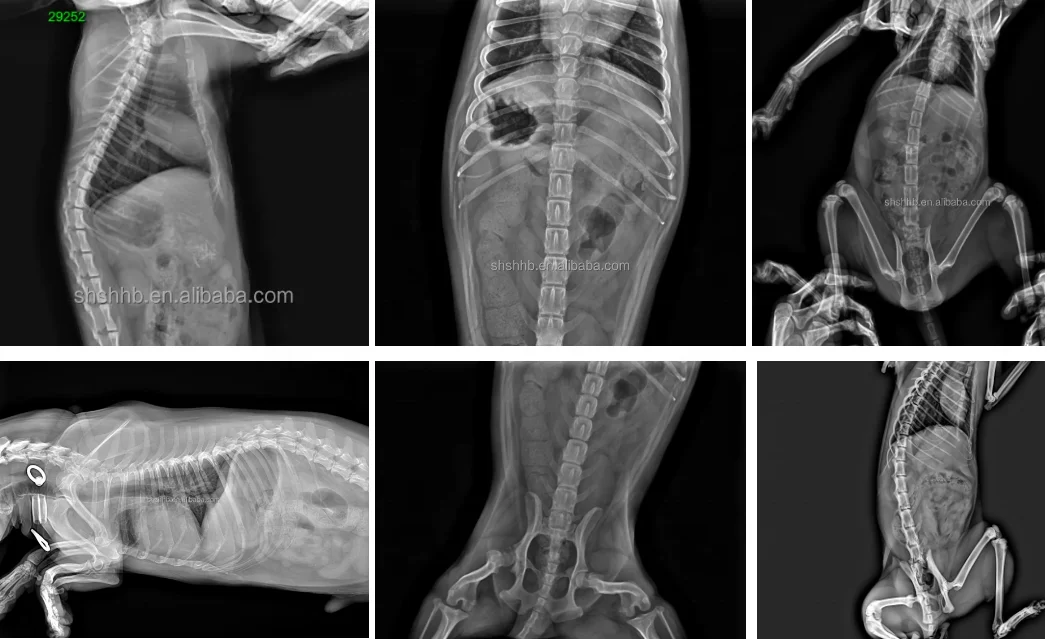

Feedback imaging

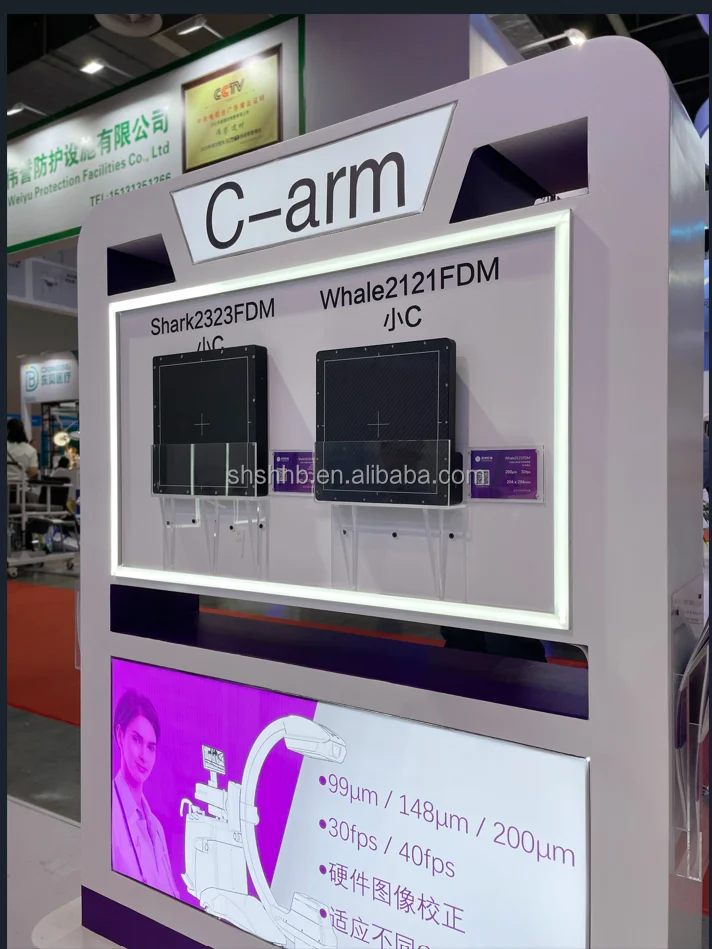

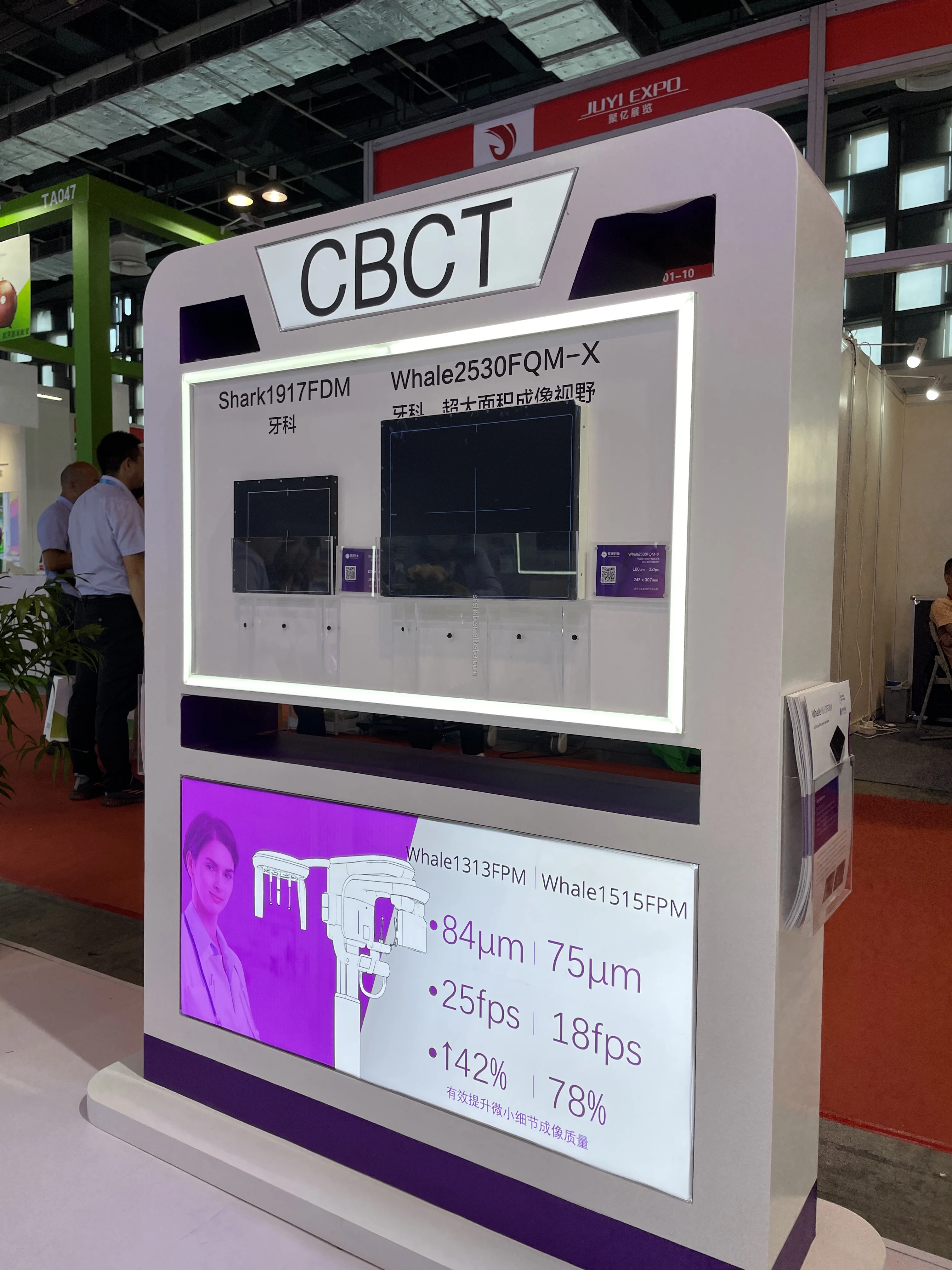

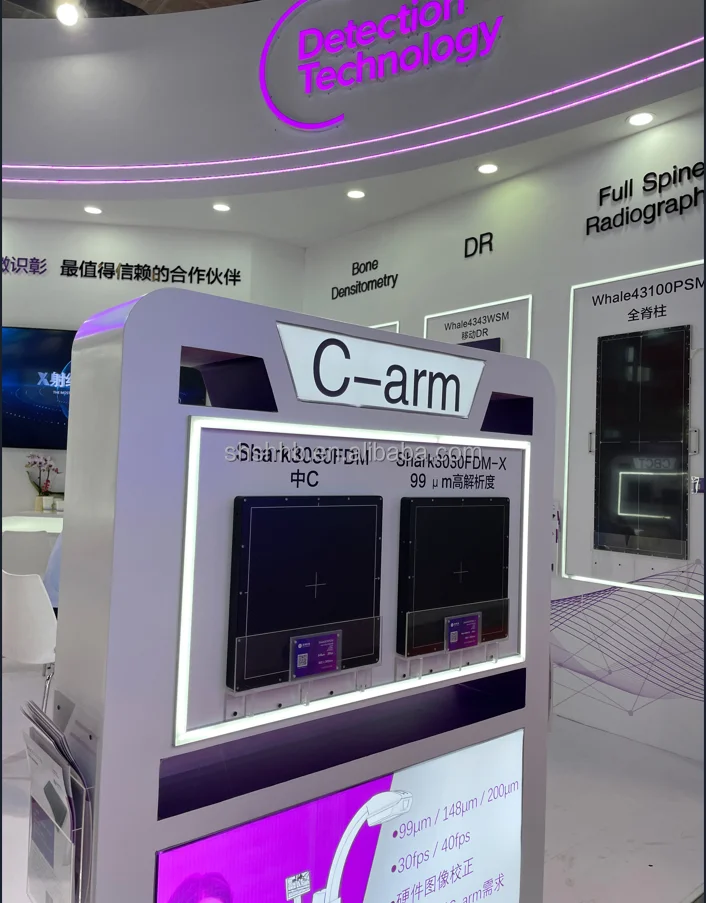

Exhibition
Company Profile
Shipping
FAQ
Q1. Are you manufacturer or trading company?
A1: We are the manufacturer of X- ray flat panel detector, the management team has many years of R&D, production and management experience in well-known enterprises at home and abroad. We are dedicated in X-Ray filed with a profound theoretical basis and practical development experience on X-Ray FPD architecture design, detector physics, sensor panel design and process debugging, scintillator R&D; X-RAY FPD detector system electronic design, solid state, software development and system integration; X-Ray FPD test system development, image processing and analysis, etc.
Q2. What is the Payment Method ?
A2: We could accept payment by TT, Western Union, Visa Credit Card, etc.
Q3. How long is the Lead Time?
A3: Within 7 workdays for X-ray machine accessories after receipt of payment.
Q4. Can our products be customized?
A4: If our product specifications can not meet your needs, we can also customize products for you.We accept OEM or ODM items.
A1: We are the manufacturer of X- ray flat panel detector, the management team has many years of R&D, production and management experience in well-known enterprises at home and abroad. We are dedicated in X-Ray filed with a profound theoretical basis and practical development experience on X-Ray FPD architecture design, detector physics, sensor panel design and process debugging, scintillator R&D; X-RAY FPD detector system electronic design, solid state, software development and system integration; X-Ray FPD test system development, image processing and analysis, etc.
Q2. What is the Payment Method ?
A2: We could accept payment by TT, Western Union, Visa Credit Card, etc.
Q3. How long is the Lead Time?
A3: Within 7 workdays for X-ray machine accessories after receipt of payment.
Q4. Can our products be customized?
A4: If our product specifications can not meet your needs, we can also customize products for you.We accept OEM or ODM items.
