Best Asphalt Road Pavement Parking Lot Thermoplastic Paint Line Striping Machine For Sale
Best Asphalt Road Pavement Parking Lot Thermoplastic Paint Line Striping Machine For Sale
Best Asphalt Road Pavement Parking Lot Thermoplastic Paint Line Striping Machine For Sale
Best Asphalt Road Pavement Parking Lot Thermoplastic Paint Line Striping Machine For Sale
Best Asphalt Road Pavement Parking Lot Thermoplastic Paint Line Striping Machine For Sale
Best Asphalt Road Pavement Parking Lot Thermoplastic Paint Line Striping Machine For Sale
Best Asphalt Road Pavement Parking Lot Thermoplastic Paint Line Striping Machine For Sale

Best Asphalt Road Pavement Parking Lot Thermoplastic Paint Line Striping Machine For Sale

Share on (1601018977810):


Price:$2,000.00

Quantity:


Product Overview

Description


Product Description

Product Application

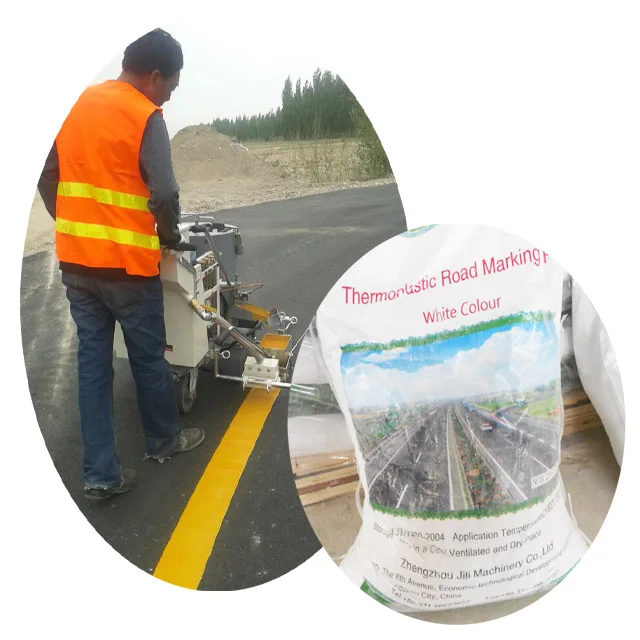

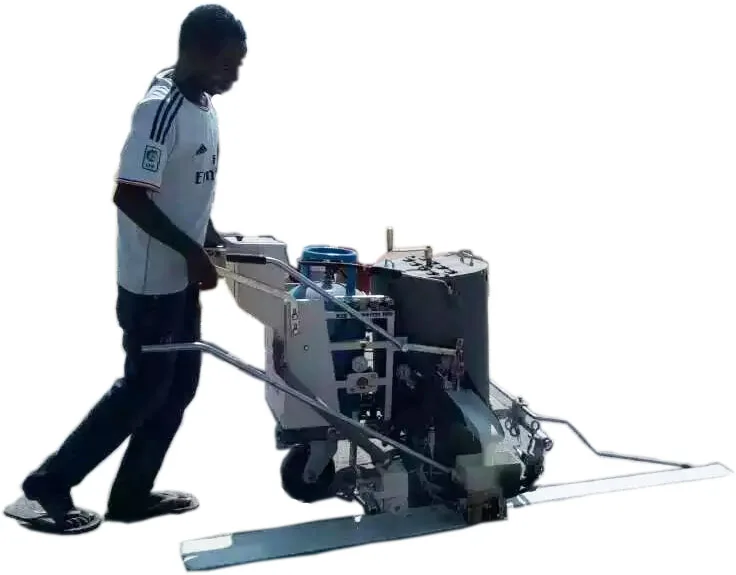

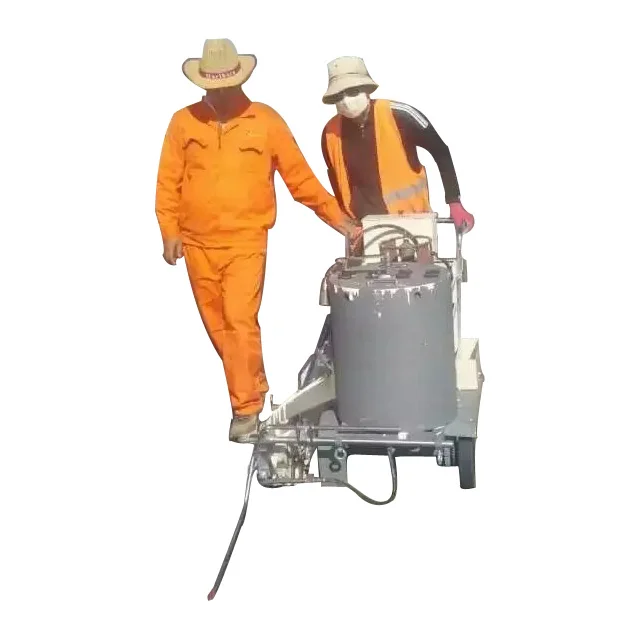

Hand-Push Thermoplastic Road Marking Machine Marking Width is 100, 150, 200, 300mm, and thickness is 1.5-2.5mm through adjusting the screeding knife.

1.Ideal machine for medium-sized and small marking jobs in urban areas and road.
2.The screeding structure makes the markings straight and beautiful.
3.Easily operative to ensure the marking speed and quality.

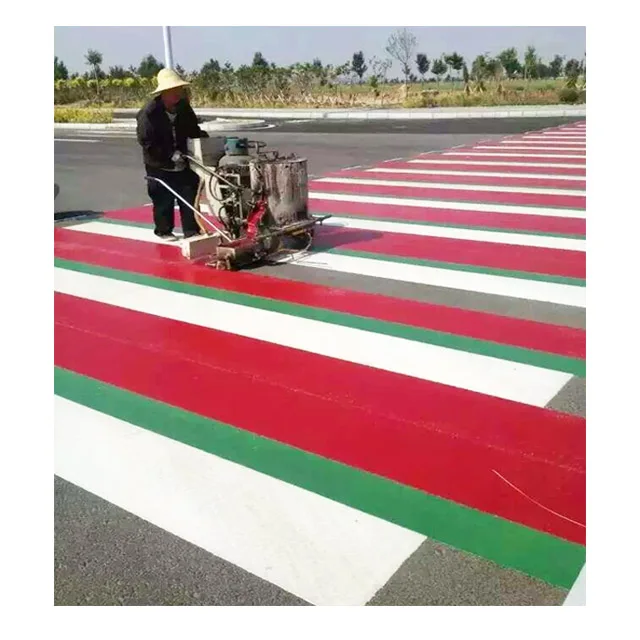

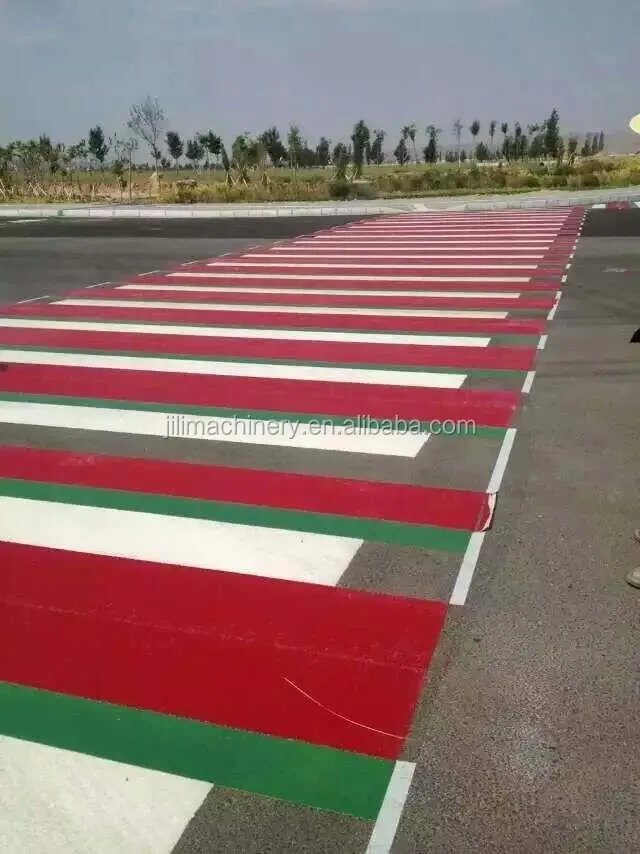

4.Dual-use machine, also can change marking shoe for zebra crossing marking.

\t
No
\t
Item
\t
Spec
\t
1
\t
Paint tank
\t
55L(Erect type stirring device, Heating and keeping the temperature automatically)
\t
2
\t
Marking Mode
\t
Screeding with marking shoe
\t
3
\t
Marking Shoe=Line Width
\t
100/150/200/300/400/450mm (Optional)
\t
4
\t
Glass Beads Bin
\t
12L (Bin with window, which can check the quantity of glass beads)
\t
5
\t
Glass Beads Dispenser
\t
Automatic quantitative dispenser synchronous with the paint screeding system
\t
6
\t
Standard Configuration
\t
150mm Marking shoe (High temperature, oxidation and deformation resistance)
\t
7
\t
Rear Wheel Directional Device Device
\t
Ensure the machine moving in straight line or turning freely in curved road
\t
8
\t
Guide Rod
\t
Hydraulic guide rod

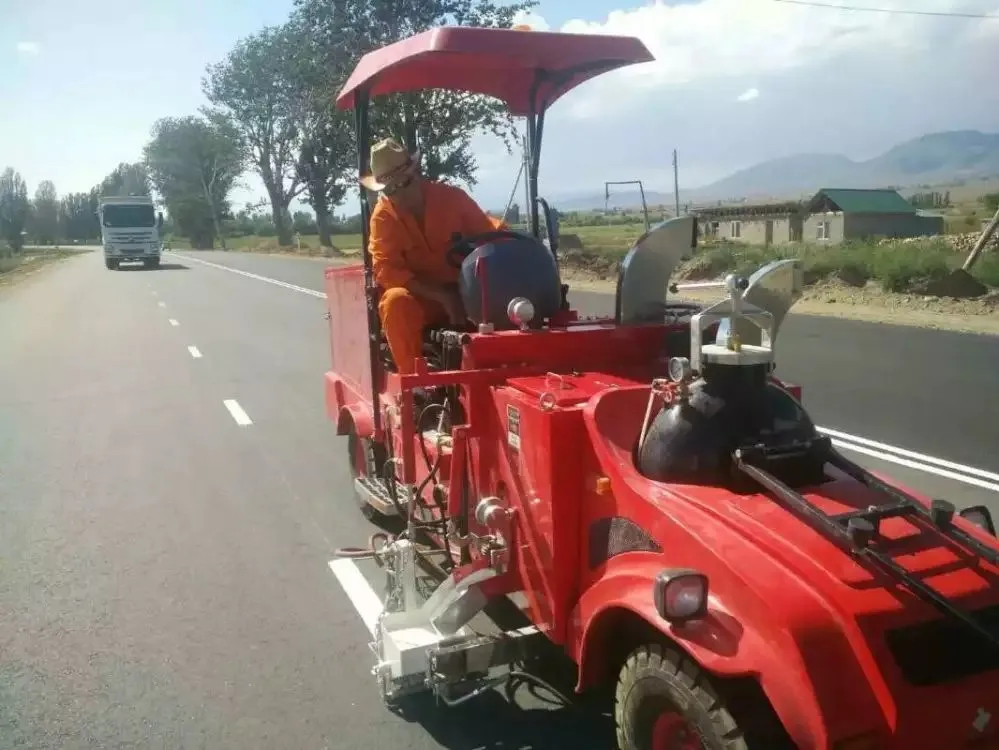

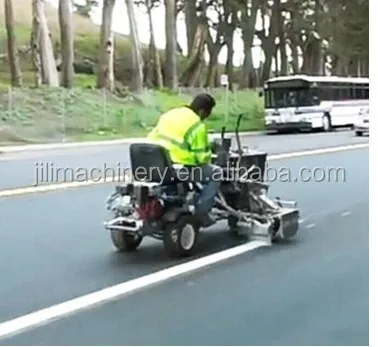

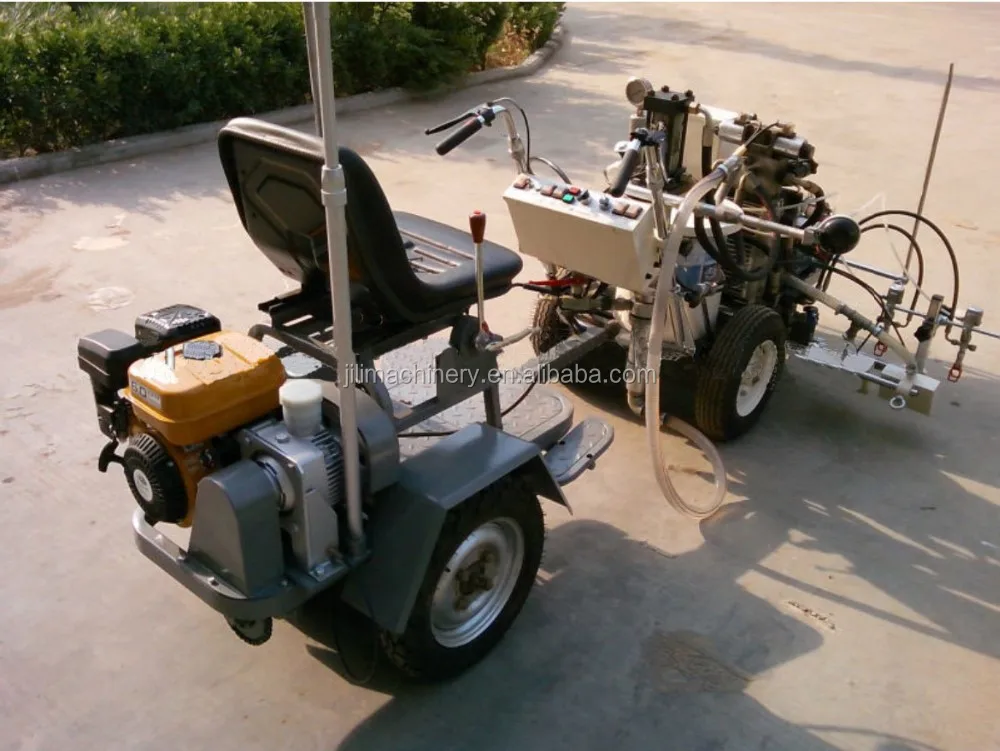

Option part (Roller booster )

To offer sit for operator to realize automatic function

Prepare Working


                                                                              Heat & Melt
A: Thermoplastic paint ( powder material ) ---------------------B: Thermoplastic paint( liquid paint )------C: Flowing into thermoplastic road marking machine to paint .

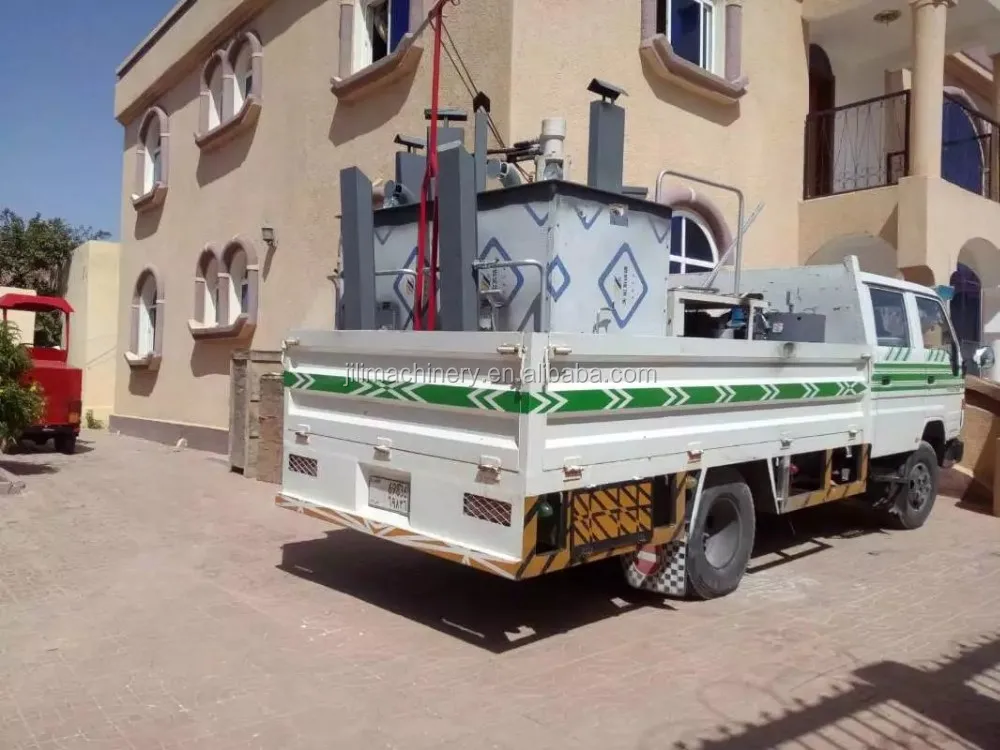

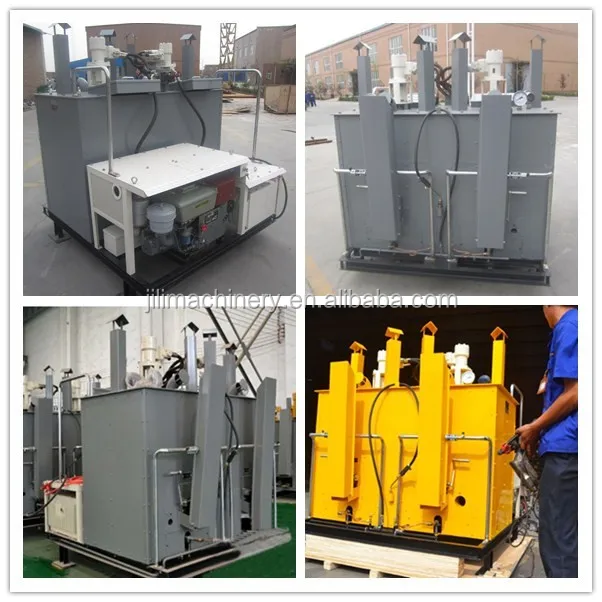

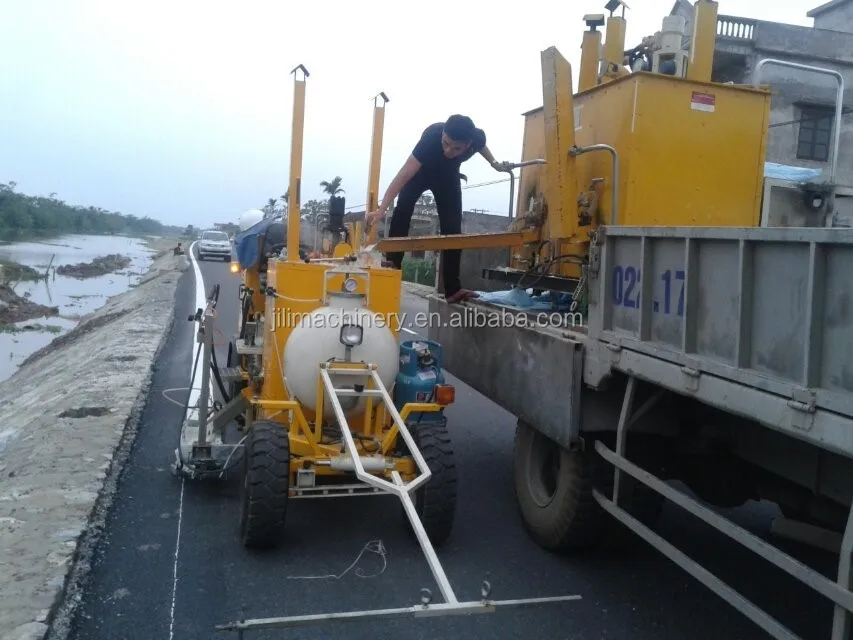

Pre heater is also called hot melt kettle, is used for heating, melting, and stirring thermoplastic marking paints continuously, preparing hot melt paints for the thermoplastic machine during long distance road lines marking work

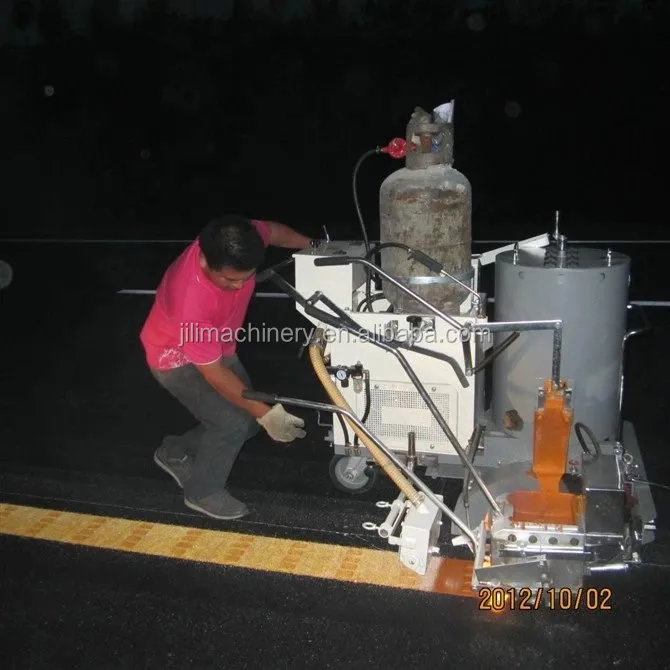

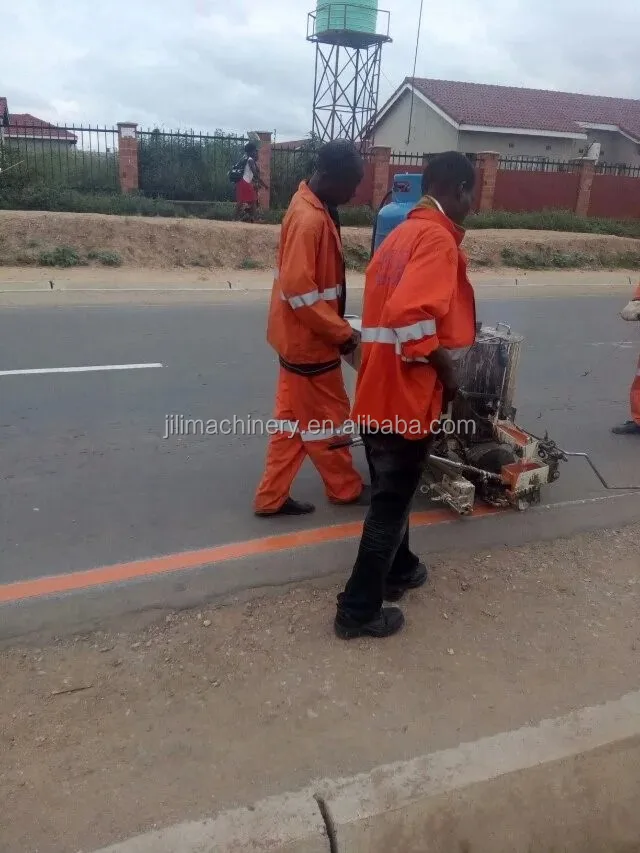

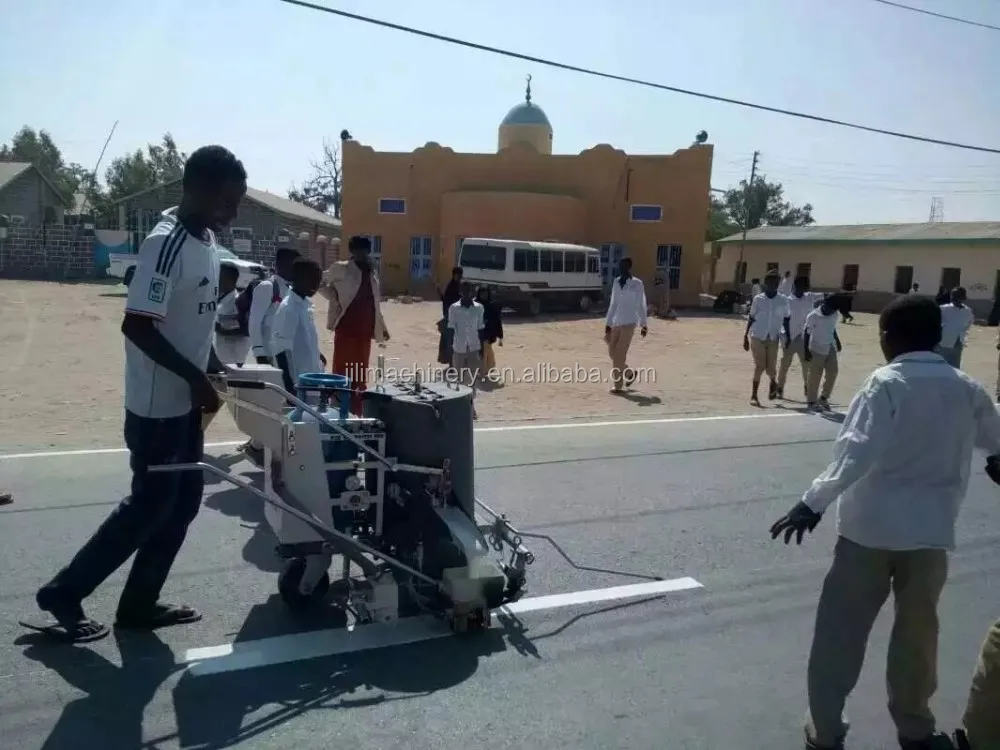

Working Site

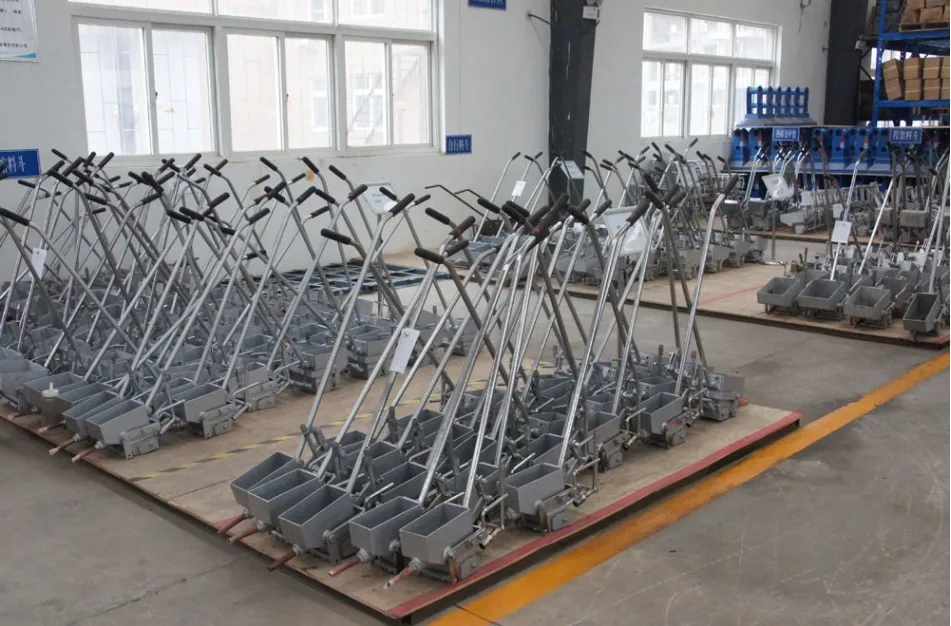

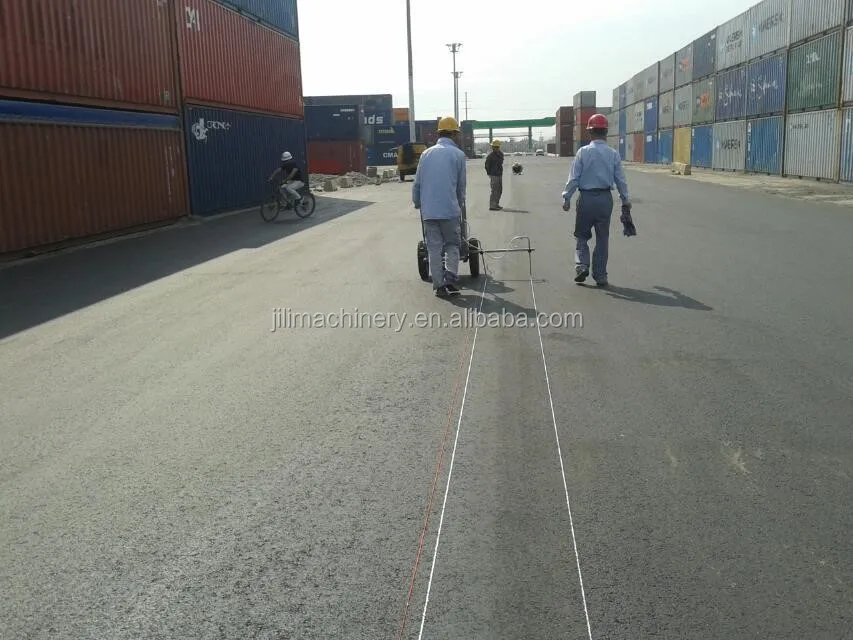

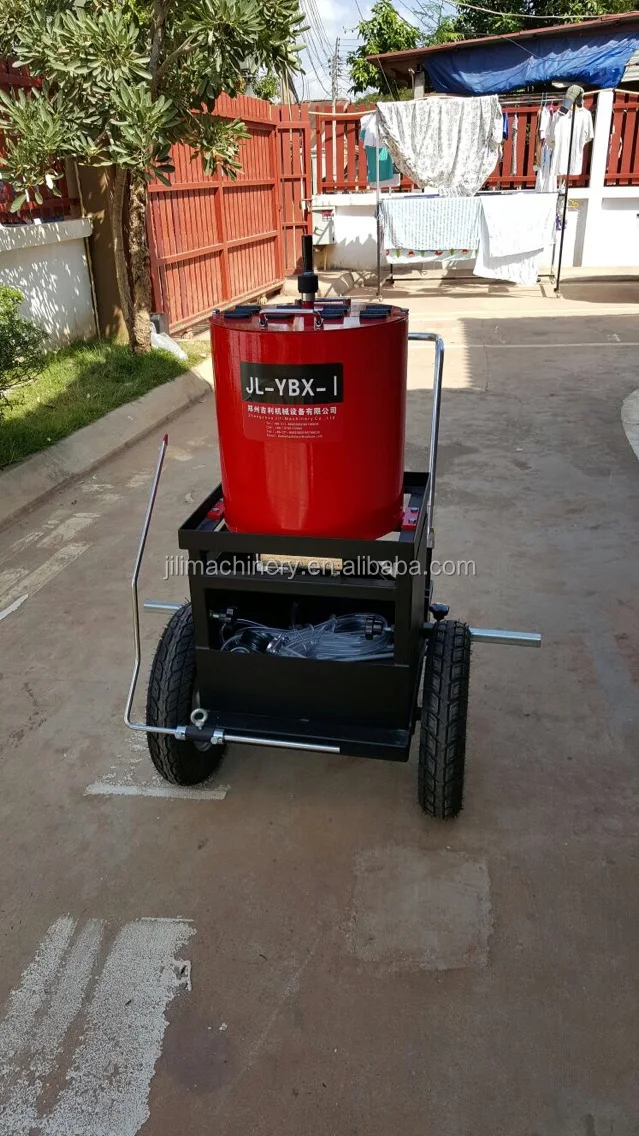

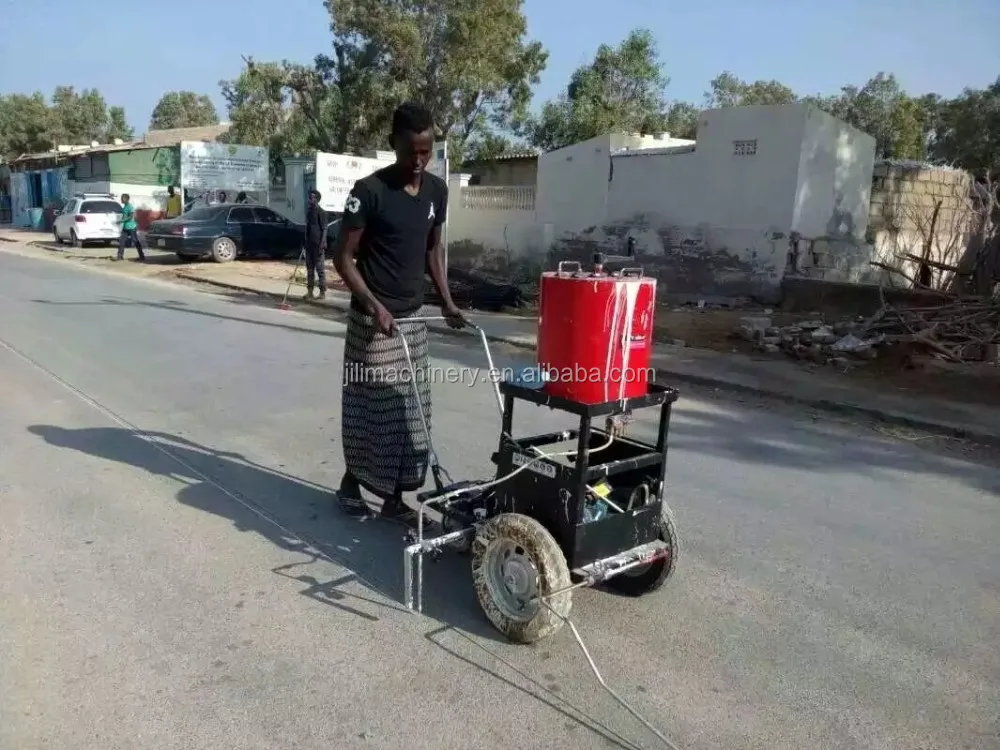

Pre marking machine to pre mark the line firstly and then use road marking machine to paint the line.

Detailed Images

Machine Parts

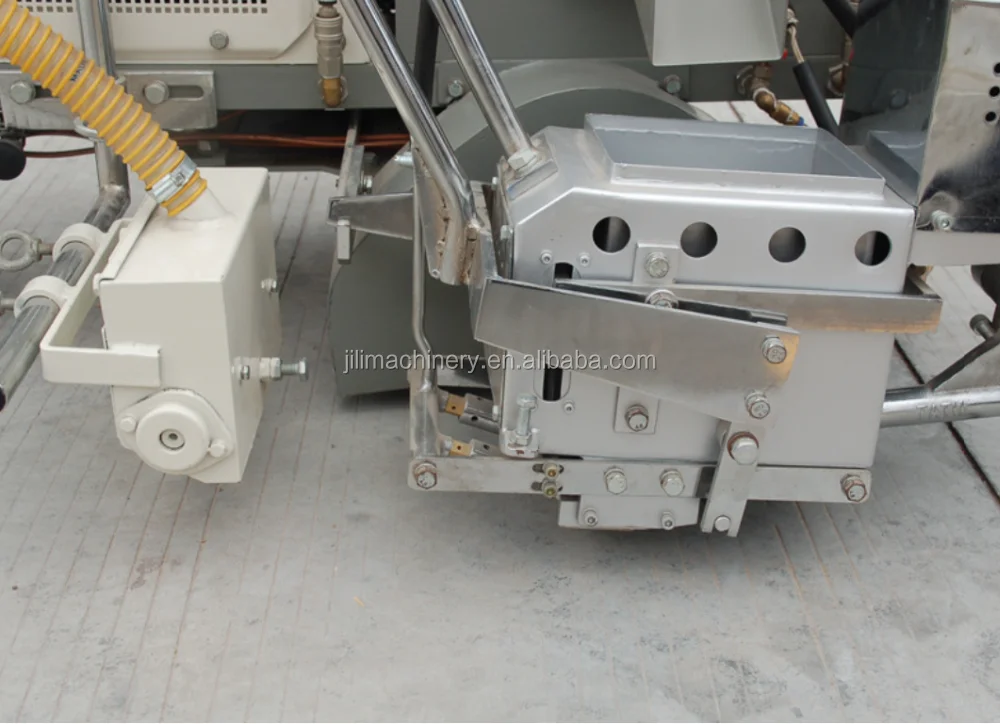

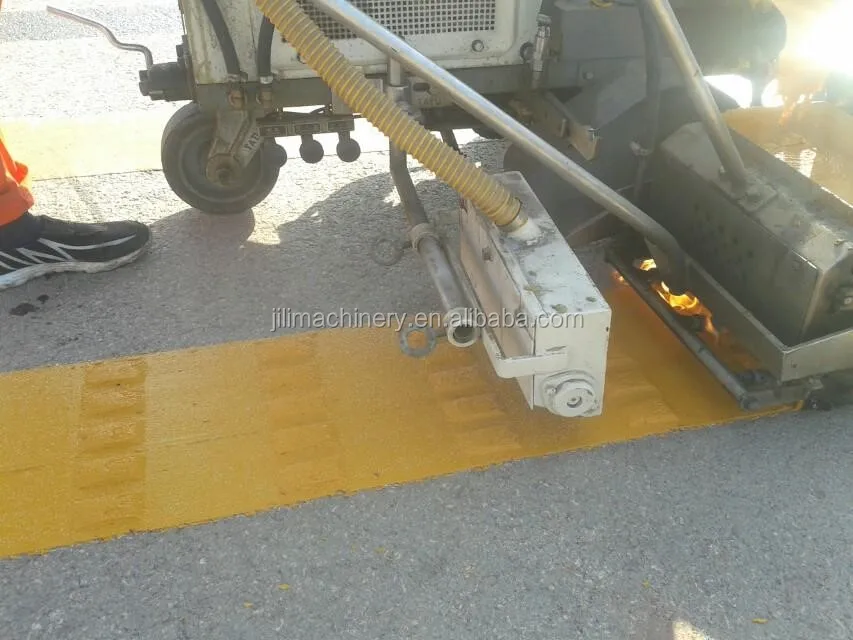

Name: Convex marking shoe

Size :100/150/200/250/300mm

Material:Structure board is made of imported special steel sheet ;the plinth is with special alloy steel; floor knife adopts hard tungsten steel knife head

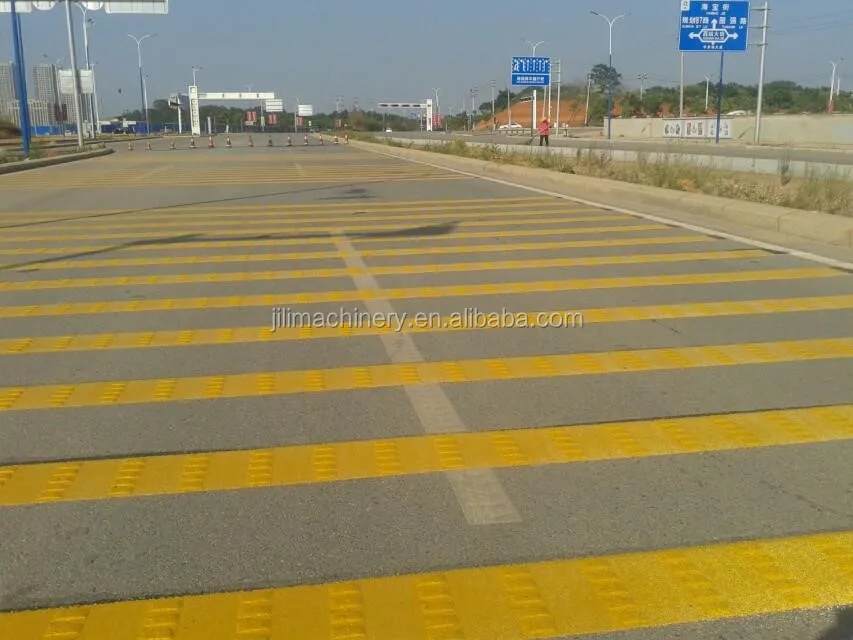

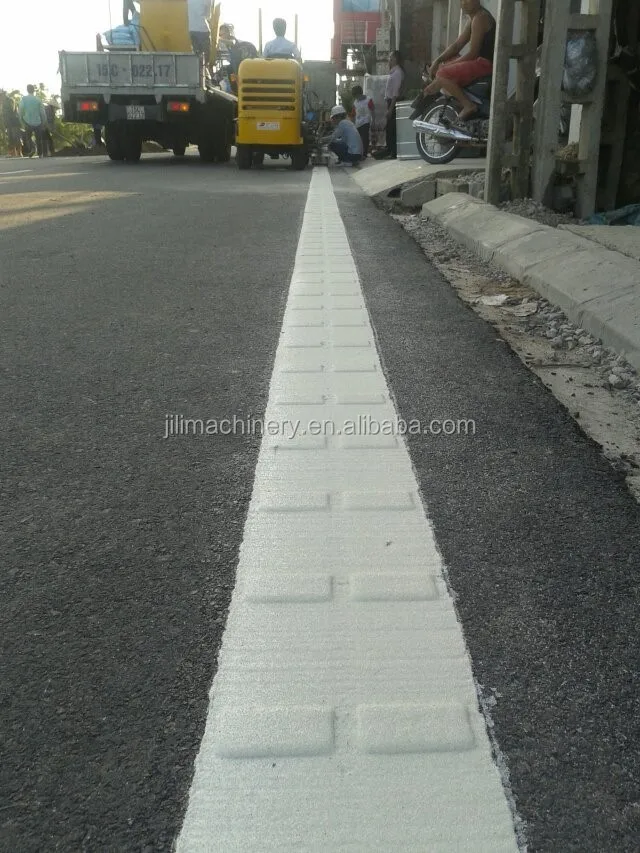

Application ( Convex line)

The marking line shape had more regular raised shape, evener and straight bottom line edge and perfect head .
The thickness of bottom line: 1.5-2.5mm
The convex height: 3-7mm

Machine Parts

Name: Screeding marking shoe
Size :100/150/200/250/300mm
Material: Marking shoe body is welded by imported high temperature, shock resistance  and strength steel sheet ;the plinth is made of imported  steel ; floor knife adopts hard tungsten steel knife head

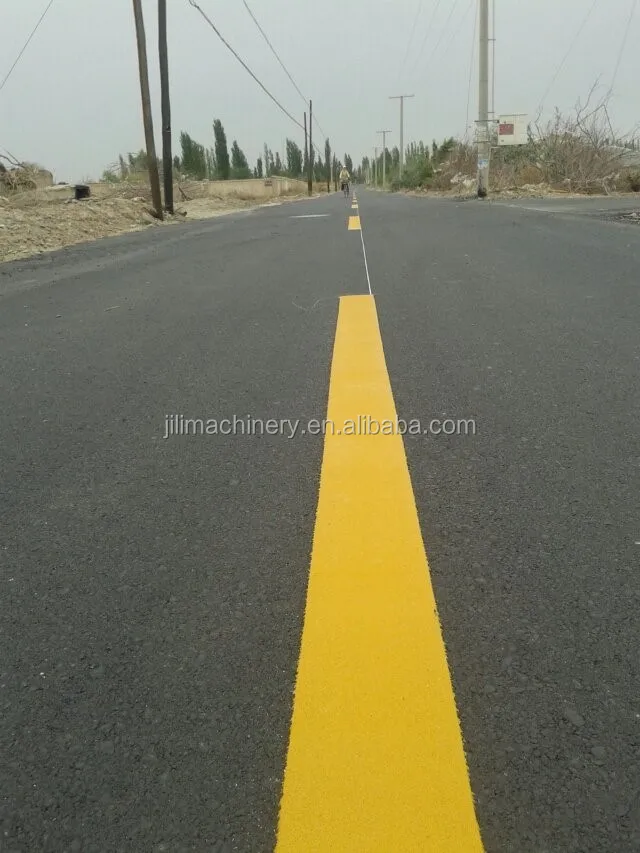

Application ( Flat line)

The marking line shape is straight and neat
The thickness of line: 1.5-2.5mm


Packing & Delivery
\t
JLSRG Hand push screeding marking machine
\t
Size
\t
1210 (L) * 890 (W) * 970 (D)
\t
Weight
\t
185kg
\t



Packaging Details
\t
Export wooden package
\t
JLSRZ Hand push convex marking machine
\t
Size
\t
1440 (L) * 1100 (W) * 1140 (D)
\t
Weight
\t
 270kg
\t



Packaging Details
\t

The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Thermoplast Products

Thermoplastic road marking relative equipment and material

1. Pre-heater
2. Thermoplastic road marking paint
3. Glass beads spraying on road surface

Pre heater for thermoplastic paint

Clink it the picture to relative production

Thermoplastic road marking paint

Clink the picture to relative production

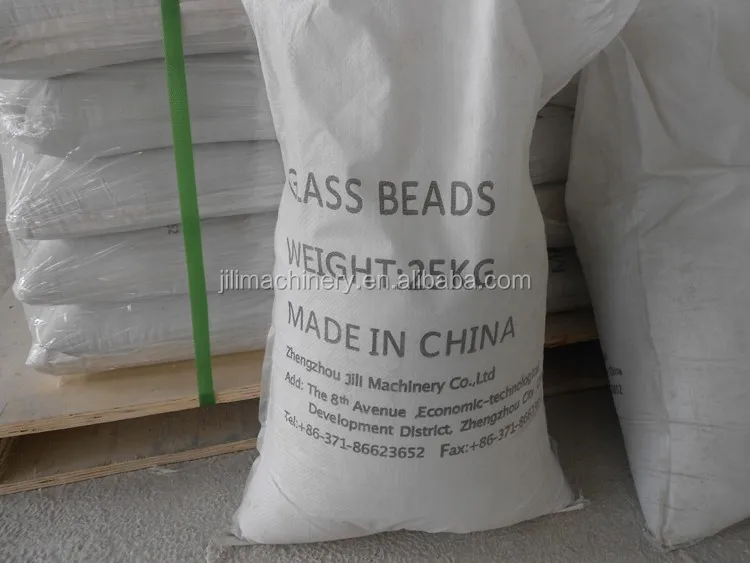

Glass beads spraying on surface

Clink the picture to relative production

Our Product

Road marking machine

1. Thermoplastic road marking machine.
2. Cold paint road marking machine.
3. Two component road marking machine
