Multipurpose horizontal feed mixer double screw belt organic fertilizer mixing equipment animal feed powder mixer machine
- Category: >>>
- Supplier: Henan Coban Technology Co. Ltd.
Share on (1601019015680):
Product Overview
Description
Product Description

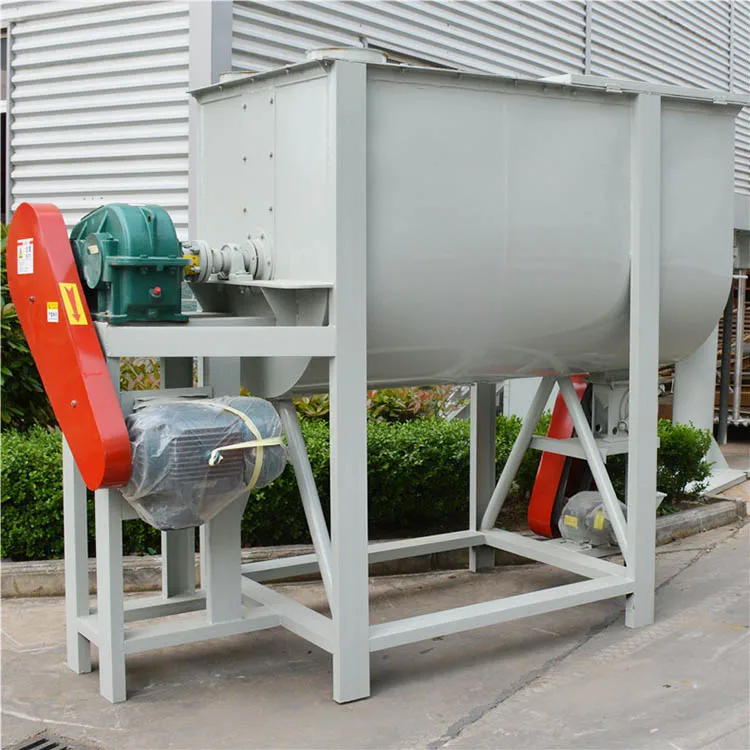

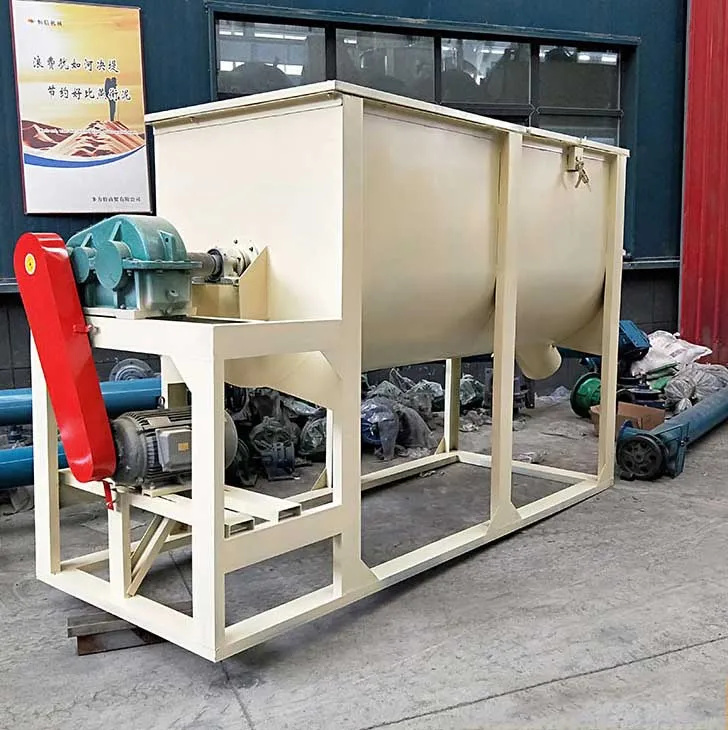

The horizontal Screw Mixer is a new type, high efficient mixing equipment, it is widely used for feed and chemical industry. It is used for mixing kinds of powder together, this model can mix powder evenly at a high efficient.
Characteristics
1. Horizontal tank body, need small space but more capacity.
2. Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides
to the center to make the material effective mixing.
3.Gear box drive the auger shaft , low noise and low malfunction, long using life
4.U-Shape tank bottom, better for material discharge and cleaning
5.Pneumatic cylinder to control the discharge exit.
6. Gas pressure spring help the top cover easy open
7.Control panel simple and easy operate .With timer to set the mixing time
8. High effective (we test before ,it can mix well one batch within 3-6 minutes)
9.It can be add the sprayer to mixer the liquid material.
Characteristics
1. Horizontal tank body, need small space but more capacity.
2. Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides
to the center to make the material effective mixing.
3.Gear box drive the auger shaft , low noise and low malfunction, long using life
4.U-Shape tank bottom, better for material discharge and cleaning
5.Pneumatic cylinder to control the discharge exit.
6. Gas pressure spring help the top cover easy open
7.Control panel simple and easy operate .With timer to set the mixing time
8. High effective (we test before ,it can mix well one batch within 3-6 minutes)
9.It can be add the sprayer to mixer the liquid material.
Advantage
1. This feed mixer machine is setting crushing and mixing equipment, After crushing feed automatic into mix step.
2. The raw material can be grain, corn, soybean, wheat, etc., and the special feed can be added into the machine to mix.
3. The feed mixer machine is suitable for the family use and small factories.
4. This feed mixer machine posses lower conception, less area of occupancy, easily to loading and discharging, but long mixing time.
5. The feed mixer machine generally used for small feed factory and complete feeding line.
2. The raw material can be grain, corn, soybean, wheat, etc., and the special feed can be added into the machine to mix.
3. The feed mixer machine is suitable for the family use and small factories.
4. This feed mixer machine posses lower conception, less area of occupancy, easily to loading and discharging, but long mixing time.
5. The feed mixer machine generally used for small feed factory and complete feeding line.
Function: Using feed pellets can help the poultry and livestock to grow better
and faster, and can reduce the cost.
and faster, and can reduce the cost.
Specification
Model | Crushing Power | Mixing uniformity | Capacity | Mixing time |
SLHY-0.125 | 1.5 KW | ≤7 | 50 kg/batch | 3-5 min |
SLHY-0.25 | 1.5 KW | ≤7 | 100 kg/batch | 3-5 min |
SLHY-0.4 | 1.5 KW | ≤7 | 150 kg/batch | 3-5 min |
SLHY-0.6 | 2.2 KW | ≤7 | 250 kg/batch | 3-5 min |
SLHY-1 | 7.5 KW | ≤7 | 500 kg/batch | 3-5 min |
SLHY-2.5 | 15 KW | ≤7 | 1000 kg/batch | 3-5 min |

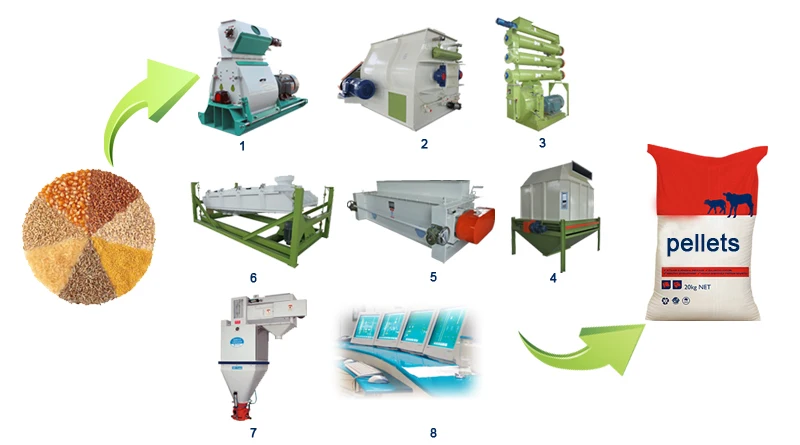

Optional Accessories
1. Hammer Mill
Widened grinding surface, fully optimized hammer arrangement, wonderful performance for micro grinding.
Forward and reverse work of rotor, the longer service life of the hammer.
Forward and reverse work of rotor, the longer service life of the hammer.
High-precision dynamic balance detecting rotor, little vibration, low noise.
2. Feed mixer
Check by the State General Administration of quality supervision inspection, mixing evenness maximum 97.7%(the C.V.2.3%), normal residue ≤0.1%, tons of power consumption is only 0.3kw.h/h.
The filling coefficient variable scope is 0.4~1, widely used in many industries in the different proportions, size,s and other materials mixed.
4. Pellet Machine
It can make pellet size from 1.5mm-8.0mm.
High efficiency reach 98%-99%,Long lifetime,working stable,high reliability.
Other customized accessories
5. Counterflow type cooler.
This cooling machine is used to cooled down the pellets to the room temperature, which make them easy to store.
This cooling machine is used to cooled down the pellets to the room temperature, which make them easy to store.
6. Reciprocating screen.
This is a vibrating screen. It has three outlets. Filter out small and large feed pellets, and heavy pellets separately.
This is a vibrating screen. It has three outlets. Filter out small and large feed pellets, and heavy pellets separately.
7. Pulse dust collector.
Used to collect the dust and the materials.
Used to collect the dust and the materials.
Bucket elevator.
This machine is used to deliver materials to the next system.
This machine is used to deliver materials to the next system.
Feed packing machine.
Weighing range: 10-70kg/bag
Packing speed：3-10bag/min
Suit for: pellet, powder
Weighing range: 10-70kg/bag
Packing speed：3-10bag/min
Suit for: pellet, powder
Grain ingredient bins.
Capacity: 10m3
Applicable to the raw material ratio before granulation
Capacity: 10m3
Applicable to the raw material ratio before granulation

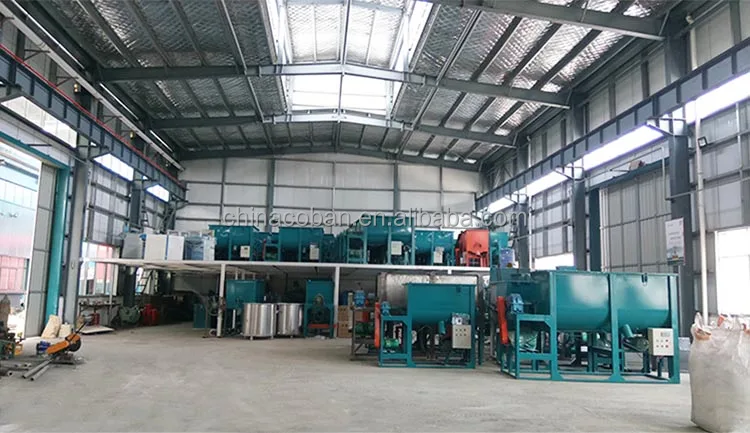

Company Profile
Henan Coban Machinery Co., Ltd is a leading provider of agriculture equipment in China, which is an enterprise integrating scientific research, development, design, production, and sales. We specialize in manufacturing Picker, Thresher, Sheller, Grain crusher, Rice miller, Harvester, Reaper binder, Chaff cutter, Silage baler, Feed pellet machine, Cultivator, Seeder, Transplanter, etc. Our products have always been very popular in Africa, South East Asia, and the North American market and have won wide praise from customers.
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 23 years of experience in this industry.
2. Q: How long is your warranty time?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
3. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
4. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Benin, Kenya, Uganda, Rwanda,Vietnam, the Philippines, Indonesia, Thailand, etc.
A: We are a manufacturer, which has almost 23 years of experience in this industry.
2. Q: How long is your warranty time?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
3. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
4. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Benin, Kenya, Uganda, Rwanda,Vietnam, the Philippines, Indonesia, Thailand, etc.
