Co2 laser cutting machine with 150W 200W 300W Laser tube for non metal material cutting

Product Overview

Description

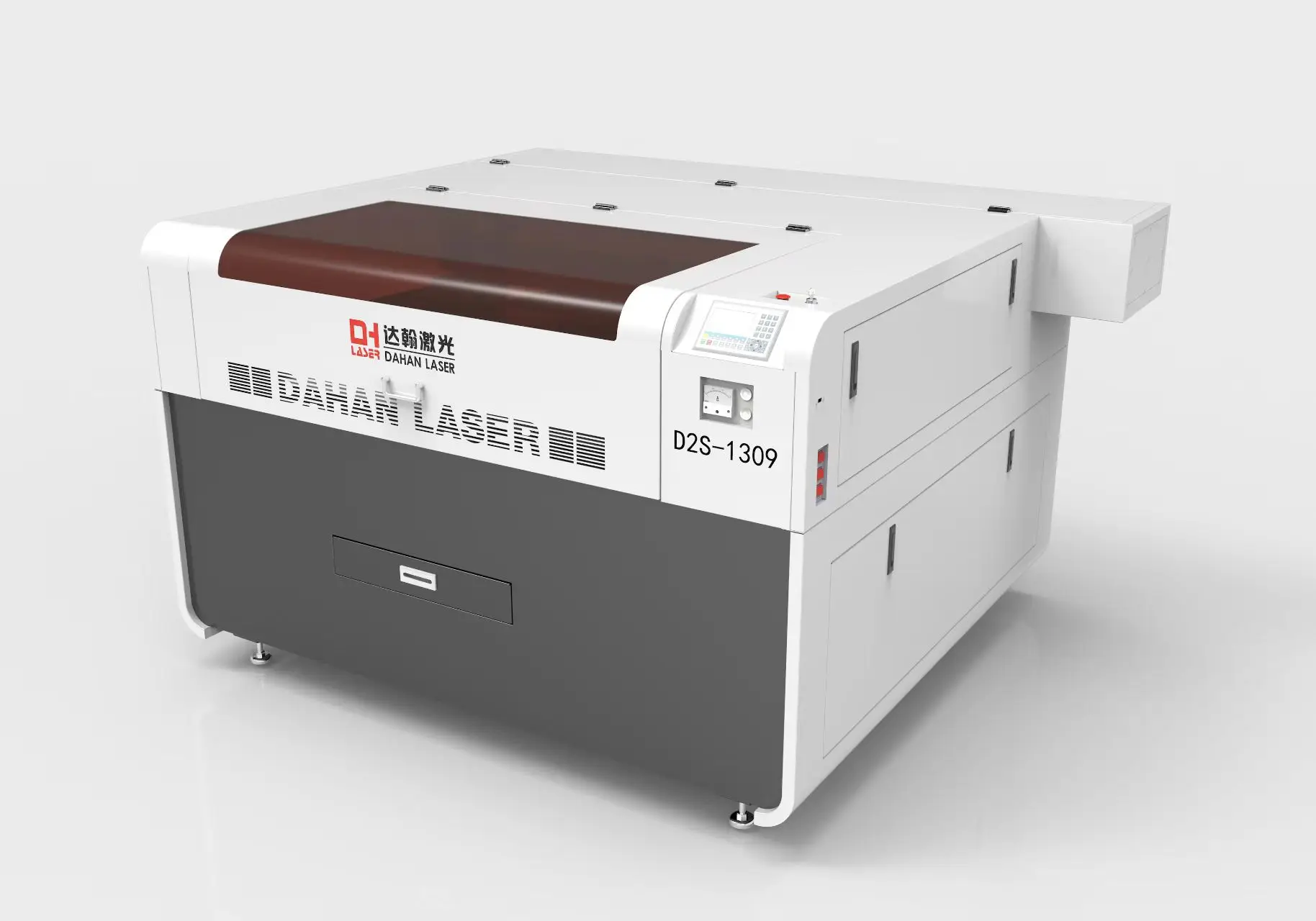

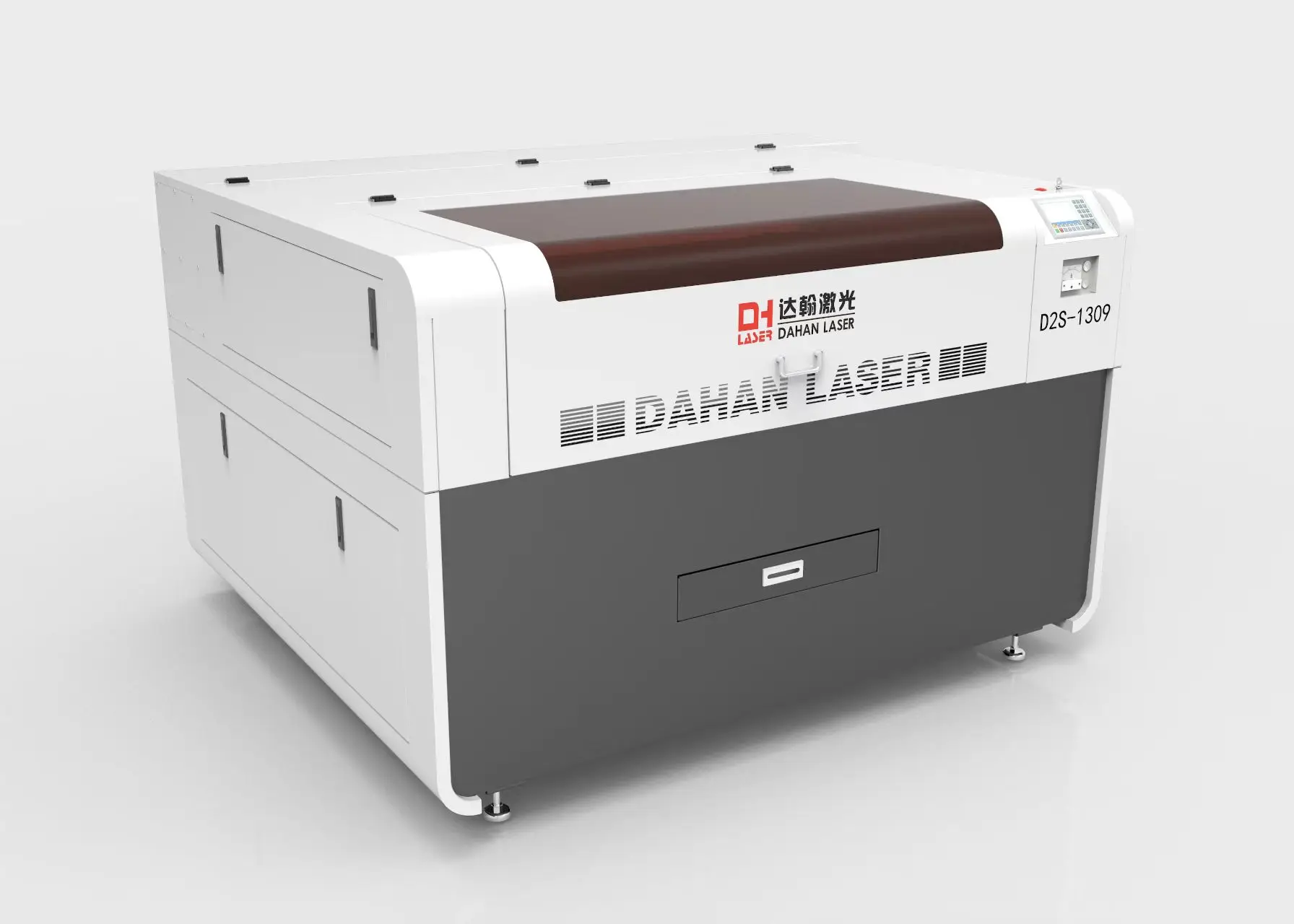

D2S Hig precision laser cutting machine D2S-1309



Description

Widely used in the processing of high precision high polished organic material/acrylic cutting, display panel, display cabinet, showcase, lighting industry, wooden product, architectural model, handicrafts, decoration industry, sign advertising words making, LED lighting box industry, aerospace industry, machinery, ship, elevator industry, etc.

Suitable for cutting organic materials/acrylic, plywood, MDF, fabric, leather, paper, etc.











Features

v Exquisite small machine, high configuration, high precision, super stability;

v Japanese Mitsubishi servo motors, drivers; Best precision!

v High accuracy Taiwan ball screw transmission &Taiwan PMI Linear guide promote smooth & precise laser movement

v The best Chinese CO2 laser tube 150W, expected life: 10000 hours; Stable, long-time using;

v Laser software : directly output from CorelDraw or AutoCAD. Works with most graphic programs.

v Front & back can be opened. Materials can go through.

v All mirrors and focal lenses are from America. Proven 10% beam transmission improvement vs. other cheap optics.

v Powerful exhaust fan with venting for removing fumes and smoke

v Air blower powers laser head air-assist to keep laser area clean and cool

v Standard equips CW5200 water chiller keeps water flowing thru CO2 Tube at ambient temperature.

v Exhaust fan to keep laser clean and cool (Included in price!)

v Knife Blade platform for cutting and engraving

v Drawer in machine conveniently collects finished product

v Taiwan PMI Linear guides promotes smooth & precise laser movement

v Windows  8, 7 (64 or 32 bit), XP, 2000 compatible

v Industrial machined components in stock for long term reliability

v 24 HOURS PHONE or REMOTE PC ACCESS TECH SUPPORT

v One (1) Full Year Warranty on laser machine and parts, wearing parts or consumption like mirrors, lens, belts are not included.



Main parameter

ITEM NO.	D2S-1309
Max. Working size	130*90 CM
Machine dimensions	182*162*118 CM
Laser tube	150W
Traveling speed	500mm/s
Working speed	500mm/s
Positioning accuracy	0.01mm
Cutting thickness	Acrylic ≤30mm, MDF≤9mm; plywood≤15mm
Control system	DAHAN Color control panel
Mirrors and lens	American quality; mirrorφ=30mm, focus lensφ=20mm.
X,Y Transmission	Taiwan Ball Screw transmission
Motors and drivers	Japanese Mitsubishi servo
Guide	Taiwan Linear guide
Cooling system	Industrical water chiller CW5200
Electricity	AC220V,50Hz, ±5%
Files format	*.dxf, *.ai, many many .
Gross consumption	800 W
Net weight	360KG
Gross weight	500KG
Packing size	190*170*140 CM

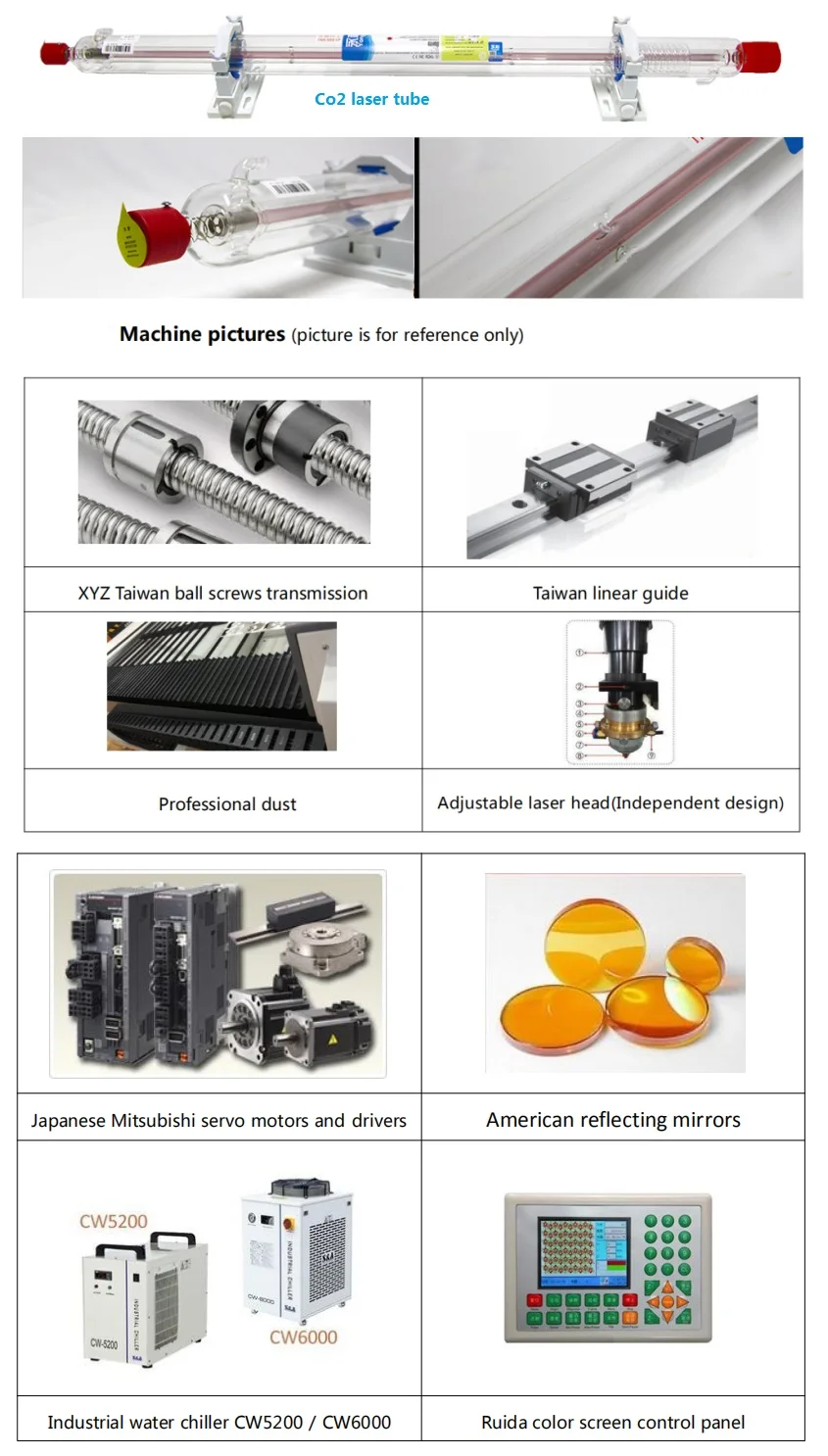

Detailed configuration

Samples show

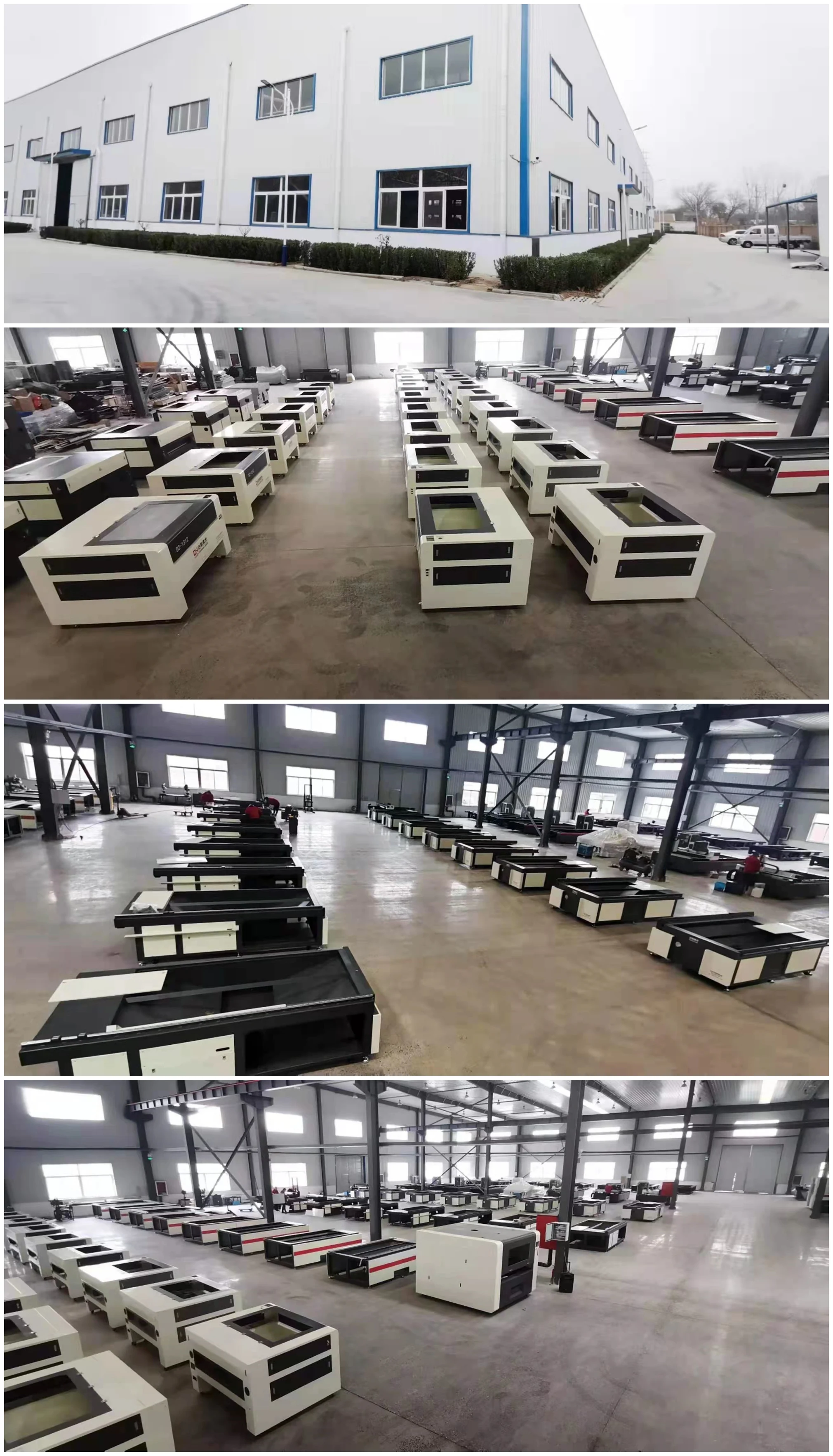

Factory show







Certifications



Package and shipping



FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EX Factory
Q3. How about your delivery time?
A: Generally, it will take 30 days after receiving your deposit. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
