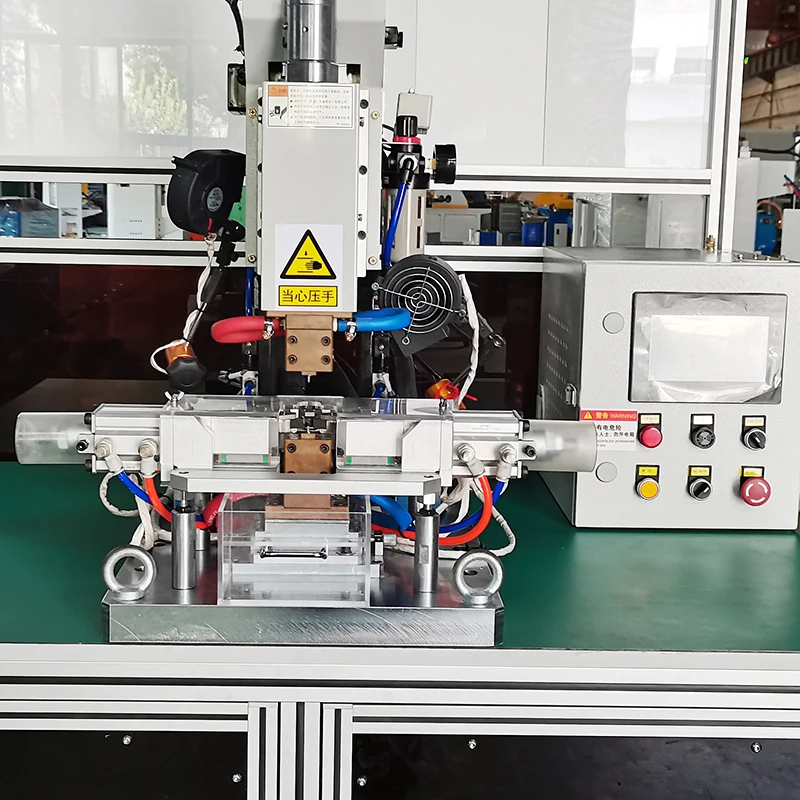

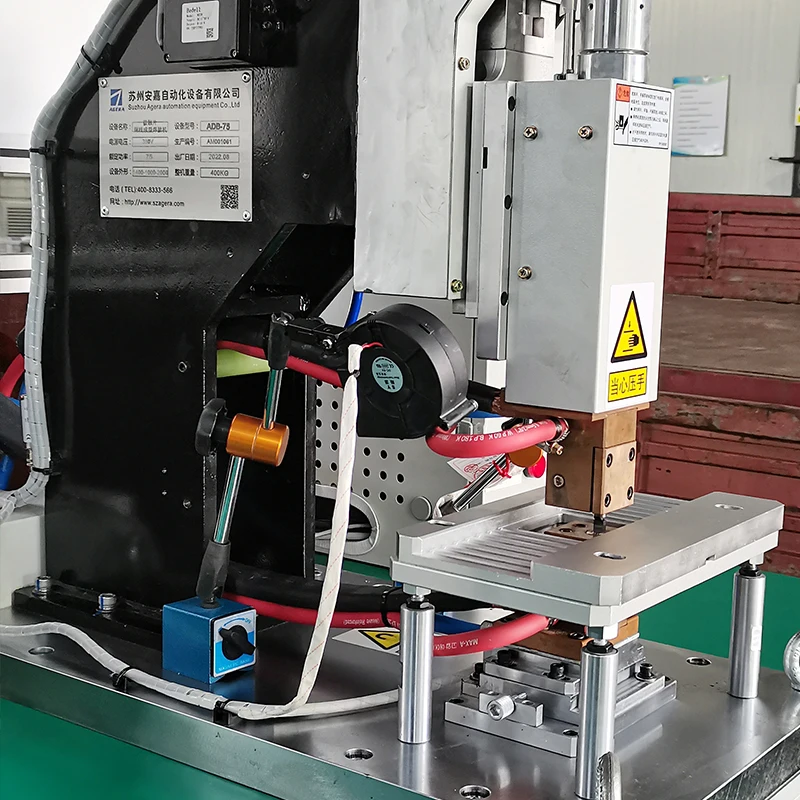

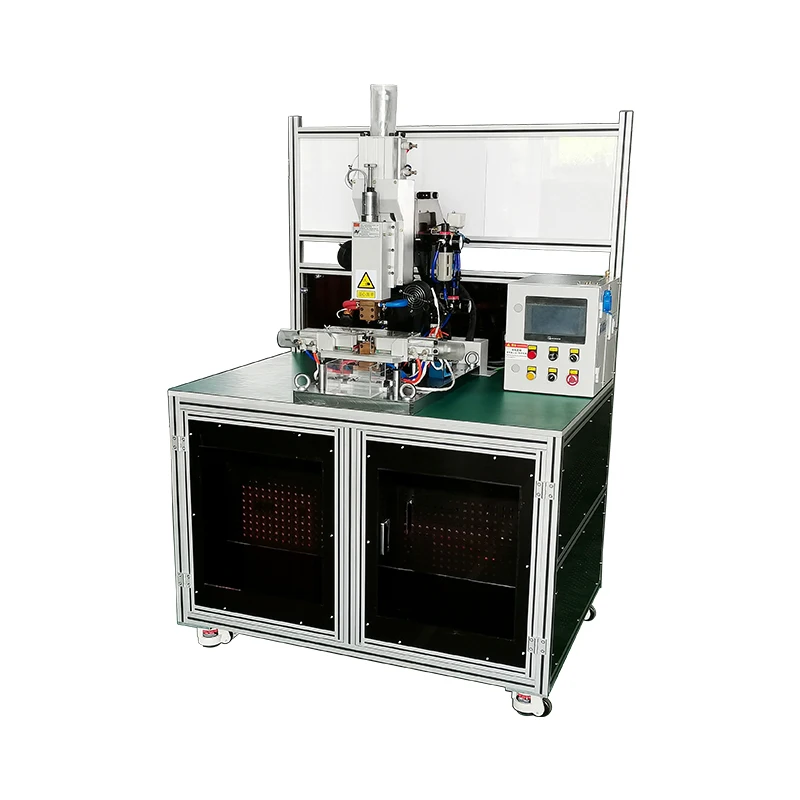

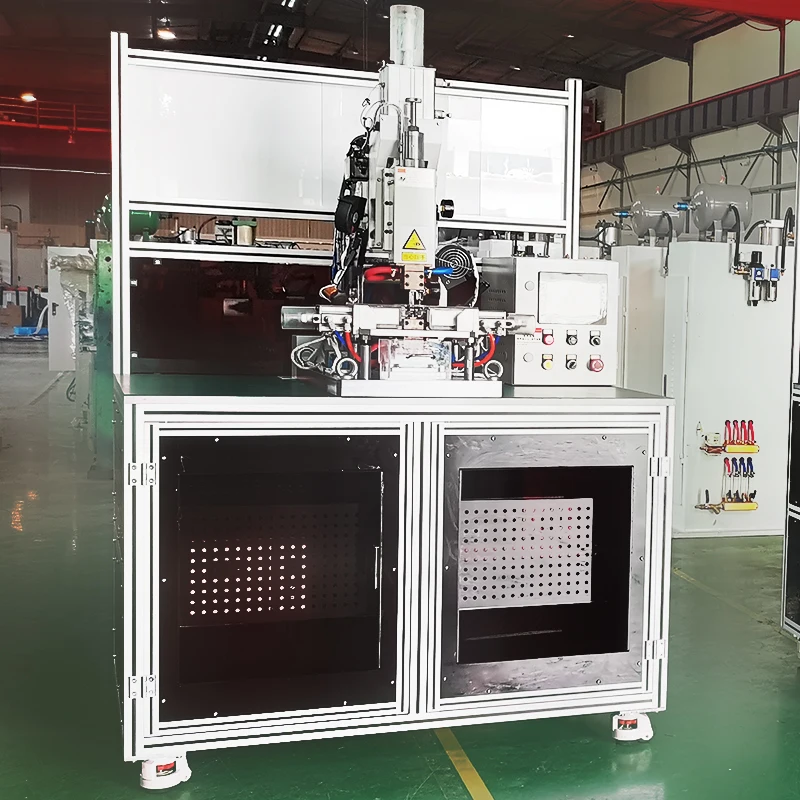

Copper braided wire contact piece dc inverter resistance spot welder welding machine
- Category: >>>
- Supplier: Suzhou Agera Automation Equipment Co. Ltd.
Share on (1601019098235):
Product Overview
Description

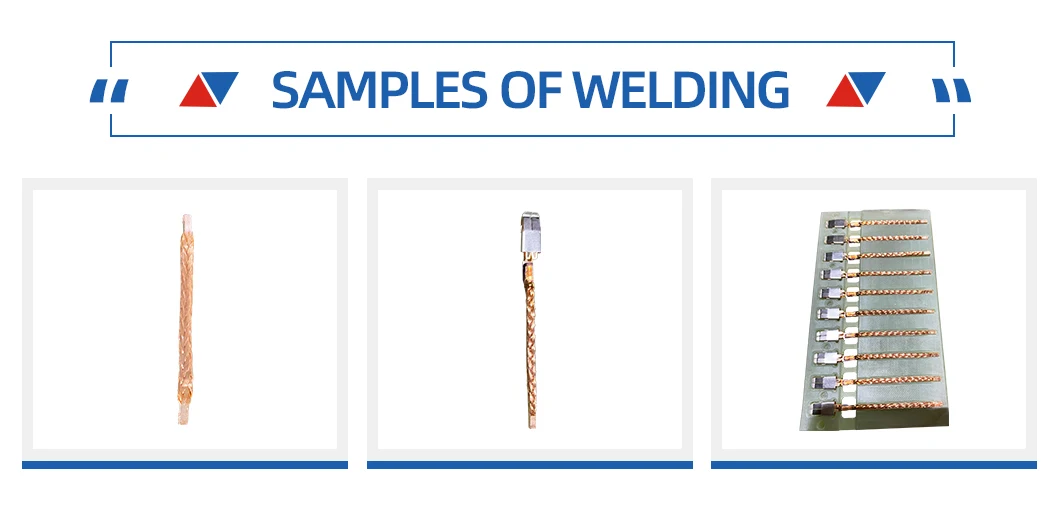

copper braided wire contact piece welding special machine welding advantages
1. Suppress the spatter effect: Use effective welding parameters and continuous straight output current to suppress welding spatter, ensure the stability of the welding process, and obtain high-quality welding results.
2. Low pulsation DC output: The DC current output by the equipment has extremely small pulsations and is not affected by inductive loads. It can flow large currents and improve the stability of welding.
3. Intelligent control: It adopts digital signal processor (DSP), has rich I/O interfaces, supports welding current monitoring
and alarm, has the ability to quickly diagnose and alarm abnormal conditions, and adapts to high-speed and automated welding needs.
4. High-quality structural design: The frame adopts an integrated structure with a table top, which is processed by laser
cutting, CNC bending, welding, grinding and baking of high-quality steel plates to ensure the rigidity and precision
requirements required when welding workpieces. The welding transformer is made of high-magnetic amorphous steel sheets and epoxy casting. The secondary winding is rectified by high-power rectifier diodes and cooled by water cooling, which prolongs the service life of the transformer.
5. Humanized design: Touch screen high-precision controller, easy to operate. The foot pedal start method is convenient and quick, improving the convenience of operation.
6. Comprehensive environmental adaptability: The equipment can adapt to various environmental conditions, including temperature, humidity, power wire diameter, air source pressure, etc., and has wide applicability.

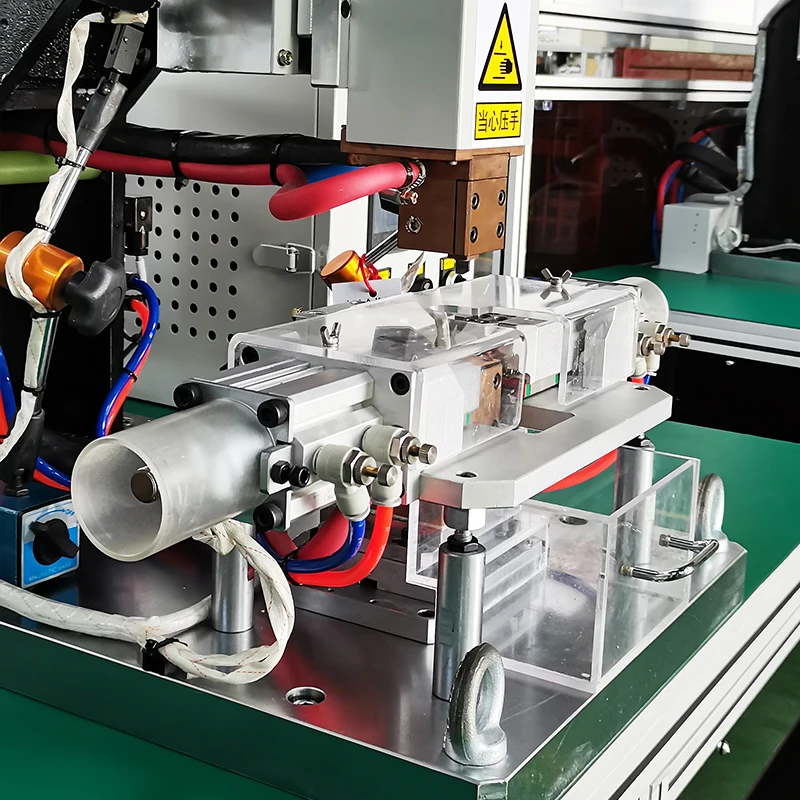

7. Customized tooling fixtures: Provide fixture design services, design welding tooling fixtures based on product drawings
provided by customers, and meet customer post-weld dimensional requirements.
8. Strong after-sales service: Provide remote debugging and training services, product warranty period is one year, and provide lifelong technical support to help establish a complete production process.
2. Low pulsation DC output: The DC current output by the equipment has extremely small pulsations and is not affected by inductive loads. It can flow large currents and improve the stability of welding.
3. Intelligent control: It adopts digital signal processor (DSP), has rich I/O interfaces, supports welding current monitoring
and alarm, has the ability to quickly diagnose and alarm abnormal conditions, and adapts to high-speed and automated welding needs.
4. High-quality structural design: The frame adopts an integrated structure with a table top, which is processed by laser
cutting, CNC bending, welding, grinding and baking of high-quality steel plates to ensure the rigidity and precision
requirements required when welding workpieces. The welding transformer is made of high-magnetic amorphous steel sheets and epoxy casting. The secondary winding is rectified by high-power rectifier diodes and cooled by water cooling, which prolongs the service life of the transformer.
5. Humanized design: Touch screen high-precision controller, easy to operate. The foot pedal start method is convenient and quick, improving the convenience of operation.
6. Comprehensive environmental adaptability: The equipment can adapt to various environmental conditions, including temperature, humidity, power wire diameter, air source pressure, etc., and has wide applicability.
7. Customized tooling fixtures: Provide fixture design services, design welding tooling fixtures based on product drawings
provided by customers, and meet customer post-weld dimensional requirements.
8. Strong after-sales service: Provide remote debugging and training services, product warranty period is one year, and provide lifelong technical support to help establish a complete production process.
Model | Power Supply ø/V/HZ | Primary Cable mm² | Max Primary Current(KA) | Rated Duty Cycle （%） | Welding Cylinder Size（Ø*L） | Max Working Pressure（0.5MP） N | Compressed Air Consumption （Mpa） | Cooling Water Consumption （L/Min） | Compressed Air Consumption （L/次） |
ADB-5 | 1/220V/50Hz | 2×10 | 2 | 5 | Ø25*30 | 240 | 0.6-0.7 | - | 1.23 |
ADB-10 | 2×10 | 4 | 5 | Ø32*30 | 400 | - | 1.43 | ||
ADB-75T | 3/380V/50Hz | 3×16 | 18 | 20 | Ø50*40 | 980 | 6 | 1.43 | |
ADB-100T | 3×16 | 28 | 20 | Ø80*50 | 2500 | 6 | 2.0 | ||
ADB-100 | 3×16 | 28 | 20 | Ø100*60 | 3900 | 8 | 2.28 | ||
ADB-130 | 3×16 | 37 | 20 | Ø125*100 | 6000 | 12 | 5.84 | ||
ADB-130Z | 3×16 | 37 | 20 | Ø160*100 | 10000 | 12 | 5.84 | ||
ADB-180 | 3×25 | 48 | 20 | Ø160*100 | 10000 | 12 | 5.84 | ||
ADB-260 | 3×25 | 60 | 20 | Ø160*100 | 10000 | 12 | 5.84 | ||
ADB-360 | 3×35 | 70 | 20 | Ø200*100 | 15000 | 15 | 9.24 | ||
ADB-460 | 3×50 | 80 | 20 | Ø250*150 | 24000 | 20 | 9.24 | ||
ADB-690 | 3×75 | 100 | 20 | Ø250*150*2 | 47000 | 24 | 26 | ||
ADB-920 | 3×90 | 120 | 20 | Ø250*150*2 | 47000 | 30 | 26 |
Suzhou Agera Automation Equipment Co., Ltd. is a professional research and development enterprise of resistance welding and automation equipment, “Professional, refinement, specialization and novelty” company, private technology enterprise in Jiangsu Province. The company has passed ISO9001 quality management system certification and CE certification. With an excellent R&D, production and sales service team, more than 20 years of welding technology precipitation, more than 50 inventions and utility model patents, 3000+ customer experience in service, 30000+ welding workpiece cases.
The company's main products are intermediate frequency inverter spot welding machine, heavy duty intermediate frequency ring convex welding machine, capacitor discharge spot welding machine, integrated suspension spot welding machine, flash butt welding machine, resistance butt welding machine, automatic butt welding slag scraper Machines, and various customized automatic spot welding machines, automatic projection welding machines, robot projection welding, spot welding workstations, fully automatic welding production lines, automatic testing equipment, etc. It is widely used in automobile manufacturing, electronic and electrical appliances, household appliances,
hardware tools, machinery manufacturing and other industries, and has provided equipment and services for many well-known enterprises at home and abroad.
hardware tools, machinery manufacturing and other industries, and has provided equipment and services for many well-known enterprises at home and abroad.
Agera pays attention to product research & development, service, constantly absorbs and supply trains to improve the company's
technical and management capabilities. Supply complete sets of equipment and process solutions, and can provide clients with the customization of automatic welding equipment. We strive to create value for customers and contribute to the development of industrial automation! Welcome to visit and inspect the factory.
technical and management capabilities. Supply complete sets of equipment and process solutions, and can provide clients with the customization of automatic welding equipment. We strive to create value for customers and contribute to the development of industrial automation! Welcome to visit and inspect the factory.
Q：Do your factory sale directly?
A: Yes, it is. Our factory sale directly, competitive price with high quality.
Q: Can you export machines by your factory.
A：Yes, we can
Q:Where are your factory?
A: Xiangcheng District, Suzhou City, Jiangsu Province, China
Q:What do we need to do if the machine fails.
A：In the guarantee time(1 year), we will send the spare parts to you for free. And provide the technical consultant for any time.
Q：Can I make my own design and logo on the product?
A: Yes, we do OEM.Welcome global partners.
A: Yes, it is. Our factory sale directly, competitive price with high quality.
Q: Can you export machines by your factory.
A：Yes, we can
Q:Where are your factory?
A: Xiangcheng District, Suzhou City, Jiangsu Province, China
Q:What do we need to do if the machine fails.
A：In the guarantee time(1 year), we will send the spare parts to you for free. And provide the technical consultant for any time.
Q：Can I make my own design and logo on the product?
A: Yes, we do OEM.Welcome global partners.
