HZS25 ZHS35 HZS50 HZS75 concrete beton batching plant with big bag breaker
- Category: >>>
- Supplier: Henan Shengmao Machinery Co. Ltd.
Share on (1601019160299):
Product Overview
Description
Product Description

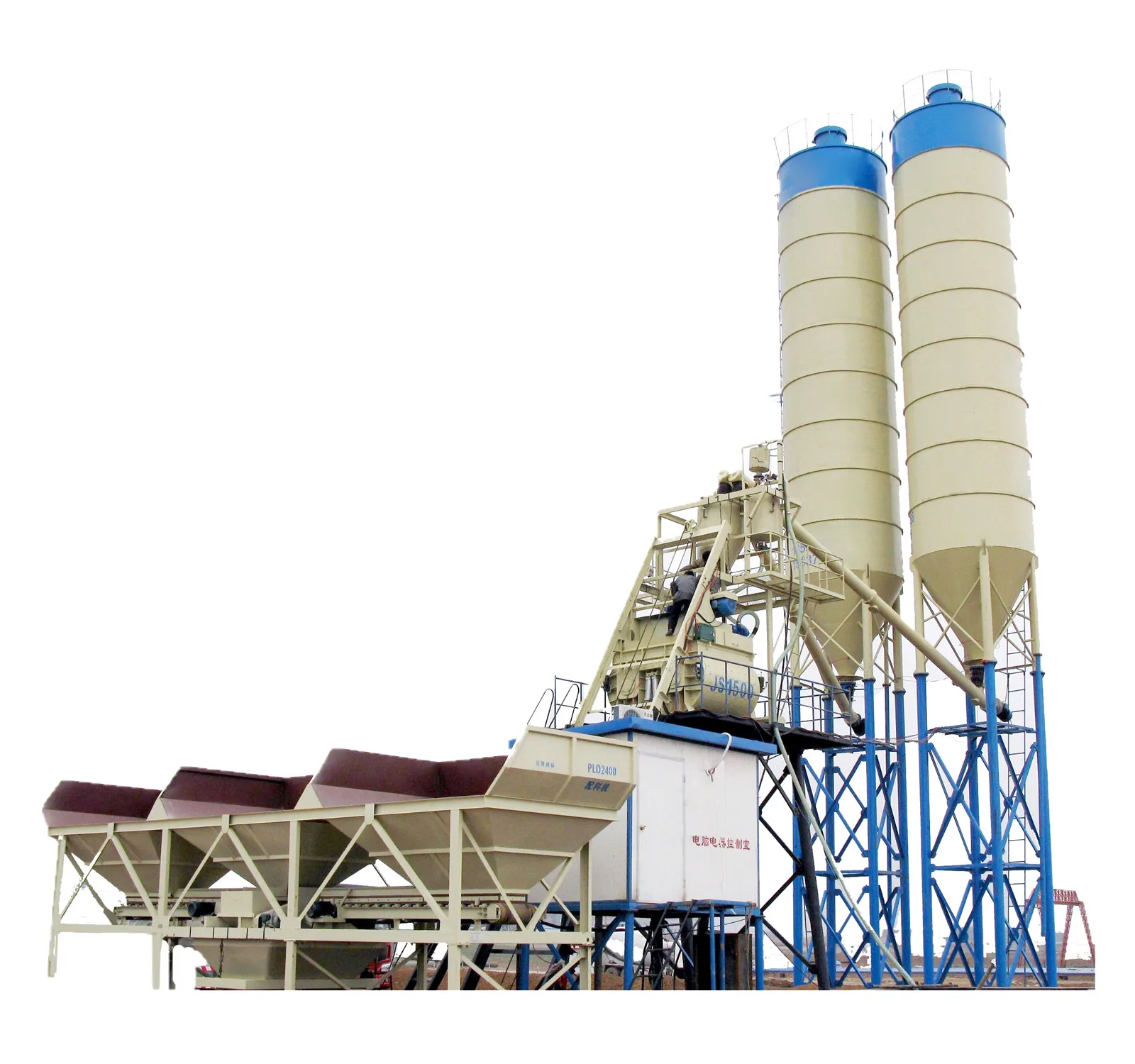

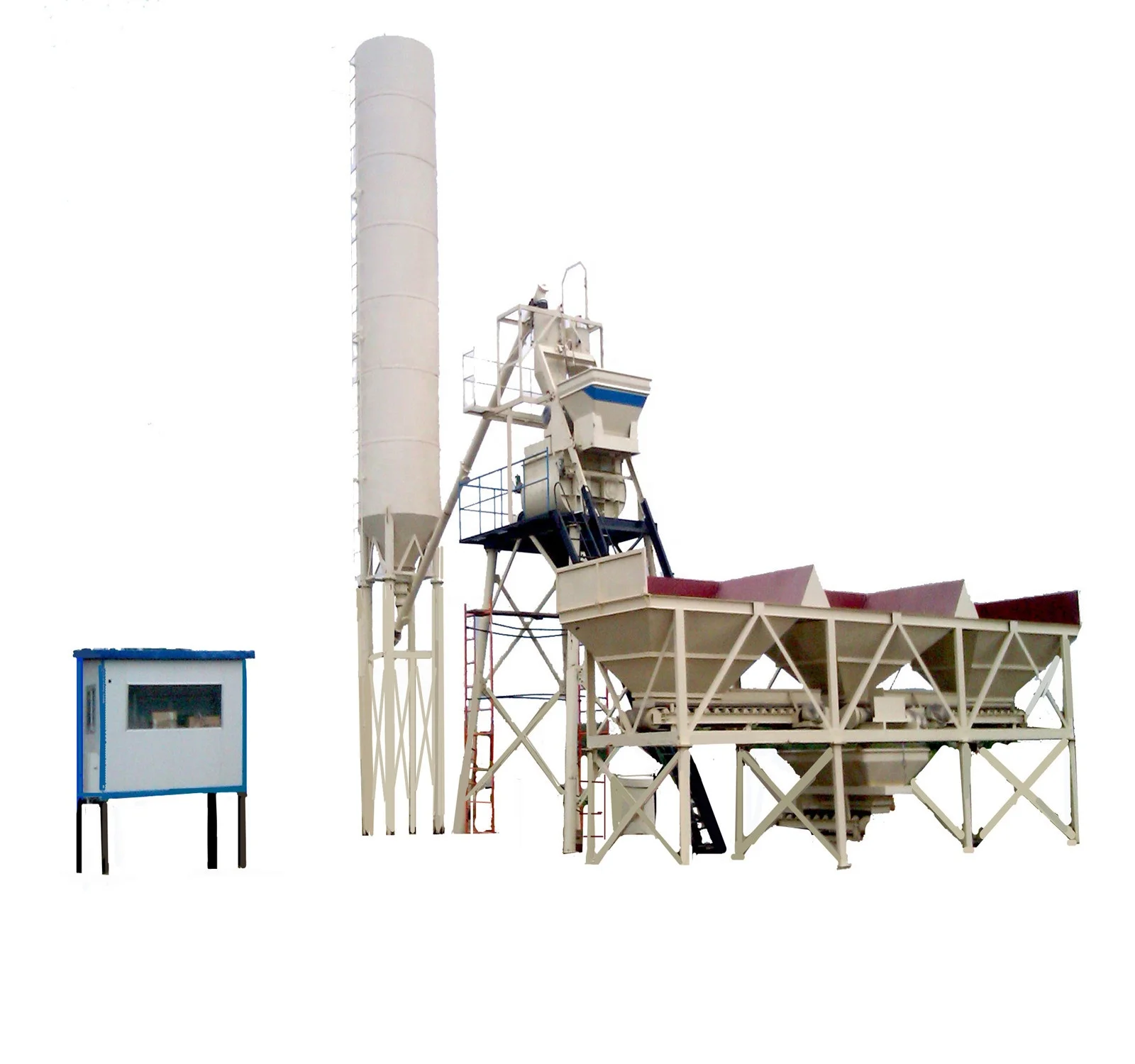

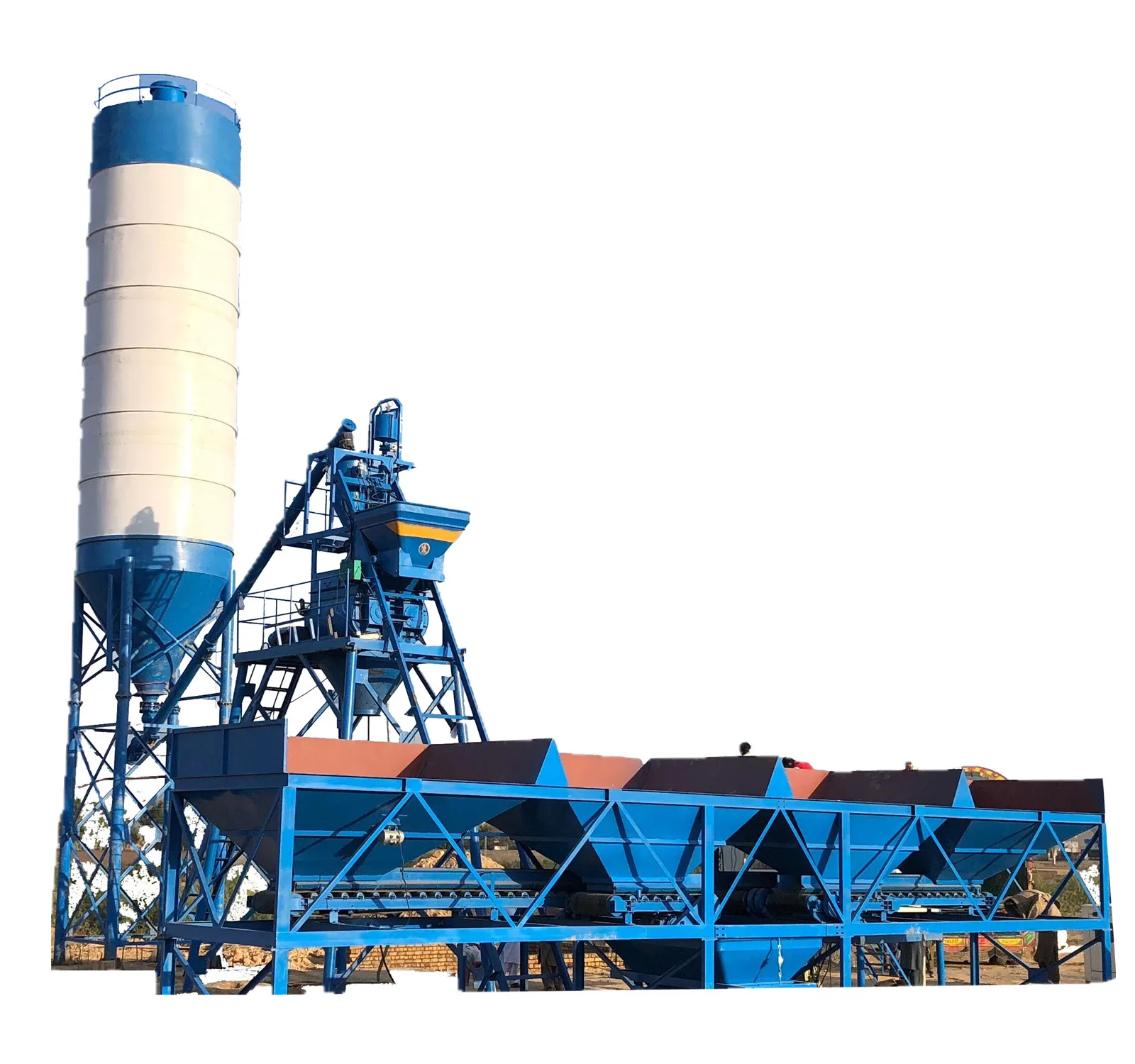

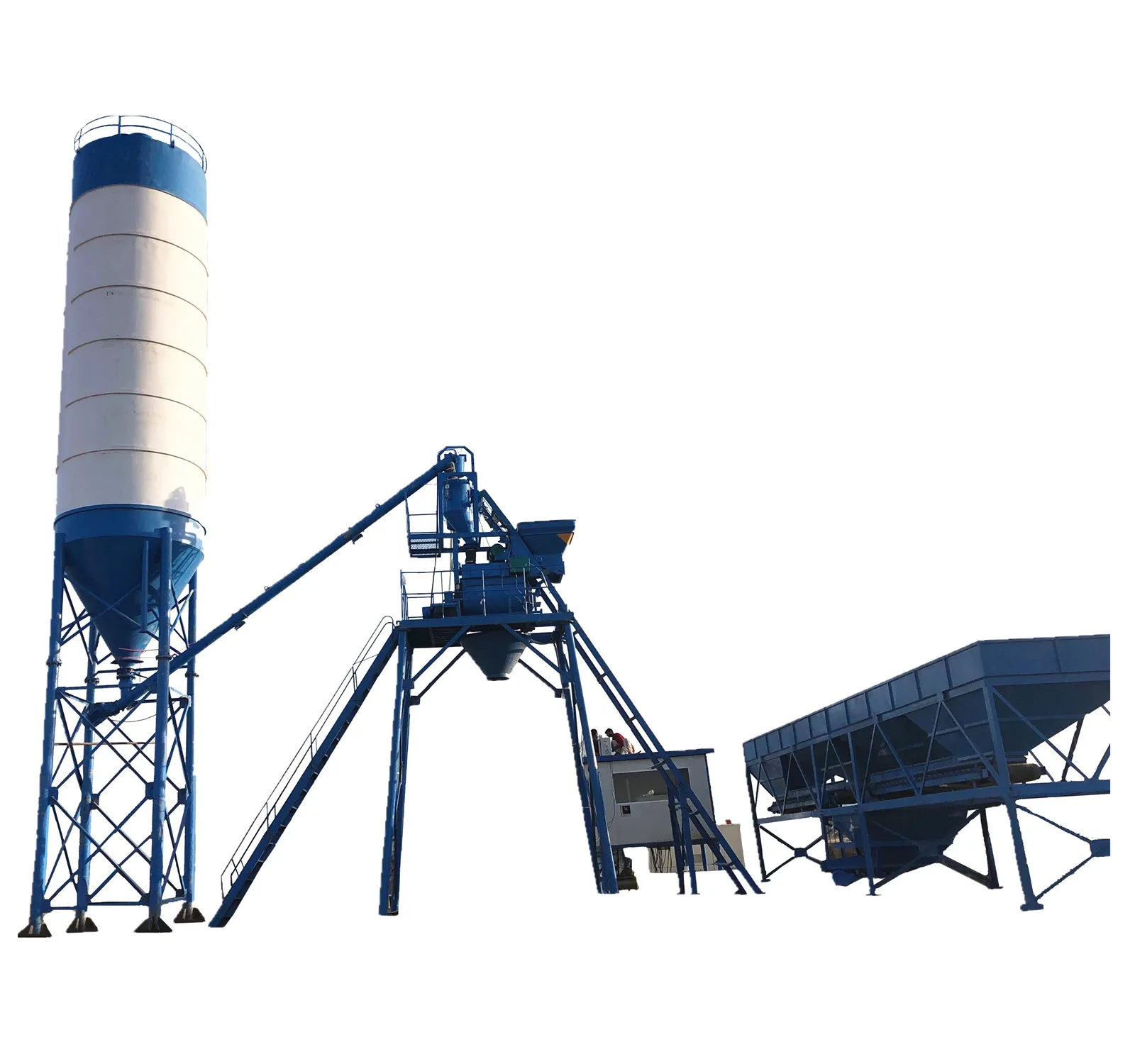

HZS Concrete Batching Plant
The HZS series concrete batching plant is composed of aggregate batching system, aggregate convey system, batching system, mixing system, electrical control system, water supply system, air supply system, additive supply system, cement conveyer belt and cement silo. It suits to building site and merchandise concrete produce.
Model | HZS25 | HZS35 | HZS50 | HZS75 |
Production Capacity (m3/h) | 25 | 35 | 50 | 75 |
Concrete Mxier | JS500 | JS750 | JS1000 | JS1500 |
Aggregate Feeding Mode | Skip Hoist | Skip Hoist | Skip Hoist | Skip Hoist |
Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 |
Max. Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 |
Discharging Height (m) | 3.8 | 3.8 | 4.1 | 4.1 |
Aggregate Weighing Accuracy(%) | ±2 | ±2 | ±2 | ±2 |
Cement Weighing Accuracy(%) | ±1 | ±1 | ±1 | ±1 |
Water&Additive Weighing Accuracy(%) | ±1 | ±1 | ±1 | ±1 |
Total Weight(T) | 10 | 13.5 | 18.5 | 25 |
Total Power (kw) | 65 | 75 | 100 | 110 |
Control System | Panel | Computer | Computer | Computer |
Detailed Picture and Specification

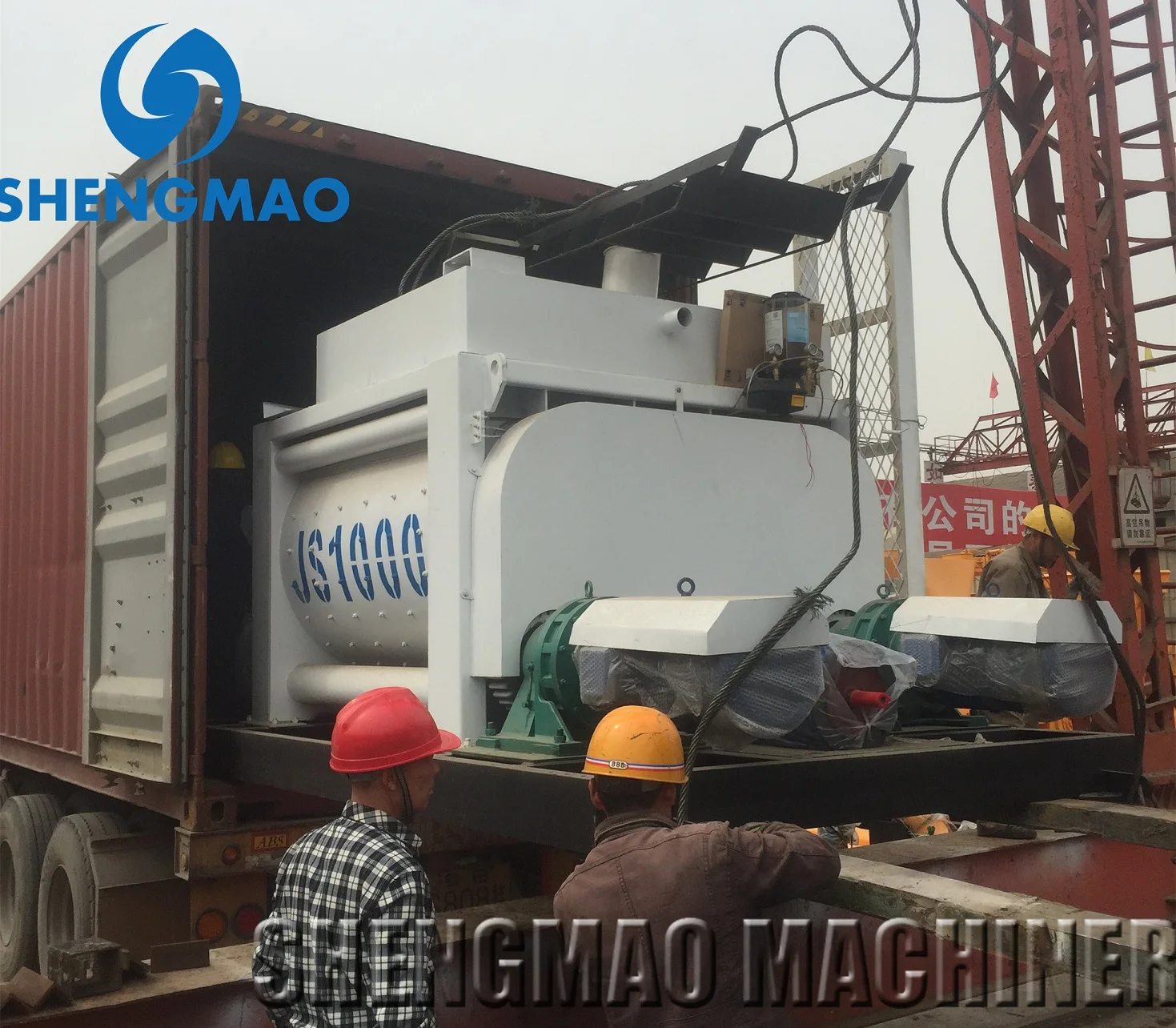

JS Twin Shaft Concrete Mixer
1. Mixer Model: JS750 Concrete Mixer;
2. Charging Volume: 750L;
3. Discharging Volume: 1200L ;
4. Productivity: 35m3/h;
5. Mixing Power: 30kw;
6. Mixing Speed: 30.5r/min;
7. Working Circle: 60s;
8. Discharging Height: 3.8m;

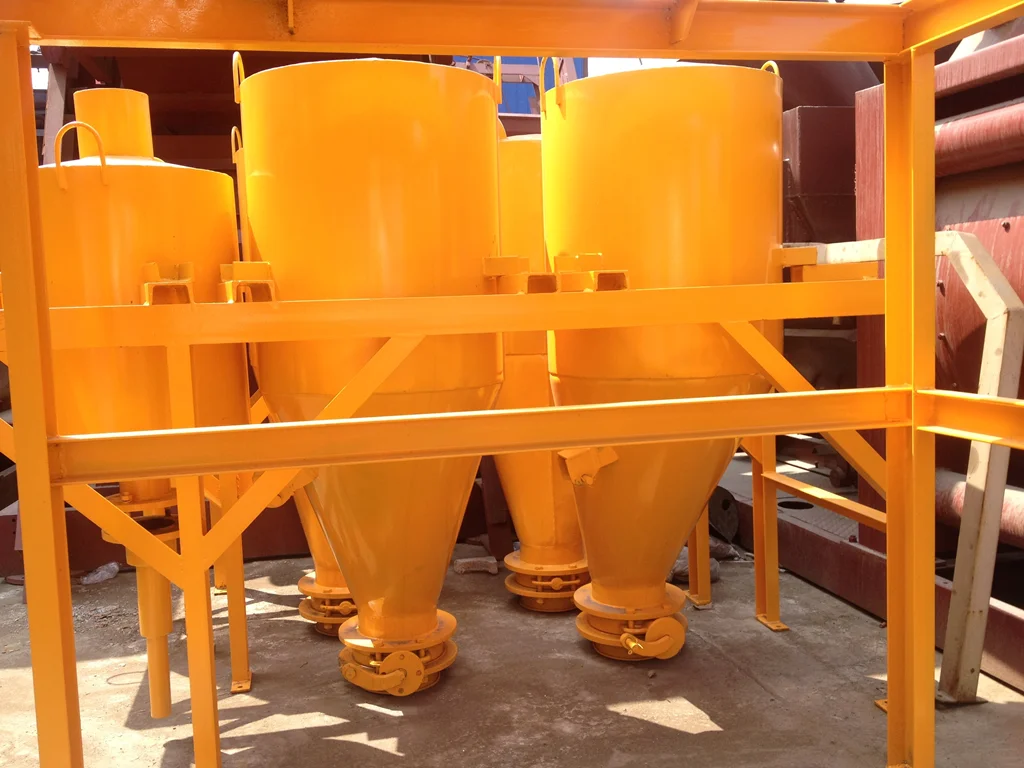

Water, cement and additive scales
1. Cement weighing accuracy: +/-1%;2. Water weighing accuracy: +/-1%;
3. Additive weighing accuracy: +/-1%;
4. Weighing sensor brand: American Transcell;
5. Air cylinder brand: AIRTAC

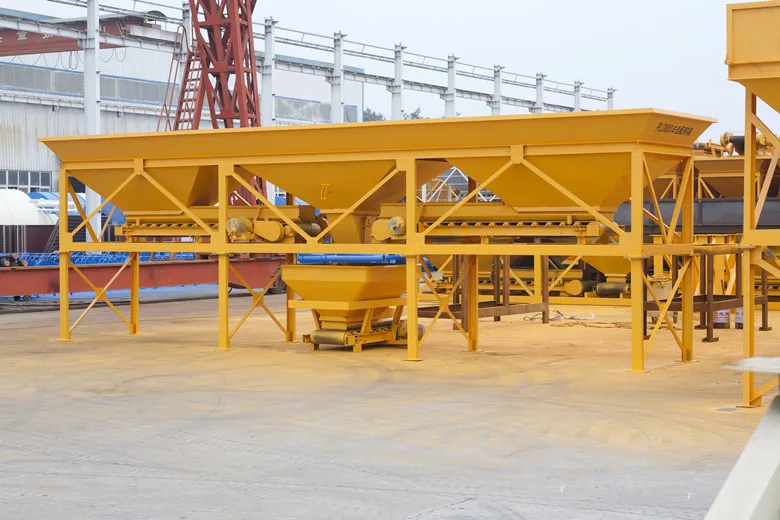

PLD Aggregate Batcher
The optimized vibration lining plate structure, together with the design of large-inclined-angle and eccentric-pin arch-breaking,
plus the adjustable pressure reducing plate, can guarantee the unloading efficiency, stable performance, safe production, and
comfortable use.

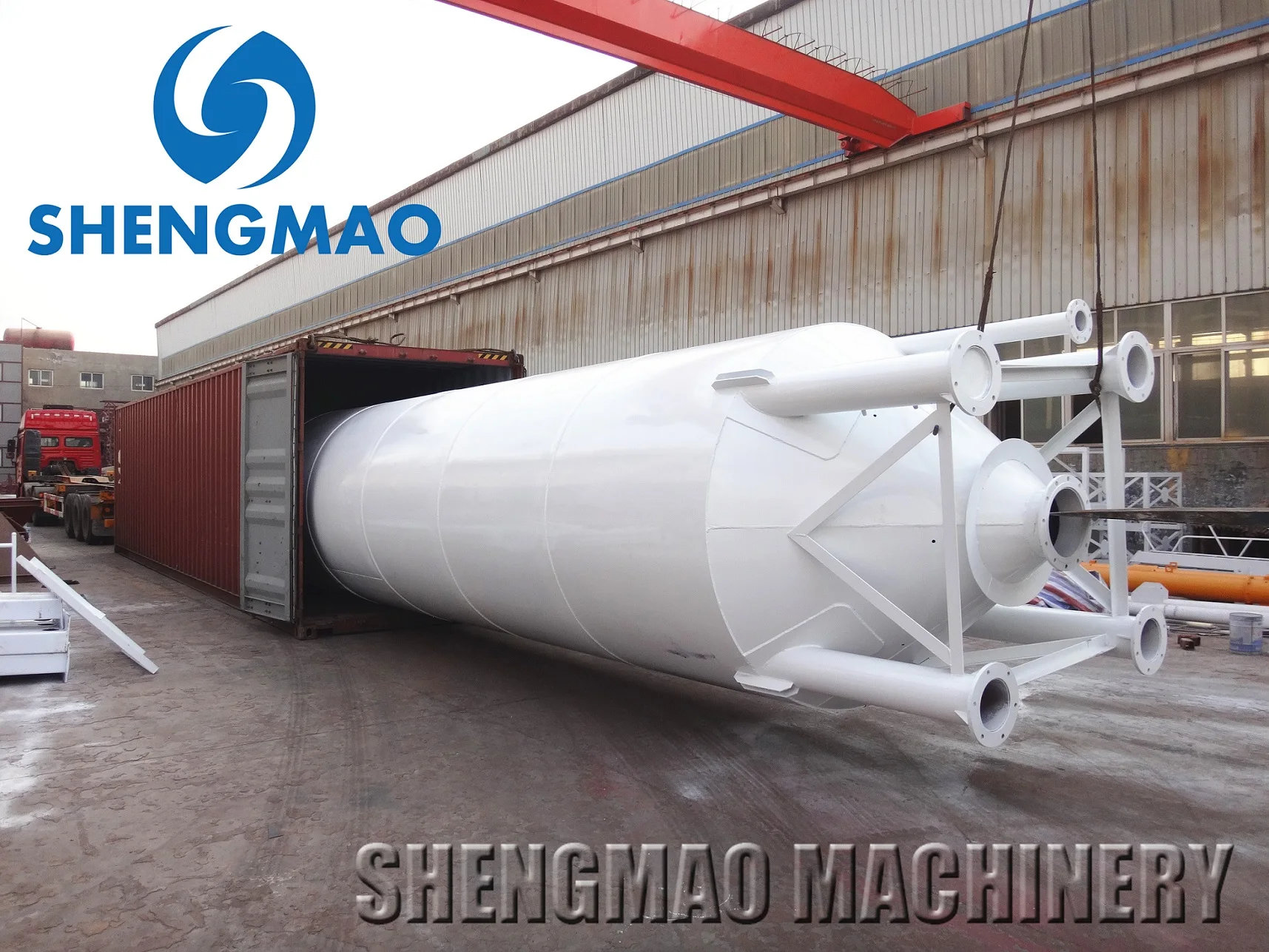

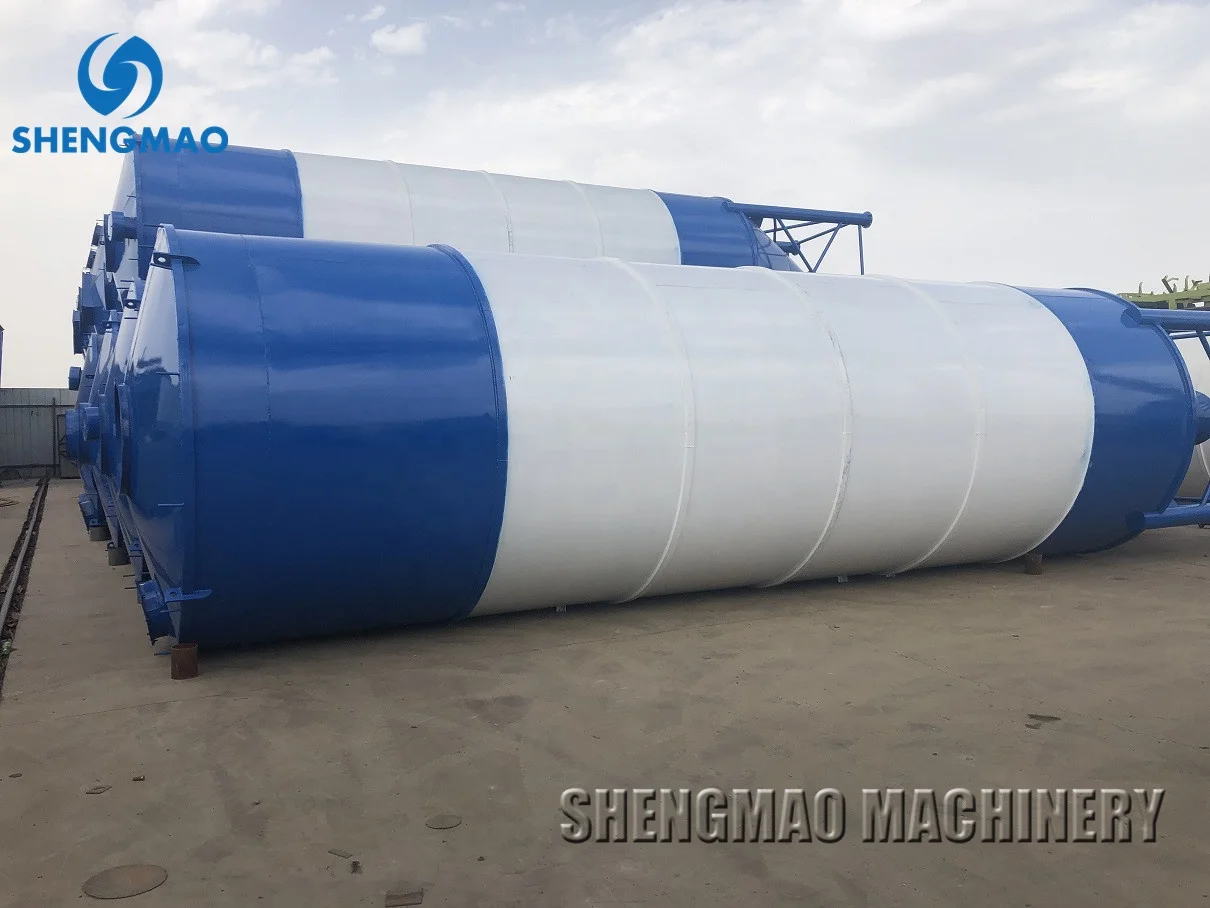

Cement Silo
1.Cement silo: 50t-300t.customized;
2. Split sheet type steel cement silo has various capacities, suitable for storage of cement, grain, coal ash and other
loose-packed materials. Material level system is equipped to show clear positon of materials. Split type cement silo is a perfect
solution for difficulties such as export loading, onsite silo making and transportation.customization service is available.
2. Split sheet type steel cement silo has various capacities, suitable for storage of cement, grain, coal ash and other
loose-packed materials. Material level system is equipped to show clear positon of materials. Split type cement silo is a perfect
solution for difficulties such as export loading, onsite silo making and transportation.customization service is available.

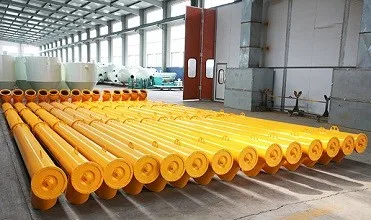

Screw conveyor
1. Model: LYS219
2. Screw Length: 8m;
3. Screw Diameter: 193mm;
4. Outer Screw Diameter: 219mm;
5.Screw Rotation Speed: 260r/min;
6. Screw Conveyor Capacity: 35t/h;
7. Screw Power: 7.5kw;
8. Conveyor angle: max 45 degree;
2. Screw Length: 8m;
3. Screw Diameter: 193mm;
4. Outer Screw Diameter: 219mm;
5.Screw Rotation Speed: 260r/min;
6. Screw Conveyor Capacity: 35t/h;
7. Screw Power: 7.5kw;
8. Conveyor angle: max 45 degree;
Control Room
We have two type: semi-automatic and fully automatic control system.
Company Profile
Henan Shengmao Machinery Co., Ltd., founded in 2001, located in Xingyang, Zhengzhou, Henan. Mainly engaged in the development, production and sales of construction machinery. It covers an area of 80,000 m2 and has more than 700 employees, including 45 engineers, 80 professionals, 56 sales and more than 500 technicians.
Main products are concrete mixer, concrete batching plant, asphalt plant, horizontal cement silo, batching machine, screw conveyor, brick making machine and other construction machinery. At present, the products are exported to more than 90 countries and regions such as Russia, Uzbekistan, Philippines, Sri Lanka, Malaysia, Indonesia, Bangladesh, Australia, USA, Chile, and Argentina etc.
Main products are concrete mixer, concrete batching plant, asphalt plant, horizontal cement silo, batching machine, screw conveyor, brick making machine and other construction machinery. At present, the products are exported to more than 90 countries and regions such as Russia, Uzbekistan, Philippines, Sri Lanka, Malaysia, Indonesia, Bangladesh, Australia, USA, Chile, and Argentina etc.

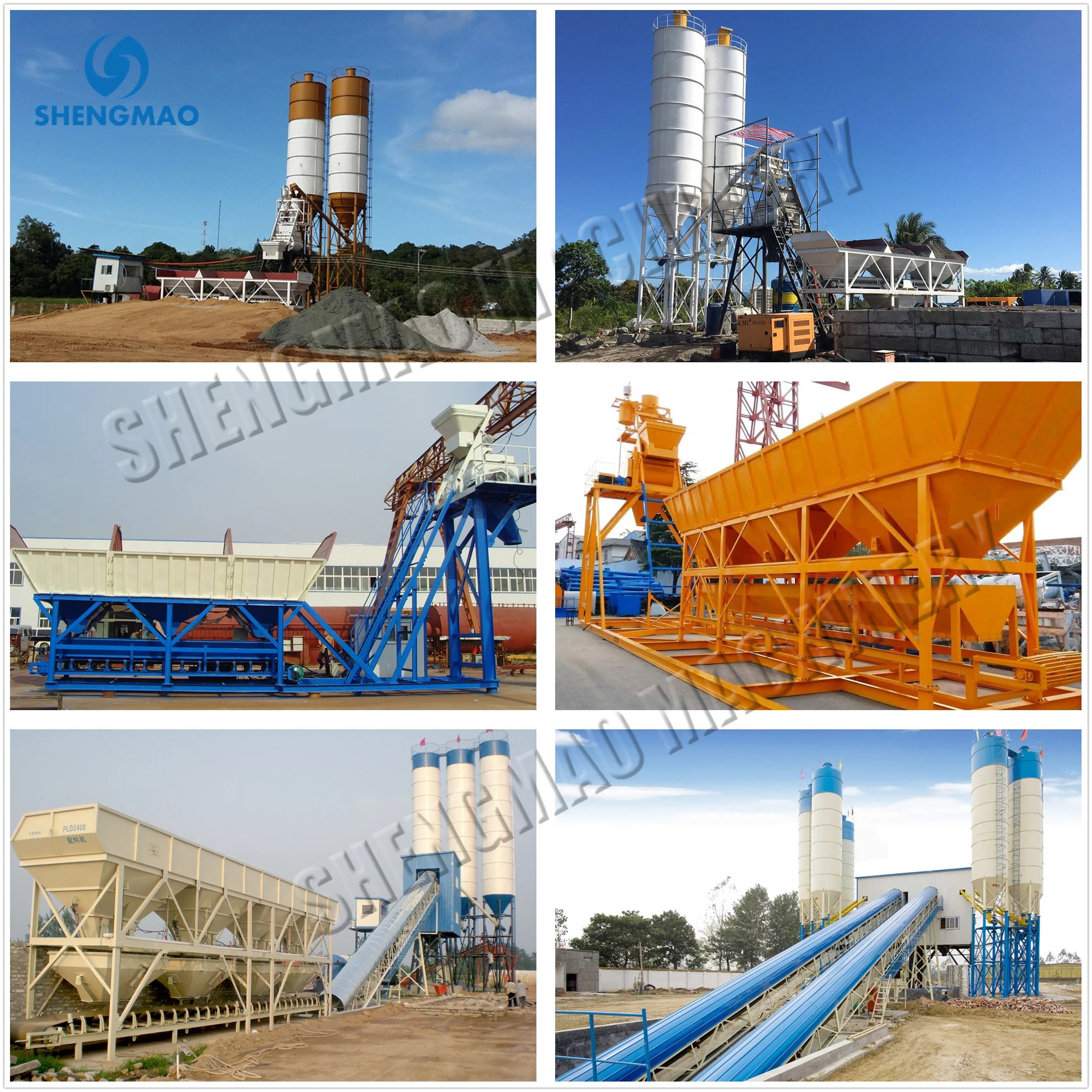

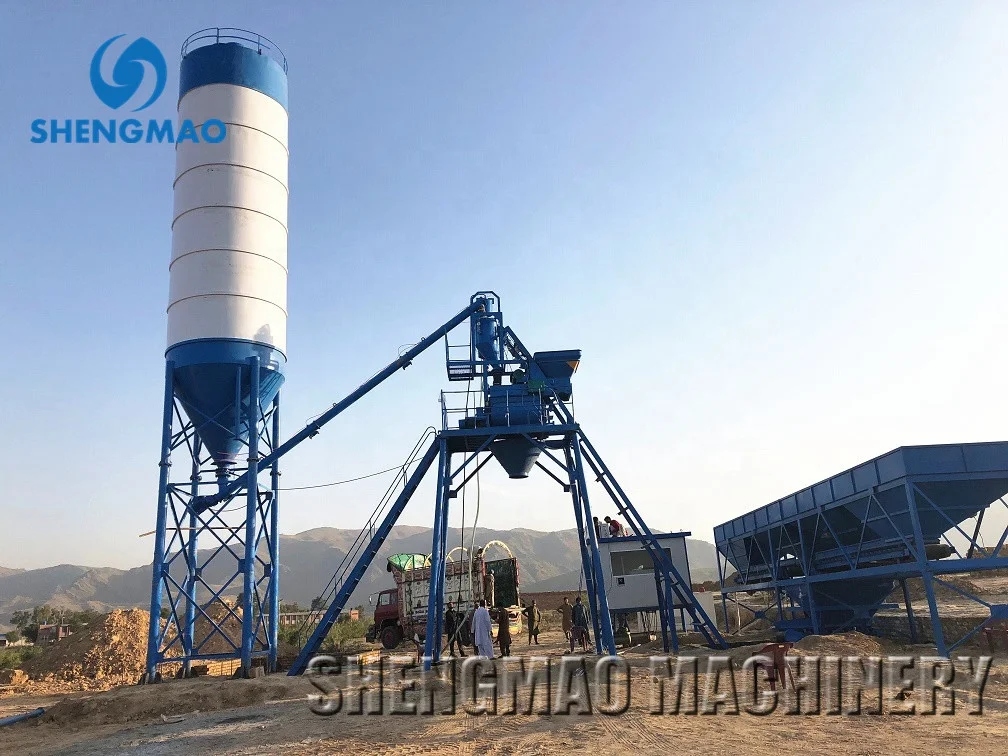

Our projects

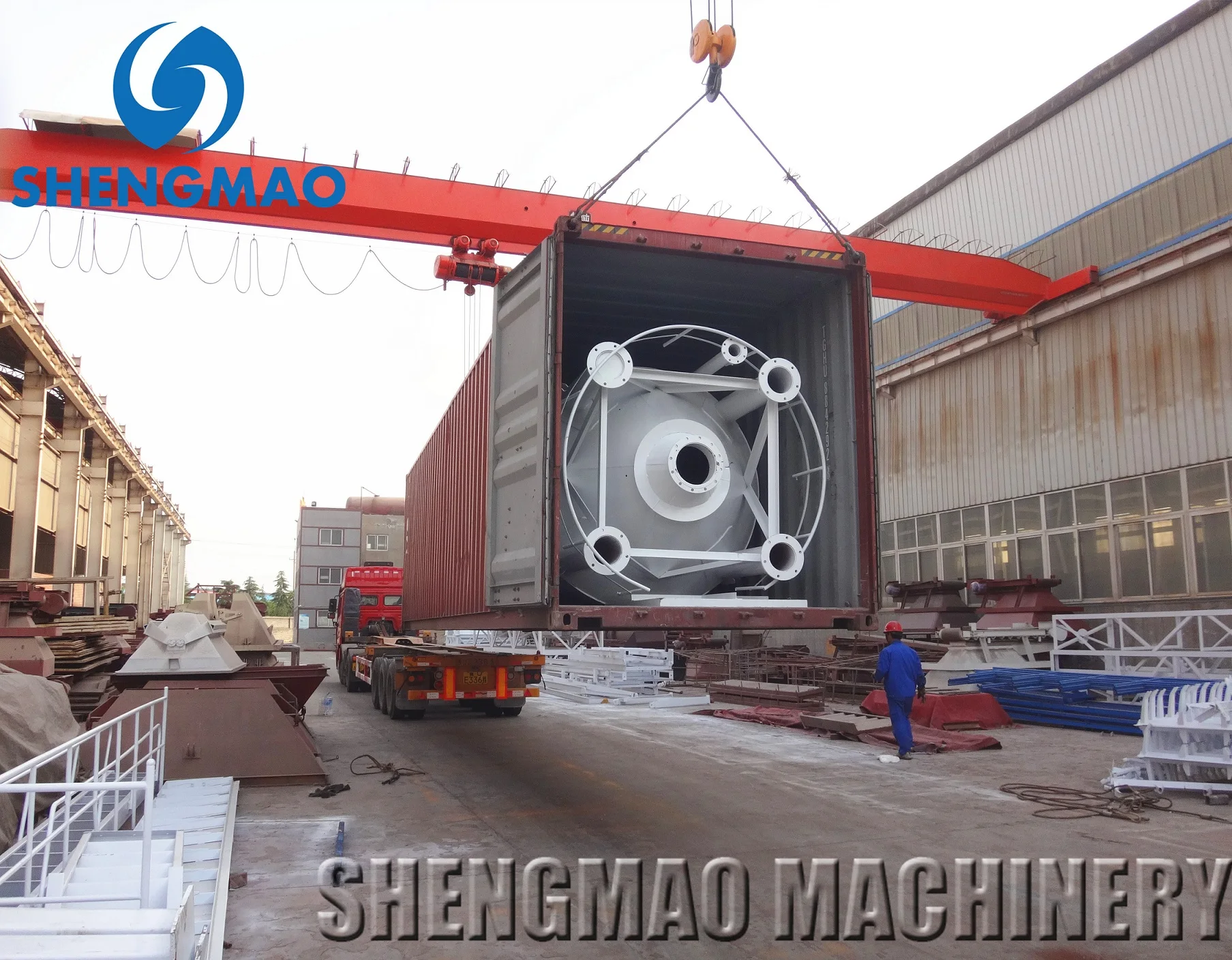

Packing&Shipping
The machine will be loaded into containers and fixed with steel wire. Small items will be packed with wooden box.
Workshop Display
Our Services
Our services
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
