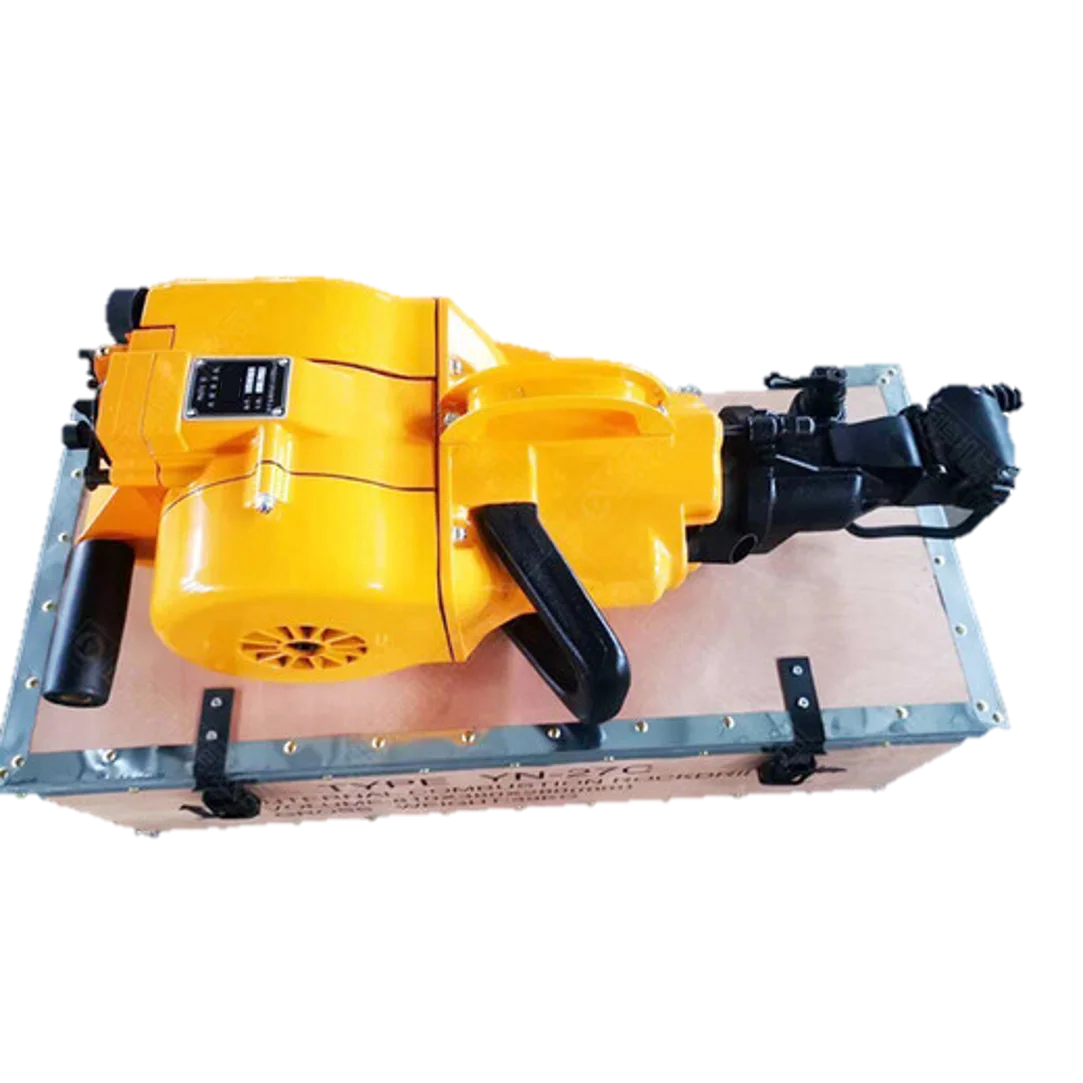

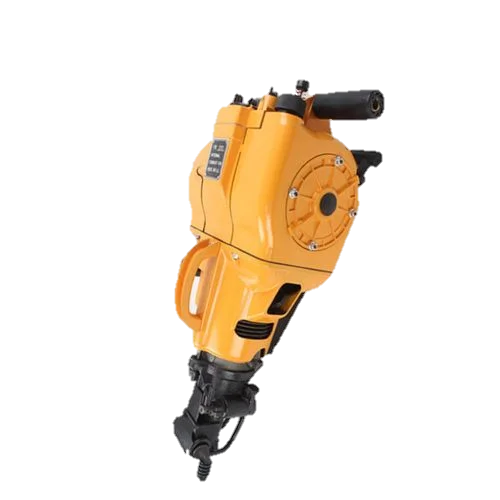

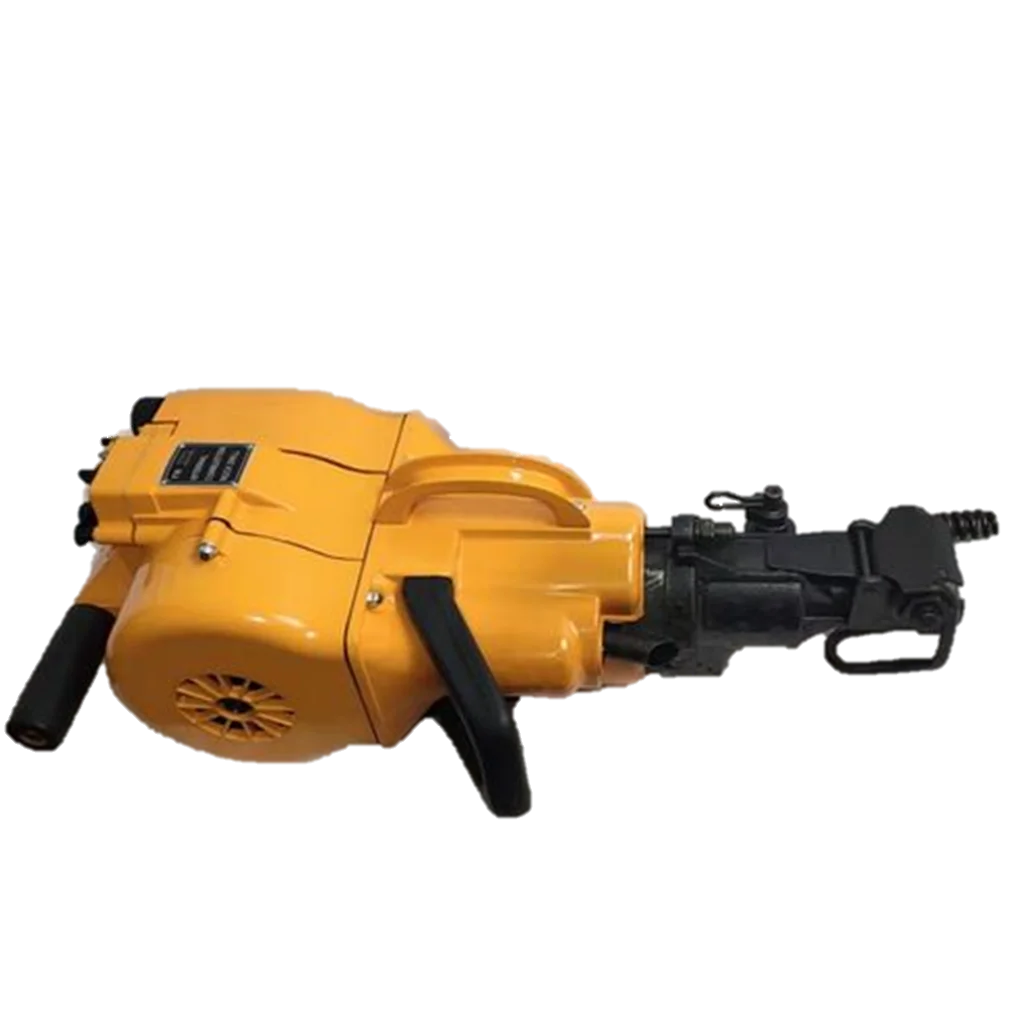

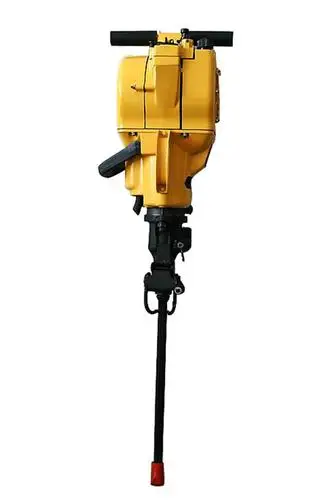

Portable YN27c Gasoline Rock Drill air pick Jack Hammer Rock breaker Internal Combustion Machine
- Category: >>>
- Supplier: Zhengzhou Sungood New Material Technology Co. Ltd.
Share on (1601019187286):
Product Overview
Description
Product Description
YN27 internal combustion rock drill
YN27 internal combustion rock drill is a machine used in mining, road construction and quarrying. YN27T type internal combustion rock drill has the functions of drilling, splitting, crushing, ramming, shovel and so on, widely used in mining, road construction, quarrying, national defense engineering and so on.
Hole diameter | 26-46(mm) | shank size shank tail | H22x10 8mm; |
host weight | 27 kg; | hole depth | Max 6m; |
engine type | single cylinder air-cooled two-stroke gasoline engine | Fuel tank capacity | ≥1.14L |
carburetor type | no float type | Punching speed | ≥250(mm/min) |
engine load speed (measured when chiselling five holes) | 2450 r/min | gasoline and lubricating oil mixing ratio (according to volume) | 9:01 |
Idle speed of drill rod | 220 r/min | spark plug electrode gap | 0.5~0.7mm |
engine displacement | 185cm³ | Fuel consumption | ≤0.12L/M; |
ignition mode | thyristor contactless system | Impact energy | 220J |
Advantages of Pneumatic air leg rock drill
1. The machine does not need to replace the internal parts of the head, only need to move the handle as required, the machine can be operated. It can be completely interchangeable with international similar products.
2.It has the characteristics of easy operation, fast drilling speed and high efficiency, which makes our work more time-saving and labor-saving.
3.YN27 internal combustion rock drill is suitable for high mountains, areas without power, no wind pressure equipment and temporary projects with high mobility.
4.Work can be carried out in hot temperatures of 40° or cold temperatures of minus 40°.
You can send us customized requirements according to your own needs.we have the ability to meet the market's conventional and special specifications.
Thank you for continuing to learn about our company and products, you may find a product that meets your needs.
Specification
Description of PDC drill bit
1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
Function
When the drill bits work, the edge is used to cut ordinary and symmetrical formation, while the ledge acts as cushioning toavoidhuge drilling footage, which helps to low the possibility of damage. Thanks to that, the drilling level of complicated formationis improved.
Application
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.
Project View
Diamond composite disc (PDC) is a special superhard material synthesized by synthetic diamond and hard alloy under high temperature conditions. It not only has the advantages of high hardness and wear resistance of diamond, but also has the characteristics of strong impact resistance and large cutting edge of hard alloy. Using it as the blade of the drill bit can greatly improve the work efficiency of the drill bit, making it an ideal drill bit for drilling in hard rock layers and hard rock layers.
Company Profile
Why did you choose us?
Zhengzhou Shangong New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
Zhengzhou Shangong New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
What can we offer you？
Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc
1. Size: | Available in any size of 50mm-300mm.For example, 75mm, 91mm, 112mm, etc |
2. Drill bit type: | 8-tooth hollow core drill bit |
3. PDC tool size: | 1304,1308,1313 |
4. Valve body material: | C45#steel |
5. Applicable rocks: | mud rock, limestone, shale, sandstone,granite, etc. |
6. Color: | gray, gold, blue, green,or according to customer requirements |
Body Material
1.Steel body:suitable for soft to medium hard chunks of homogeneous,hard and abrasive high formation.
2.Matrix body:Suitable for harder geological conditions
Cutter size | 13X 8 mm | The smallest cutter suitable for the hardest rock information ,then the biggest cutter gets the fastest speed . | ||||
13X19 mm | ||||||
16X13 mm | ||||||
19X13 mm | ||||||
Unmatched quality gives you peace of mind
Our PDC bits adopt superior material C45# steel, the bits are widely used in hole drilling of geological drilling and water well drilling. They are also widely using in hole drilling of dam construction and water conservancy.
PDC matrix flat top drill bit（50mm,75mm,90mm,113mm,......）
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
main features
1) Wear resistance and long service life;2) Adopting mature process and 100% raw material(Tungsten carbide substrate and diamond powder) to manufacture;
3) Tungsten carbide as the matrix body makes the bit more wear resistance and impact toughness.
4) Diamond polystyrene as the gauge.
5) Suit for drilling hard rocks.
Special dimensions of PDC drill bits
If you need a special design and size PCD drill bit, please do not forget to provide the following important information for our engineers' reference:
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
Packing & Delivery
Single carton box package, safe and regular placement.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
FAQ
To provide you with thoughtful service
Question 1. What are your packaging conditions?
Answer: Usually, we package the goods in neutral white boxes and brown cardboard boxes. If you have a legally registered patent, we can package the goods in your brand box after receiving your authorizationletter.
Question 2. What are your payment terms?
Answer: T/T 50% as deposit, 50% before delivery. Before you make the remainingpayment, we will show you photos of the product and packaging.
Question 3. What are your delivery terms?
Answer: EXW, FOB, CFR,CIF.
Question 4. What is your delivery time?
Answer: Generally speaking, it takes 10 to 15 working days after receiving the advance payment. The specific delivery time depends on the items and quantity in your order.
Question 5. Can you produce based on samples?
Answer: Yes, we can produce according to your samples or technical drawings.
Question 6. What is your sample policy?
Question 6. What is your sample policy?
Answer: If we have ready-made inventory of parts, we can provide samples, but customers must pay for sample and courier fees.
Question 7. Do you test all the goods before delivery? Answer: Yes, we have 100% testing before delivery
Question 8: How can you establish long-term good relationships with our business?
Answer: 1. We maintain good quality and competitive prices to ensure that our customers benefit; 2. We respect every customer as our friend, no matter where they come
from, we sincerely do business with them and make friends.
from, we sincerely do business with them and make friends.
