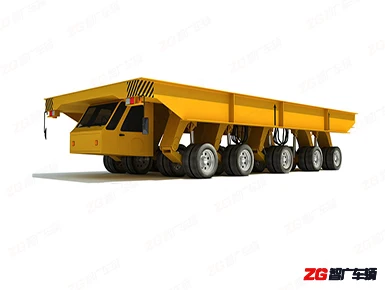

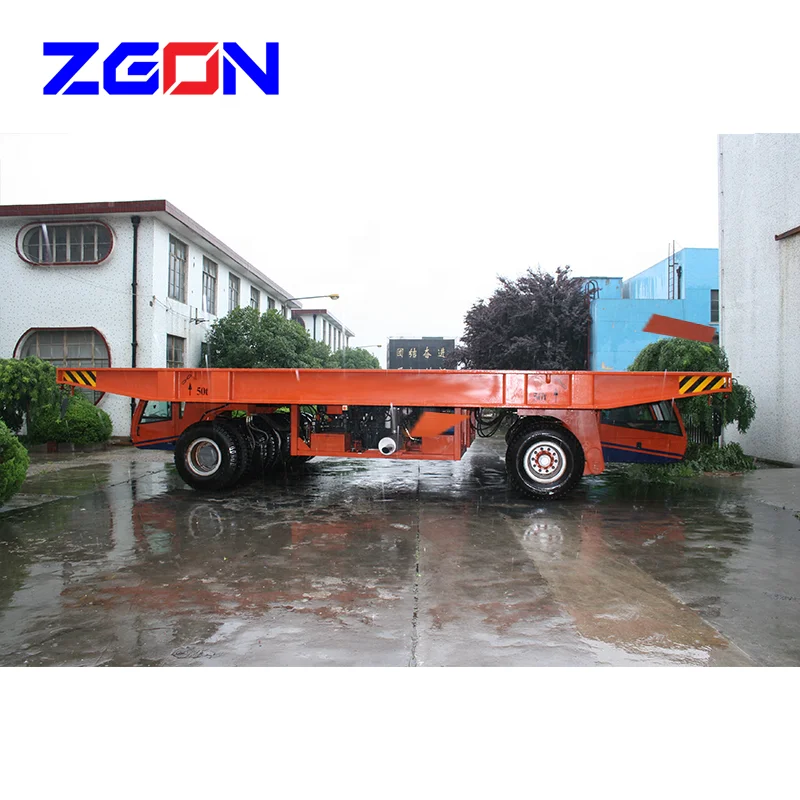

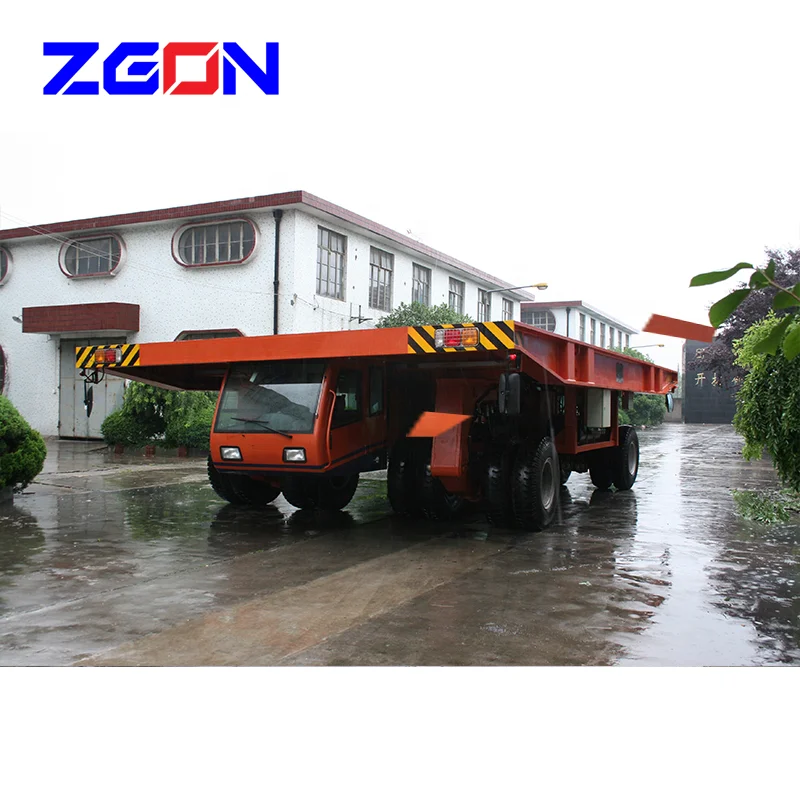

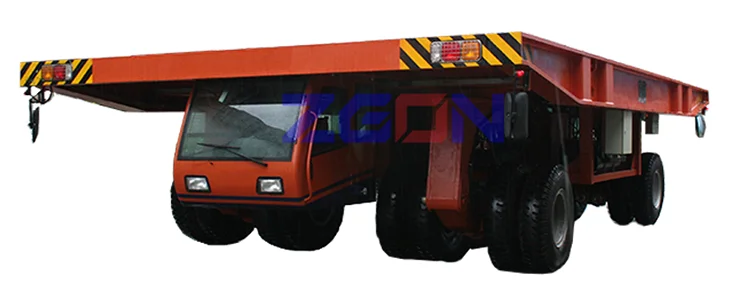

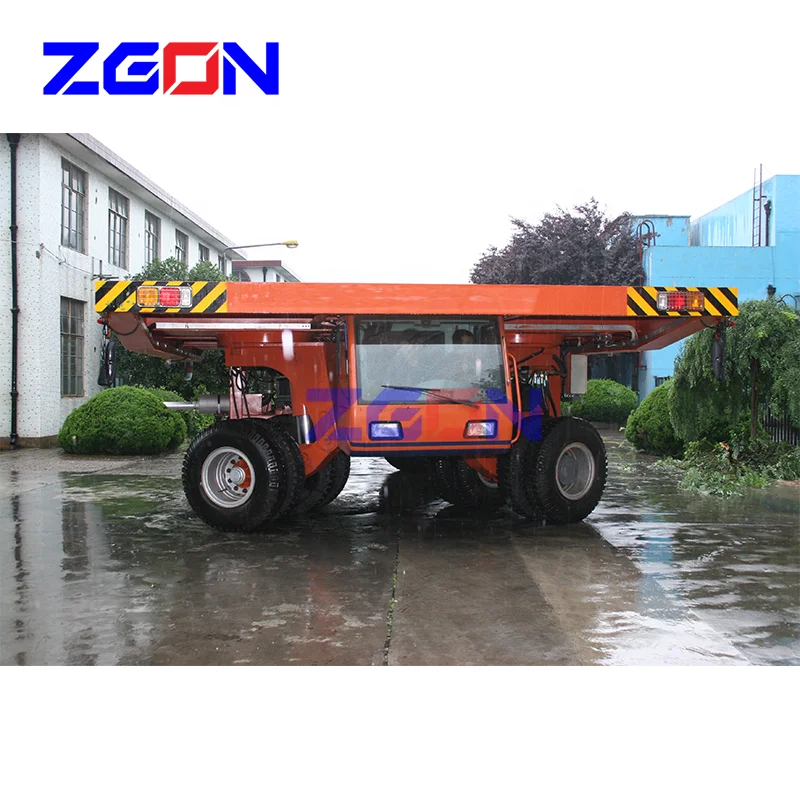

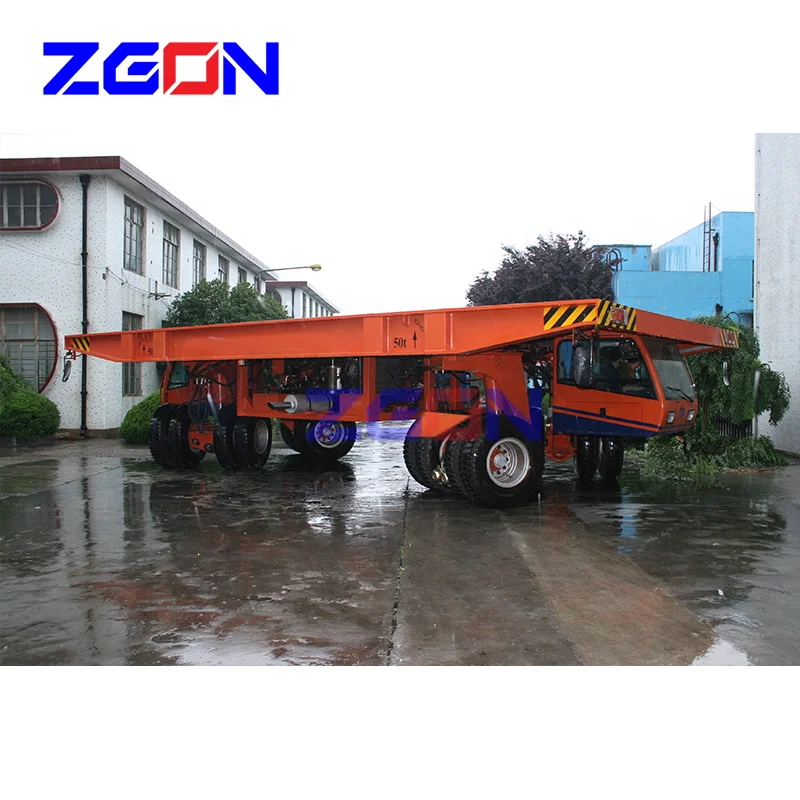

100T Hydraulic powered flatbed truck
- Category: >>>
- Supplier: Liangshan Zgon Automotive Technology Co. Ltd.
Share on (1601019190866):
Product Overview
Description
Product descriptions from the supplier
Model | TST100.3A2 |
Technical standard load at 5 km/h | 100,000kg |
Net weight | 28,000kg |
Total weight | 128,000kg |
Number of axles | 2 |
Number of suspensions on each axle | 2 |
Number of suspensions | 4 |
Suspension maximum load | 32,000kg |
Number of drive axles | 2 |
Number of driven axles with brakes | 2 |
Number of driven axles without brakes | 0 |
Tyres | 32x 12.00-20 PR18 |
Diesel engine | Power:160KW at 2200 rpm |
Max traction force | 238KN |
Maximum climbing ability (longitudinal slope) | 6% |
Maximum Climbing Capacity (Cross Slope)) | ≥ 2% |
Maximum speed at full load | 5km/h |
Maximum speed when unloaded | 15km/h |
Minimum height of the platform | 1,600mm |
Lift stroke | 700mm |
Height of the platform during walking | 1,950mm |
Maximum axle load compensation | ± 350mm |
Maximum swing angle of the swing axis | 7° |
Length of flat board | 11,100mm |
Width of flat board | 5,500mm |
Internal turning radius | 0mm |
Outer turning radius | 5,700mm |
| Advantage |
1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
2. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
3. Anti-slip strip on tail and rear of platform to ensure loading safely.
4. Optional landing gear under tail to ensure trailer to be stable when loading.
5. H-beam for side beam instead of channel steel.
