Chint DZ158 125 UL1077 SAA CE 80 Amp 100 Amp 125 Amp 277V 480V AC 60V 110V 220V DC CHNT MCB DIN Rail Circuit Breaker

Product Overview

Description

Chint DZ158-125 UL1077 80 Amp 100 Amp 125 Amp 277V 480V AC 60V 110V 220V DC CHNT MCB DIN Rail Circuit Breaker

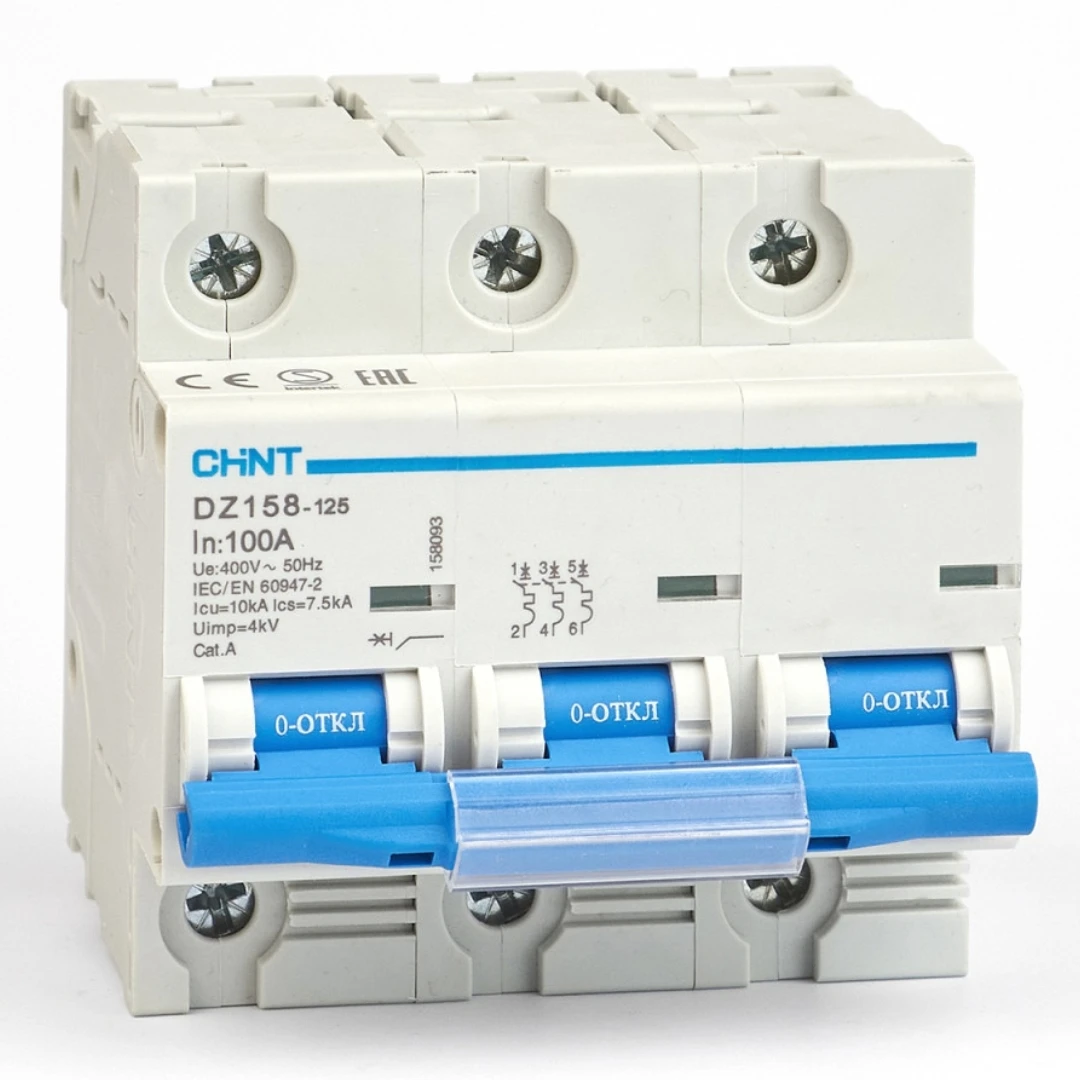

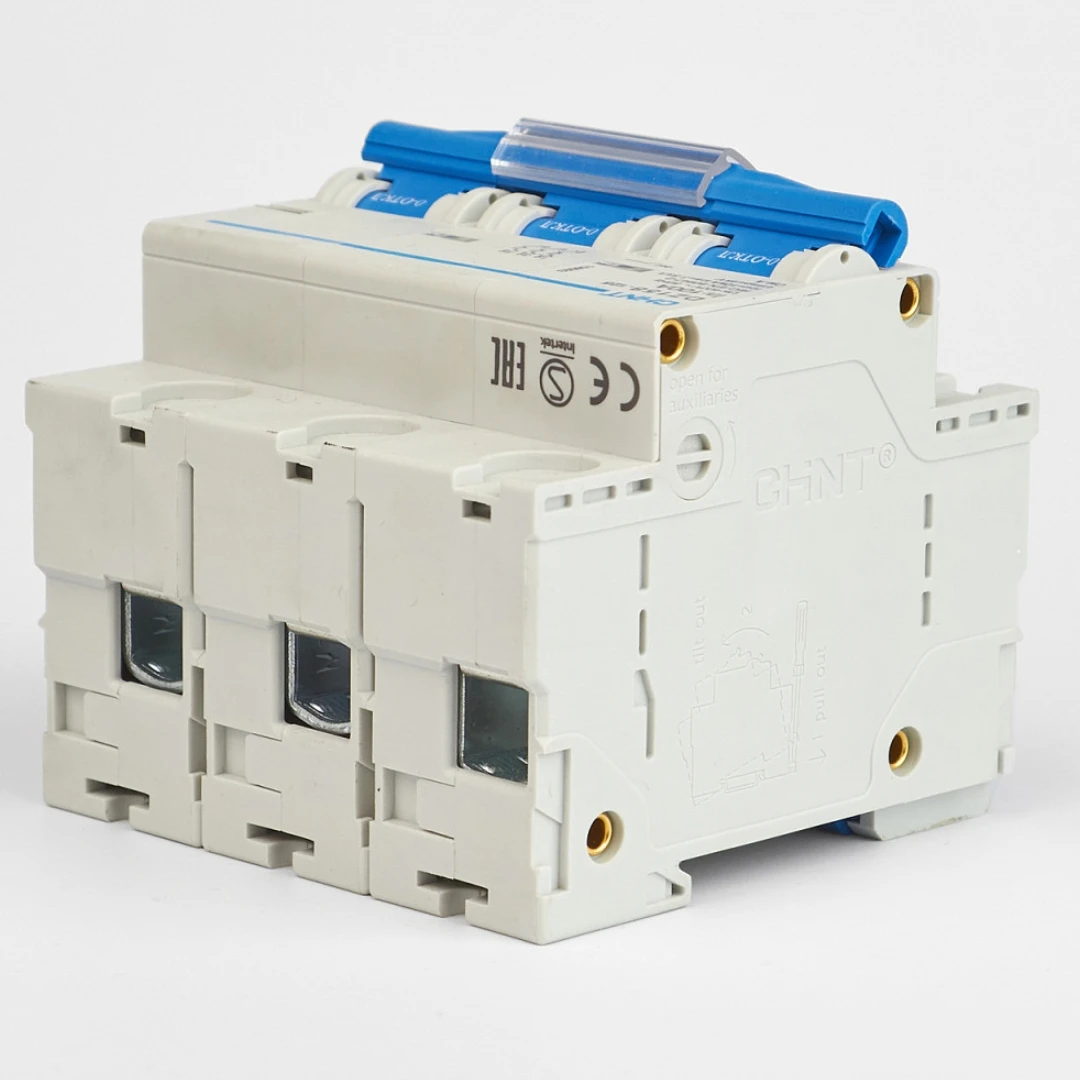

Chint DZ158-125 Moulded Case Circuit Breaker



1. General

1.1 Function: protection of circuits against short-circuit currents, protection of circuits against overload currents, switch, isolation.
1.2 Selection
      Technical data of the network at the point considered:
      the earthing systems (TNS, TNC),
      short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device,       network normal voltage.
