500L Capacity high efficiency electric bentonite grouting mixing and agitator machine for deep well casing
- Category: >>>
- Supplier: Zhengzhou Wode Heavy Industry Co. Ltd.Zhengzhou Ltd.
Share on (1601019348741):
Product Overview
Description
Description

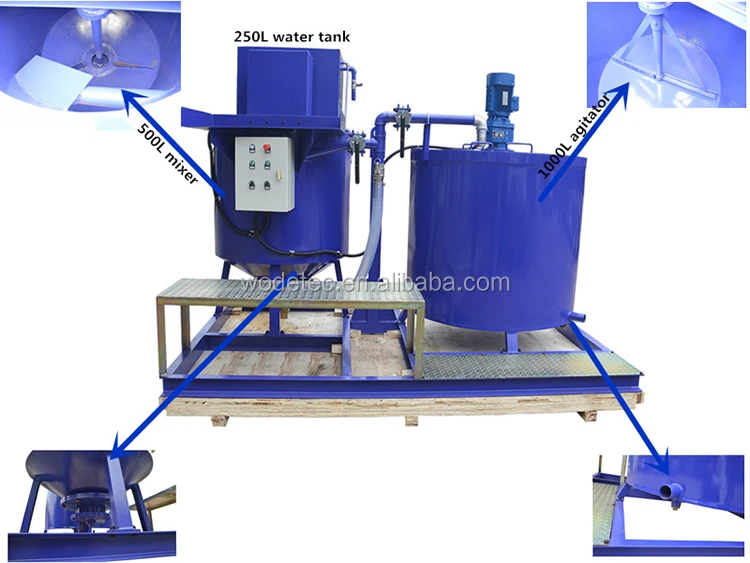

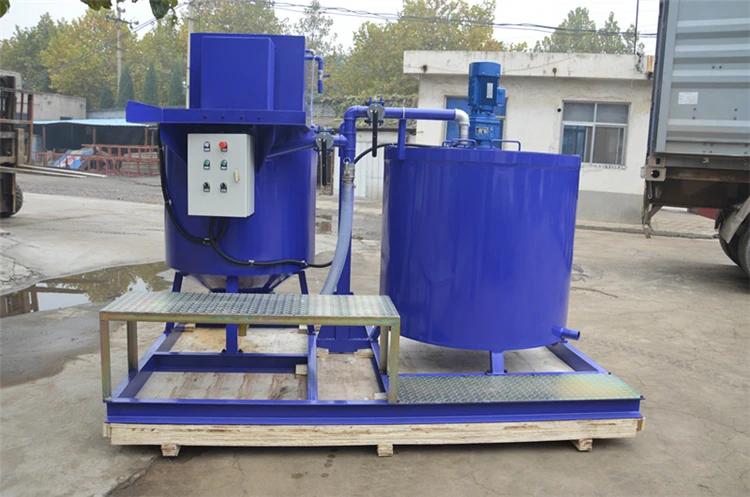

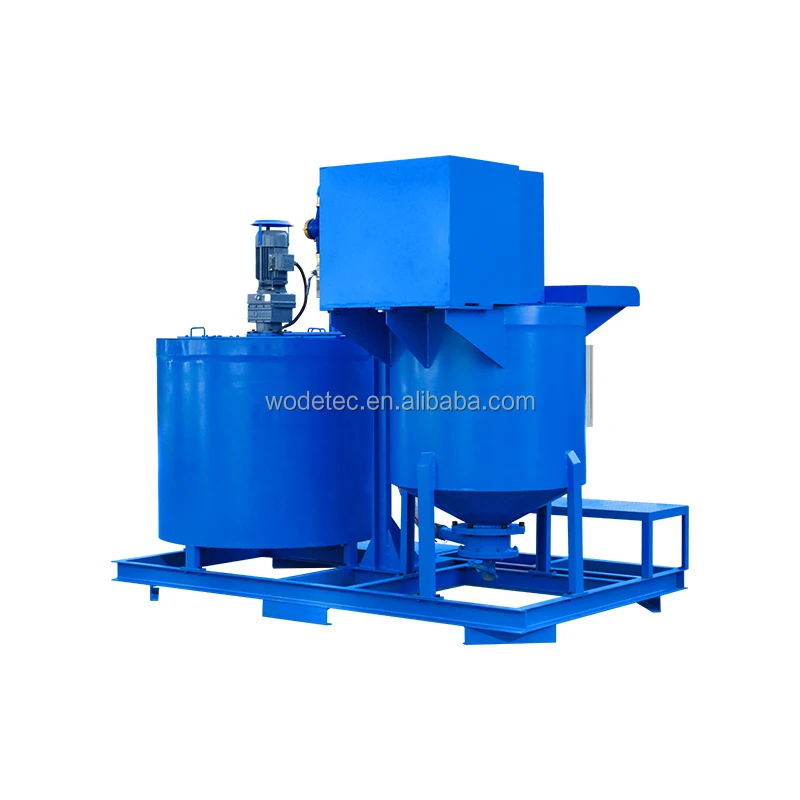

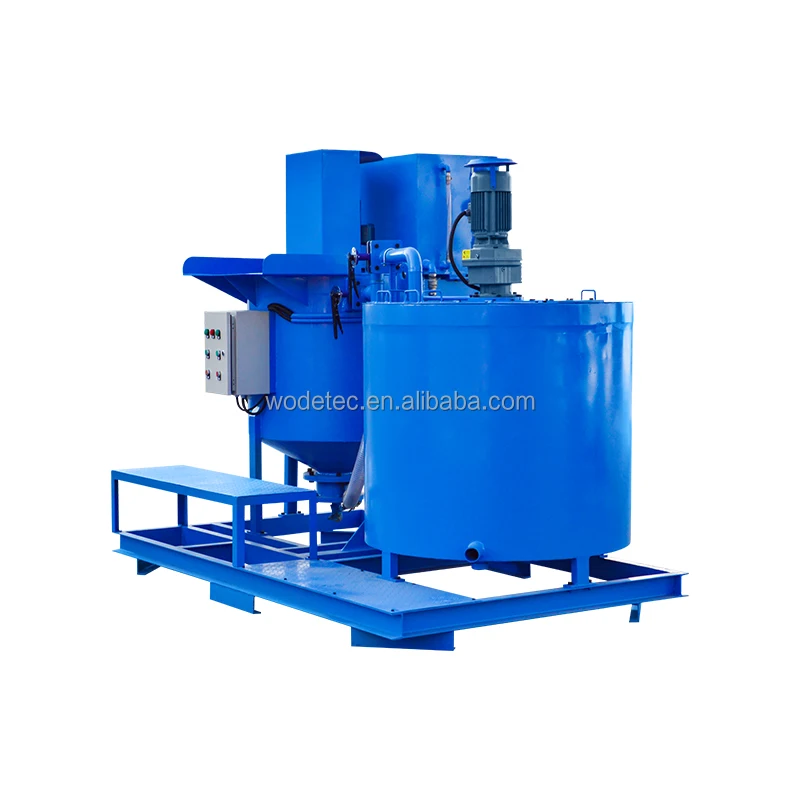

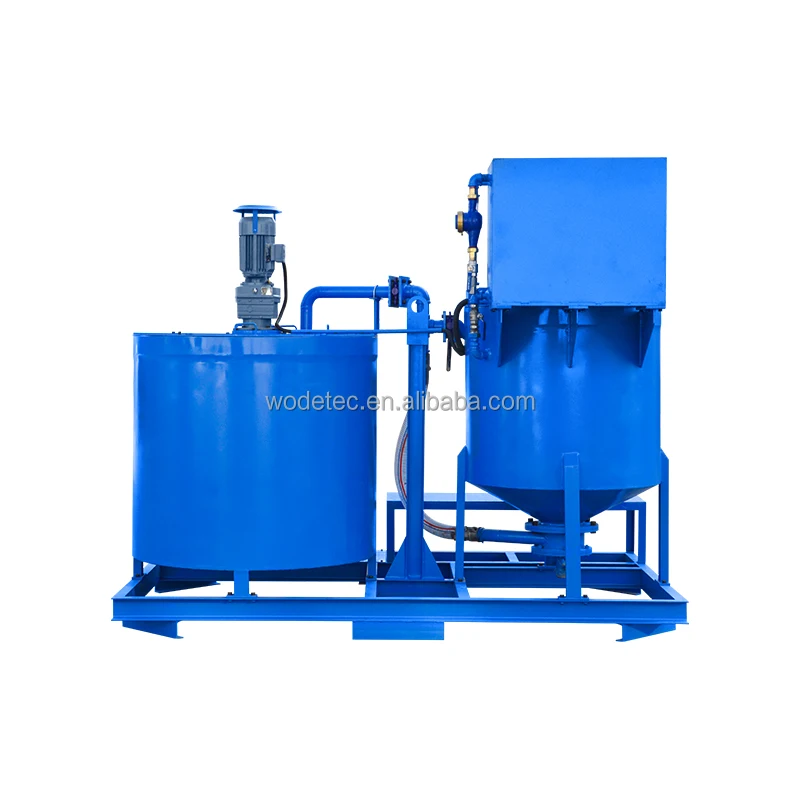

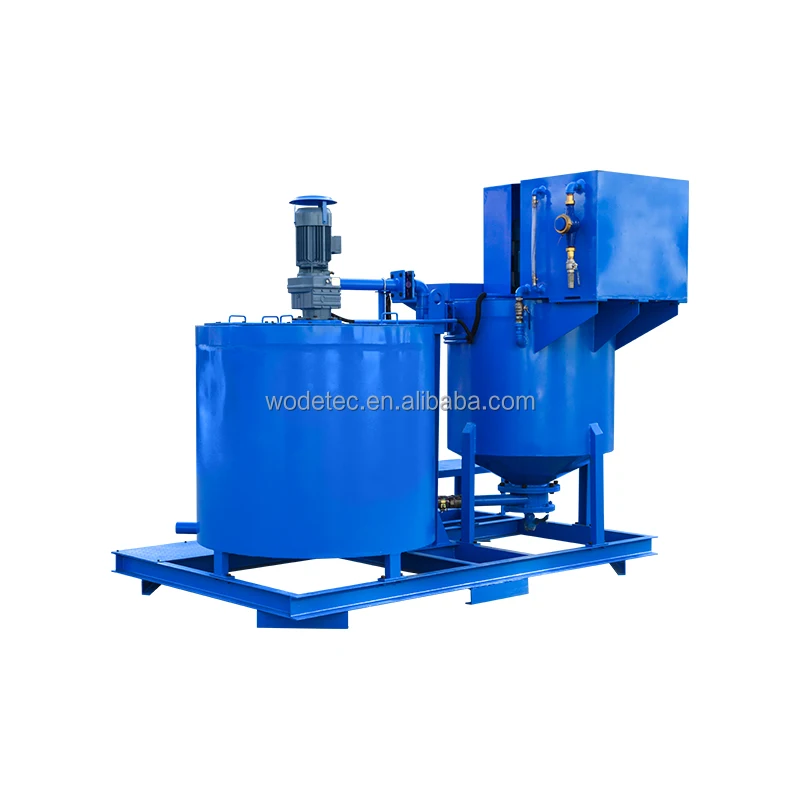

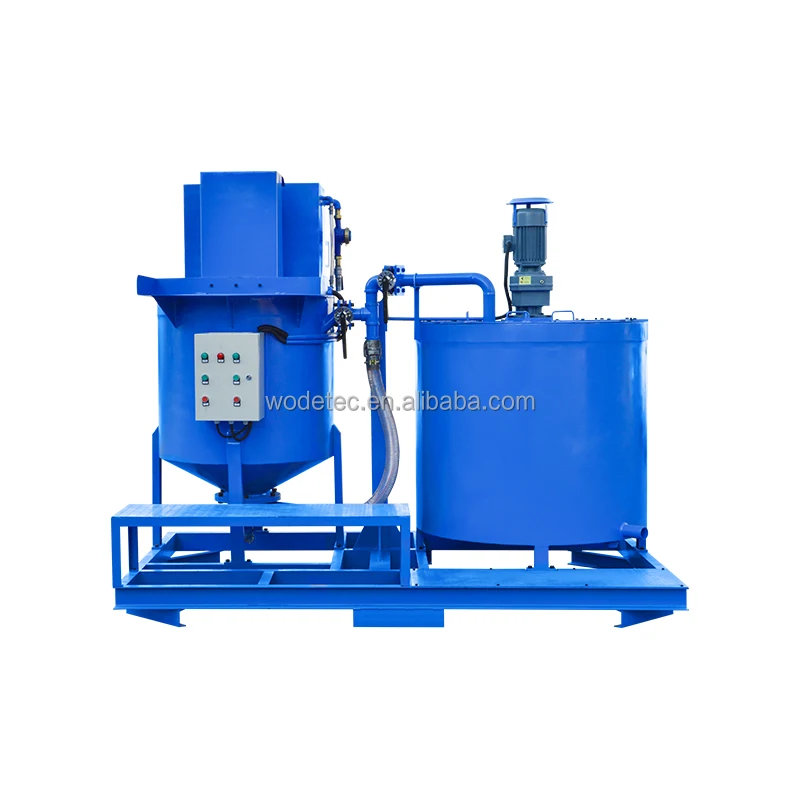

WMA500-1000E cement mixer & agitator is a combination of mixer and agitator, it is specially designed for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 1000 liters agitator, thus the mixing work can continuously be done. For the power, also there is diesel power for the option.
Technical Data
500L Mixer | ||
Rated capacity | 500 liter | |
Acceptable W/C ratio | ≥0.5:1 | |
Rated rev. | 1500rpm | |
Power | 7.5kW | |
Pump pressure | >0.2Mpa | |
Water tank | 250L | |
1000L Agitator | ||
Rated capacity | 1000 liter | |
Rated rev. | 35rpm | |
Power | 1.5kW | |
Mixer & Agitator | ||
Dimension | 2500*1920*2280mm | |
Weight | 980kg | |
Features of high-speed shear mixer cement:
1. One-man operation
2. Extremely fast mixing
3. No seals to wear out from grout
4. Simple grout transfer from mixer to agitator
1. One-man operation
2. Extremely fast mixing
3. No seals to wear out from grout
4. Simple grout transfer from mixer to agitator
Product Details

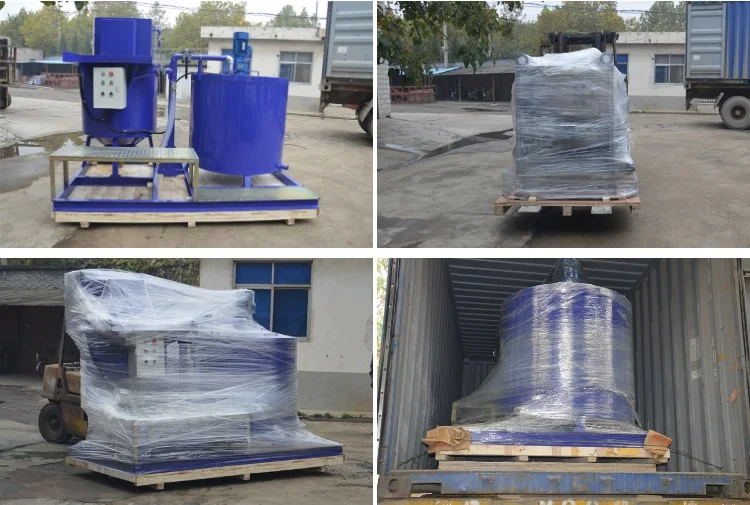

Packaging&Shipping
Application
WMA500-1000E Adjustable cement grout mixer with an agitator can produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 400L mixer machine, then the mixed slurry can be stored into 650 liters.

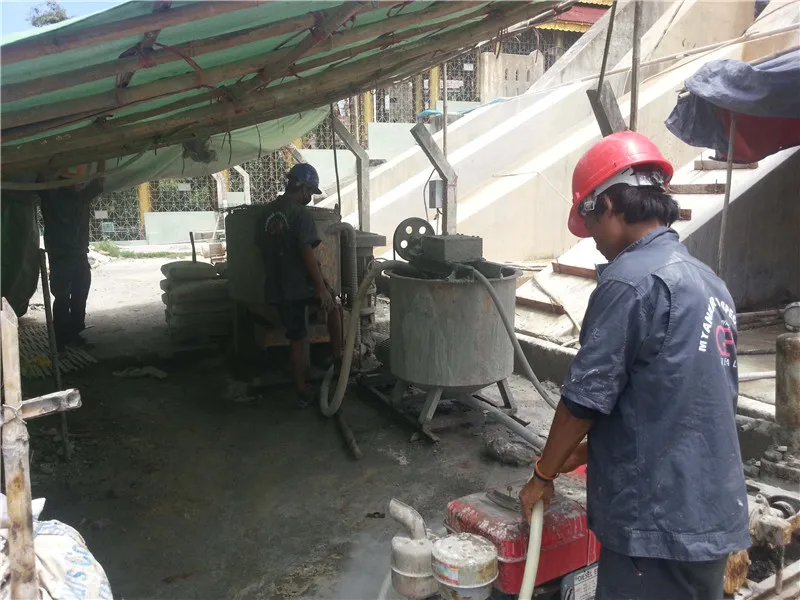

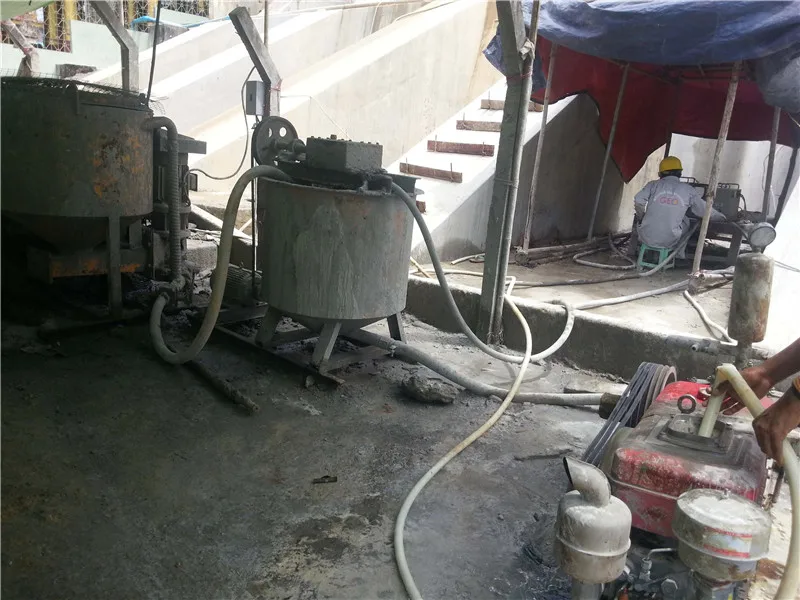

WMA500-1000E cement mixer & agitator is widely used during grouting projects, such as dam grouting, slope grouting, jet grouting, etc.
A Grout mixer with an agitator machine could be also used for heavy construction: foundations, soil and building stabilization, tiebacks, soil and rock, and marine and underwater grouting projects. Grout mixer machine for sale is also used in mining and tunneling projects: tunnel lining, rock bolts, contact grouting, etc. Where the grouting liquid is needed, Wodetec will always help.
WMA500-1000E cement mixer & agitator is widely used during grouting projects, such as dam grouting, slope grouting, jet grouting, etc.
A Grout mixer with an agitator machine could be also used for heavy construction: foundations, soil and building stabilization, tiebacks, soil and rock, and marine and underwater grouting projects. Grout mixer machine for sale is also used in mining and tunneling projects: tunnel lining, rock bolts, contact grouting, etc. Where the grouting liquid is needed, Wodetec will always help.

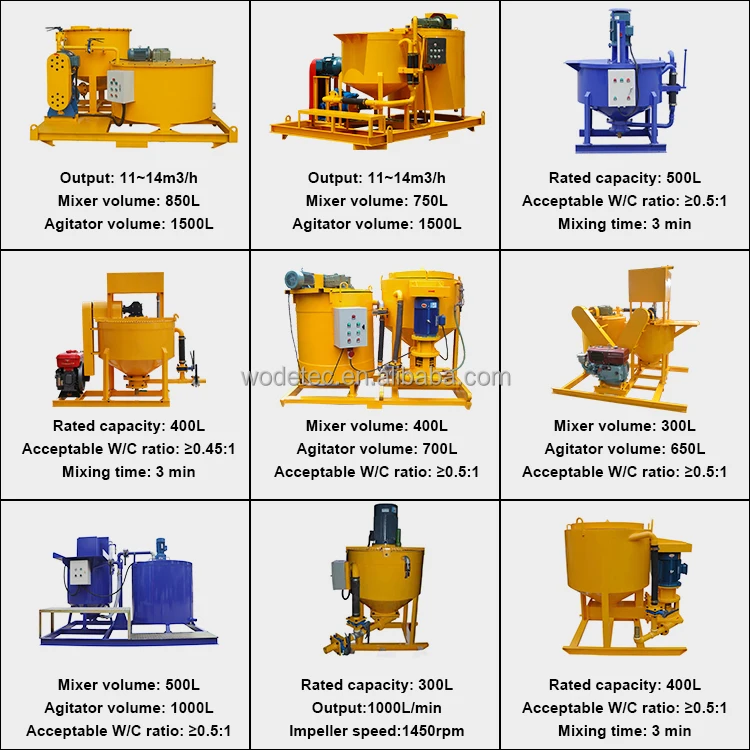

Recommend Products
Company Information
Wode Heavy Industry Co., Ltd., short name Wodetec, is a manufacturer specialized is R&D, manufacture and sale of grout equipment. Grout Equipment includes: grout plant, grout pump, grout mixer and agitator etc. Grout equipment is specially designed for continuous cement mixing and grouting in ground and underground engineering, such as highway, railway, hydropower, construction, mining.
Now we have developed full series of grout plant and grout station, pump including piston type, plunger type and hose type. Mixer volume from 200L to 800L, agitator volume from 300L to 1200L, pump flow from 0 to 200L/min and pressure from 0 to 100 bar. Electric power and diesel power are available for customization.
From years of experience Wode Heavy Industry Co., Ltd. has developed its own R&D and technician teams, which supports further development and customized service for clients.
Contact Us
We are the cement grout mixer supplier and manufacturer, we can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.
2. How about the grouting liquid? Just water and cement? Any sand in?
3. How about the water cement ratio? More than 0.45: 1?
In order to suitable model cement grouting mixer, please let us know the follow questions:
1. Mixer only or mixer with agitator?
2. How about the grouting liquid? Just water and cement? Any sand in?
3. How about the water cement ratio? More than 0.45: 1?
If you are interested in our products, please contact us. Of course, you are welcome to visit our factory.
