HUGEROCK PTC08W cheap Business IP65 Embedded RJ45 capacitive Linuxs open frame Linux All In One Panel Pc Computer
HUGEROCK PTC08W cheap Business IP65 Embedded RJ45 capacitive Linuxs open frame Linux All In One Panel Pc Computer
HUGEROCK PTC08W cheap Business IP65 Embedded RJ45 capacitive Linuxs open frame Linux All In One Panel Pc Computer
HUGEROCK PTC08W cheap Business IP65 Embedded RJ45 capacitive Linuxs open frame Linux All In One Panel Pc Computer
HUGEROCK PTC08W cheap Business IP65 Embedded RJ45 capacitive Linuxs open frame Linux All In One Panel Pc Computer
HUGEROCK PTC08W cheap Business IP65 Embedded RJ45 capacitive Linuxs open frame Linux All In One Panel Pc Computer
HUGEROCK PTC08W cheap Business IP65 Embedded RJ45 capacitive Linuxs open frame Linux All In One Panel Pc Computer

HUGEROCK PTC08W cheap Business IP65 Embedded RJ45 capacitive Linuxs open frame Linux All In One Panel Pc Computer

Share on (1601019408148):


Price:$295.00

Quantity:


Product Overview

Description







Hardware
CPU
Intel® Core® i3-3110M 2.4GHz
RAM
DDR3 8G
Internal Memory
SATA SSD 128G
BIOS
8MB SPI BIOS


Display
Display Mhip
Intel® Core® Graphics 4000


Audio
Audio Mhip
USB HD


Network function
SO
Realtek
RJ45
RJ45
Rate
10/100/1000Mbps
Wake on LAN(WOL)
Support
PXE
Support

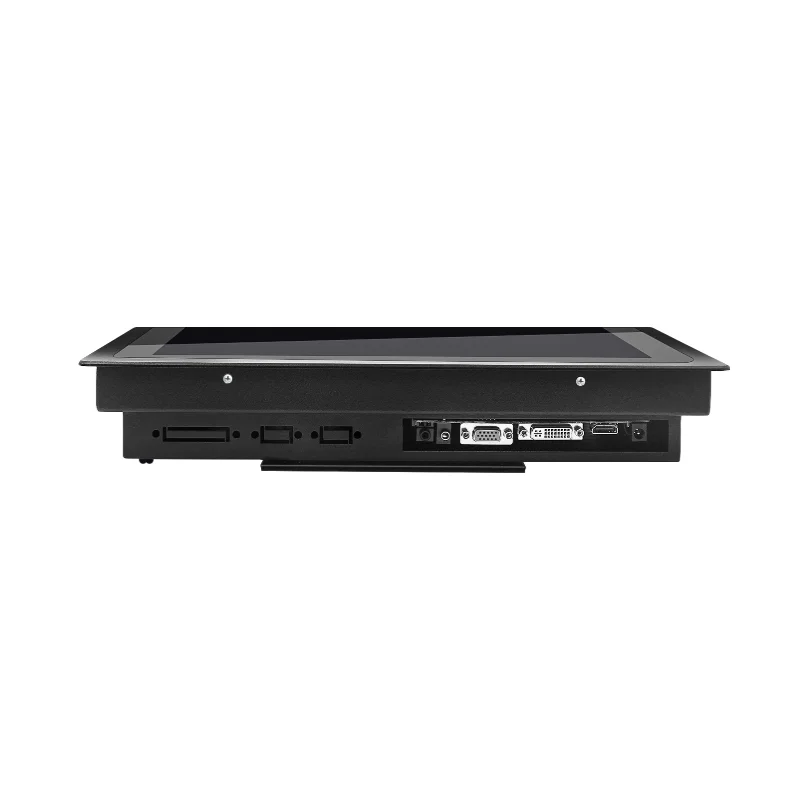

Mainboard backplane interface
Network
RJ45*1
Audio interface
Line-outx1(green), Mic-inx1(pink)
Display interface 1
HDMIx1, Max Resolution 1920x1080@60Hz
Display interface 2
VGA (DB15) x1, Max Resolution 2560x1600@60Hz
Power input
DC12V input *1
USB interface
USB 2.0*2, USB 3.0*2


Motherboard onboard interface
I/O
ITE SIO Chip, Serial interface*2 (COM1, COM2 5 Pin*2)
Audio interface
Front facing Audio, 2x5Pin*1, Line-out*1, Mic-in*1, 4Pin*1
Display interface 1
LVDSx1(2x15 2.0mm Dual channel Dupont head, Max supported 1920x1200@60Hz)
Display interface 2
EDPx1 (2x15 2.0mm 24 bit Dual channel Dupont head, Max supported 1920x1080@60Hz)
Power input
2x2 ATX electrical source *1
USB interface
2x5Pin x2, USB2.0*4


Extension interface
WIFI
Support
mSATA interface
mSATA SSD card


Hardware optional & External Device
Camera
Sub Camera
Module
Barcode, NFC, RFID, Fingerprint identification
External Device
Keyboard, mouse, card reader, scanner, second display screen, external camera, relay


Industrial & Reliability Design
Dustproof/Waterproof
IP65 (IEC 60529)
Dropproof /IK
Procedure IV & Touch Panel IK05
Operating Temperature
-20°C to 50°C
Storage Temperature
-30°C to 80°C
Reliability
MTBF>5000h; MTTR<0.5h
RH
5% to 95%
Operating Altitude
Max: 4,500m (15,000 feet）

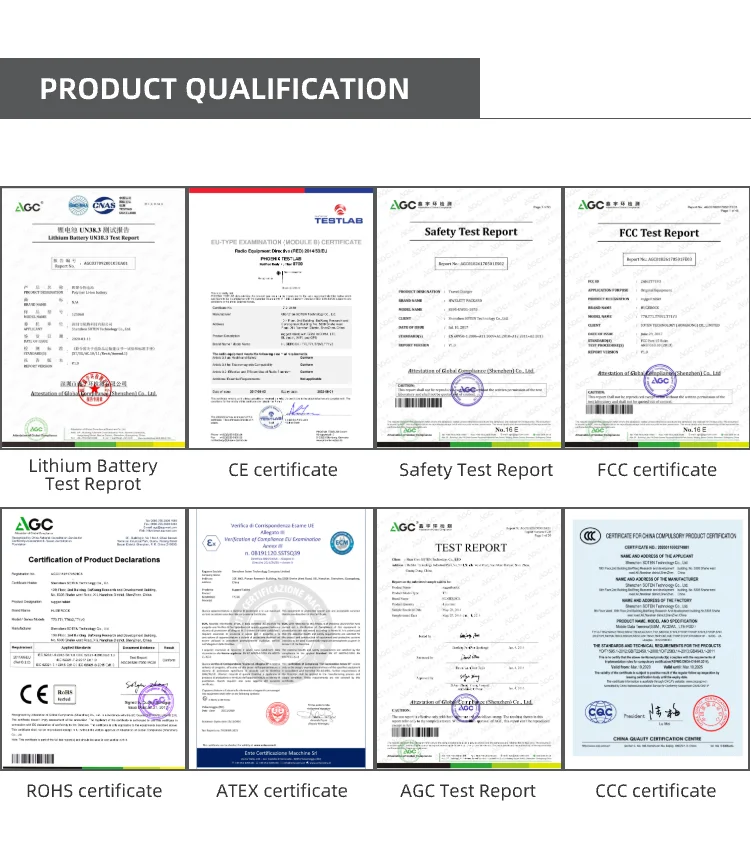

Certification/OS/Software
Certification
3C /FCC/CE/ROHS
Language
English (Support)
OS
Linux(free) ,Windows7/10(Paid optional)


Package/Warranty terms/OEM
Warranty
12 months
OEM/ODM
Support
Package
Power Adapter/Introduction manual /Packing box (Can be customized logo)
Instalar
Embedded buckle, embedded panel, wall bracket, left base, VESA standard interface














Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.

Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.

Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.

Q: Why should you buy from us not from
other suppliers? A:Shenzhen Skyworth AI Technology Co., Ltd., located in Shenzhen, Nanshan district.our main products are: Intelligent interactive whiteboard, Digital signage, advertising player, video wall, LCD LED TV etc. we have our own designers and CNC machine, this makes us supports customized design.

Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.

Q:Can I apply to be your agent?
A:Sure,we are looking for long term business cooperation.
