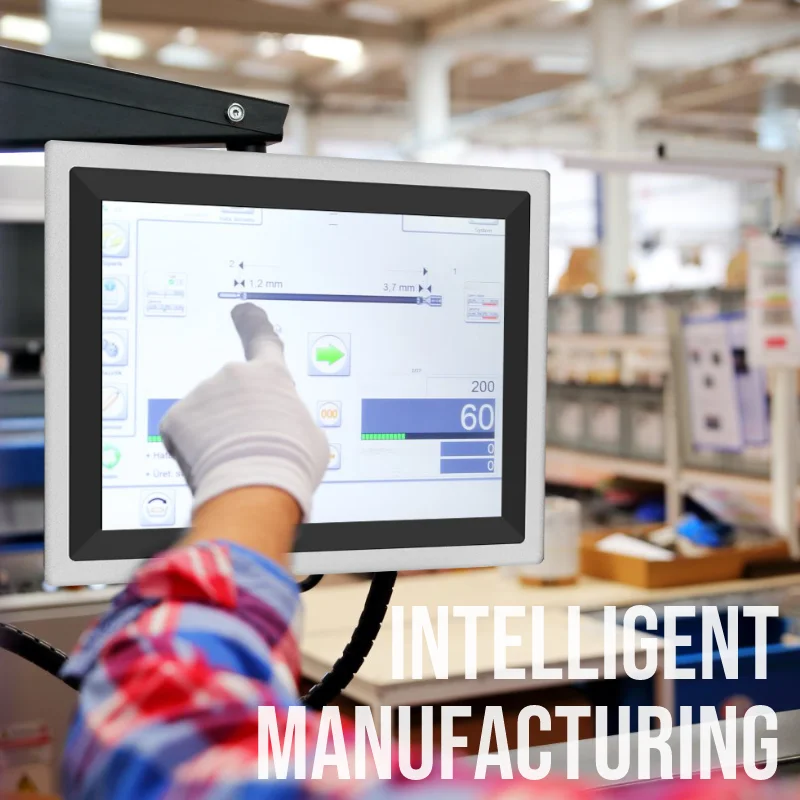

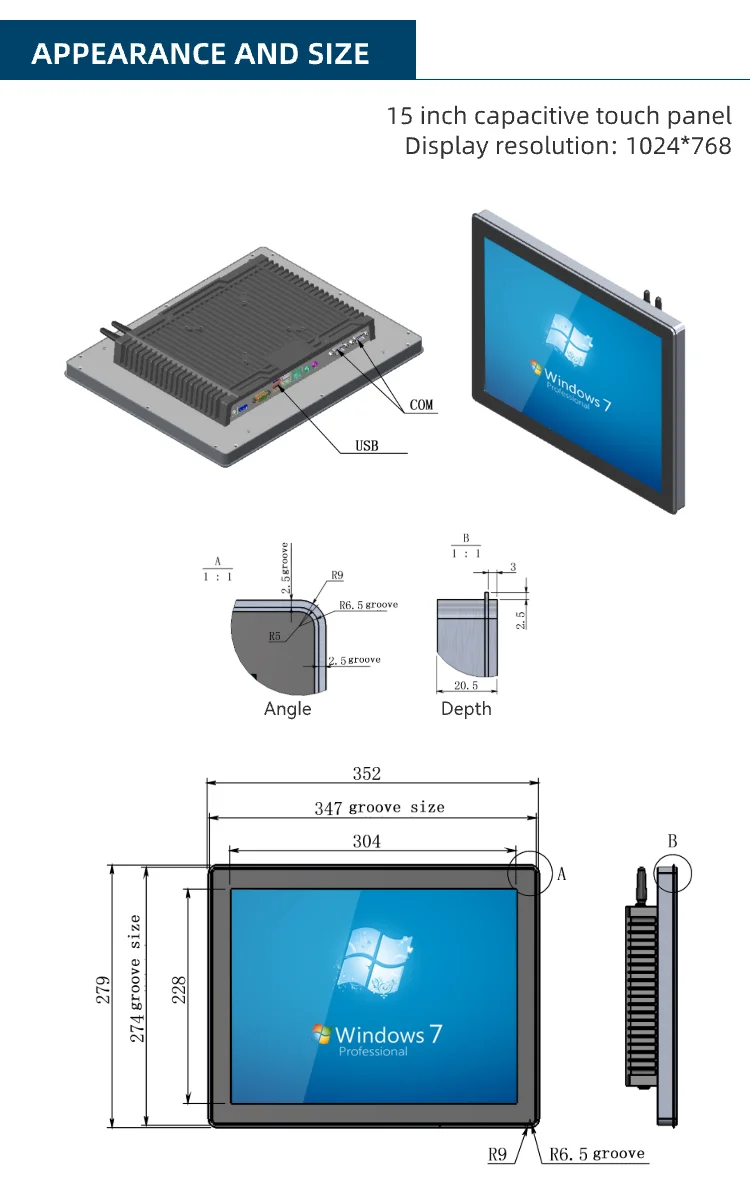

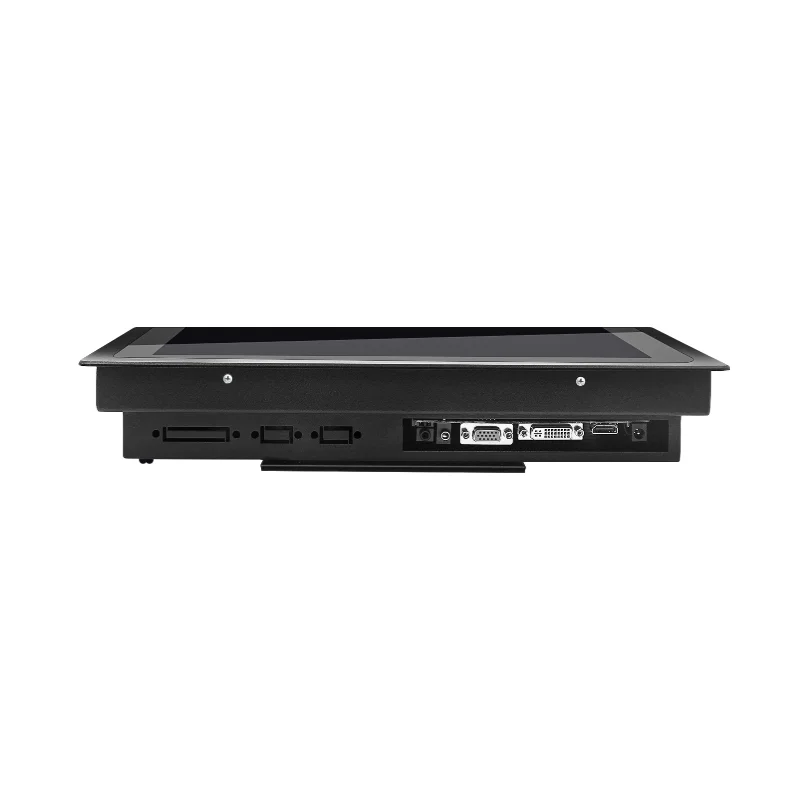

HUGEROCK PTC15W Dual Core Displayport 1024*768 Lcd Screen Business Simatic Industrial Panel Pc 15 Inch With Capacitive
- Category: >>>
- Supplier: Shenzhen Soten Technology Company Limited
Share on (1601019480180):
Product Overview
Description
Hardware | ||
CPU | Intel® Core® i3-3110M 2.4GHz | |
RAM | DDR3 8G | |
Internal Memory | SATA SSD 128G | |
BIOS | 8MB SPI BIOS | |
Display | ||
Display Mhip | Intel® Core® Graphics 4000 | |
Audio | ||
Audio Mhip | USB HD | |
Network function | ||
SO | Realtek | |
RJ45 | RJ45 | |
Rate | 10/100/1000Mbps | |
Wake on LAN(WOL) | Support | |
PXE | Support | |

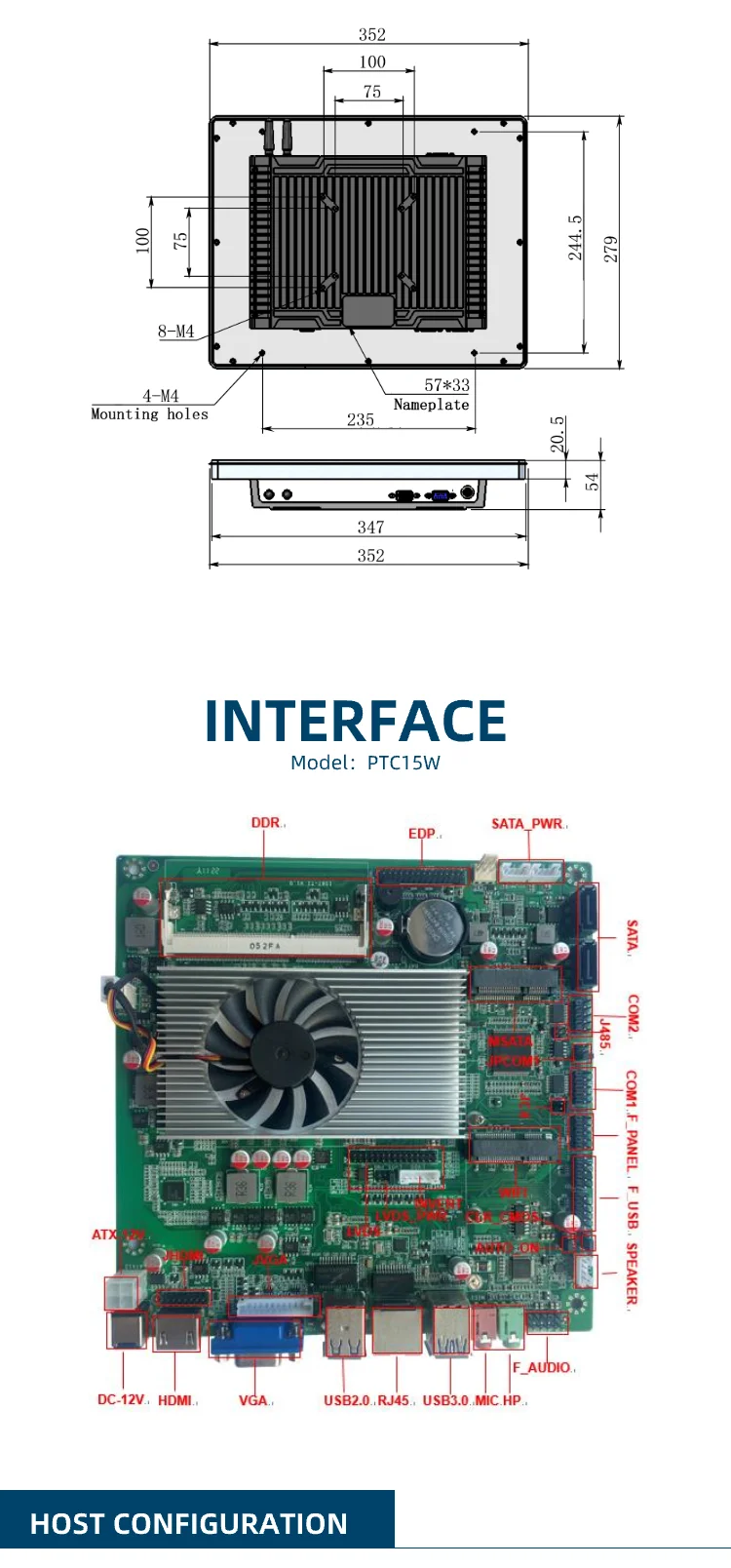

Mainboard backplane interface | ||
Network | RJ45*1 | |
Audio interface | Line-outx1(green), Mic-inx1(pink) | |
Display interface 1 | HDMIx1, Max Resolution 1920x1080@60Hz | |
Display interface 2 | VGA (DB15) x1, Max Resolution 2560x1600@60Hz | |
Power input | DC12V input *1 | |
USB interface | USB 2.0*2, USB 3.0*2 | |
Motherboard onboard interface | ||
I/O | ITE SIO Chip, Serial interface*2 (COM1, COM2 5 Pin*2) | |
Audio interface | Front facing Audio, 2x5Pin*1, Line-out*1, Mic-in*1, 4Pin*1 | |
Display interface 1 | LVDSx1(2x15 2.0mm Dual channel Dupont head, Max supported 1920x1200@60Hz) | |
Display interface 2 | EDPx1 (2x15 2.0mm 24 bit Dual channel Dupont head, Max supported 1920x1080@60Hz) | |
Power input | 2x2 ATX electrical source *1 | |
USB interface | 2x5Pin x2, USB2.0*4 | |
Extension interface | ||
WIFI | Support | |
mSATA interface | mSATA SSD card | |
Hardware optional & External Device | ||
Camera | Sub Camera | |
Module | Barcode, NFC, RFID, Fingerprint identification | |
External Device | Keyboard, mouse, card reader, scanner, second display screen, external camera, relay | |
Industrial & Reliability Design | ||
Dustproof/Waterproof | IP65 (IEC 60529) | |
Dropproof /IK | Procedure IV & Touch Panel IK05 | |
Operating Temperature | -20°C to 50°C | |
Storage Temperature | -30°C to 80°C | |
Reliability | MTBF>5000h; MTTR<0.5h | |
RH | 5% to 95% | |
Operating Altitude | Max: 4,500m (15,000 feet） | |
Certification/OS/Software | ||

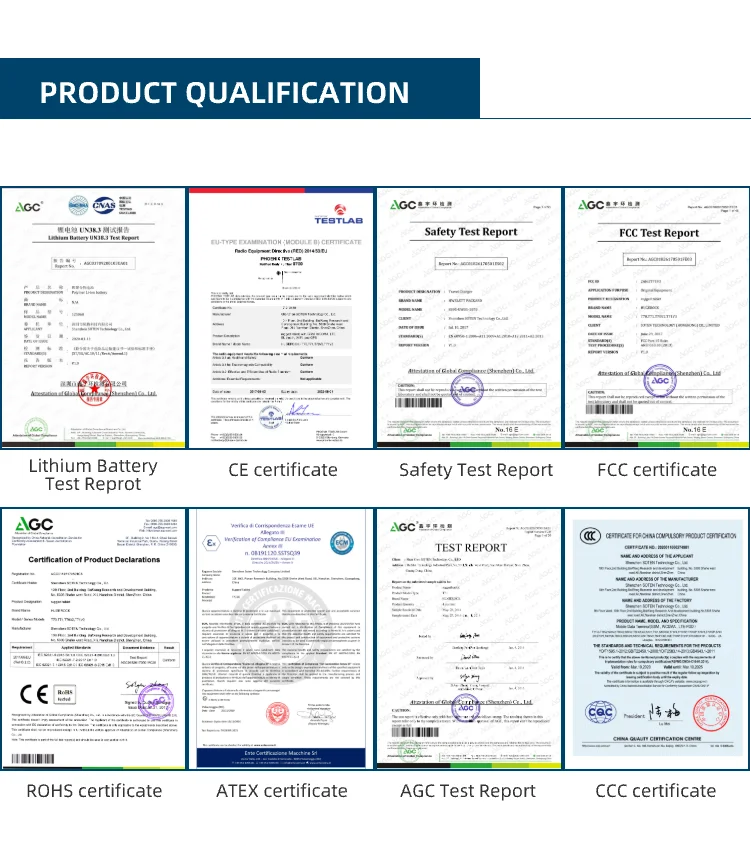

Certification | 3C /FCC/CE/ROHS | |
Language | English (Support) | |
OS | Linux(free) ,Windows7/10(Paid optional) | |
Package/Warranty terms/OEM | ||
Warranty | 12 months | |
OEM/ODM | Support | |

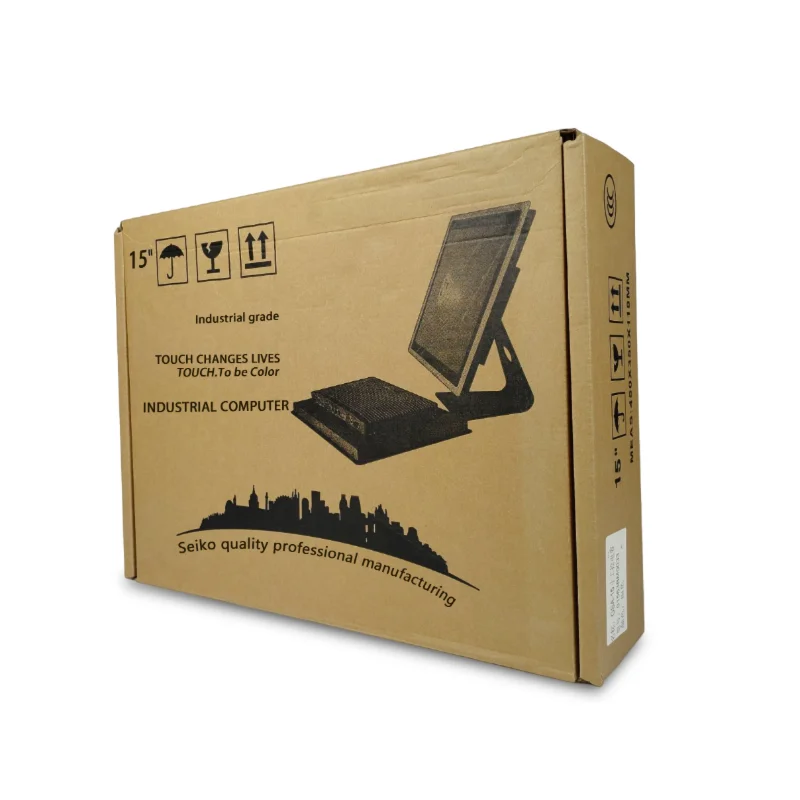

Package | Power Adapter/Introduction manual /Packing box (Can be customized logo) | |

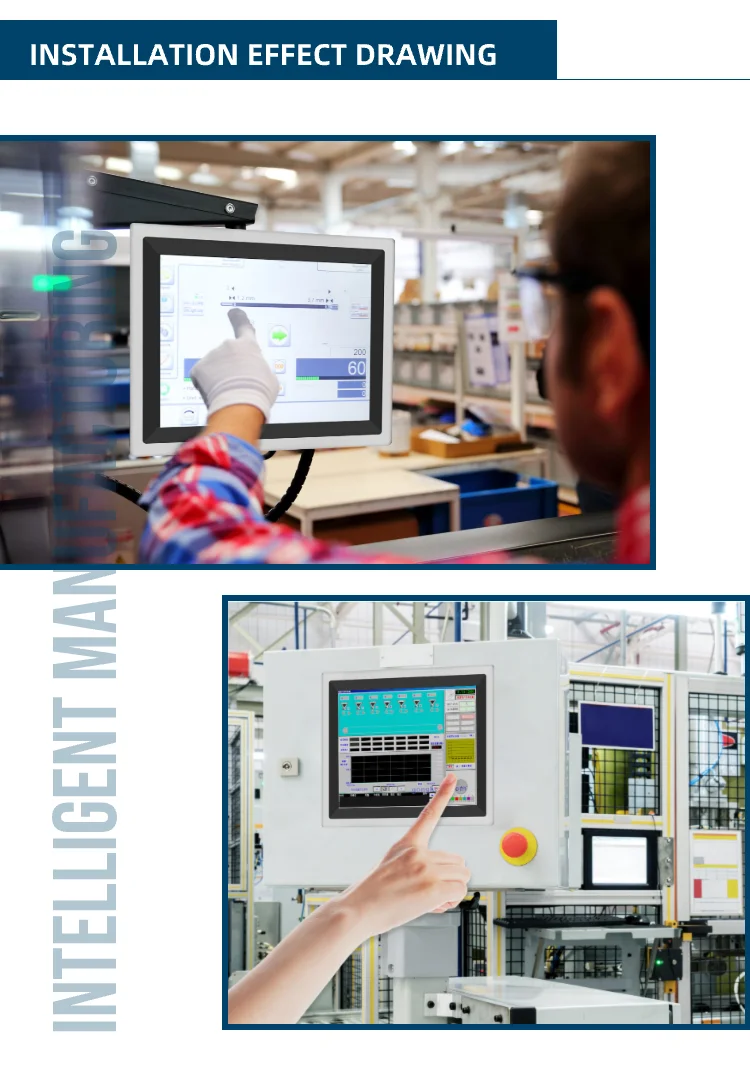

Instalar | Embedded buckle, embedded panel, wall bracket, left base, VESA standard interface | |
Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.
Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.
Q: Why should you buy from us not from other suppliers?
A:Shenzhen Skyworth AI Technology Co., Ltd., located in Shenzhen, Nanshan district.our main products are: Intelligent interactive whiteboard, Digital signage, advertising player, video wall, LCD LED TV etc.we have our own designers and CNC machine, this makes us supports customized design.
Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.
Q:Can I apply to be your agent?
A:Sure,we are looking for long term business cooperation.
A:We are a OEM/ODM factory.
Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.
Q: Why should you buy from us not from other suppliers?
A:Shenzhen Skyworth AI Technology Co., Ltd., located in Shenzhen, Nanshan district.our main products are: Intelligent interactive whiteboard, Digital signage, advertising player, video wall, LCD LED TV etc.we have our own designers and CNC machine, this makes us supports customized design.
Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.
Q:Can I apply to be your agent?
A:Sure,we are looking for long term business cooperation.
