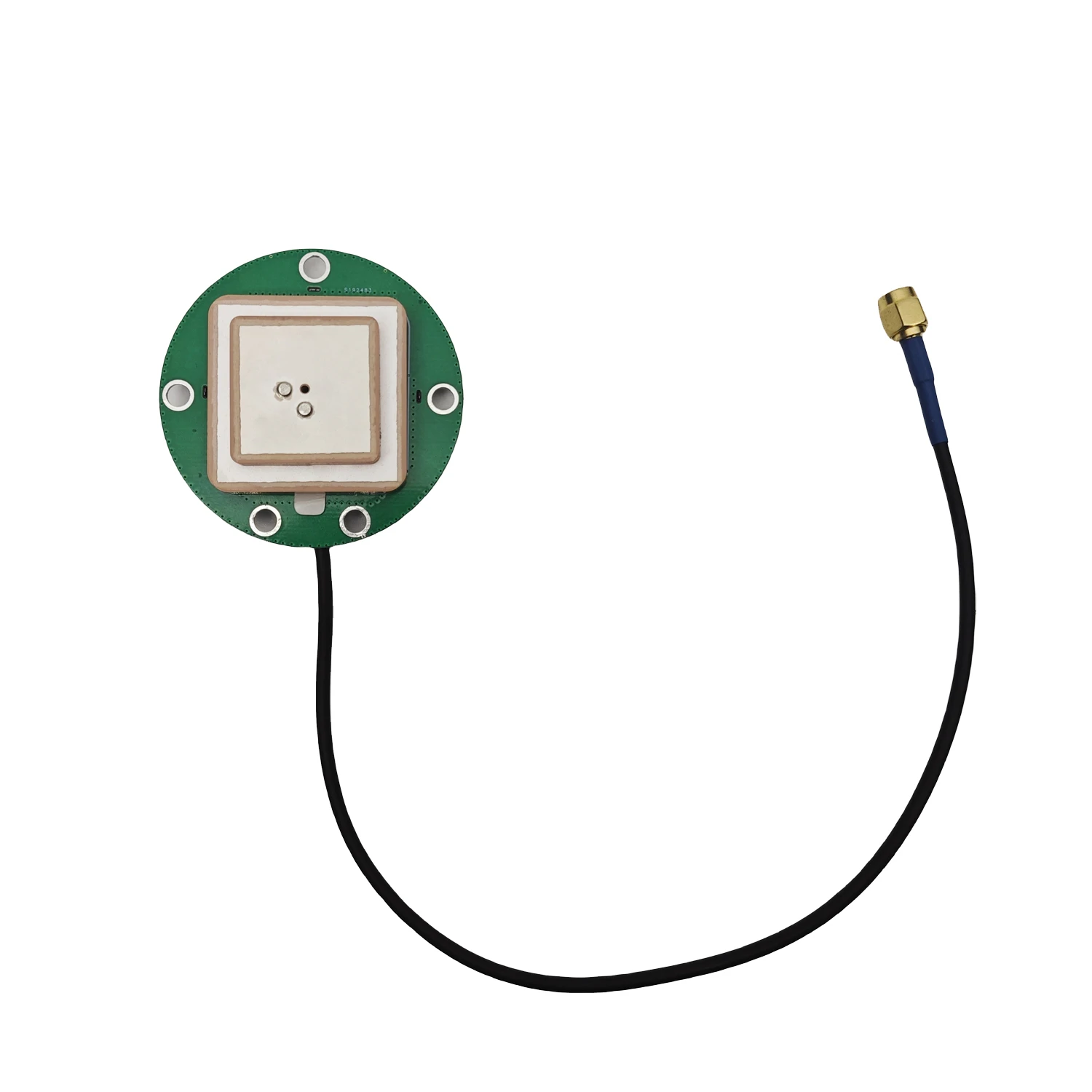

New RTK GPS GLONASS Galileo BeiDou Tri Band GNSS Antenna L Band Built in Active Antenna industrial helmet Aerial UAV UGV antenna
- Category: >>>
- Supplier: Shenzhen Ruida Yongli Technology Co. Ltd.
Share on (1601019510067):
Product Overview
Description

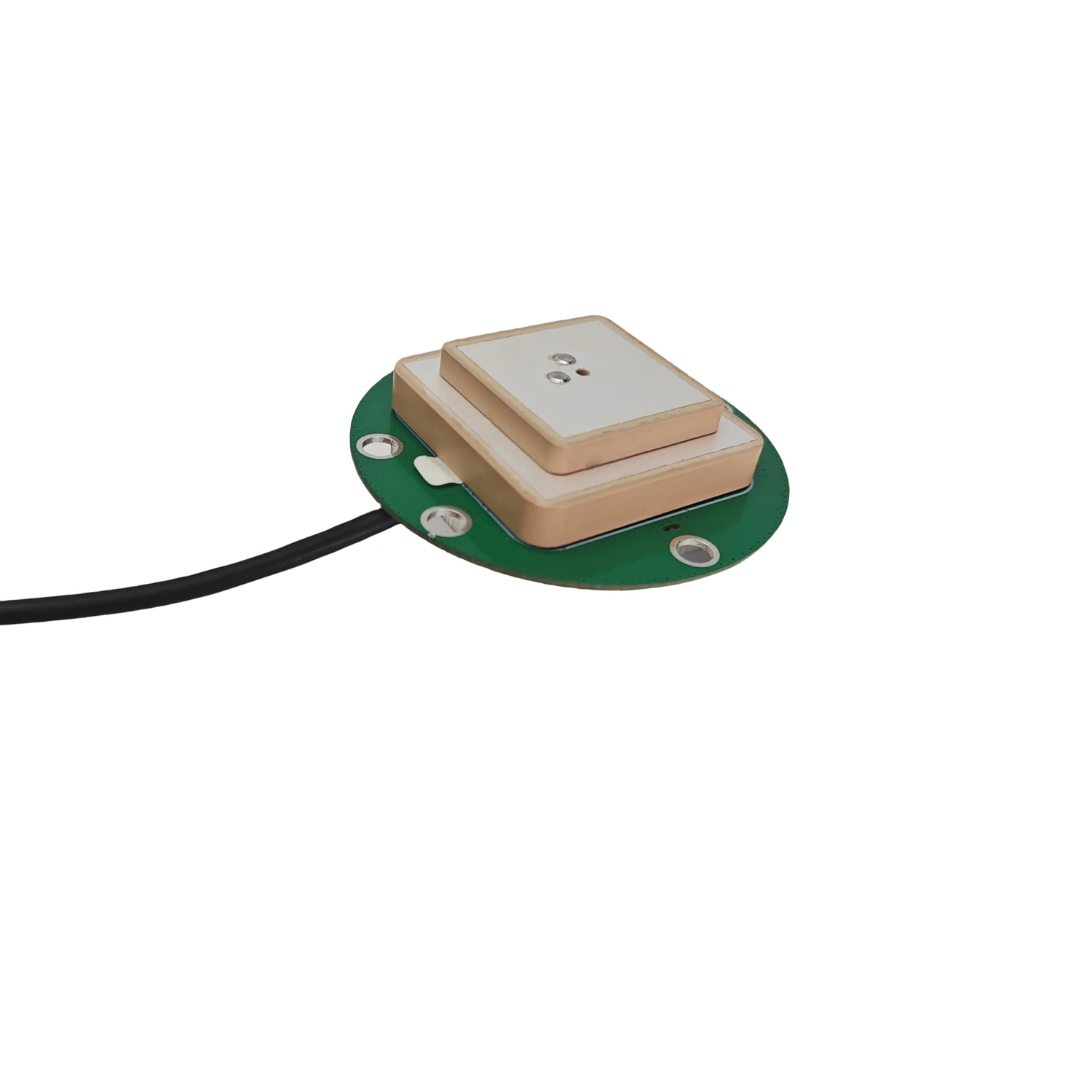

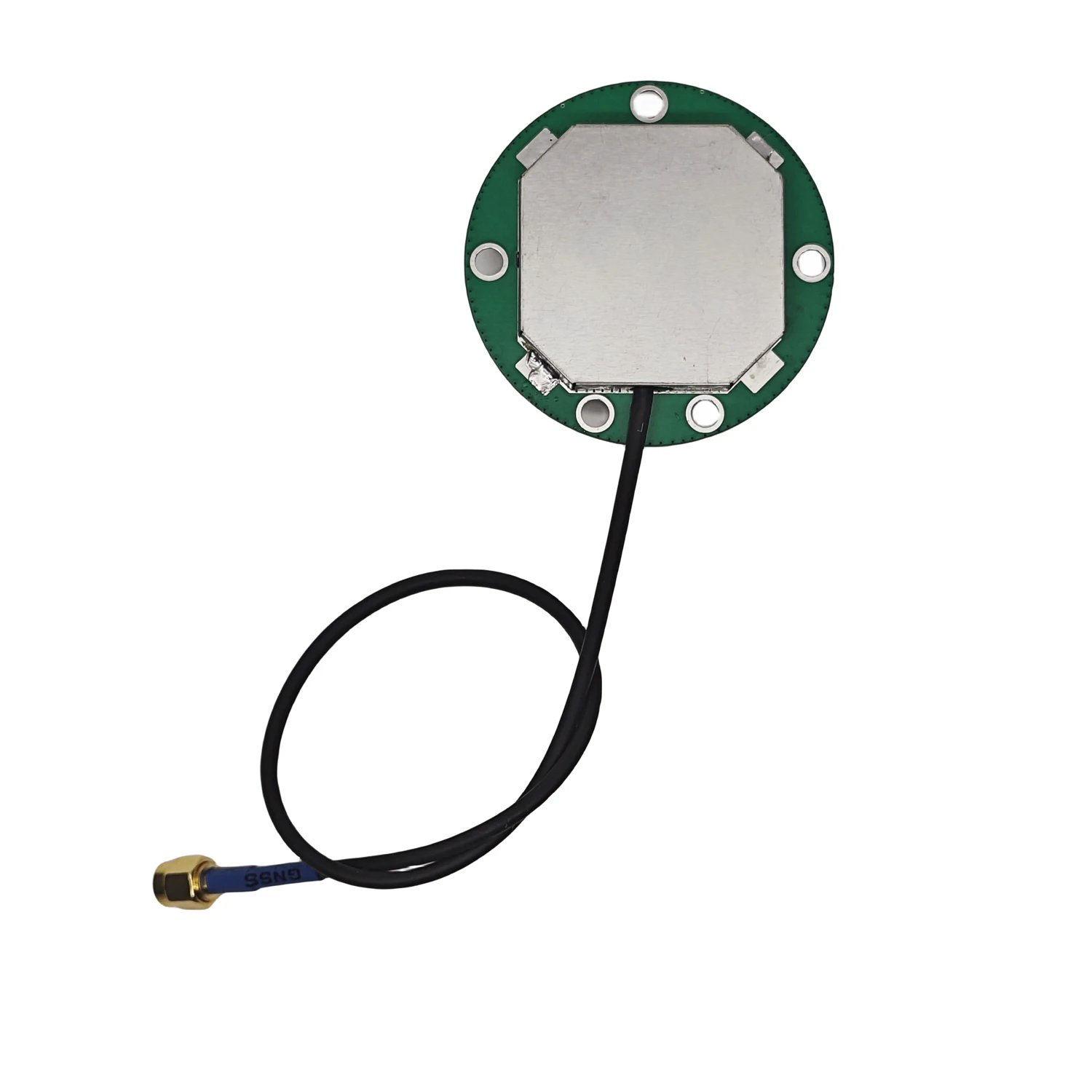

RTK GPS GLONASS Galileo BeiDou Tri-Band GNSS Antenna L-Band Built-in Active Antenna industrial helmet Aerial UAV UGV antenna
Customization scope：Antenna Performance, Appearance, Cable length, Connector type
Customization scope：Antenna Performance, Appearance, Cable length, Connector type
Products Description
Product Description
Compact, rugged, multi-band, high gain, suitable for many types of high-precision positioning applications, such as drones, new energy vehicles, industrial helmets, unmanned delivery vehicles, intelligent agriculture and other outdoor equipment.
It can be debugged according to customers' requirements and providing coverage for triple-band GPS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, plus L-Band correction services.
· FEATURES
- Very low noise preamplifier
- Low axial ratio (zenith < 1.5 dB)
- Tight phase center shift
- High gain LNA (38 dB typ.)
- Unchanged performance over 2.5 to 16 VDC range
- IP67, REACH, and RoHS compliant
· APPLICATIONS
- Precision GNSS Positioning
- Autonomous vehicle tracking and
guidance
- Smart Agriculture
- Law enforcement and public safety
- Tri-Frequency RTK and PPP receivers
· OPTIONS
- Cable Length
- Connector Type
- Connector Type
We can provide detailed test reports to ensure antenna performance. S11 reflection parameters, pointing test charts, LNA test curves, LNA gain, noise plots, etc.
333
Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Ensure the normal use of the product in various environments.
(For more test reports, please contact)
Product Parameters & Customizable Range
Antenna | Frequency range | GPS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, L-Band |
impedance | 50Ω | |
Polarization | RHCP | |
Antenna axis ratio | ≤1.5dB | |
Horizontal plane coverage angle | 360° | |
Output standing wave | ≤2.0 | |
Maximum gain | 4dBi | |

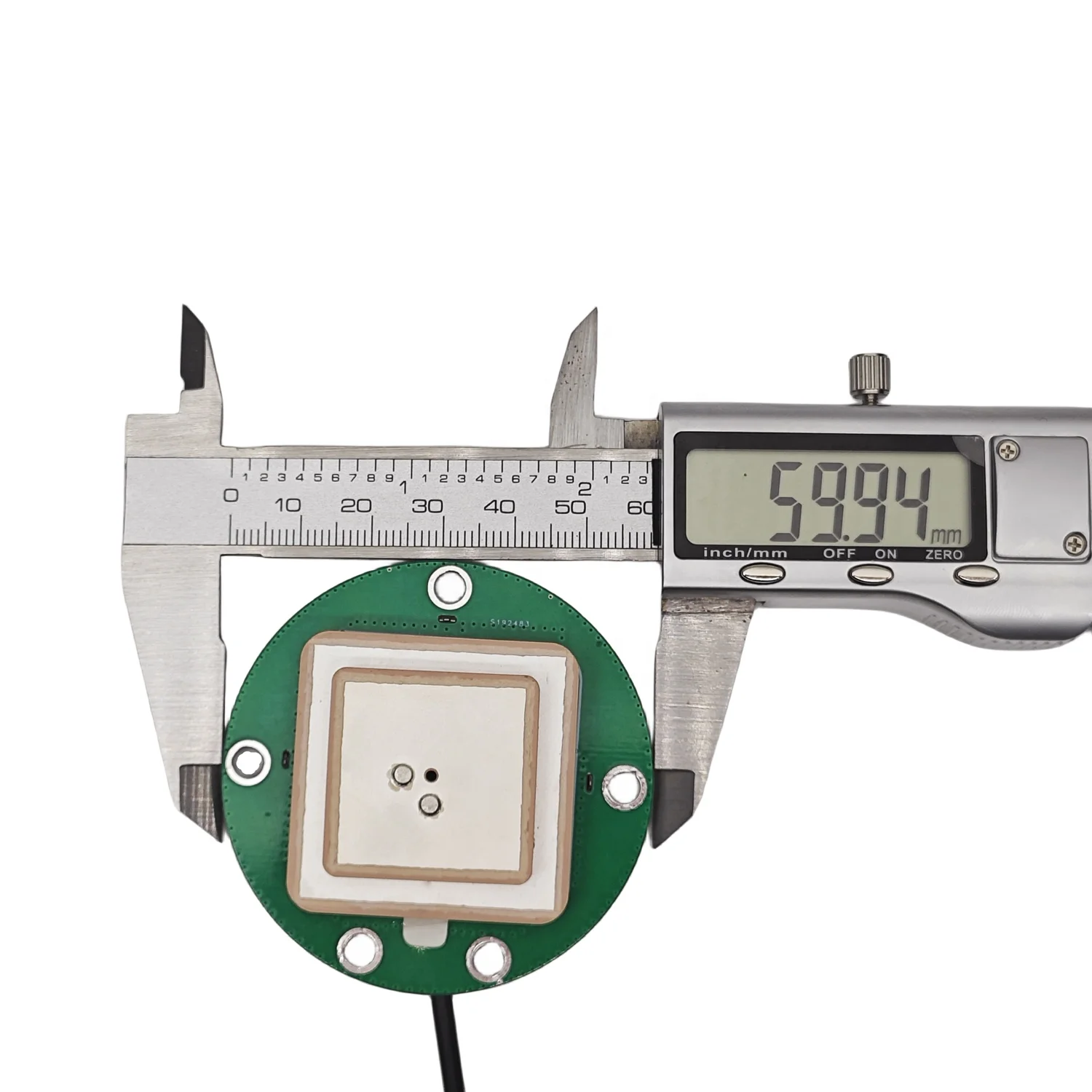

Dimension | ⊘60mm*30mm | |
LNA | Gain | 38dBi |
Noise factor | ≤2dB | |
Output standing wave | ≤2.0 | |
Operating Voltage | 3.3~12VDC | |
Operating current | ≤45mA | |
Gain Flatness | ±2dB | |
Working Environment | Operating temperature | -40℃~+85℃ |
Storage temperature | -55℃~+85℃ | |
Humidity | 95%Non-condensing |
Company Profile
Shenzhen Ruida Yongli Technology Co., Ltd.（RIDA Antennaer） has focused on producing high quality antennas for 11 years, won the national high-tech enterprise certificate, and has a number of antenna patents.Our main products are GNSS/GPS/ GLONASS positioning antennas, WIFI/GSM/5G/4G communication antennas, combo antennas, and the connectors used for them.
We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
Company address is located in plant B301, No.5 South Tongle Avenue, Tongle Community, Baolong Street, Longgang District,Shenzhen, covering an area of 4000 ㎡.
Why Choose Us
From consultation to after-sales, we have professional antenna engineers to solve your problems throughout the whole process. And we have a one year warranty and can repair for the whole life.
So far, we have many patents, and we were awarded as a high-tech enterprise by Shenzhen in 2021.
We have passed IATF 16949, ISO9001 certification. And our products meet the requirements of CE, ROHS, RED, REACH, WEEE certification.
We have more than 100 partners and our business covers automotive positioning and navigation, communication towers, drones and industrial robots, industrial mapping, and high precision positioning.
Payment & Shipping & Packaging & Warehouse
More Product
FAQ
Q1: Can I get one sample?
A: Yes, sample is for free.
Q2: Are you a manufacturer or a trading company?
A: We have our own factory, not a trading company or cooperative factory, and we have been manufacturing antennas for over 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days
A: Yes, sample is for free.
Q2: Are you a manufacturer or a trading company?
A: We have our own factory, not a trading company or cooperative factory, and we have been manufacturing antennas for over 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days
Q5: Are all your antennas in stock?
A: No, our antennas are custom made to order.
Q6: How long is your after-sales service?
A: We provide one year quality warranty.
A: No, our antennas are custom made to order.
Q6: How long is your after-sales service?
A: We provide one year quality warranty.
