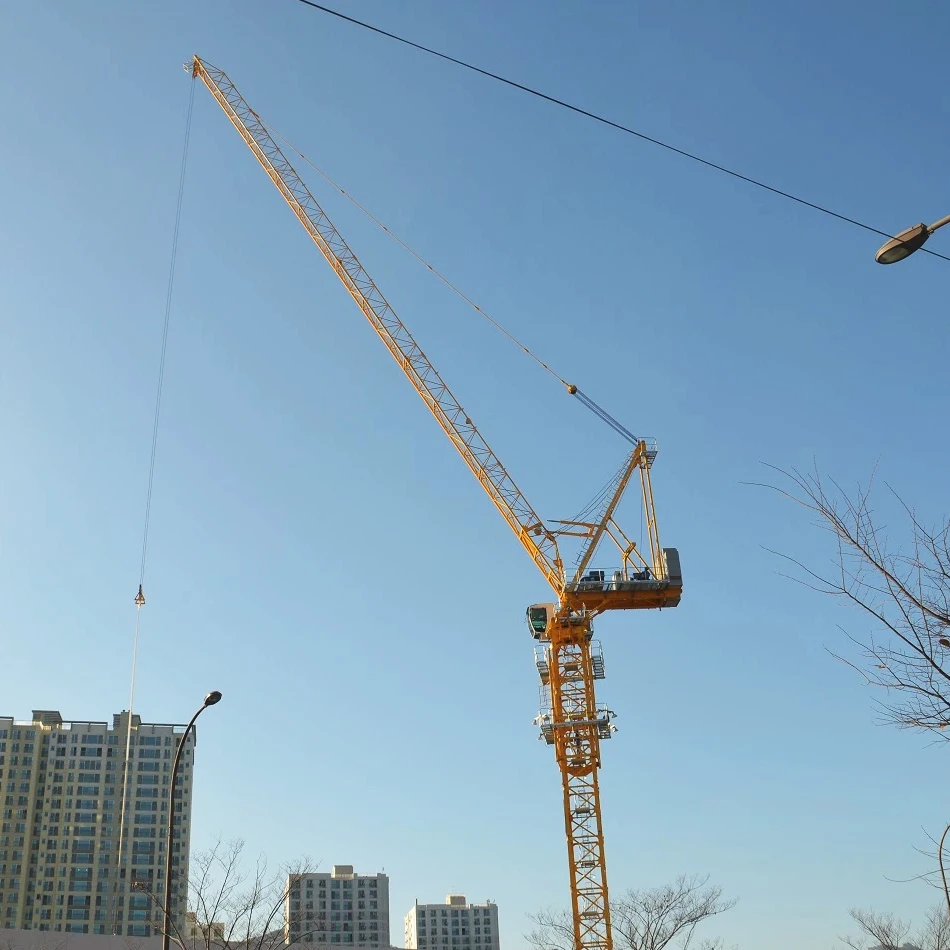

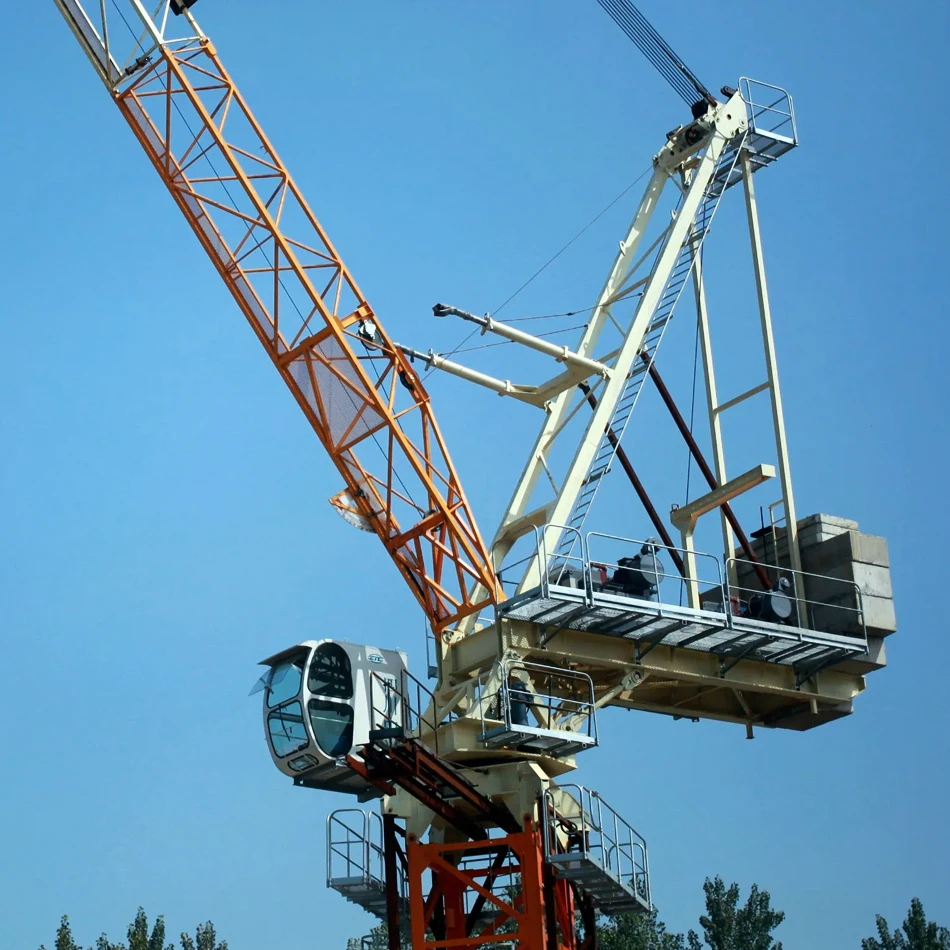

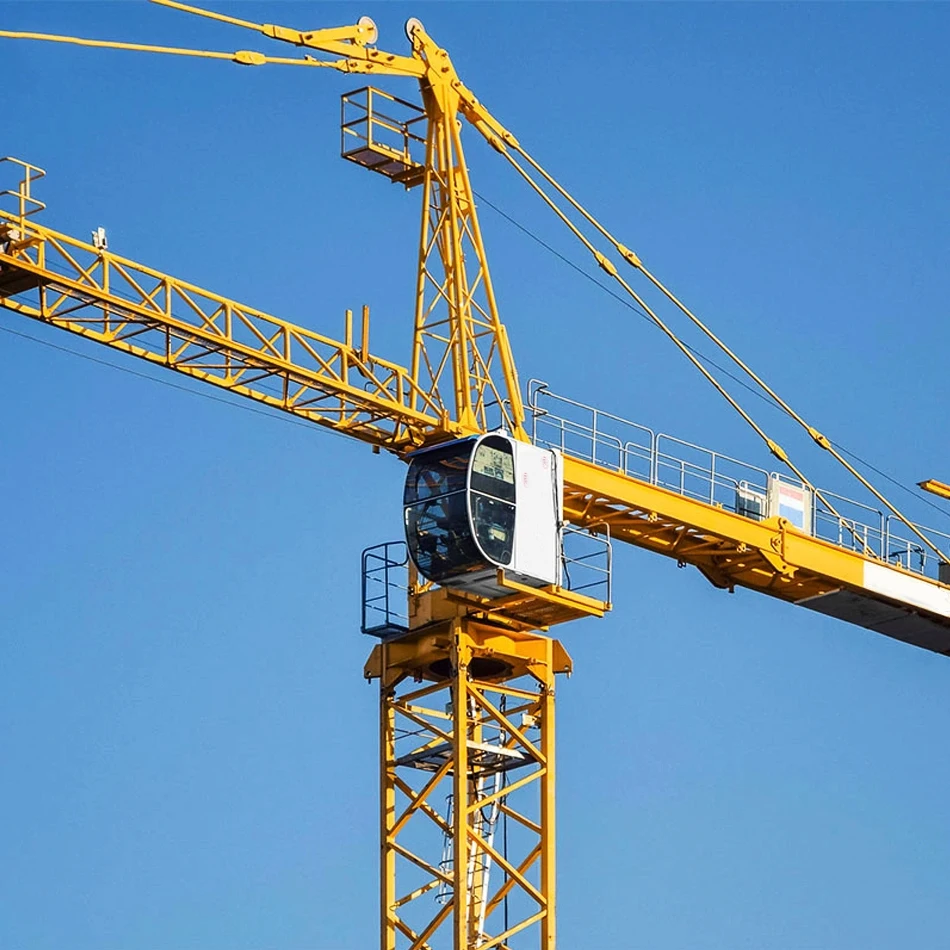

High Quality China Tower Crane ZT320K Tower Crane for sale

Name: High Quality China Tower Crane ZT320K Tower Crane for sale
SKU: 1601019525324
Price: $20,000.00 USD
Availability: InStock

Price:$20,000.00

Quantity:

Specification

Tower Crane Working Grade			A4
Mechanisms Working Grade			Hoisting			M4
				Slewing			M5
							M4
Rated Hoisting Moment (kN.m)			3110
Max Hoisting Height (m)			Stationary			51.3
Max Hoisting Height (m)				Anchorages			240.3
Working Radius (m)			Min Radius			3.75
Working Radius (m)				Max Radius			75
Max Hoisting Capacity (t)			16
Hoisting Mechanism	Falls	2			4
		Lifting Capacity/ Speed (t/m/min)	4/75	8/37.5	8/37.5	16/18.75
		Power (kW)	60
Trolley Mechanism	Speed (m/min)	0～100
Trolley Mechanism		Power (kW)	11
Slewing Mechanism	Speed（r/min）	0～0.6
Slewing Mechanism		Stall Torque（N.m）	2×145

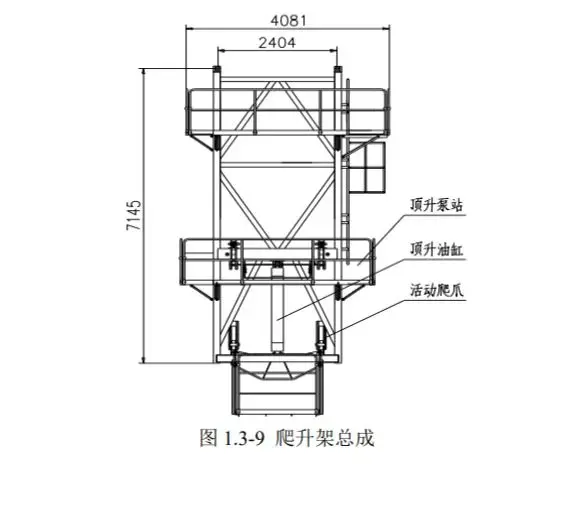

Climbing Mechanism	Working Pressure (MPa)	31.5
Climbing Mechanism		Speed (m/min)	0.45
Total Power (kW)			86 (excluded Climbing System
Allowable Wind Speed at Top of Crane (m/s)			Climbing					14
				In Service					20
				Out of Service			0～20m	36
								20～100m	42
								100m～	46
Working Temperature (℃)			-20～+40
Power Supply			～380V/50Hz
