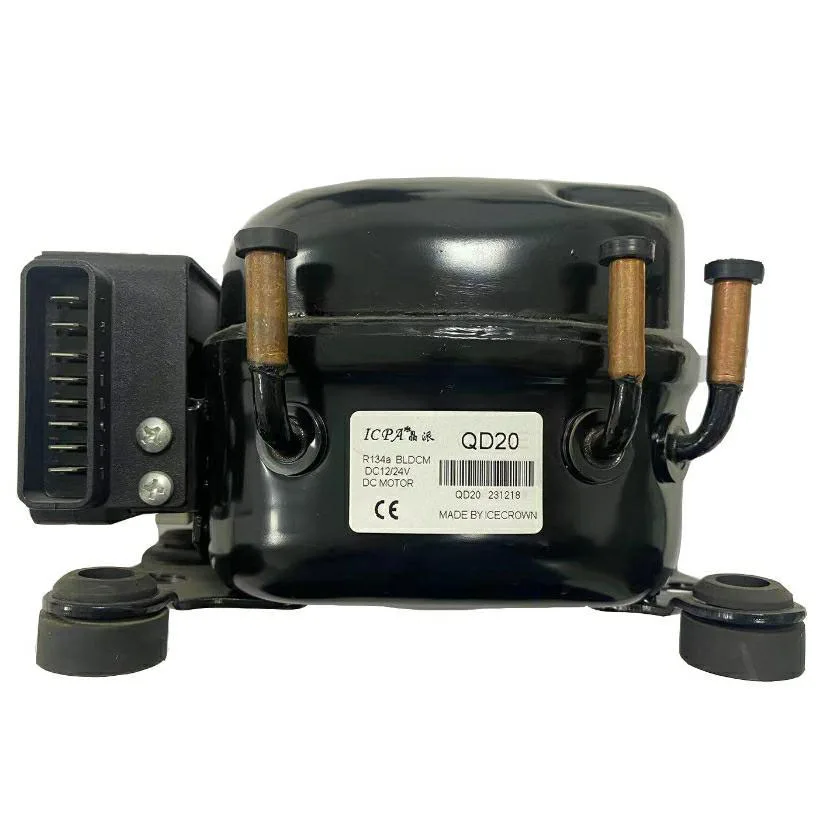

DC12V 24V solar refrigerator R600a compressor QD20

Product Overview

Description

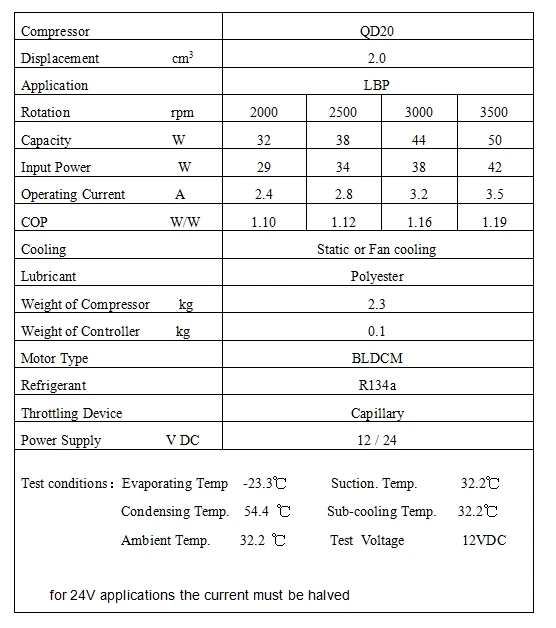

Compressor: QD20;

Displacement cm3 :2.0

Application: LBP

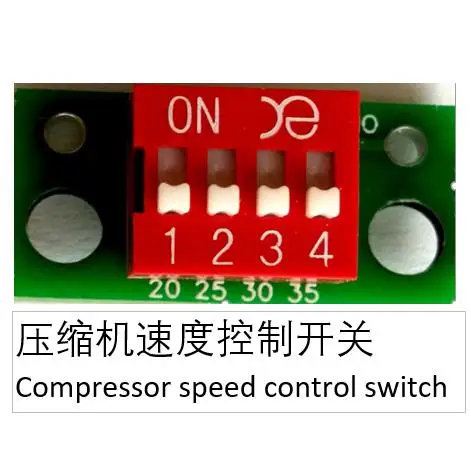

Rotation rpm:              2000  2500  3000  3500

Capacity W:                  32       38      44     50

Input Power W :            29       34      38     42

Operating Current A:   2.4      2.8     3.2    3.5

COP W/W:                      1.2      1.2    1.2     1.2

Operating Voltage V: DC 10.9~17V,22.7~31.5V

Cooling :Static or Fan cooling

Lubricant: Polyester

Weight kg: 2.3

Weight of Controller kg: 0.1

Motor Type: BLDCM

Refrigerant: R134a

Throttling Device :Capillary

Power Supply V :DC 12/24

Test conditions:Evaporating Temp -23.3℃

Suction. Temp.:32.2℃

Condensing Temp.: 54.4 ℃

Sub-cooling Temp.: 32.2℃

Ambient Temp.: 32.2 ℃

Test Voltage :12VDC
