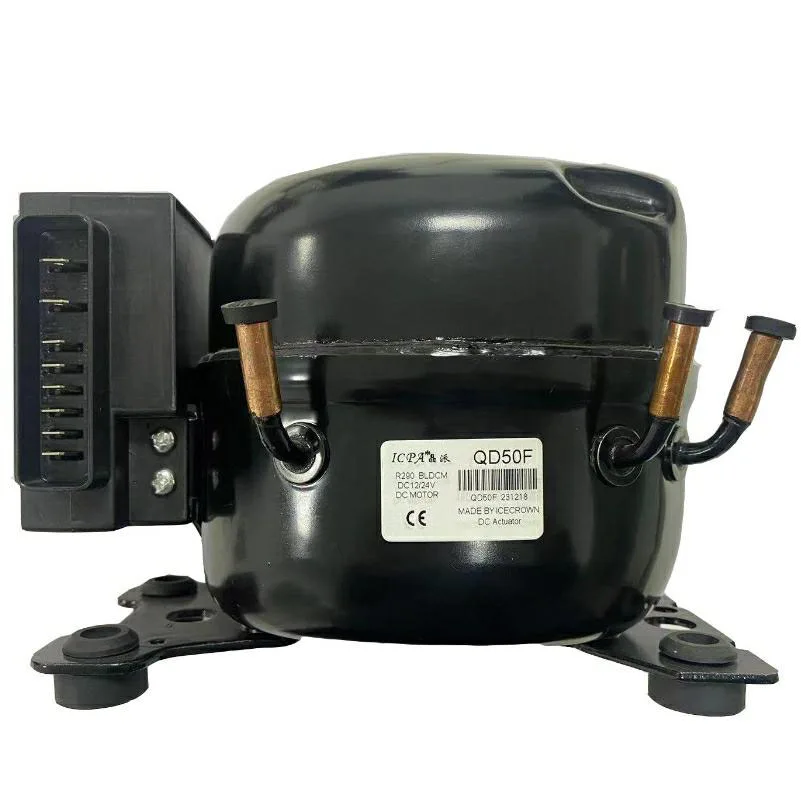

QD50F compressor DC12 24V For Solar Car Refrigerator Fridge freezer

Product Overview

Description

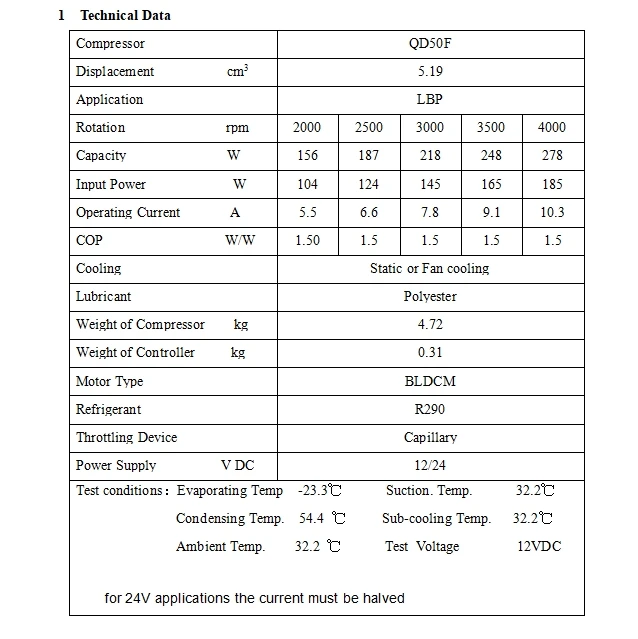

Compressor: QD50F;

Displacement cm3 :5.2

Application: LBP

Rotation rpm:       200    2500  3000  3500 4000

Capacity W:          156    187     218     248   278

Input Power W :     104    124    145    165   185

Operating Current A:  24V7.1A

COP W/W:                    1.5

Operating Voltage V: DC10.7~31.5V

Cooling :Static or Fan cooling

Lubricant: Polyester

Weight kg: 4.72

Weight of Controller kg: 0.31

Motor Type: BLDCM

Refrigerant: R290

Throttling Device :Capillary

Power Supply V :DC12-24

Test conditions:Evaporating Temp -23.3℃

Suction. Temp.:32.2℃

Condensing Temp.: 54.4 ℃

Sub-cooling Temp.: 32.2℃

Ambient Temp.: 32.2 ℃

Test Voltage :24VDC
