Stainless Steel Corrugated Flexible Metal Hoses/pipe With Fittings Stainless 304 Steel Corrugated Flexible Metal Tube/hose/pipe
- Category: >>>
- Supplier: Hebei Jiaboan Technology Co. Ltd.
Share on (1601019736843):
Product Overview
Description
Product Description

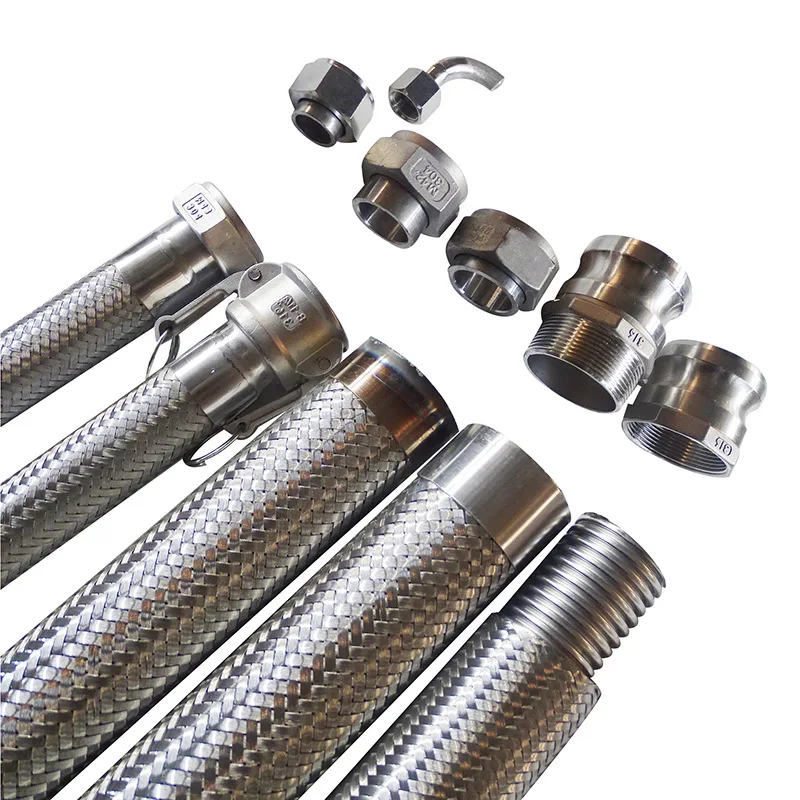

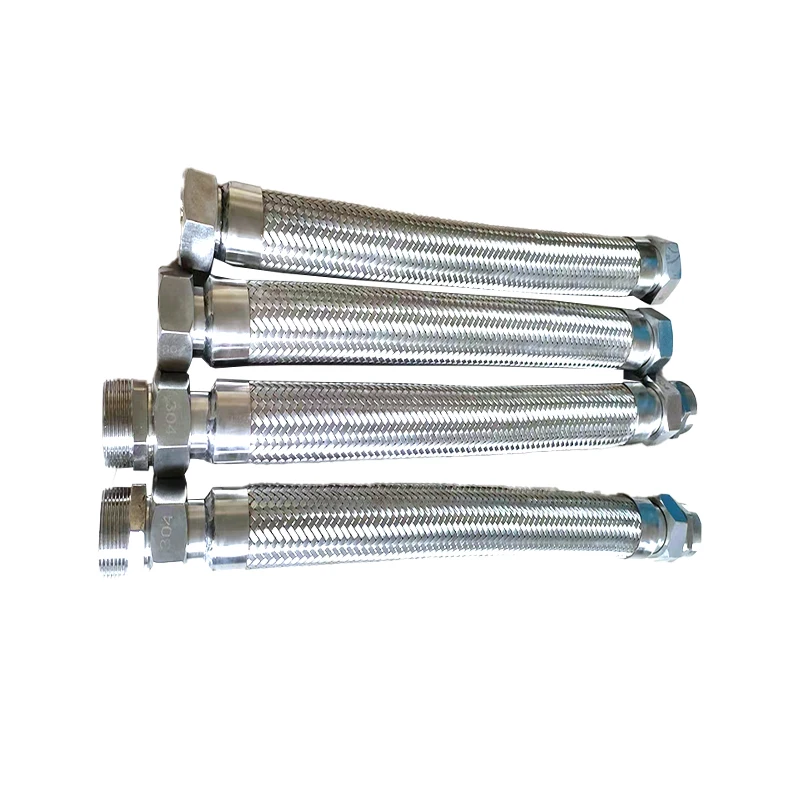

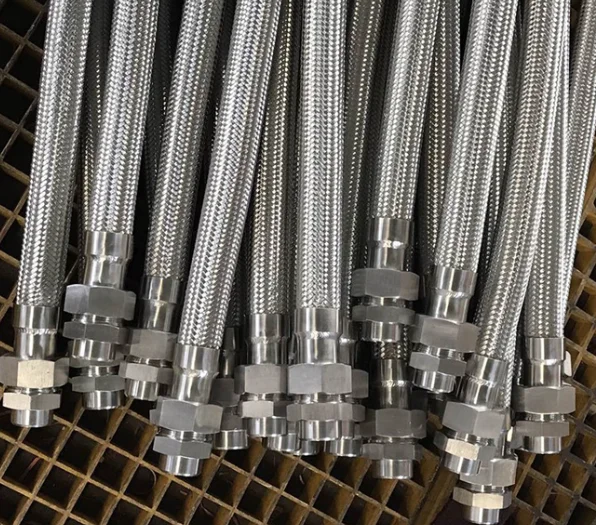

Stainless steel metal hose
Support customized services

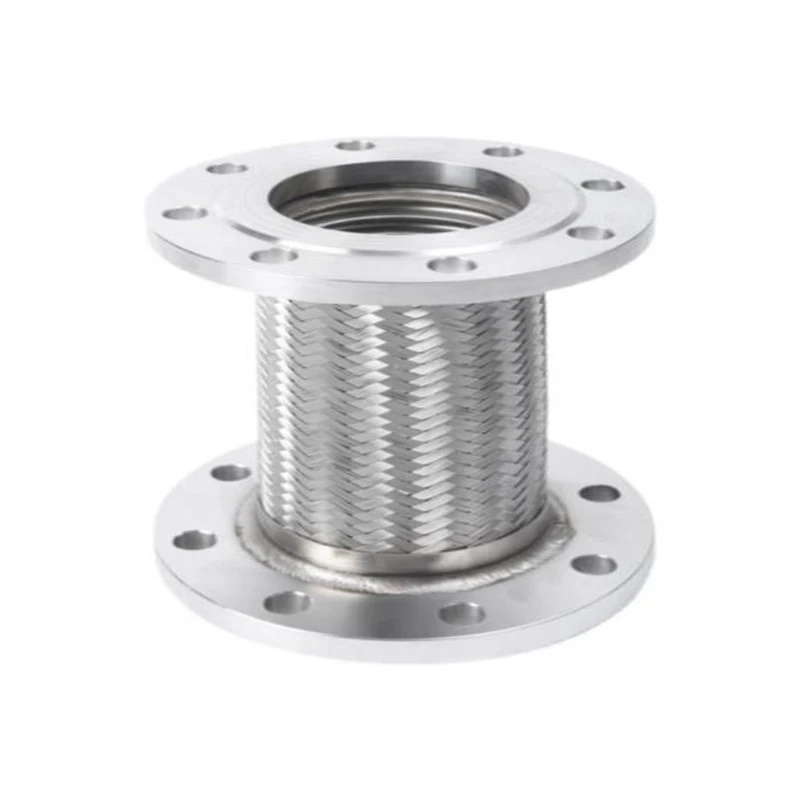

stainless steel wire braided flexible expansion joint corrugated metal hose with flange
Stainless Steel Braided Joint is a kind of flexible hose with high quality in modern industrial pipeline.
The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows.
The outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters.
The joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Stainless Steel Braided Joint is a kind of flexible hose with high quality in modern industrial pipeline.
The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows.
The outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters.
The joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Technical parameter of metal hose with flange | ||||||||||||||
Nominal diameter DN | Inner diameter (mm) | Outer diameter | Minimum bending radius | Working pressure | ||||||||||
Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | |||||||||
8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 | |||||||
10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 | |||||||
15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 | |||||||
20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 | |||||||
25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 | |||||||
32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 | |||||||
40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 | |||||||
50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 | |||||||
65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 | |||||||
80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 | |||||||
100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 | |||||||
125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 | |||||||
150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 | |||||||
200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 | |||||||
250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 | |||||||
300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 | |||||||
350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 | |||||||
400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 | |||||||

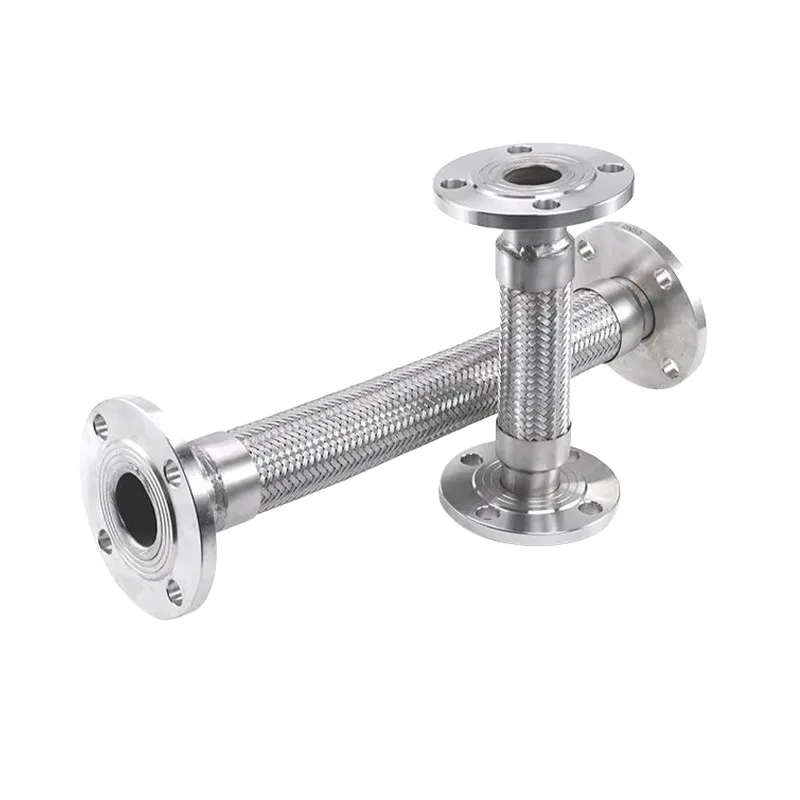

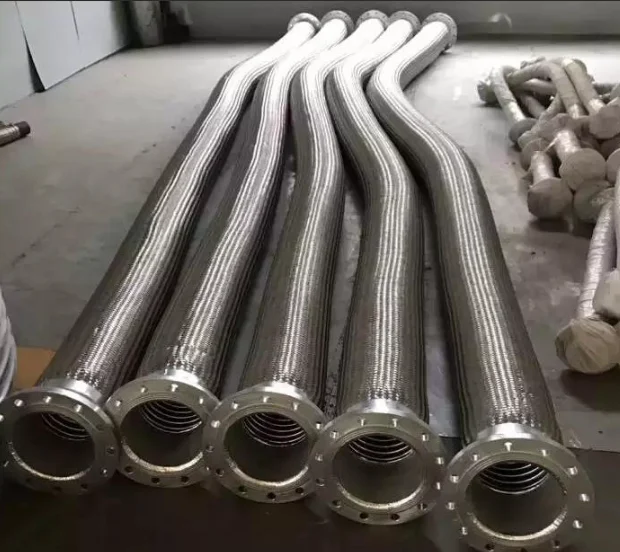

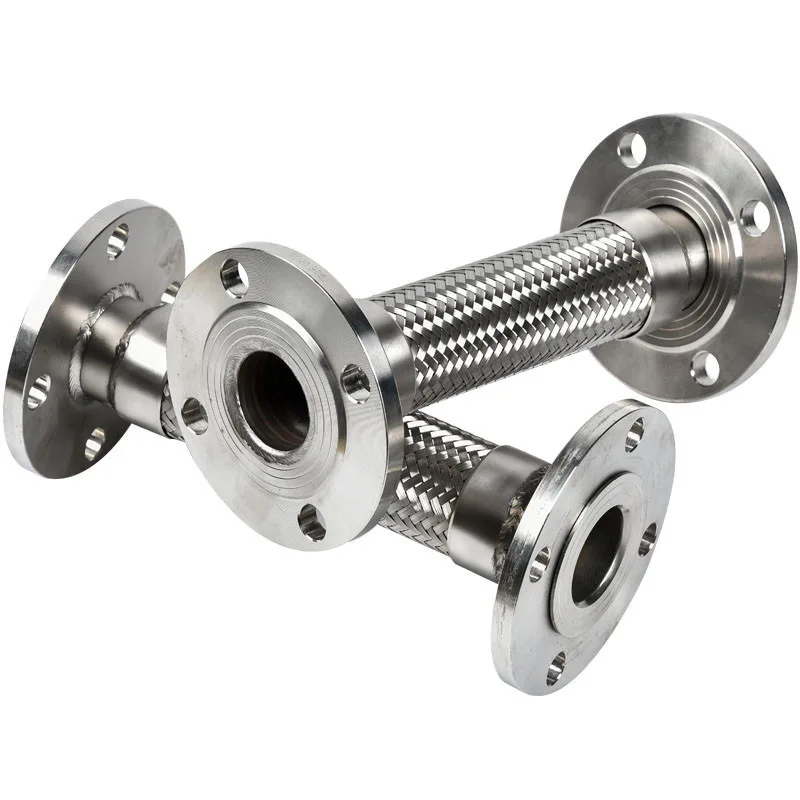

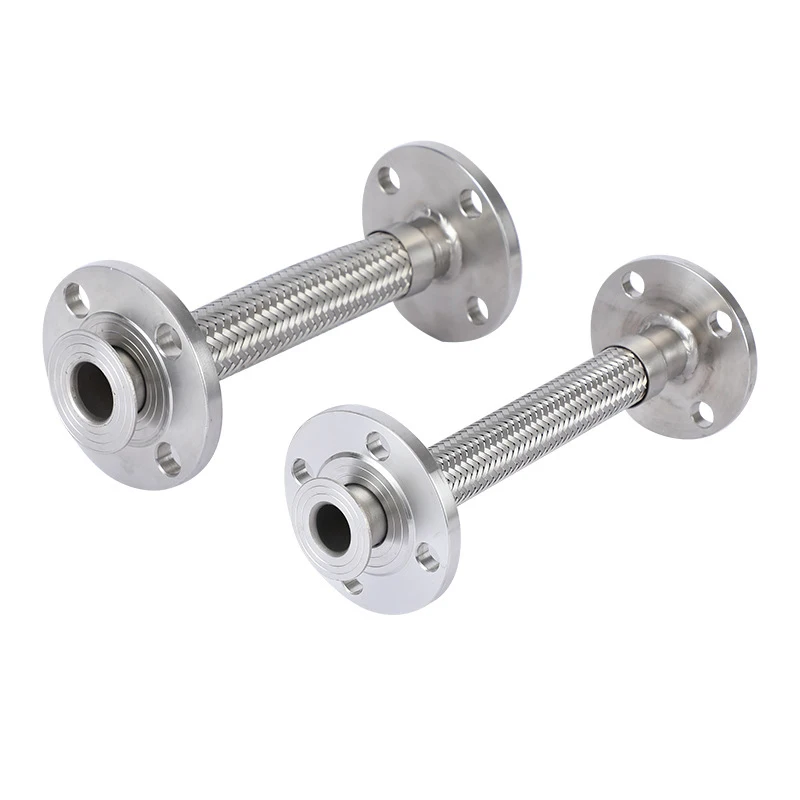

Flange metal hose

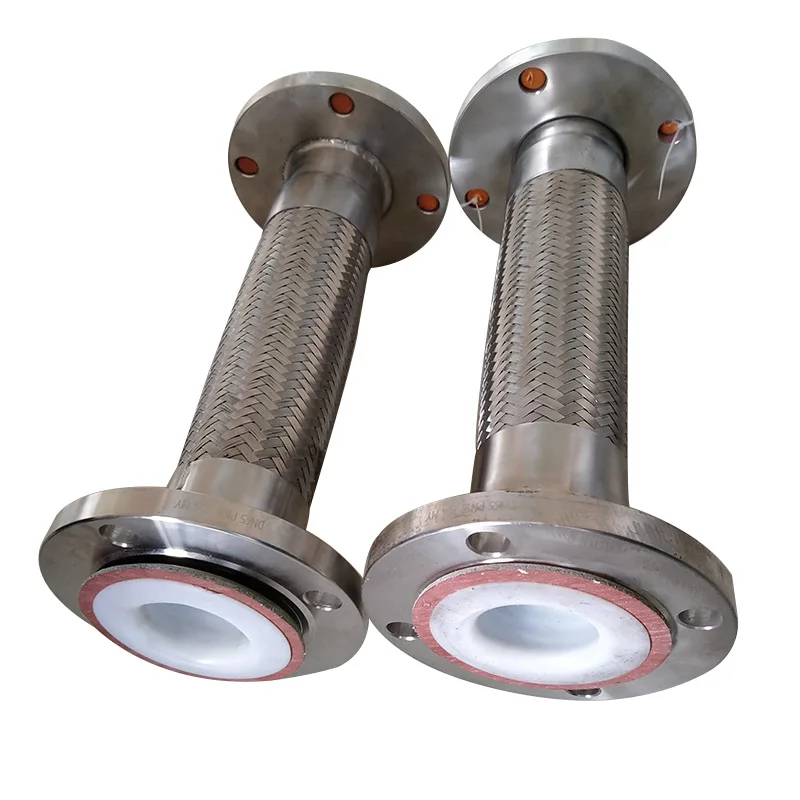

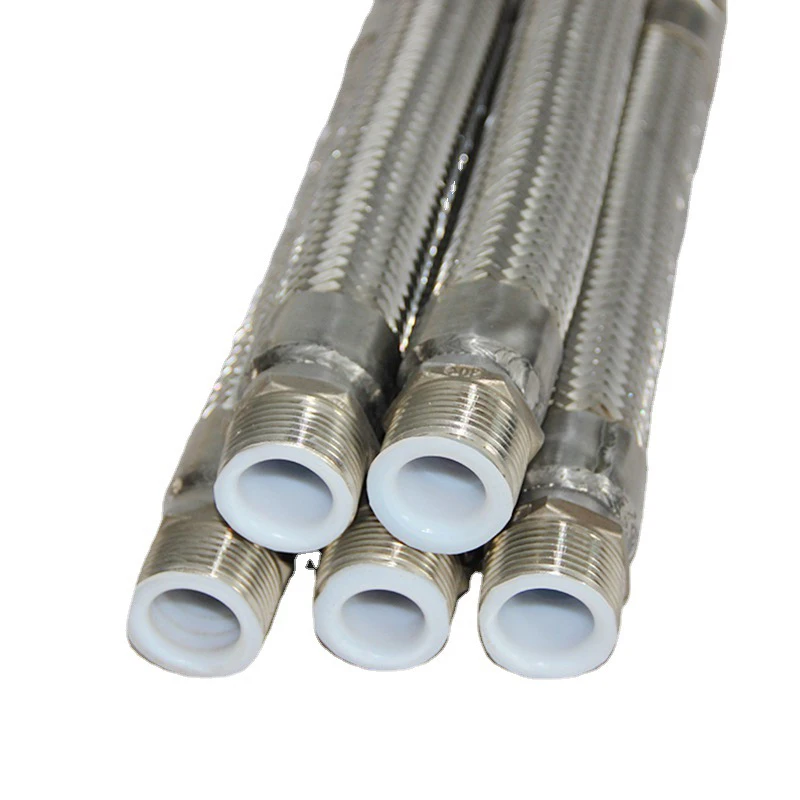

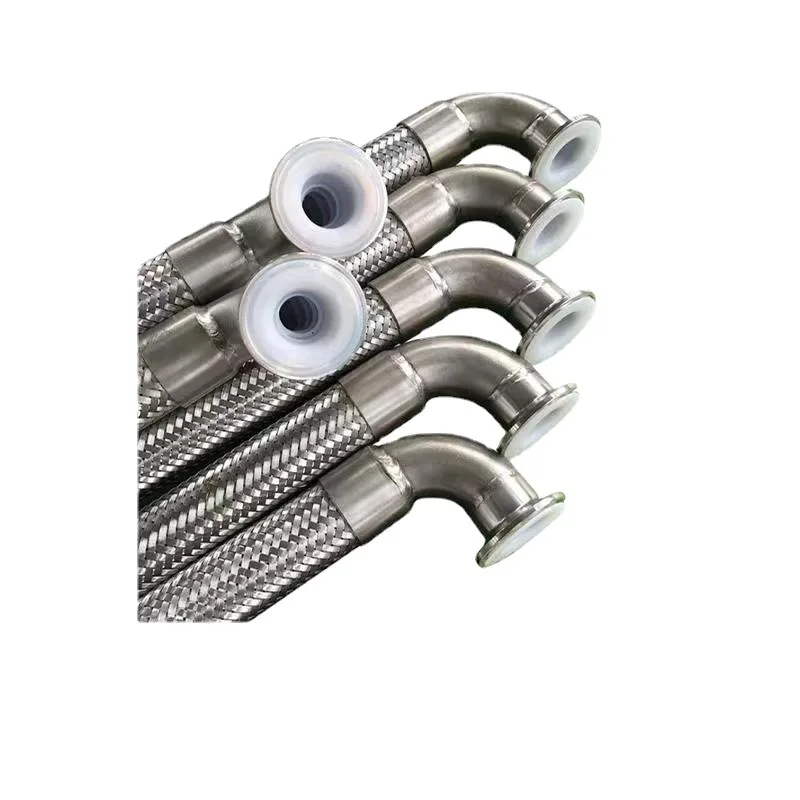

PTFE-lined metal hose

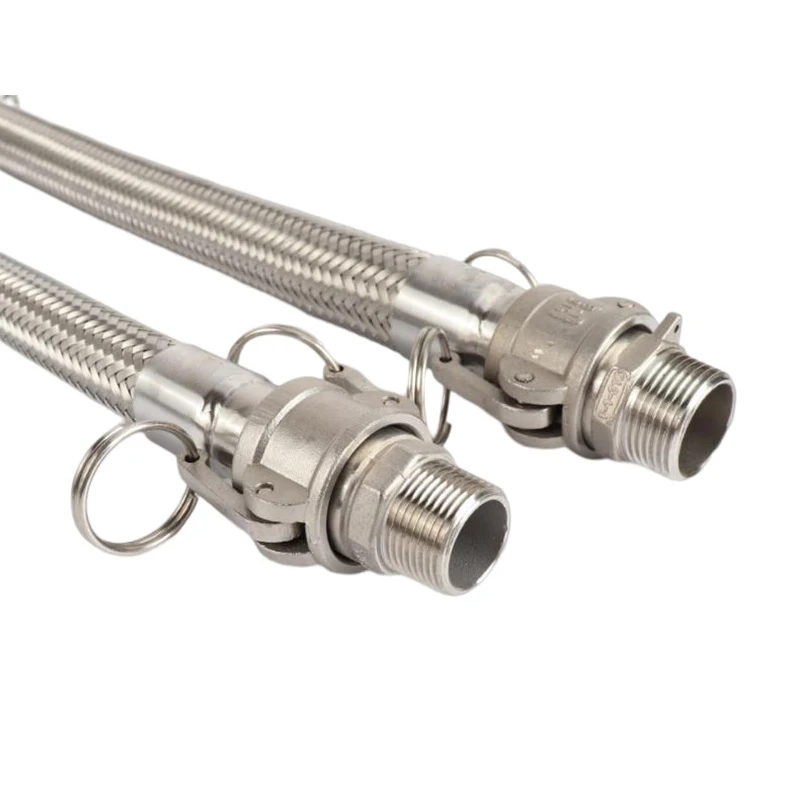

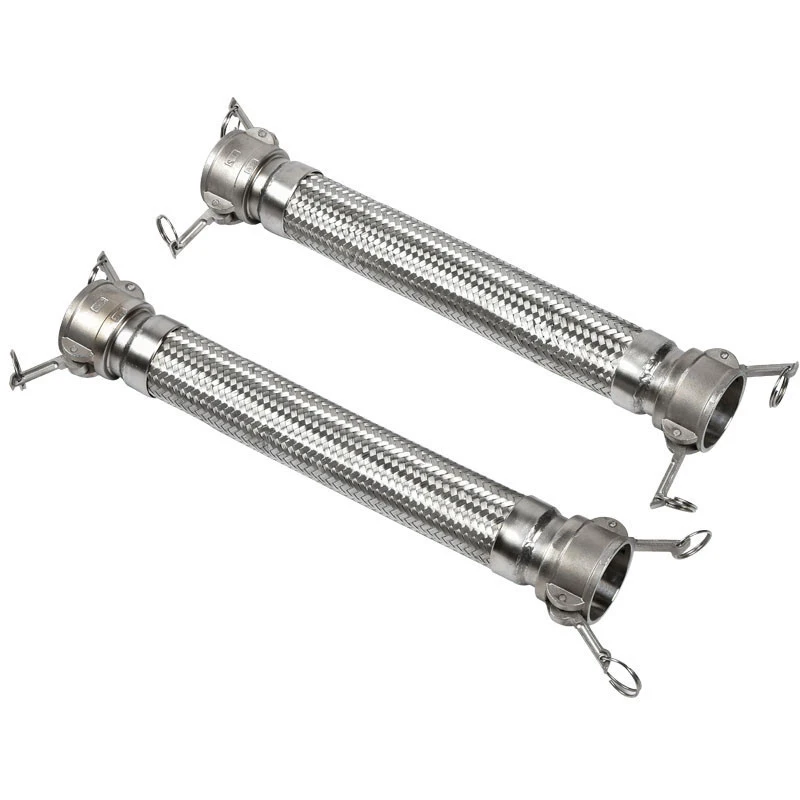

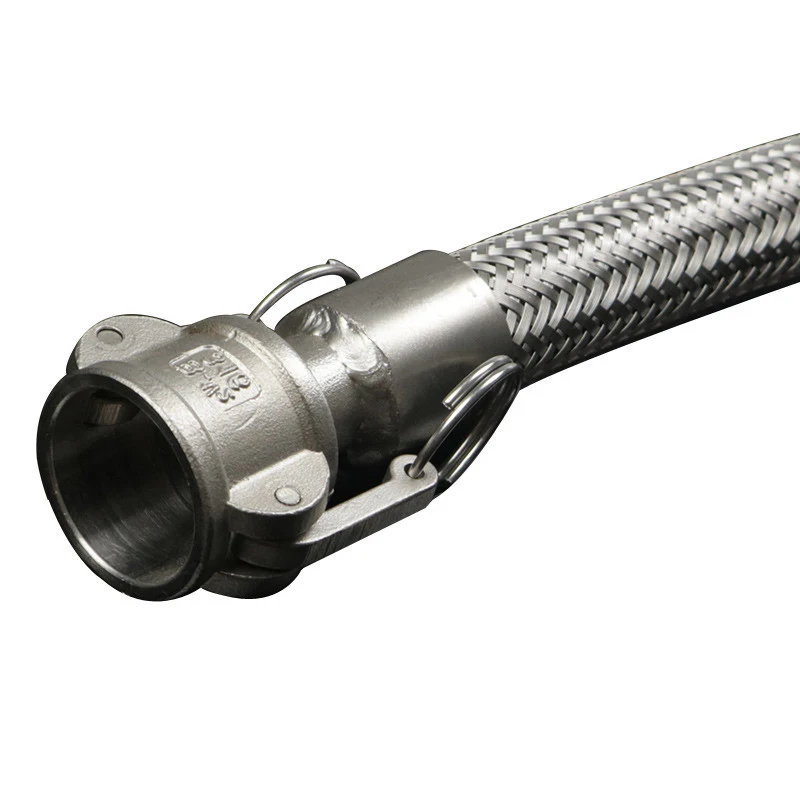

Quick connect metal hose

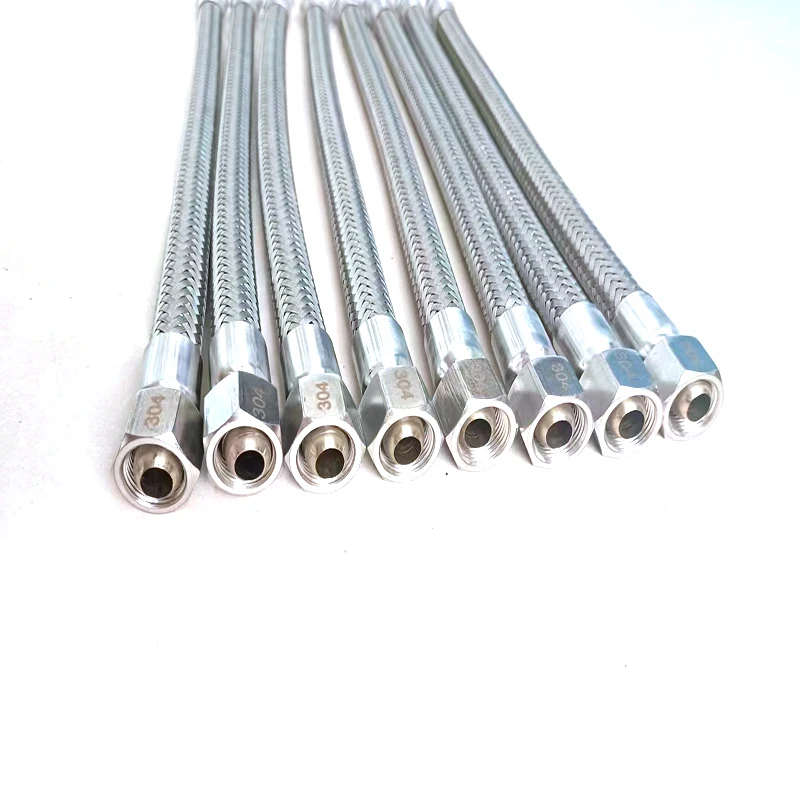

Nut metal hose
Specification
item | value |
Warranty | 0 |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Hebei | |
Brand Name | Jiaboan |
Model Number | Metal hose |
Technics | Casting |
Connection | male female |
Shape | Equal |
Head Code | Round |
Product name | Metal hose |
Material | Steel |
Color | Customized Color |
Size | Customized Size |
MOQ | 100 Piece |

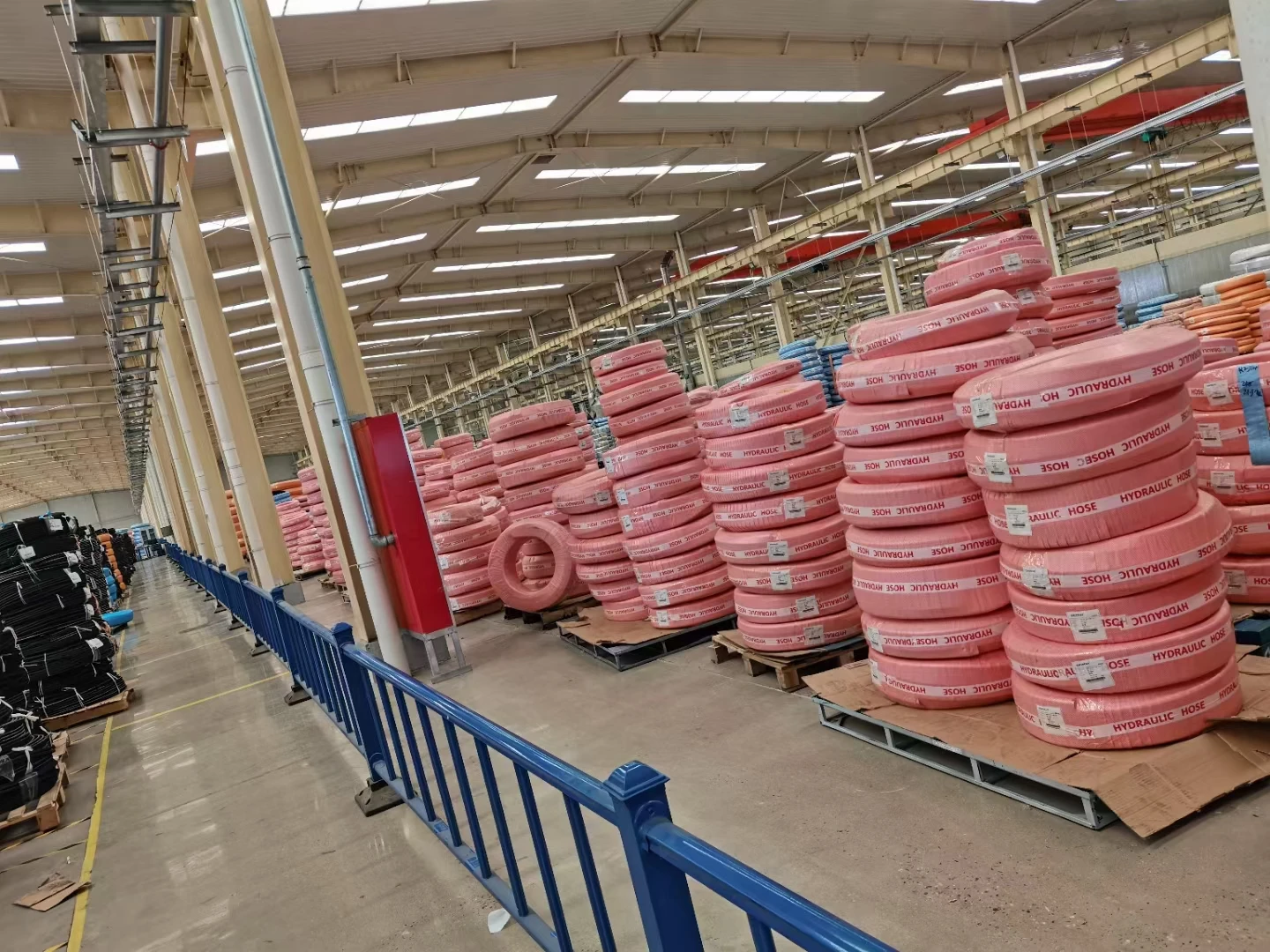

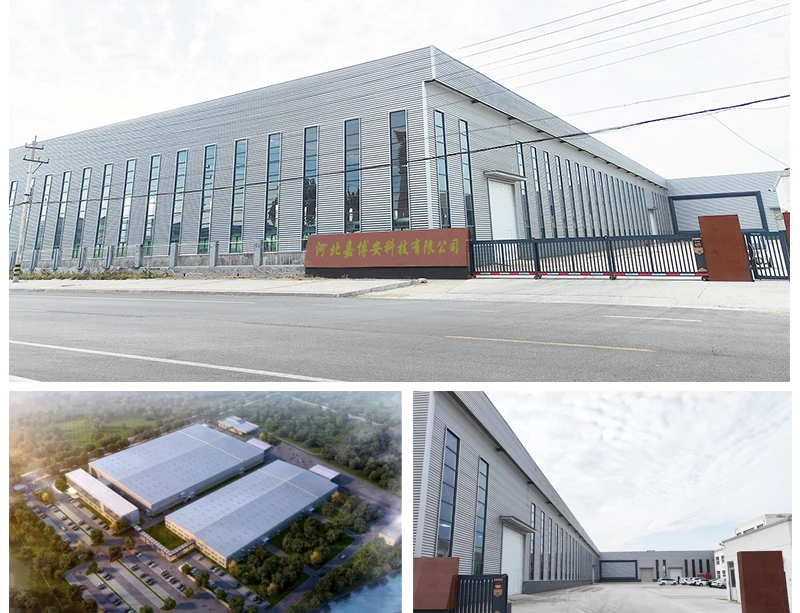

Company Profile
Hebei Jiaboan Technology Co., Ltd. was established in 2023 and is located in the southeast of Hebei Province, China's rubber and plastic base. It is a scientific and technological enterprise mainly engaged in R & D, production and sales of rubber and plastic products. Since its establishment, it has dozens of injection molding machines, extruders, CNC processing and other equipment. The company specializes in the production and operation of custom plastic products, custom rubber products, nylon, polyurethane products, high pressure and low pressure hose, chemical hose, large diameter rubber hose, metal hose, compensator and other processing parts. Product technical indicators are up to national standards. Companies adhering to the "integrity-based, quality first, the pursuit of excellence" business philosophy, continue to increase investment in product quality and new product development, to provide customers with more perfect products and services and make unremitting efforts. We are willing to cooperate with new and old customers for a long time to seek a win-win situation. "Realistic innovation, integrity eternal" is our service
Why Choose Us

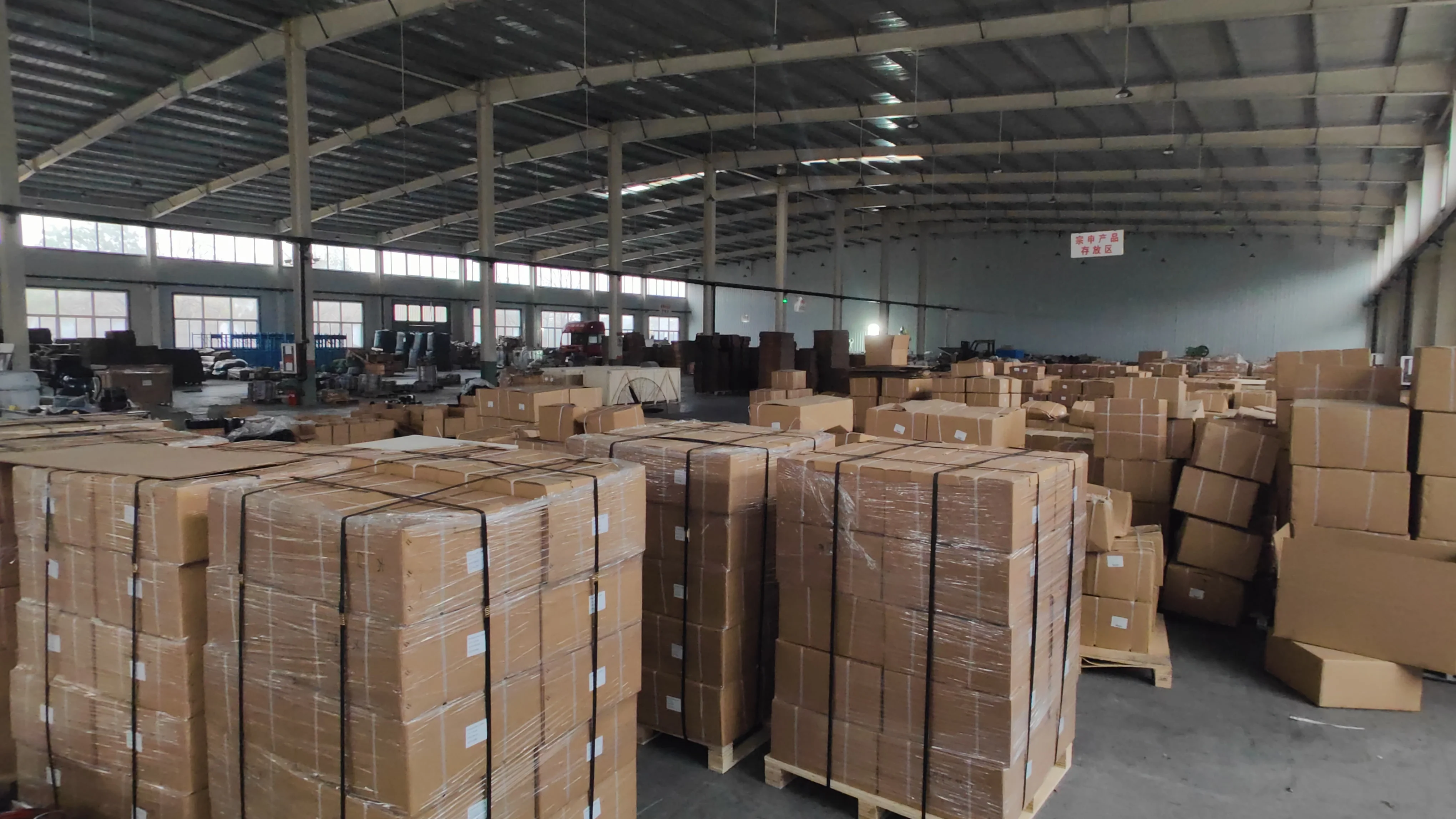

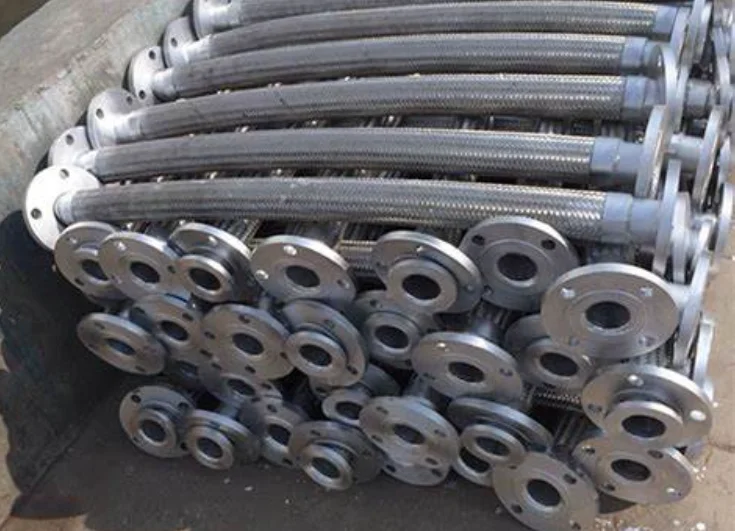

Transportation and packaging
FAQ
Q：Is your organization committed to the concept of total quality management?
A：Yes, no matter in laser cutting, bending, or CNC machining, the workers will conduct the first sample inspection and random inspection during the processing to ensure the quality of the products
Q：How many checks are performed on a project?
A：Usually, products will go through the following four inspections: incoming inspection, production first inspection, sampling inspection, and pre-shipment inspection. Among them, sampling inspection will be conducted multiple times.
Q：Will you be able to work with our engineering team to review drawings and provide quick, estimated pricing for desired changes?
A：Yes, our engineers respond very quickly. If there is anything to be modified in the product, we can offer you a new price as soon as you tell us.
Q : What's kinds of information you need for a quote?
A：Yes, no matter in laser cutting, bending, or CNC machining, the workers will conduct the first sample inspection and random inspection during the processing to ensure the quality of the products
Q：How many checks are performed on a project?
A：Usually, products will go through the following four inspections: incoming inspection, production first inspection, sampling inspection, and pre-shipment inspection. Among them, sampling inspection will be conducted multiple times.
Q：Will you be able to work with our engineering team to review drawings and provide quick, estimated pricing for desired changes?
A：Yes, our engineers respond very quickly. If there is anything to be modified in the product, we can offer you a new price as soon as you tell us.
Q : What's kinds of information you need for a quote?
A : Kindly please provide the product drawing in PDF,and will be better you can provide in .dwg / .stp / . iges / .stl , Send drawing.
Q：Is the material ROHS compliant?
A：Yes
Q：Is the material ROHS compliant?
A：Yes
