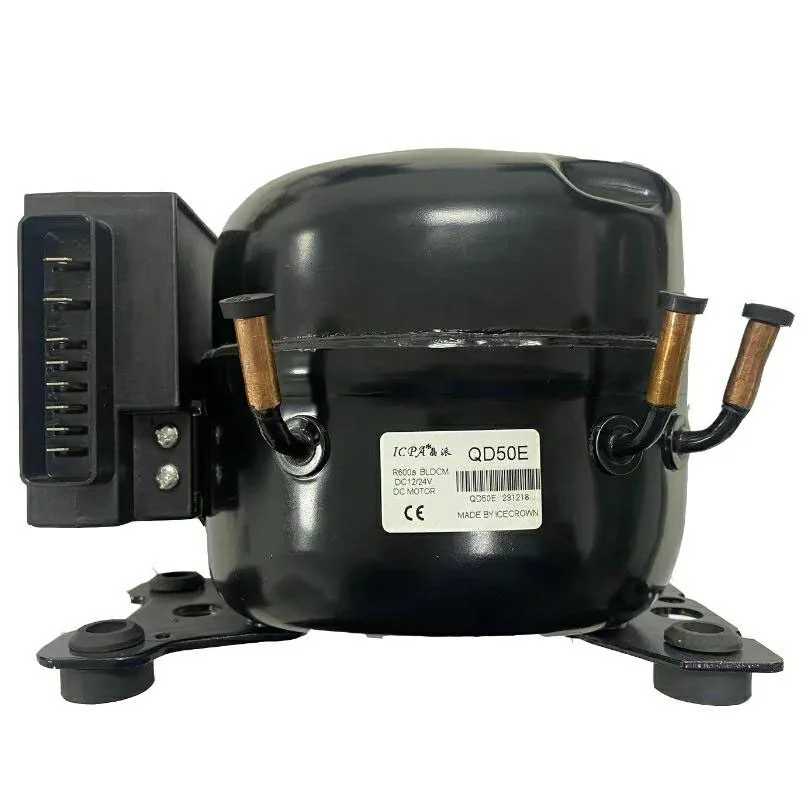

DC12 24V solar car refrigerator Fridge freezer compressor QD50E

Product Overview

Description

Compressor: QD50E;

Displacement cm3 :6.5

Application: LBP

Rotation rpm:       200    2500  3000  3500 4000

Capacity W:           60     72       84      96     108

Input Power W :     38     46       54      63     72

Operating Current A:  24V7.1A

COP W/W:                    1.6

Operating Voltage V: DC10.7~31.5V

Cooling :Static or Fan cooling

Lubricant: Polyester

Weight kg: 4.72

Weight of Controller kg: 0.31

Motor Type: BLDCM

Refrigerant: R600a

Throttling Device :Capillary

Power Supply V :DC12-24

Test conditions:Evaporating Temp -23.3℃

Suction. Temp.:32.2℃

Condensing Temp.: 54.4 ℃

Sub-cooling Temp.: 32.2℃

Ambient Temp.: 32.2 ℃

Test Voltage :24VDC
