Product Overview
Description
Product Description
Note: Our planetary gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox, are exactly the same with
Trasmital Bonfiglioli in installation dimensions, and almost the same with Trasmital Bonfiglioli in performance parameters. So ourgear drives and TrasmitalBonfiglioli's can be used interchangeably.
The 300L series and 300R series planetary gearboxes can be interchangeable with the following models ofTrasmital Bonfiglioli: Trasmital Bonfiglioli in installation dimensions, and almost the same with Trasmital Bonfiglioli in performance parameters. So ourgear drives and TrasmitalBonfiglioli's can be used interchangeably.
300L1, 300L2, 300L3, 300L4, 300R2, 300R3, 300R4,
301L1, 301L2, 301L3, 301L4, 301R2, 301R3, 301R4,
303L1, 303L2, 303L3, 303L4, 303R2, 303R3, 303R4,
305L1, 305L2, 305L3, 305L4, 305R2, 305R3, 305R4,
306L1, 306L2, 306L3, 306L4, 306R2, 306R3, 306R4,
307L1, 307L2, 307L3, 307L4, 307R2, 307R3, 307R4,
309L1, 309L2, 309L3, 309L4, 309R2, 309R3, 309R4,
310L1, 310L2, 310L3, 310L4, 310R2, 310R3, 310R4,
311L1, 311L2, 311L 3, 311L 4, 311R2, 311R3, 311R4,
313L1, 313L2, 313L3, 313L4, 313R2, 313R3, 313R4,
315L1, 315L2, 315L3, 315L4 , 315R3, 315R4,
316L1, 316L2, 316L3, 316L4, 316R3, 316R4,
317L1, 317L2, 317L3, 317L4, 317R3, 317R4,
318L1, 318L2, 318L3, 318L4 ,318R4,
319L1, 319L2, 319L3, 319L4, 319R4,
321L1, 321L2, 321L3, 321L4, 321R4
303L3-HC
305L2-HZ
The 300 series is an outstanding solution for all heavy-duty applications, where compactness is not an option. Due to its modular design, the 300 series can be customized to match an extremely wide range of applications. Ever power's expertise in planetary technology ensures high-quality product design and manufacturing procedures. The 300 series can work normally even in the worst environment without unnecessary downtime. The planetary gearbox achieves top-level flexibility due to its multiple outputs and input configurations in all 20 sizes. The 300 series can be used with various motors completely manufactured by Bonfiglioli. Asynchronous motors (bn-be-bx/m-me-mx) can be coupled with 300 series gearboxes to provide our customers with a complete solution.
Key benefits | - High torque density - Extreme speed reduction and high output torque - Low maintenance cost - Extremely customizable - High customization level - Flexibility - ATEX per explosive atmosphere 2G/2D |
Main options | In line/right angle version Independent cooling unit Patented integrated cooling solution Taconite seals ATEX certification for explosive environments |
Torque range | 1,250...1,286,700 Nm |
Torque range (IU) | 11,063 … 11,388,254 in-lb |
Gear ratios | 3.4 ... 2,916 |
Certifications | Certificate of compliance Inspection certificate ATEX |
Output | Foot or Flange mounted Splined shaft (solid, heavy duty, hollow, hollow with axial bloackage device) Solid keyed shaft (solid, heavy duty, stirrer/mixer version) Hollow shaft with double keyway or shrink disk |
Motors | Input with solid shaft Input with e-motor coupling: - M, ME, MX [compact asynchronous] - BN, BE, BX [IEC asynchronous] - BSR [IEC reluctance] - BS [IEC single phase] |
Motors options | Thermistors and thermostat sensors Independent forced cooling Incremental, sin/cos absolute single/multi-turn encoders Tropicalization Anti-condensate heaters Backstop |
300 series is compact and powerful. Its planetary transmission system makes it an ideal choice for all heavy load applications, in which impact loads and impacts are more common than exceptions. Due to the multiple choices of installation, gear layout, output shaft and motor interface, the product configuration has a high degree of versatility. All functions are applicable to 20 rack sizes with fine intervals, and the torque range is 1000 to 1100000 nm.
305L4-PZ
309L3-PC
310L3-HZ
Tipo | Torque Nm | |
EP300L | EP300L1 /EP300L2 /EP300L3 /EP300L4 | 1000 |
EP301L | EP301L1 /EP301L2 /EP301L3 /EP301L4 | 1750 |
EP303L | EP303L1 /EP303L2 /EP303L3 /EP303L4 | 2500 |
EP305L | EP305L1 /EP305L2 /EP305L3 /EP305L4 | 5000 |
EP306L | EP306L1 /EP306L2 /EP306L3 /EP306L4 | 8500 |
EP307L | EP307L1 /EP307L2 /EP307L3 /EP307L4 | 12500 |
EP309L | EP309L1 /EP309L2 /EP309L3 /EP309L4 | 18000 |
EP310L | EP310L1 /EP310L2 /EP310L3 /EP310L4 | 25000 |
EP311L | EP311L1 /EP311L2 /EP311L3 /EP311L4 | 40000 |
EP313L | EP313L1 /EP313L2 /EP313L3 /EP313L4 | 55000 |
EP315L | EP315L1 /EP315L2 /EP315L3 /EP315L4 | 100000 |
EP316L | EP316L1 /EP316L2 /EP316L3 /EP316L4 | 135000 |
EP317L | EP317L1 /EP317L2 /EP317L3 /EP317L4 | 170000 |
EP318L | EP318L1 /EP318L2 /EP318L3 /EP318L4 | 250000 |
EP319L | EP319L1 /EP319L2 /EP319L3 /EP319L4 | 350000 |
EP321L | 321L1/321L2/321L3/321L4 | 500000 |
Alternative Brand/Model inquiry
Trasmital Bonfiglioli Brevini Riduttori Bosch Rexroth Comer Industries Reggiana Riduttori Rossi Zollern
Click here for more model types!

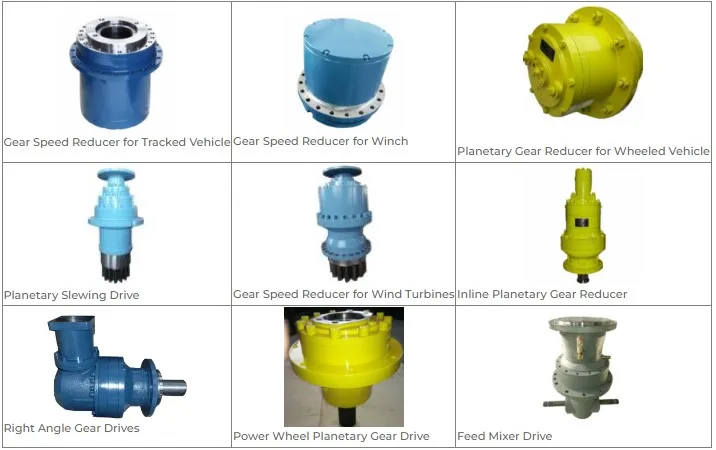

Other Types of Planetary Gearbox
Application
Construction
(dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
Material handling
(gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
Waste and sewage treatment
(rotating lters, thickeners, clariers, Warm hoists, agitators)
Mine and quarry machines
(drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines)
Wind energy
(pitch drives, yaw drives)
Substructures
(movable roofs, movable gantries, piling)
Steel processing machines
(conveyors, extruders, cutting machines, roll benders, rolling mills)
Food industry
(mixing machines, mixers, conveyors, fruit extractor machines)
(dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
Material handling
(gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
Waste and sewage treatment
(rotating lters, thickeners, clariers, Warm hoists, agitators)
Mine and quarry machines
(drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines)
Wind energy
(pitch drives, yaw drives)
Substructures
(movable roofs, movable gantries, piling)
Steel processing machines
(conveyors, extruders, cutting machines, roll benders, rolling mills)
Food industry
(mixing machines, mixers, conveyors, fruit extractor machines)
