OEM/ODM 55W 70W 110W 150W 200W 270W flexible solar panel Module Mono ETFE solar panel system
- Category: >>>
- Supplier: Shenzhen Sungold Solar Co. Ltd.
Share on (1601019894902):
Product Overview
Description
OEM/ODM 55W 70W 110W 150W 200W 270W flexible solar panel Module Mono ETFE solar panel system
Product Feature
TF-M series is an innovative glss-free solar module, adopt Mono
Product Advantage
TF-M series use an organic polymer composite to replace the typical glass front sheet as a laminate.
The polymer composite material used is extremely durable and capable of withstanding extreme
temperatures and climate conditions.
The polymer composite material used is extremely durable and capable of withstanding extreme
temperatures and climate conditions.

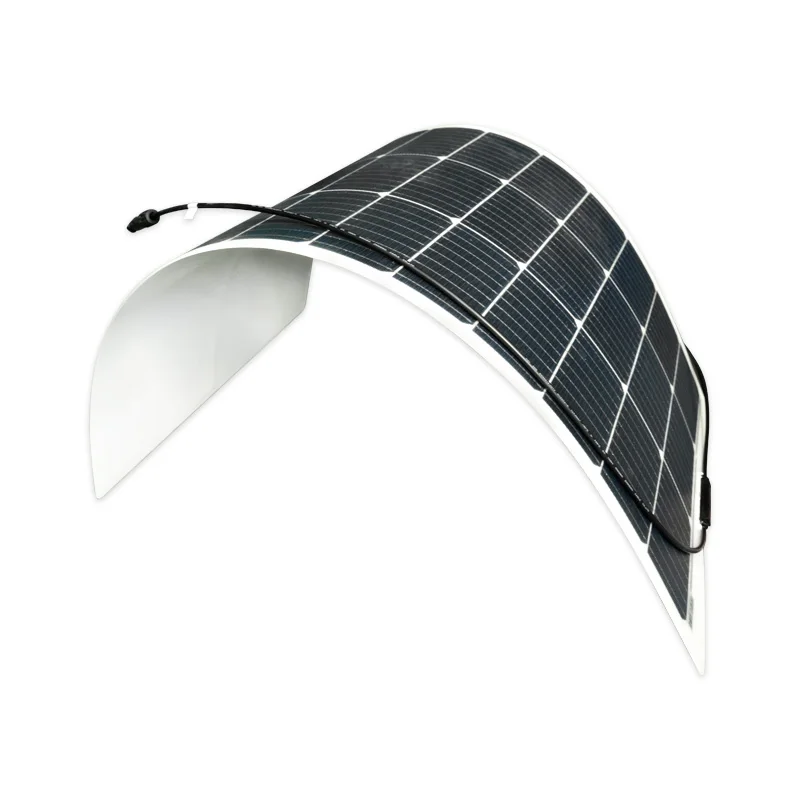

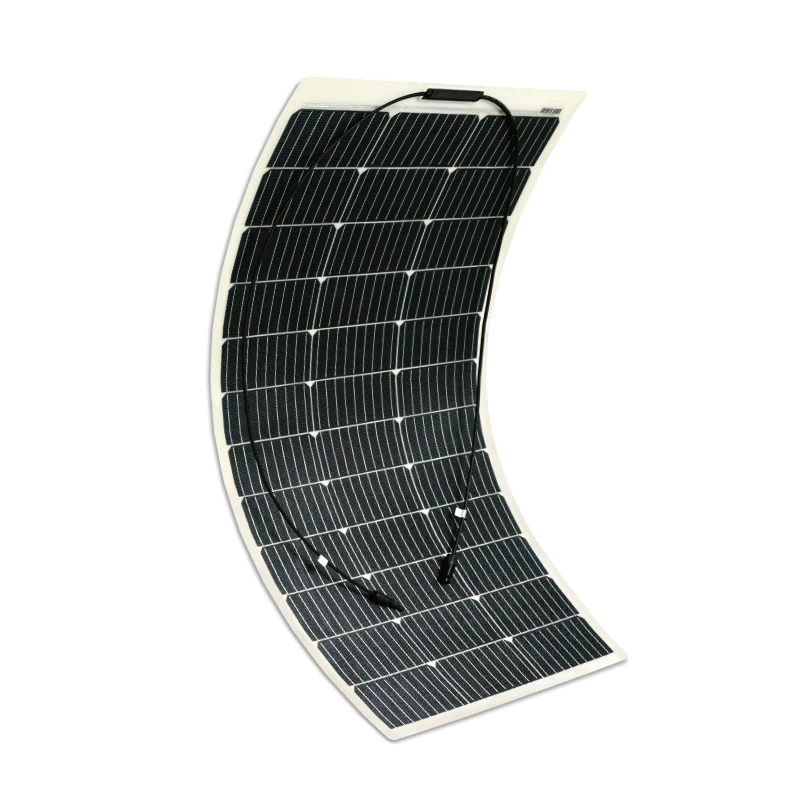

TF-M Series solar panel is only 2mm thick. It uses Sungold’s patented material, which allows the solar panels
to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to
conform to a variety of unique shapes.
to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to
conform to a variety of unique shapes.
TF-M series come with a 5-year warranty, which is supported by rigorous trampling and hail resistance tests
conducted by the company. These tests have verified the product’s protection and stability, providing
confidence in its reliability. Additionally, the product features a newly patented material that has proven
highly effective in protecting the battery sheet, further ensuring the product’s durability and longevity.
conducted by the company. These tests have verified the product’s protection and stability, providing
confidence in its reliability. Additionally, the product features a newly patented material that has proven
highly effective in protecting the battery sheet, further ensuring the product’s durability and longevity.
TF-M series has undergone rigorous anti-stepping tests, and the flexible solar panels have performed well
when stepped on irregular surfaces, verifying the good flexibility of the TF-M series and its adaptability to
various curved environments.
when stepped on irregular surfaces, verifying the good flexibility of the TF-M series and its adaptability to
various curved environments.
Product Details
Product Specification
Model | SG-TF-M-55W | SG-TF-M-70W | SG-TF-M-110W | SG-TF-M-150W |
Maximum Power/Pmax(Wp) | 55W | 70W | 110W | 150W |
Cell Efficiency | >22.8% | >22.8% | >22.8% | >22.8% |
Number of cells | 3*12 | 3*12 | 3*12 | 4*18 |
Operating Voltage/Vmp(V) | 20.9 | 20.9 | 20.9 | 20.9 |
Operating Current/Imp(A) | 2.64 | 3.35 | 5.27 | 7.18 |
Open Circuit Voltage/Voc(V) | 24.5 | 24.5 | 24.5 | 24.5 |
Short Circuit Current/Isc(A) | 2.76 | 3.52 | 5.53 | 7.54 |
Dimension(mm) | 580*540*3mm | 745*540*3mm | 1080*540*3mm | 1110*710*3mm |
Solar cells | mono cell | mono cell | mono cell | mono cell |
Weight(kg) | 1.36 | 1.75 | 2.54 | 3.43 |
The maximum system voltage | 600V DC(IEC) | 600V DC(IEC) | 600V DC(IEC) | 600V DC(IEC) |

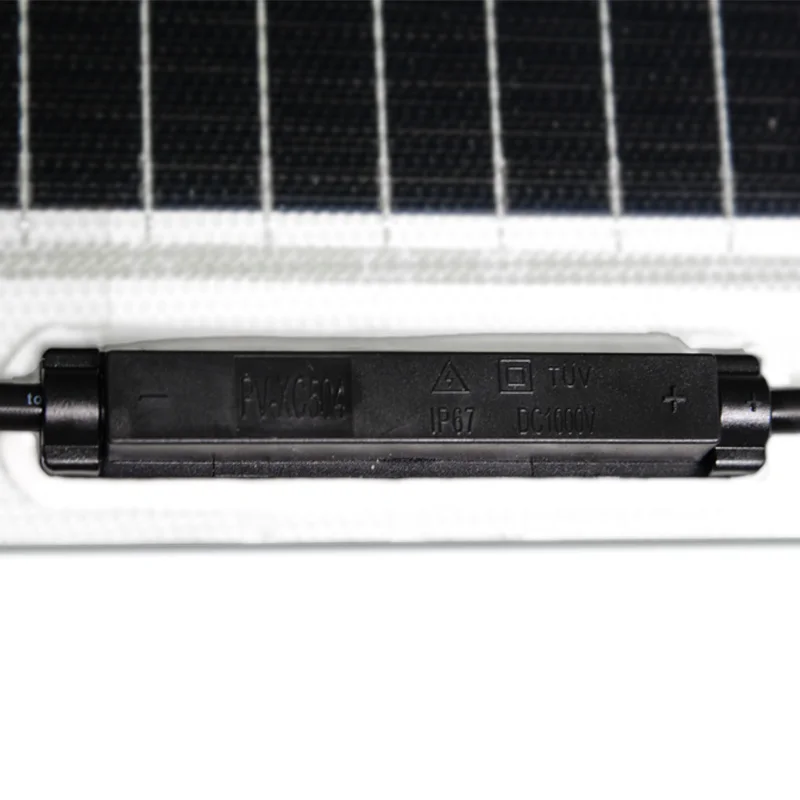

Output cable | JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible | JB (1 bypass diodes) + 900mm/2.5mm² cable+MC4 compatible | JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible | JB (2*bypass diodes) + 900mm/4mm² cable+MC4 compatible |
Maximum bending arch height | 45mm | 70mm | 150mm | 160mm |
Output power tolerance | ±3% | ±3% | ±3% | ±3% |
Operating Temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
Color | black/white | black/white | black/white | black/white |
Warranty | 6 Years | 6 Years | 6 Years | 6 Years |
Product Application
TF-M is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs.
Production Process
Product Packaging
Client Feedback
FAQs
1.Q：What is this product used for?
TF-M is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs, etc.
2.Q: How long is the warranty of this product? How long is the service life?
TF-M is 5 years warranty and 20 years service life.
3.Q: Does this product have any professional certification? Is it reliable?
TF-M has passed EMC, LVD and RoHS professional certification, the quality is trustworthy.
4.Q: I want to use it in RV, should it be TF or LEE?
For comparison, TF series will be more suitable for RV use and LEE for marine use.
5.Q: What is the maximum and minimum temperature for use?
The ambient temperature is -40℃~85℃.
6.Q: Why is the actual efficiency not as high as you give?
Our efficiency is obtained under the most ideal power generation environment. The efficiency of solar power generation is affected by various power generation factors: such as the angle of direct sunlight, surface shading, placement position, etc.
7.Q: Do you have a bezel on this product?
No, Sungold flexible panels have no bezel design to achieve greater flexibility and bendability.
8.Q: Will the product be damaged if I step on it when I use it?
No, TF series has been strictly tested by stepping on it, so you can use it without worry.
9.Q: Is it waterproof, will it affect the use because it is not waterproof?
Yes, waterproof, TF series is made of waterproof materials, high waterproof level does not affect the use.
10.Q: Can this product be bent? How much can be bent?
Yes, TF series flexible bendable, the maximum bending arch height from 45mm to 360mm.
TF-M is suitable for caravans, motorhomes, yachts, PV building integration, commercial roofs, etc.
2.Q: How long is the warranty of this product? How long is the service life?
TF-M is 5 years warranty and 20 years service life.
3.Q: Does this product have any professional certification? Is it reliable?
TF-M has passed EMC, LVD and RoHS professional certification, the quality is trustworthy.
4.Q: I want to use it in RV, should it be TF or LEE?
For comparison, TF series will be more suitable for RV use and LEE for marine use.
5.Q: What is the maximum and minimum temperature for use?
The ambient temperature is -40℃~85℃.
6.Q: Why is the actual efficiency not as high as you give?
Our efficiency is obtained under the most ideal power generation environment. The efficiency of solar power generation is affected by various power generation factors: such as the angle of direct sunlight, surface shading, placement position, etc.
7.Q: Do you have a bezel on this product?
No, Sungold flexible panels have no bezel design to achieve greater flexibility and bendability.
8.Q: Will the product be damaged if I step on it when I use it?
No, TF series has been strictly tested by stepping on it, so you can use it without worry.
9.Q: Is it waterproof, will it affect the use because it is not waterproof?
Yes, waterproof, TF series is made of waterproof materials, high waterproof level does not affect the use.
10.Q: Can this product be bent? How much can be bent?
Yes, TF series flexible bendable, the maximum bending arch height from 45mm to 360mm.
