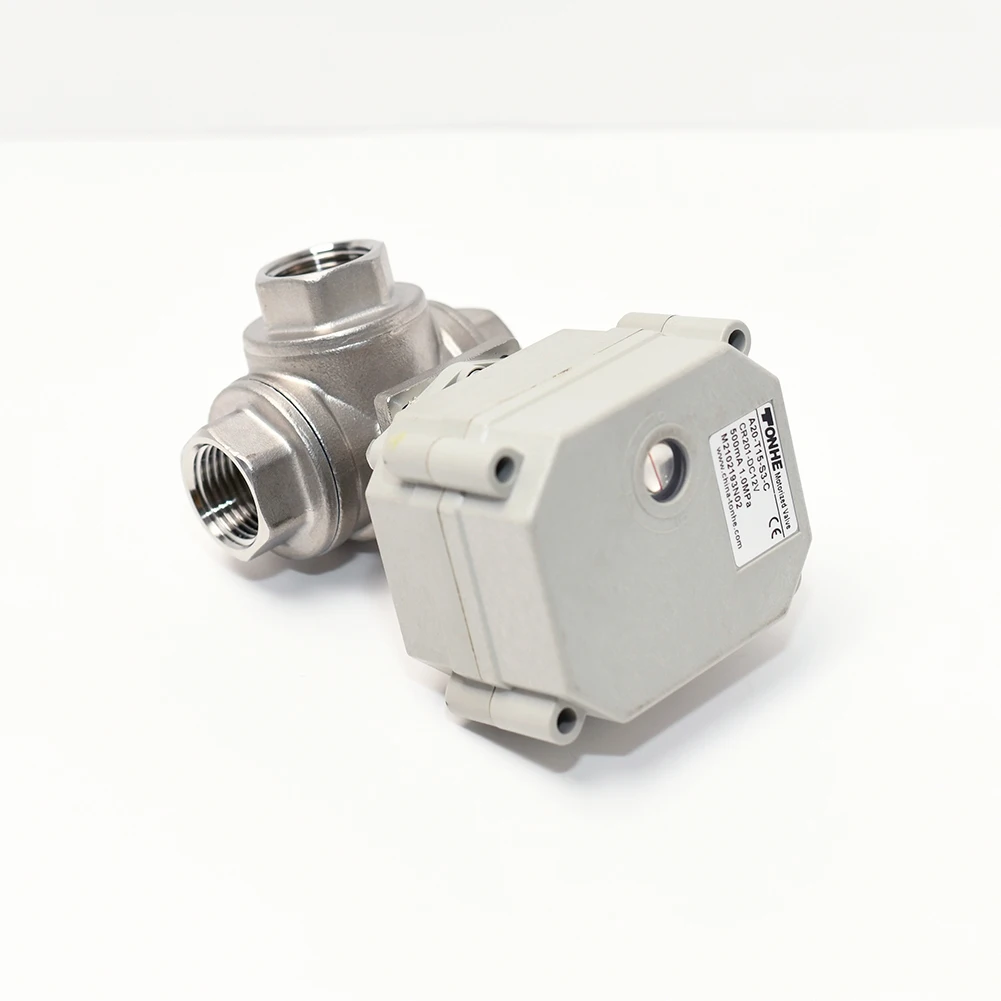

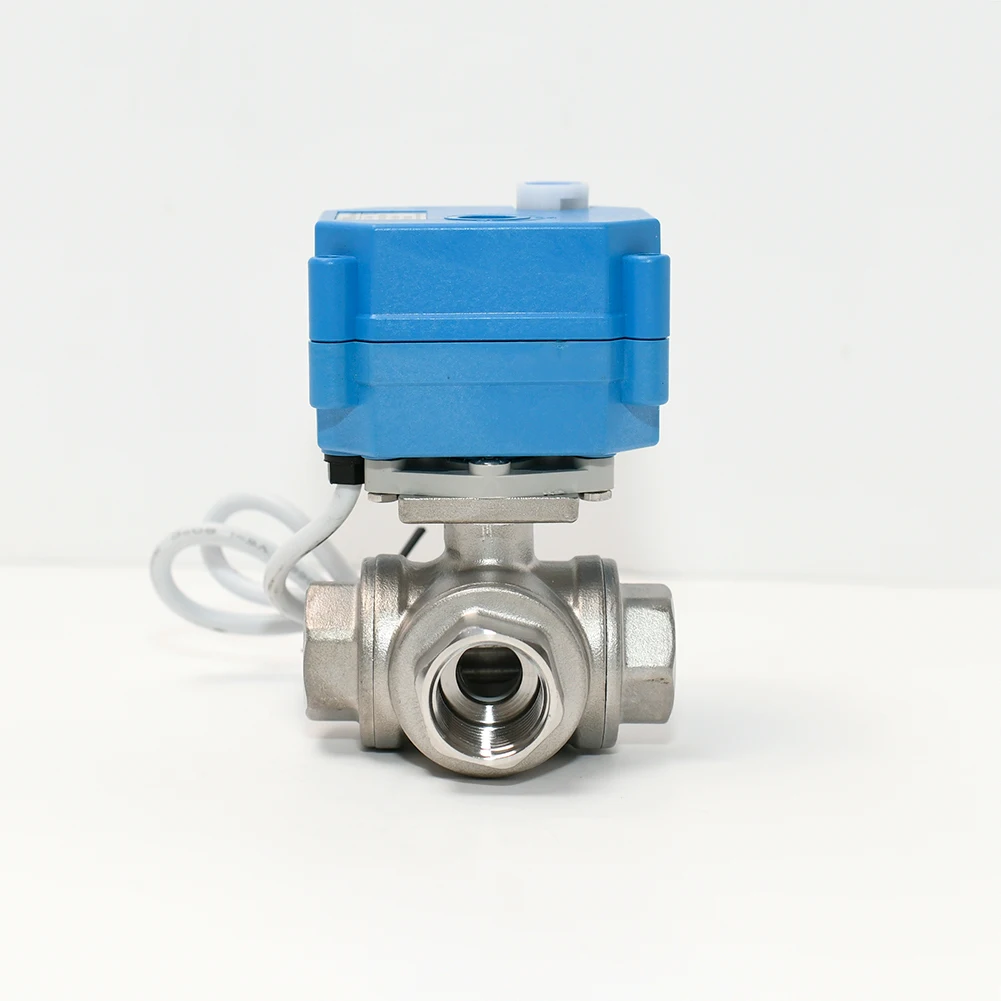

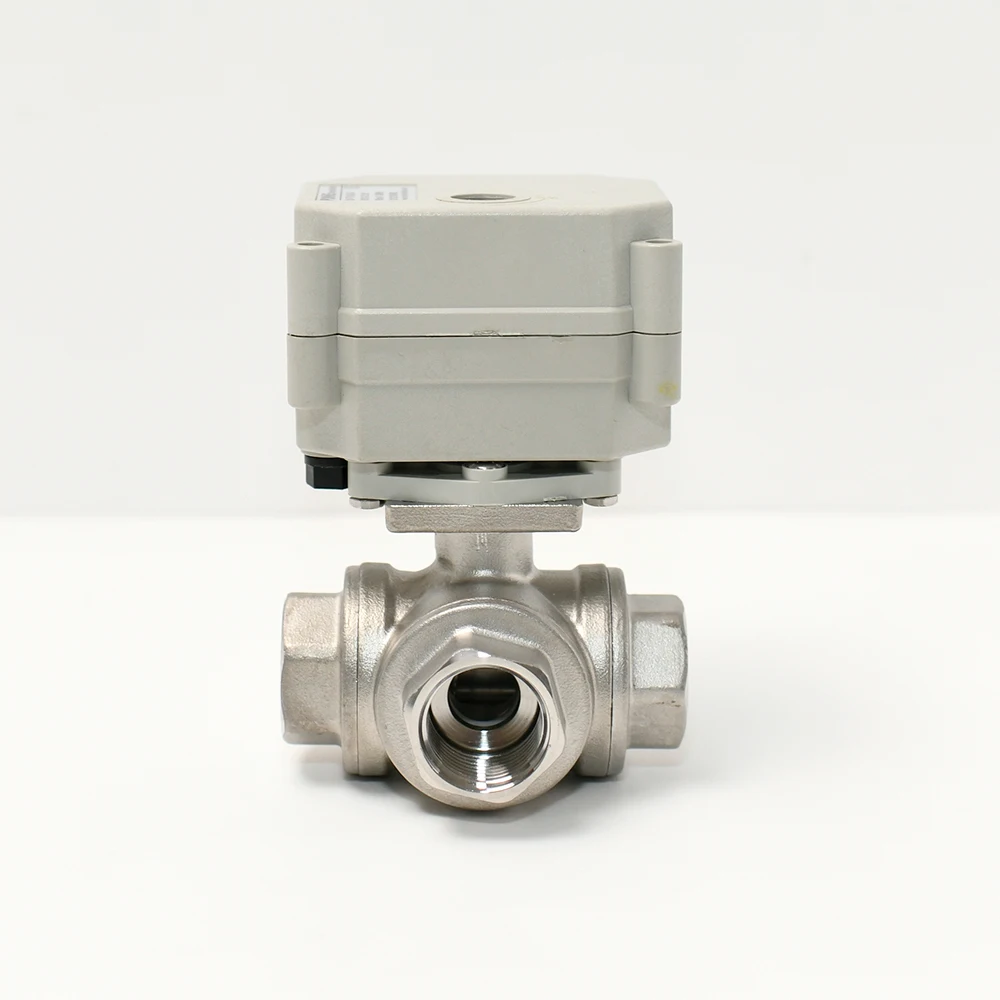

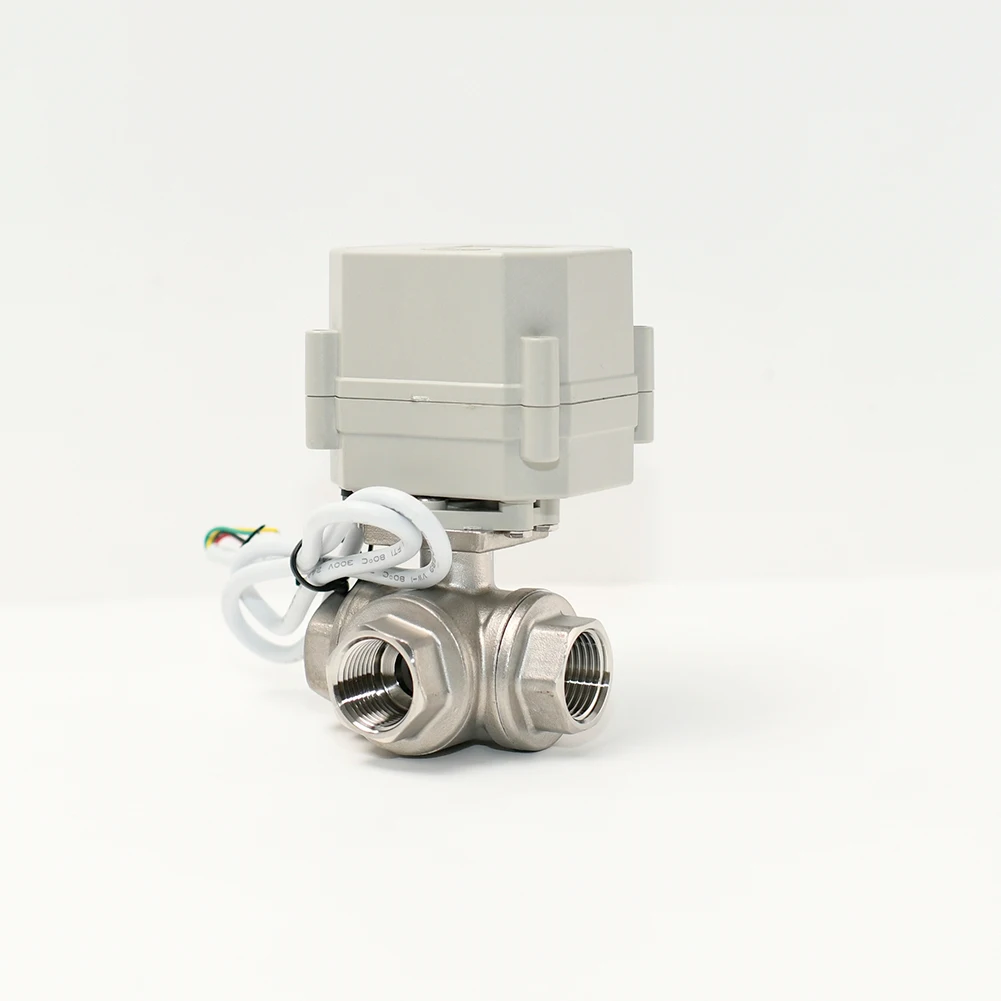

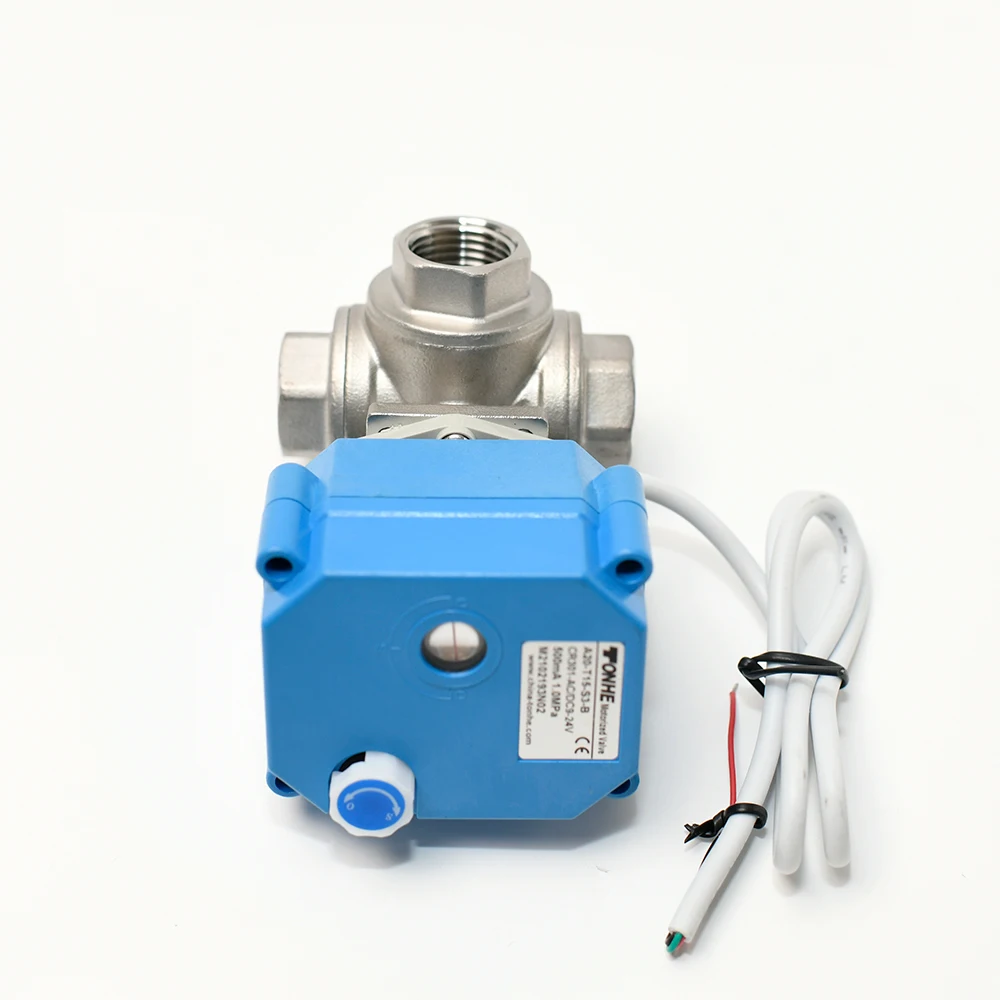

3 way 3 position horizontal 3/4' brass electric control ball valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.Taizhou Ltd.
Share on (1601019912629):
Product Overview
Description
Three way electric actuated ball valve , horizontal L type / T type, different flow direction, with open or closed indicator , IP67,CE , ACDC12V/24V/AC100-240V ,compact size 1/2'' -1'' , metal geal , PPO actuator housing , 4-5S operating time , operatiing life 100000 circles .
Technical Parameters:
| Product size | NPT/BSP 1/2''-1 "NPT/BSP 1", (Optional) |
| Maximum working pressure | 1.0MPa |
| Circulation medium | Fluid, Air |
| Rated voltage | DC12V/DC24V(optional) |
| Wiring control methods | CR7-07 |
| Working current | ≤ 500MA |
| Open/close time | ≤ 7 Sec |
| Life time | 100000 times |
| Valve Body material | Stainless Steel 304/Brass |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
Specifications:

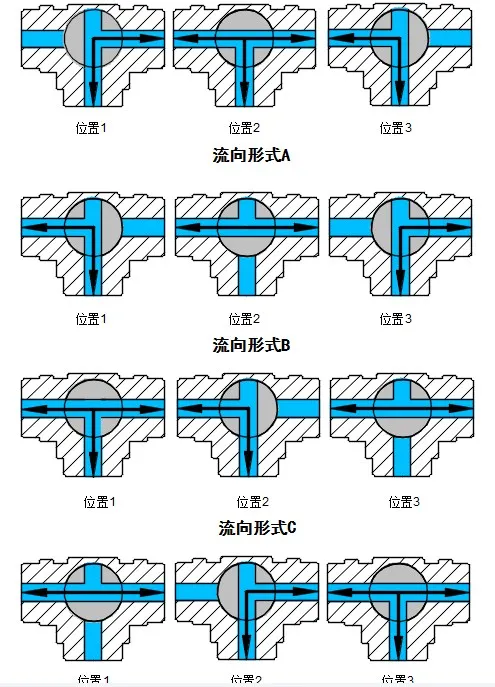

The below flow direction for selection :

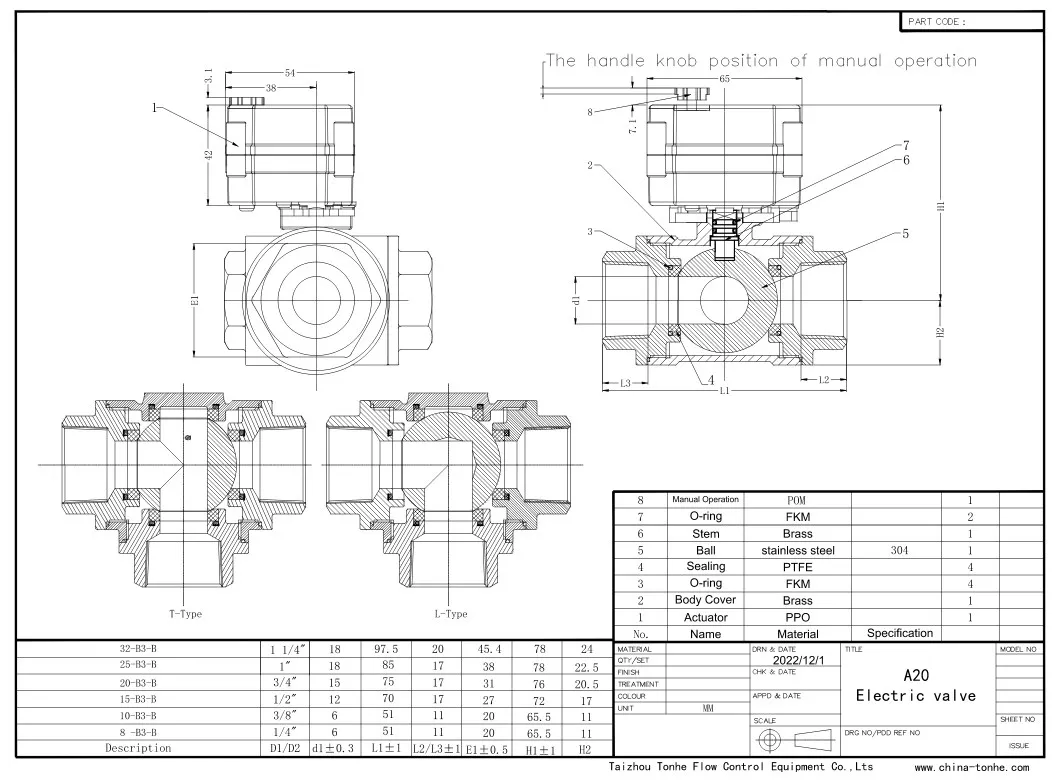

Assembly diagram:

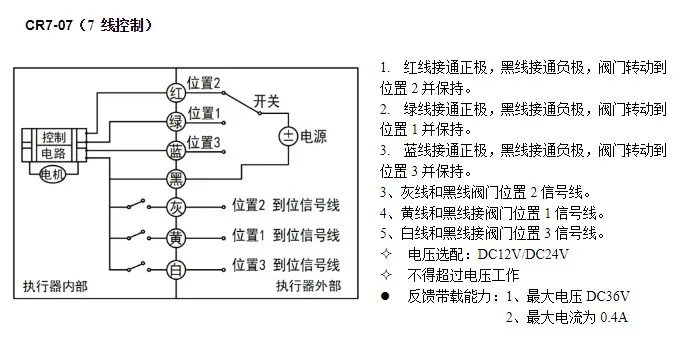

Wire Diagram:
Packaging & Shipping
Our Services
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Company Information
When you inquiry the valve, pls confirm the below techinical diameter:
1, valve size , material
2, working voltage ,
3, wiring control
4, valve open or close indicator , manual override ,
5, valve flow direction
6, cable length
then Nadine ( Skype :nadine84081) will give you a reasonable price , thanks .
3-way Motorsed control ball valve , motor operated valve , electric shut off ball valve , electric actuator water valve
