Specifications | Unit | SXT-400F | SXT-600F | SXT-800F | SXT-1000F | SXTQ-1000F | SXT-1200F | SXTQ-1200F |
Capacity | kg | 40 | 60 | 80 | 100 | 100 | 120 | 120 |
Cylinder Diameter | mm | 903 | 1078 | 1078 | 1310 | 1310 | 1310 | 1310 |
Cylinder Depth | mm | 626 | 620 | 820 | 746 | 746 | 816 | 816 |
Door Center to Floor | mm | 982 | 1184 | 1184 | 1246 | 1434 | 1246 | 1441 |
Cold Water Inlet | inch | 1¼ | 1¼ | 1¼ | 2 | 2 | 2 | 2 |
Hot Water Inlet | inch | 1¼ | 1¼ | 1¼ | 2 | 2 | 2 | 2 |
Steam inlet | inch | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Compressed air inlet* | mm | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Drain Diameter | mm | 76 | 125 | 125 | 2*125 | 2*125 | 2*125 | 2*125 |
Motor Power | kW | 4 | 7.5 | 7.5 | 11 | 11 | 11 | 11 |
Heating Power | kW | 30 | 30 | 30 | 60 | 60 | 60 | 60 |
Wash Speed | RPM | 30-40 | 30-40 | 30-40 | 30-38 | 30-38 | 30-38 | 30-38 |
Extract Speed | RPM | 220-700 | 220-700 | 220-700 | 220-650 | 220-650 | 220-650 | 220-650 |
Voltage | V | AC380 | AC380 | AC380 | AC380 | AC380 | AC380 | AC380 |
Hz | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Overall Width | mm | 1230 | 1619 | 1619 | 1774 | 1850 | 1774 | 1850 |
Overall Depth | mm | 1433 | 1492 | 1692 | 1761 | 1825 | 1828 | 1895 |
Overall Height | mm | 1735 | 1965 | 1965 | 2092 | 2285 | 2092 | 2290 |
Net Weight | kg | 1190 | 1910 | 2200 | 3170 | 3400 | 3220 | 3480 |
Main Features
STAINLESS STEEL CONSTRUCTION
● All metallic parts that come into contact with wash are in AISI304.
● Durable AISI304 stainless steel inner and outer drums designed for constant use.
● Front, side, and top panels are all in AISI304.
MOLDED FABRICATION
● 80% above parts are processed by molds.
● The inner and outer drum is processed by laser.
● Achieve compact design, light but robust structure.
● Maximize the durability and longevity.
INDEPENDENT SUSPENSION SYSTEM
● With the multi directional springs system, the machine can absorb 97% of all vibrations.
● Ensure the stability when the extract speed reaches up to max. 350G.
DRIVE SYSTEM
● Specially made inverter, the inverter controlled motor and the matched controller programs enable the extract speed reach up to 350G.
● Advanced electronic balancing technique achieves out of balance automated load adjustment.
● Significant reduction in noise, vibration, and fatigue of the washing machine components.
SUPER-SPEED EXTRACT
● The washers are able to quietly and gently reach extract speed up to Max. 350G. This feature benefits the laundries with less operation time, less drying-time which brings lower energy consumption and labor expense.
PERFECT CLEANING QUALITY
● Large diameter basket with multiple ribs produces better mechanical wash action for optimum wash quality with less detergent.
● Single motor inverter drive allows programmable right wash speed for wide variety of fabrics.
● 5 automatic detergent cups turn over and flush all detergents thoroughly into the basket, no remaining lump in cups.
INSTALLATION
● Thanks to the independent suspension system, the washers can be installed on any normal and unconventional locations with zero impact on the floor or ground.
● Optimized balance - No anchoring required.
EASY MAINTENANCE
● All components requiring regular maintenance are easily accessible.

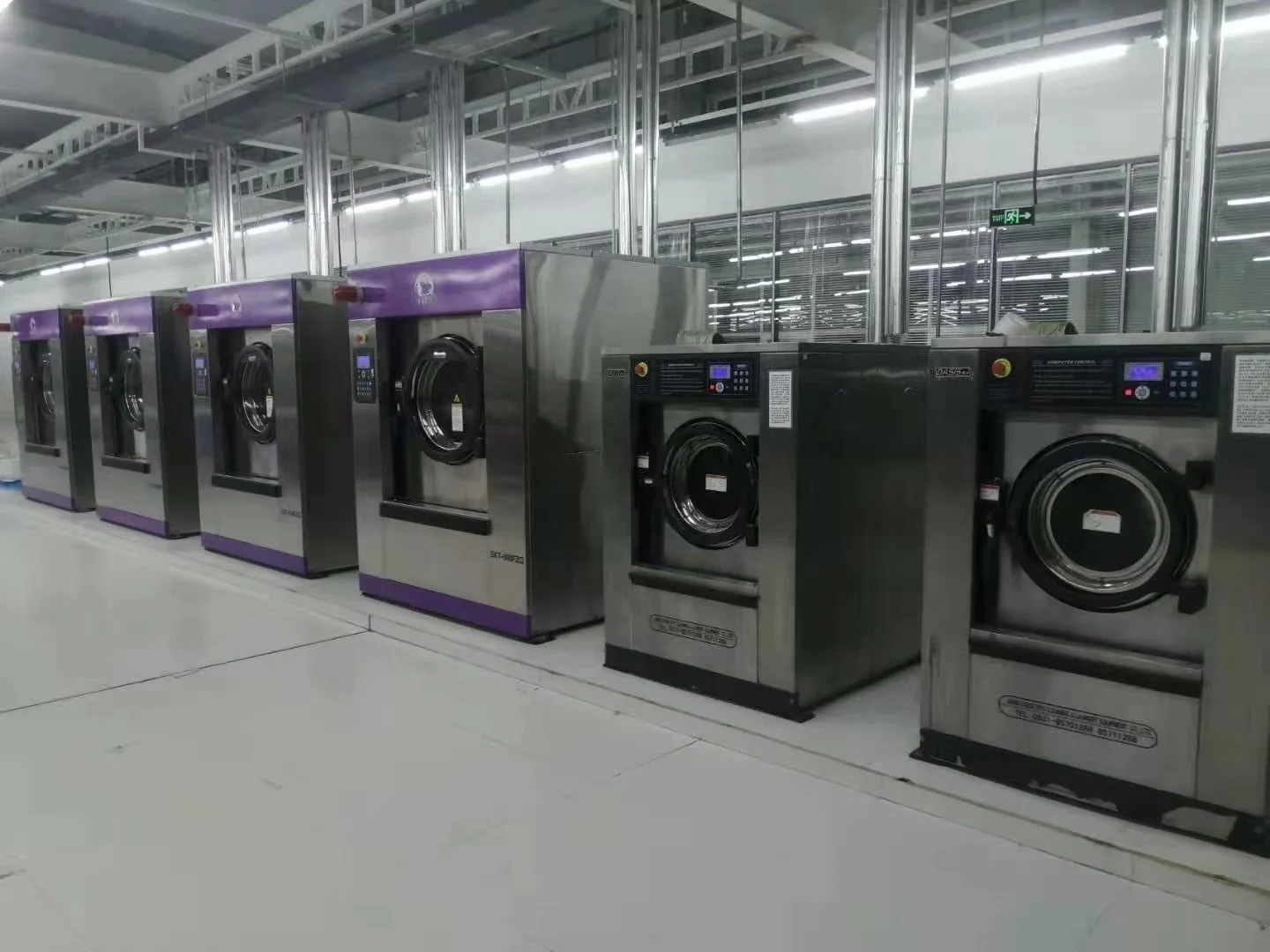

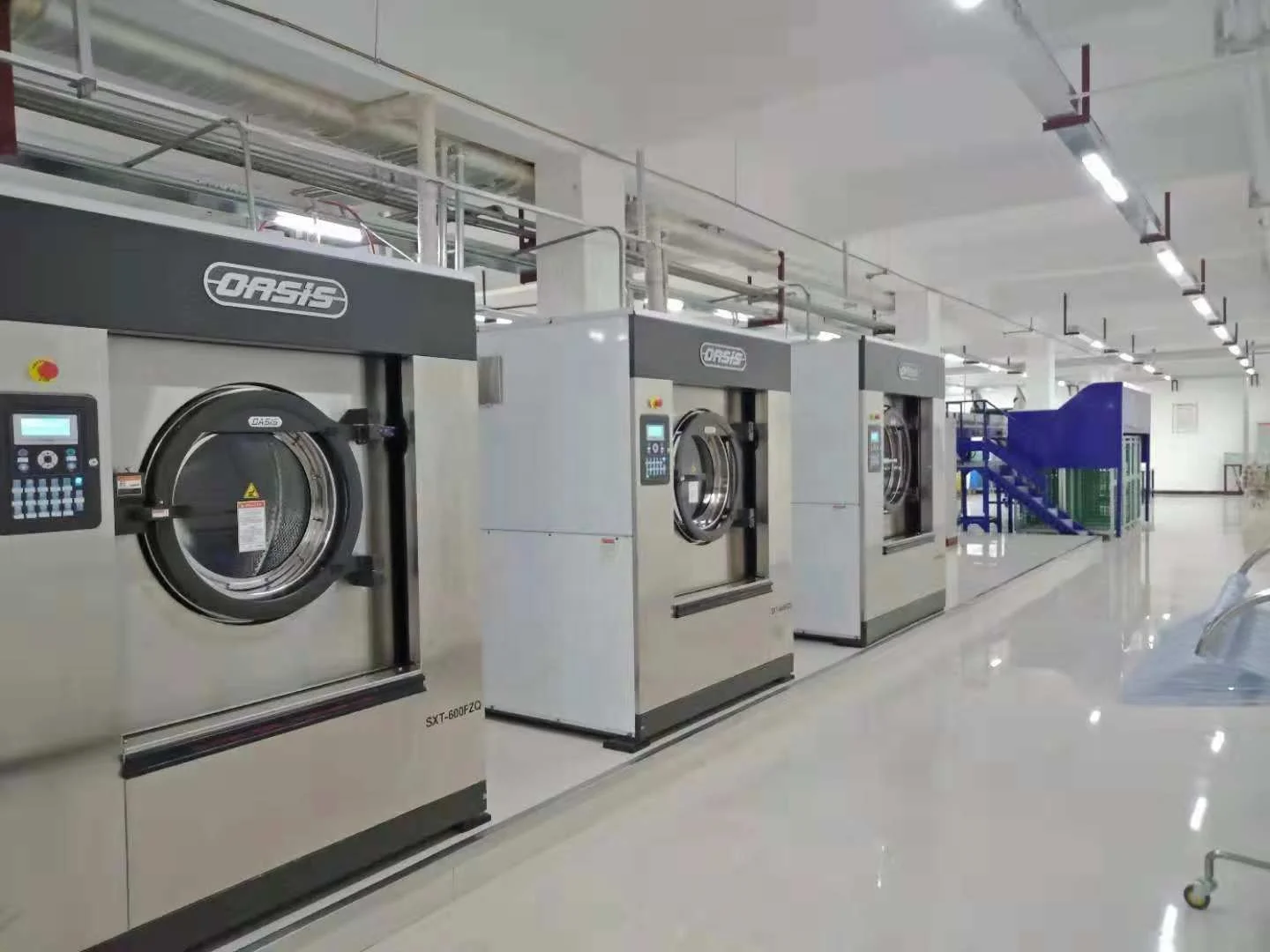

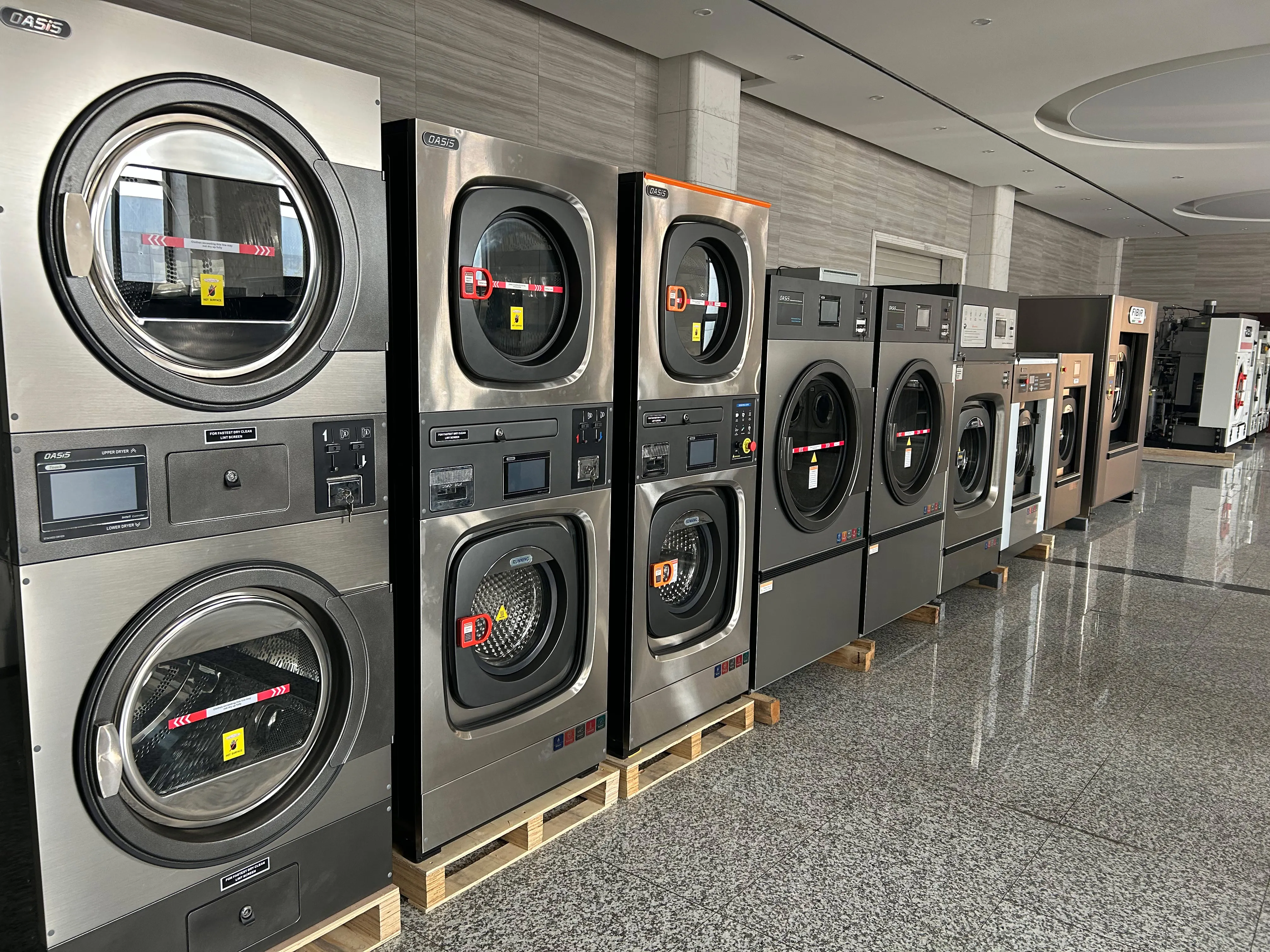

Our Workshop





A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
