high brightness led display 64x64 LED Module led display billboard Dot Matrix P3 SMD 2121 LED Screen Module outdoor display

Product Overview

Description

high brightness led display 64x64 LED Module led display billboard Dot Matrix P3 SMD 2121 LED Screen Module outdoor display

SCREE Three years warranty LED   Screen

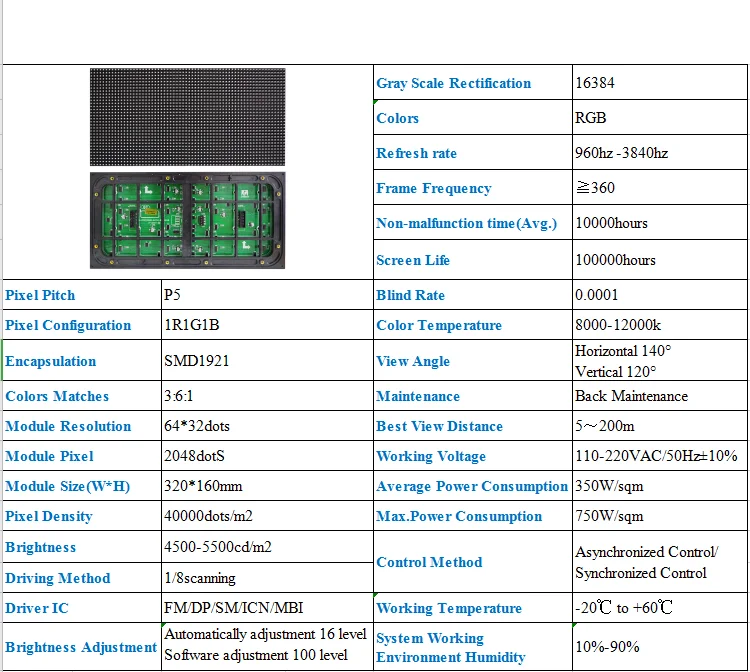

 detailed    technological    paraters

Indoor P4 LED Display
Model number	P5
Pixel pitch	5mm
Module resolution	64*32
Module size	320mm*160mm
Cabinet resolution	64*32dots
Cabinet size	512mm*512mm

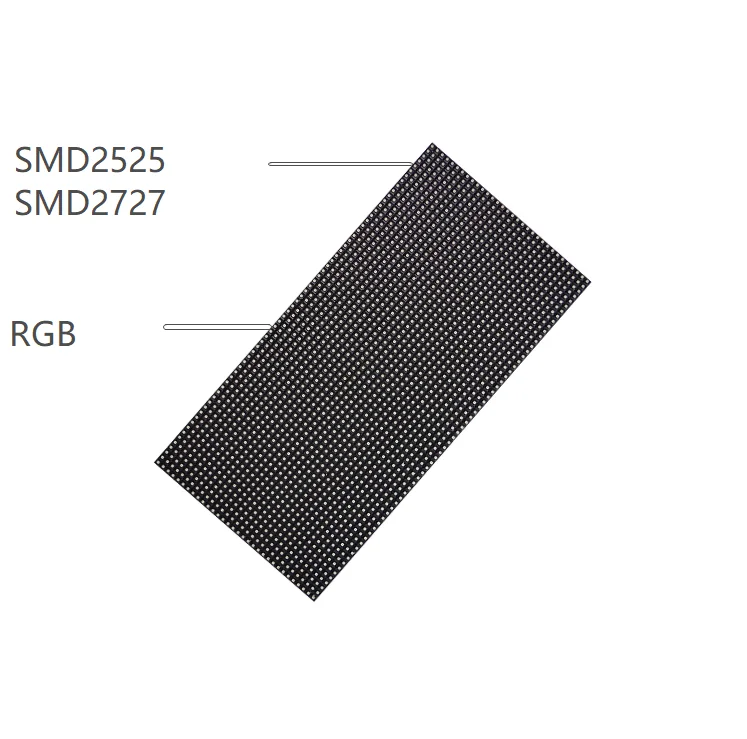

LED configuration	SMD1921
Brightness	≥6200cd/sqm
Module Weight	0.37kg
Average consumption	500w/sqm
View distance	5m~200m
View angle	140º
Pixel Density	27777dots
Scanning	1/8scan
Refresh rate	≥1920Hz/3840Hz
Frame frequency	≥360Hz
Max power consumption	1000w/sqm
Warranty	1-3years
Grey Scale	16384
Working voltage	110/220VAC/50Hz±10%
Life span	100000hours
Lifetime to 50% brightness	75000hours
Working Temperature	−20℃ to +60℃
Certification	CCC/CE/RoHS

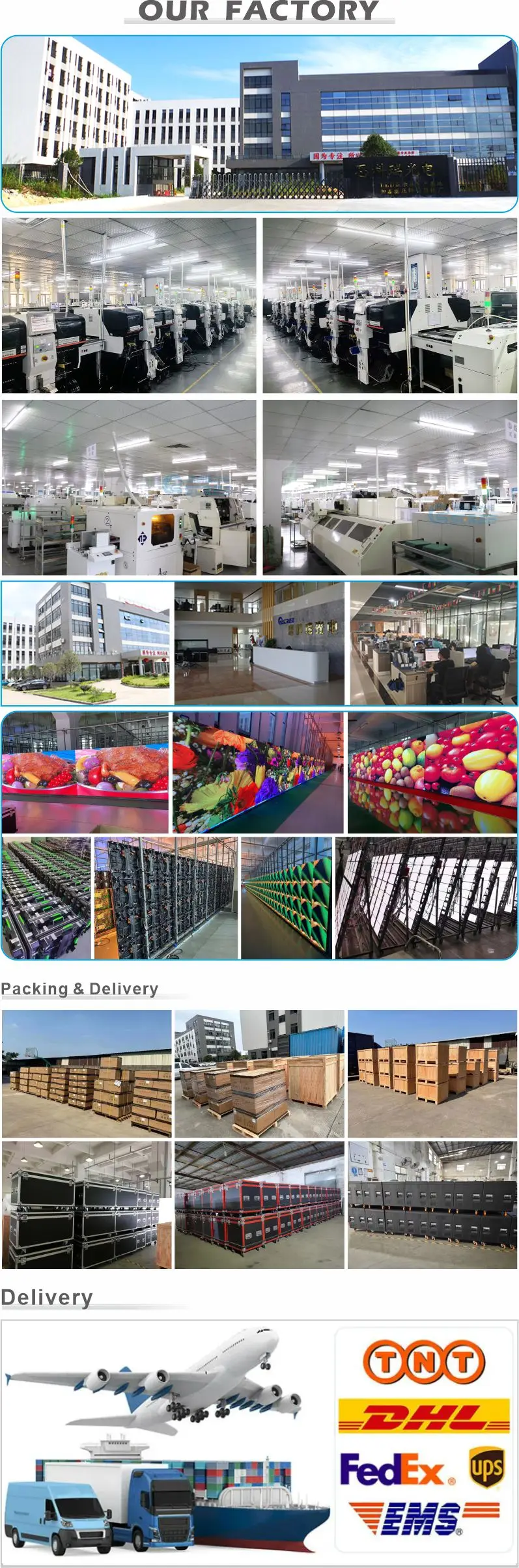

Packaging & Shipping

Pack by carton box

carton size: 478mm*440mm*427mm

module size: 192mm*192mm

60 pieces in 1 box

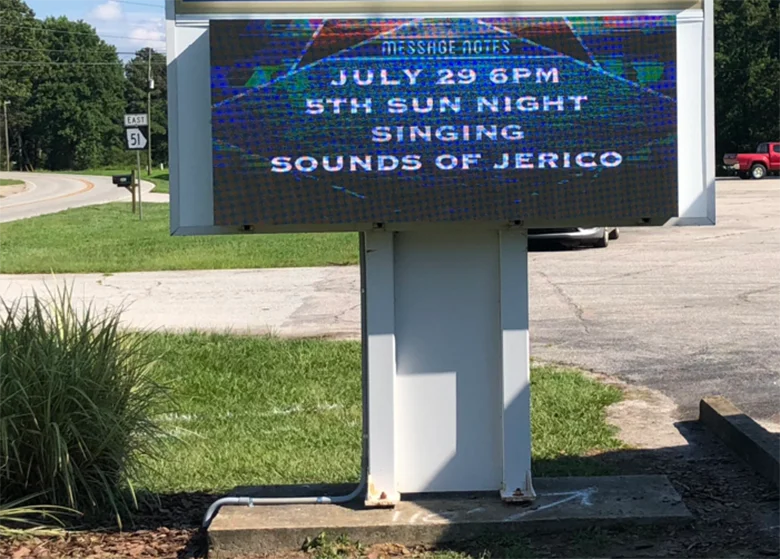

USA customer buy for Church



















Company Information



1.Found in 2009,Scree® have developed into two factories, covering totally 38000 square meter area.owned 30 SMT automated product lines.



2.SMD technology takes super wide viewing angle for the LED screen.



3.Manufactured by using best quality material,had lots of spot goods, can solve your urgent orders.



4.Certificated  CE,RoHS,CCC,FC,UL,ISO9001:2008.



5.Professional product manager, sales team and experienced technicist make sure your led display screen running 24/7.

FAQ


1. How long could i receive the inquiry reply ?
    A: You will get a reply within 24 hours.

2.How long do you provide warranty time ?
    A:  Different product offer different time frame warranty, but all product here we offer 2 year at least warranty

3.How long will it take to deliver goods ?
    A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.



4.What about your pre-sale service and post-sale service?
    A: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
   For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!



5. How can you ensure the led display product quality?
   A: Our led display screen quality is our core competence, for 7 years, what we rely on.We have each stardard process to make quality products.
If any quality failures within warranty time, we will refund you on alibaba.
