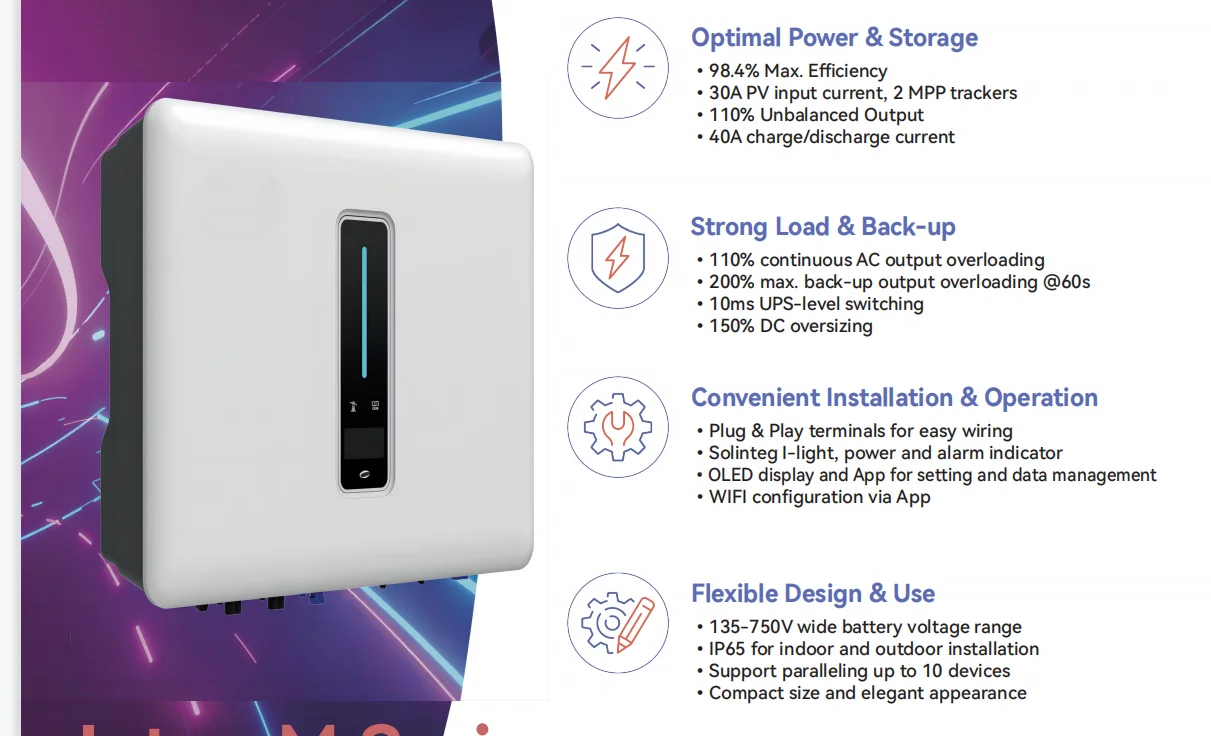

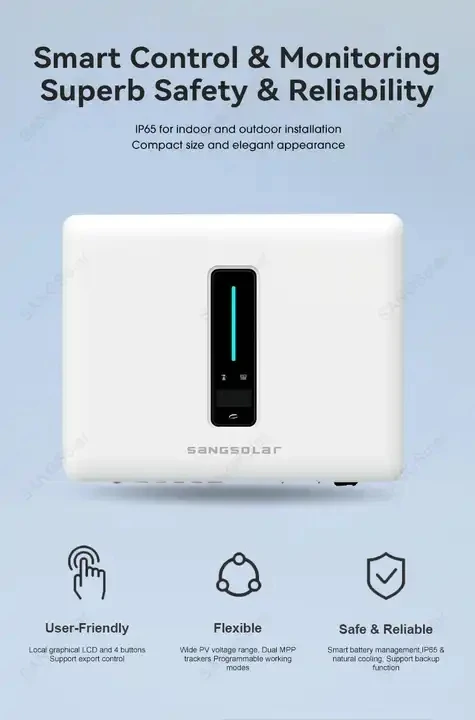

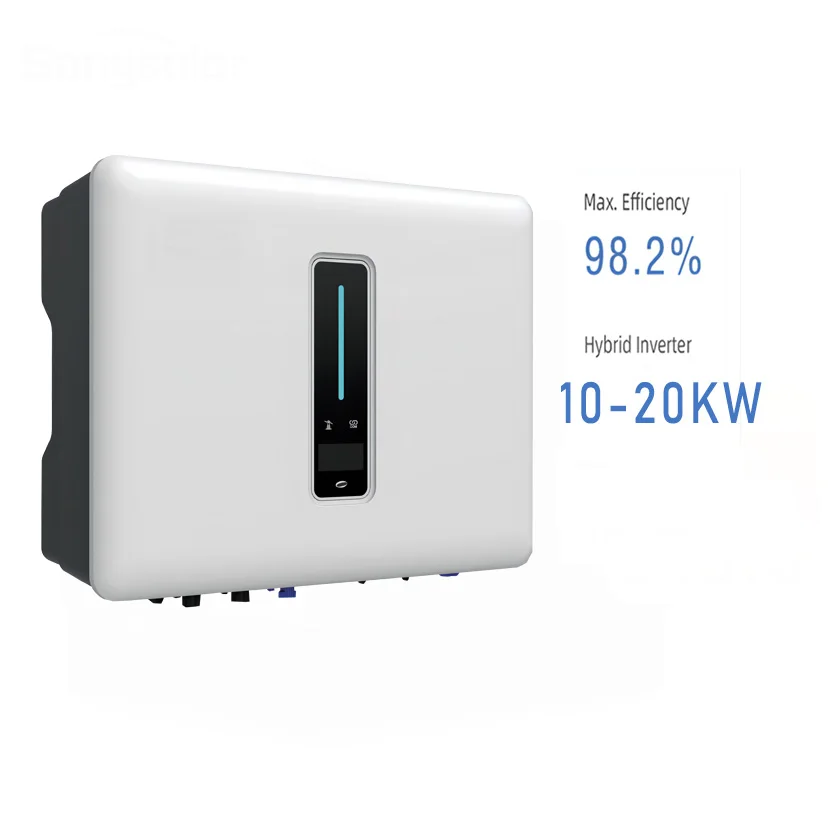

In Stock 10kW 12kW Three Phase Hybrid Solar Power Inverter Stackable Energy Storage 100Ah Lithium Ion Battery IP65 Protection
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.
Share on (1601020051959):
Product Overview
Description
Product Description
Product Details

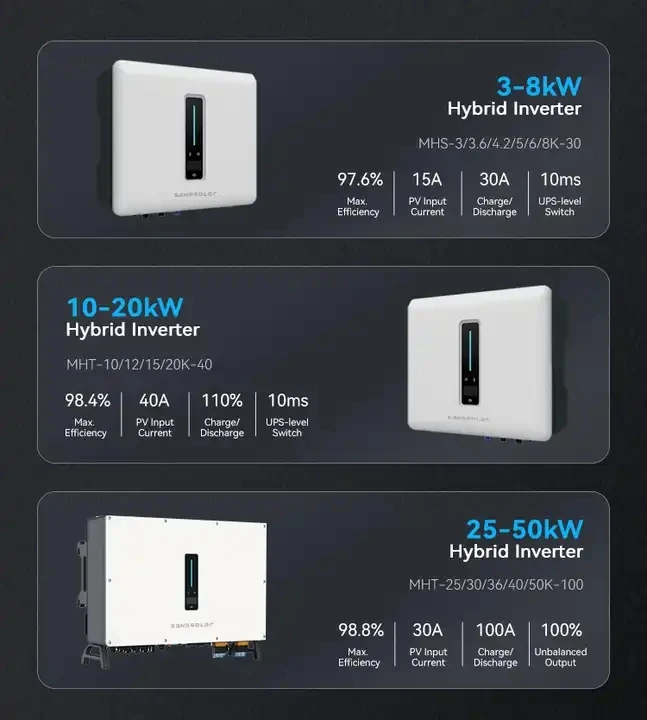

Model | MHT-10K-40 | MHT-12K-40 | MHT-15K-40 | MHT-20K-40 | ||||
PV Input | ||||||||
Recommended Max. input power | 15.0 | 18.0 | 22.5 | 30.0 | ||||
Start-up voltage | 135 | 135 | 135 | 135 | ||||
Max. DC input voltage* | 1000* | 1000* | 1000* | 1000* | ||||
Rated DC input voltage | 620 | 620 | 620 | 620 | ||||
MPPT voltage range* | 200-950* | 200-950* | 200-950* | 200-950* | ||||
No. of MPP trackers | 2 | 2 | 2 | 2 | ||||
No. of DC inputs per MPPT | 2/2 | 2/2 | 2/2 | 2/2 | ||||
Max. input current | 30/30 | 30/30 | 30/30 | 30/30 | ||||
Max. short-circuit current | 40/40 | 40/40 | 40/40 | 40/40 | ||||
Battery Side | ||||||||
Battery type | Lithium Battery (with BMS) | |||||||
Battery voltage range[V] | 135-750 | |||||||
Maximum charging/discharge current[A] | 40/40 | |||||||
Grid Side | ||||||||
Rated output power | 10.0 | 12.0 | 15.0 | 20.0 | ||||
Max. output apparent power | 11.01 | 13.2 | 16.53 | 22.0 | ||||
Max. input apparent power** | 20.0 | 24.0 | 30.0 | 30.0 | ||||
Rated AC voltage | 3L/N/PE; 220/380V;230/400V;240/415V | |||||||
Rated AC frequency | 50/60 | |||||||
Power factor | 0.8 leading …0.8 lagging | |||||||
Max. total harmonic distortion | <3% @Rated output power | |||||||
Back-up Side | ||||||||
Rated output power | 10.0 | 12.0 | 15.0 | 20.0 | ||||
Max. output apparent power | 11.0 | 13.2 | 16.5 | 22.0 | ||||
Max. output current | 16.5 | 20.0 | 25.0 | 33.5 | ||||
Rated output voltage | 3L/N/PE; 220/380V;230/400V;240/415V | |||||||
Energy storage Solar Inverter
