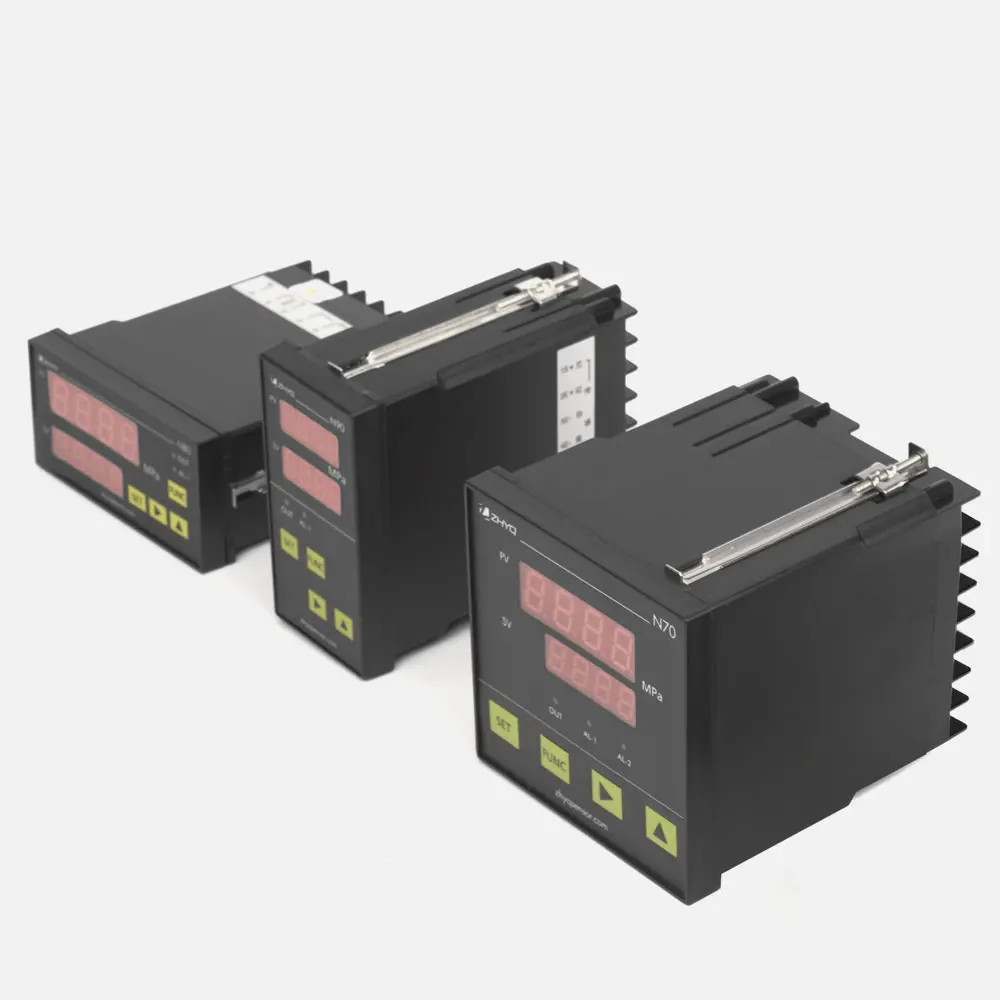

N70/N80/N90 intelligent economic functional digital pressure indicator
- Category: >>>
- Supplier: Shanghai Zhaohui Pressure Apparatus Co. Ltd.
Share on (1601020082828):
Product Overview
Description
Product Description

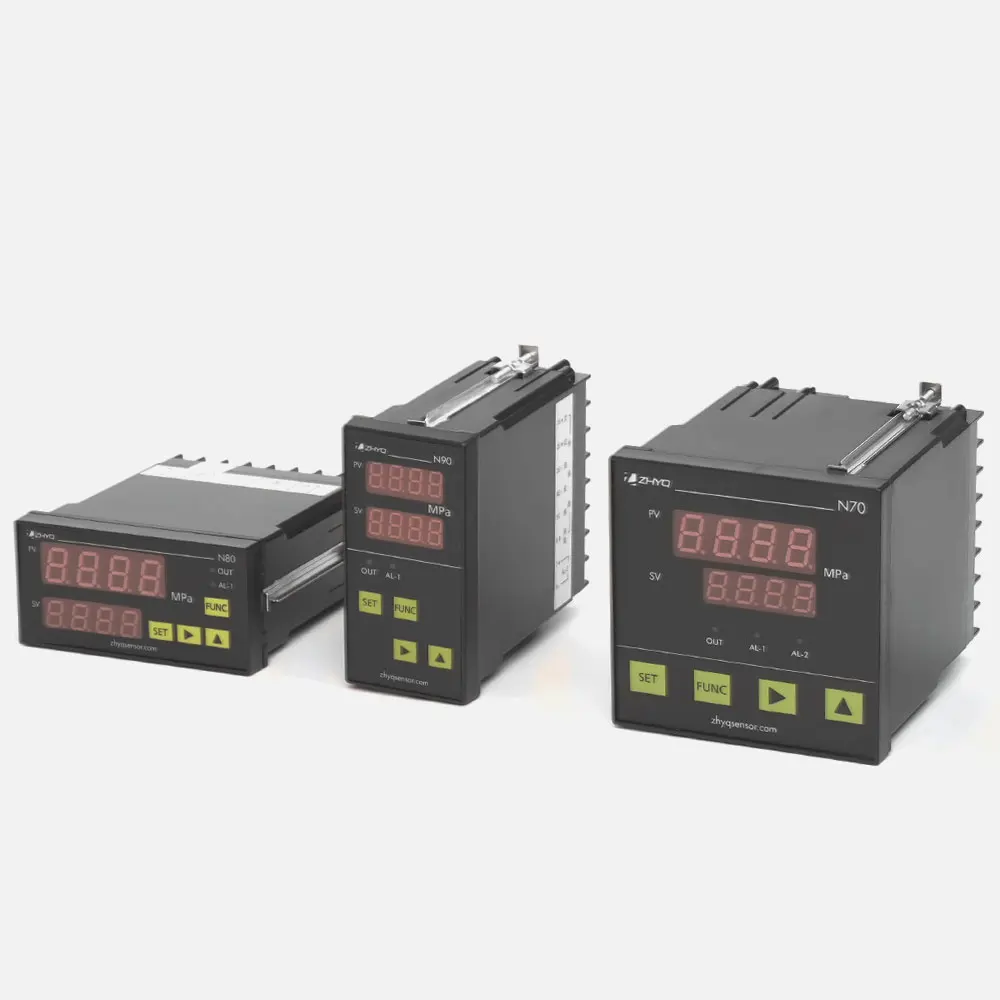

Intelligent pressure digital indicator
N70/N80/N90 pressure indicator is a 1/8 DIN or 1/4 DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power.
This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQ’s melt pressure transducer also.
Specification

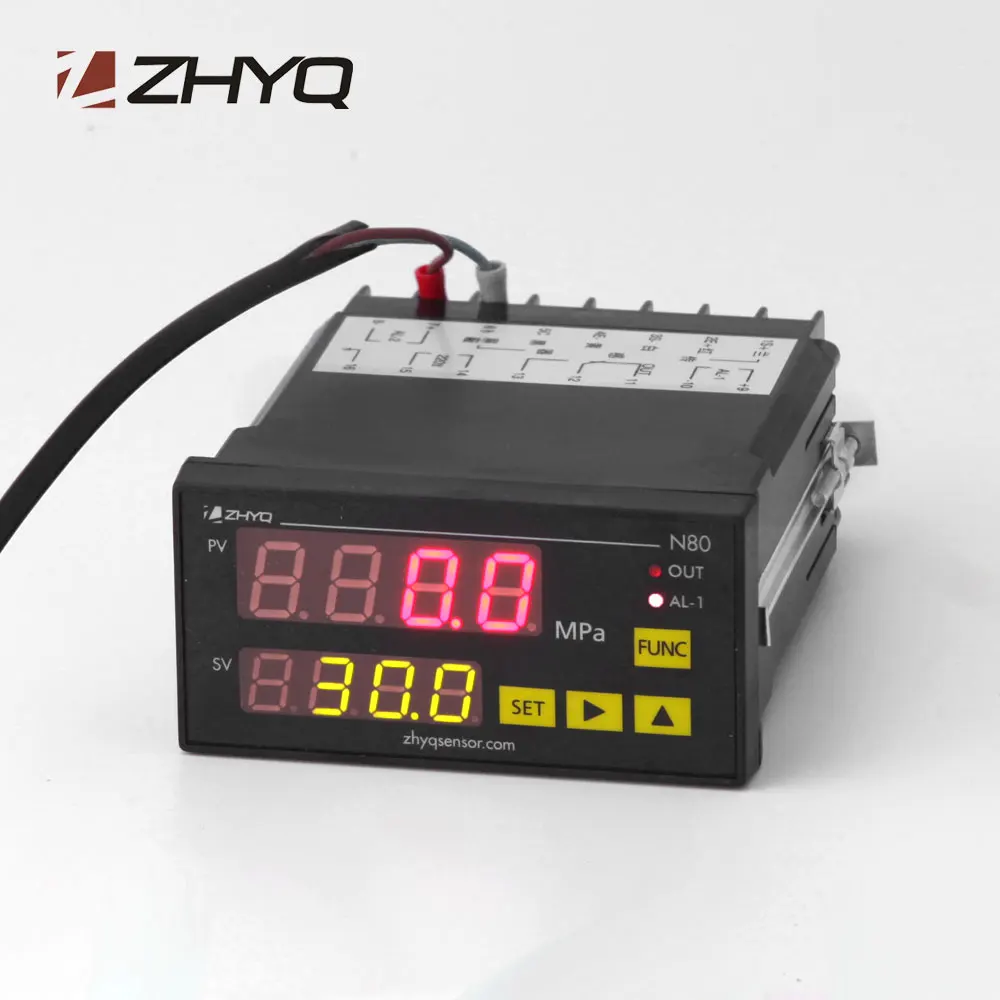

Monitor | Double-layer four-digit high-brightness green and red light-emitting digital tubes |
Display Resolution | 0001－ |
Display Value Range | 0001－9999Mpa (variable decimal point) |
Instrument Precision | 0.2%FS ±1 bit |
LED Display | Validity indicator light, FUNC output indicator light, AL1, AL2, alarm indicator light |
Input Signal | 2/3.3mV/V 0-20mA/4-20mA/0-5V/0-10V (specify when ordering) |
Sampling Speed | 4 times/second |
Powered | +9V high-precision DC power supply (with pressure sensor)/24V power supply (with transmitter) |
Output Control | Voltage or current output linear to full-scale signal |
Main Alarm Output | The upper limit alarm has a relay output (220V1A) and the upper limit alarm indicator (OUT) is on |
Auxiliary Output | The auxiliary output can be equipped with different functional modules and set through the instrument to meet different output requirements. |
Alarm Range | 0001－9999Mpa (variable decimal point) |
Validity Instruction | Display 80% of the full scale of the sensor (the sensor should be empty), and the validity indicator (CAE) is on |
Working Temperature and Humidity | 0－55℃，≤80%RH |
Power Requirements | 85－265VAC 50Hz-60Hz |

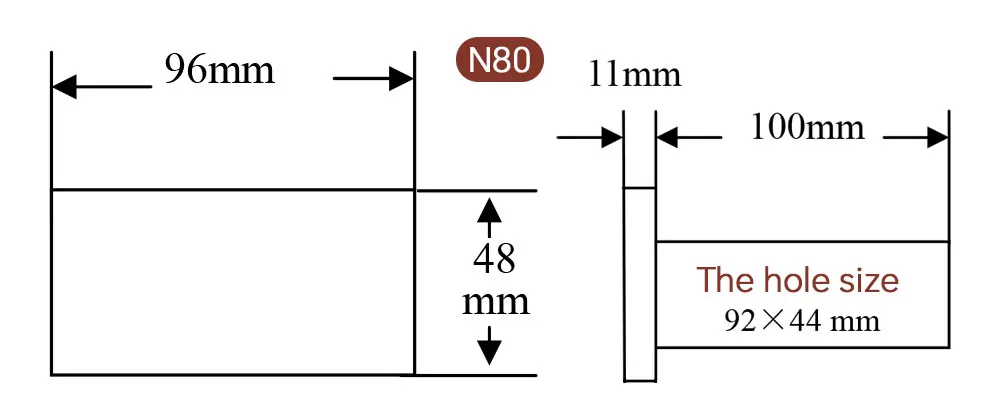

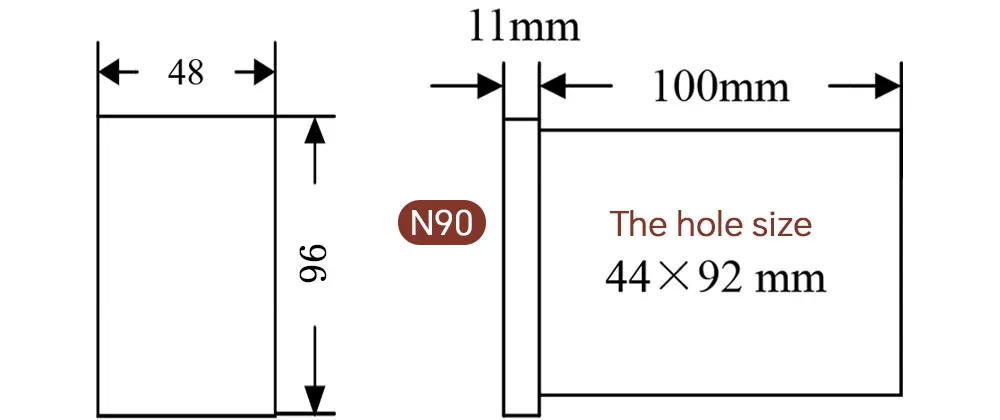

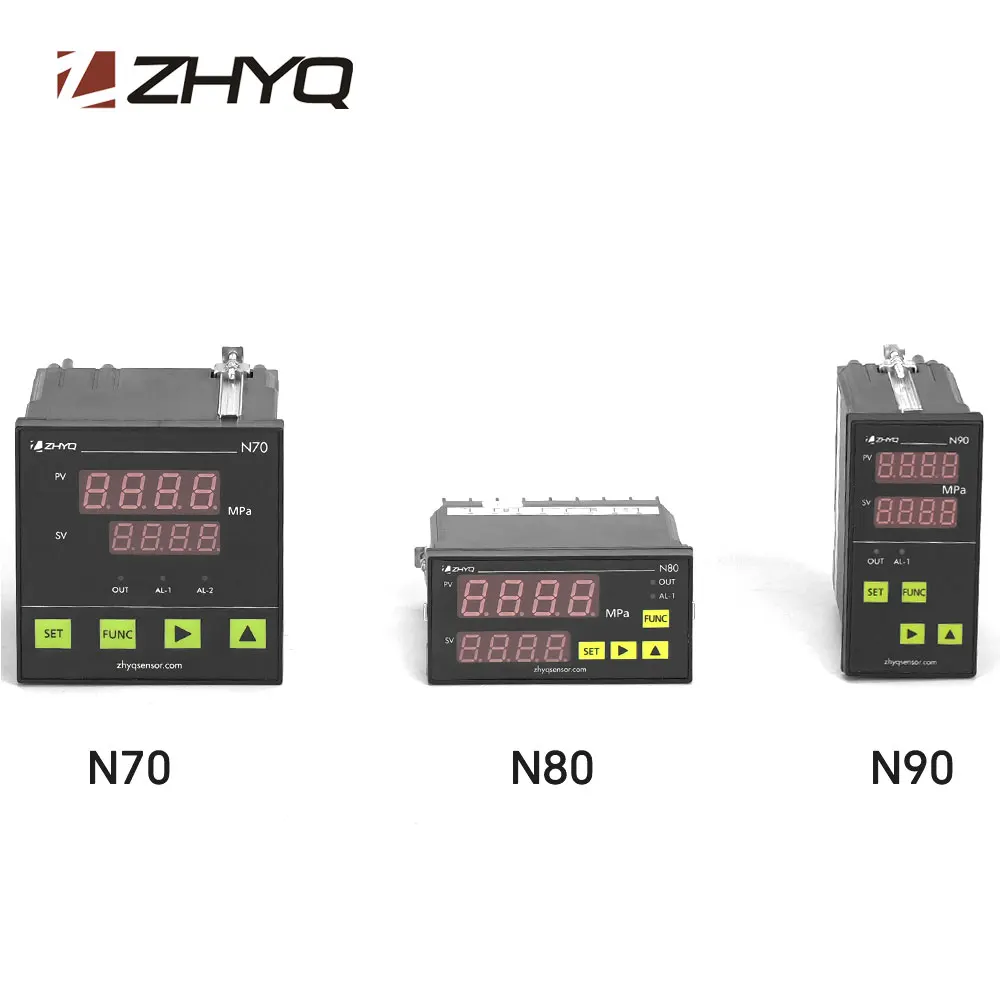

Dimensions | 96×96×100mm (N70) 96×48×100mm (N80) 48×96×100mm (N90) |
Hole Size | 92×92mm (N70) 92×44mm (N80) 44×92mm (N90) |
Weight | 400g/200g/200g |
Features
1. The upper and lower limit alarms can be set, with LED alarm indication and relay contact output to control the external actuator;
2. It has high-precision voltage, current and relay output control modules for users to choose;
Application
It can be widely used in pressure display and automatic control occasions of "hydraulic pressure, petroleum, plastic, rubber, printing and dyeing, textile" and other industries, and it can also be used in conjunction with resistance strain pressure sensors from other manufacturers
Company Profile
ZHYQ found in 1999, is the leading professional manufacturer, Focus on the pressure, flow, temperature, liquid level and refractometer etc. The produces are widely used in the field of industrial process control, energy & electricity, hydrology, construction machinery, medical experiment, military equipment, plastic chemical fiber industry, Smart city construction,
Environmental protection chemical industry etc.
Environmental protection chemical industry etc.
