HZGWS manufacturer 24V Industrial Ethernet Fiber Switch 3*10/100/1000M RJ45 ports 1*SFP slot Fanless

Model

GWS-IPS3032F

Interface Characteristics

Fixed Port

1*DC5521 power socket
1*1000Base-X SC port(Data)
2*10/100/1000Base-T RJ45 ports (Data)
2 set of V+, V- redundant DC power interface (3P Phoenix terminal)

Ethernet Port

Port 1 to 2 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)

Fiber Port

Default Gigabit single-mode dual fiber SC optical module (optional single-mode single fiber/multi-mode dual fiber optical module)

Optical Cable/ Distance

Multi-mode: 850nm/ 0 ~ 500m, Single-mode: 1310nm/0 ~ 40km, 1550nm/ 0 ~ 120km.

Chip Parameter

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IIEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

10Gbps

Forwarding
Rate@64byte

4.46Mpps

MAC

2K

Buffer Memory

2M

Jumbo Frame

9.2K

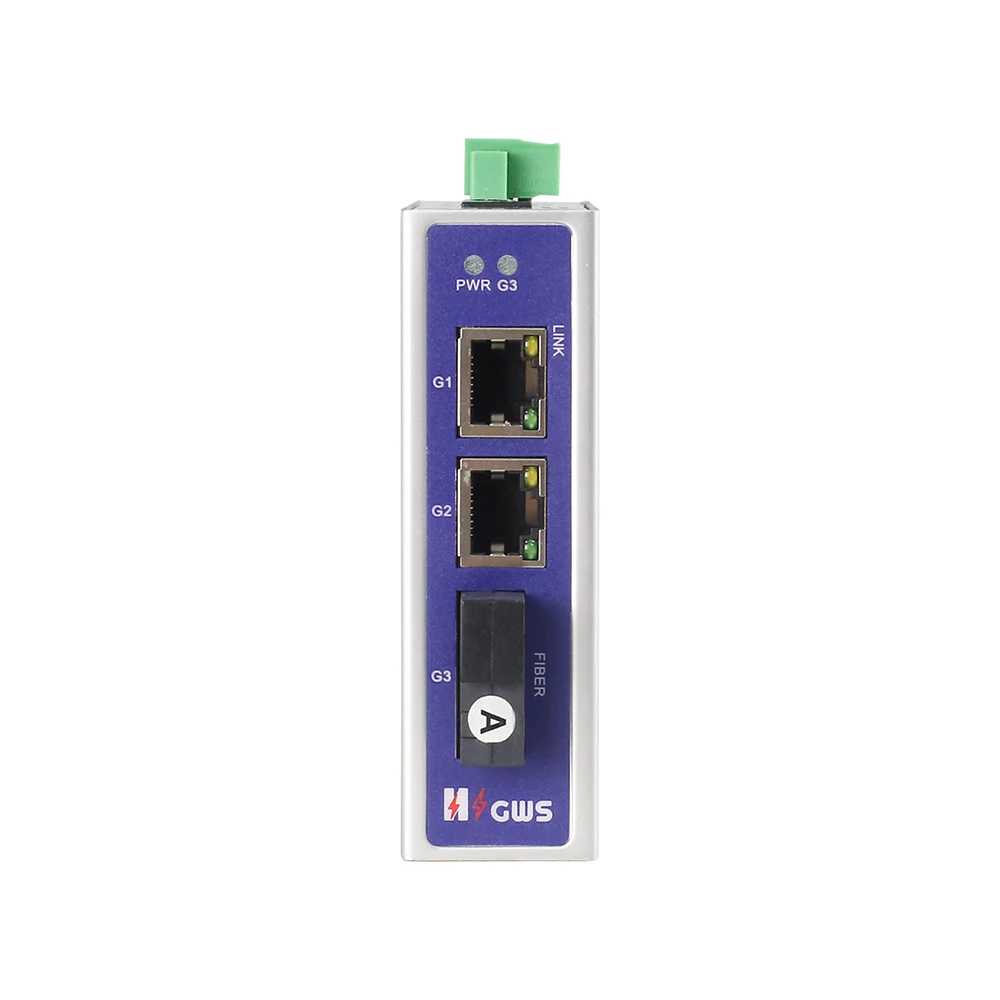

LED Indicator

Power: PWR (Green), Network: Link (Yellow)

Power Supply

Power Consumption

Standby<4W, Full load<6W

Operating Voltage

DC12-57V, 3P industrial Phoenix terminal, support anti-reverse protection.

Power Supply

No, optional 24V/24W industrial power supply

Physical Parameter

Operation TEMP / Humidity

-40~+75°C, 5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+85°C, 5%~95% RH Non condensing

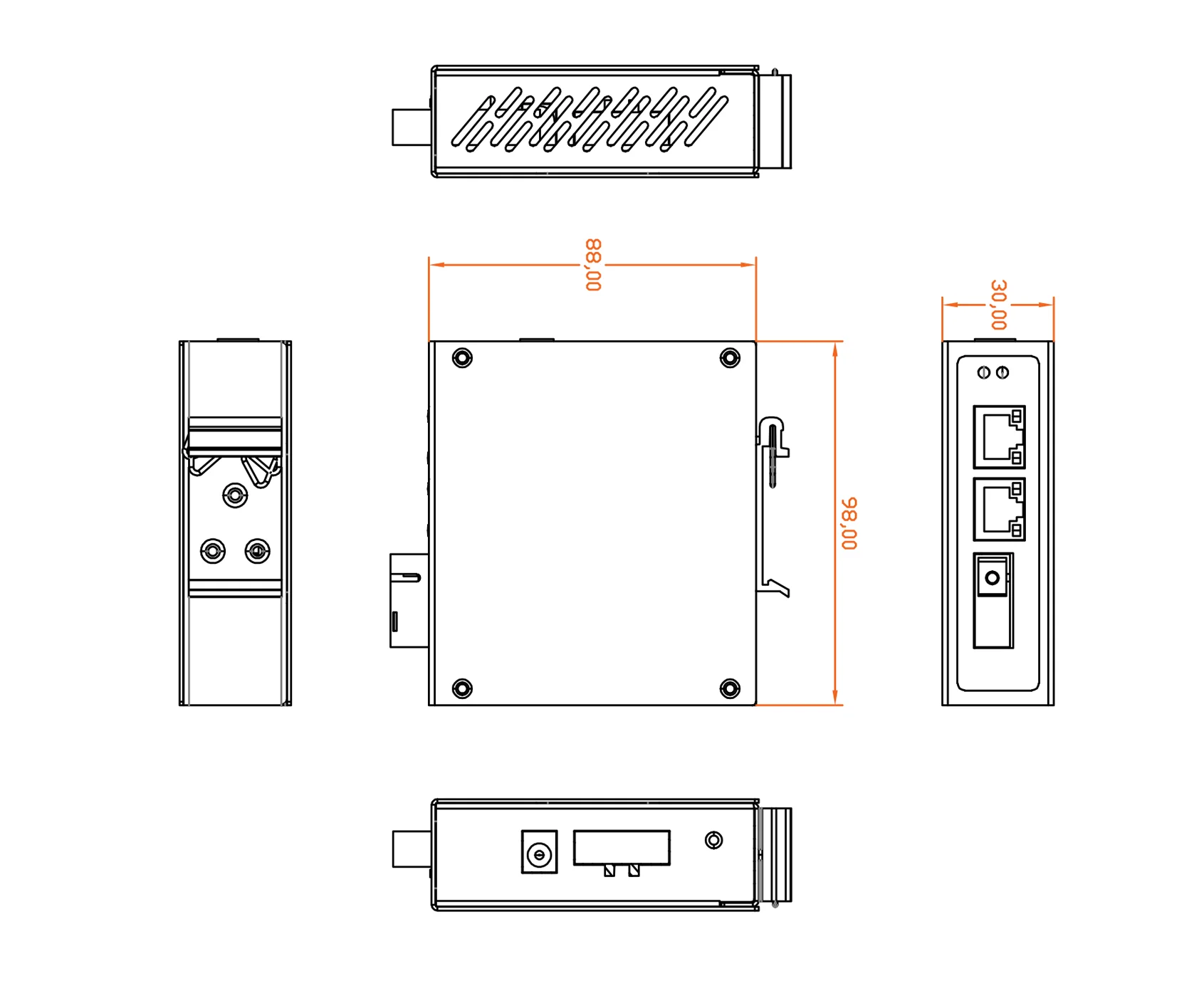

Dimension (L*W*H)

98*88*30mm

Net /Gross Weight

<0.2kg / <0.3kg

Installation

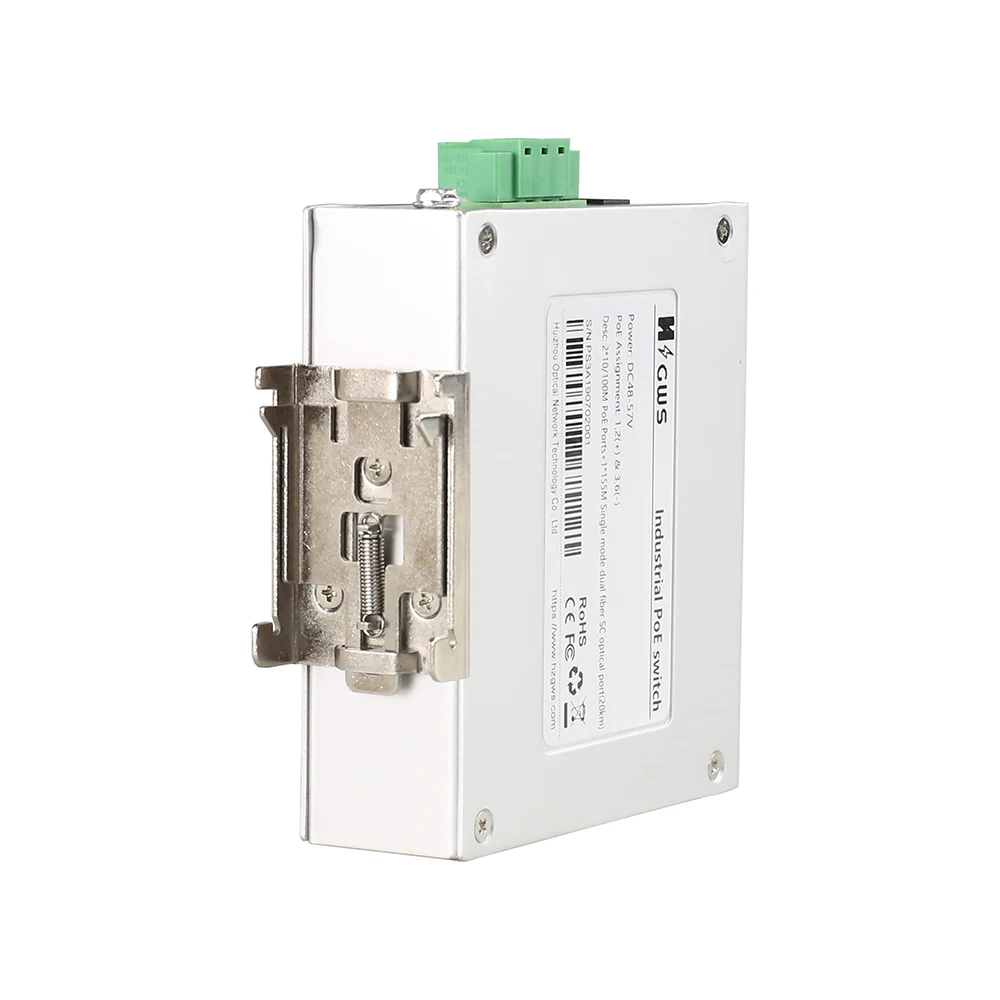

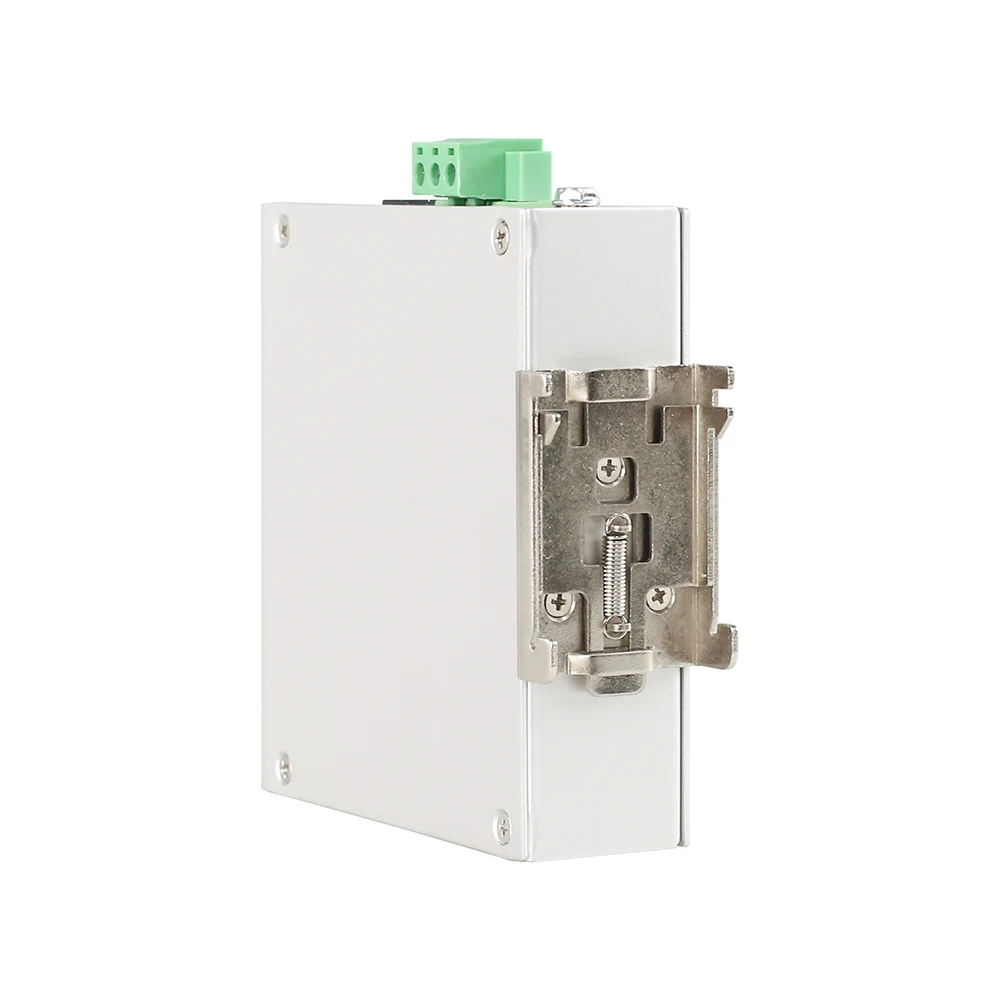

Desktop, 35mm DIN rail

Certification & Warranty

Lightning Protection

Lightning protection: 6KV 8/20us; Protection level: IP30
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(Shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class B
IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)

Certification

CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B RoHS

Warranty

5 years, lifelong maintenance.
