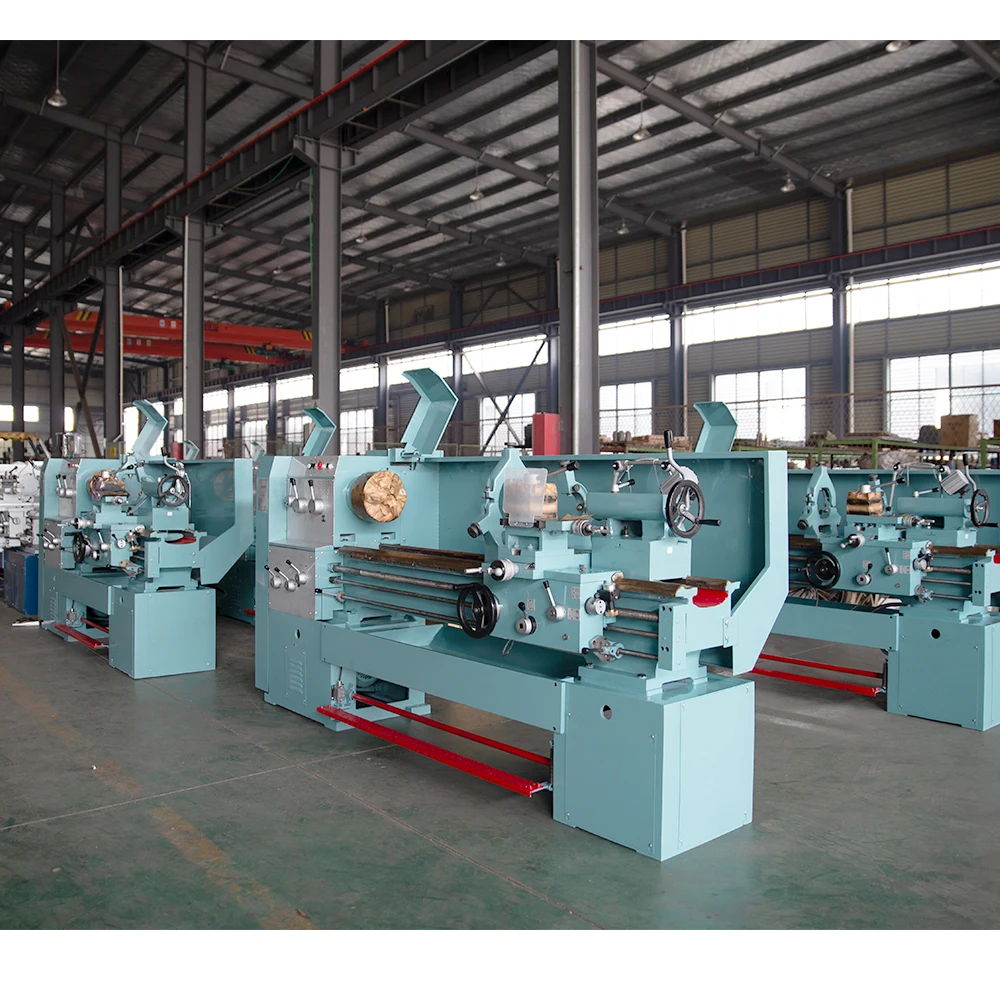

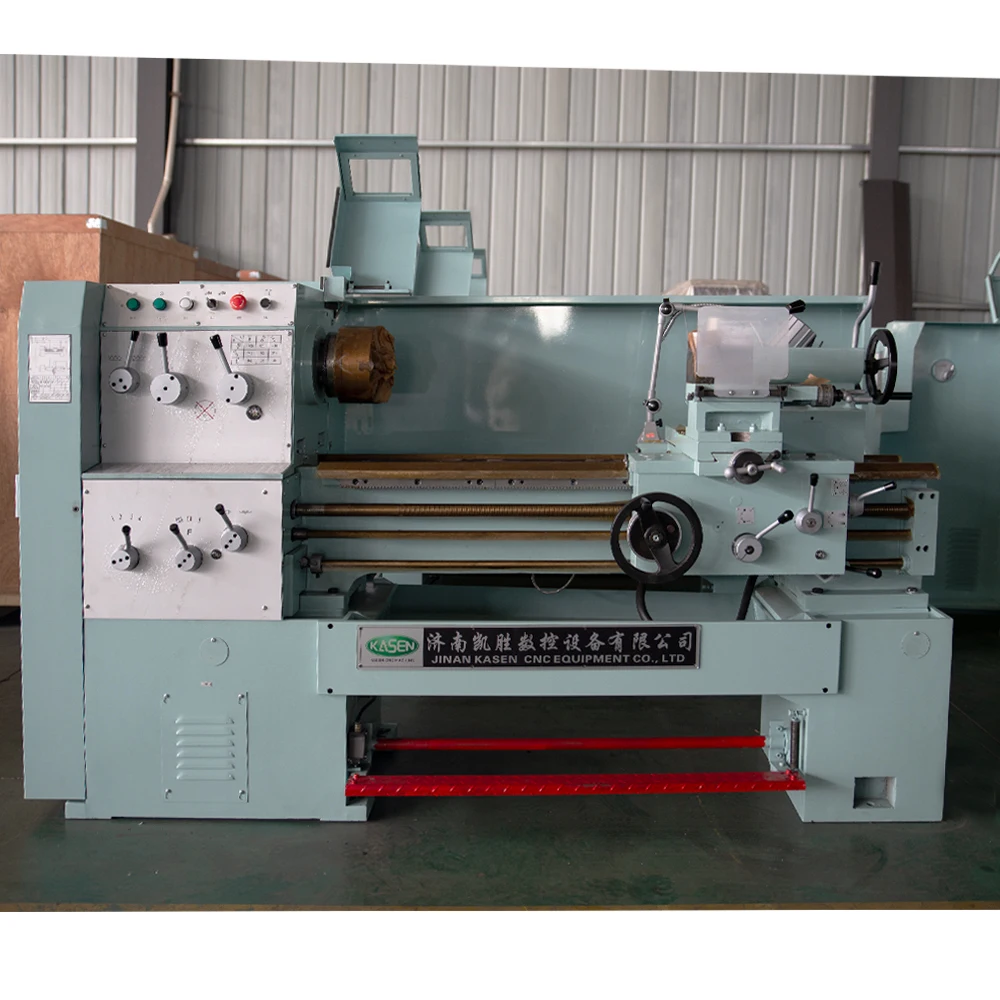

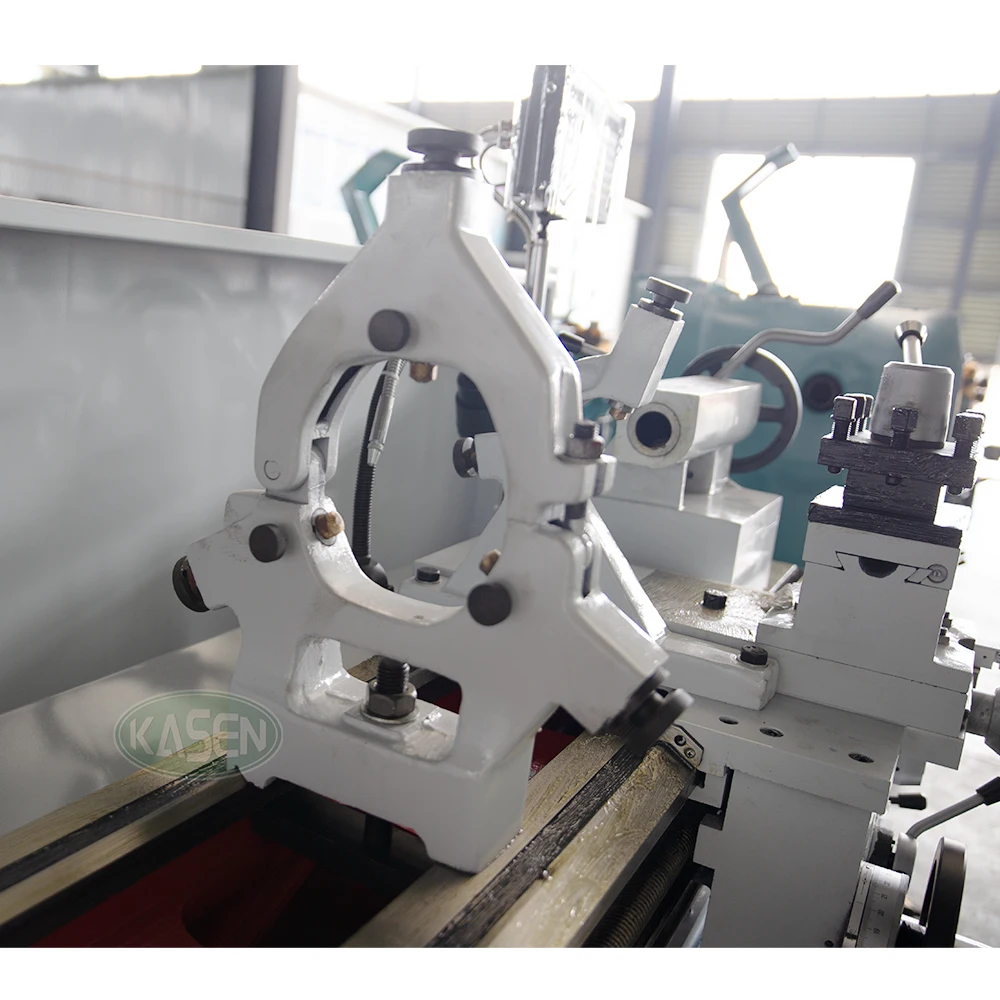

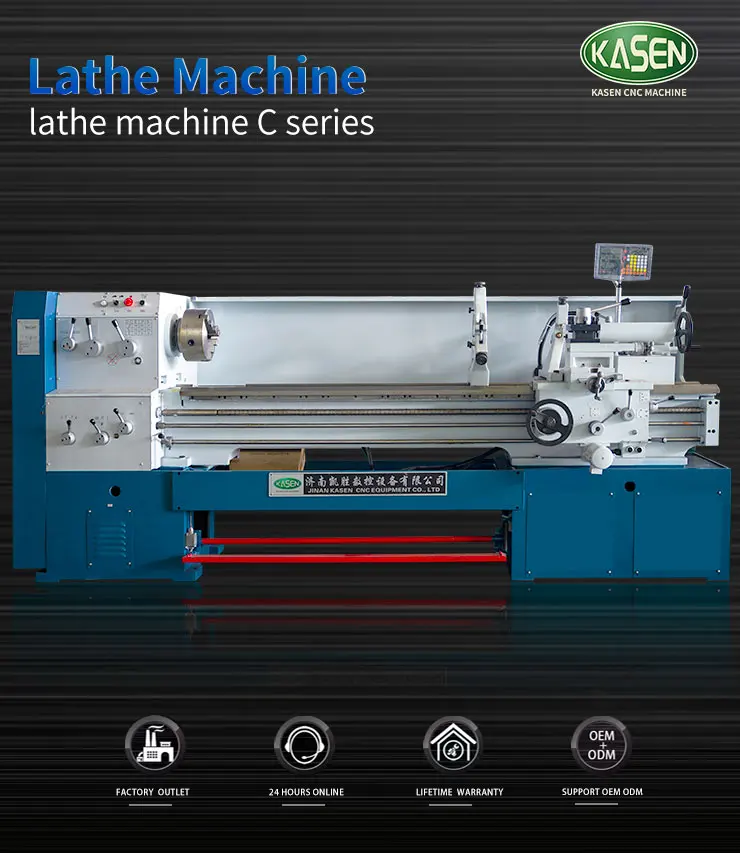

China low price lathe machine C6150 2 metal manual lathe machine
China low price lathe machine C6150 2 metal manual lathe machine
China low price lathe machine C6150 2 metal manual lathe machine
China low price lathe machine C6150 2 metal manual lathe machine
China low price lathe machine C6150 2 metal manual lathe machine
China low price lathe machine C6150 2 metal manual lathe machine
China low price lathe machine C6150 2 metal manual lathe machine

China low price lathe machine C6150 2 metal manual lathe machine

Share on (1601020143315):


Price:$4,500.00 - $5,100.00

Quantity:


Product Overview

Description





Product Description




Main features
* Rail width is 360mm
* Thread processing need to change gears
* Tool size is 20x20mm
* Gears is steel of precision grinding and hardened
Standard configuration Optional configuration
* Hook wrench Steady Res, Follow rest

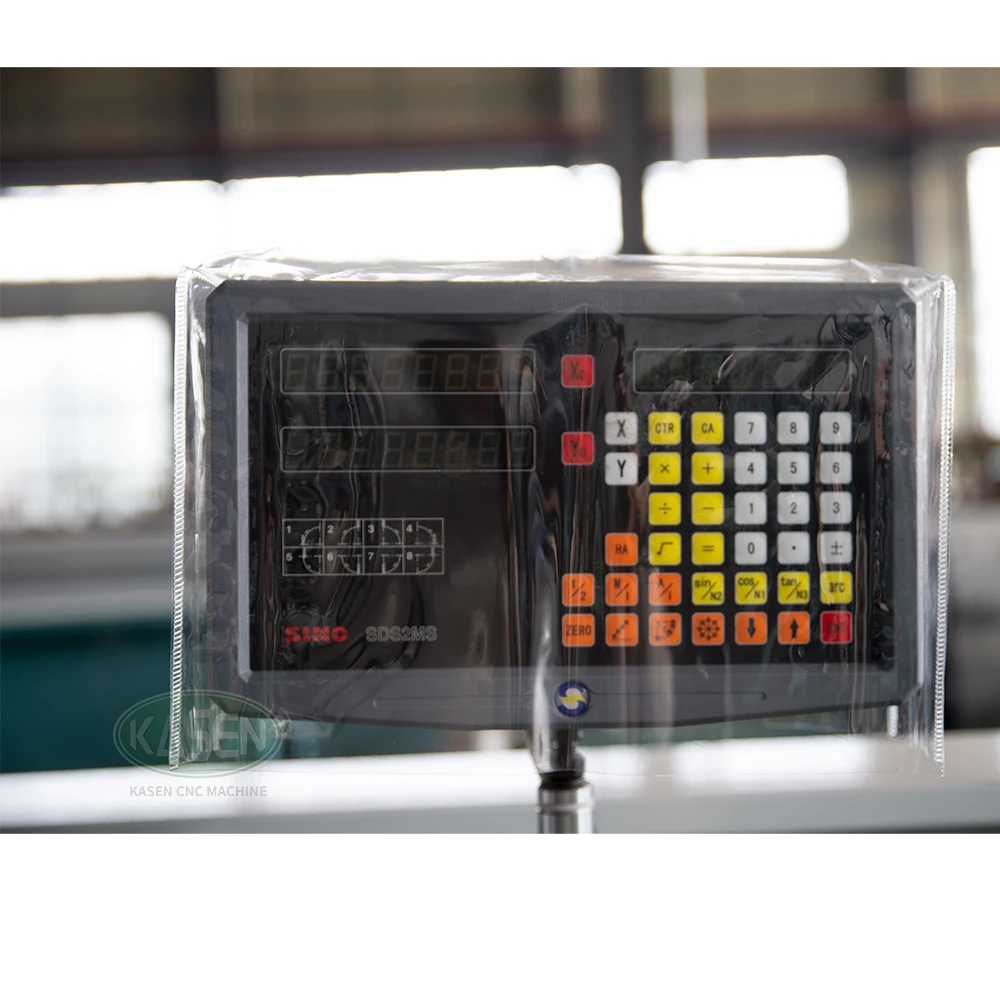

* Inner hexagon spanner DRO
* Single-ended wrench Chuck cover ,1 post cover,Lead screw cover
* Socket wrench Foot brake

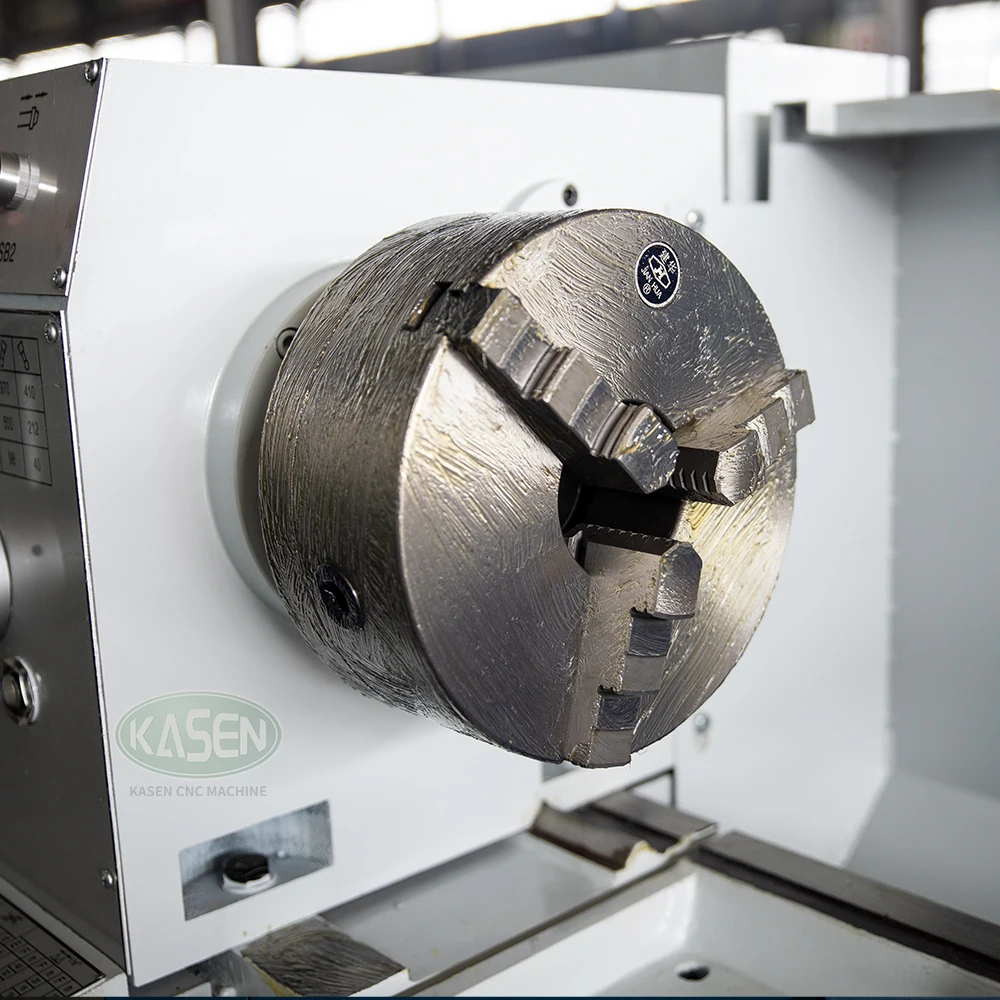

* 3-jaw chuck Fast moving
* Dead center 4 jaw chuck
* Center sleeve Drill chuck and holder
* Triangular belt Quick change tool post
* Adjustment pad iron Taper turning attachment
* Foundation bolts
* Change gears
Main technical parameters：


SPECIFICATIONS
Units
C6236
C6240
C6250
Swing over bed
mm
360
400
500
Swing over cross slide
mm
190
230
330
Swing over gap
mm
520
560
660
Distance between centers
mm
750/1000/1500/2000/3000
750/1000/1500/2000/3000
750/1000/1500/2000/3000
Spindle bore
mm
52(Optional:80)
52(Optional:80)
52(Optional:80)
Spindle bore taper
-
MT6(Optional:Metric 1:20)
MT6(Optional:Metric 1:20)
MT6(Optional:Metric 1:20)
Spindle speed steps
-
9
9
9
Spindle speed range
rpm
40-1400
40-1400
40-1400
Cross slide travel
mm
180
200
250
Top tool post travel
mm
95
95
95
Tool size
mm
20 x 20
20 x 20
20 x 20
Longitudinal feeds range
mm/r
0.0832-4.6569
0.0832-4.6569
0.0832-4.6569
Cross feeds range
mm/r
0.048-2.688
0.048-2.688
0.048-2.688
Kinds of metric threads
kinds
19
19
19
Range of metric threads
mm
0.25-14
0.25-14
0.25-14
Kinds of inch threads
kinds
28
28
28
Range of inch threads
T.P.I.
2-40
2-40
2-40
Kinds of threads module
kinds
17
17
17
Range of threads module
MP
0.25-3.5
0.25-3.5
0.25-3.5
Tailstock quill diameter
mm
65
65
65
Tailstock quill taper
-
MT4
MT4
MT5
Tailstock quill travel
mm
130
130
130
Main motor power
kw
4
4
5.5
Coolant pump motor
kw
0.09
0.09
0.09
Weight for 750
kg
1200
1220
1250
Weight for 1000
kg
1300
1320
1350
Weight for 1500
kg
1500
1520
1550
Weight for 2000
kg
1700
1720
1750
Weight for 3000
kg
1900
1920
1950
Dimension for 750
mm
2200x1140x1750
2200x1140x1750
2200x1140x1800
Dimension for 1000
mm
2400x1140x1750
2400x1140x1750
2400x1140x1800
Dimension for 1500
mm
2900x1140x1750
2900x1140x1750
2900x1140x1800
Dimension for 2000
mm
3400x1140x1750
3400x1140x1750
3400x1140x1800
Dimension for 3000
mm
4400x1140x1750
4400x1140x1750
4400x1140x1800








Company Profile






Exhibition




Certifications




Customer visiting




Packing & Delivery




FAQ


1. who are we?
We are based in Shandong, China, start from 2022,sell to Southeast Asia(20.00%),Eastern Asia(20.00%),North America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Oceania(10.00%),Northern Europe(10.00%),South America(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC MACHINING CENTER,CNC lathe,wire cutting machine,sawing machine,laser cutting equipment

4. why should you buy from us not from other suppliers?
Jinan kasen CNC Equipment Co., Ltd. was founded in 1998,located in Changging District, Jinan City,Shandong Province. It is a leading backbone enterprise in Jinan.
Products are sold to 31 provinces and more than 100 countries And
regions around the world.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
