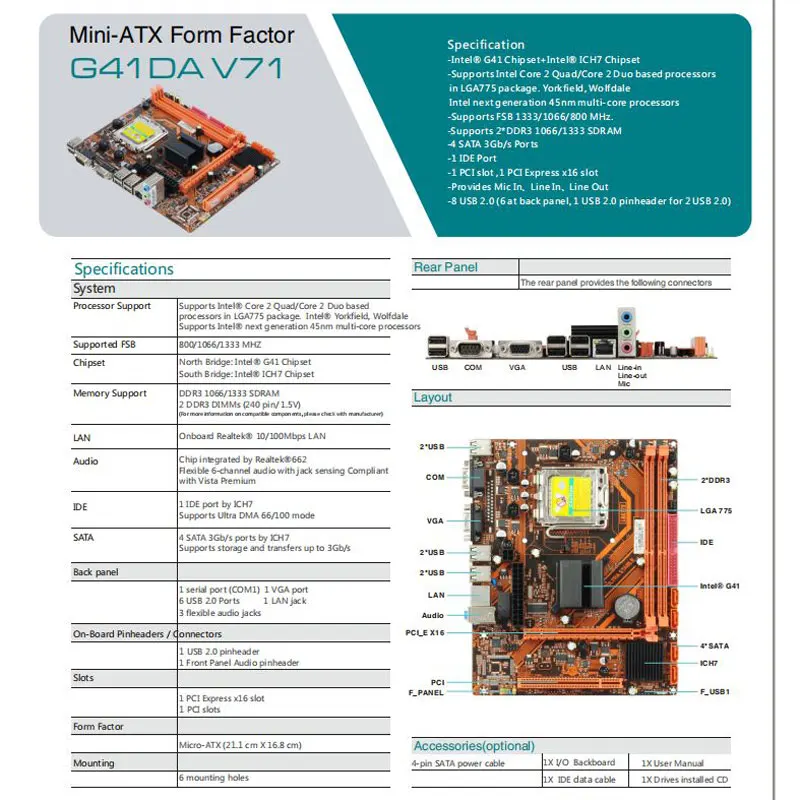

Processor Support | Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package. Intel® Yorkfield, Wolfdale Supports Intel® next generation 45nm multi-core processors |
Supported FSB | 800/1066/1333 MHZ |
Chipset | North Bridge: Intel® G41 Chipset South Bridge: Intel® ICH7 Chipset |
Memory Support | DDR3 1066/1333 SDRAM 2 DDR3 DIMMs (240 pin/ 1.5V) (For more information on compatible components, please check with manufacturer) |
LAN | Onboard Realtek® 10/100Mbps LAN |
Audio | Chip integrated by Realtek®662 Flexible 6-channel audio with jack sensing Compliant with Vista Premium |
IDE | 1 IDE port by ICH7 Supports Ultra DMA 66/100 mode |
SATA | 4 SATA 3Gb/s ports by ICH7 Supports storage and transfers up to 3Gb/s |

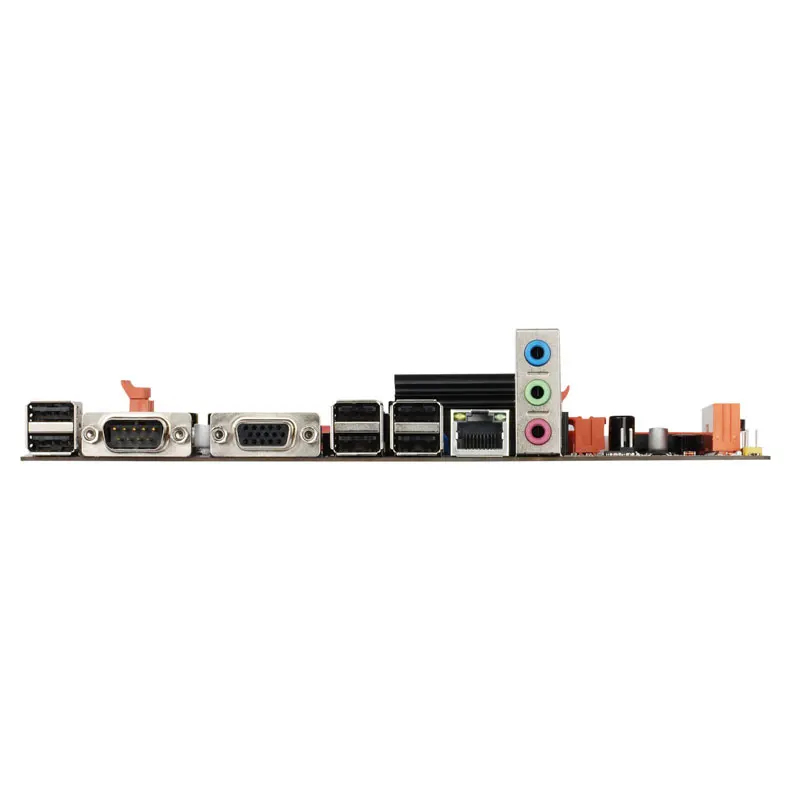

Back panel | 1 serial port (COM1) 1 VGA port 6 USB 2.0 Ports 1 LAN jack 3 flexible audio jacks |
On-Board Pinheaders / Connectors | 1 USB 2.0 pinheader 1 Front Panel Audio pinheader |
Slots | 1 PCI Express x16 slot 1 PCI slots |
Form Factor | Micro-ATX (21.1 cm X 16.8 cm) |
Mounting | 6 mounting holes |
