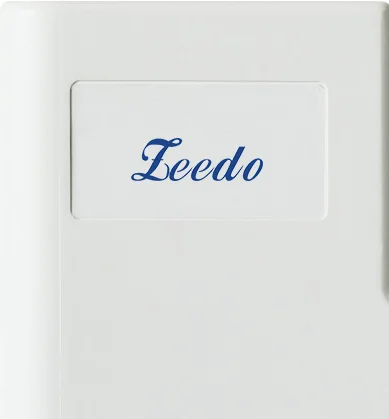

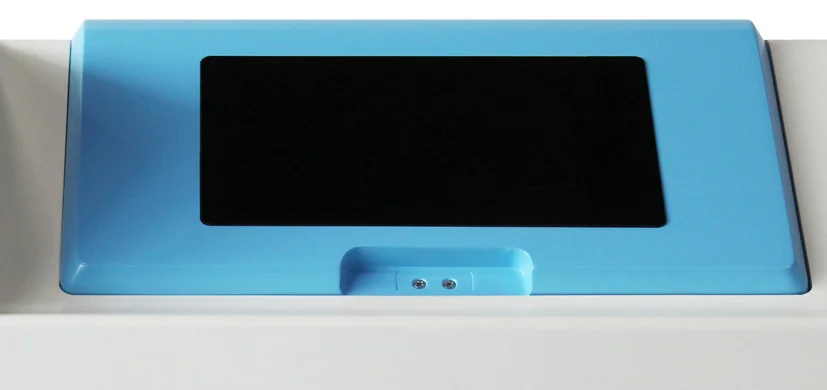

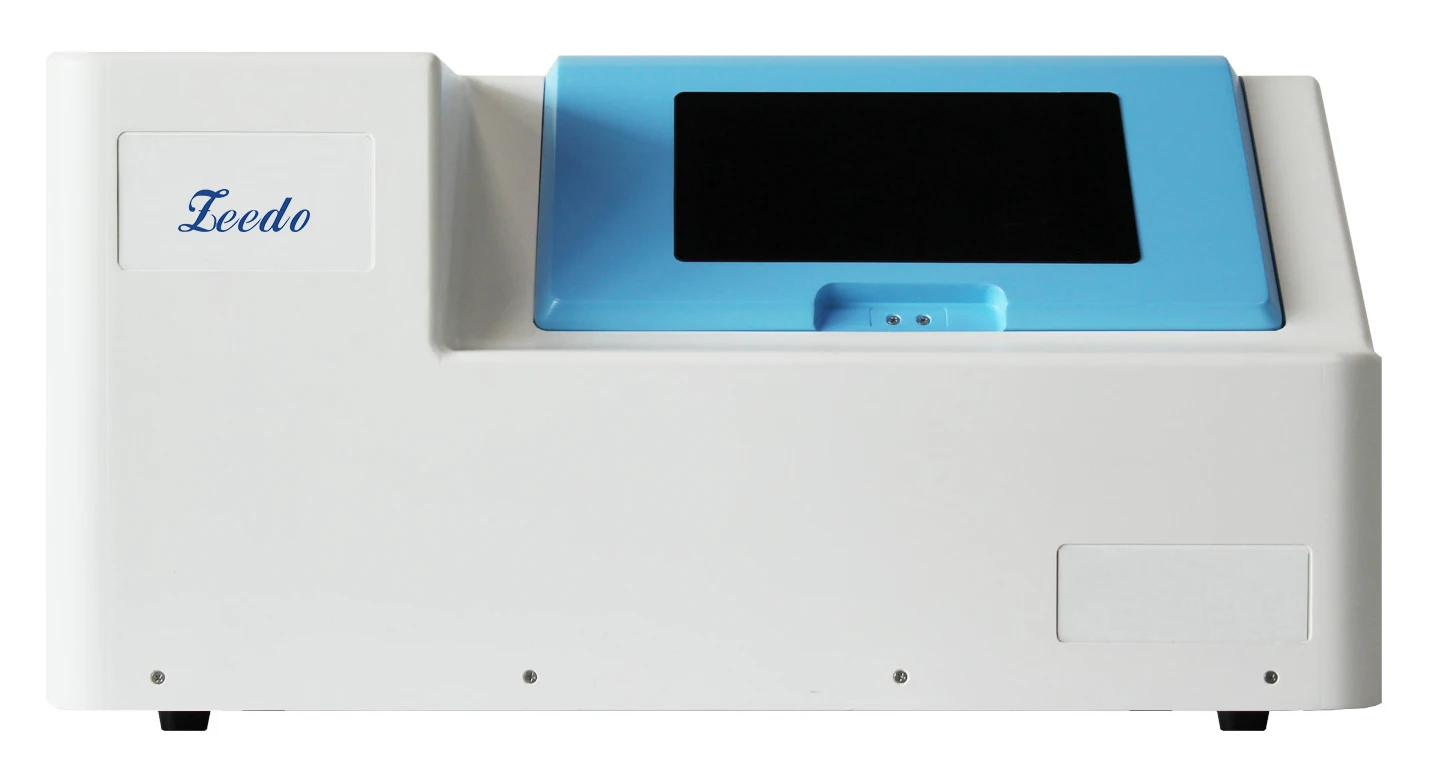

6 Slides Medical Equipment Digital Microscope Slide Scanner Pathology Section Scanner High Ratio Slide Scanner
- Category: >>>
- Supplier: Jinhua Hisure Scientific Co. Ltd.
Share on (1601020187028):
Product Overview
Description

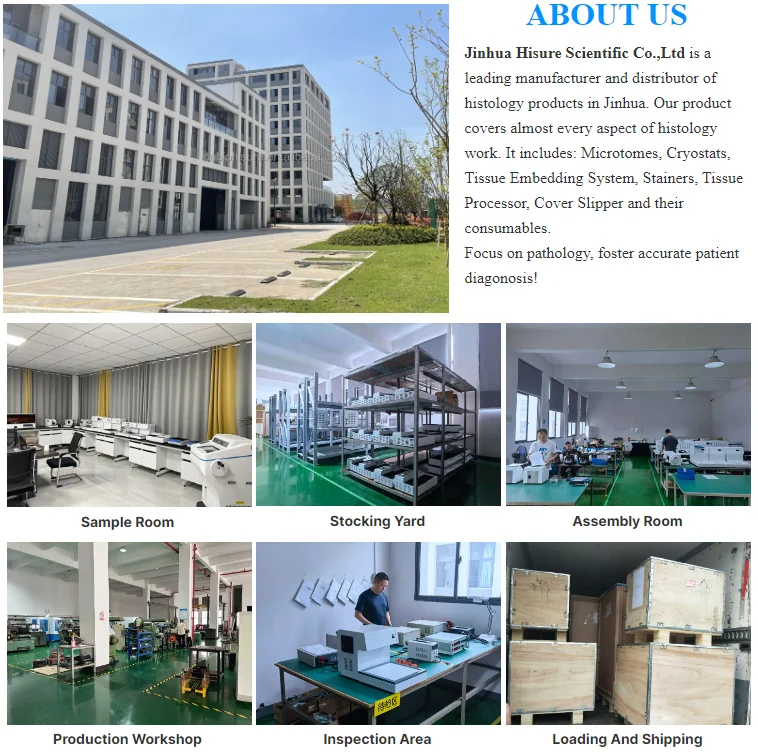

Company Profile
Product Overview
item | value |
Type | Biochemical Analysis System |
Brand Name | zeedo |
Model Number | HS-TRO-006 |
Place of Origin | China |
Zhejiang | |
Instrument classification | Class I |
Warranty | 1 Year |
Certificated | CE ISO |
Features:
1. Equipment composition 1.1 Pathological section scanner 1.2 Embedded PC with advanced graphics capability. 2. Optical microscopy
2.1 3200*2200 1”global shutter camera, Frame rate≥75f/s 2.2 20x objective lens, NA=0.75 3. Hardware Configuration 3.1 Scanner platform XY drivers support resolution of 5um, Z auto focus support 0. 25um resolution. 3.2 Scanning image resolution:20x objective lens, resolution ≤0.25um / pixel. 3.3 Scanning process automation, Simple sample loading. 3.4 LED light source, with a service life of more than 20000 hours. 3.5 One click for scan. SW can pause/stop the scan process, support sample add-in during scan process. 6 samples container. With the optional loading system, the sample container can reach 120 / 240. 3.6 Embedded PC,
with nVidia professional graphics card for AI, featured with PC I0s like keyboard, USB3.0 etc.
4. Software configuration 4.1 Images format: JPEG or BMP 4.2 It supports automatic recognition of smear contour and scanning at specified position. 4.3 Continuous scanning mode.The scan can be finished within 180s for one sample. (15mm*15mm) 4.4 Support history image browsing and review. 4.5 Support auto sample positioning of sample slide. 4.6 The scanner can mark the specified area and take high- -definition screenshots. 4.7 It supports the storage of image data through local or network, and can query and
count the stored data.
2.1 3200*2200 1”global shutter camera, Frame rate≥75f/s 2.2 20x objective lens, NA=0.75 3. Hardware Configuration 3.1 Scanner platform XY drivers support resolution of 5um, Z auto focus support 0. 25um resolution. 3.2 Scanning image resolution:20x objective lens, resolution ≤0.25um / pixel. 3.3 Scanning process automation, Simple sample loading. 3.4 LED light source, with a service life of more than 20000 hours. 3.5 One click for scan. SW can pause/stop the scan process, support sample add-in during scan process. 6 samples container. With the optional loading system, the sample container can reach 120 / 240. 3.6 Embedded PC,
with nVidia professional graphics card for AI, featured with PC I0s like keyboard, USB3.0 etc.
4. Software configuration 4.1 Images format: JPEG or BMP 4.2 It supports automatic recognition of smear contour and scanning at specified position. 4.3 Continuous scanning mode.The scan can be finished within 180s for one sample. (15mm*15mm) 4.4 Support history image browsing and review. 4.5 Support auto sample positioning of sample slide. 4.6 The scanner can mark the specified area and take high- -definition screenshots. 4.7 It supports the storage of image data through local or network, and can query and
count the stored data.
Certification

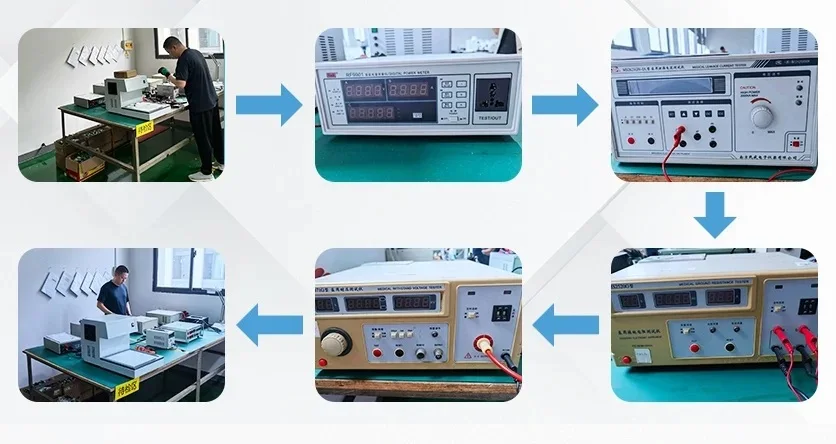

Quality Inspection Process
Exhibition

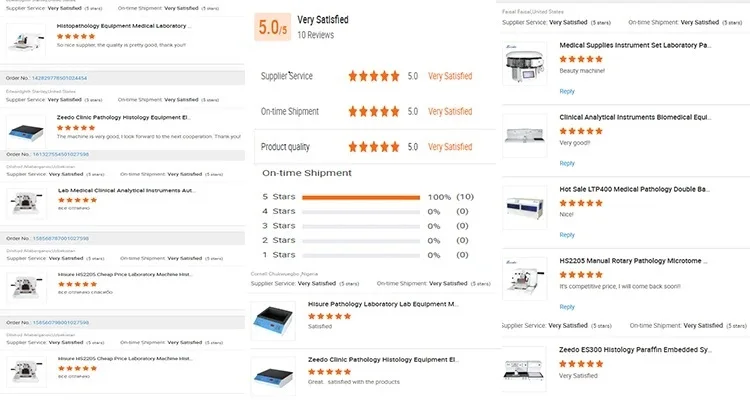

Customer Feedbacks
