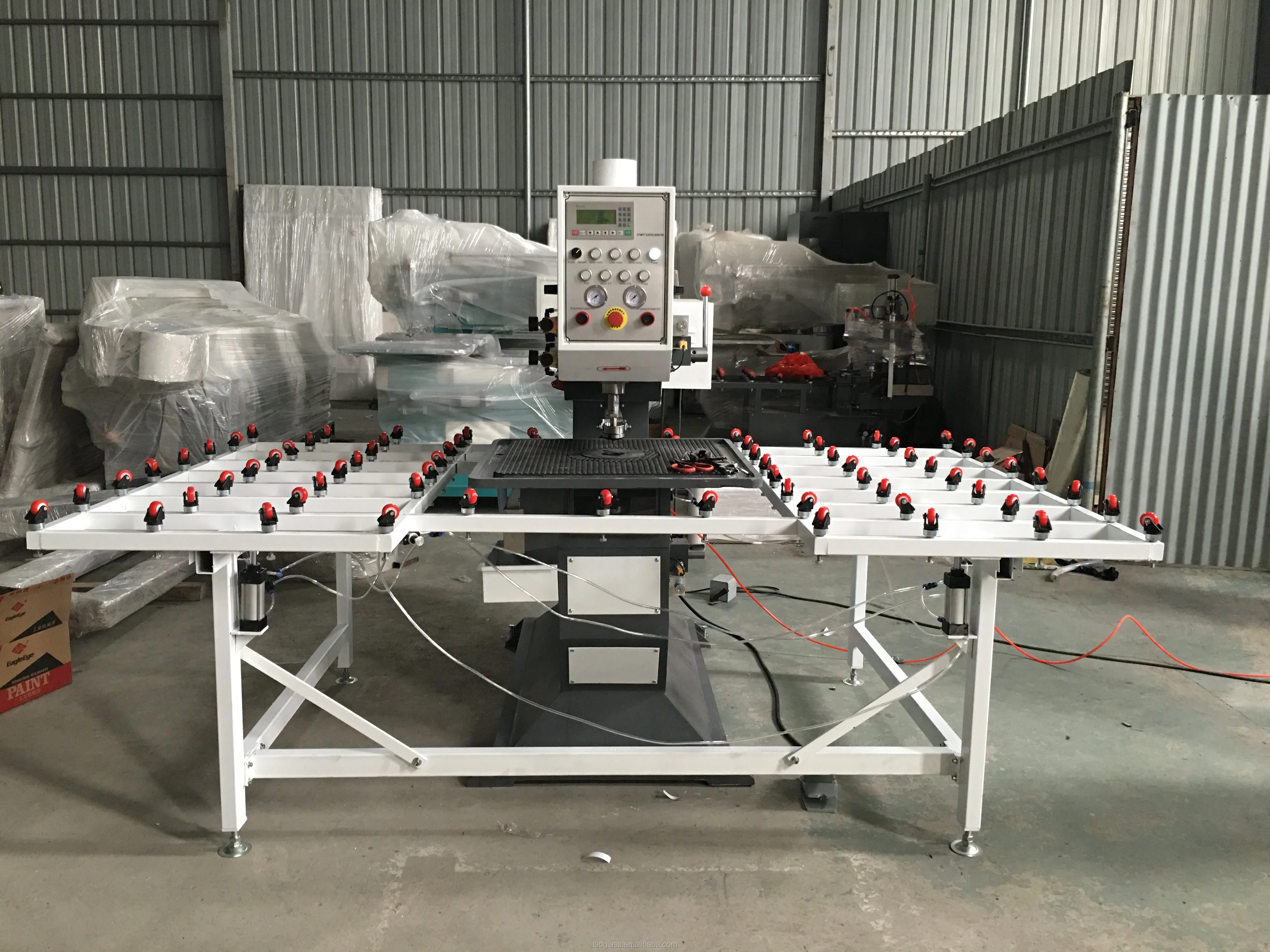

Automatic PLC Glass Hole Drilling Machine Flat Glass Driller With Accurate Drilling Head
- Category: >>>
- Supplier: Liaoda (LAD) Glass Machinery Co. Ltd.
Share on (1601020229840):
Product Overview
Description
Product Description

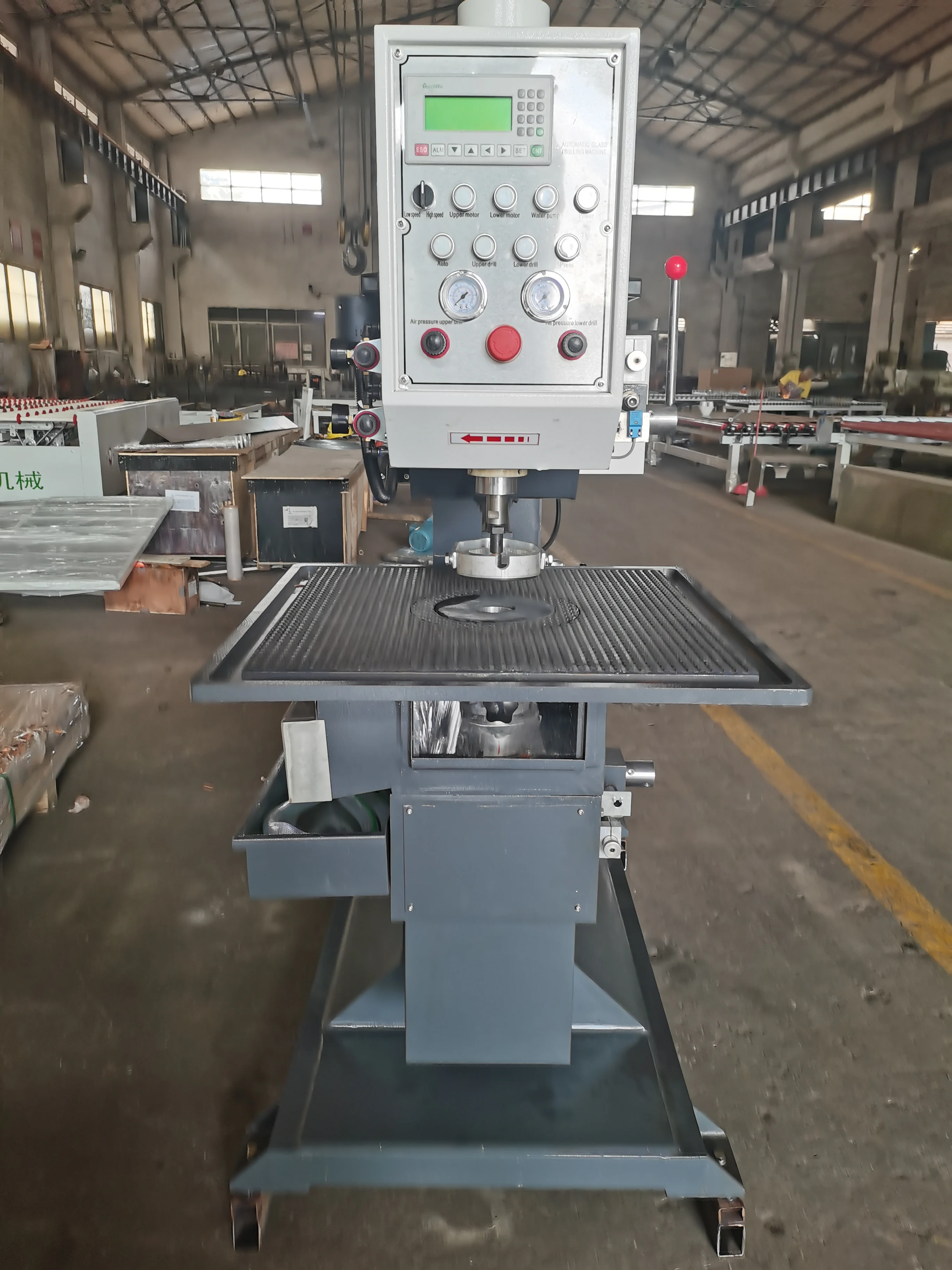

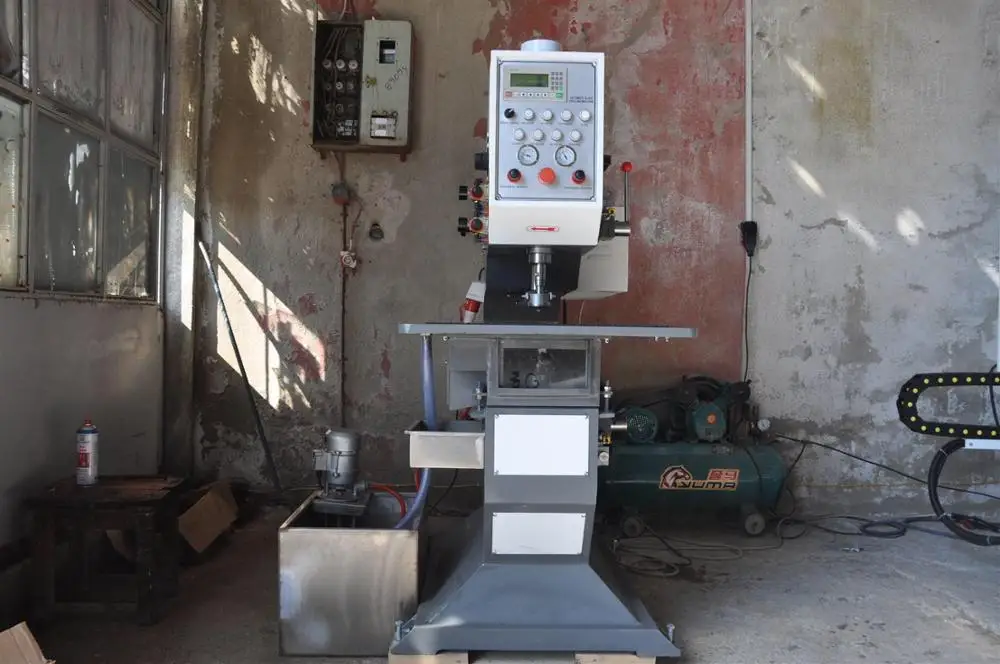

Glass Drilling Machine (PLC)
YD series Glass Drilling Machine is used to drill holes of various diameter on glass.With PLC control system, it is equipped with a user-friendly touch screen where user can set the parameters easily.
It is widely applied to home appliances, decorative glass and glass furniture.
It is widely applied to home appliances, decorative glass and glass furniture.
Specification
Model | YD-HD-5/80 |
Max. Glass Size | 2200x2700mm |
Glass Thickness | 3-30mm |
Max. Drilling Depth | 1250mm |
Drilling Diameter | 4-80mm, or 220mm if needed |
Drilling Accuracy | ±0.2mm |
Control Mode | PLC |
Power | 2.45kw |
Outer Dimension | 2380x2200x1750mm |
Weight | 800kg |
Structure
* High rigidity and strong machine body, able to drill both large and small diameter

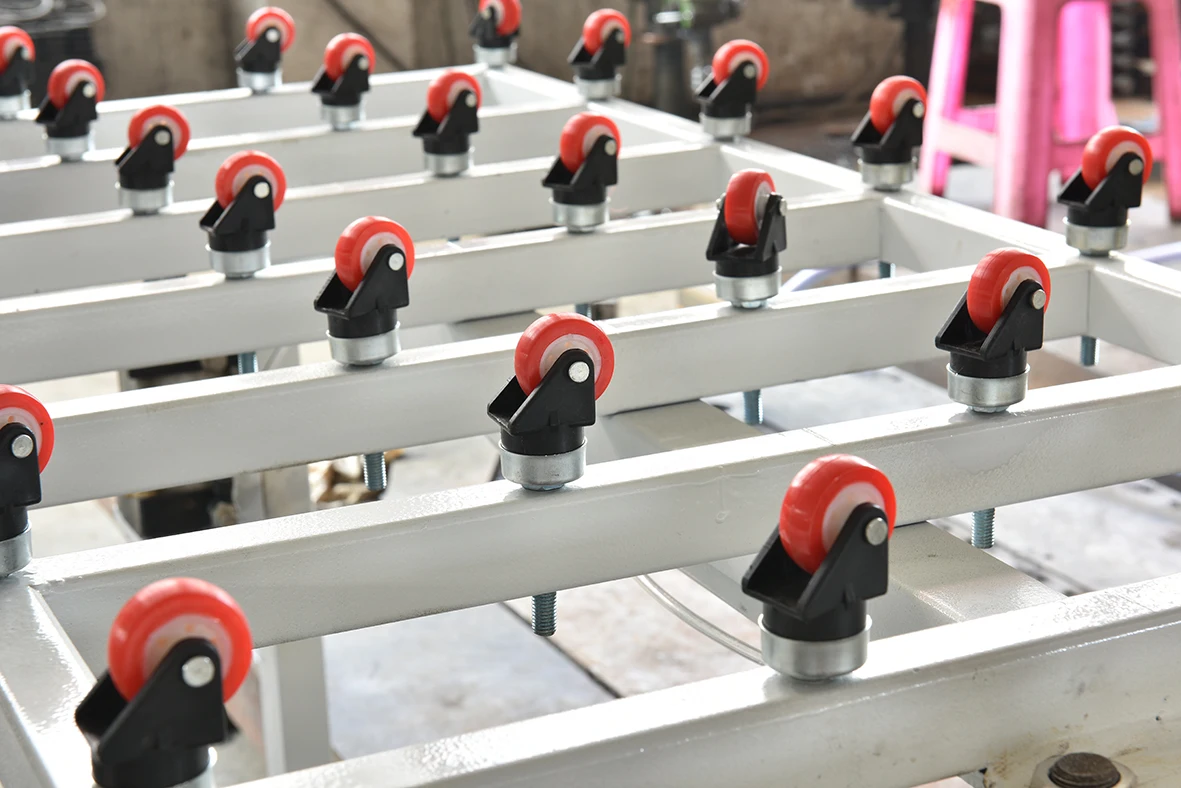

* An auxiliary working table with quality universal wheels thereon

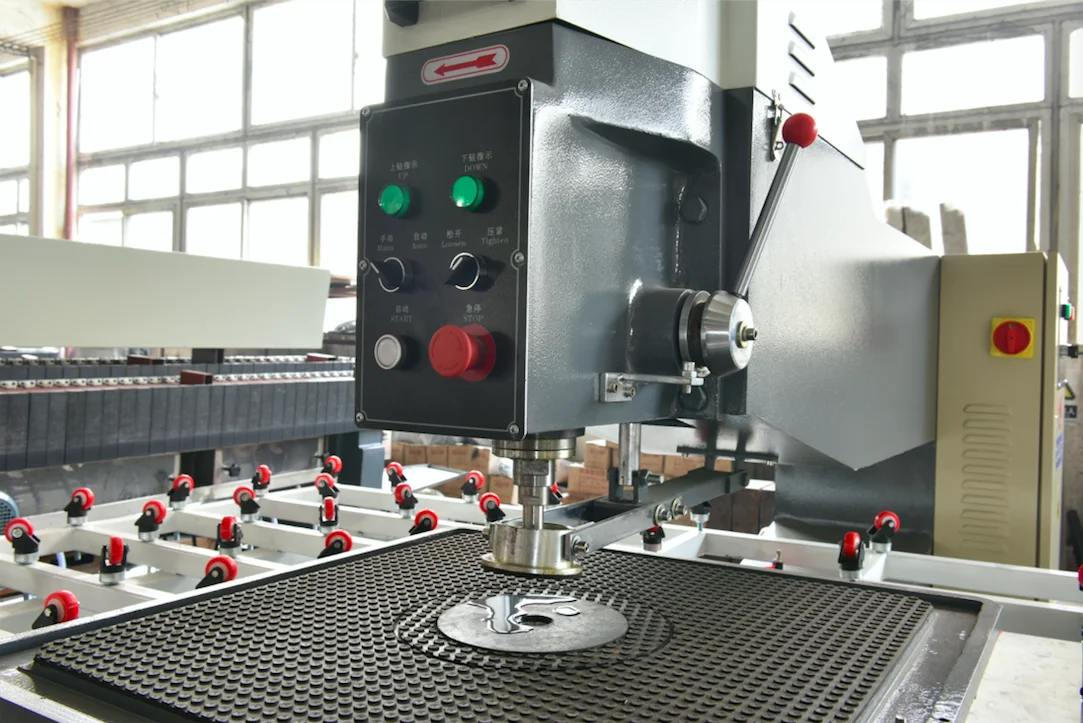

Drilling
* Automatic feed for drilling downwards while drilling upwards can be controlled manually or automatically
* With oil buffer technology, create stable and accurate performance
* PLC control, Automatic drilling according to setting
* Continuous drilling, suitable for mass production and small-batch production
* Efficient cooling effect onto the glass without any loss
* Maximum drilling hole up to 220mm
For Option
* Drilling lamp can be arranged
* Laser positioning and automatic positioning
* Frequency regulation
* High rigidity and strong machine body, able to drill both large and small diameter
* An auxiliary working table with quality universal wheels thereon
Drilling
* Automatic feed for drilling downwards while drilling upwards can be controlled manually or automatically
* With oil buffer technology, create stable and accurate performance
* PLC control, Automatic drilling according to setting
* Continuous drilling, suitable for mass production and small-batch production
Function
* Able to work 24 hours a day* Efficient cooling effect onto the glass without any loss
* Maximum drilling hole up to 220mm
For Option
* Drilling lamp can be arranged
* Laser positioning and automatic positioning
* Frequency regulation
