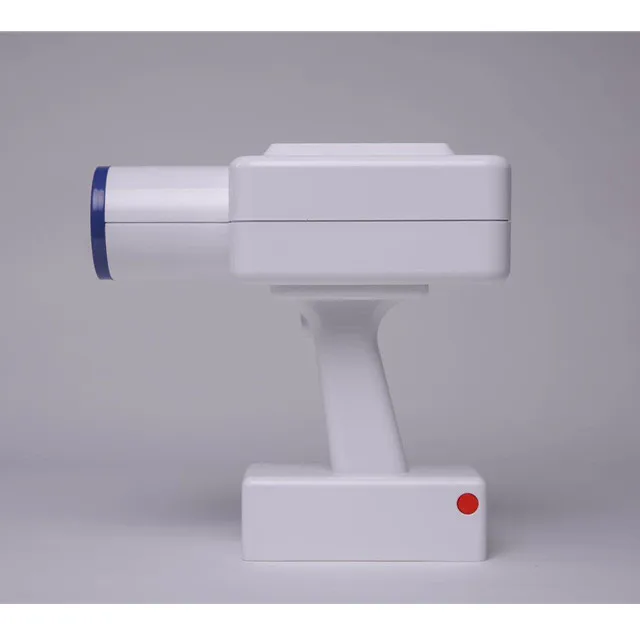

A Dental Portable Handy X Ray Machine With Stable Quality

Dental Portable Handy X Ray Machine With Stable Quality

1.Conditions of operation:

Atmospheric pressure: 70Kpa~106Kpa

Environmental temperature:+10℃~+40℃

Relative humidity:30%~75%

2.Condition of transportation and store:

 Environmental temperature: -20℃~ +50℃

Relative humidity:10%~90%

Atmospheric pressure:50KPa~106KPa

3. Battery conditions:

Battery: 2200mAh/14.8V

Charger input voltage: single AC110V~240V, 50HZ

Charger output voltage: DC16.8V

Charging current: 2.5A

4. Specifications:

4.1 Tube voltage:60kVp (stable)

4.2 Tube current:1.5mA (stable)

4.3 Nominal electric power:90W(60kv 1.5mA  0.2S)

Max output electric power: 90W(60kv 1.5mA)

4.4 The way of running: Break load; continuous operation

4.5 Loading time: 0.2~3.2s

4.6 working frequency:30kHz

4.7 main body fuse type:F20AL250V

Charger fuse type:SMT T3.15AL,250Vac

\\
