QCA9531 QCA9886 Chip wireless router module dual antenna wifi audio industrial smart AP WiFi module
- Category: >>>
- Supplier: Shenzhen Qinrun Electronics Co. Ltd.
Share on (1601020235372):
Product Overview
Description
Product Description
Element | Min. | Typ. | Max. | Unit |
Operating Temperature | -20 | 25 | 70 | Deg.c |
VDD 3.3V | 4.65 | 5.0 | 5.10 | V |
VDD 3.3V | 3.15 | 3.3 | 3.45 | V |
VDD IO | 1.6 | 1.8 or 3.3 | 3.6 | V |
Element | Power | Min. | Typ. | Max. | Unit |
Standby | 3.3V | - | 15 | - | mA |
5V | 25 | ||||
Tx Current (4 Chain) | 3.3V | - | 850 | - | mA |
5V | 1000 | ||||
Rx Current (4 Chain) | 3.3V | - | 500 | - | mA |
5V | 500 |
Environment Condition
Temperature | Operating Temperature: -20 deg.C ~ 70 deg.C |
Storage Temperature: -40 deg.C ~ 90 deg.C | |
Humidity | Operating Humidity: 5% ~ 95% |
Storage Humidity: 5% ~ 95% | |
VESD | Human Body Model: -2000V ~ +2000V |
Machine Mode: -200V ~ +200V |
Details Images
RF Specification (5V PA)
Hardware Overview

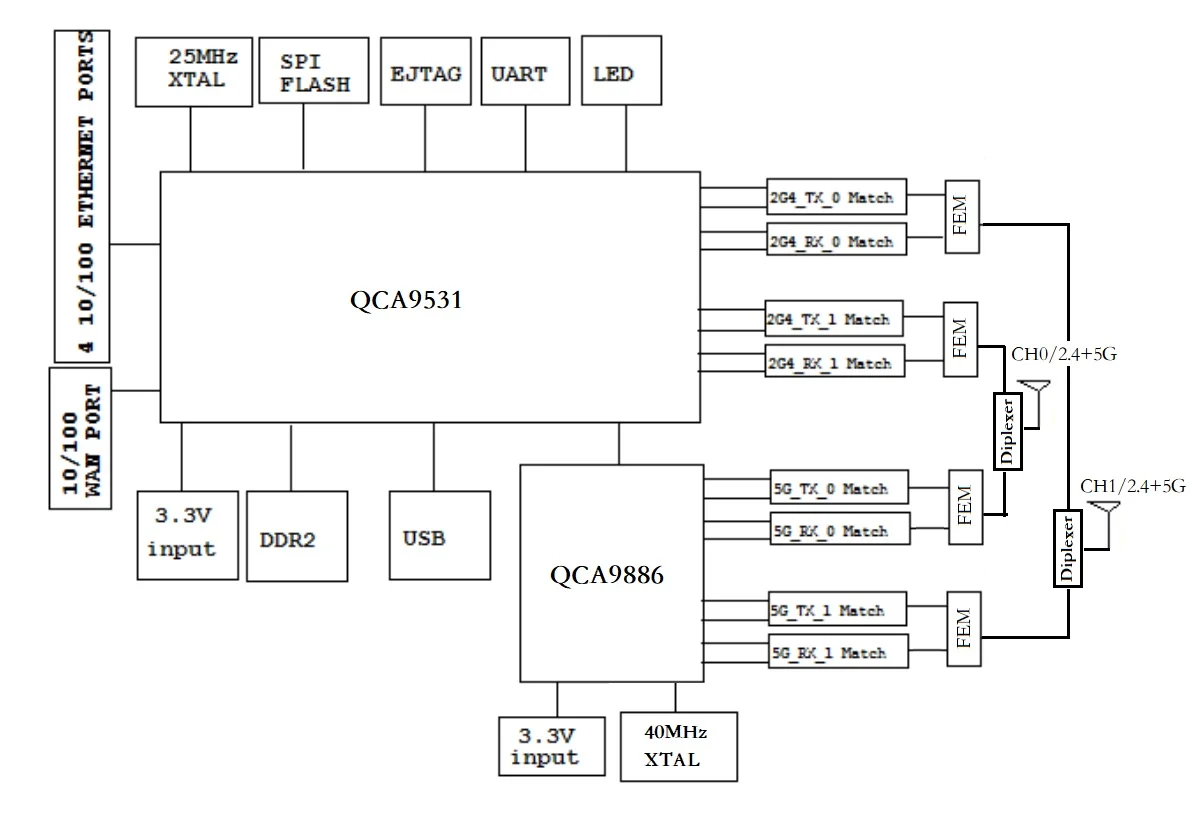

1.Block Diagram

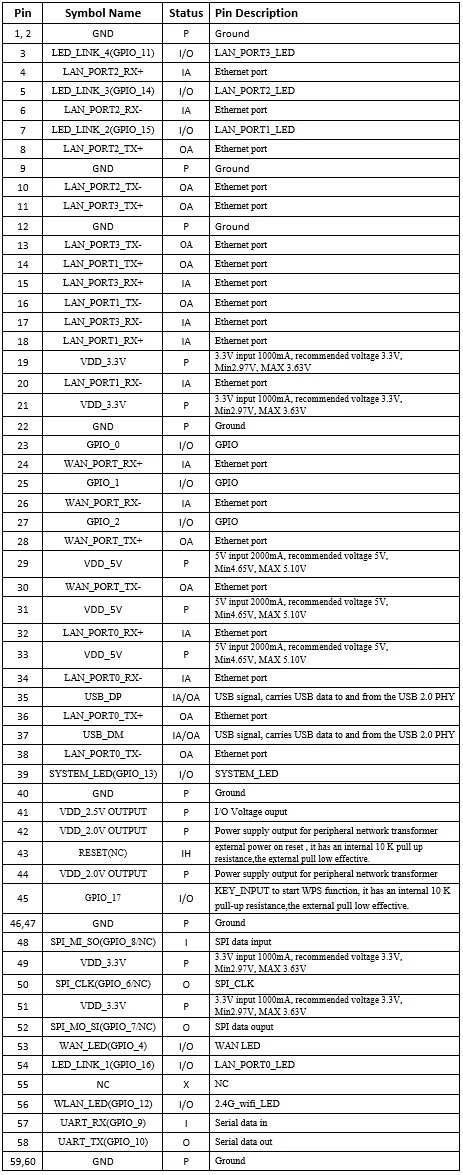

2.Pin Assignments
Dimensions

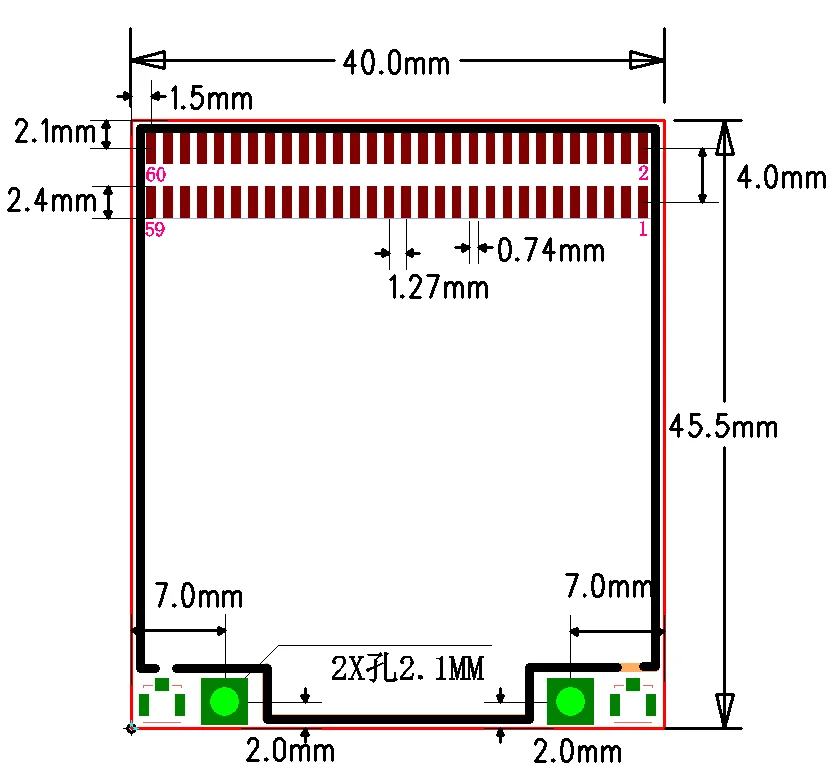

1.Physical Dimensions
Unit: MM, ±0.25mm, From Module Top
5G CPE
Industrial router
AP
Gate Way
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will
provide you with a complete solution according to your requirements.
provide you with a complete solution according to your requirements.
Q3.Whether the product can be customized logo?
A3.For bulk orders, we support custom logo.
Q4: What about the delivery time?
A4: For regular order it takes about 7-8 days for production,for mass order or customized order it may need 15-30 days. Q5: What is your delivery terms and payment terms?
A5: We accept EXW,FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. 100% in advance for sampleorder, 30% deposit and70% balance for mass order.
Q6: After service and warranty?
A6: We provide 2 year warranty, if you have anyproblems in the use of products, please contact to your sales person.
Q7. How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
Q8. How can we get samples from you ?
A8.Samples are available. Normally we take 3-5days to arrange samples.You can contact the salesperson to order on Alibaba
