Product Overview
Description
Product Overview

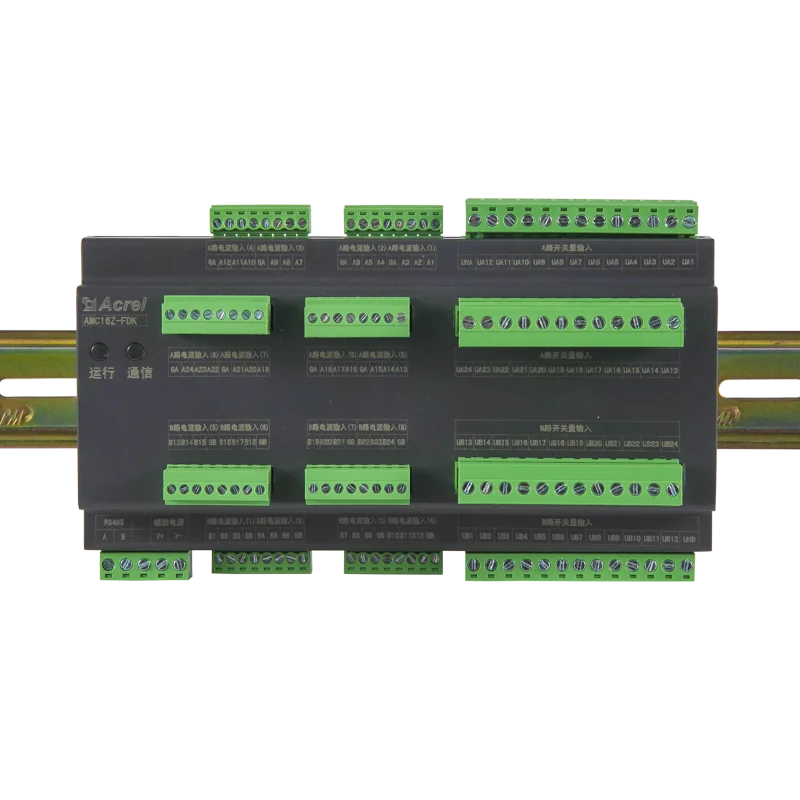

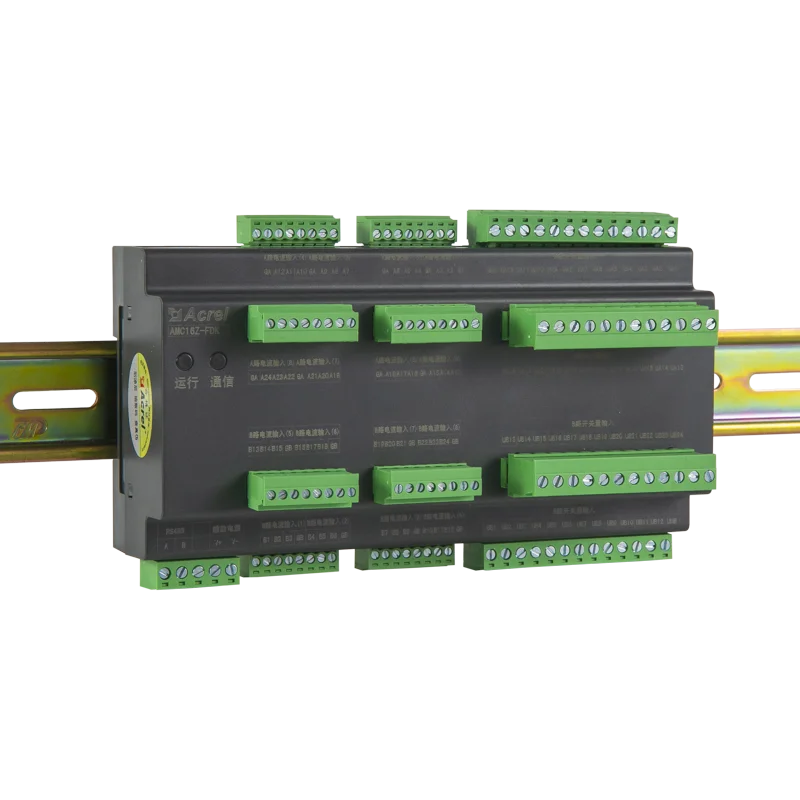

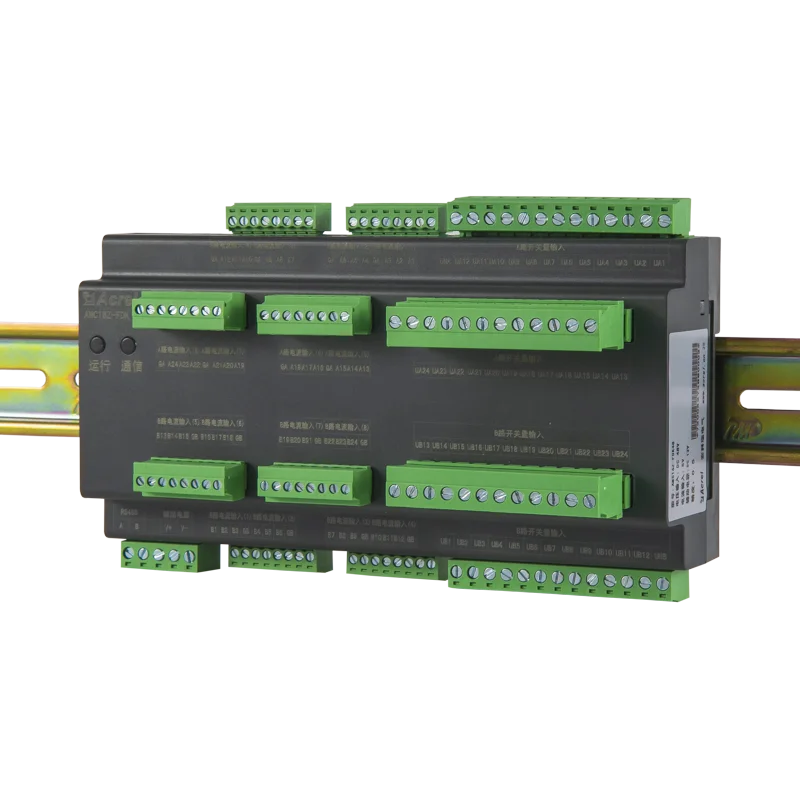

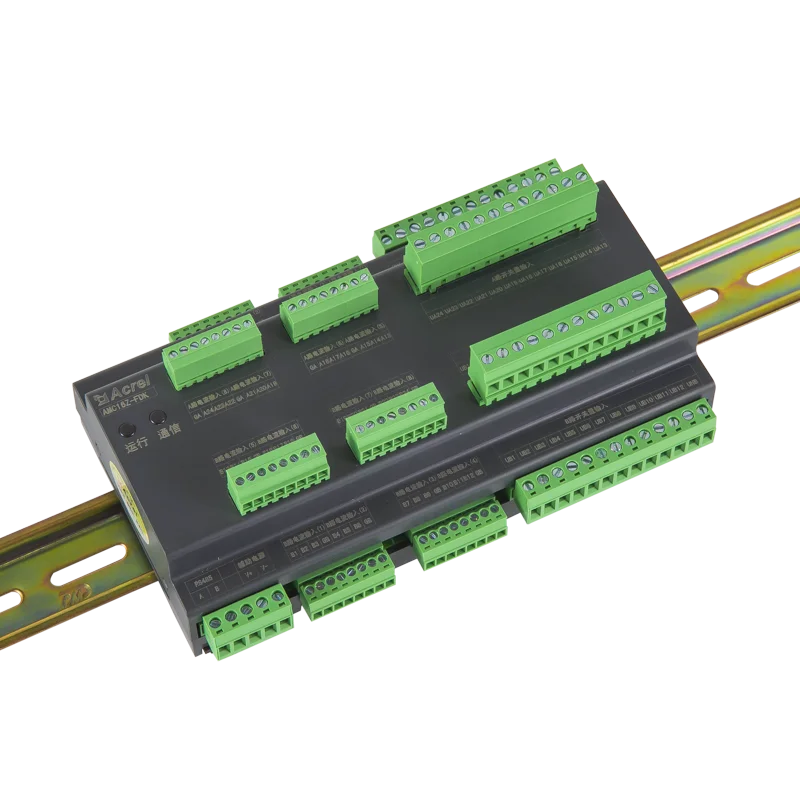

AMC16Z series DC precision distribution
monitoring device
monitoring device
Acrel's AMC16Z series DC precision power distribution monitoring device is a measurement device specially designed for data center server power management. The device is compact in design, and can monitor all electrical parameters, input and output switches, and lightning arrester status of A+B two incoming lines and 96 outgoing lines in real time. The alarm thresholds of all measurement channels can be set independently. The limited event immediately triggers the sound and light alarm of the system, which realizes a high degree of integration of the monitoring loop in the volume of the traditional instrument.
Features
* Designed specifically for the power supply management of server in the data center
* A+B independent 24 circuits（48 in total）
* U, I, P, Q, S, PF, kWh, kvarh
* 2nd-31st Harmonic
* kWh Class 0.5
* DIN 35 mm
* A+B independent 24 circuits（48 in total）
* U, I, P, Q, S, PF, kWh, kvarh
* 2nd-31st Harmonic
* kWh Class 0.5
* DIN 35 mm
Specification
Item | Data |
Measurement parameters | Voltage, current, power, energy, switching status |
Bus voltage rated | 48VDC,240VDC,336VDC |
Current outgoing loop rated | 5V (Hall sensor, external supply required ±12V) |
Measurement accuracy | Voltage/current 0.5 level, power/energy level 1 |
Auxiliary power supply | Powered by AMC16Z-ZD, DC 12-24V when used alone |
Communication | RS485/Modbus-RTU |
Installation method | DIN35mm rail or baseplate mounting |
Storage temperature | -25°C~ 70°C |
Working temperature | -15°C~55°C |
Relative humidity | ≤ 93% |
Elevation | ≤2500m |
Protection level | IP20 |
Pollution level | 2 |
Security Insulation | The insulation resistance between all terminals and the conductive parts of the housing is not less than 100MΩ |
Antistatic interference | Level 4 |
Resistant to RF electromagnetic field radiation | Level |

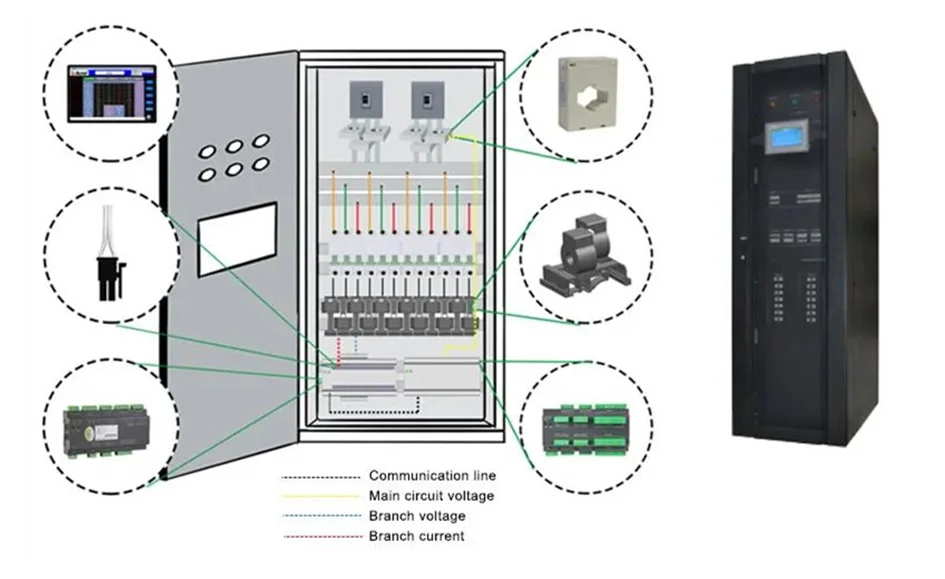

Cabinet Diagram

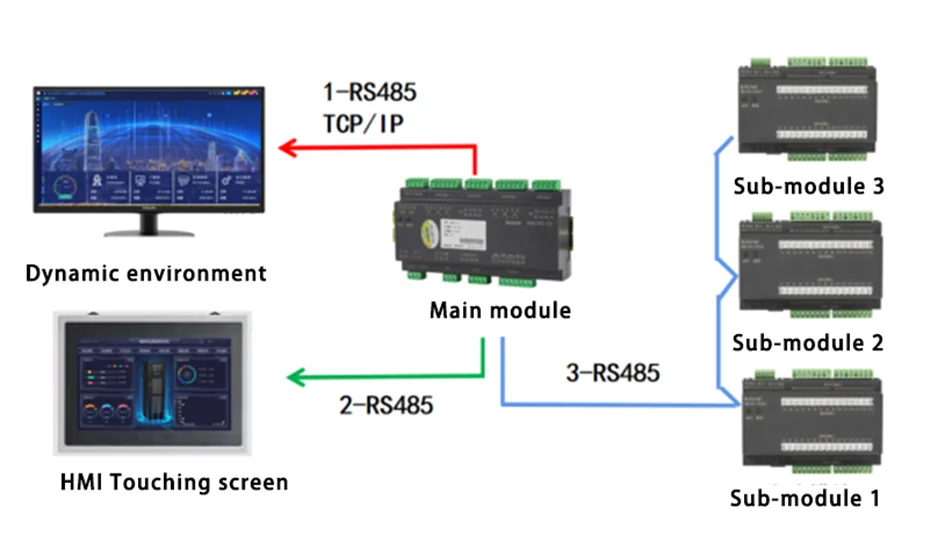

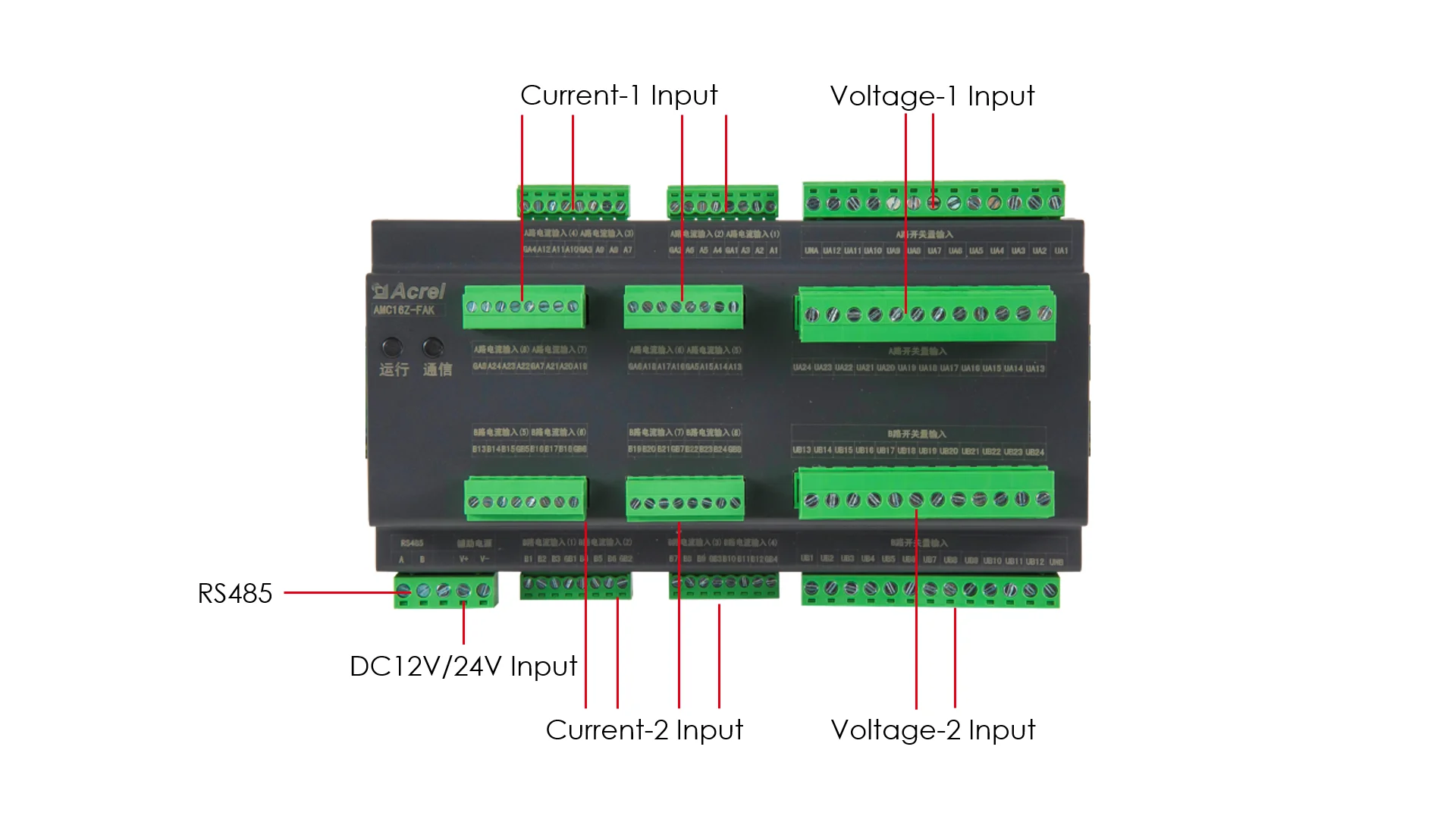

Connection

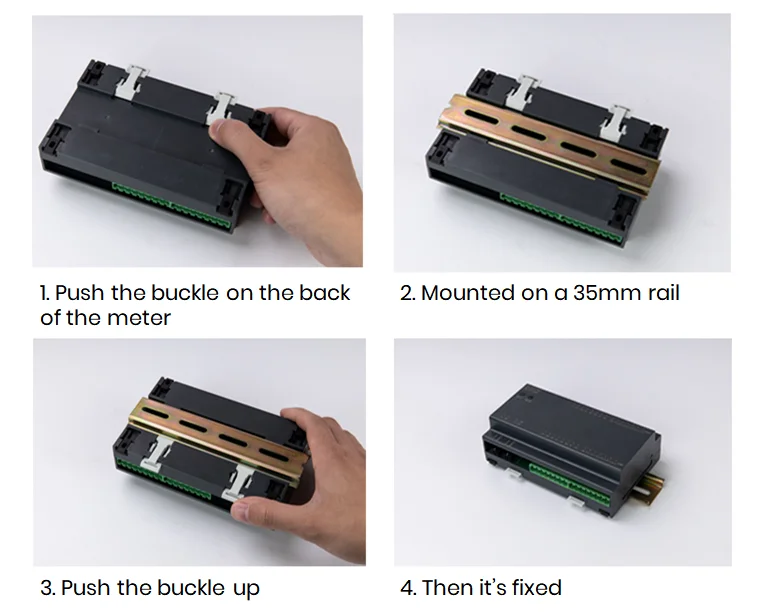

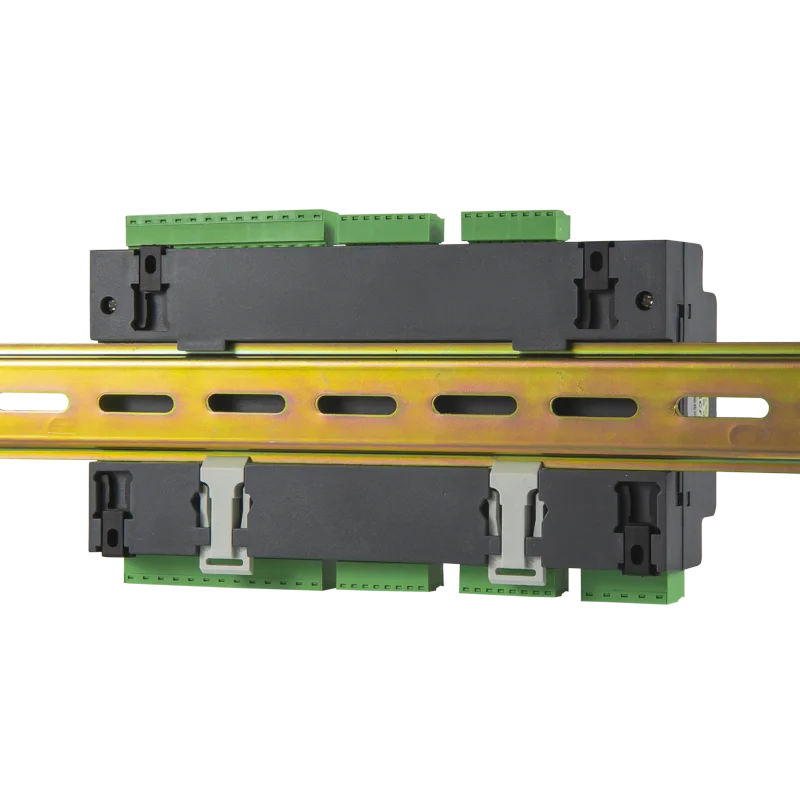

Installation

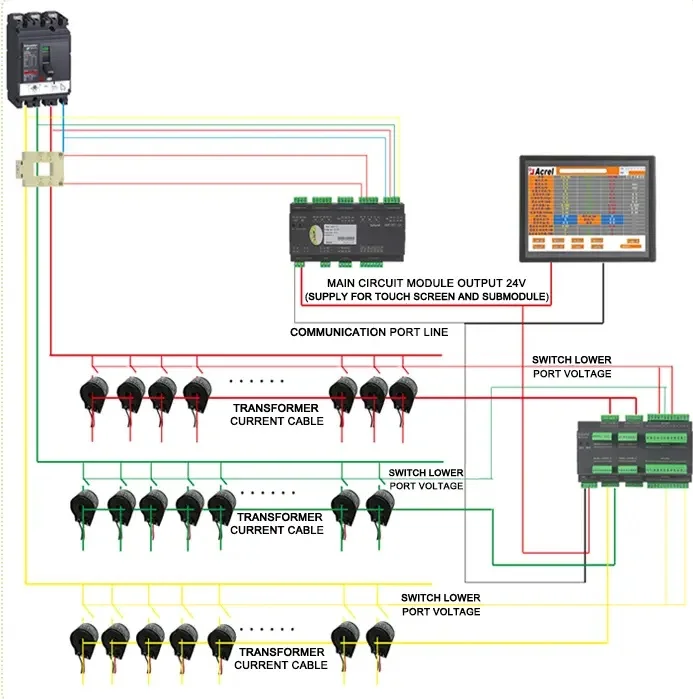

WIRING

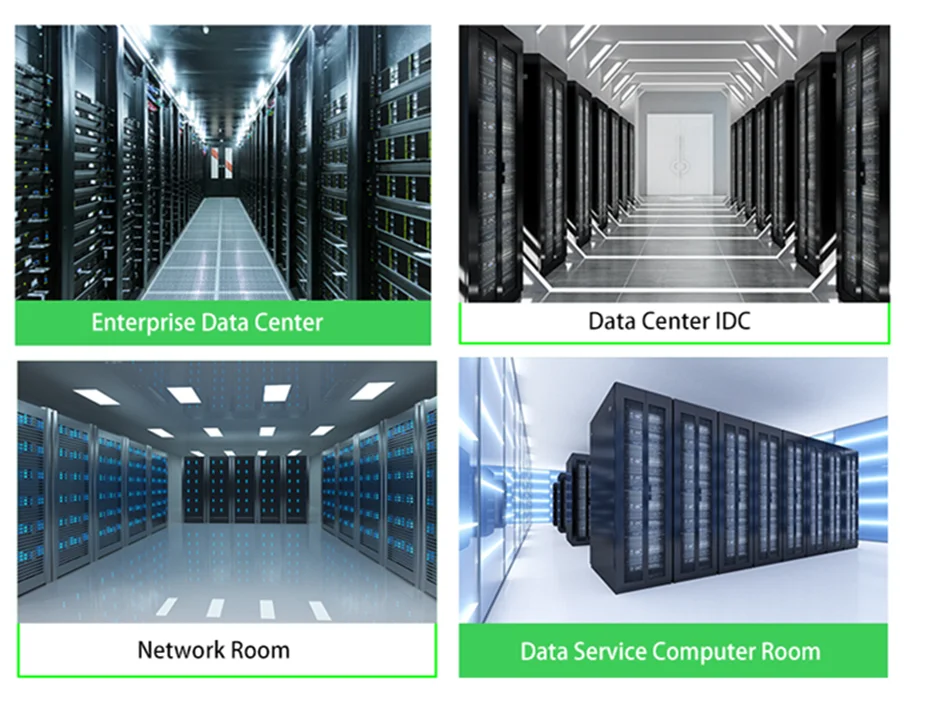

Application

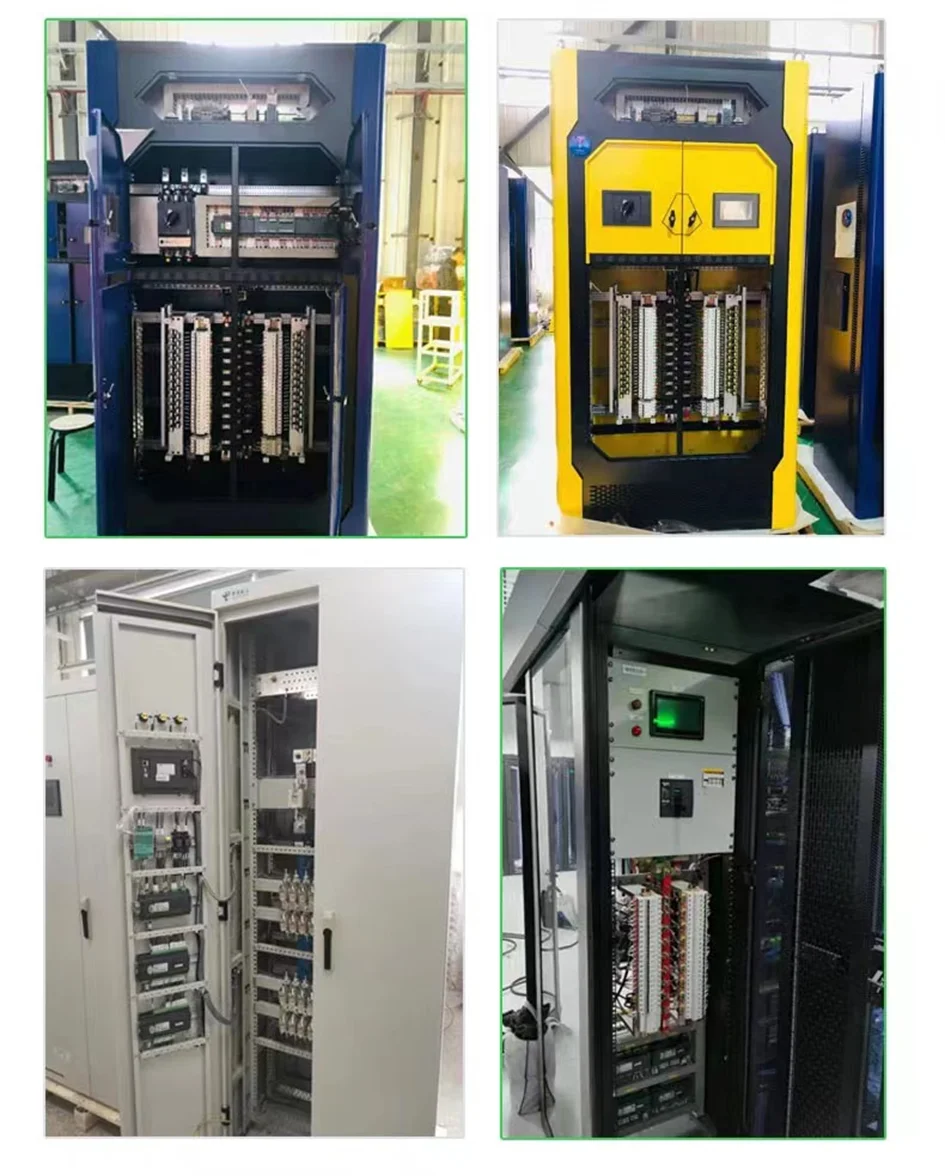

Picture in Real Site
