Xianglu Lab Scale Spray Dryer Plasma Protein Powder Atomizer Spray Dryer Machine Laboratory Spray Dryer
- Category: >>>
- Supplier: Zhengzhou Xianglu Machinery Co. Ltd.
Share on (1601020372912):
Product Overview
Description
Products Description

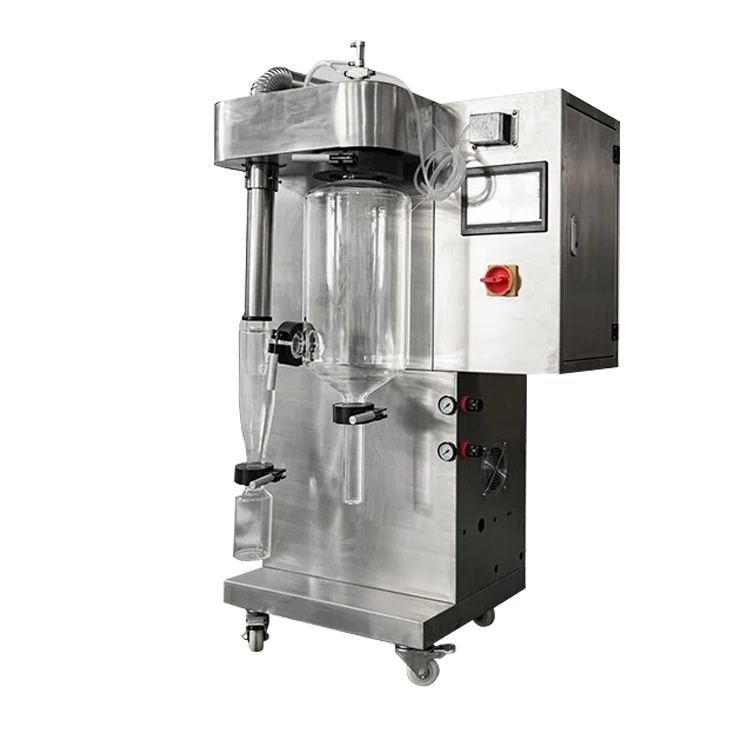

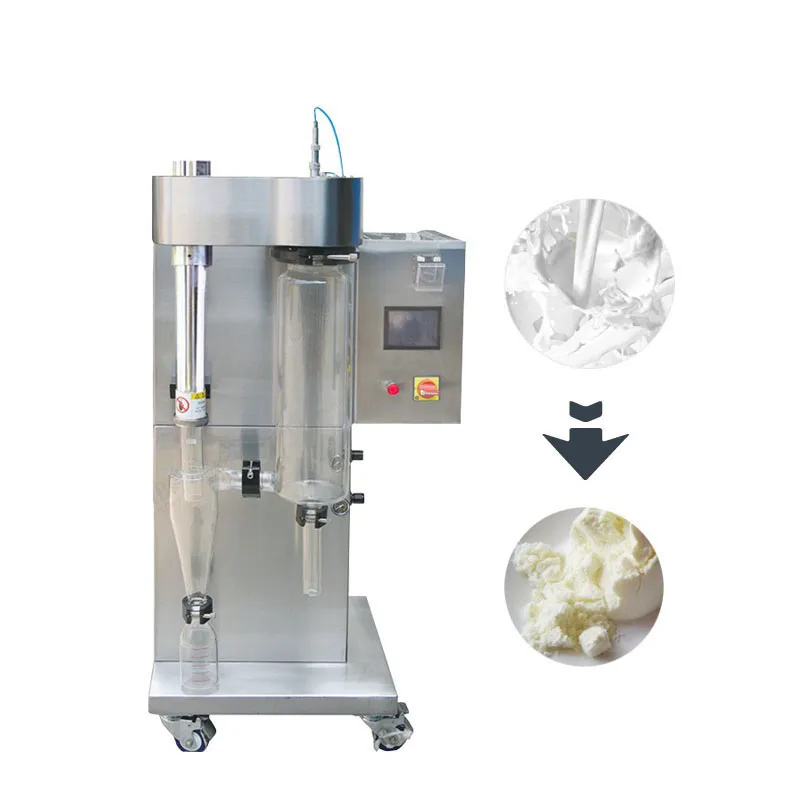

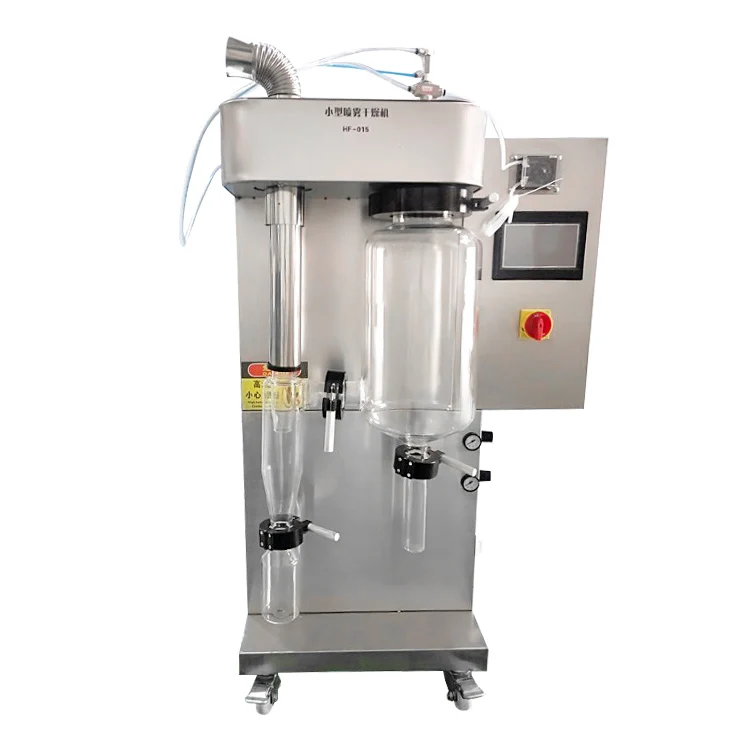

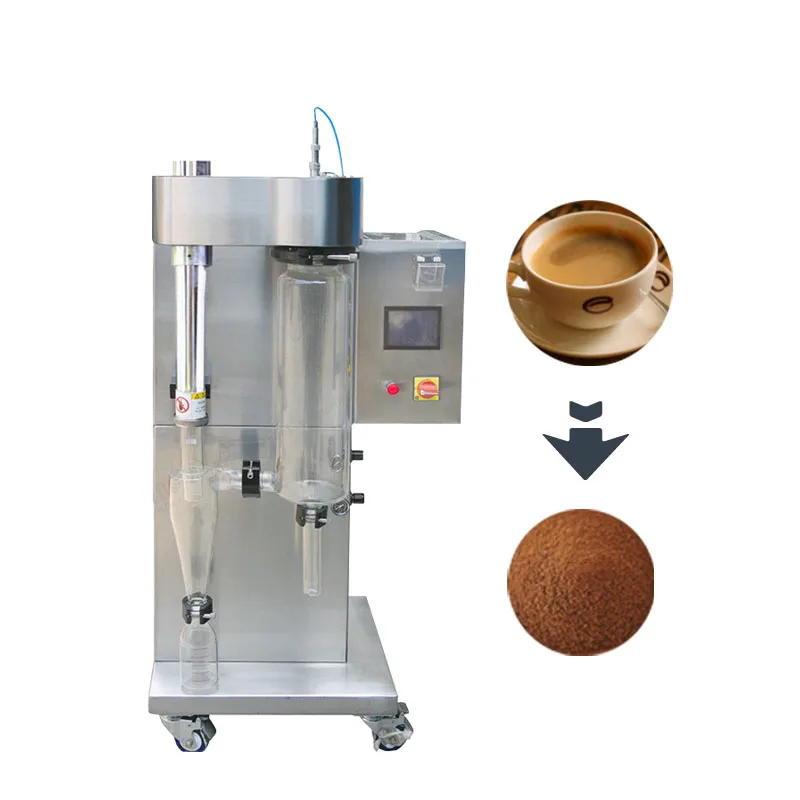

XLSP-1500 Mini Laboratory sample spray dryer
Introduction about Lab Spray dryer:
SP-1500 lab scale spray dryer is assembles many of new design, for example, small shape for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and function are controlled by PLC, English language.Application about spray dryer:
various fields where the production of a free powder sample is required.
SP-1500 has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant
and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood,
Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth
and tooth amalgam and many others.
SP-1500 has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant
and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood,
Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth
and tooth amalgam and many others.
Product characteristics
1,Special for lab research, Min 20-30ml liquid to finish one test.

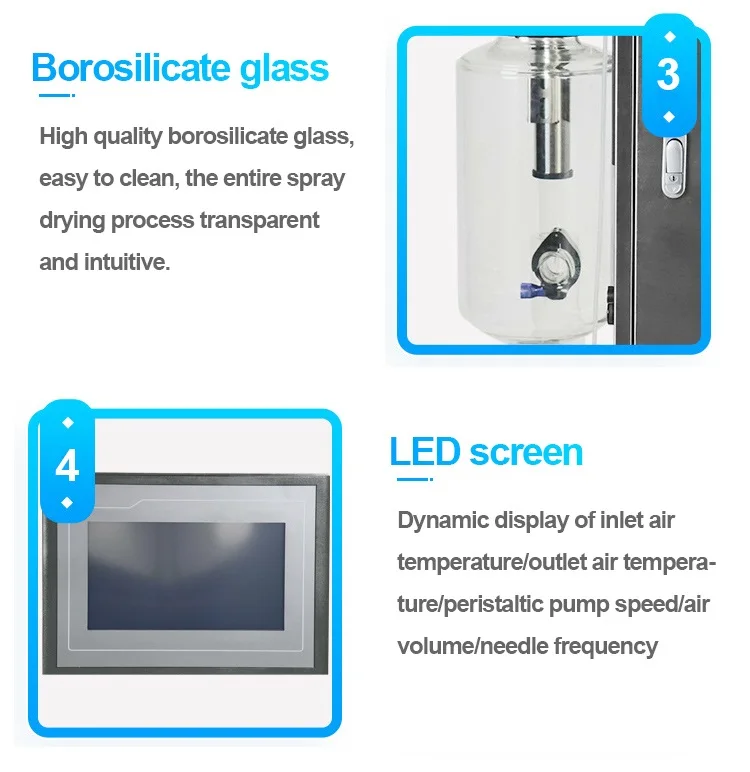

2,All borosilicate glass for easy visual monitoring of process status.

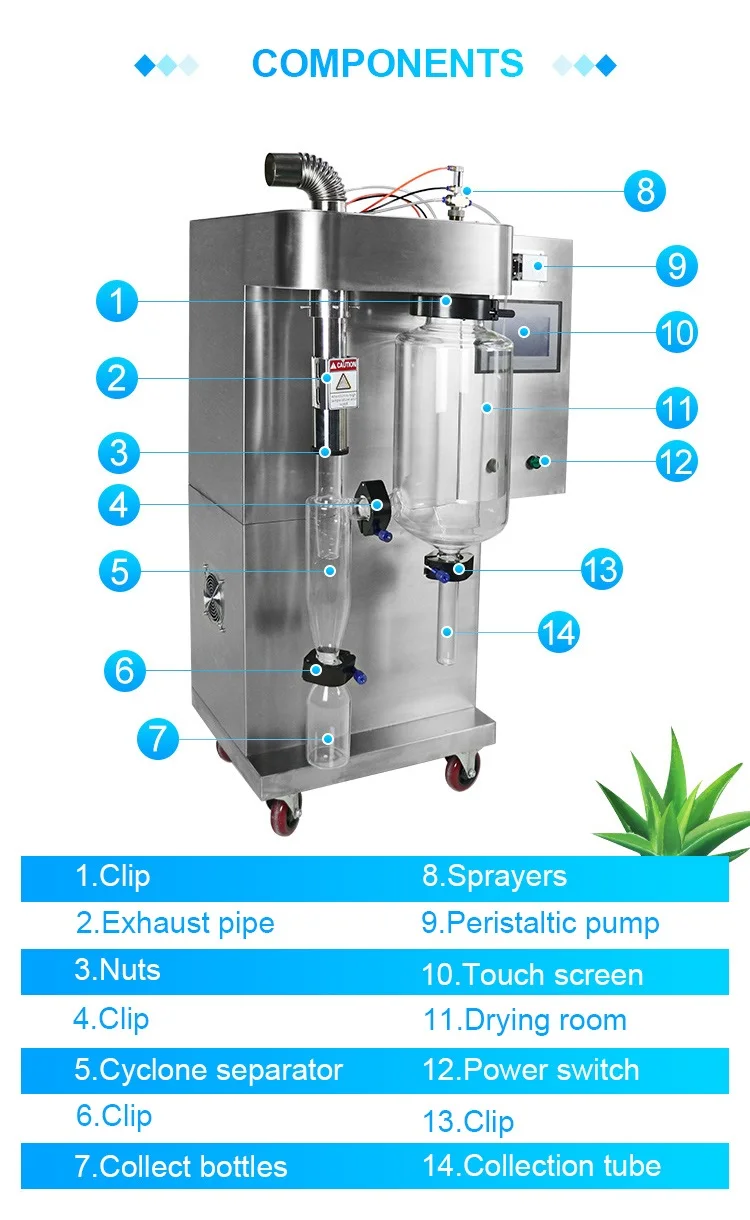

3,Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4,Easy to clean and very simple to assemble and break down.
5,The air compressor is no oil and don't pollute compress air. The sound is low than 50db and following the GMP understands.
6,inlet/outlet temperature is accurate controlled by PID.
7,The unit is self contained and supplied complete and ready for immediate operation.

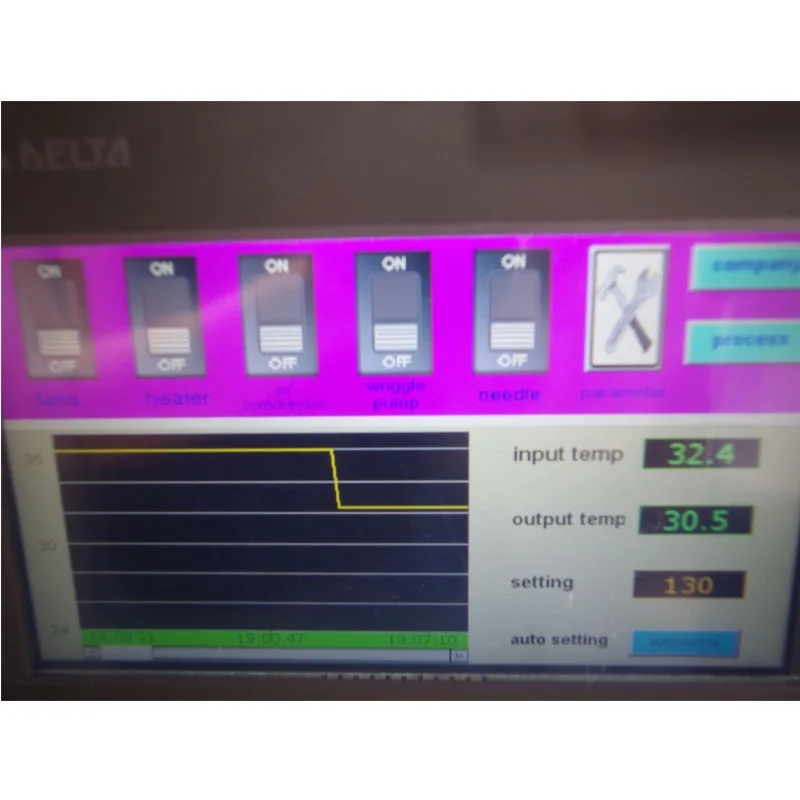

8,Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
9,Product feeding with RS2559605 rotary pump, capacity is adjustable.
10,Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
2,All borosilicate glass for easy visual monitoring of process status.
3,Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4,Easy to clean and very simple to assemble and break down.
5,The air compressor is no oil and don't pollute compress air. The sound is low than 50db and following the GMP understands.
6,inlet/outlet temperature is accurate controlled by PID.
7,The unit is self contained and supplied complete and ready for immediate operation.
8,Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
9,Product feeding with RS2559605 rotary pump, capacity is adjustable.
10,Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
Product Paramenters
Model | SP-1500 |
Max capacity | 1500-2000ml/h |
Temperature range of Inlet air | 30ºC -280ºC |
Temperature range of outlet air | 40ºC -120ºC |
Precision of temperature | ± 1 ºC |
Dryer time | 1.0-1.5 S |
Speed of squirmy pump | 30-2000ml/h, |
Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
Spray system | 2 liquid nozzles with standard 0.7mm jet options of 0.5/1.0/1.5/2.0/2.5mm |
Spray direction | downwards co-current |
Power | 3.5KW 220V |
Dimensions | 650×500×1550 ( mm ) L x W x H |

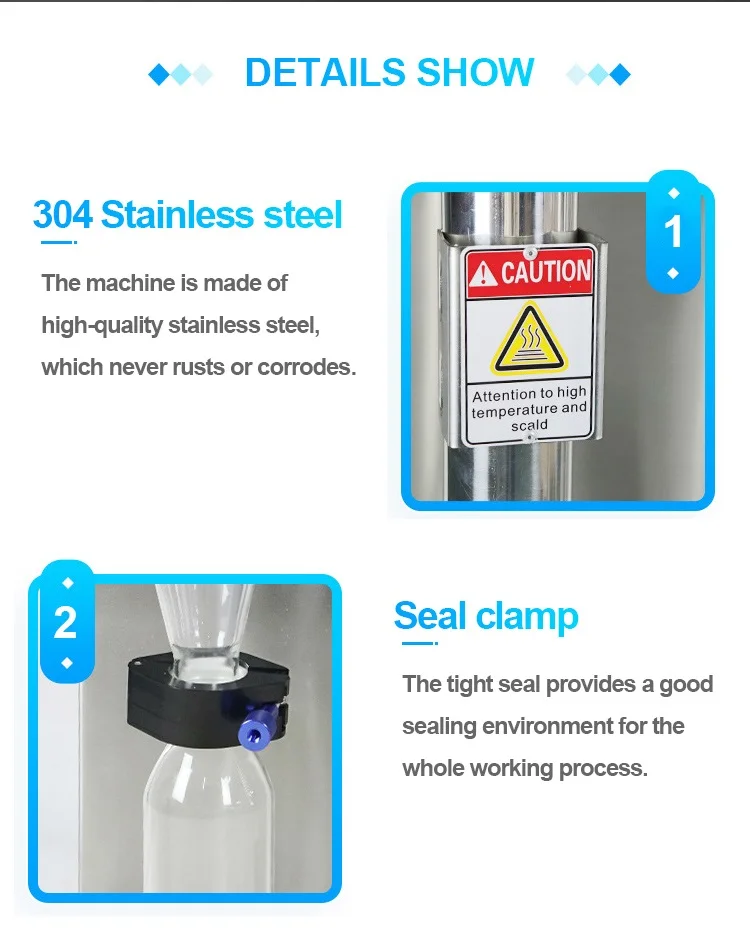

Details Images

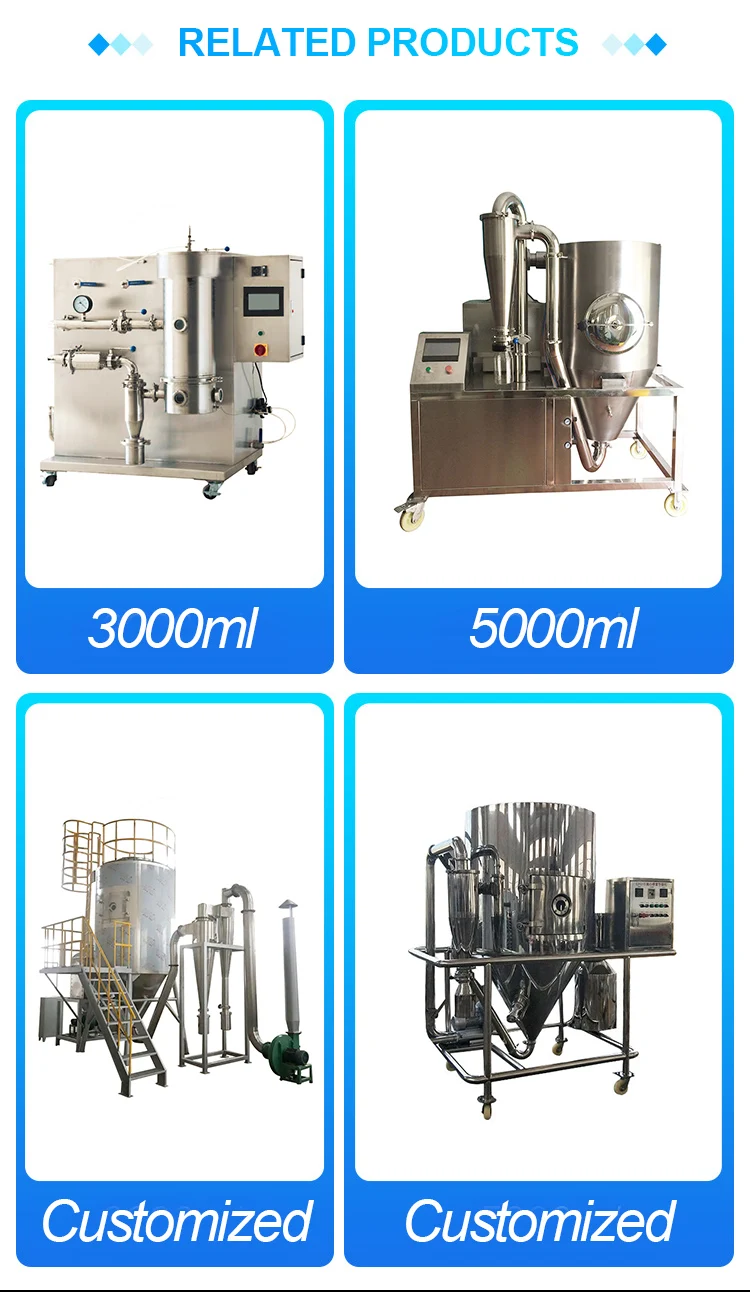

Recommend Products

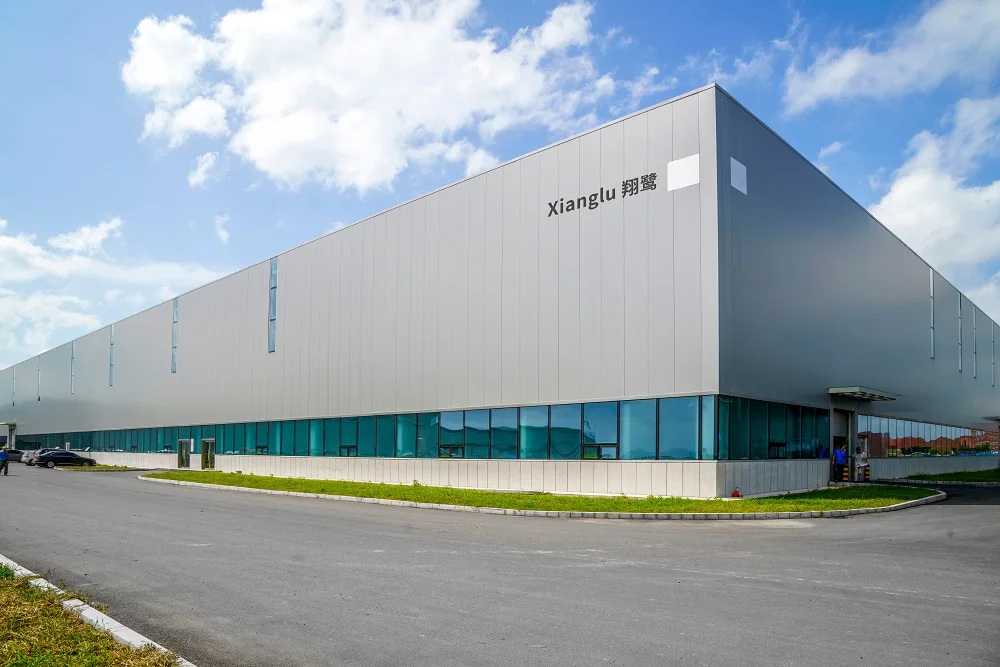

Company Profile
Zhengzhou Xianglu Machinery Co.,Ltd.
Zhengzhou Xianglu Machinery Co., Ltd. is located in Zhengzhou City, Henan Province, China.
Our company specializes in international export business of Chemical equipment,Laboratory instrument equipment spare parts and so on.
Our main products include Glass reactor,Rotary evaporator,Drying equipment,Mixing equipment,Distilling equipment.
Team：50+ people；Sales team：30+ people；
Engineer team：8 people；After-sale team：10+ people.
Our products sell well worldwide, collaborating with customers from nearly 180+countries, and have a good reputation in the international market, receiving high praise from customers.
Xianglu Machinery wholeheartedly provides you with a one-stop purchasing service that makes you feel satisfied. Xianglu Machinery Equipment welcomes you at any time!
Our main products include Glass reactor,Rotary evaporator,Drying equipment,Mixing equipment,Distilling equipment.
Team：50+ people；Sales team：30+ people；
Engineer team：8 people；After-sale team：10+ people.
Our products sell well worldwide, collaborating with customers from nearly 180+countries, and have a good reputation in the international market, receiving high praise from customers.
Xianglu Machinery wholeheartedly provides you with a one-stop purchasing service that makes you feel satisfied. Xianglu Machinery Equipment welcomes you at any time!
Customer Photos
FAQ
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 15 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and
intact product packaging ensured.
intact product packaging ensured.
F)Can you provide the design of the entire production line?
Yes, tell me the size and budget you want to build, and we will equip you with the most suitable one.
