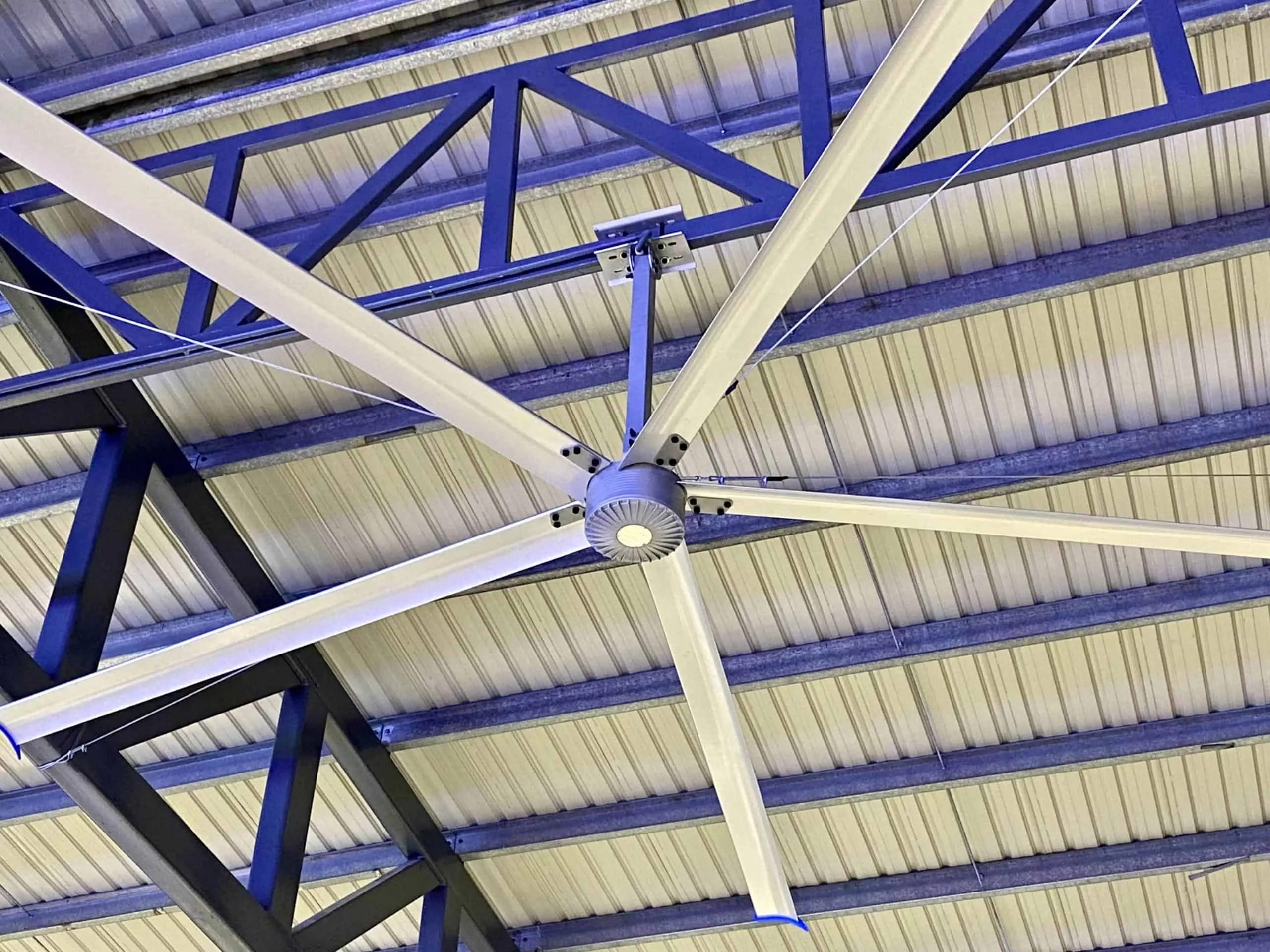

16ft HVLS Electric Aluminum Ventilation Fans Best Giant Horse Stall Fans
- Category: >>>
- Supplier: Fujian Diamond Electrical And Mechanical Equipment Co. Ltd.
Share on (1601020373540):
Product Overview
Description
Products Description
Superior airflow distribution- HDS Large ceiling fan
Our HDS series smart permanent magnet large ceiling fan is a new product specially developed for improving the comfort of the working environment. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
Widely used in industrial plants, logistic ware-housing, waiting room, exhibition hall and so on..
Samples are welcome !
Permanent Magnet Motor Ceiling Fan VS Gear Box Variable Speed Ceiling Fan
A. Permanent magnet synchronous high temper- ature resistant outer rotor motor,super energy efficient.
B. Small size and light weight
C. Low noise
D. Simple structure
E. Frequency modulation width (0~50HZ)
F. Direct drive motor maintenance free
G. No running hazard
C. Low noise
D. Simple structure
E. Frequency modulation width (0~50HZ)
F. Direct drive motor maintenance free
G. No running hazard
A. The use of asynchronous ordinary motor + gear
box consumes a lot of energy.
B. Large and heavy
C. Loud noise
D. Complex structure
E. FM narrow (25~50HZ)
F. Need frequent daily maintenance (change seals,
add gearbox oil)
G.There are hidden dangers such as gearbox leakage
box consumes a lot of energy.
B. Large and heavy
C. Loud noise
D. Complex structure
E. FM narrow (25~50HZ)
F. Need frequent daily maintenance (change seals,
add gearbox oil)
G.There are hidden dangers such as gearbox leakage
Technical Data
Blade sizes of 10 feet (3 m) to 24 feet (7.4m) propel air effectively through extra-large spaces.
Model | HDS-3.0 | HDS-3.7 | HDS-4.3 | HDS-5.0 | HDS-6.1 | HDS-6.7 | HDS-7.3 | HDS-6.7 | HDS-7.3 | ||||||||
Diameter | 3m 10ft | 3.7m 12ft | 4.3m 14ft | 5m 16ft | 6.1m 20ft | 6.7m 22ft | 7.3m 24ft | 6.7m 22ft | 7.3m 24ft | ||||||||
Power | 0.37kw | 0.37kw | 0.75kw | 0.75kw | 1.1kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw | ||||||||
Voltage | 220V-240V / 380V-460V | ||||||||||||||||
Frequency | 50Hz/60Hz | ||||||||||||||||
Air Volume | 4000 m³/min | 5000 m³/min | 7000 m³/min | 10000 m³/min | 11500 m³/min | 12000 m³/min | 13000 m³/min | 14000 m³/min | 15500 m³/min | ||||||||
Speed | ≤120rpm | ≤100rpm | ≤90rpm | ≤80rpm | ≤65rpm | ≤60rpm | ≤55rpm | ≤65rpm | ≤60rpm | ||||||||
Blades | 5pcs | 6pcs | |||||||||||||||
Blades width | 180mm | 180mm | 180mm | 180mm | 180mm | 180mm | 180mm | 200mm | 200mm | ||||||||
Noise | 38dB | ||||||||||||||||
Weight | 45kg | 49kg | 58kg | 62kg | 99kg | 103kg | 107kg | 109kg | 113kg | ||||||||
Coverage size | 8-12m | 9-14m | 12-18m | 12-20m | 20-25m | 20-28m | 20-28m | 20-35m | 20-35m | ||||||||
Effective area | 150㎡ | 230㎡ | 256㎡ | 300㎡ | 600㎡ | 650㎡ | 700㎡ | 750㎡ | 850㎡ | ||||||||
Above ground | 4-5m | 4-5m | 4-6m | 5-6.5m | 8-10m | 7-12m | 6-9m | 8-14m | 8-17m | ||||||||
Protection class | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | ||||||||
Main Features
1) 10 to 24ft in diameter
2) Pushing air for areas from 250 to 1700 sq. meter
3) Slower velocity for far-reaching airflow
4) More output,less horsepower.
5) Easy install in just a few steps.
6) Lighter,more efficient,easier to maintain than other industrial fans.
7) Bearings are requiring less maintenance for a longer life.
8) Insurance, each sold ceiling fan has $150,000 sum insured
2) Pushing air for areas from 250 to 1700 sq. meter
3) Slower velocity for far-reaching airflow
4) More output,less horsepower.
5) Easy install in just a few steps.
6) Lighter,more efficient,easier to maintain than other industrial fans.
7) Bearings are requiring less maintenance for a longer life.
8) Insurance, each sold ceiling fan has $150,000 sum insured
Details Images

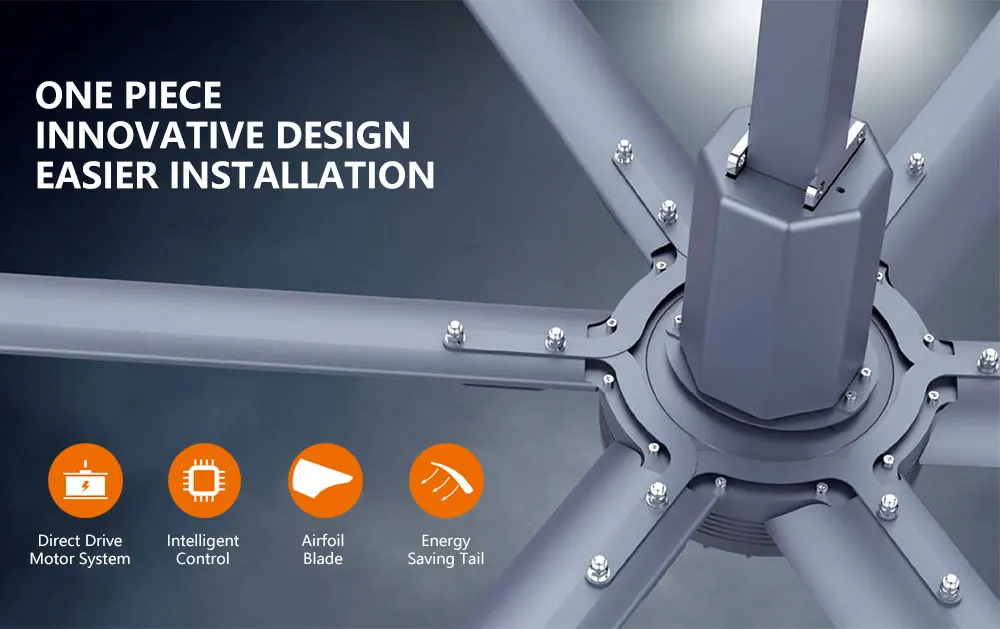

FAN Parts

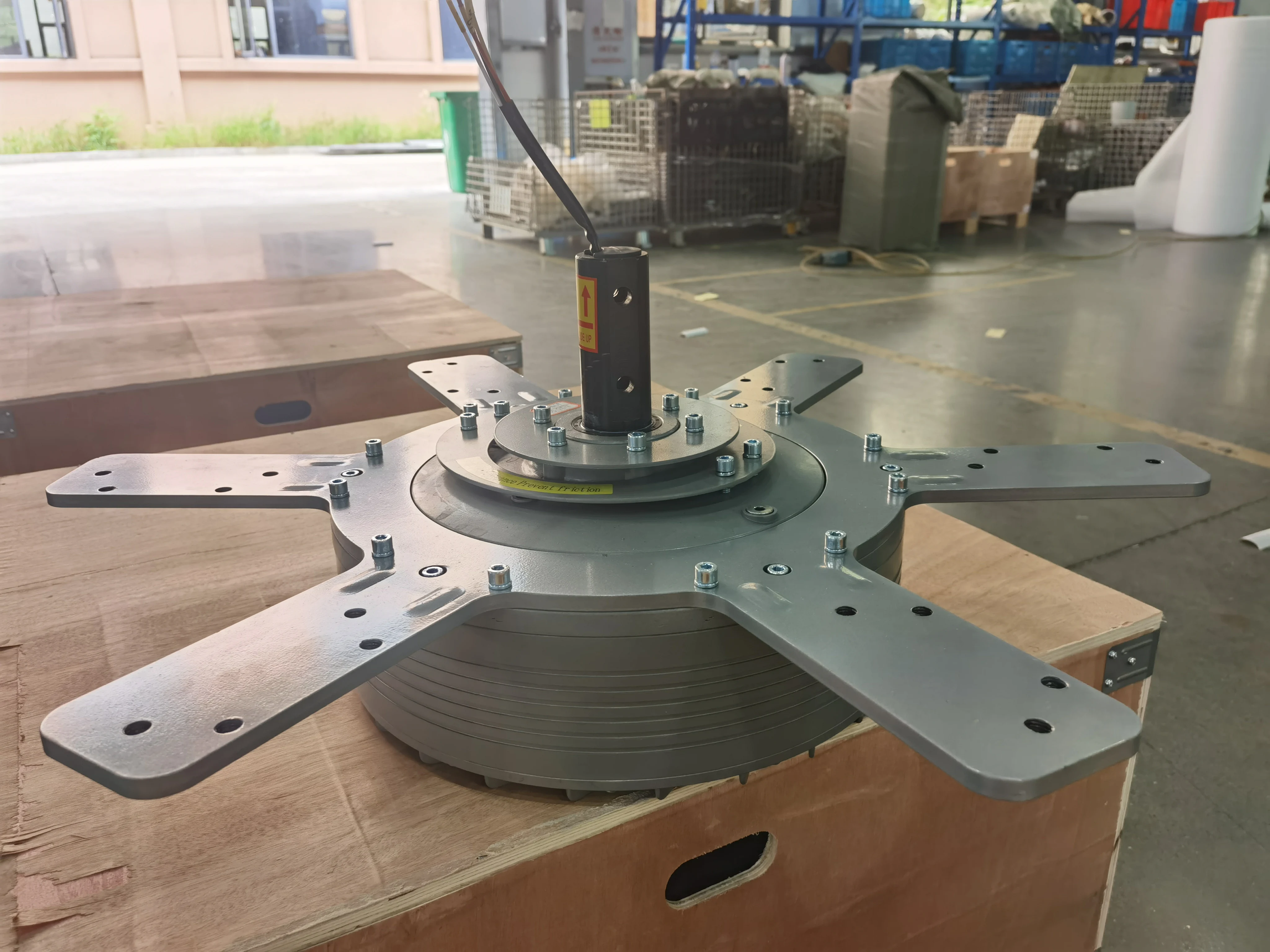

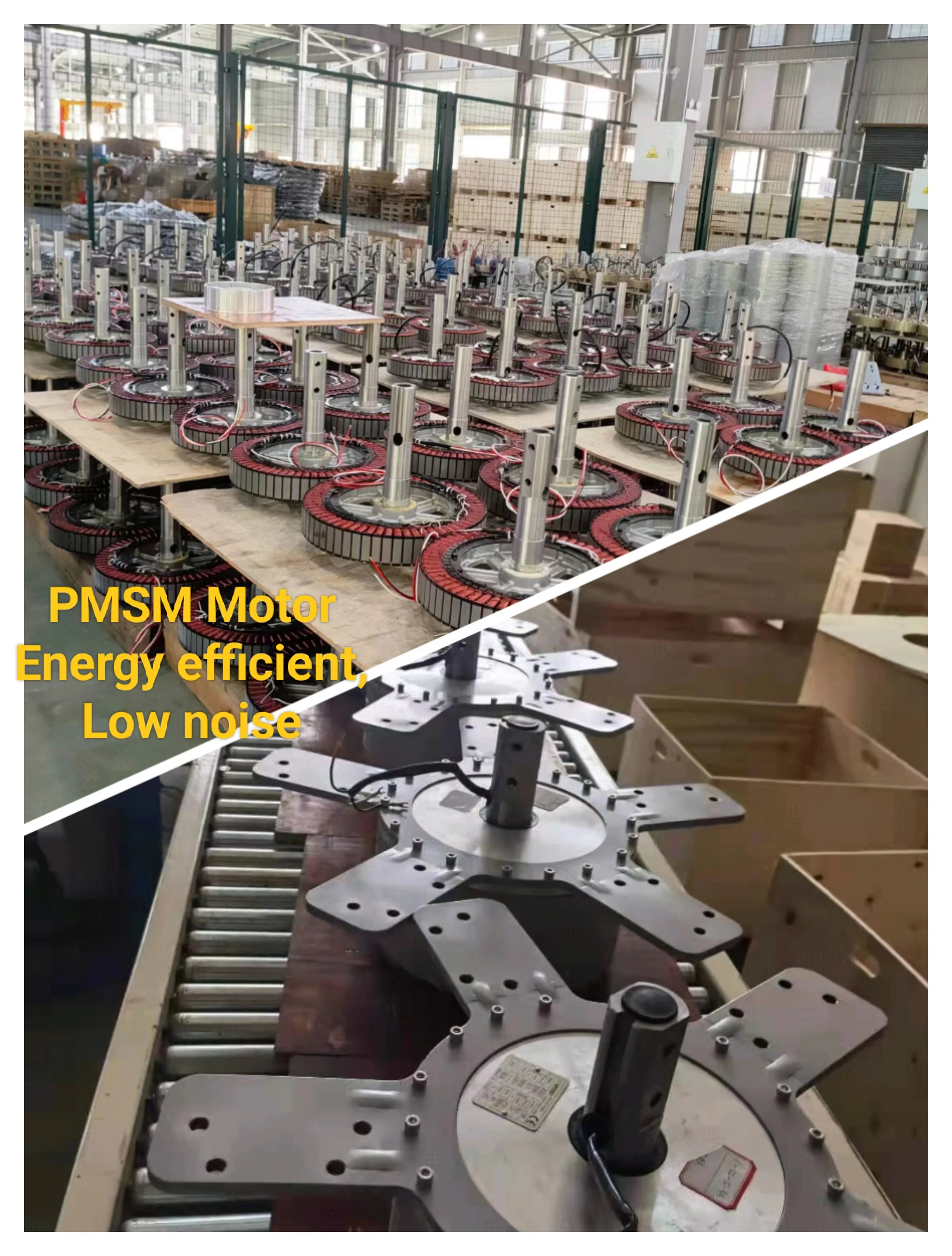

Name: Direct Drive Motor System
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
Aluminium alloy material is adopted in many parts to realize the lightweight design.
FAN Parts

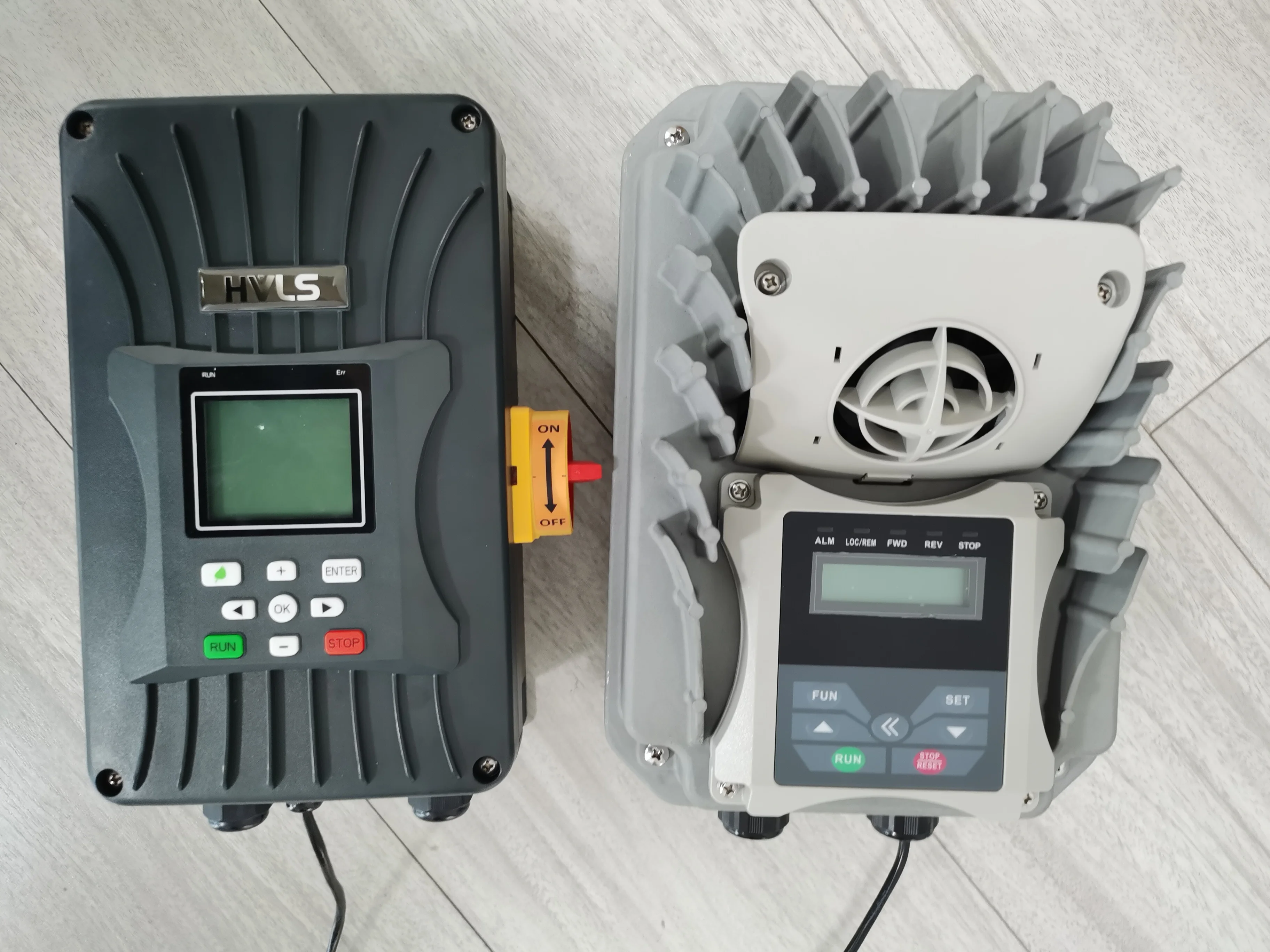

Name: Smart control system
The control system adopts the closed design of IP66, which is dustproof, waterproof, moisture-proof and can withstand high
temperature indoor and outdoor harsh environment.
The system is no position vector control,anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful appearance.
The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
The control system adopts the closed design of IP66, which is dustproof, waterproof, moisture-proof and can withstand high
temperature indoor and outdoor harsh environment.
The system is no position vector control,anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful appearance.
The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
FAN Parts
Name: Fan blade
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, lightweight, long life and safe operation.
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, lightweight, long life and safe operation.
The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.
Energy saving tail.
Energy saving tail.

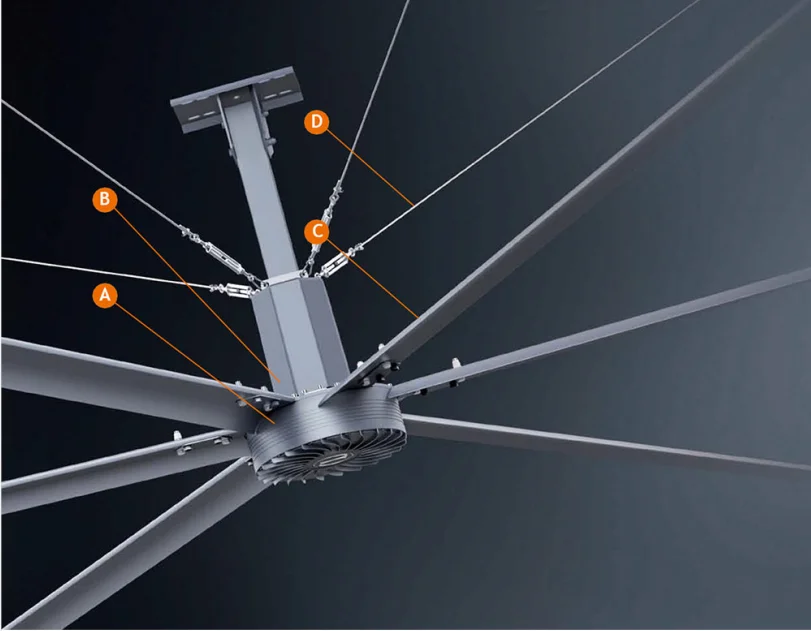

Five Levels Of Security Guarantee
Motor bracket is integrated to prevent any parts from falling off
and ensure the safety of the whole structure.
Anti-off-plate break-off protection structure design ensures the safety
of the ceiling fan.
Aluminum magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.
Aluminium-magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.
Automatic power off protection, to ensure that the blade accidental tough, timely safety shutdown.
Long Warranty
We always provide customers with high-quality products and excellent after-sales service.
Permanent magnet motor warranty period of 3 Years
The controller warranty period of 18 Months .

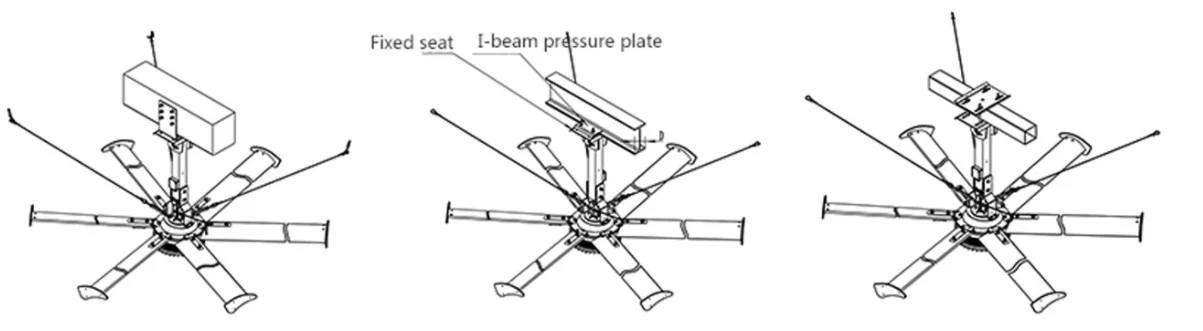

Installation Instruction
Multiple installation modes
H-type steel,I-type steel,steel mixed square beam, ball column type,etc.
Application Case

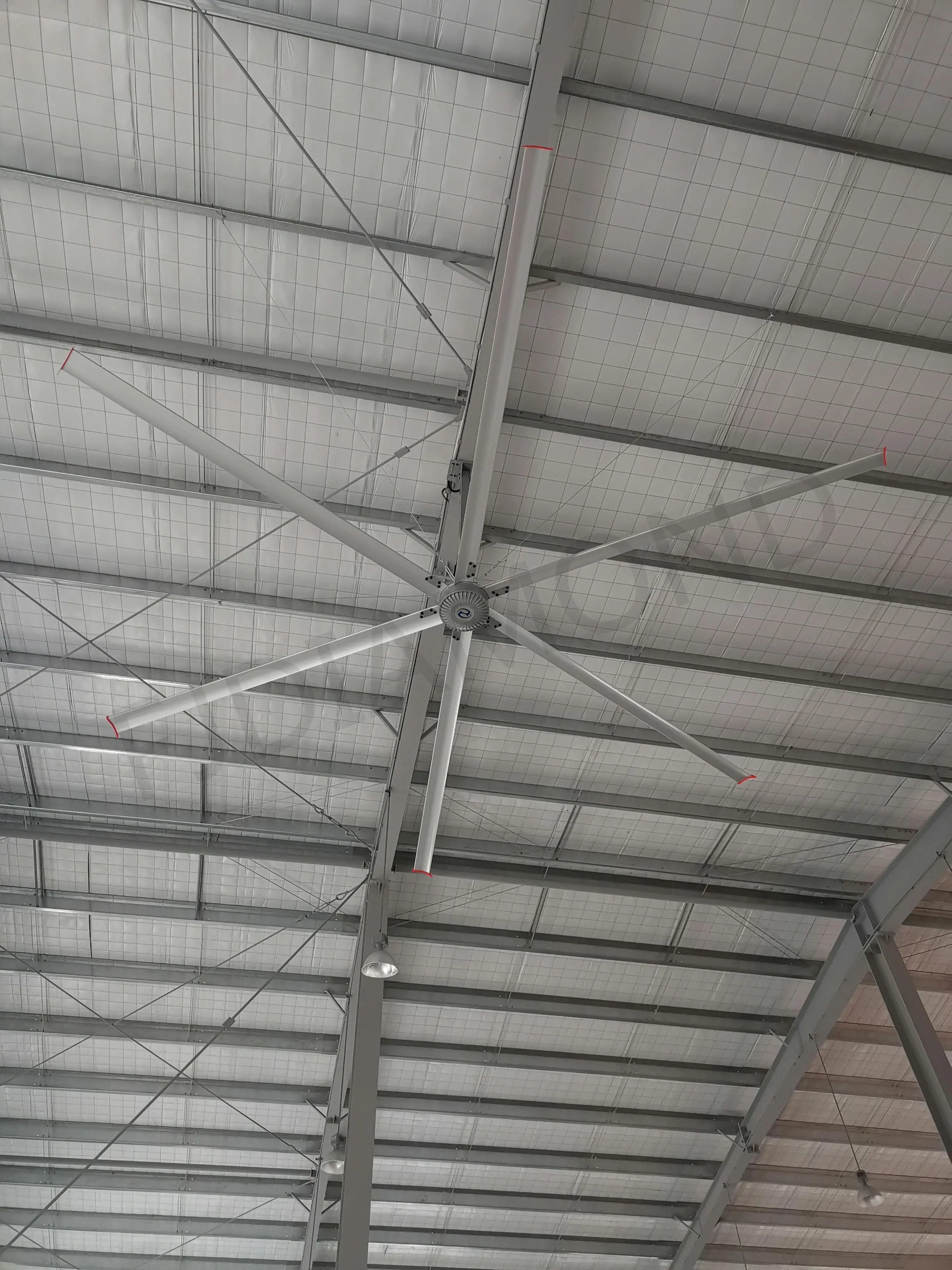

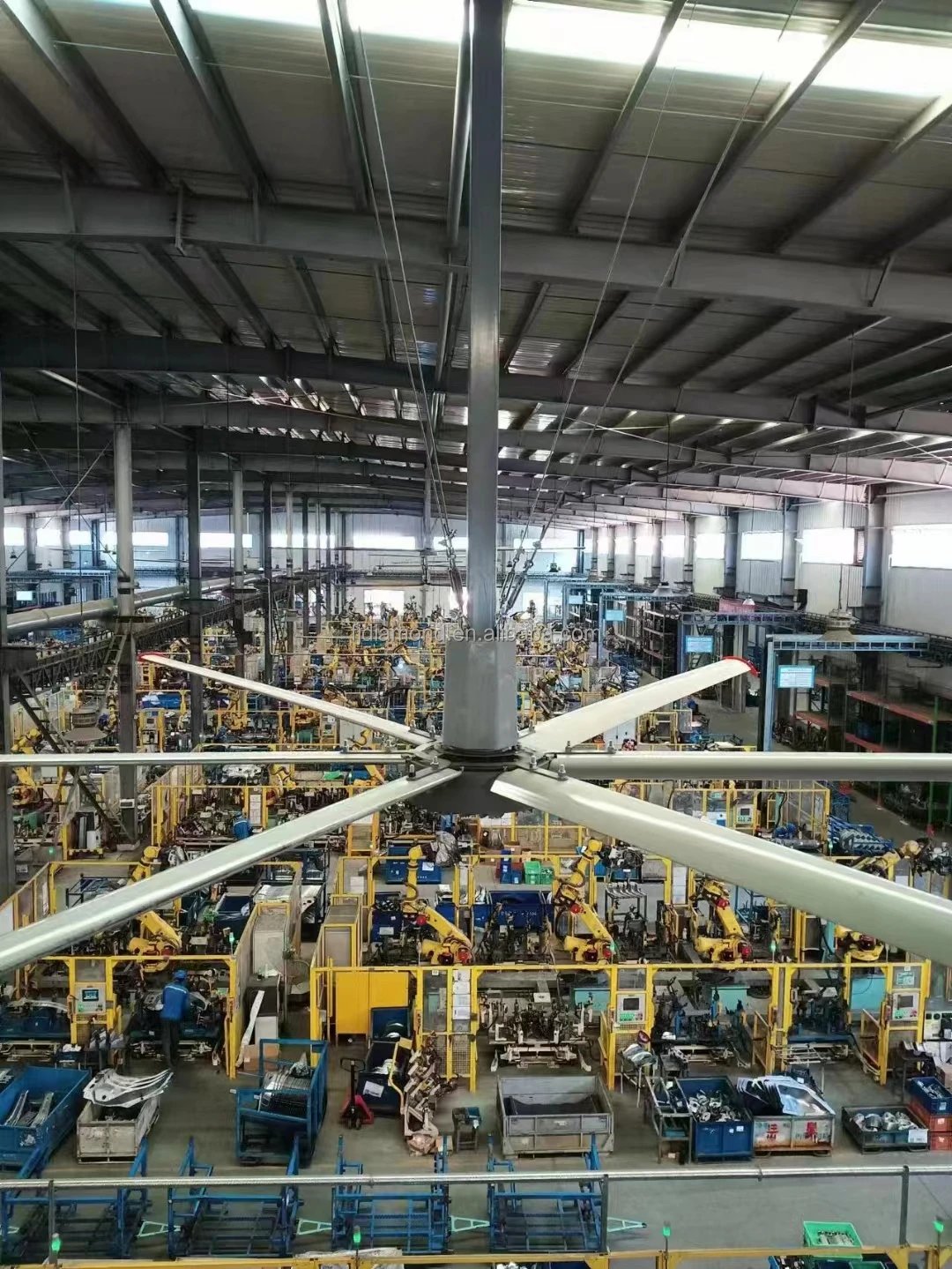

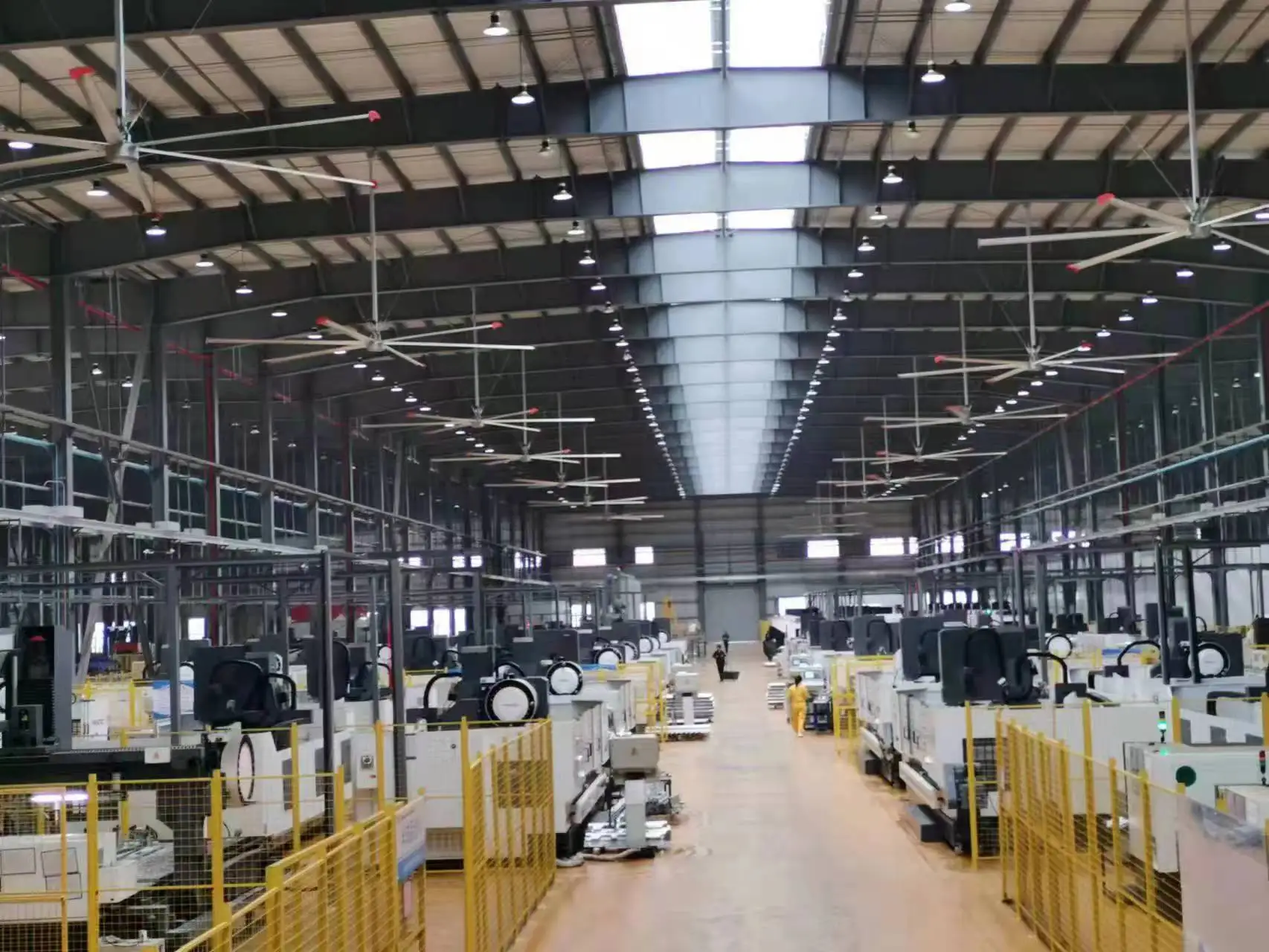

Super-Large Plant

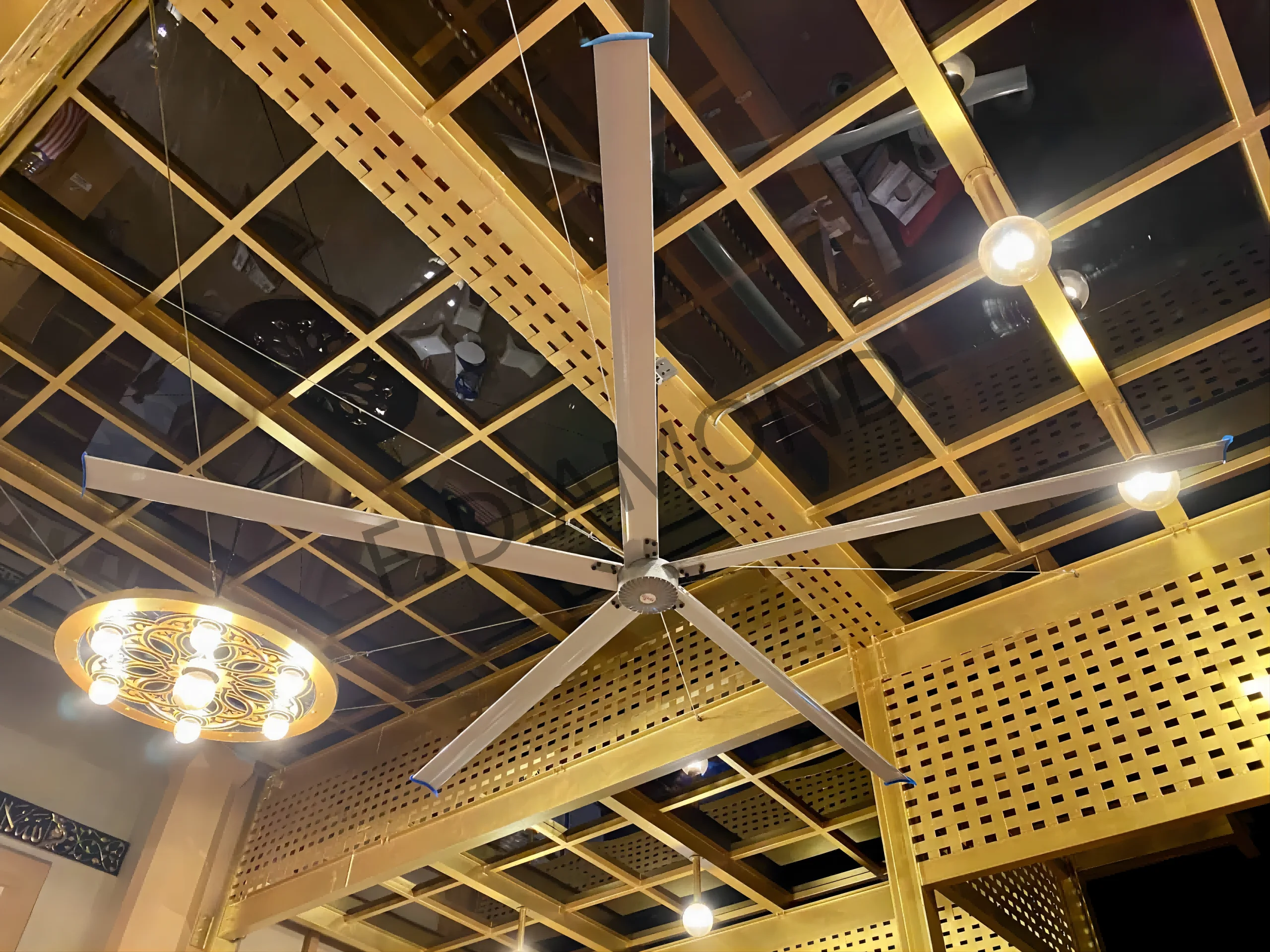

Commercial area

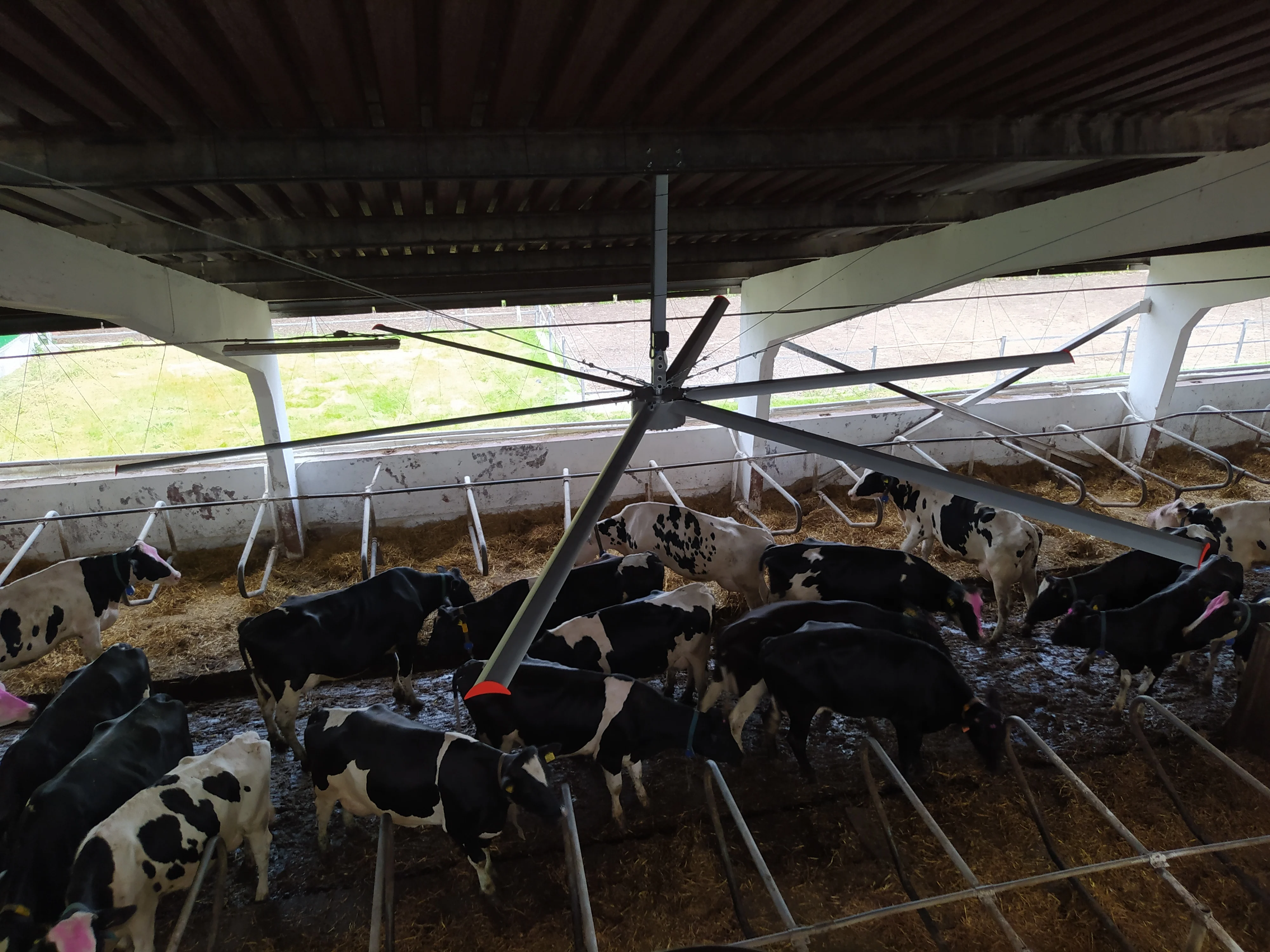

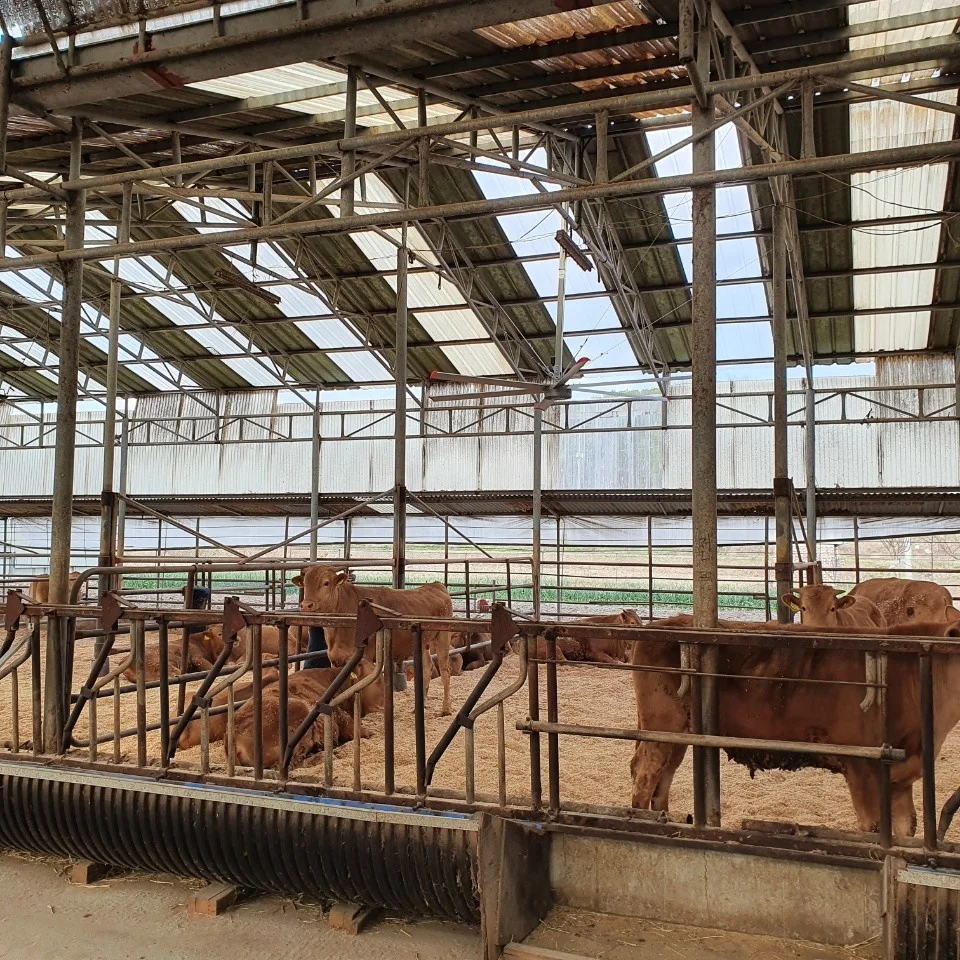

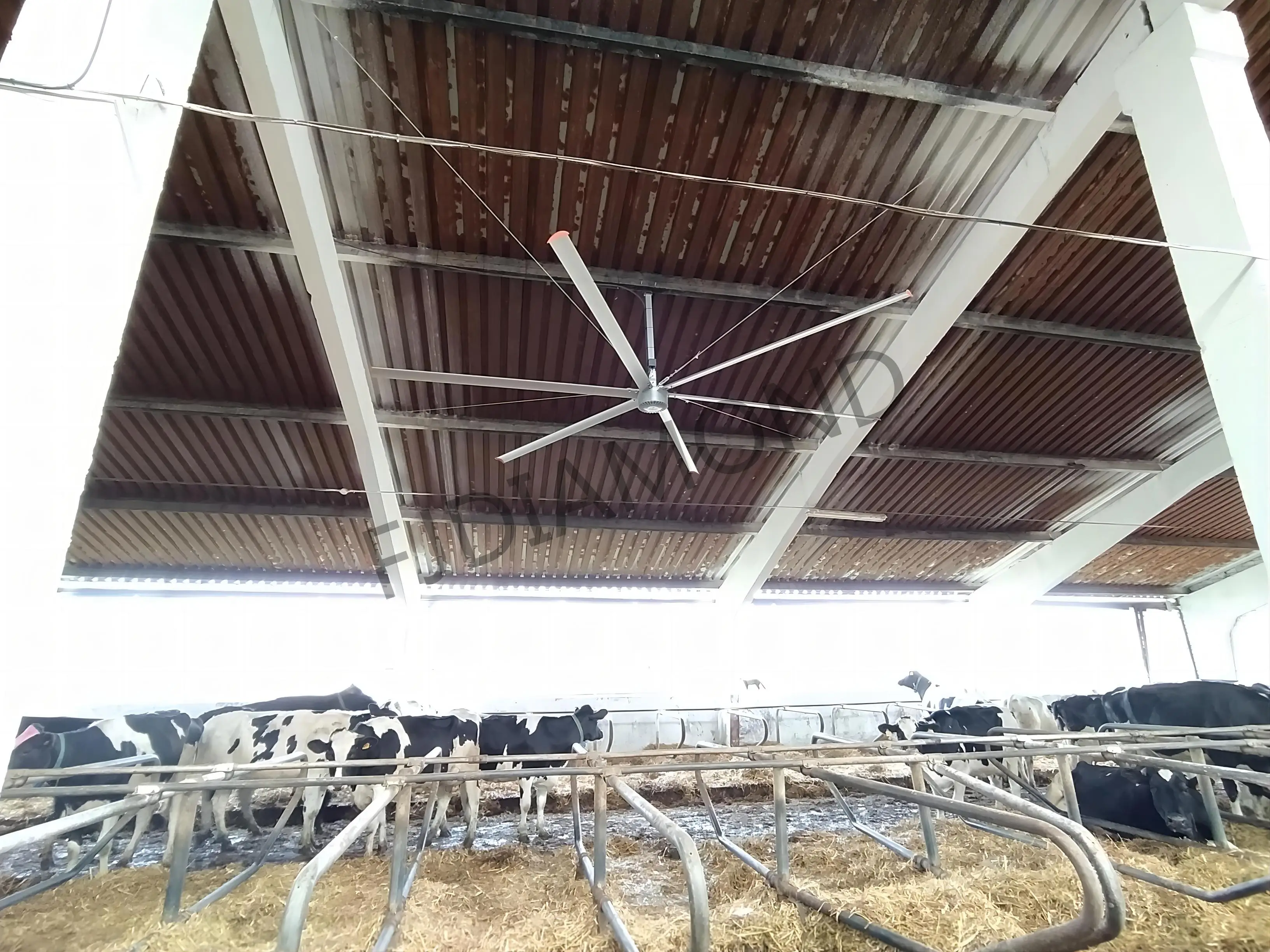

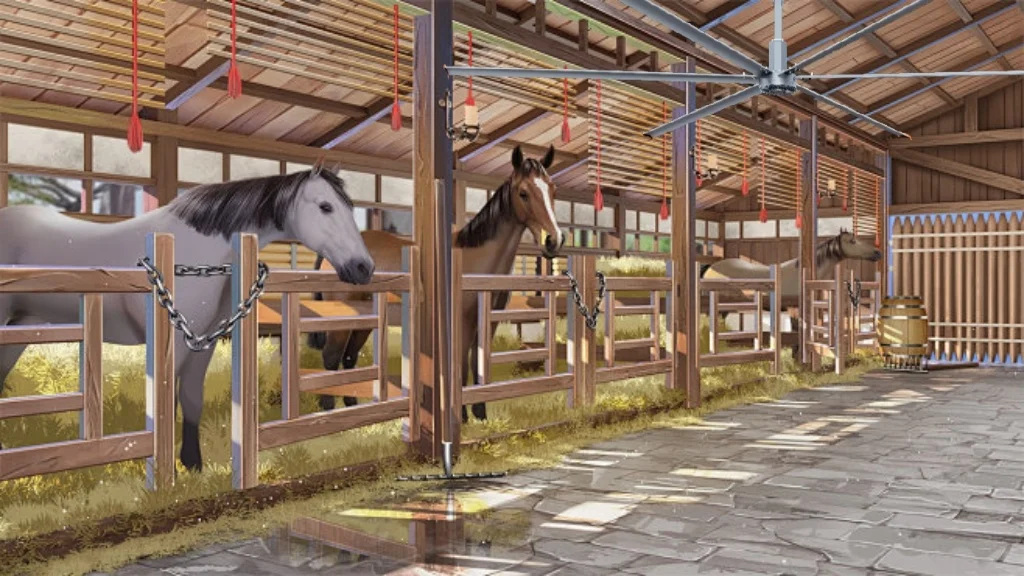

Animal Husbandry

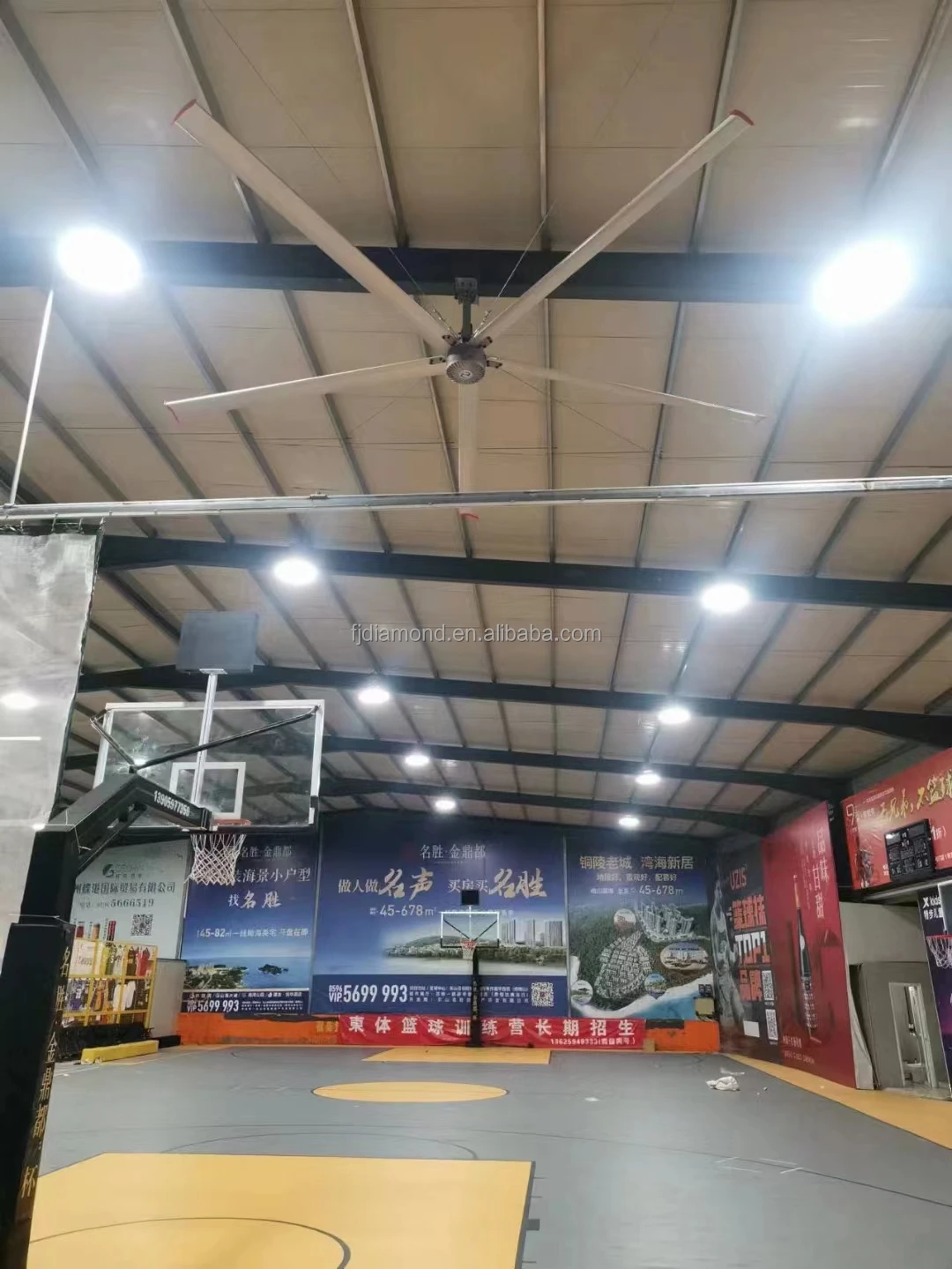

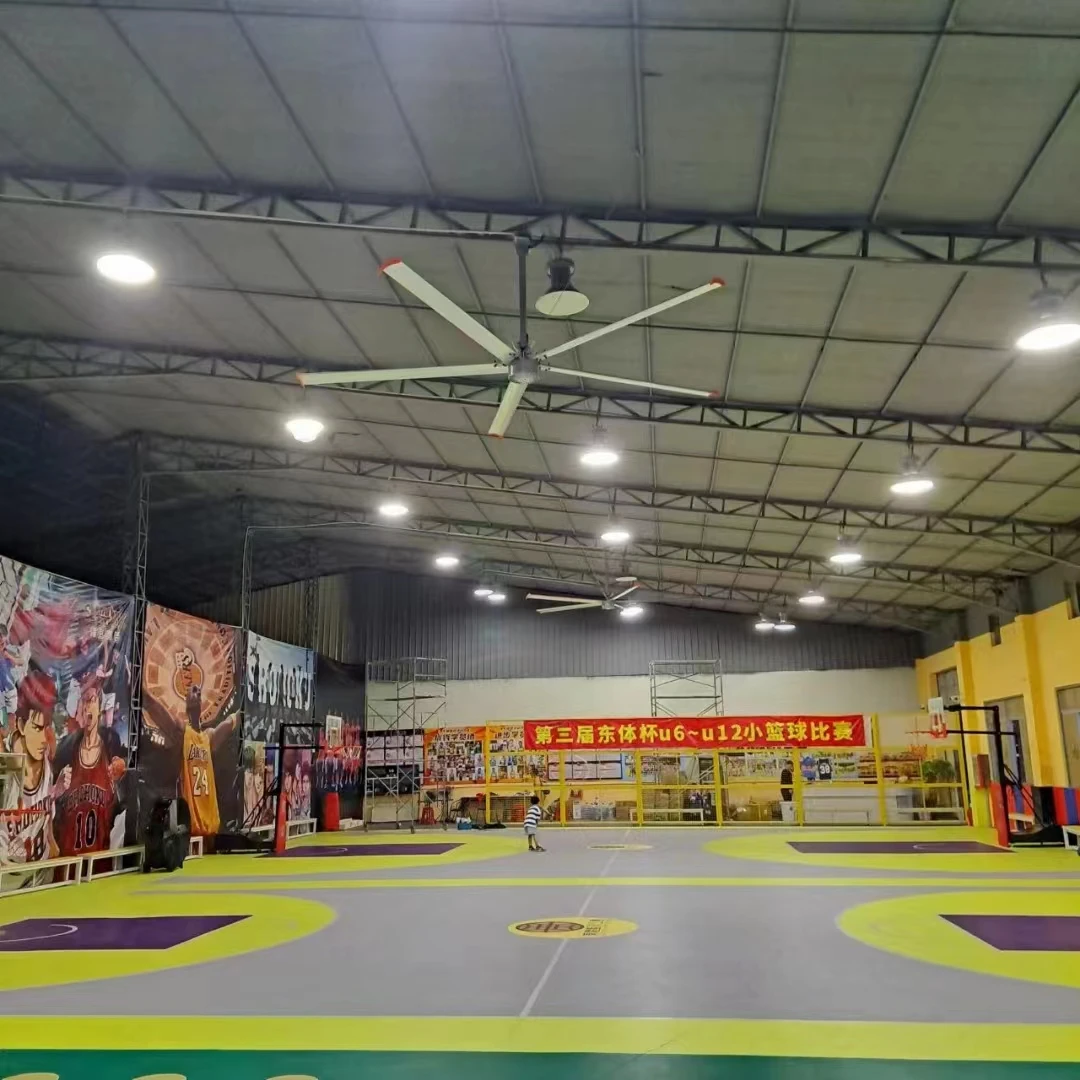

Large-scale public places

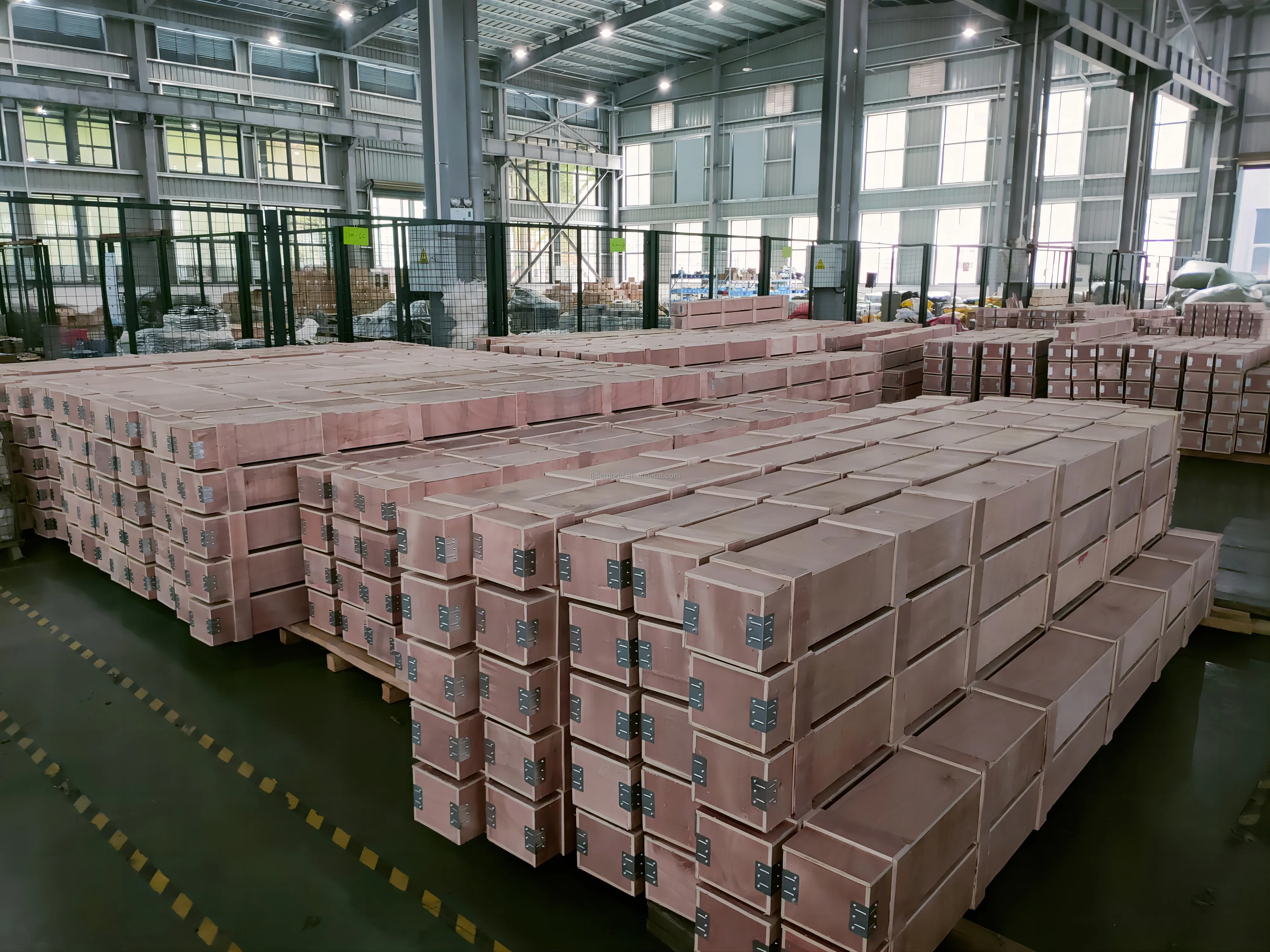

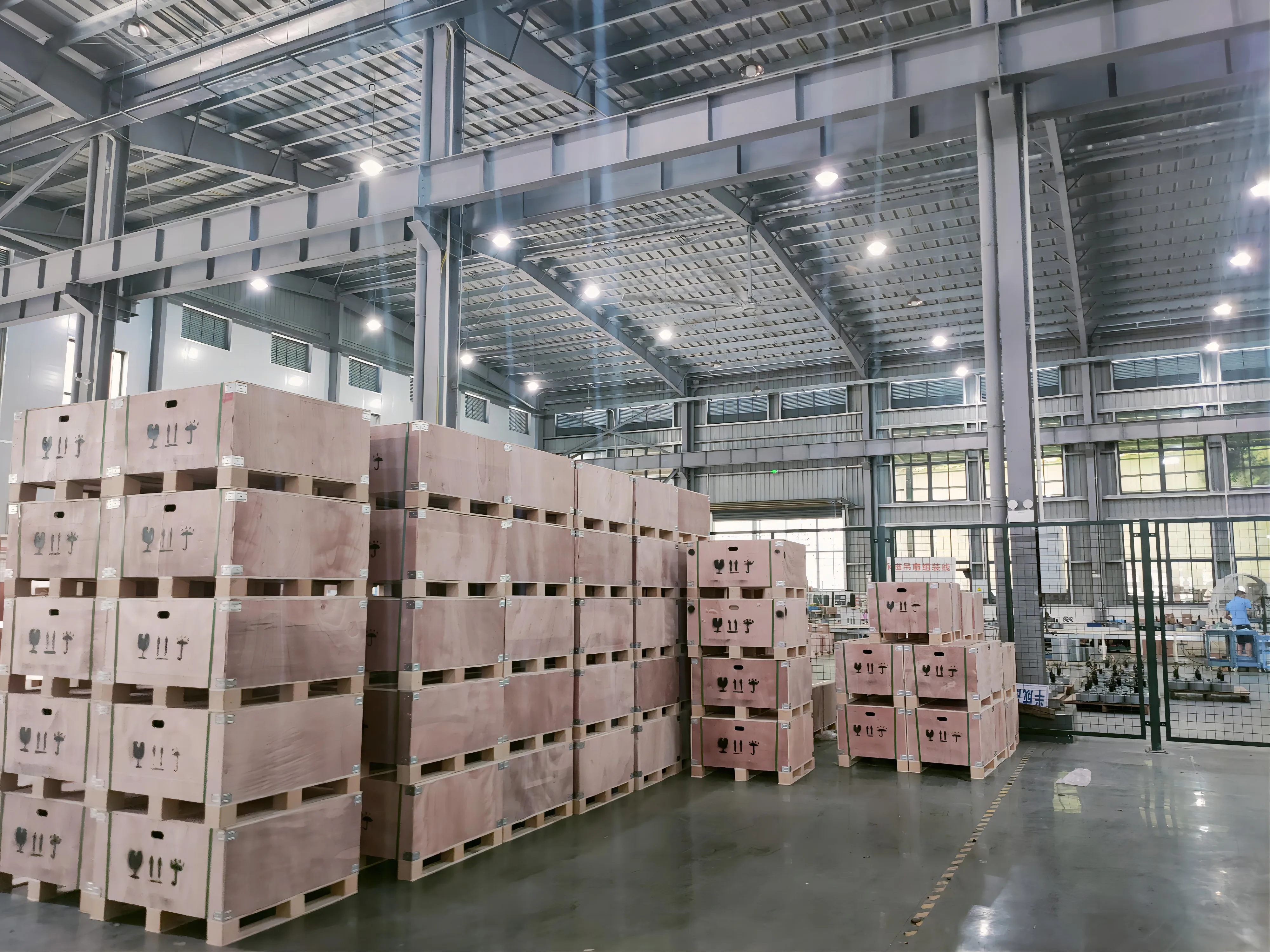

Product packaging
Our Factory
For more than ten years, the company focuses on the research, development and production of the high-temperature
motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.
motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.
The company has passed the standard acceptance of safety standardization; ISO9001:2008 quality management system certification, ISO14001:2015 environmental quality system certification. It has obtained the national production license for industrial products and the pollution discharge certificate of Fujian province. Products through CCSAus certificate, CCC certification, European CE certificate, fire safety certificate, best-selling national and overseas markets.
The company has owned 16 utility model patents and appearance patents. It was awarded"2017 China agricultural machinery industry annual parts quality award".
Why Choose Us
Professional supplier, have factory.Provide Ventilation Solution.
Provide Great fans at Great prices.
100% test before delivery to ensure product quality.
100% Payment Protection.
Shipping Assistance.
After-sale Service.
In addition, we supply certificates for customers, to help you save cost and tariff, such as :
Form E, Form F, Form P , FTA…… etc
Customer Photos
FAQ:
1. What are your main products?
We provide hvls fans,industrial ceiling fan, commercial ceiling fan , Big movable (Gym) fan , Wall-mounted fan ,Pole (Vertical) fan , exhaust fan,barn fan and so on.
We provide hvls fans,industrial ceiling fan, commercial ceiling fan , Big movable (Gym) fan , Wall-mounted fan ,Pole (Vertical) fan , exhaust fan,barn fan and so on.
2. Do you have the OEM service?
Yes, OEM are welcome.
3. How long is the delivery time?
Normally the lead time is within a week.
4. What service do you provide?
Accepted Delivery Terms: FOB, CIF, FCA,CFR, EXW, DDP, DDU, Express Delivery
Yes, OEM are welcome.
3. How long is the delivery time?
Normally the lead time is within a week.
4. What service do you provide?
Accepted Delivery Terms: FOB, CIF, FCA,CFR, EXW, DDP, DDU, Express Delivery
Installation instructions and installation videos are provided
Are you seeking for ventilation solutions to save cost or keen to distribute our products?Welcome feel free contact us .
