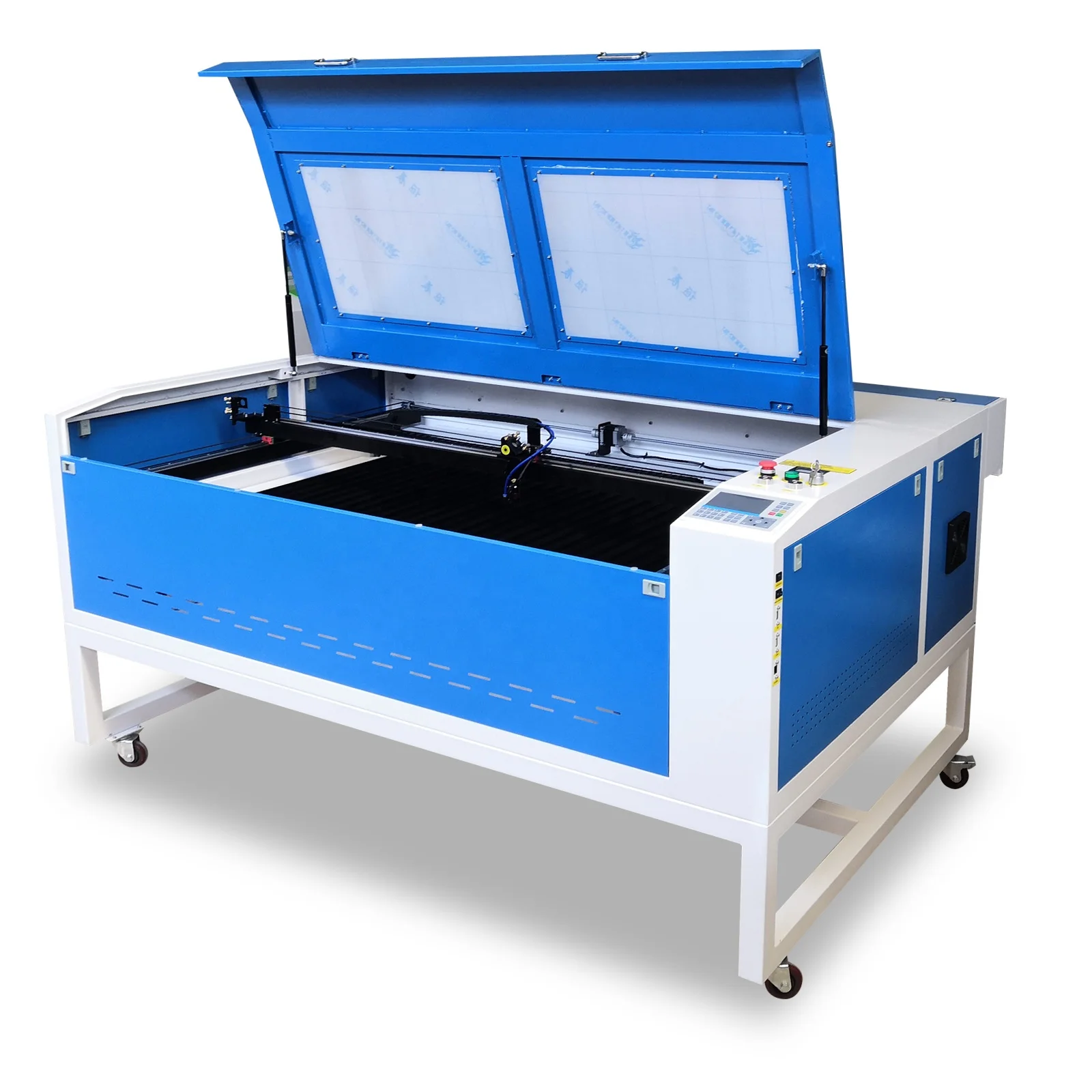

Redsail X1390C 80W 1300x900 Laser Engraving Cutting Machine CO2 Laser Cutter Engraver
- Category: >>>
- Supplier: Redsail Technology Co. Ltd.
Share on (1601020398453):
Product Overview
Description

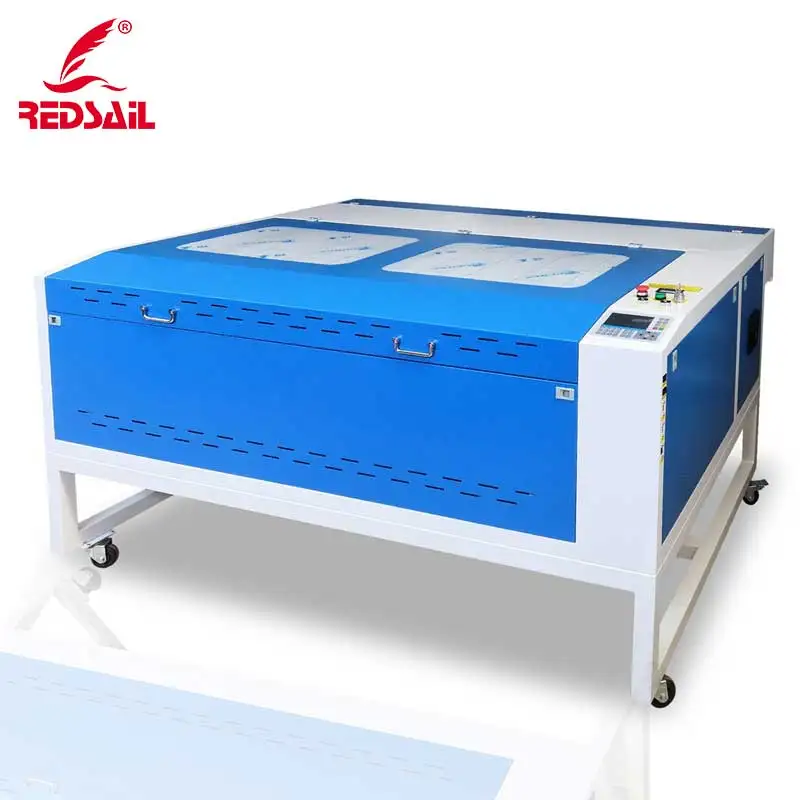

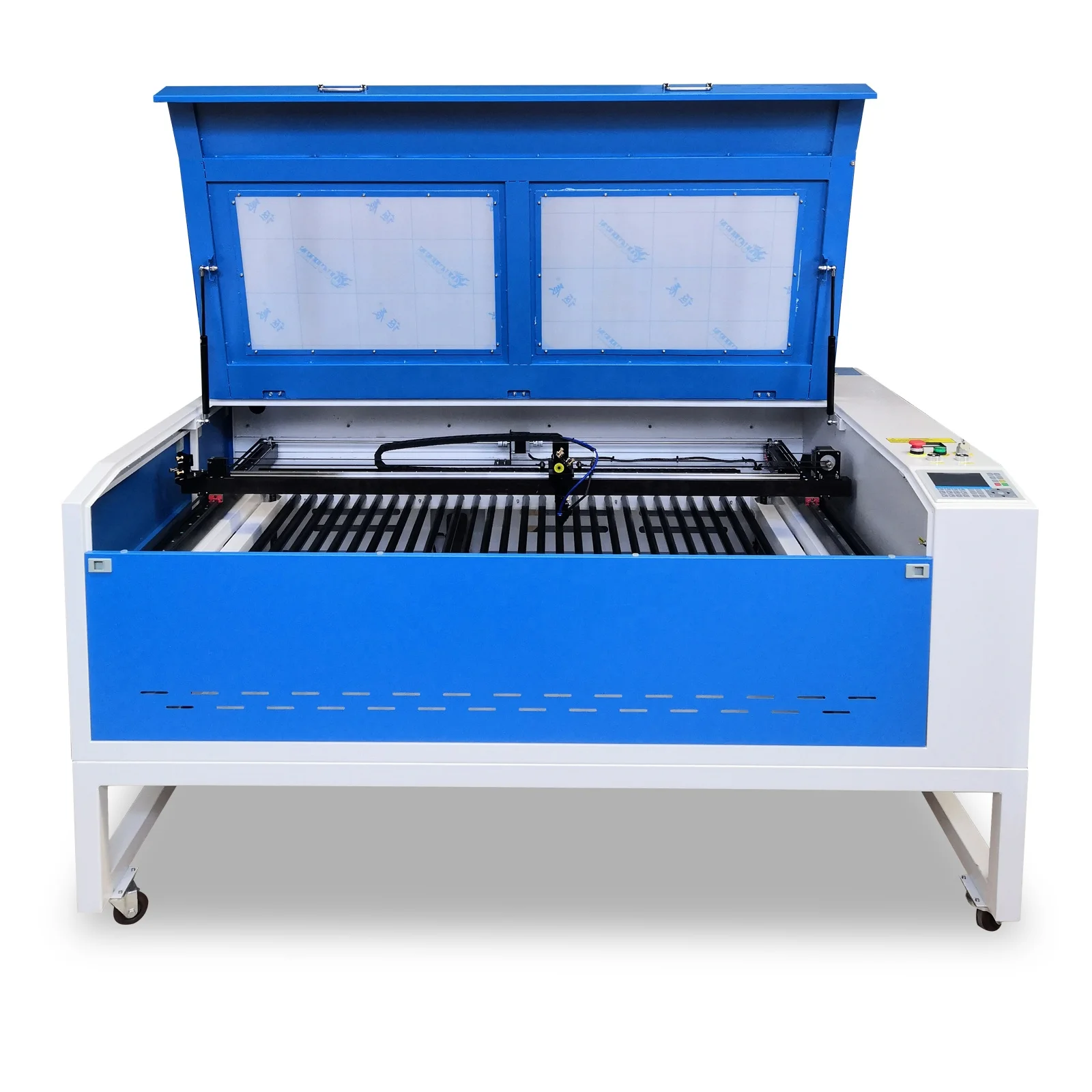

Redsail X1390C CO2 Laser Engraving Cutting Machine
80W Laser Engraver Cutter
Specification
- Control system: DSP
- Working size: 51″x 35″(1300mm x 900mm)
- Table: Blade Bed (good for cutting)
- Laser tube type: Co2 Glass sealed laser tube
- Laser power: 80W
- Max speed: 1000mm/s
- Location precision: < 0.01mm
- PC Interface: USB2.0 and USB Disk

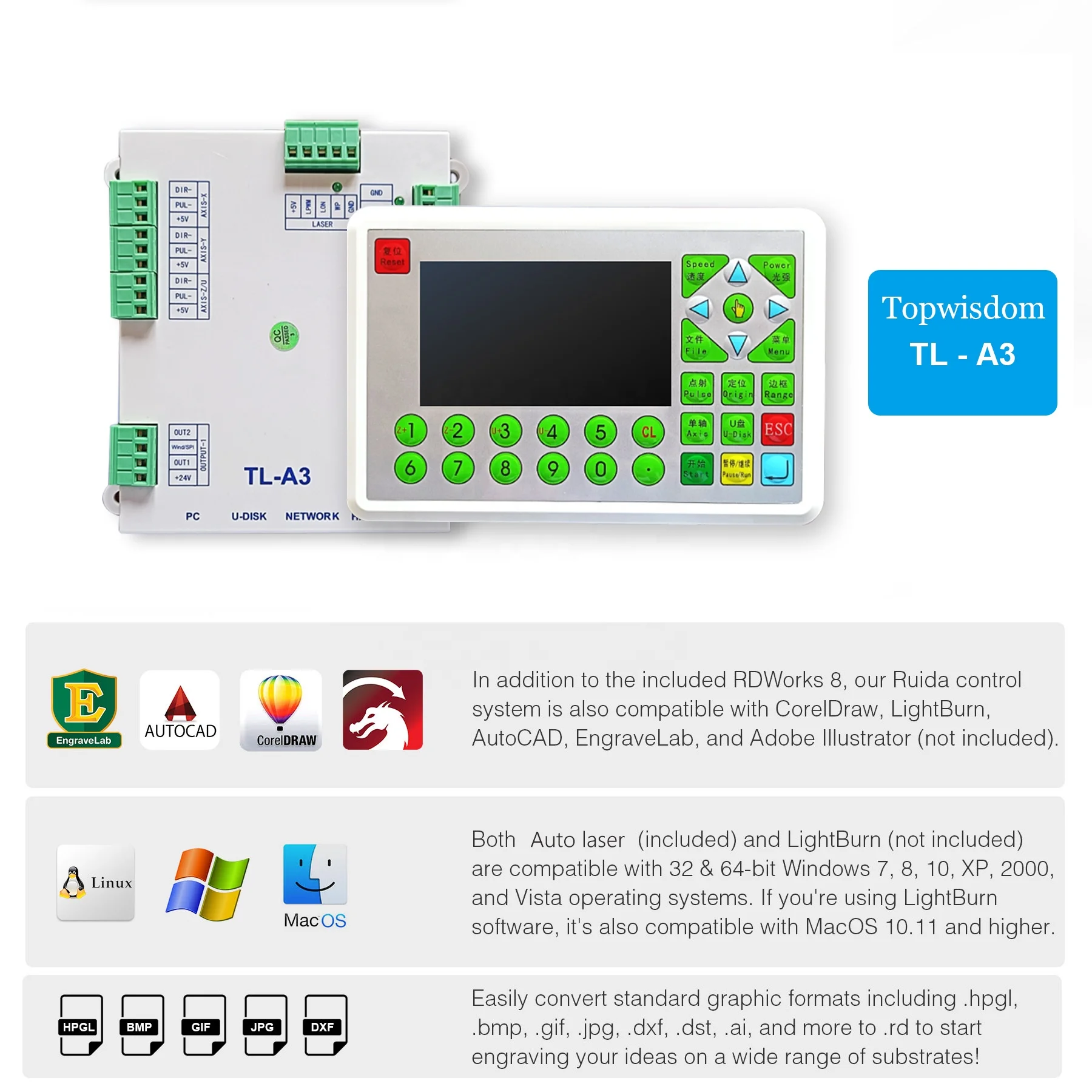

- Controller: Topwisdom (Ruida optional)
- Software: AutoLaser (RDworks optional)
- Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
- Warranty: 12 Months (18 months for Laser tube,3months for mirrors and lens)
- Machine Dimension(L/W/H): 1800*1305*970 (mm)
- Package Dimension(L/W/H): 1920*1440*1220 (mm)
- The height of stand: 390mm
- The height of machine body: 580mm (esay for narrow doors)
- Package: Standard Wooden case for export
- N.W. : 380KG
- G.W. : 450KG
Standard accessories:
(01) Laser Engraving software Package (English Version)
(02) User Manual (CD)
(03) Industry water cooling system
(04) Air exhaust fan
(05) Air Pump
(06) Communication cable
(07) 3 Reflect optics (installed in the machine)
(08) 1 Focus optics (installed in the machine)
(09) 1 Laser tube
(10) Other tools
Applications:

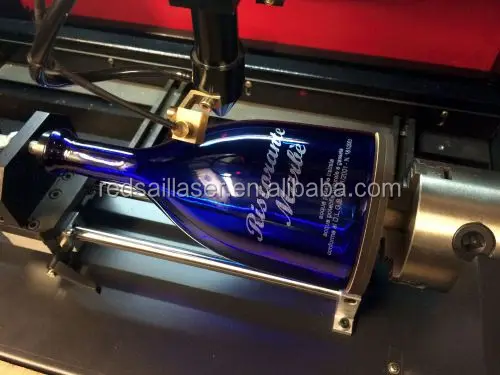

This Laser Engraver is a kind of Laser Engraving Machine System equipped with Co2 laser Tube, It is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc., most non-metal materials, also can engrave Painted Metals and Anodized aluminum. Can not work on metal materials. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys and etc.
- Laser tube
- Mirorrs and Lens
- We recommend you to order one spare laser tube and one set mirrors and lens( three reflecting mirrors and one focus lens), it will reduce much shipping cost and time when you need them in the future.
Q. Can the machine engraving and cutting?
A. Yes, even on the same Job, you can do setting with different colour in the software and also can making holes.
Q. is the machine must work with computer?
A. Must connect with computer with USB cable when you change the settings of machine. for the design files, you can transfer the file with USB memory stick to the machine, Or can download it to the machine directly with USB cable from computer.
Q. Can the machine be split so it can fit into my doors?
A. Yes it can the legs separate from the main body of the machine.
Q. How long the laser tube is working well?
A. Unfortunately we cannot confirm about this, it is about 3000+ hours.
Q. Do you avaliable spare parts?
A. we can provide all of spare parts of any model we listing.
Q. I have heard the mirrors need cleaning?
A. Yes they do but not after every job, once a week is normally enough
Q. Can I put larger materials in the machine?
A. Yes, the machine has doors which can be opened to accommodate larger materials
Q. How about the after sell service?
A. Free tech support for the whole life of the machine, and 24 hours telephone support.
1. Combine shipping, buy more save $$$.
2. It's Sea Shipping, please contact us to check shipping cost.
3. Please note your phone number for shipping, when special status happened, they will call you.
4. Generally, CIF trade term, port to port, not to door, consignee need clear customs, pay import taxes, and arrange local shipping to place, please leave your nearest harbour name to check shipping cost.
4. Generally, CIF trade term, port to port, not to door, consignee need clear customs, pay import taxes, and arrange local shipping to place, please leave your nearest harbour name to check shipping cost.
When the machine arrive the harbour as we confirmed before shipping, please pick up the machine ASAP to avoid any extra fees.
5. EXW and FOB trade terms are also OK.
Here are some key terms for warranty policies you should know before your bidding:
- Our warranty coverage for this item is one year from the date you received the product.
- We offer our warranty services worldwide.
- Provide service free for the machine all the life.
- Please feel free to contact us with any questions or problems.
- Your 5 stars negative feedback will be much appreciated.
Packaging&Shipping:
Package Dimension: 1990*1440*1100 (mm)
Package: Standard Wooden case for export
G.W. : 330KG
Our Serivecs:
1. Redsail provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.
2. All extra parts for the machine can be purchased with agent price from Redsail.
3. Email/ Skype/ WeChat/ WhatsApp online to support.
4. Life-long Technical Support and After-sale Service free of charge.
5.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
6. Free and Professional Training at our Factory under the relaxed condition
Redsail Informations:
FAQ:
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 65W.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
Other Model Laser Machine
M500: 50w/60w 50x30cm working area
X900: 80w/100w 90x60cm working area
X1390: 80w/100w/130w 130x90cm working area
CM1410: 100w 140x100x3cm working area
CM1610: 100w 160x100x3cm working area
CM1810: 100w 180x100x3cm working area
CM1325: 100w/130w/150w/180w 130x250cm working area
