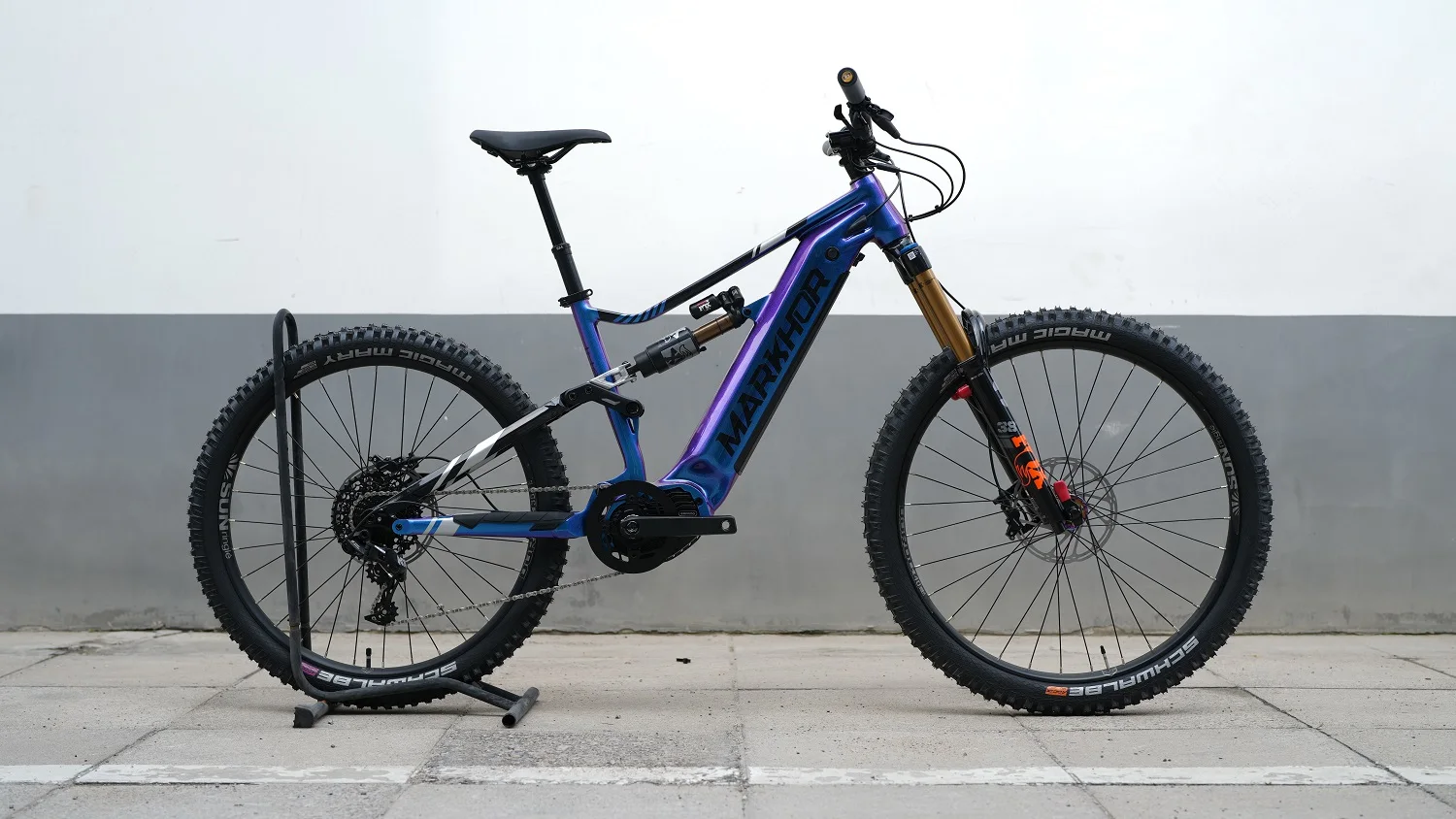

Bafang 48v 52v 1000w For Electric Mountain Bike Motor E bike Ebike Mid Drive Conversion Kit
- Category: >>>
- Supplier: BTWO Intelligent Technology Co. Ltd.
Share on (1601020400336):
Product Overview
Description
Product Introduction

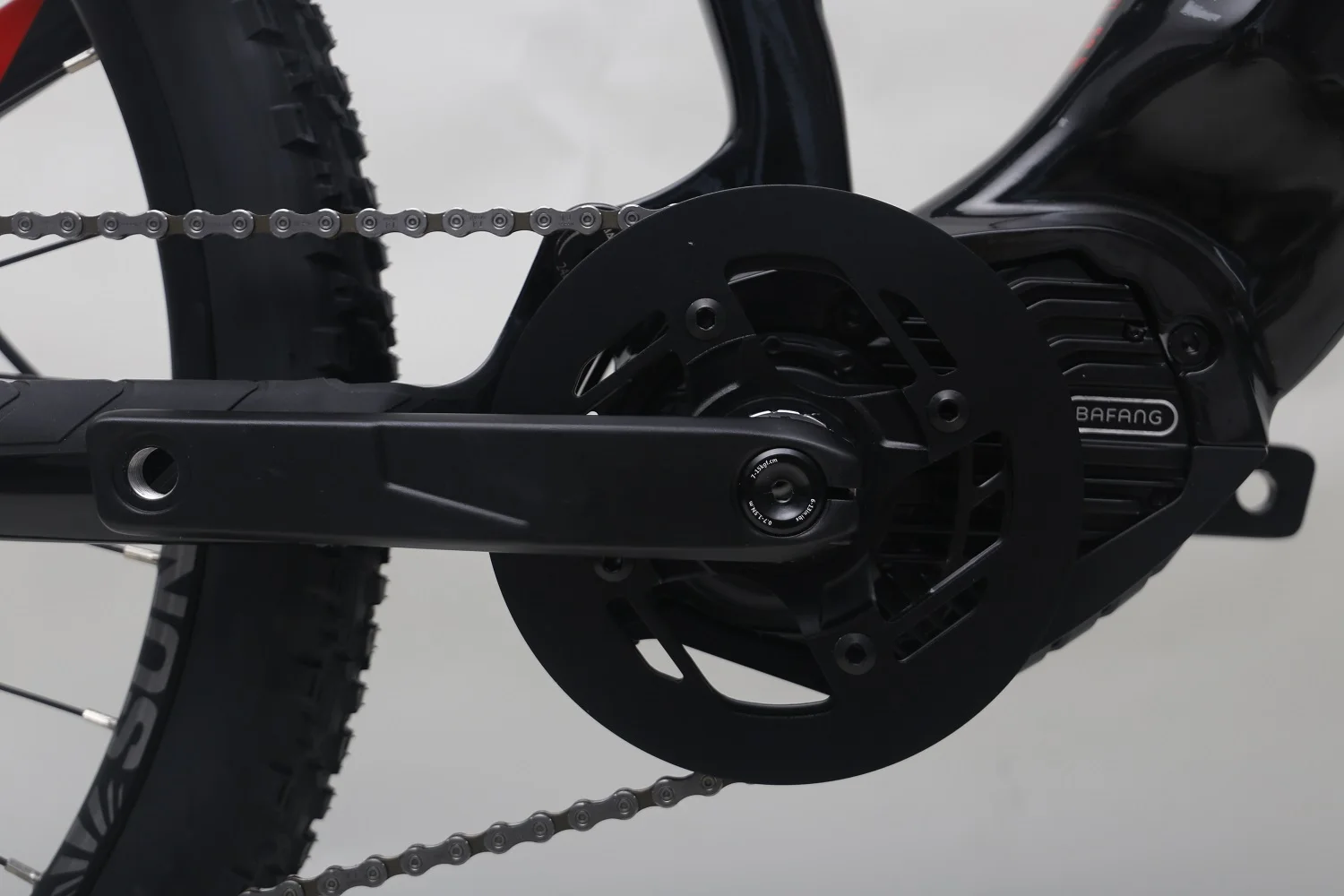

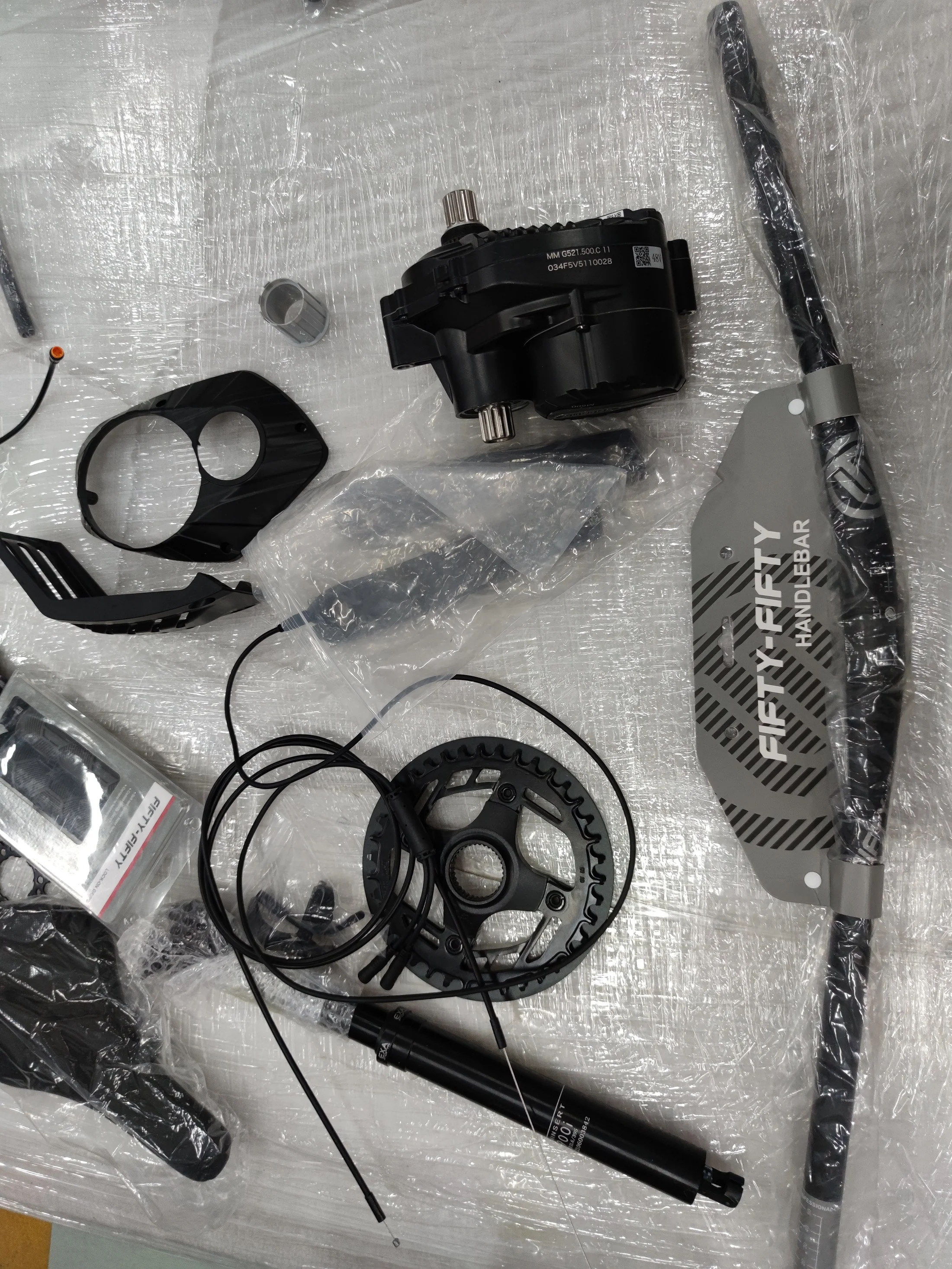

Bafang Brand Mid Drive Motor
- Motor Power:
M600, 48V500W
M620, 48V750W/ 48V1000W
- Max Speed: 50-80KM/H
- Max Torque: 120/160 N.m
- Waterproof design, riding well in rainy days
- Noise Grade (dB) < 55
- Operation Temperature: -20° to 45°

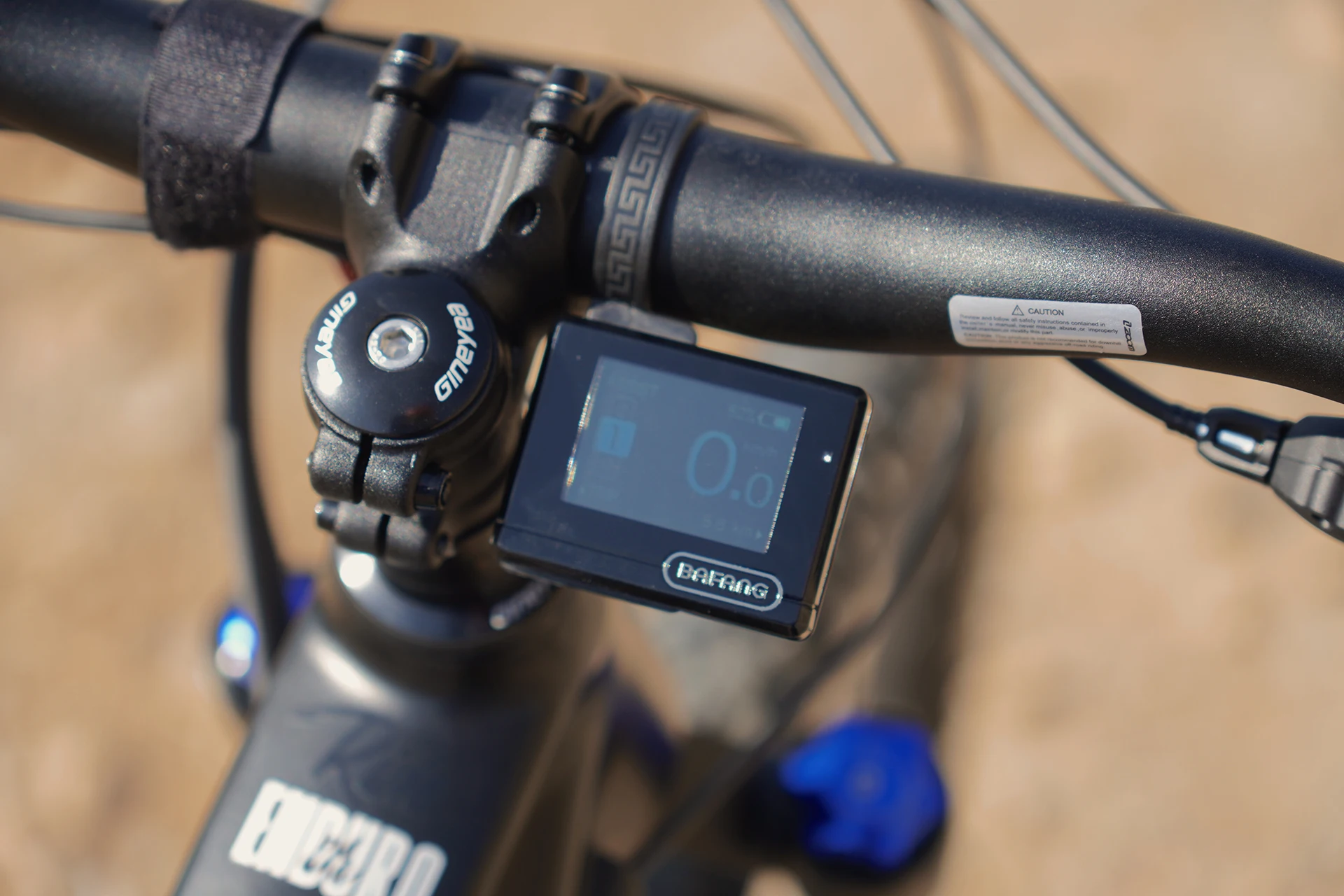

Bafang Brand LCD Display
- Information is clearly presented with sushine
- display information:
battery percentage/ current speed/
push assistance/ total distance etc.
- various paraments set:
max speed/ pedal assist level etc.
- bluetooth
- USB port

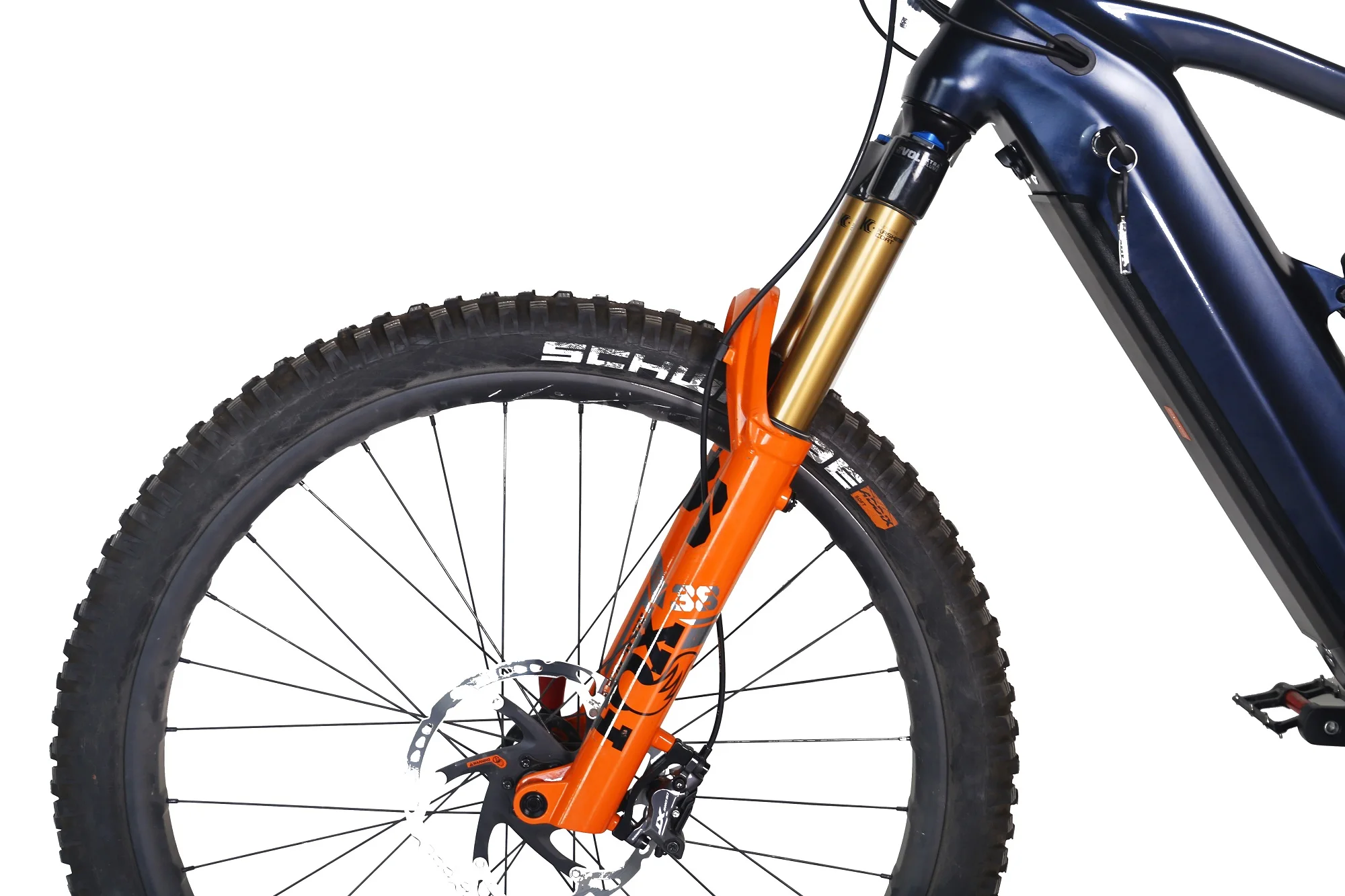

- Front Fork: FOX 38,170MM/180MM. BLACK AND ORANGE FOR CHOICE

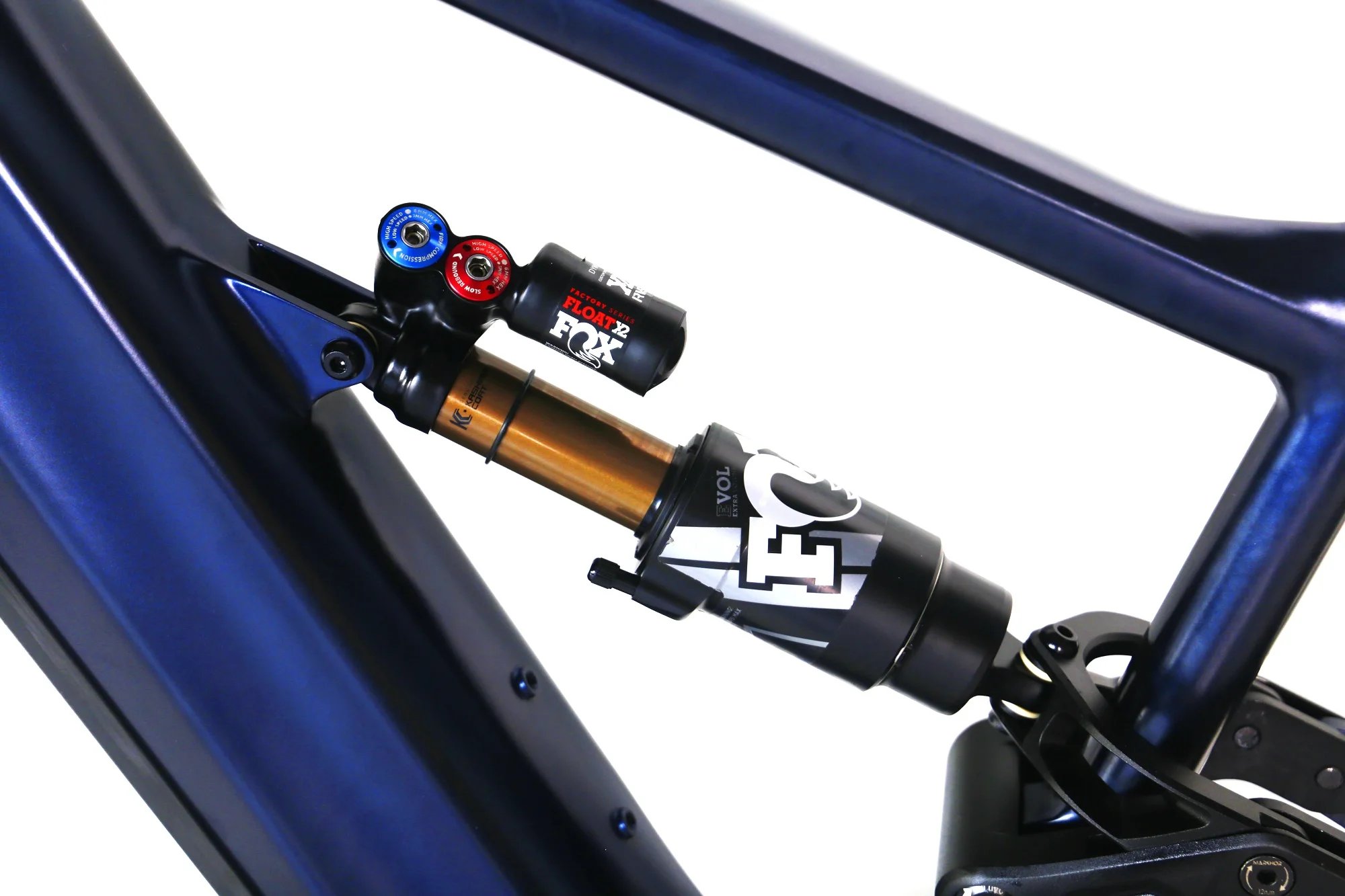

- Rear Shock: FOX FLOAT X2

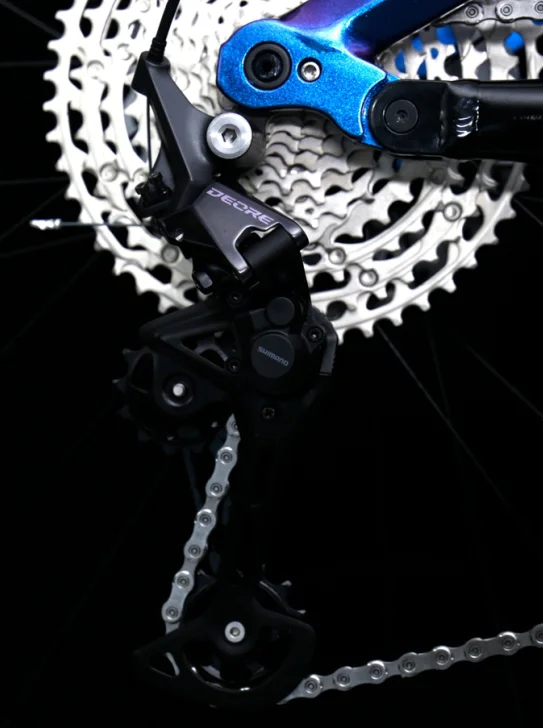

- SHIMANO M8100, 12 Speed
(SUPPORT CUSTOMIZED SERVICE,SRAM OR MAGURA ALL ACCEPTABLE)

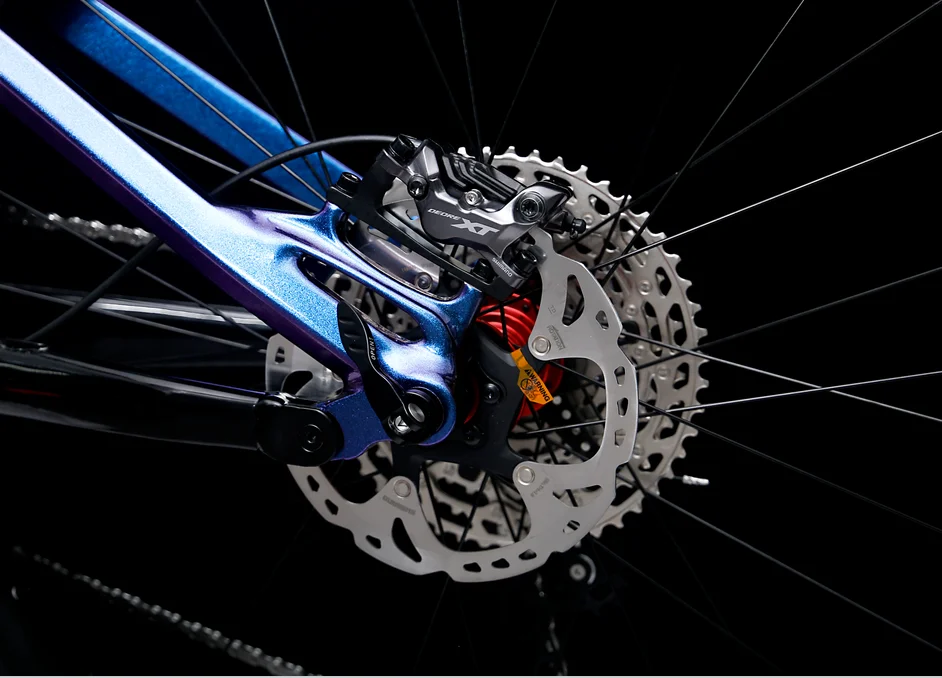

-Srame G2 4 Piston Brake System.
powerful and controllable braking;
recommended for e-bike with mid drive motor;
easy installation, adjustment and maintenance.
- Material: Carbotecture, Flip-Flop-Design

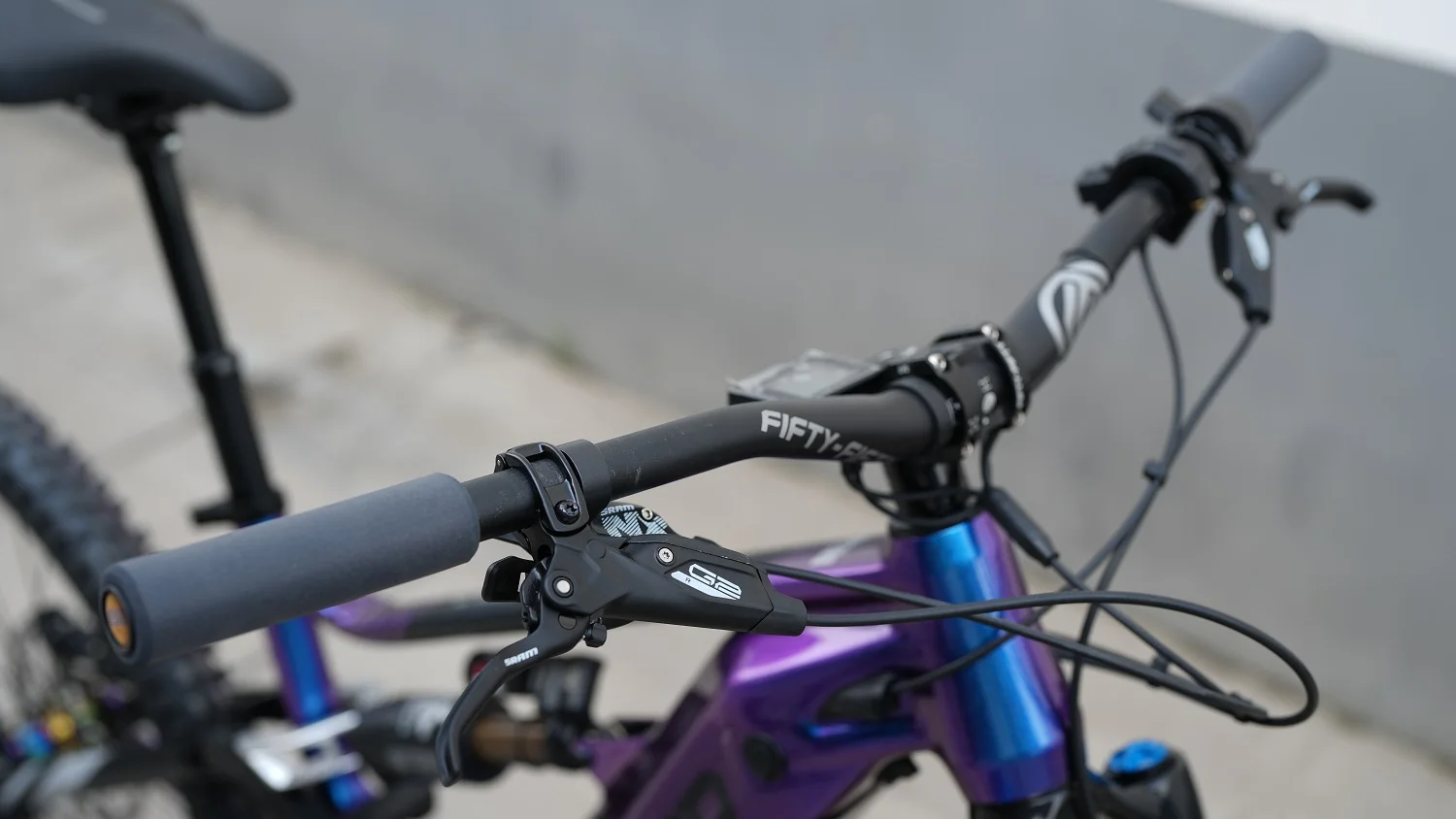

Lever Blade 2-Finger HC, Aluminium ,Hydraulic
Lever Blade 2-Finger HC, Aluminium ,Hydraulic

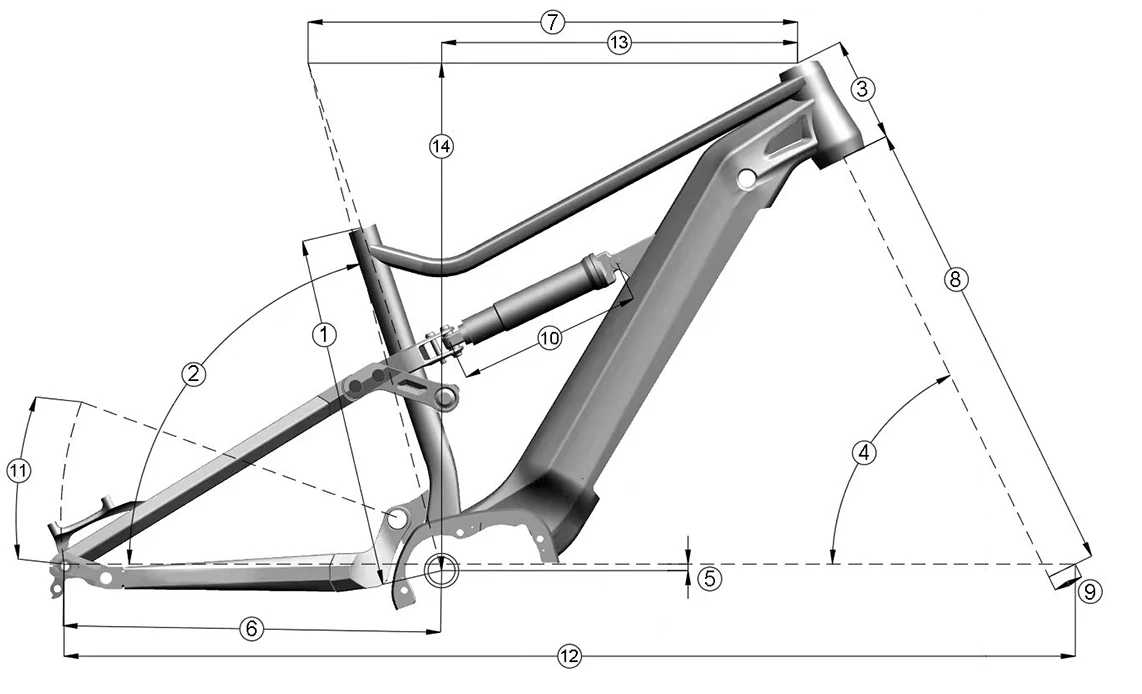

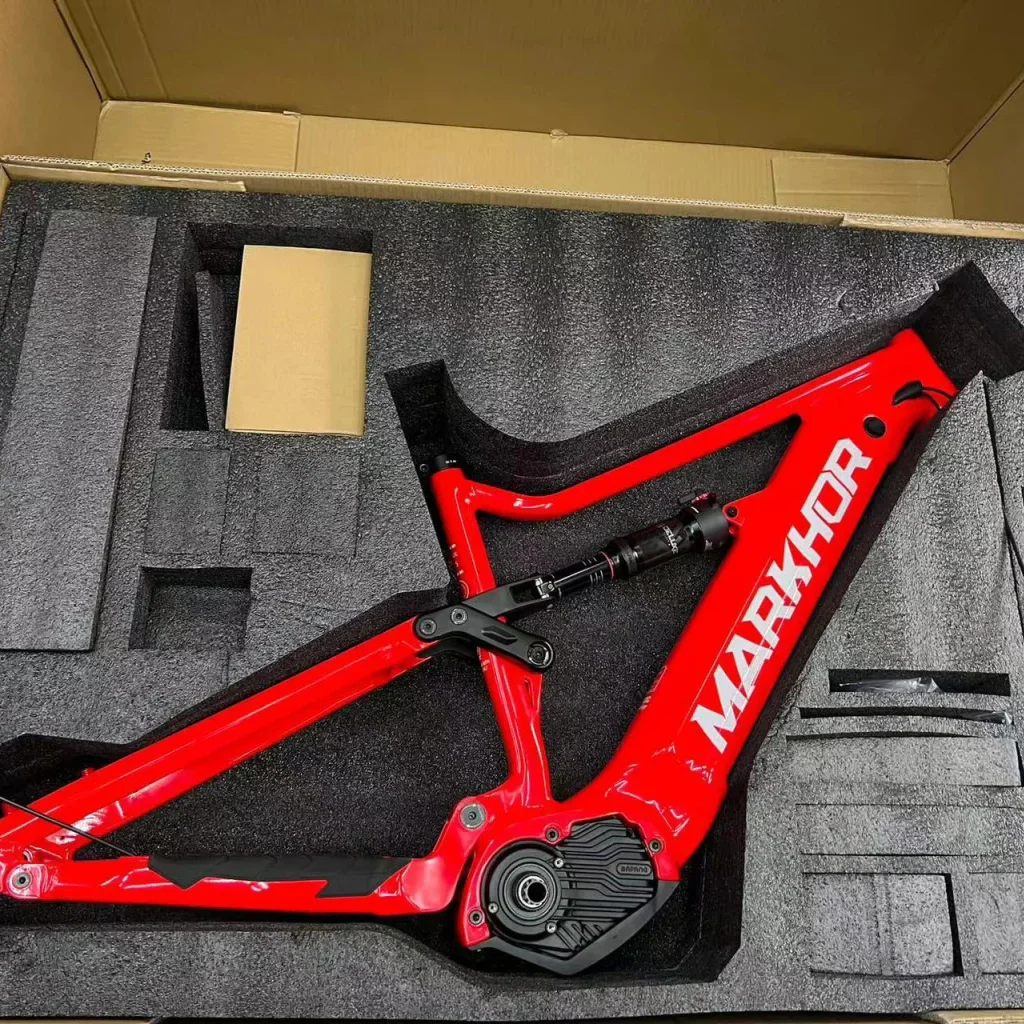

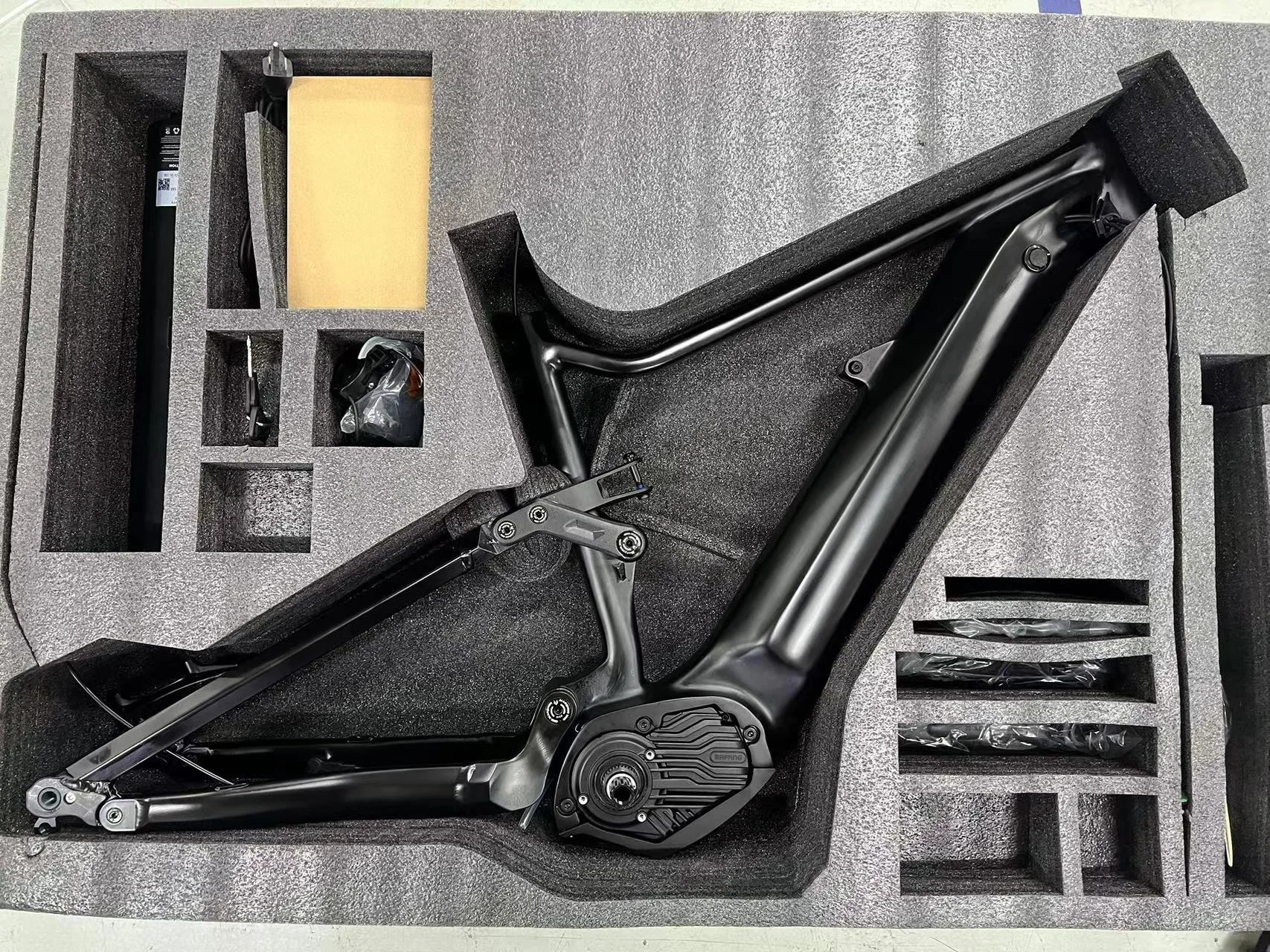

Frame Specification
M | L | |
① Seat Tube | 440 mm | 470 mm |
② Seat Tube Angle | 71.5 ° | 71.5 ° |
③ Head Tube | 130 mm | 130 mm |
④ Head Tube Angle | 64 ° | 64 ° |
⑤ Bottom Bracket Offset | -8 | -8 |
⑥ Chain Stay | 470 mm | 470 mm |
⑦ Top Tube ( horizontal ) | 610 mm | 638 mm |
⑧ Length Specified Fork + Headset | 585 mm | 585 mm |
⑨ Offest Specified Fork | 44 mm | 44 mm |
⑩ Length Specified Shock | 230/ 250 mm | 230/ 250 mm |
※ Travel Specified Shock | 65/75 mm | 65/ 75 mm |
⑪ Rear Wheel Travel | 167.3/ 187.4 mm | 167.3/ 187.4 mm |
※ Maxium Allowed Front Fork Travel | 180 mm | 180 mm |
⑫ Wheelbase | 1263 mm | 1291 mm |
⑬ Reach | 440.8 mm | 468 mm |
⑭ Stack | 631 mm | 631 mm |
Specifications
Experience Model | Pro Model | Ultimate Model | |||
Motor Power | Bafang Mid Drive Motor: 48V350W/ 500W/ 750W/ 1000W | ||||
Battery | LG lithium battery, 48V17.5AH | ||||
Display | Bafang Brand, LCD Display | ||||
Front Fork | Suspension Fork, travel length: 160mm MAXXLITE TTF | Suspension Fork travel length: 170mm RST | Suspension Forktravel length: 170mm X-FUSION | ||
Rear Shock | travel length: 230 * 62.5 mm ROCKSHOX DELUXE SELECT | travel length: 230 *62.5 mm ROCKSHOX DELUXE SELECT | travel length: 250 *75 mm X -FUSION | ||
Brake | TEKTRO M745, 4 Piston Brake | Shimano MT20 4 Piston Brake | SRAM G2, 4 Piston Brake | ||
Brake Pad | TEKTRO front 203mm rear 180 mm | Shimano front 203mm rear 203mm | SRAM front 203mm rear 203mm | ||
Transmission | SHIMANO M6000, 10 Speed | Shimano M600 10 Speed | SRAM NX 11 Speed | ||
Tire | VEE 27.5/29 * 2.30 inch | MAXXIS 27.5/29 * 2.60 inch | SCHWALBE, 27.5/ 29 * 2.60 inch | ||
Rim | MTB PRO， double lever alloy rim | SUN RINGLE | SUN RINGLE | ||
Seat Royal | SELLE ROYAL | ||||
Seat Tube | KS Brand, 125/ 150mm travel length | FOX Telelectric | |||
Warranty | 18 months for electronic system, 24 months for mechanical spare parts | ||||
Note :

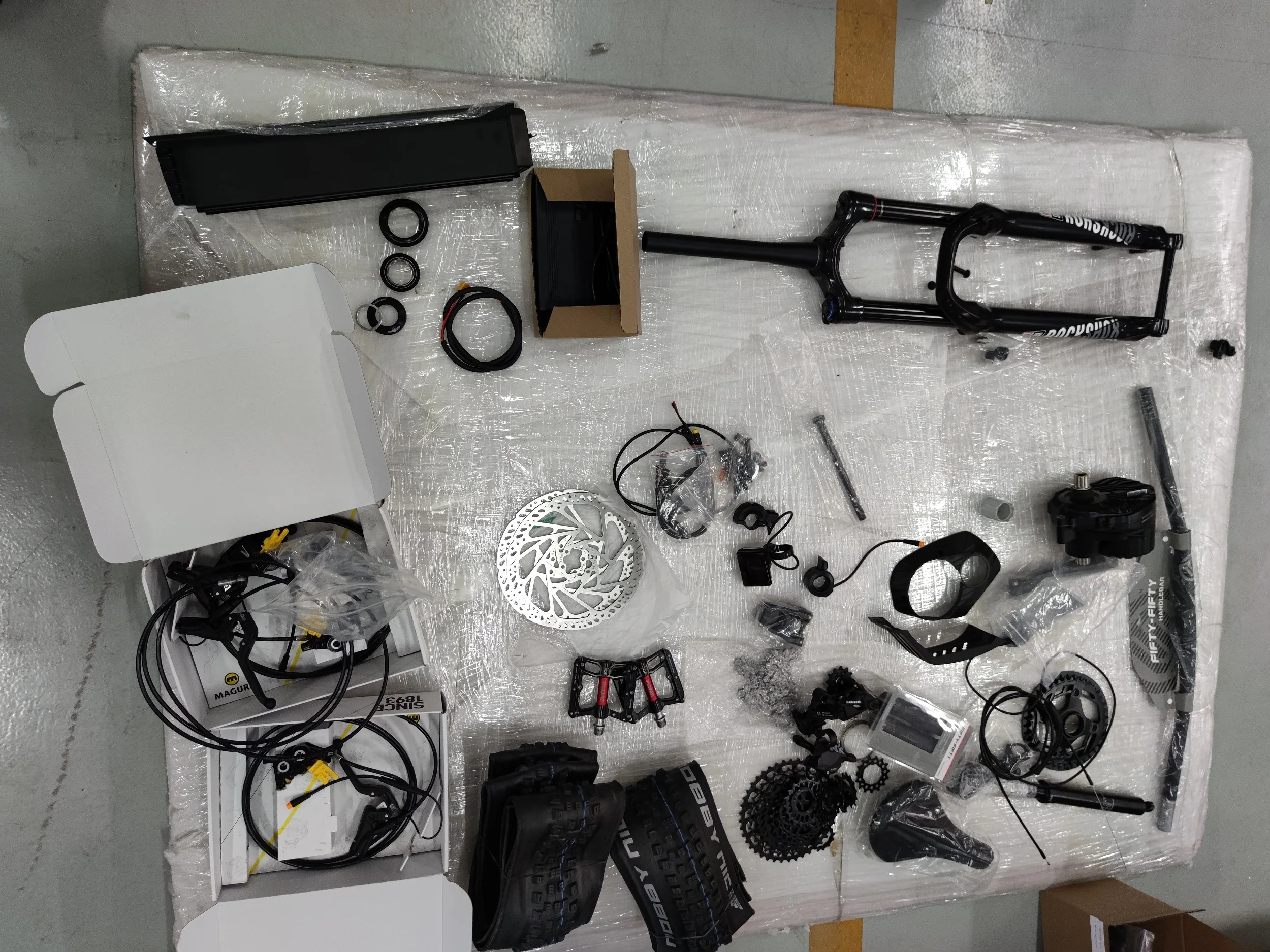

We support that customer choose to order kits instead of whole bike.There are 2 options：
1.complete parts :including frame 、motor、battery、fork、transmission、brake and so on...
2.we just provide frame、motor、battery
The last but most important that the price is quite different from $1599 - ? based on different specifications. Besides, delivery time and cost changes in days as well.
Please contact us for your custom made model before order.
