full automatic pouch food pillow bag packet packing packaging machine for instant noodle block
- Category: >>>
- Supplier: Qingdao Bostar Packing Machinery Co. Ltd.
Share on (1601020405599):
Product Overview
Description
Product Description

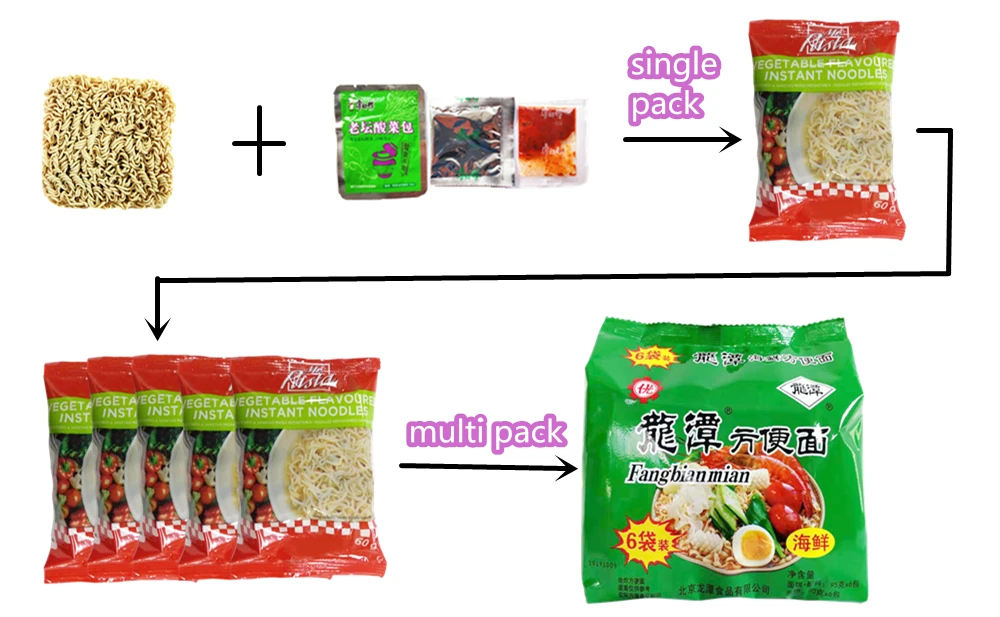

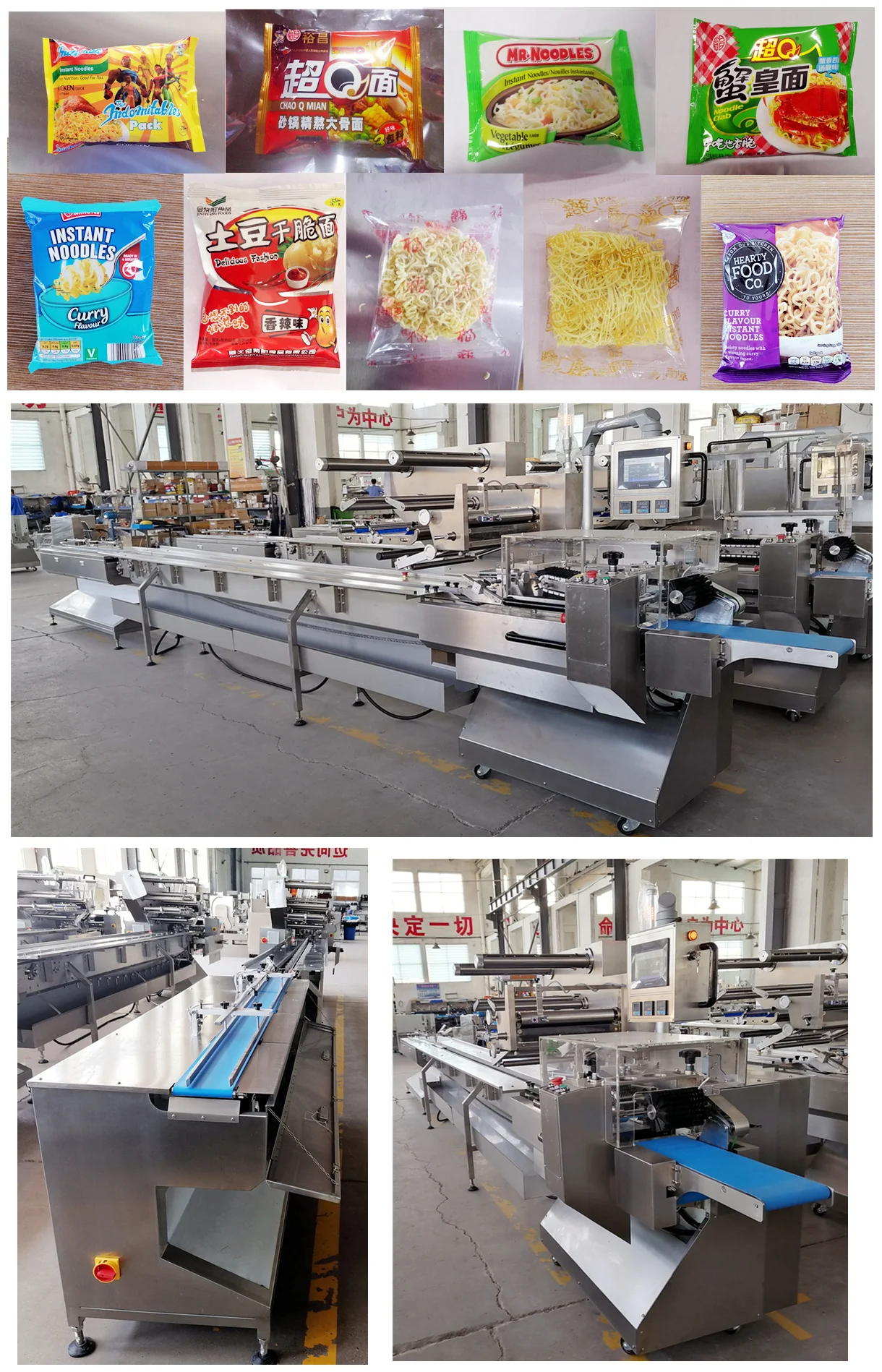

Fully automatic instant noodle packing line, including small pouch packing machine, pouch layer, pouch dispenser, metal detection machine auto feeder, auto packing machine, weight detection machine. Also able to pack many bags noodle into one bag after single block noodle pack. We can solve all your problem after production line.
Technical Parameter of BOSS450 Instant Noodle Packing Machine | ||||||
Model | BOSS 450/99 | BOSS 450/120 | BOSS 450/132 | |||
Packing film size(mm) | Max450 | Max450 | Max450 | |||
Packing speed(packs/min) | 20-180 | 20-180 | 20-160 | |||
Package length (mm) | 80-340 | 90-370 | 95-450 | |||
Product width (mm) | 20-140 | 20-140 | 20-140 | |||
Product height (mm) | 5-40 | 5-60 | 15-70 | |||
Power (kw) | 3.6 | 3.6 | 3.6 | |||
Dimension L*W*H (mm) | 4500*1050*1700 | 4500*1050*1700 | 4500*1050*1700 | |||
Weight (kg) | 1000 | 1000 | 1000 | |||
Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | |||

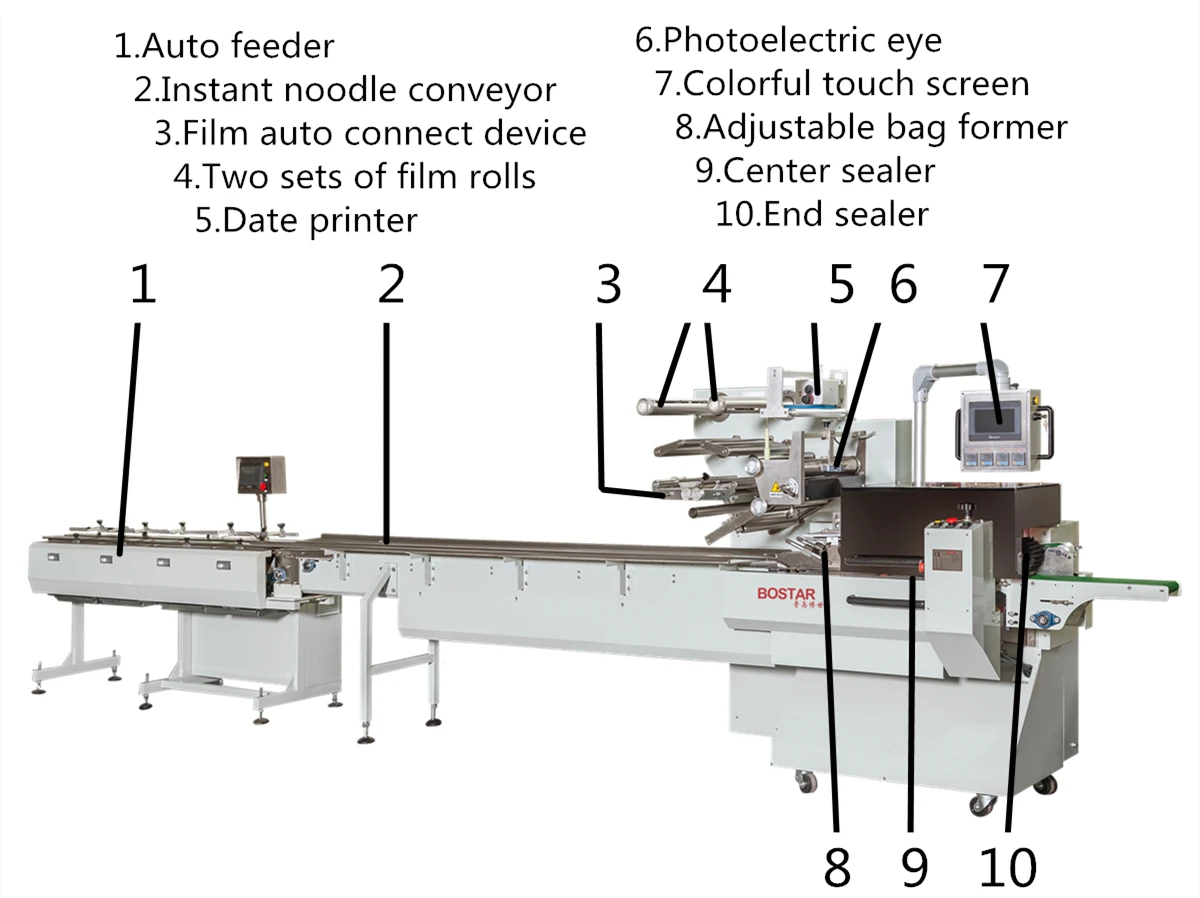

☆Four stage auto feeder, control by three frequency conversion and one servo driver, connect directly with production line, realize fully automatic.
☆Specially designed conveyor for instant noodle, the crumb of instant noodle will drop down to the trash collection device, not stuck in the conveyor.
☆Easily adjustable conveyor and bag former, able to pack different dimension product.
☆Two sets of film rolls and film auto connection device, able to connect two roll of film without stop production.
☆Two sets of wheels at center sealer, one set for driving film, another set of heating and sealing.
☆One set of end sealer with rotary cutting knife, realize high speed production.
☆Packing machine control by three Panasonic servo driver, realize stable running and accurate checking.
☆Colorful touch screen with English language, change the technical parameter here.
☆Easy to install and adjust, easy to operate.

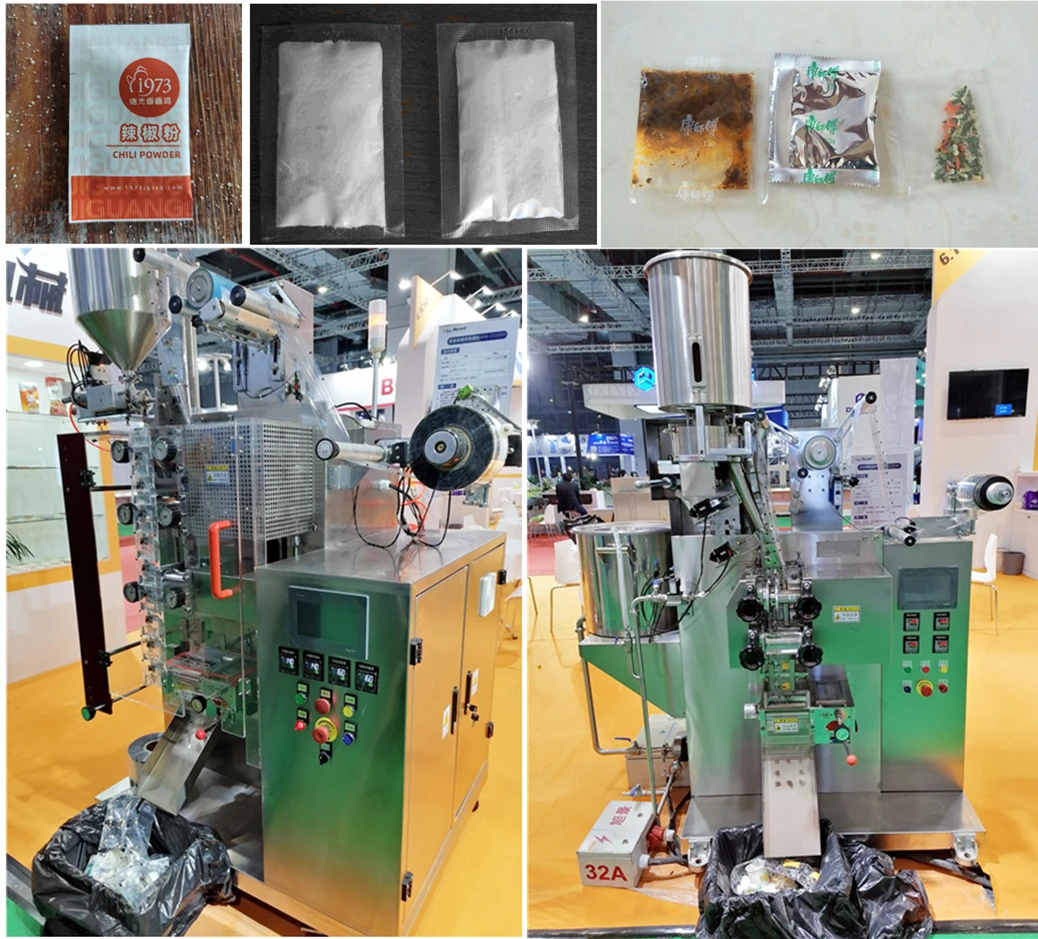

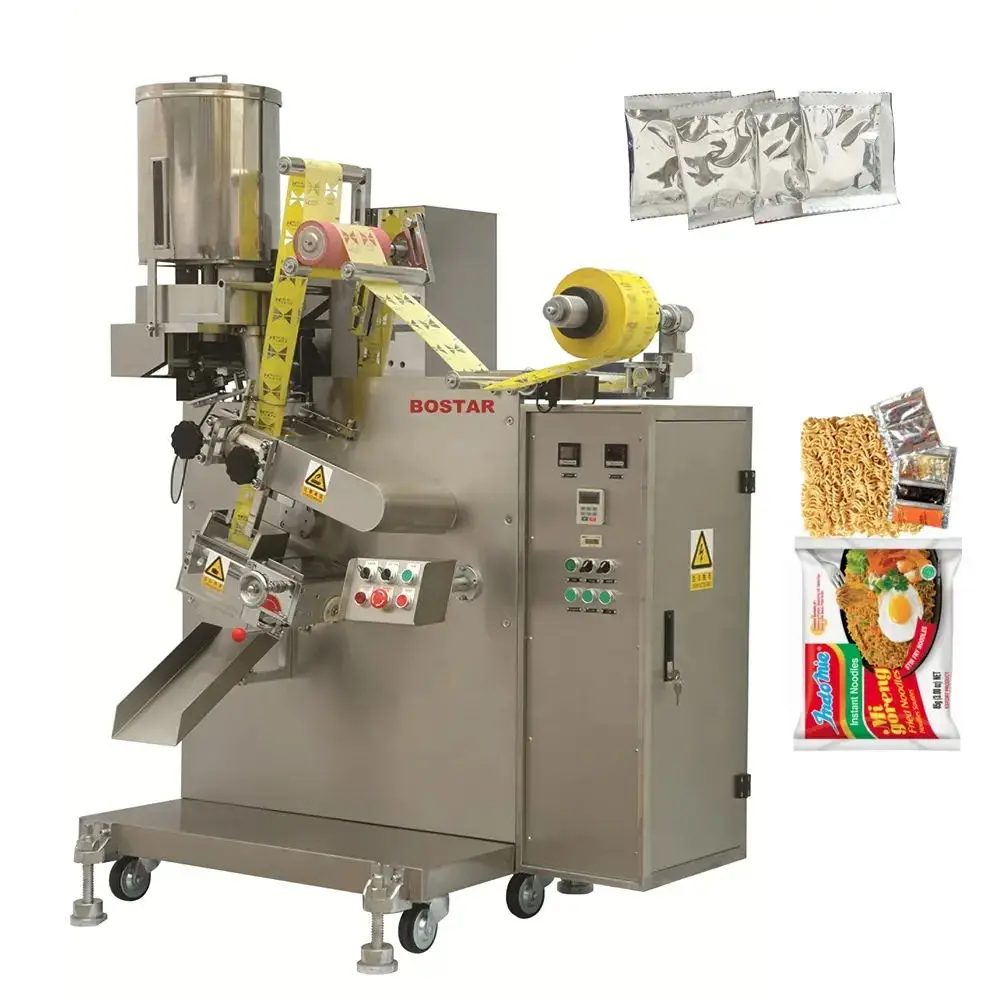

Small pouch vertical packing machine
Small pouch vertical packing machine, able to pack 3 sides sealing bag, four sides sealing bag, back sealing bag.
Main features:
1.English and Chinese screen display, operation is simple.
2.PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3.It can stock ten dispose, simple to change variety.
4.Sever motor drawing film, position accurately.
5.Temperature independent control system, precision get to 1 centigrade.
6.Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
7.Bag-making, sealing, packing, print date in one operation.
8.Work circumstance quiet, low noise.
Small pouch vertical packing machine, able to pack 3 sides sealing bag, four sides sealing bag, back sealing bag.
Main features:
1.English and Chinese screen display, operation is simple.
2.PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3.It can stock ten dispose, simple to change variety.
4.Sever motor drawing film, position accurately.
5.Temperature independent control system, precision get to 1 centigrade.
6.Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
7.Bag-making, sealing, packing, print date in one operation.
8.Work circumstance quiet, low noise.

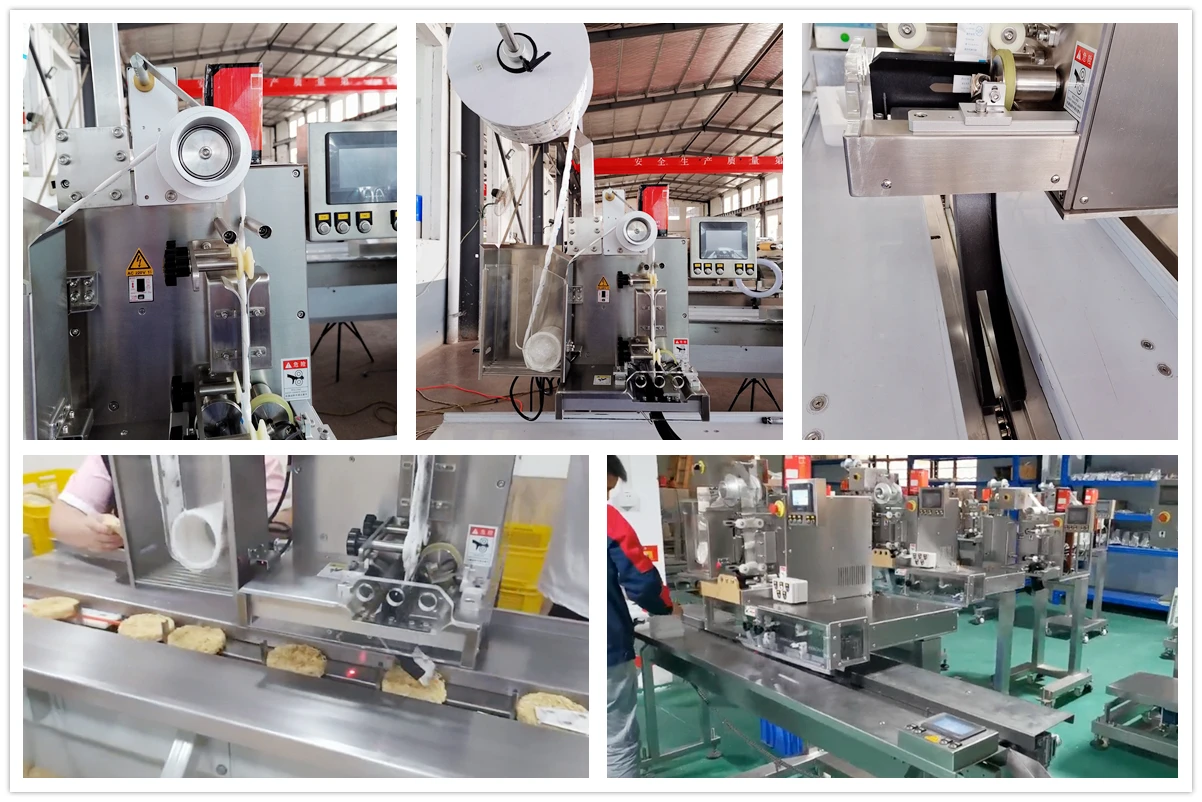

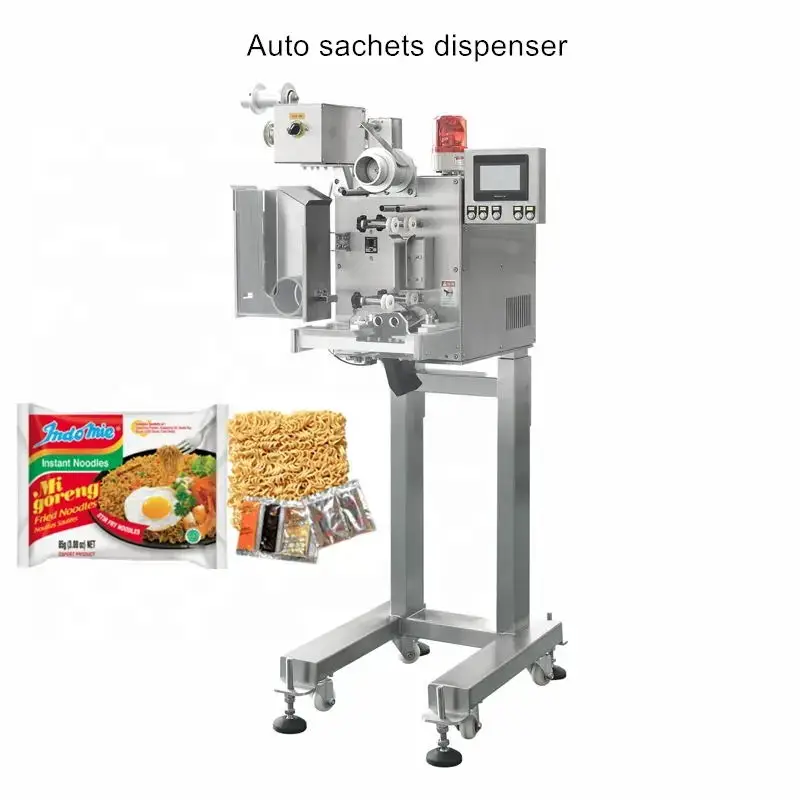

Automatically cutting and dispensing for the linked bags of food, commodity, chemical industry, medicine etc.
Model | BOS240 | BOS240G | BOS180G | BOS180B | BOS120G |
Max Capacity (pcs/min) | 240 | 240 | 180 | 180 | 120 |
Test Sensor | Ultrasonic | Ultrasonic | Basic Mark | Basic Mark | Basic Mark |
Sachet Length (mm) | 30~120 | 30~120 | 30~120 | 30~120 | 30~120 |
Sachet Width (mm) | 30~90 | 30~100 | 25~65 | 15~60 | 25~65 |
Sachet Thickness (mm) | 2~15 | 2~25 | ≤ 6 | ≤ 7 | ≤ 6 |
Power (kw) | 1 | 1 | 1 | 1 | 1 |
Voltage | 220V 1phase 50/60HZ | 220V 1phase 50/60HZ | 220V 1phase 50/60HZ | 220V 1phase 50/60HZ | 220V 1phase 50/60HZ |
Dimension (mm) | 750(L)×700(W)×1600(H) | 750(L)×700(W)×1800(H) | 750(L)×700(W)×1600(H) | 750(L)×700(W)×1800(H) | 750(L)×700(W)×1600(H) |
Specification:
☆Max Capacity: 240 pcs/min
☆Test Sensor: Ultrasonic
☆Size for sachet: Length: 30~120mm，Width: 30~90mm，Thickness: 2~15mm
☆Power: 220V AC Single-phase 50/60HZ 1KW
☆Overall dimension: 750(L)×700(W)×1600(H)mm
Main features:
1.Efficiency：Automatically fit difference sachet, Automatically feeding, cutting and dispensing, max capability 240 pouches per minute;
2.Convenience: Easy to operate and maintain, Just press Feed & Start the dispenser will work automatically;
3.Stability: Detecting by ultrasonic, driving by dual-servo motor, Assured accurately cutting off and accurately dispensing;
4.Health: Machine feeding to avoid touch food by hand, complied with hygiene requirements.
☆Max Capacity: 240 pcs/min
☆Test Sensor: Ultrasonic
☆Size for sachet: Length: 30~120mm，Width: 30~90mm，Thickness: 2~15mm
☆Power: 220V AC Single-phase 50/60HZ 1KW
☆Overall dimension: 750(L)×700(W)×1600(H)mm
Main features:
1.Efficiency：Automatically fit difference sachet, Automatically feeding, cutting and dispensing, max capability 240 pouches per minute;
2.Convenience: Easy to operate and maintain, Just press Feed & Start the dispenser will work automatically;
3.Stability: Detecting by ultrasonic, driving by dual-servo motor, Assured accurately cutting off and accurately dispensing;
4.Health: Machine feeding to avoid touch food by hand, complied with hygiene requirements.

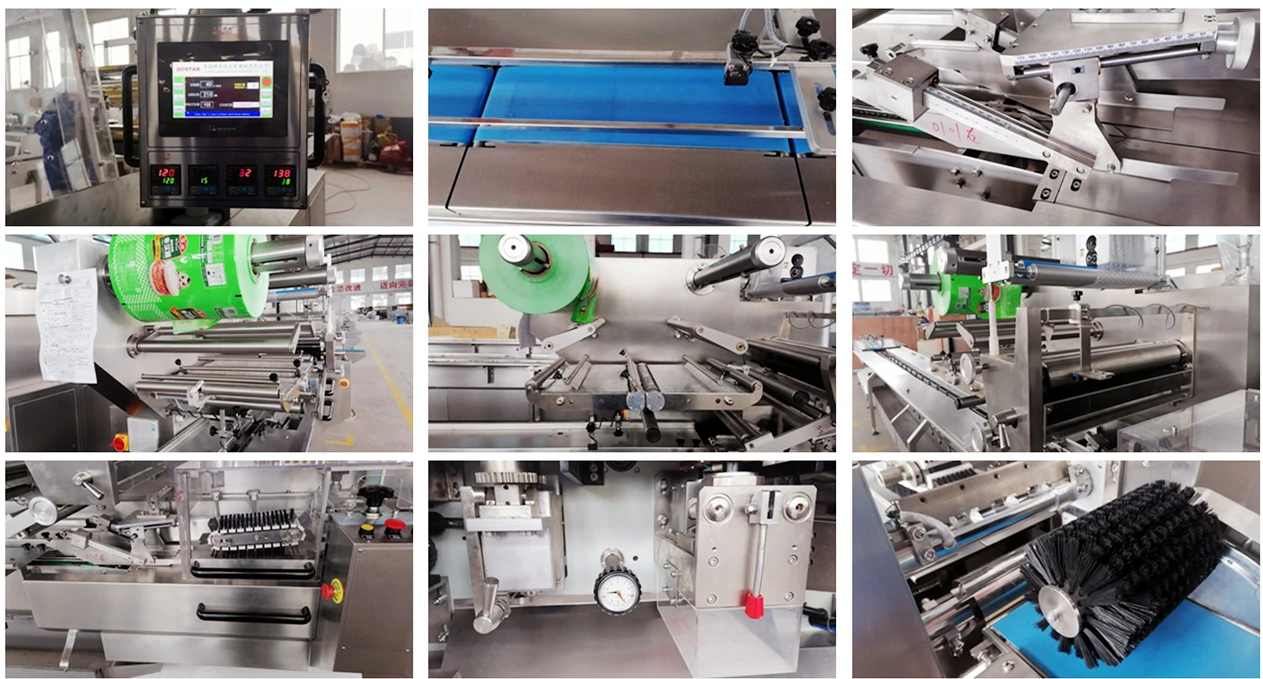

Detailed Images

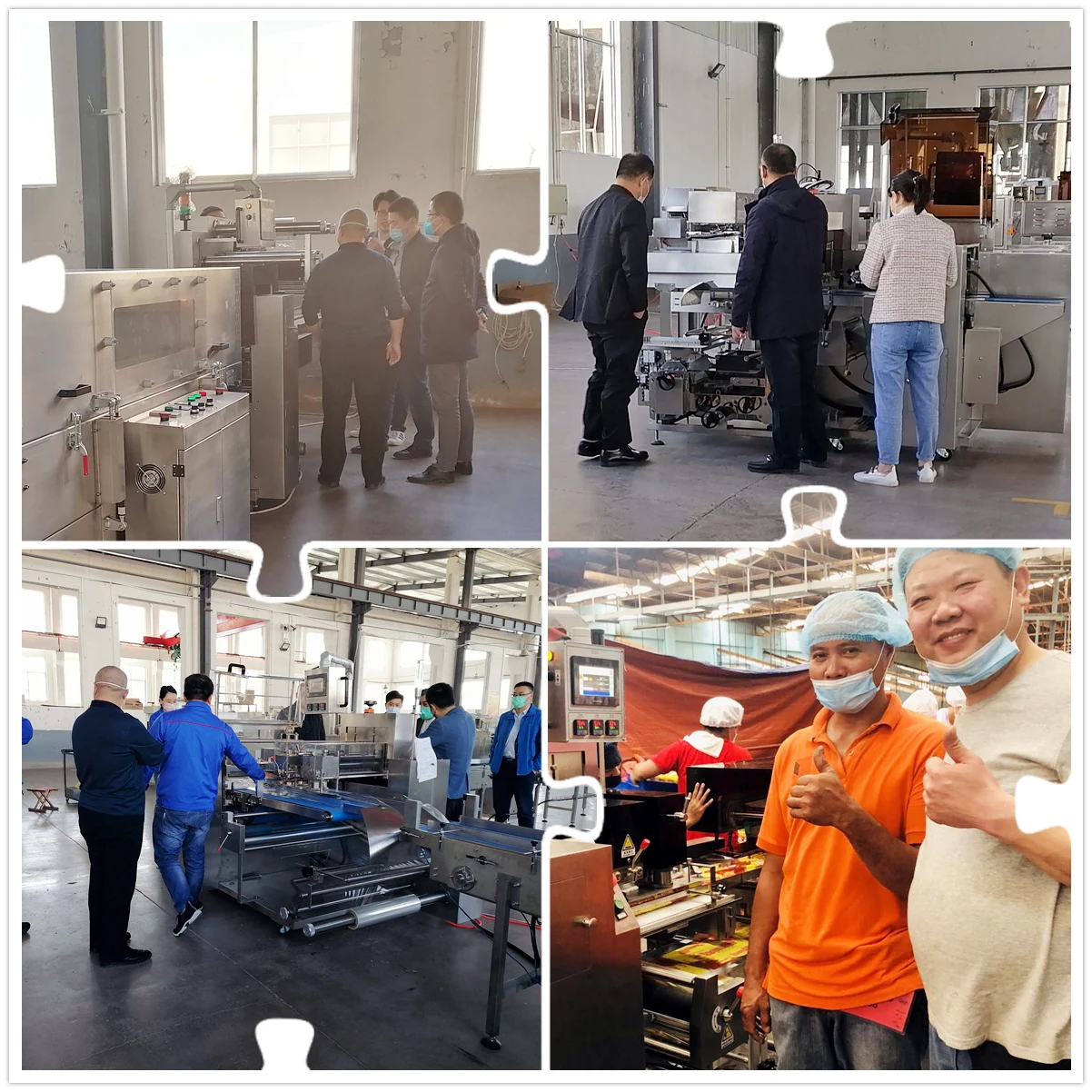

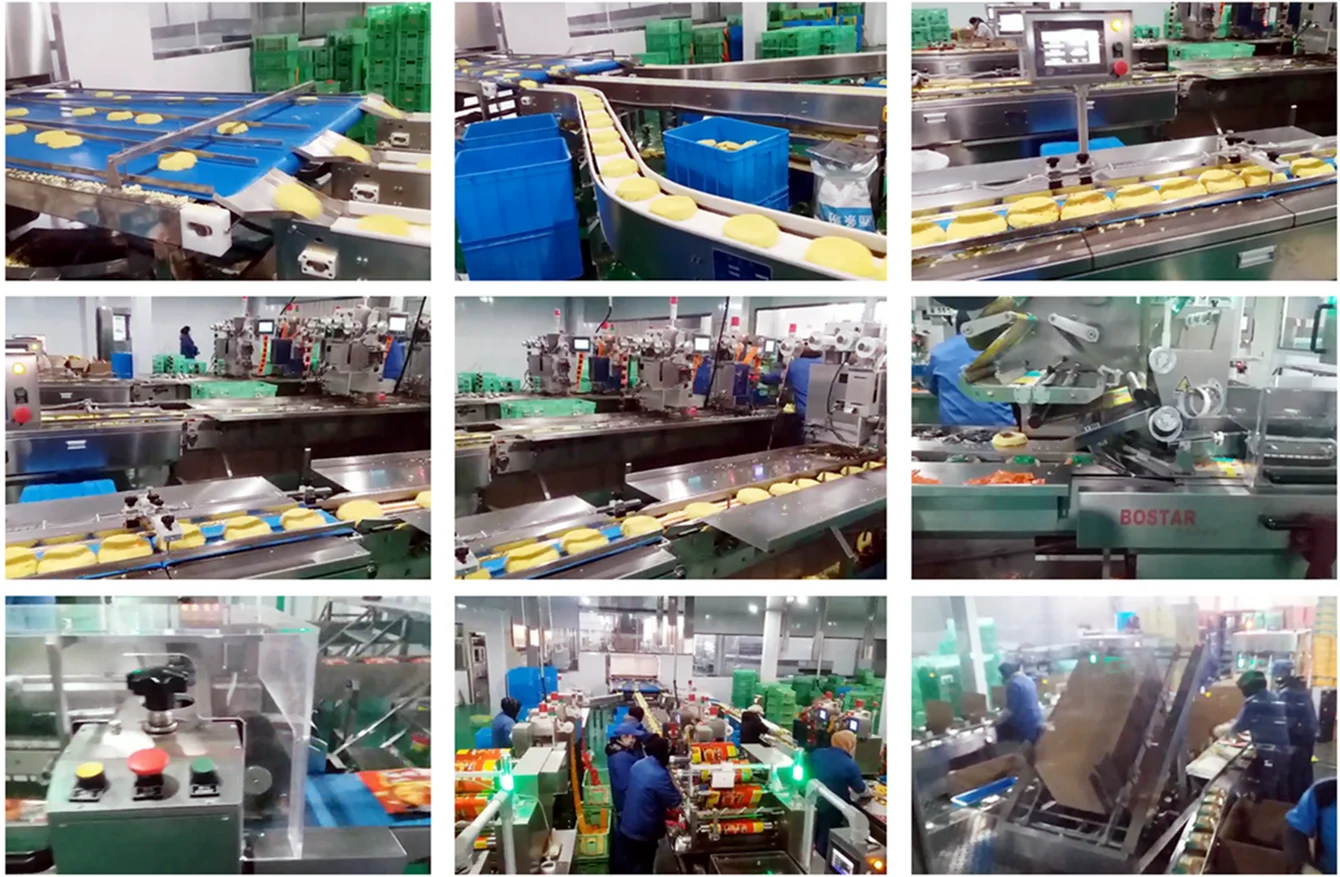

Customer's factory
We design packing solution according to customer's requirement, capacity and factory space.

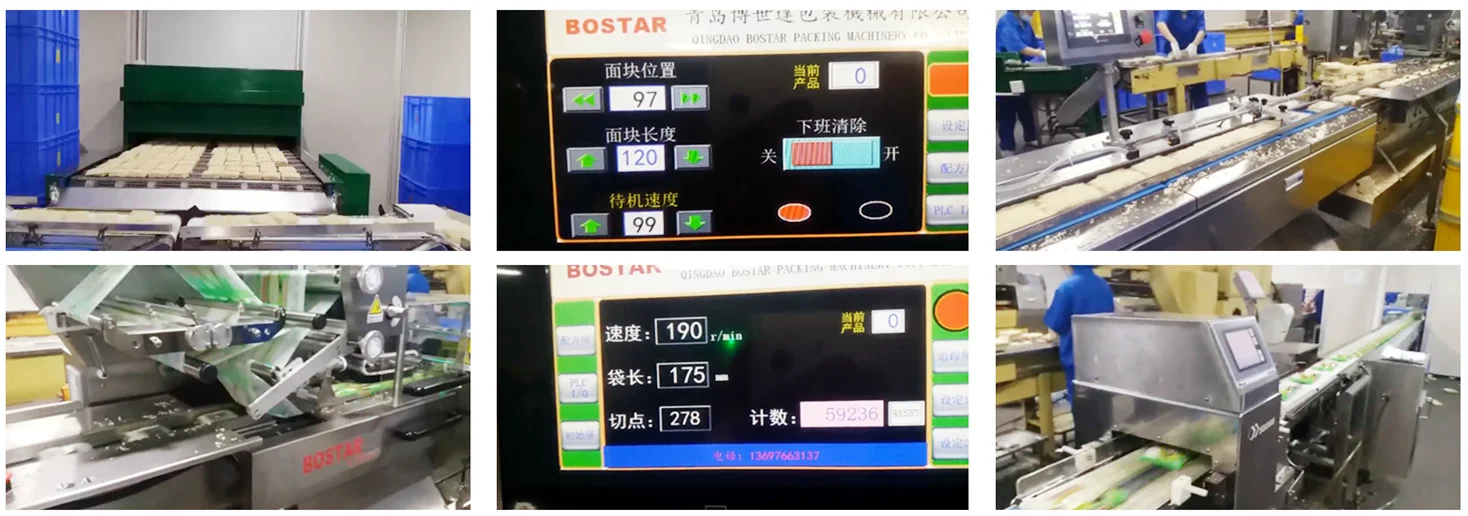

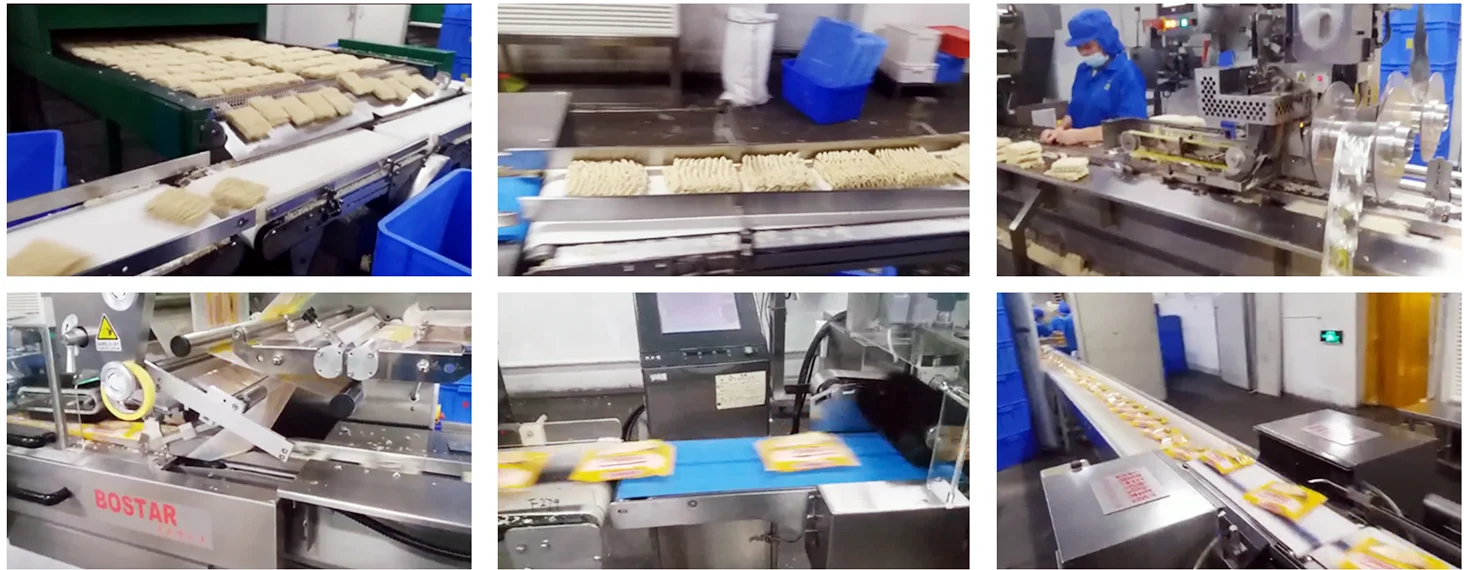

One drag two packing line
Instant noodle separate into two lines and packing with two sets of packing machine. The two lines equip different flavor seasoning pouch dispenser machine, use different packing film, able to pack different flavor instant noodle product at one time. As the touch screen shows, 190 bags per minute for one set, total packing speed is 380 bags per minute.
Green bag packing line
Green bag packing line
Yellow bag packing line
Instant noodle separate into three lines and packing with three sets of packing machine. This is usually design for large capacity factory.

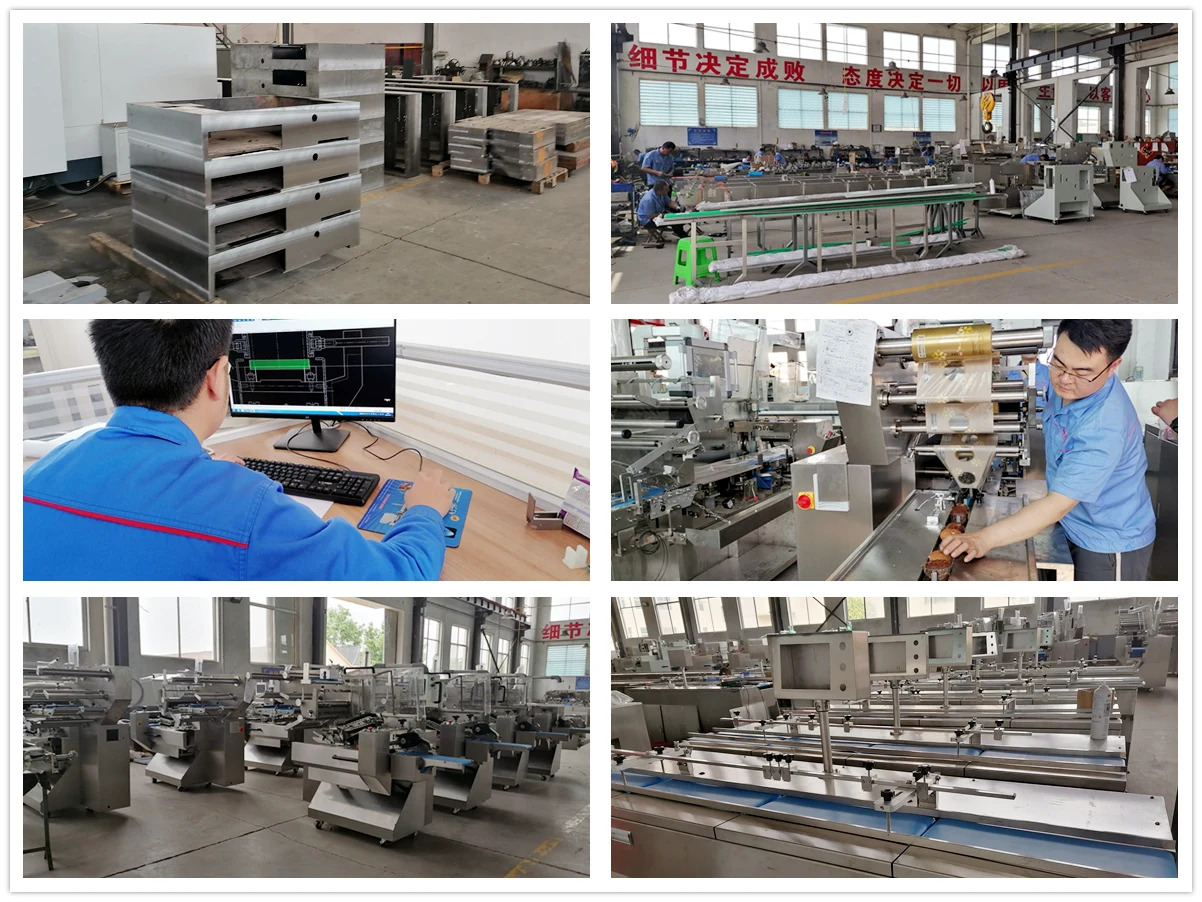

Manufacture
We have 20000 square metes factory, more than 100 employees, every one of BOSTAR packing machine is customized as characteristic of product and customer's requirement. Equip best quality electric element, process spare part by manual and machine, precise assembly, and after many times of debugging and running, to be a finished and perfect set of packing machine.
Packing & Shipping

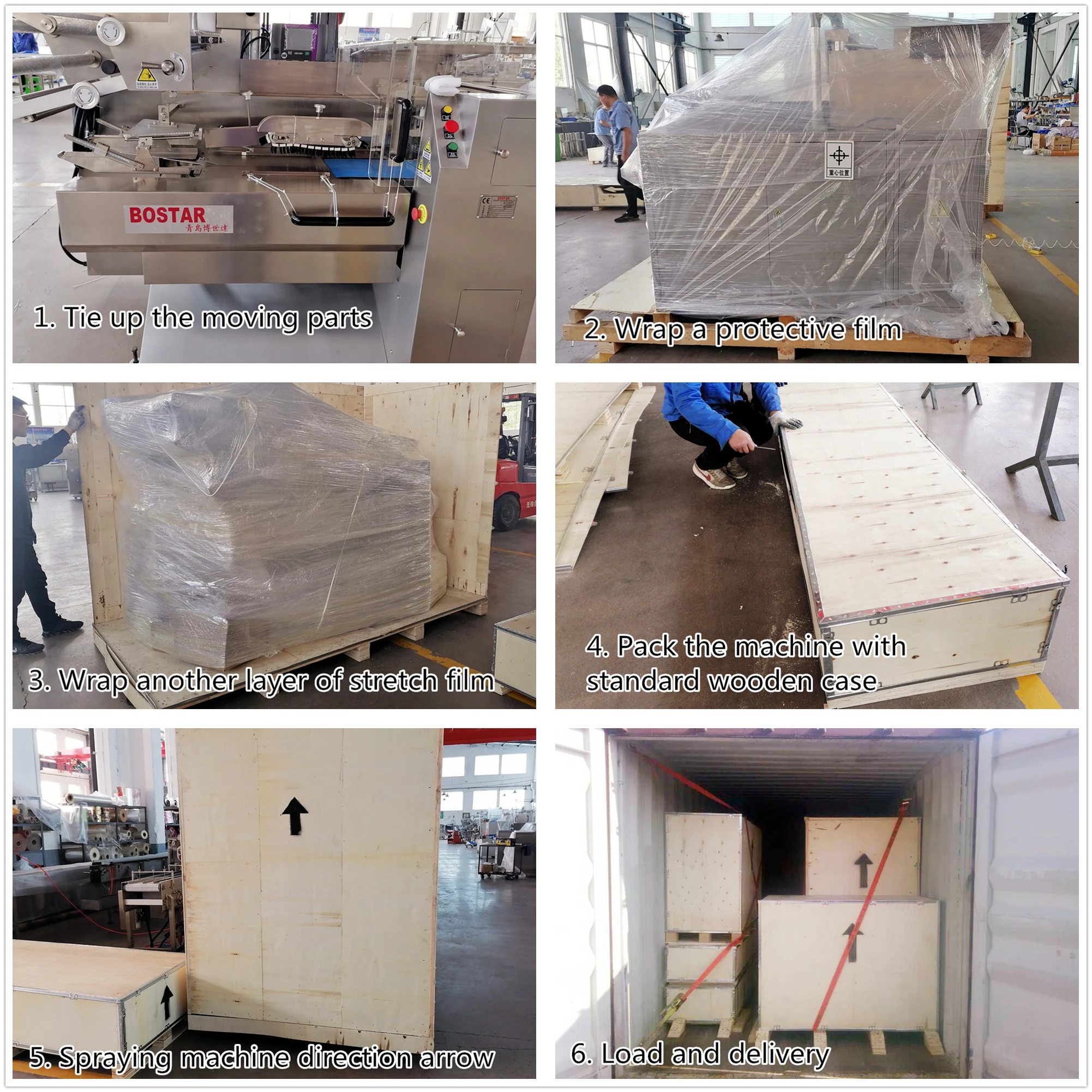

For packaging, we will fix the easily movable parts first with nylon cable ties. Cover with protection film, then cover with stretching film. Then cover with international standard wooden case.
If standard model of packing machine and have in stock, will leave factory in 3 days after receive payment.
If customizes special packing machine, will leave factory in 30 days after receive payment.
If standard model of packing machine and have in stock, will leave factory in 3 days after receive payment.
If customizes special packing machine, will leave factory in 30 days after receive payment.
Our Strength
☆Specializes in the R&D and production of packaging machinery in the food and daily necessities industries, such as bakery products, instant noodles, biscuits, solid products, seafood packaging and etc.
☆Self-owned brand with market competitiveness, and launched a series of products such as heat shrink packaging machine, automatic feeder, automatic film-connection, full system packing line and products packaging without tray to meet the needs of different customers.
☆Complete independent research, processing, sales and after-sales service system, and has a team of high-quality young and highly innovative team spirit.
☆Moreover, overseas after-sales service engineers will provide installation and training instruction as per customers' requirement.
Our Service
Pre-sales service
★Inquiry and consulting support
★Sample testing support
★View our factory
After-sales service
★Training how to install the machine
★Training how to use the machine
★Engineers available to service machinery overseas
★Inquiry and consulting support
★Sample testing support
★View our factory
After-sales service
★Training how to install the machine
★Training how to use the machine
★Engineers available to service machinery overseas

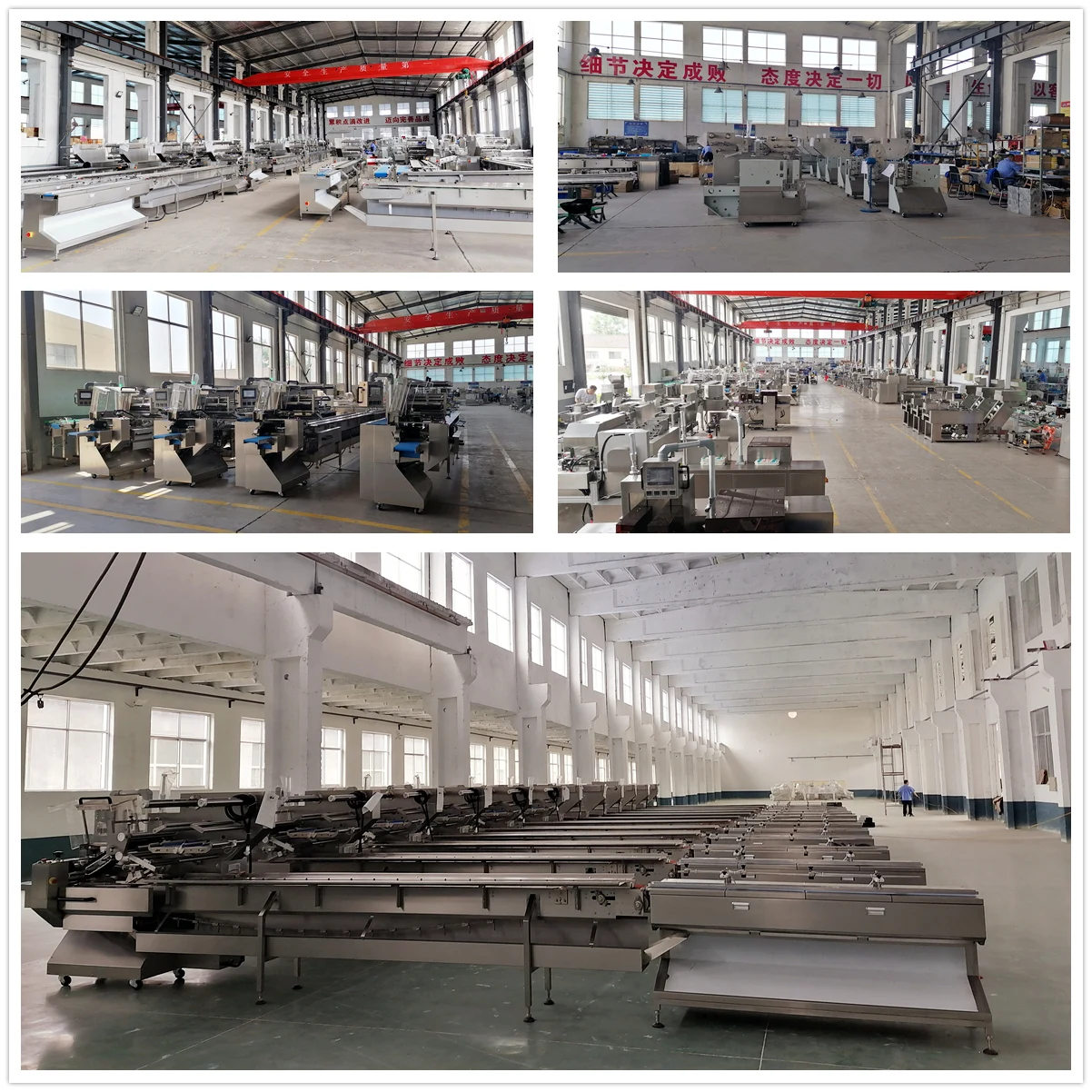

Our Factory
☆Sheet metal factory, manufacture and machining the spare parts by ourselves. We have CNC lathe, CNC bending machine, CNC grinding machine, CNC turning and milling machining center and many other automatic machining machine.
☆We have a warehouse where spare parts and various other materials are stored in different categories for easily pick up and store.
☆We have two assembly workshops, assembly conveyor and main frame of packing machine.
☆Two debugging workshops, workers will debug the finished assembly machine here and adjust according to customer's requirement.
☆Finished workshop, after debugging, packing machine will be here, run for several days to make sure no failure.
☆We have a warehouse where spare parts and various other materials are stored in different categories for easily pick up and store.
☆We have two assembly workshops, assembly conveyor and main frame of packing machine.
☆Two debugging workshops, workers will debug the finished assembly machine here and adjust according to customer's requirement.
☆Finished workshop, after debugging, packing machine will be here, run for several days to make sure no failure.
A: We are manufacturer factory professional in manufacturing the flow/horizontal/pillow packing machine with the design, research, development, customization and innovation according to market change and customer demand.
We warmly welcome you to visit our factory, and we will show you around our factory, including sheet metal workshop, machining workshop, assembly workshop, debugging workshop and so on. You will see the whole process of the manufacture of our packing machine, as well as the packing process of any product you want.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. When order large quantity of machines, or customized machine according to special product, it will take 10-20 days.
We will do our best to meet our customers' requirements.
Q: Do you provide overseas after-sales services ? is it free or extra ?
A: 1. For technical training on adjustment and operation of the equipments at abroad, the seller shall send technicians to the buyer's factory while the buyer shall be charged for such service cost including round-air ticket, boarding & lodgings, visa fee as well as daily service fee of USD100.00.
2. For damaged spare parts resulting from quality problem, the seller shall supply the buyer free of charge for replacements within the guaranty period. Otherwise, the buyer shall buy parts at own expenses.
Q: What is your terms of payment ?
A: Payment term: 50% of total value to be paid by T/T as down payment, and the 50% balance payment to be paid prior before shipment.
Of course, we will based on our customers' available payment type, it can be discussed according tot the special condition.
Why choose us?
2. Embrace the innovation customization and flexibility.
3. Every cent you spent on purchasing our packing machine will be worthy.
4. Provide the perfect packing solution based on the you need.
5. Extremely high quality of machine and professional technical after-sales service.
