Product Overview
Description
Product Description

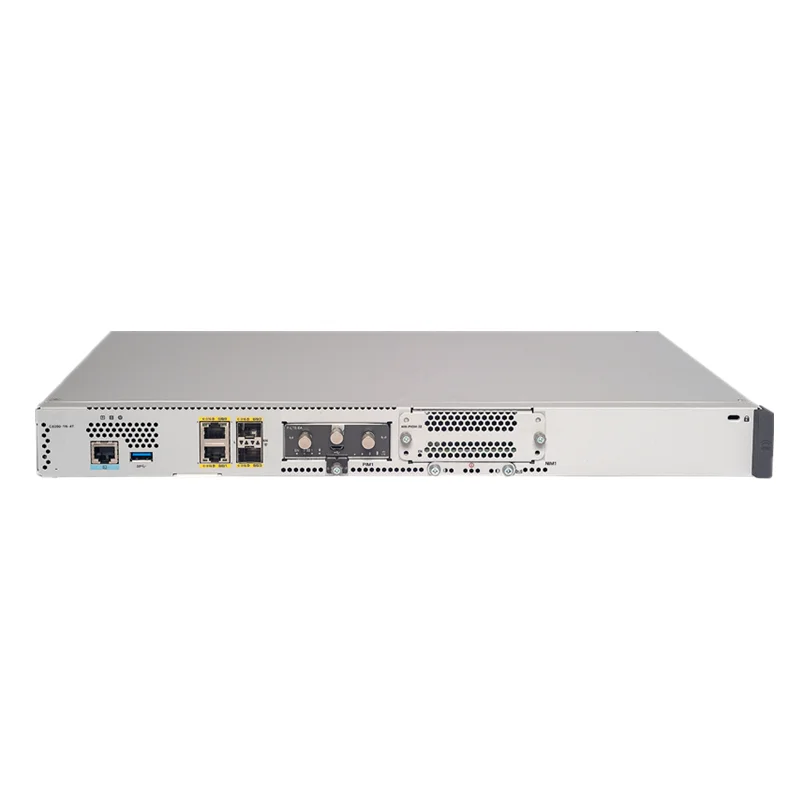

C8200L-1N-4T 8200 Series Gigabit Ethernet router Edge Platforms uCPE
C8200L-1N-4T Specification | |
Description | C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports |
Multicore processors | Intel x86 CPU with 4 GB memory default |
Embedded IPsec VPN hardware acceleration | up to 500 Mbps IPsec traffic |
SD-WAN overlay tunnels scale | 1500 |
Integrated Gigabit Ethernet ports | 4 built-in Ethernet WAN ports 2 SFP Ethernet ports, 2 RJ45 ports |
Flash memory support | 8-GB flash |
Power supply | AC power supply |
Modularity and form factor | 1-Rack Unit (1RU) form factor Supports NIM and Pluggable Interface Module (PIM) slots |
1G port density | 4 |
Slots | 1 NIM 1 PIM |
DRAM | 4 GB |
Storage (M.2 SSD) default | 16 GB |
IPv4 forwarding throughput (1400 bytes) | Up to 3.8 Gbps |
IPsec throughput (1400 bytes, clear text**) | Up to 500 Mbps |
Number of IPsec static virtual tunnel interface (SVTI) tunnels | 1500 |
Number of access control lists (ACLs) per system | 4000 |
Number of IPv4 access control entries (ACEs) per system | 72,000 |
Number of IPv4 routes | 800,000 with default 4 GB, up to 4M with 32 GB |
Number of IPv6 routes | 800,000 with default 4 GB, up to 4M with 32 GB |
Number of queues | 16,000 |
Number of Network Address Translation (NAT) sessions | 600,000 with default 8 GB, up to 2M with 32 GB |
Number of firewall sessions | 512,000 |
Number of Virtual Route Forwarding (VRF) instances | 2000 |
Product Code | C8200L-1N-4T | |
Product Description | C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports | C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports |
Multicore processors | Intel x86 CPU with 4 GB memory default | Intel x86 CPU with 8 GB memory default |
Embedded IPsec VPN hardware acceleration | up to 500 Mbps IPsec traffic | up to 1 Gbps IPsec traffic |
DRAM | 4 GB | 8 GB |
SD-WAN overlay tunnels scale | 1500 | 2500 |
IPv4 forwarding throughput (1400 bytes) | Up to 3.8 Gbps | Up to 3.8 Gbps |
IPsec throughput (1400 bytes, clear text**) | Up to 500 Mbps | Up to 1 Gbps |
Number of IPsec static virtual tunnel interface (SVTI) tunnels | 1500 | 2500 |
