Air Filter Air Cleaning Equipment FFU Fan Filter Unit Air Purifier for Sandwich Panel Modular Clean Room Mushroom Laboratory
- Category: >>>
- Supplier: Suzhou Dongri Purification Technology Co. Ltd.Suzhou Ltd.
Share on (1601020437142):
Product Overview
Description
Key Attributes
Item Name | FFU (fan filter unit) | ||||
Certifications | CE, GMP, FCC and ISO | ||||

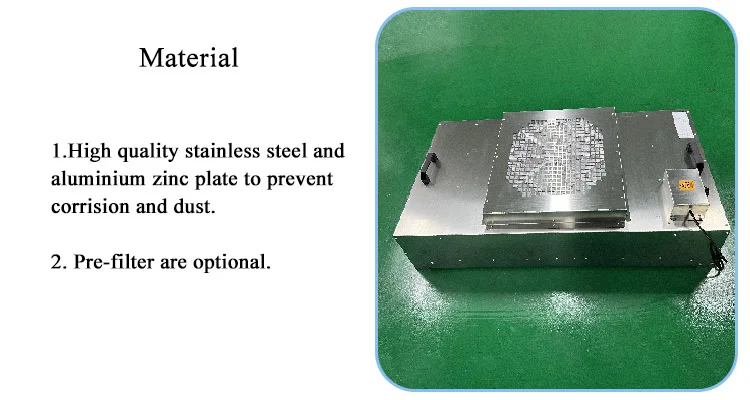

Material | SUS steel/galvanized steel/cold rolled steel/super galum | ||||
Color | Picture Shows | ||||
Voltage | 220V/50Hz | ||||
Power(W) | 160-200w | ||||
Speed | 0.3-0.6m/s (adjustable) | ||||
Total static air pressure | 320pa, 110pa | ||||
purification rank | class 100-100000 customized | ||||
Model | HEPA ( high effiency penentration air fillter) /ULPA ( ultra low penentration air fillter) | ||||
HEPA efficiency(%@0.3 um) | 99.99% | ||||
Air volume of fan (CFM) | 500--2000m³/h | ||||
Noise(dB) | ≤65db | ||||
Warranty | 1 year (Except the consumables) | ||||
Products Description

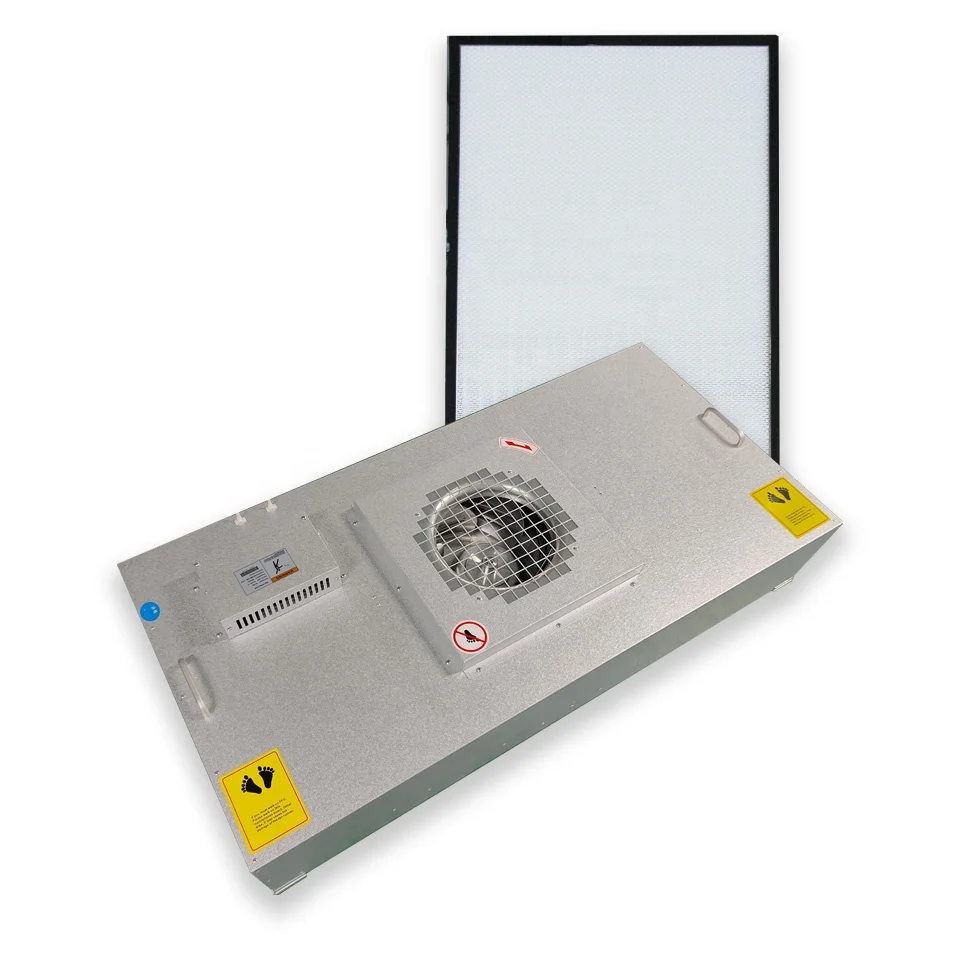

FFU

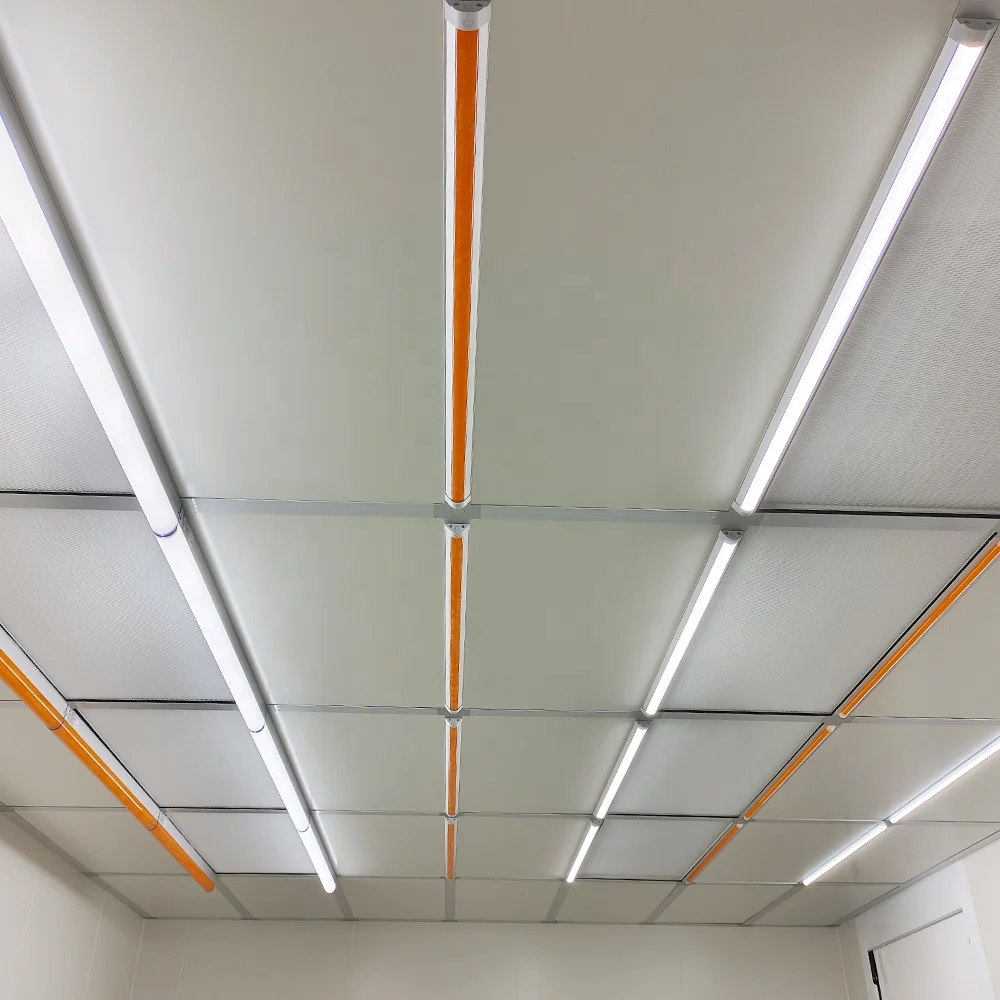

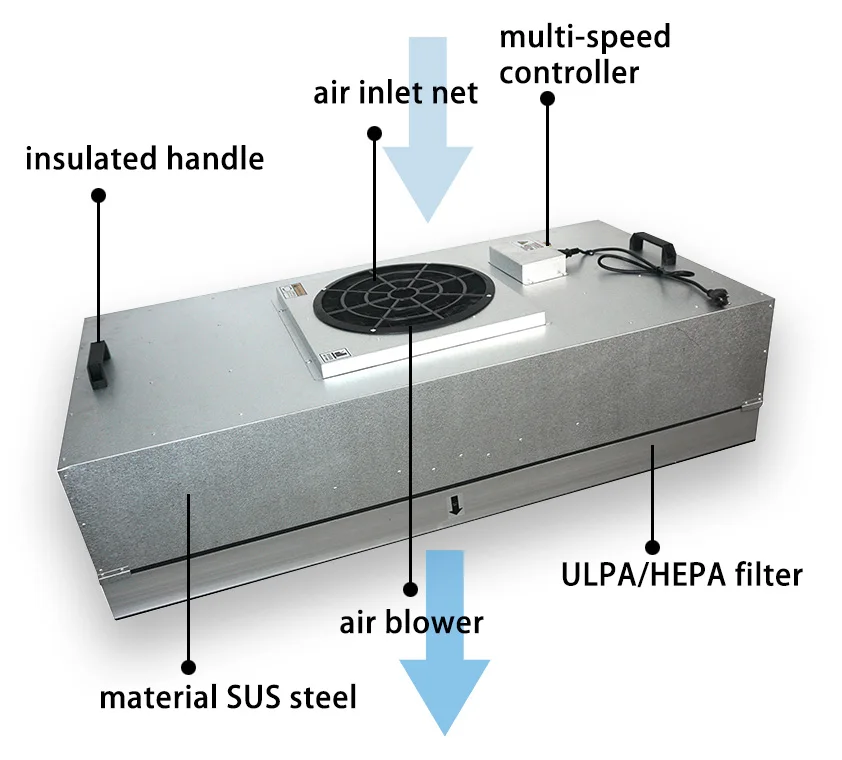

The Fan Filter Unit, also called FFU, is an air supply and filtration unit in modular end. The FFU draws air on top and filters it through a HEPA. Then the filtered clean air will be sent out evenly at a pre-set speed over the air outlet. It is generally installed in the clean room ceiling for maximum efficiency and also to increase the flexibility of airflow.
External size(mm) | 575x575x230 | 1175x575x230 | 1175x1175x325 | ||
Air volume | 500m³/h | 1000m³/h | 2000m³/h | ||
Air speed | 0.45m/s±20% | ||||
Clean rank | Class 1-100 | ||||
HEPA | H14-U16 (99.99%@0.3um-99.9999%0.12um) | ||||
HEPA size | 570x570x70 | 1170x570x70 | 1170x1170x70 | ||
Noise (db) | 56-59 | ||||
Box material | Stainless steel/aluminum galvanized | ||||
Weight | 12kg | 24kg | 45kg | ||
Application

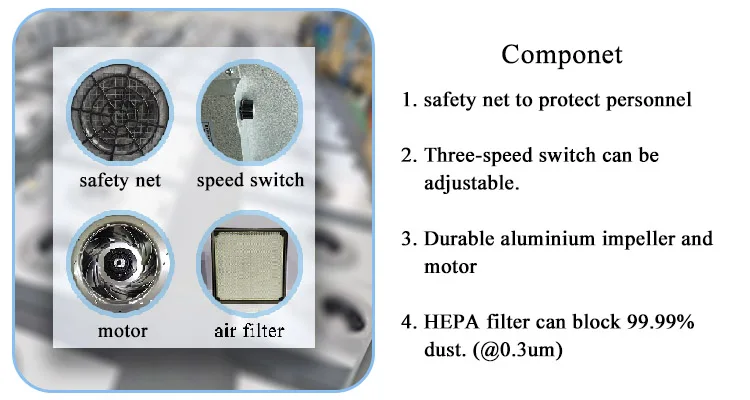

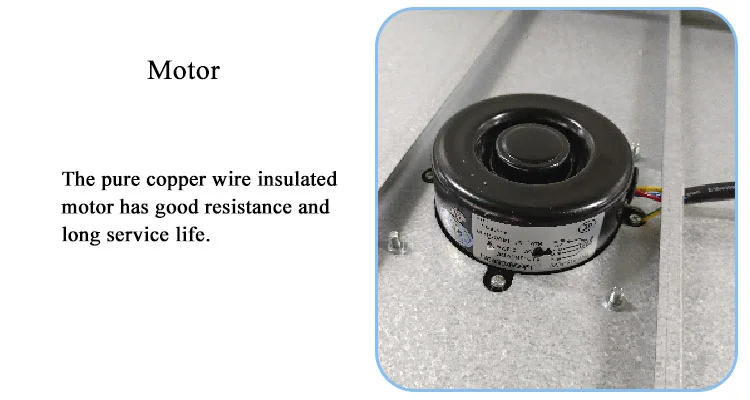

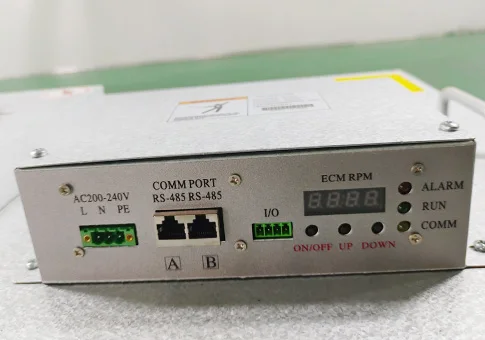

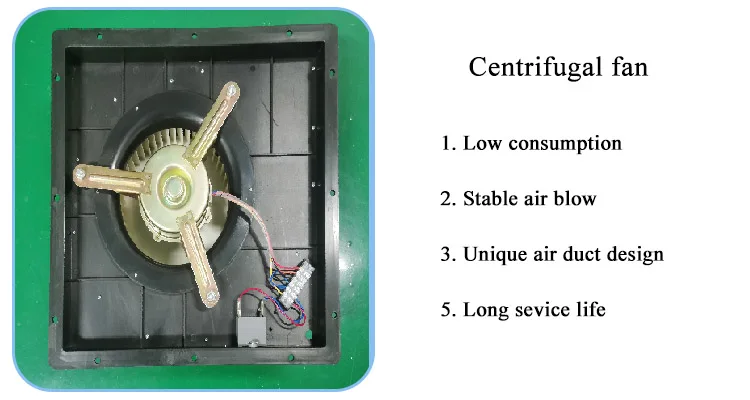

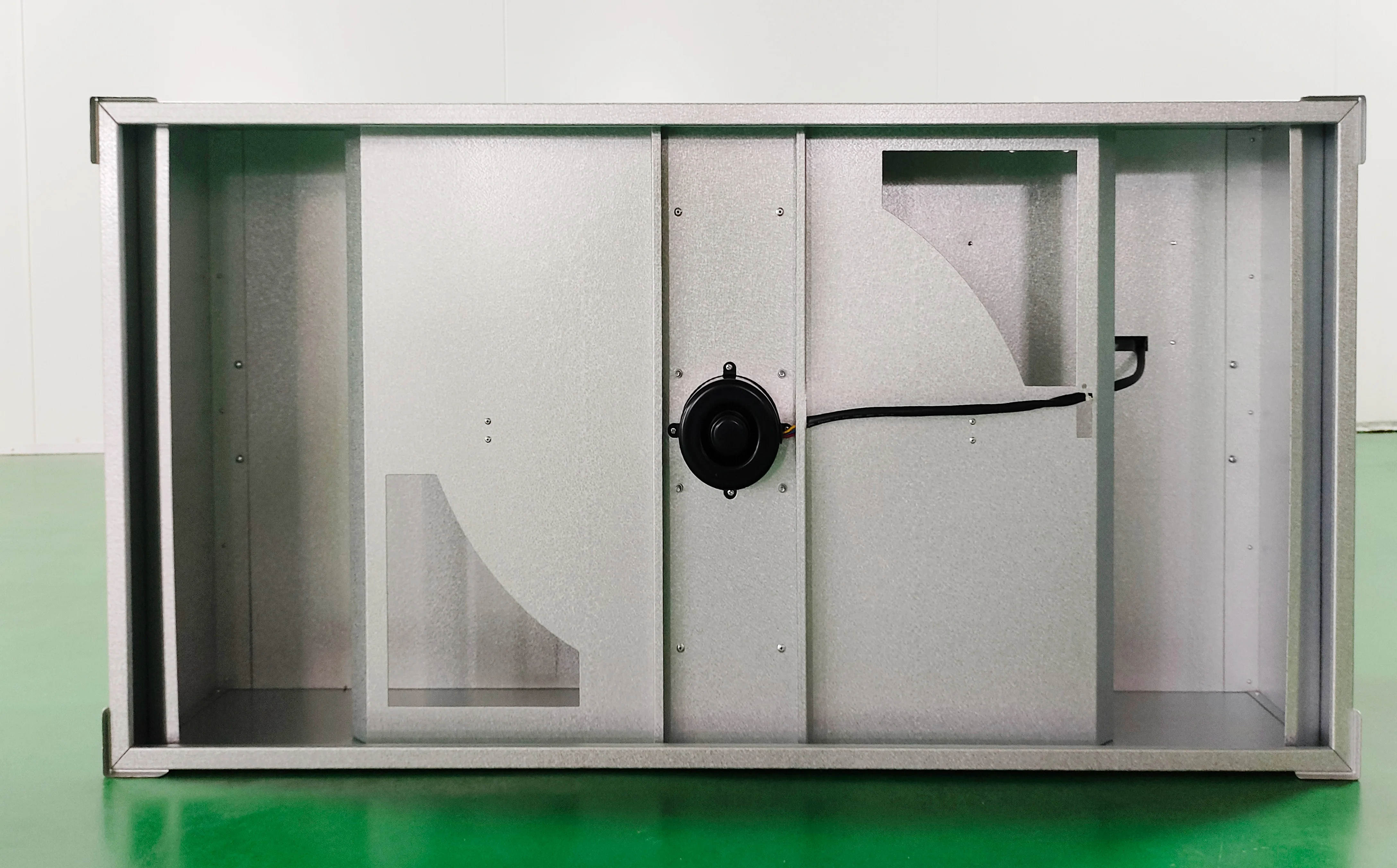

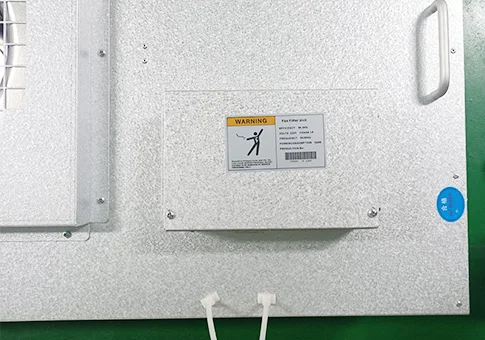

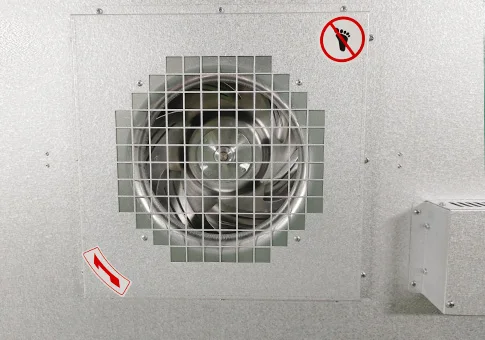

Details Images

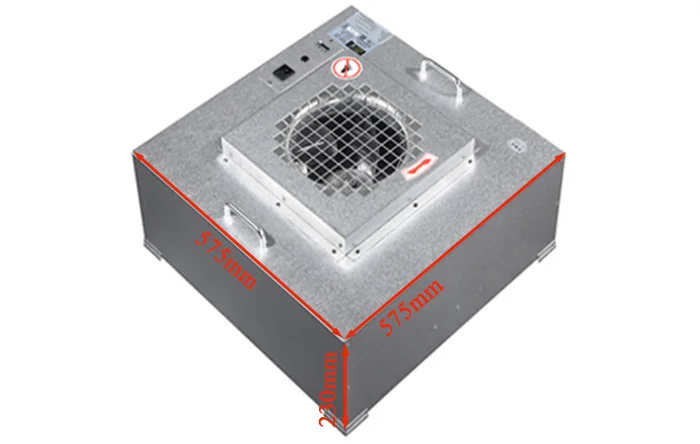

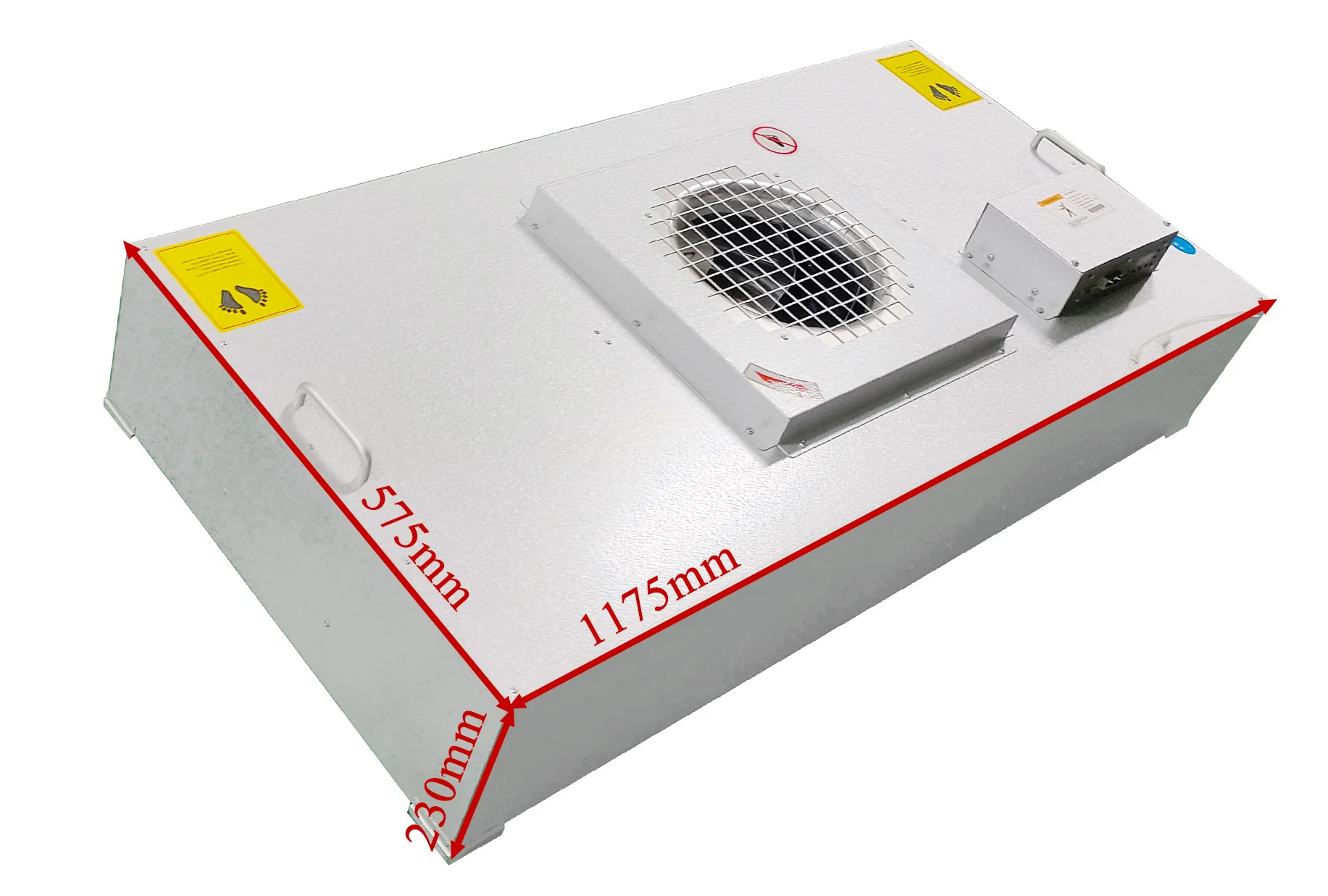

Standard specification:575x1175x230, 575x575x230
Company Profile
Q1: Who are we?
A1: We are based in Jiangsu, China, a maunfacturer in cleanroom project.
Q2: What can you buy from us?
A2: Cleanroom design and construction, clean panel, air shower, clean bench, weighing booth, filter and other relating products.
Q3: Can we provide customized products according to the requirements?
A3: Yes, of course. Please contact us and send your drawing or specifications. We can discuss and confirm the parameters you want, before the manufacturing of your product.
Q4: How can we guarantee our product quality?
Q4: How can we guarantee our product quality?
A4: High-quality materials and parts with well-designed manufacture. Pre-production sample before mass production. Final inspection before shipment.
Q5: What after-sale service you can offer?
A5: We will reply your questions within 24 hours. We offer one year warranty.
