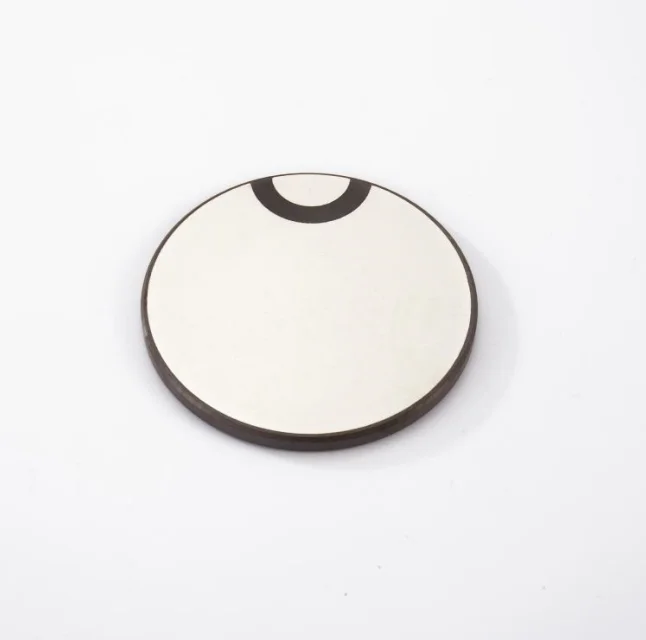

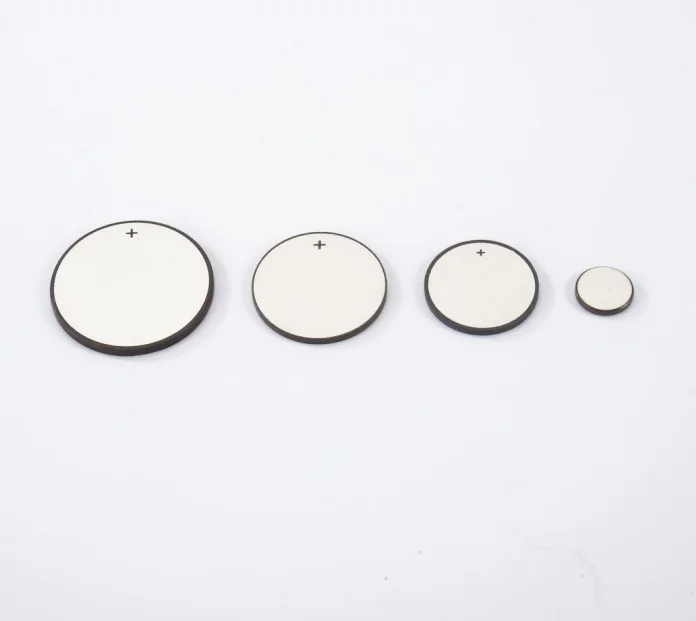

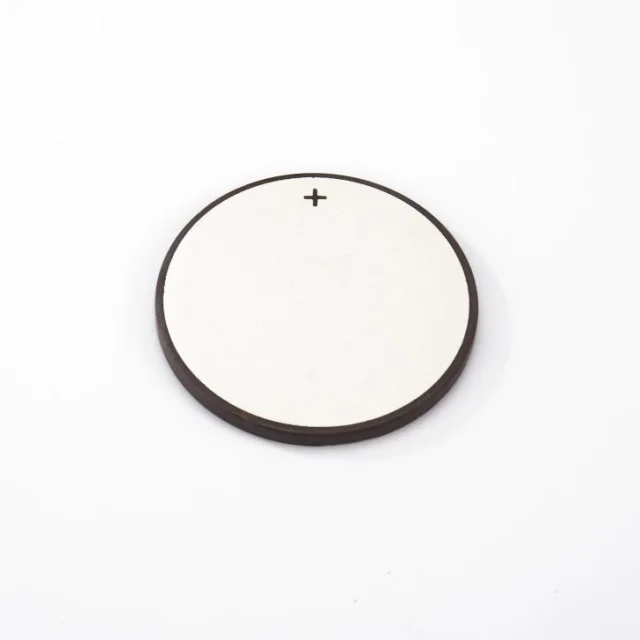

High performance PZT 1MHz Ultrasonic Piezo Element Ultrasound Ceramic disc for ultrasonic transducer beauty

Product Overview

Description

High performance PZT 1MHz Ultrasonic Piezo Element Ultrasound Ceramic disc for ultrasonic transducer beauty

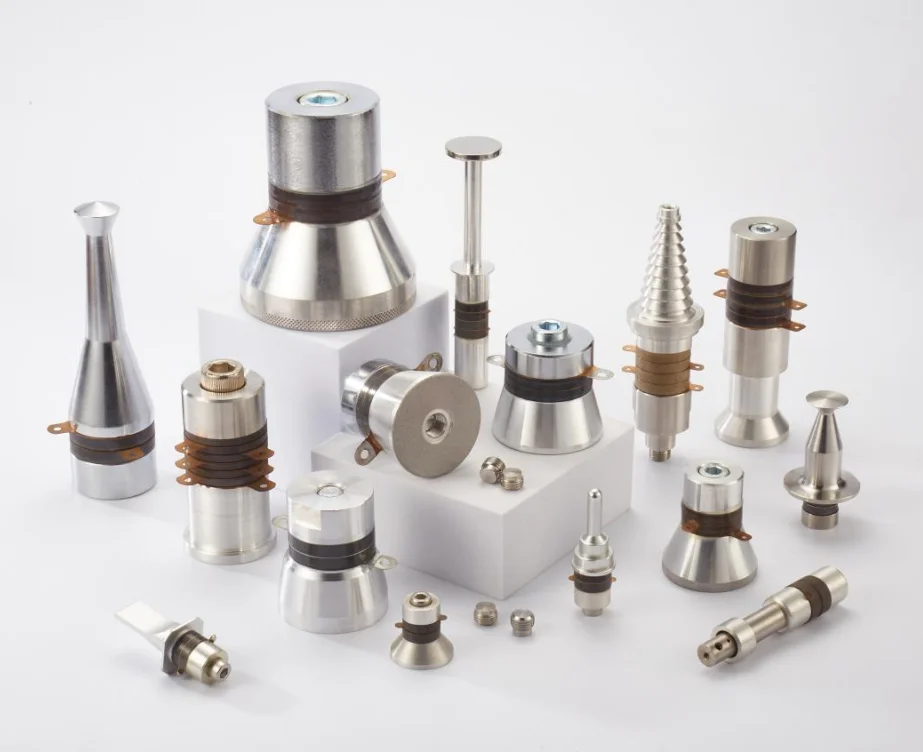

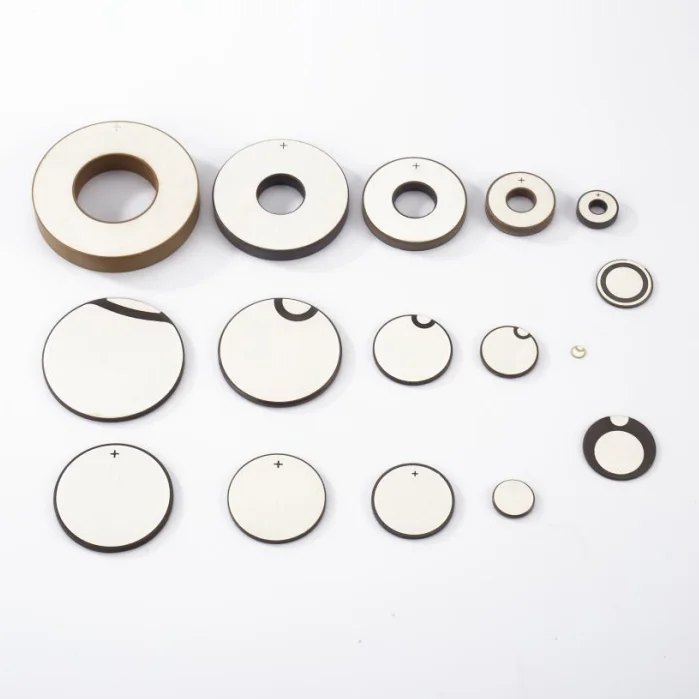

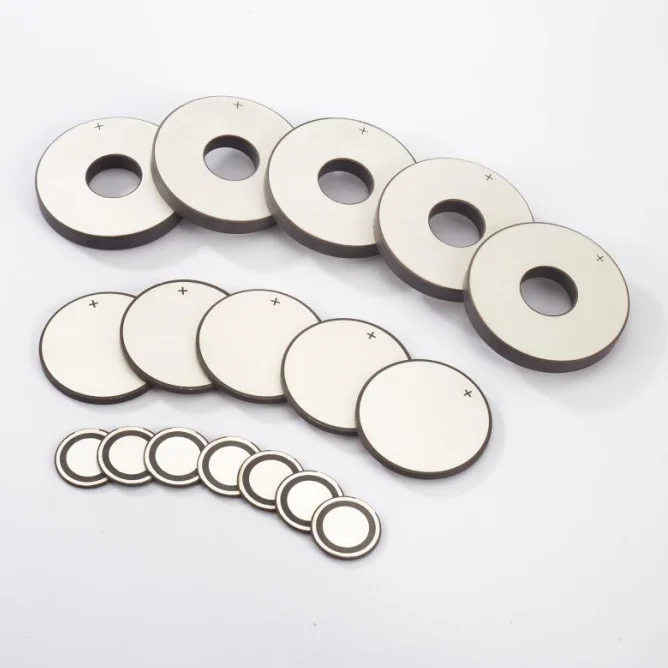

We supply all specifications of Piezoelectric Ceramic disc, Piezo Ceramic ring, Piezoelectric Sensor and transducer for choice and offer customized service.





Specification of Piezoelectric Ceramics





Classification	Model	Specifictaion  (mm)	Frequency (KHz)	Coupling Coefficient (Kp%)	Static Capacitance (Pf)
Ultrasonic Medical & Beauty Series	CL8-2.0M	Φ8*2mm	1000	≥55	500±15%
	CL8-1.0M	Φ8*1mm	2000	≥55	650±15%
	CL8-0.75M	Φ8*0.75mm	3000	≥55	800±15%
	CL10-2.0M	Φ10*2mm	1000	≥55	600±15%
	CL10-1.0M	Φ10*1mm	2000	≥55	800±15%
	CL10-0.75M	Φ10*0.75mm	3000	≥55	1000±15%
	CL12-2.0M	Φ12*2mm	1000	≥55	1300±15%
	CL12-1.0M	Φ12*1mm	2000	≥55	1500±15%
	CL12-0.75M	Φ12*0.75mm	3000	≥55	1600±15%
	CL15-2.0M	Φ15*2mm	1000	≥55	1600±15%
	CL15-1.0M	Φ15*1mm	2000	≥55	2000±15%
	CL15-0.75M	Φ15*0.75mm	3000	≥55	3800±15%
	CL16-2.0M	Φ16*2mm	1000	≥55	1800±15%
	CL20-2.0M	Φ20*2mm	1000	≥55	2000±15%
	CL20-1.0M	Φ20*1mm	2000	≥55	3800±15%
	CL20-0.73M	Φ20*0.73mm	3000	≥55	4600±15%
	CL25-2.0M	Φ25*2mm	1000	≥55	2100±15%
	CL25-0.73M	Φ25*0.73mm	3000	≥55	5600±15%
	CL28-2.0M	Φ28*2mm	1000	≥55	3600±15%
	CL28-1.0M	Φ28*1mm	2000	≥55	6800±15%
	CL28-0.73M	Φ28*0.73mm	3000	≥55	9600±15%
	CL30-2.0M	Φ30*2mm	1000	≥55	3600±15%
	CL30-1.0M	Φ30*1mm	2000	≥55	6900±15%
	CL40*2.0M	Φ40*2mm	1000	≥55	8500±15%
	CL45-2.0M	Φ45*2mm	1000	≥55	11000±15%
	CL50-2.0M	Φ50*2mm	1000	≥55	9300±15%
	CL50-1.0M	Φ50*1mm	2000	≥55	9600±15%





* We can design products of other specifications for the clients other than the mentioned above.
