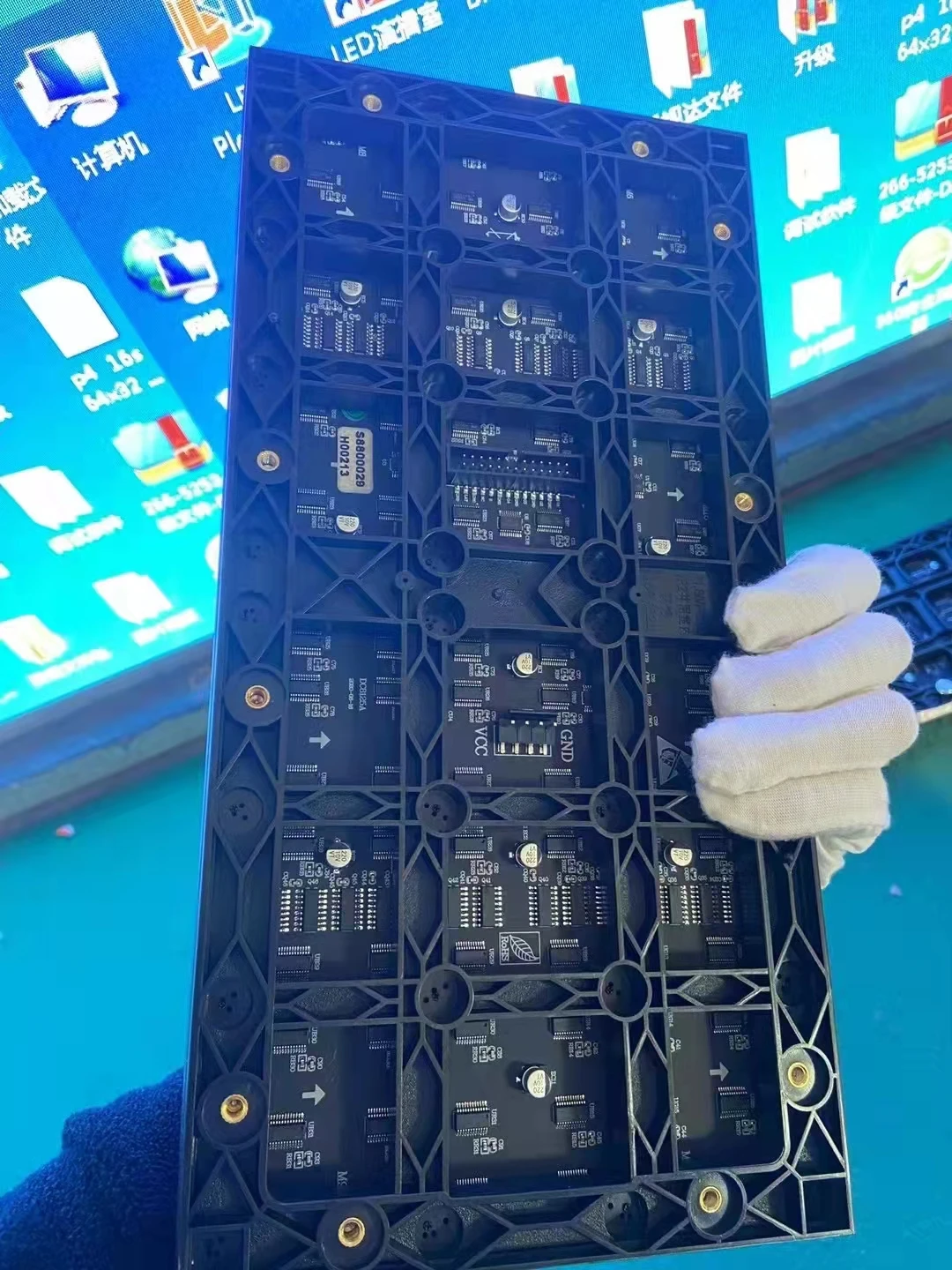

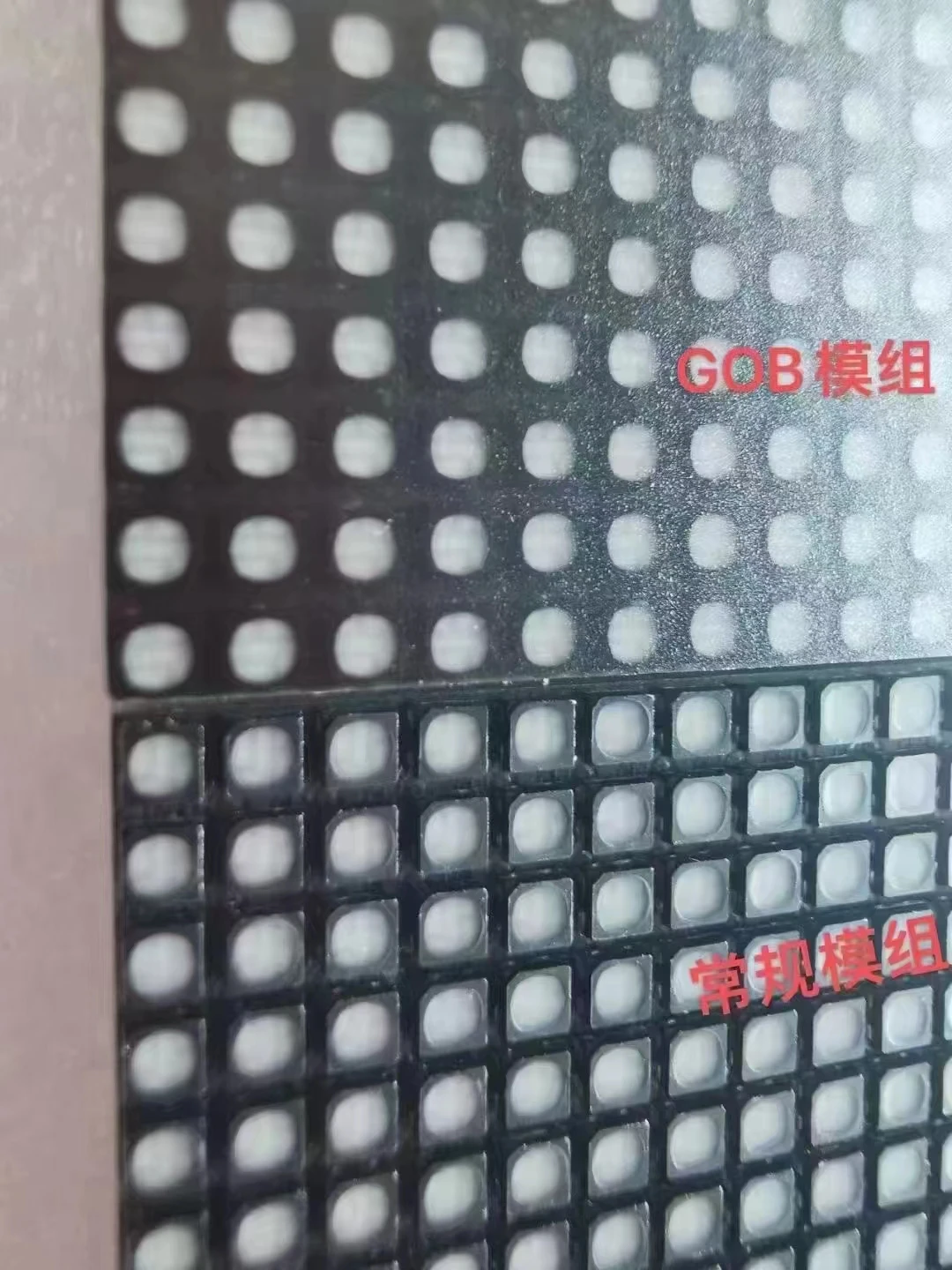

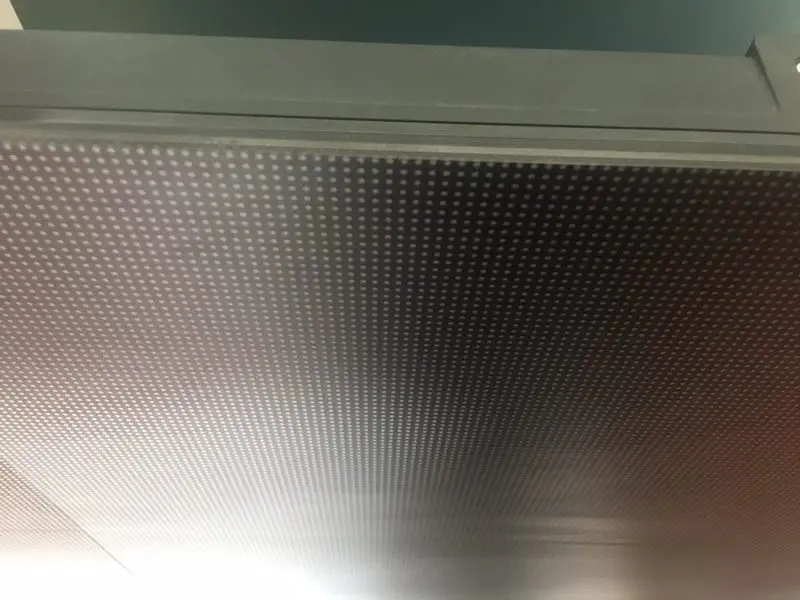

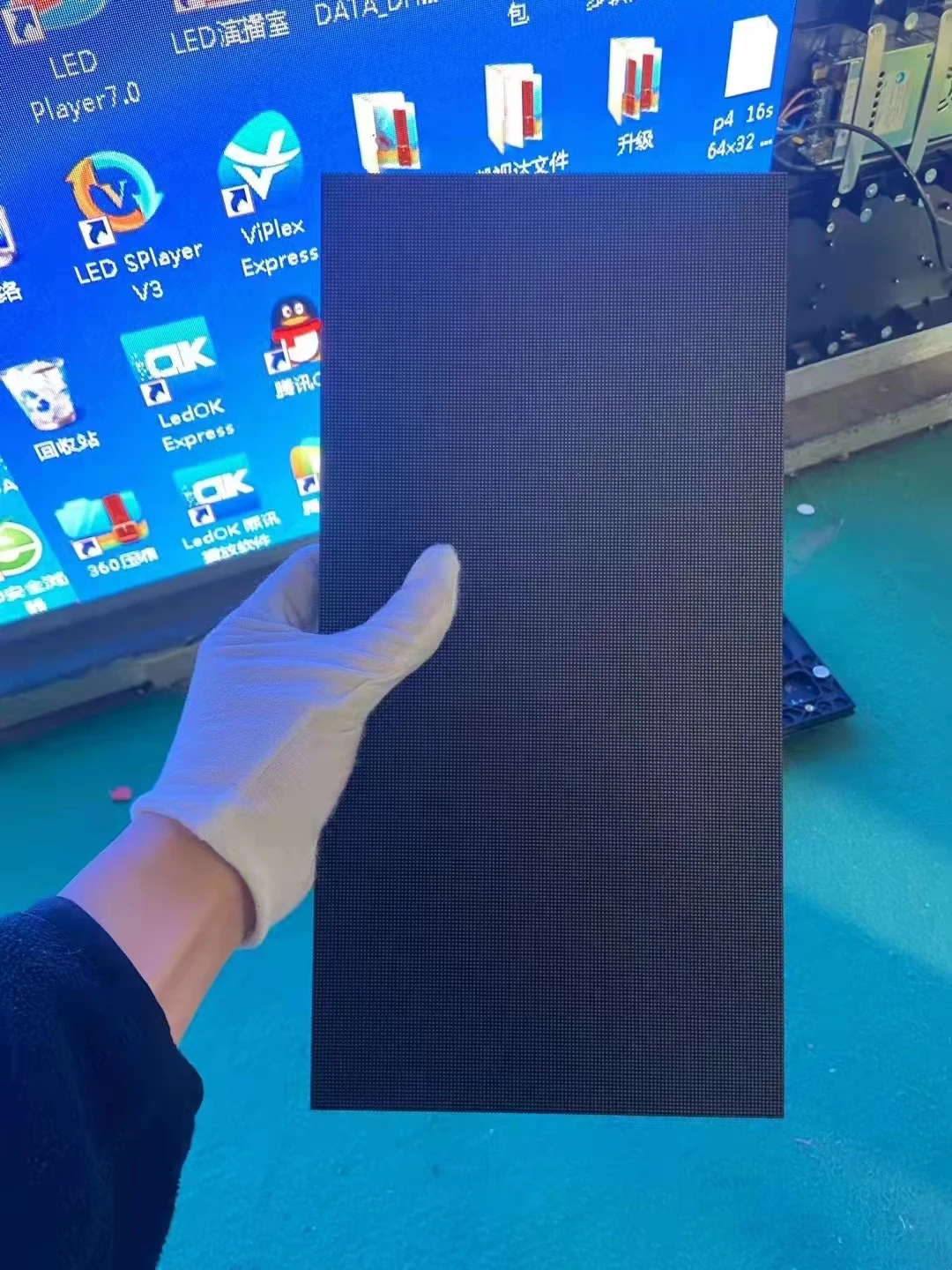

digital signage display 320x160mm gob led module P1.2 P1.5 P1.8 p2 Indoor Video Wall p1.25 led display
- Category: >>>
- Supplier: Dongguan Scree Optoelectronics Co. Ltd.
Share on (1601020519123):
Product Overview
Description
digital signage display 320x160mm gob led module P1.2 P1.5 P1.8 p2 Indoor Video Wall p1.25 led display
| Specification | p1.25 | P1.53 | P1.86 | P1.875 | P2 | P2.5 | P3 | P3.076 | P4 | P5 | p10 |
| Pixel Pitch(mm) | 1.25 | 1.53 | 1.86 | 1.875 | 2 | 2.5 | 3 | 3.076 | 4 | 5 | 10 |
| Pixel Matrix per sqm. | 640000 | 427716 | 288369 | 284442 | 250000 | 160000 | 111111 | 106525 | 62500 | 40000 | 10000 |
| Module Size | 320*160mm 200*150mm | 320*160mm | 320*160mm | 240*120mm | 240*120mm 256*128mm 320*160mm | 240*120mm 320*160mm | 240*120mm 192*192mm | 320*160mm | 256*128mm 320*160mm | 320*160mm | 320*160mm |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD3528 |
| Scanning | 1/64s | 1/52s | 1/43s | 1/32s | 1/30s 1/32s 1/40s | 1/24s 1/32s | 1/20s 1/32s | 1/26s | 1/20s 1/16s | 1/16s | 1/8S |
| Brightness (nits) | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 500-600 | 600-800 600-700 | 600-800 | 600-800 | 600-800 | 600-700 | 600-700 |
| Power con. (Max/Avg) | 600/180W | ||||||||||
| Cabinet Dimension | Cabinet size can be changed according to module size | ||||||||||
| Working Temperature | -10℃ to +60℃ | ||||||||||
| Service Access | Front/Rear | ||||||||||
| Refresh Rate | >1920hz | ||||||||||
| Gray Scale(bit) | 16bit | ||||||||||
| View Angle(H/V) | 160/160 | ||||||||||
| Input Voltage(AC) | 110-220VAC/50Hz±10% | ||||||||||
| Singal | HDMI,AV,S-Video,VGA,DVI,YPbPr,SDI, etc. | ||||||||||
| Controller | Novastar/Linsn/Colorlight/Huidu/Mooncell/Xixun | ||||||||||

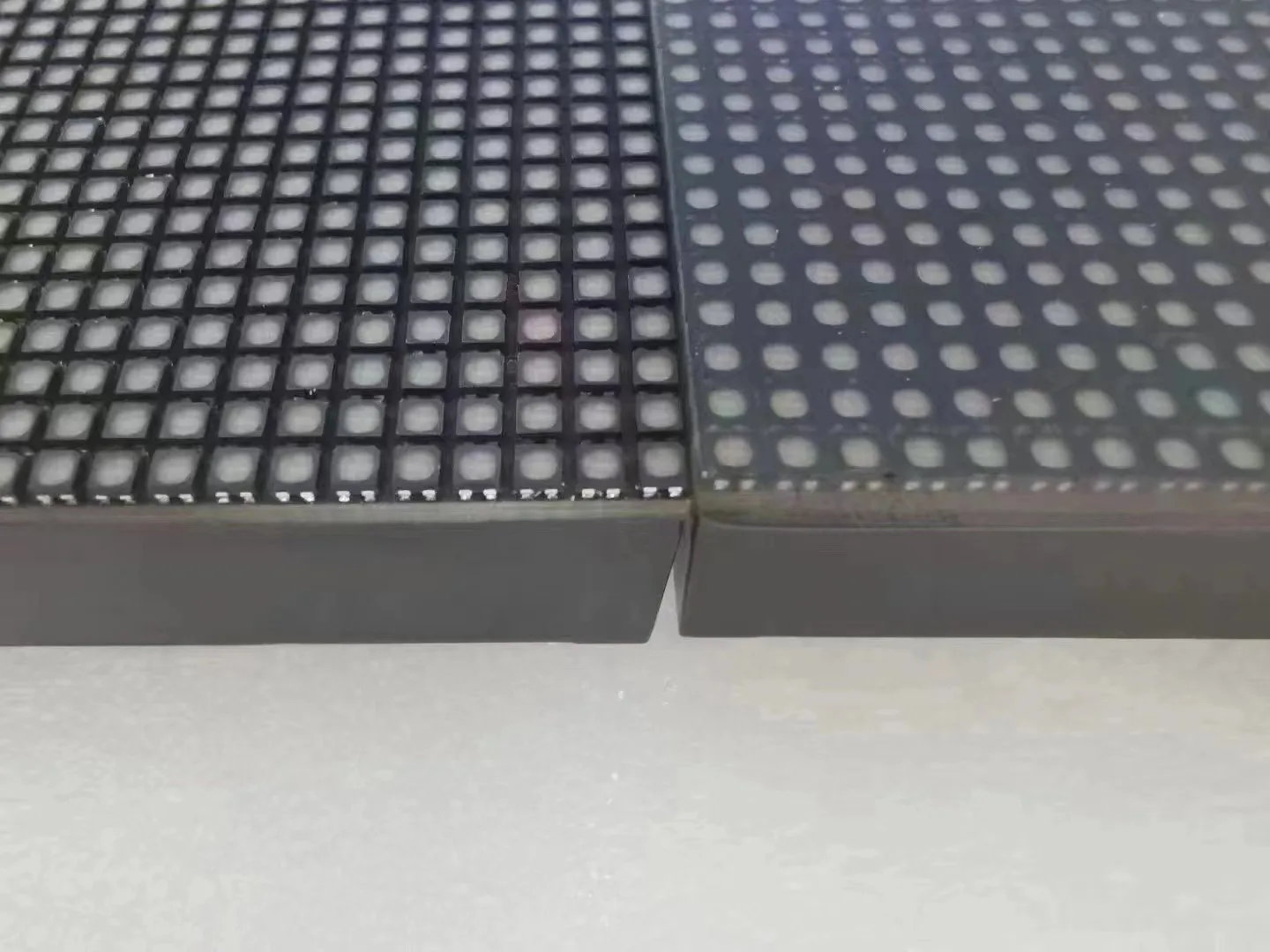

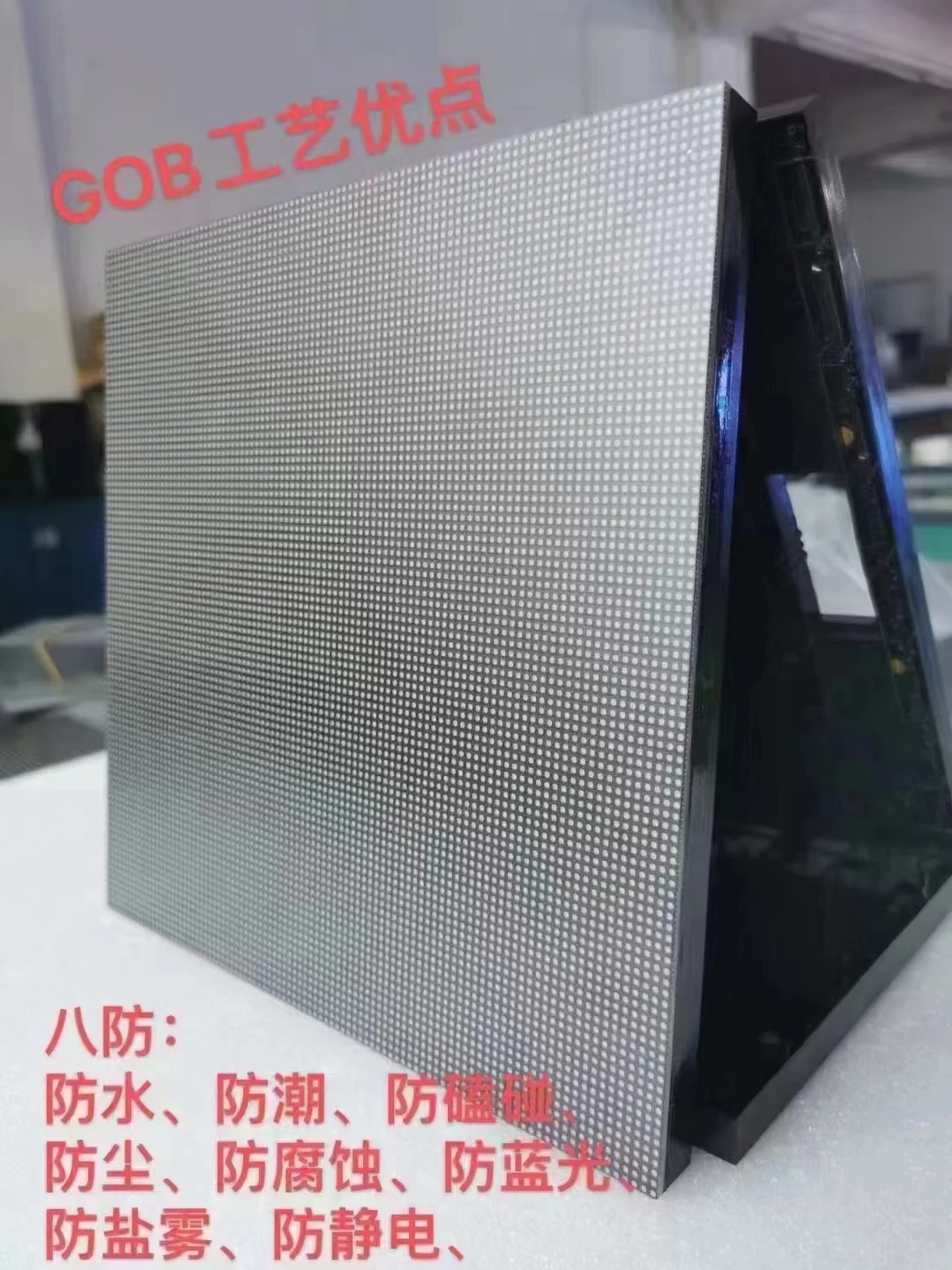

Advantage: Waterproof, moisture-proof, anti-collision, dust-proof, anti-corrosion, anti-blue light, anti-salt spray, anti-static
1.Small MOQ 1PC/SQM
2.500000pc SMD led module/2000sqm full screen monthly capacity
3.500 experienced staff
4.11years experience of SMD full color
5.30000m2 factory workshop
2.500000pc SMD led module/2000sqm full screen monthly capacity
3.500 experienced staff
4.11years experience of SMD full color
5.30000m2 factory workshop
FAQ
Q1: Are you trading company or manufacturer ?
A: Shenzhen Scree Optoelectronics is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years
Q2: What is the control system? How is it?
A: We use Novastar/Linsn/Colorlight/Huidu control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control the screen.
Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well,
5…6…etc.
Q4. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order.
Q5:How about your Warranty Term?
A: 1-3year warranty. Structure design, installation problem, program the screen, how to use the screen…?
don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
