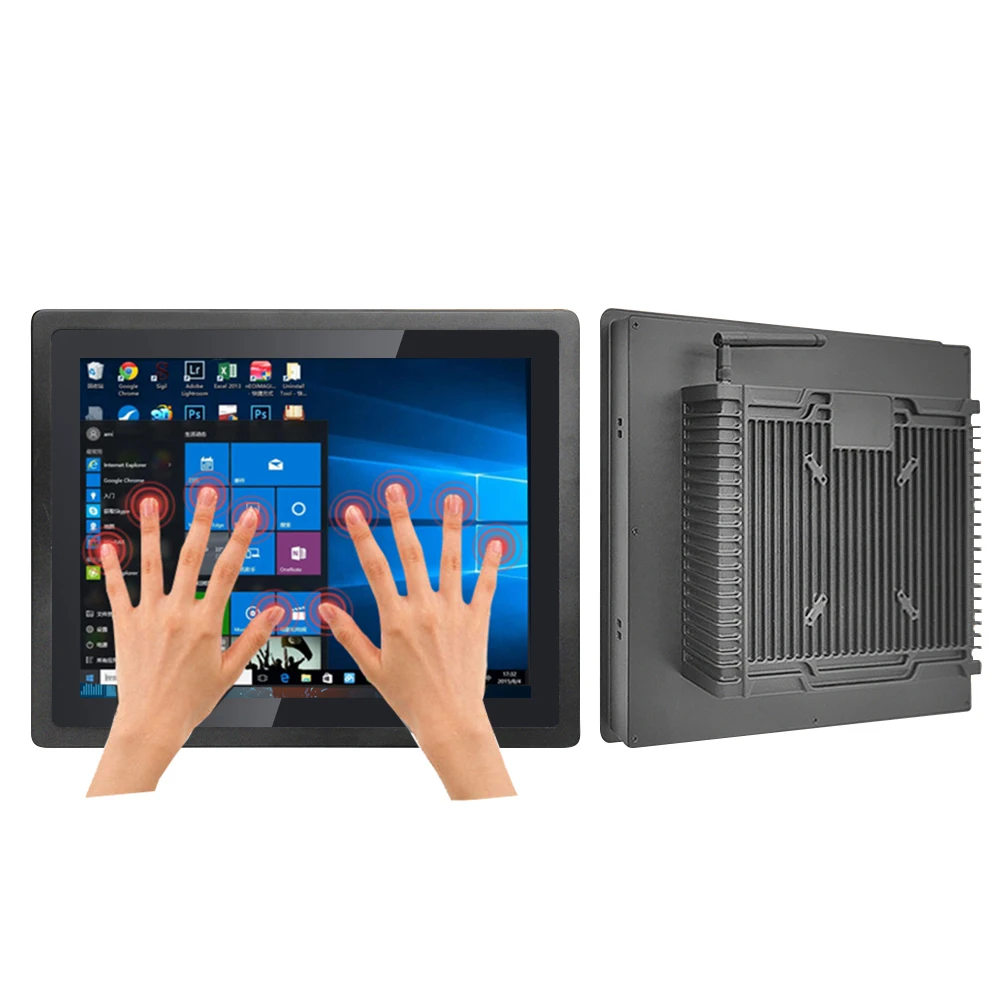

IP65 Waterproof Fanless Industrial PC 10 10.4 12.1 15 17 Inch ipc Linux Embedded Touch Screen All in One Computers Panel Pc
- Category: >>>
- Supplier: Hengchen Interactive (beijing) Information Technology Co. Ltd
Share on (1601020529176):
Product Overview
Description
Industrial Windows/Linux Touch AIO PC
Features:
1) 7~21.5" optional
2) 3mm Ultra Thin Front Bezel, Best for Embedded Cabinet 3) Body material: High precision aluminum alloy die-casting
4) System support: Win7 standard, support win8/10,etc., Linux, Ubuntu
5) Touch mode: Non-touch/Capacitive touch/Resistive touch
6) Compatible with 99% industry software,EMC anti-interference standard, support wide temperature, wide pressure,meet 7*24 hours of uninterrupted, efficient and stable operation in harsh environments
7) Support OEM/ODM
Product Description
PC | ||
CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless | |
CPU Optional | Intel® Core i5-8260U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 3.9 GHz, 6MB Cache, Fanless | |
CPU Optional | Intel® Core i5-8365U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 4.1 GHz, 6MB Cache, Fanless | |
CPU Optional | Intel® Core i7-8565U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.6 GHz, 8MB Cache, Fanless | |
CPU Optional | Intel® Core i7-8569U 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 8MB Cache, Fanless | |
CPU Optional | Intel® Core i5-10210U 4 Cores, 8 Threads, Base 1.3 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless | |
CPU Optional | Intel® Core i5-10310U 4 Cores, 8 Threads, Base 1.7 GHz, Turbo 4.4 GHz, 8MB Cache, Fanless | |
CPU Optional | Intel® Core i7-10510U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless | |
CPU Optional | Intel® Core i7-10610U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless | |
Memory | 8G DDR4 | |
Storage | 128GB SSD | |
Network | 1x 2.5 GbE RJ45 Intel i225V (2 x 2.5GbE RJ45 Intel i225V Optional) | |
Wireless Network | WIFI/Bluetooth Optional | |
I/O Interface | 4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th generation intel Core i5/i7) | |
2x DB-9 COM1& COM2, RS232/422/485 | ||
1x HD-MI/Audio Line-out/ Power Button | ||
1x AT/ATX switch | ||
2x 8Ω 1W Amplifier out optional | ||
Operation System | Support Windows® 10/11, WES 10, LINUX, etc. | |
LCD panel | ||
Panel size | 15'',17", 19",21.5'' | |
Resolution | 1024*768(15''),1280*1024(17'',19''),1920*1080(21.5'') | |
Aspect ratio | 4:3/16:9 | |
Support Color | 16.7M colors | |
Brightness (cd/m²) | 400(High Brightness Optional) | |
Response time | 5ms | |
Contrast ratio | 1000:1 | |
View angle | 85°/85°/85°/85° (R/L/U/D) | |
Touch panel | ||
Touchscreen Type | Project Capacitive Touch (10 points) | |
Touch Interface | USB (RS232 optional) | |
Touch response time | 2ms | |
Luminousness | 90% | |
Surface Hardness | 7H | |
Working life | >50 million times | |
Touch options | (5 Wire Resistive Touch Optional) | |
Power Supply | ||
External Power Supply | AC 100-240V | |
Working voltage | 9-36V DC Wide Voltage with 4PIN Aviation Connector(Optional) | |
Power consumption | ≤35W | |
Enclosure | ||
Material | Aluminum Alloy | |
Color | Black/Sliver | |
VESA mounting | 75x75/100x100mm | |

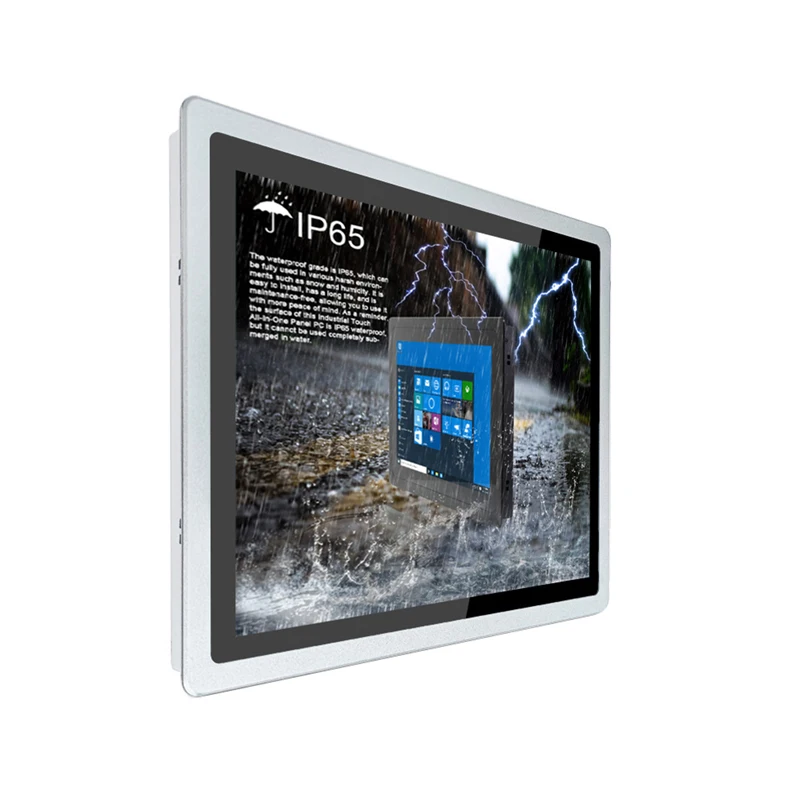

IP grade | Front panel IP65 waterproof | |
Operating Environment | ||
Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C | |
Relative humidity | 10%~90% @ 30° C, Non-condensing | |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Packing Details | ||
Gross weight | 6kg | |
Packing size | 55x45x20cm | |

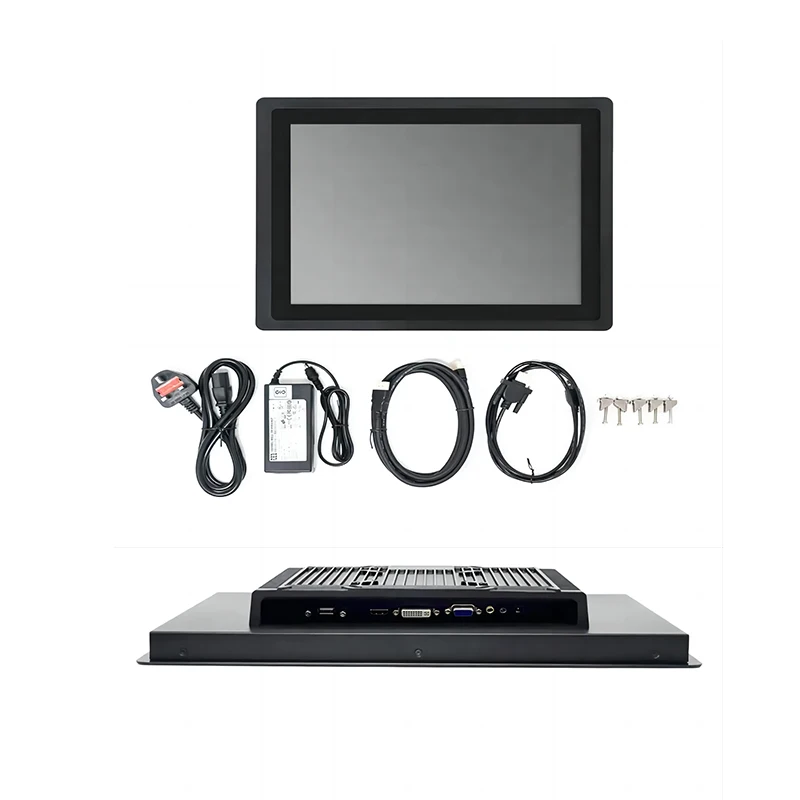

Accessories | Power adapter, Power cord, Embedded screws, Phoenix terminal | |
Accessories optional | WIFI module, 3G/4G/5G module, VESA bracket | |
Other | ||

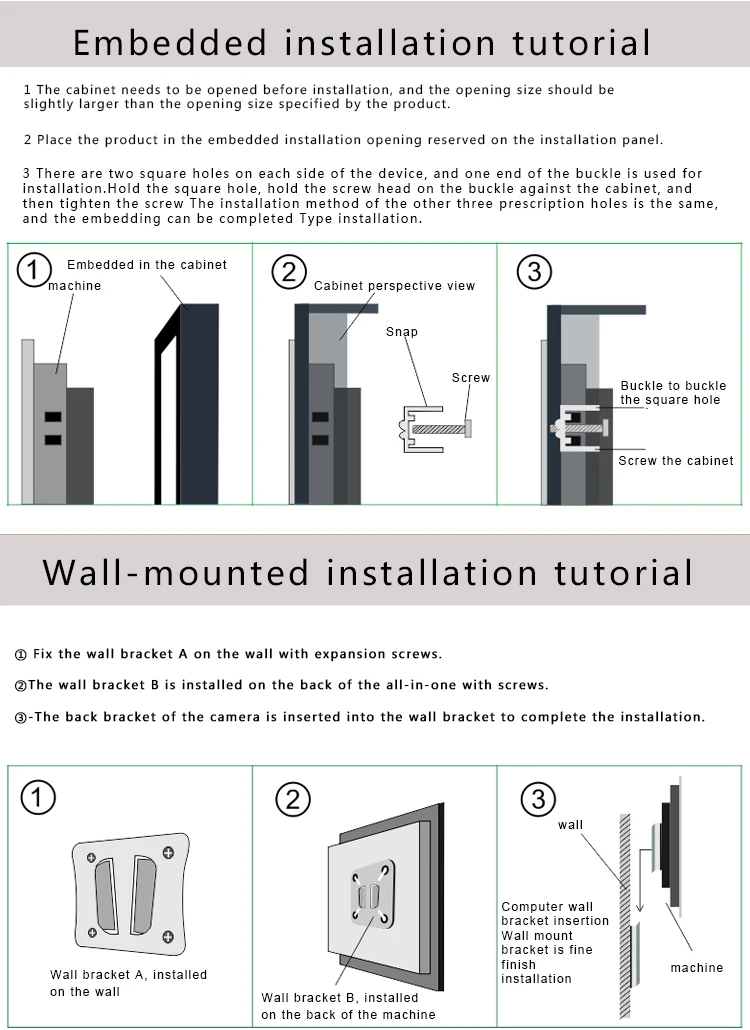

Mounting (options) | Embedded mounting screws | |
Wall mounting brackets (optional) | ||
Desk stand holder (optional) | ||
Warranty | 2 years warranty | |
Certificate | CE, FCC, RoHS | |
