PNG New Product Complete Home 3Kw With Battery 5/10Kw Hybrid Solar Panels System Photovoltaic
- Category: >>>
- Supplier: Hefei Pinergy Solar Technology Co. Ltd.Hefei Ltd.
Share on (1601020645845):
Product Overview
Description
Product Description
Specification
Model | PNG-3KW-HY | PNG-5KW-HY | PNG-10KW-HY | ||
Half Cut Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 21 Pieces | ||
DC Disconnect Switch | 1 Piece | 2 Pieces | 3 Pieces | ||
Hybrid Inverter | Growatt-3K | Growatt-5K | Growatt-10K | ||
Wall Mounted LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh | ||
DC Cable 4mm2 | 100 meter | 200 meter | 400 meter | ||
AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece | ||
MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | 1 Set | ||||
Model | PNG-15KW-HY | PNG-20KW-HY | PNG-30KW-HY | ||
Half Cut Mono 550W Solar Panel | 30 Pieces | 42 Pieces | 63 Pieces | ||
DC Disconnect Switch | 4 Pieces | 6 Pieces | 9 Pieces | ||
Hybrid Inverter | Growatt-5K- 3 Pieces | Growatt-10K- 2 Pieces | Growatt-10K-3 Pieces | ||
Wall Mounted LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh | ||
DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | 1 Set | ||||
Product details

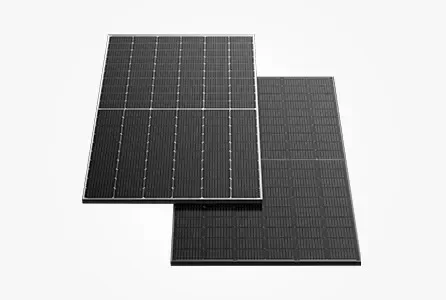

Peak Power Watts: 550W (PNG550-144M)
Maximum Power Voltage: 42.3V
Maximum Power Current: 9.69A
Warranty: 10 years
Short Circuit Current: 10.60A
Dimensions:2278×1134×35mm
Weight:29 kg
Maximum Power Voltage: 42.3V
Maximum Power Current: 9.69A
Warranty: 10 years
Short Circuit Current: 10.60A
Dimensions:2278×1134×35mm
Weight:29 kg

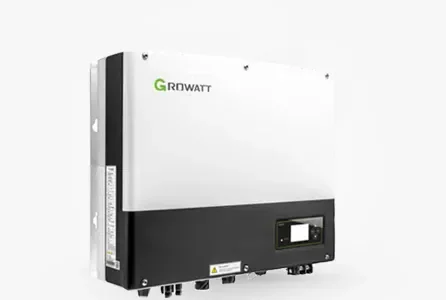

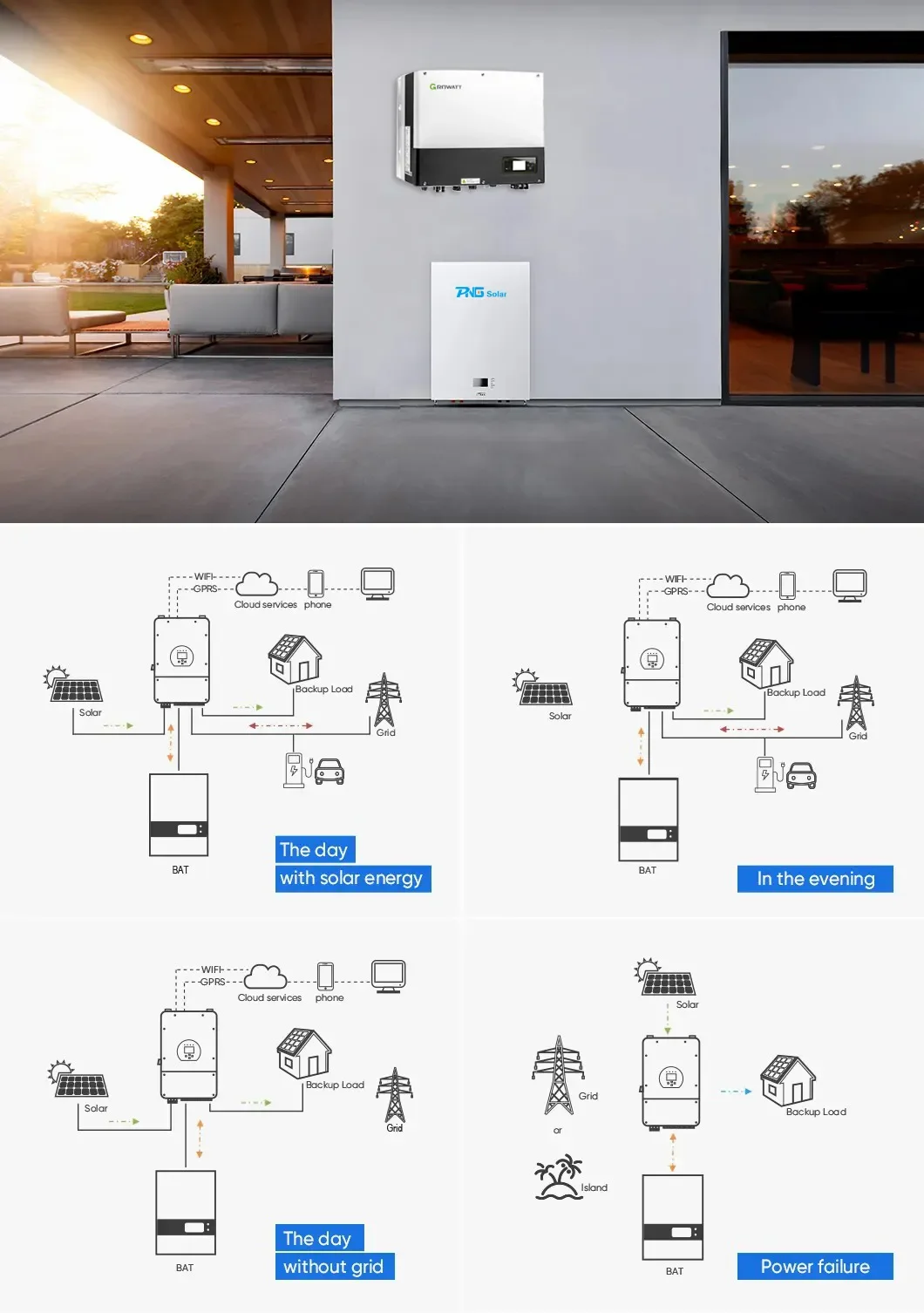

All-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%

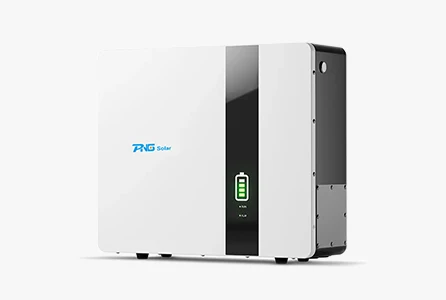

Wall Mounted LiFePo4 Battery
15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

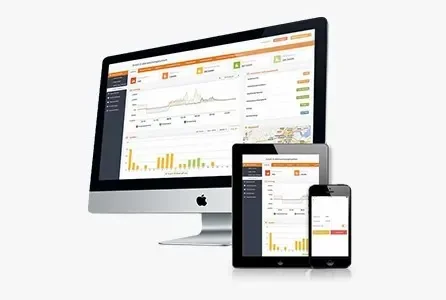

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or
GPRS.App Available for PC, IOS & Andriod
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or
GPRS.App Available for PC, IOS & Andriod

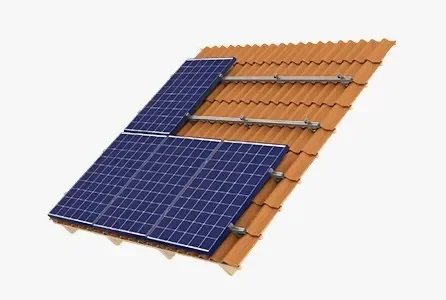

Mounting Brackets
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Warranty: 10 Years
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Warranty: 10 Years

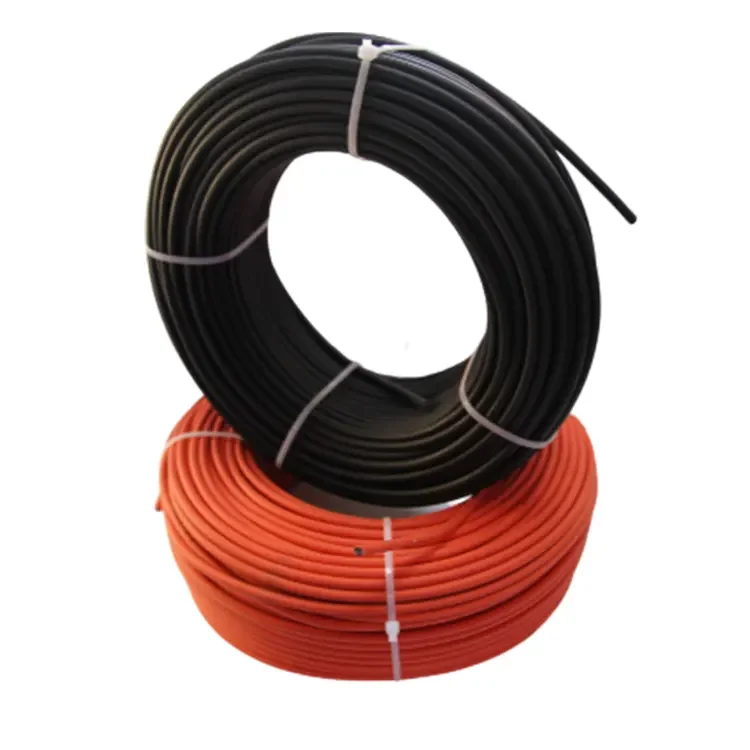

DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

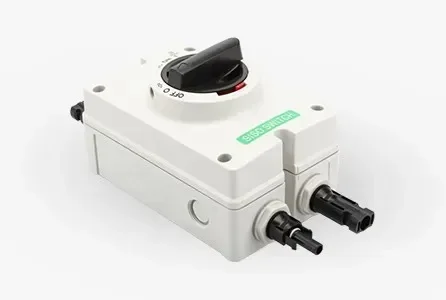

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A

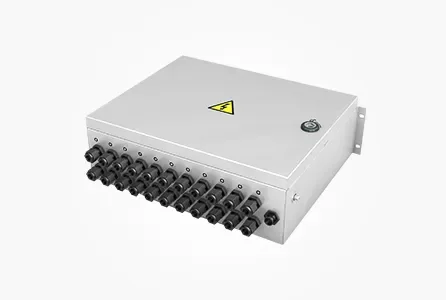

IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2

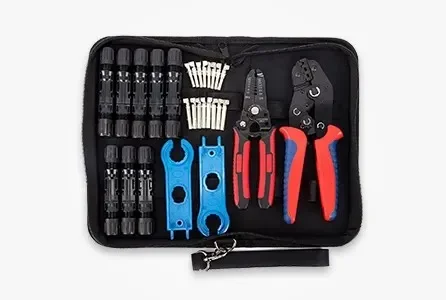

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

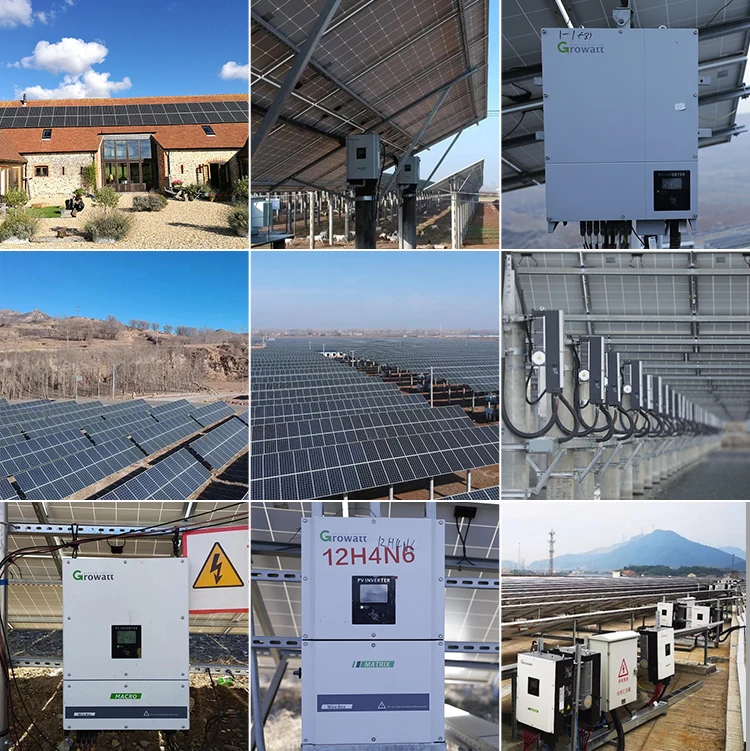

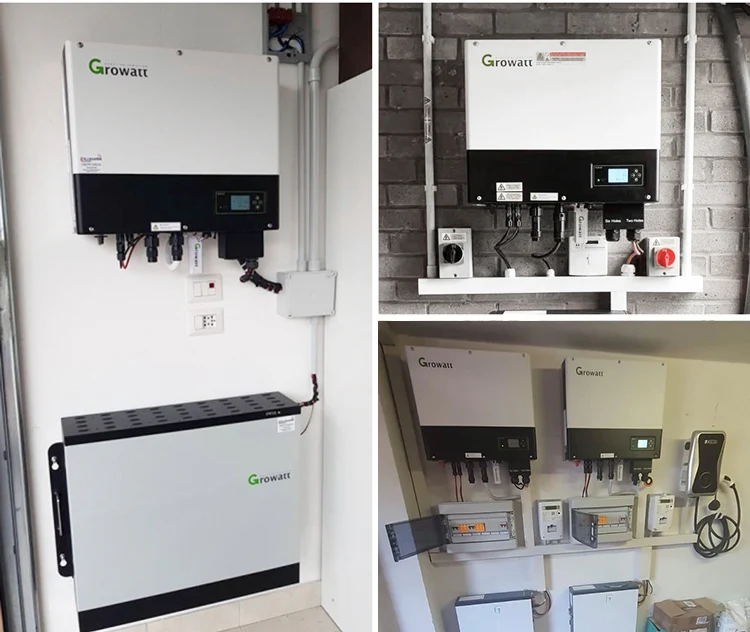

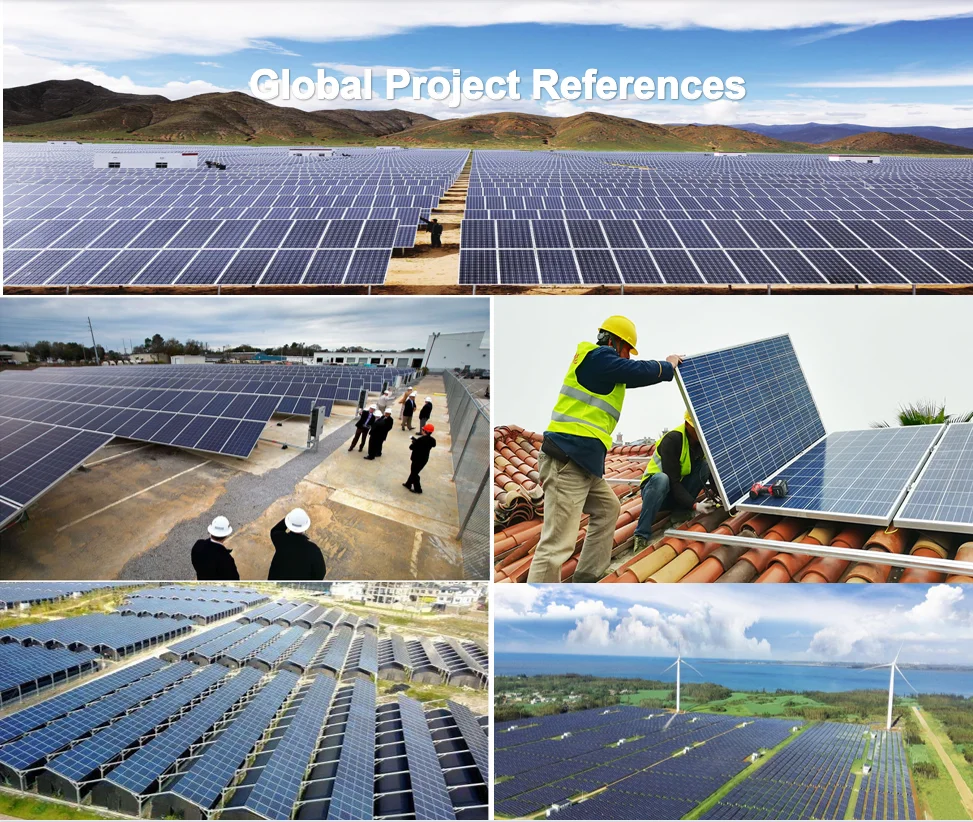

Successful Project
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
