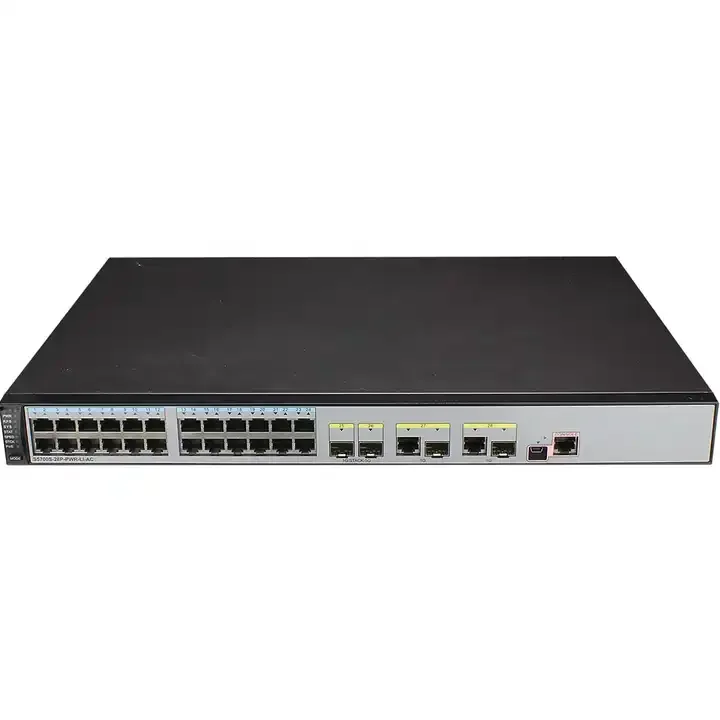

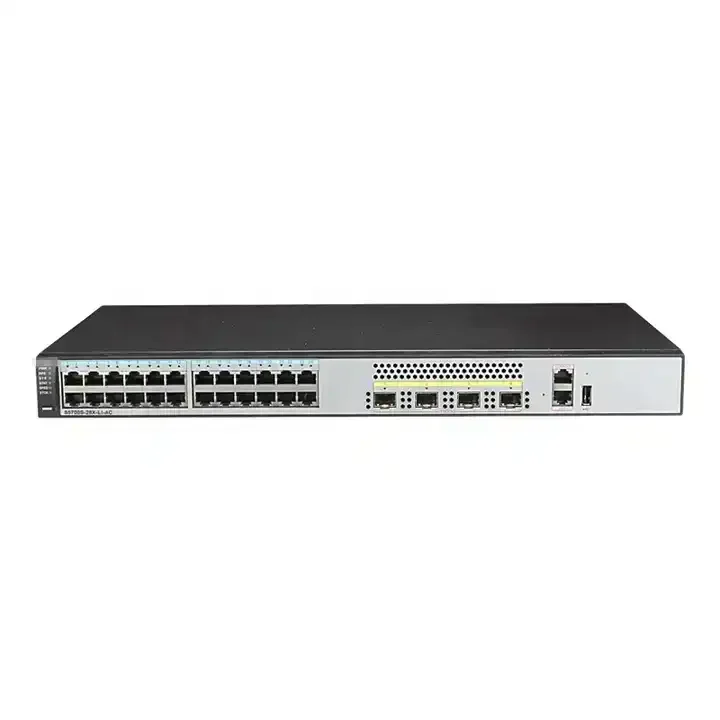

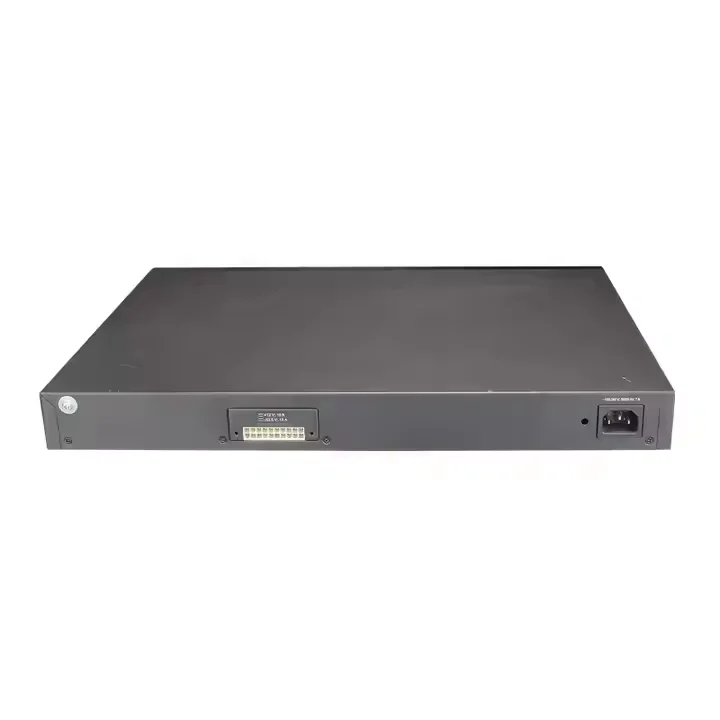

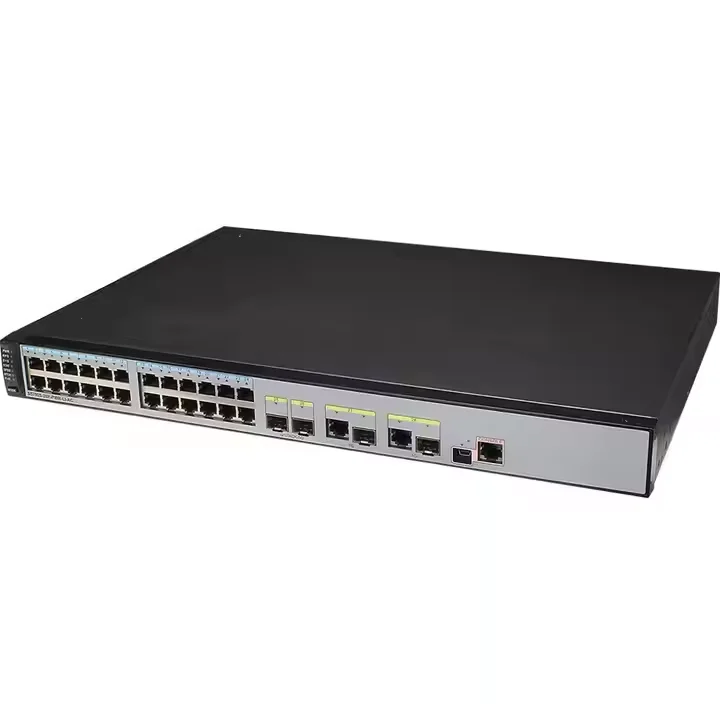

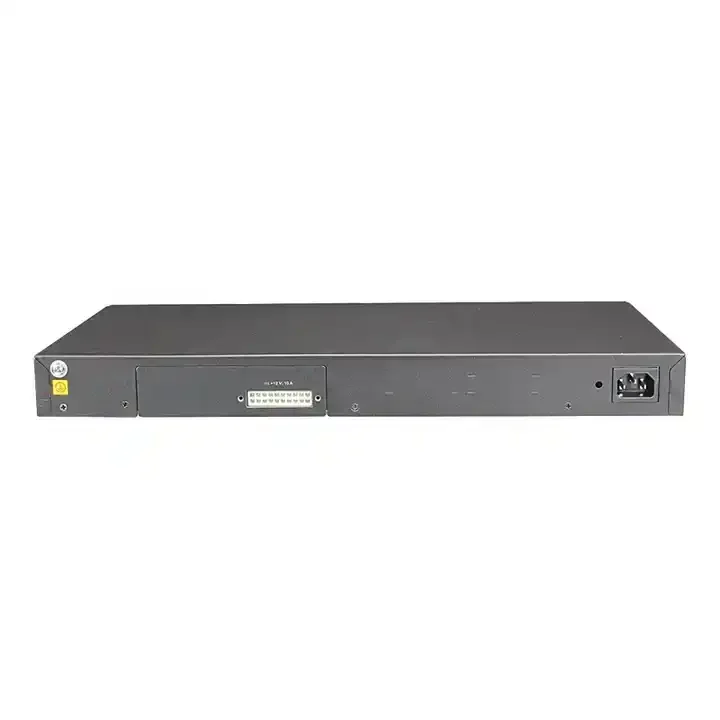

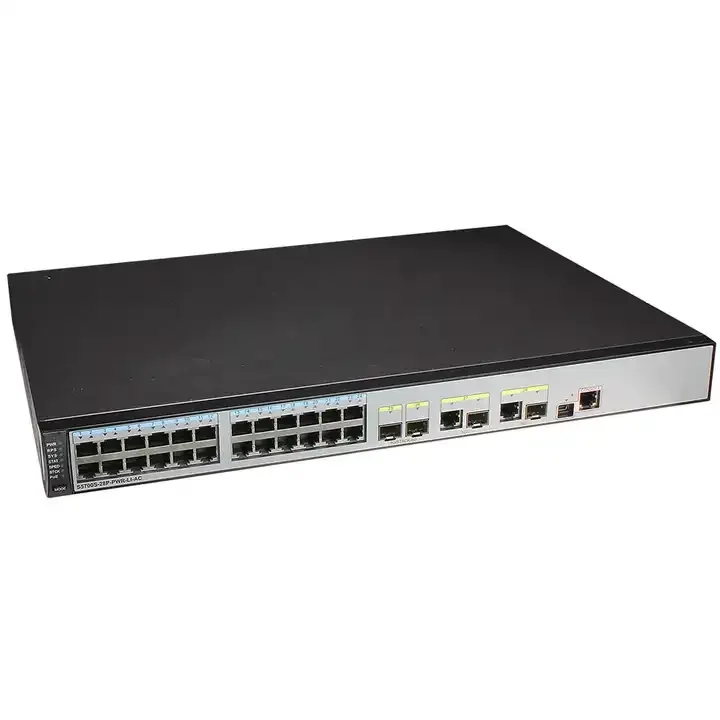

HW switch S5700S 28P PWR LI AC 24 Power 4 Optical Gigabit POE Power Supply Manageable Switch

Product Overview

Description

HW switch S5700S-28P-PWR-LI-AC 24 Power + 4 Optical Gigabit POE Power Supply Manageable Switch

Overviews

HW S5700S-28P-PWR-LI-AC, based on a new generation of high-performance hardware and HW’s unified VRP (Versatile Routing Platform) software platform, has innovative AHM (Advanced Hibernation Management) energy saving, intelligent iStack stacking, and flexible Ethernet Networking, various security controls and other features provide users with a green, easy-to-manage, easy-to-expand, and low-cost gigabit-to-desktop solution.



Specifications



The main parameters
The product type	Gigabit Ethernet switches, POE switches
The transfer rate	10/100/1000Mbps
Backplane bandwidth	256Gbps
Package forwarding rate	66Mpps/96Mpps
MAC address table	16K

Port parameters
The port structure	Non-modular
The number of ports	28
Port description	24 x 10/100/1000Base-T, 2 x 1000 Base-X, 2 x Combo 10/100/1000BASE-T or 100/1000BASE-X

Features
Stacking	Stackable
VLAN	Supports 4K VLANs for Quest VLAN, Voice VLAN supports GVRP protocols Supports MUX VLAN features Supports MAC/Protocol/IP subnet/policy/port-based VLAN supports 1:1 and N:1 VLAN Mapping
QOS	Support for rate limiting of port in and out directions Support for message redirection Support for port-based traffic monitoring, support for two-speed tricolor CAR capabilities 8 queues per port Support WRR, DRR, SP, WRR-SP, DRR-SP queue scheduling algorithm Support for message 802.1p and DSCP priority Relabeling Supports L2 (Layer 2) to L4 (Layer 4) package filtering, providing error correction based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP protocol source/destination port number, protocol, VLAN supports queue speed limit and port shaping functions
Multicast management	Support for IGMP v1/v2/v3 Snooping and Quick Departure mechanism Support for VLAN in-group forwarding and multicast multi-VLAN replication Multicast load sharing support for bundled ports Support for controlled multicast support for port-based multicast traffic statistics
Network management	Support for Intelligent Stacking iStack Support virtual cable detection (Virtual Cable Test) support Telnet remote configuration, maintenance Support for SNMPv1/v2c/v3 Support for RMON support for eSight network management systems, support for WEB network management features Support https support LLDP/LLDP-MED support system logs, rating alerts Support 802.3az Energy Efficiency Ethernet EEE support power off alarm Dying gasp function
Security management	User rating management and password protection Support for AAA authentication Support for MAC address learning limits Support for NAC features Support for DHCP Relay/Server/Snooping/Security/SAVI, etc. Support port isolation, port security, Sticky MAC, MFF

Other parameters
The supply voltage	Rated voltage range: 100-240V AC;
Power supply	No PD: <45.8W, PD: <469.7W
Product size	442×310×43.6mm
Environmental standards	Operating temperature: 0-45 degrees C Relative humidity: 5%-95% (no condensation)
Other parameters	AC power supply, support RPS redundant power supply
