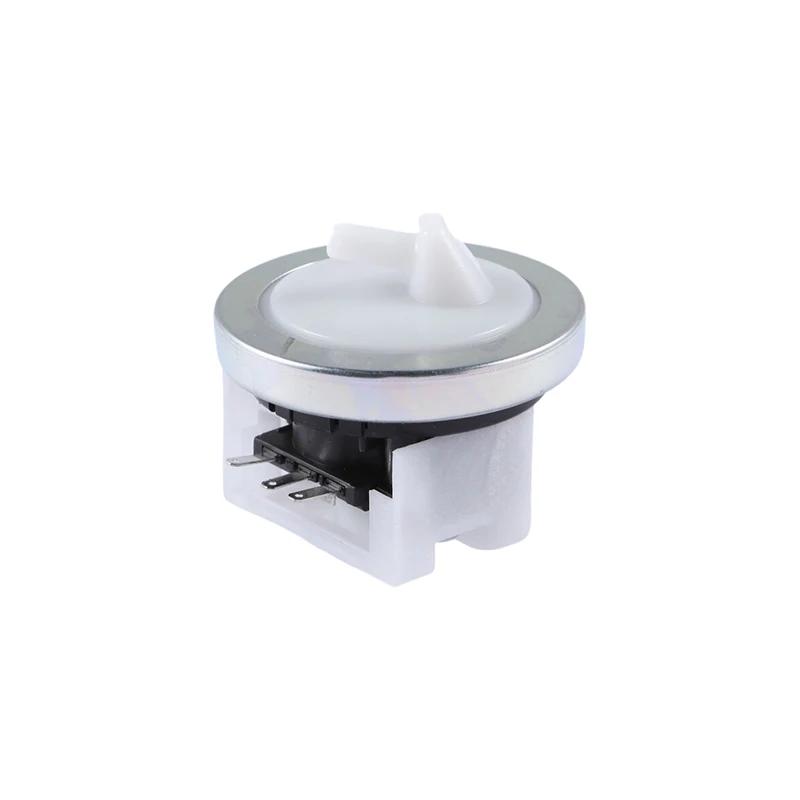

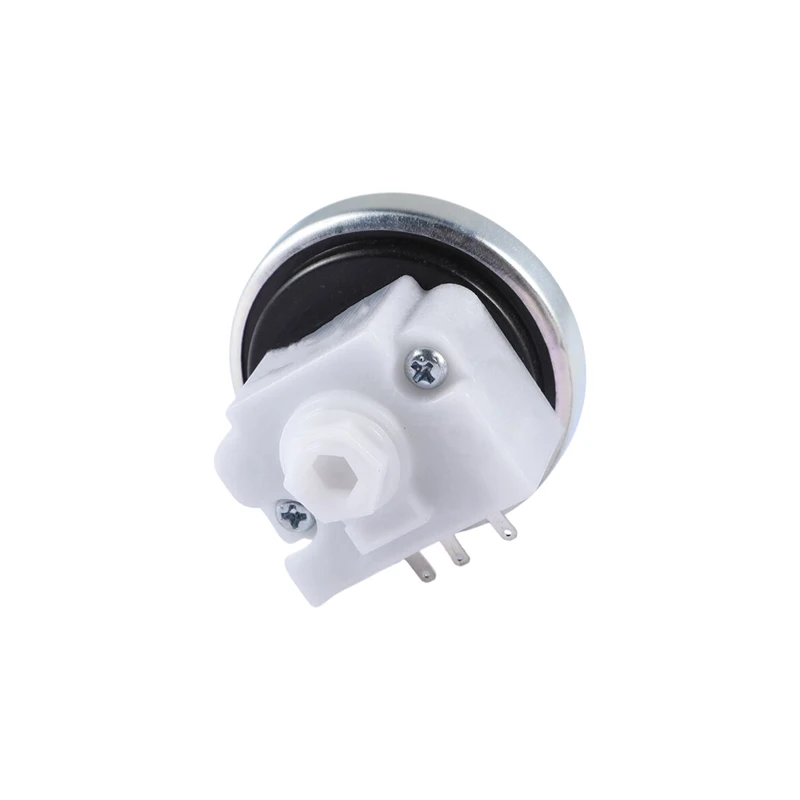

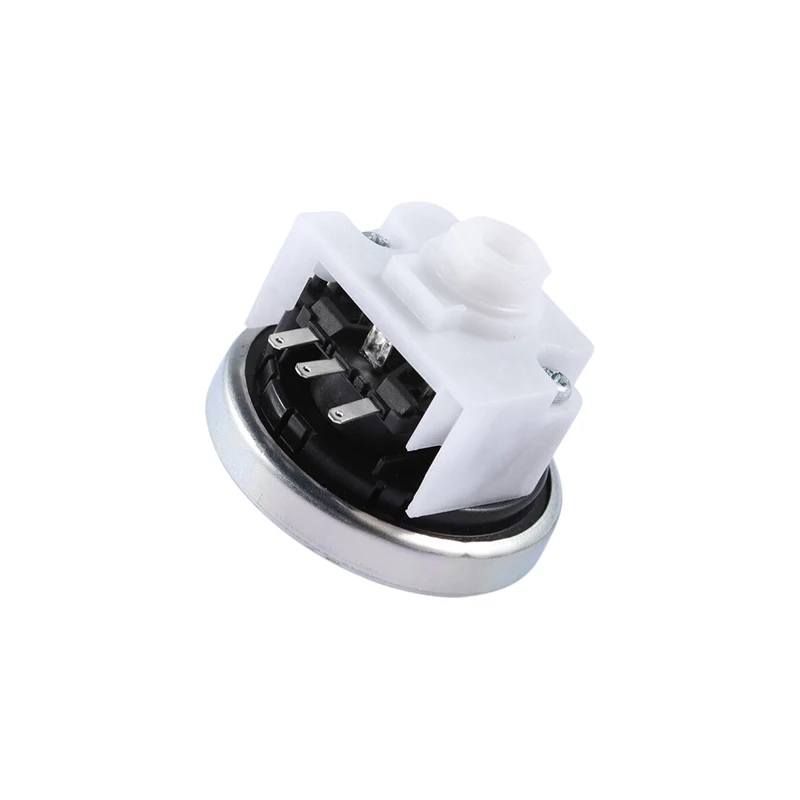

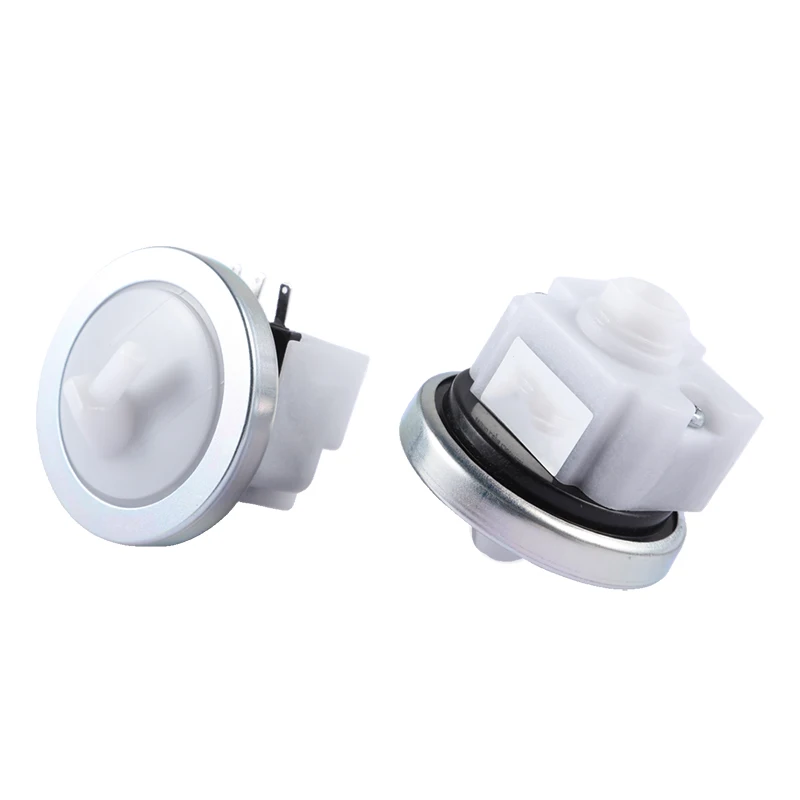

Universal electronic washing machine water pressure level pressure sensor
Universal electronic washing machine water pressure level pressure sensor
Universal electronic washing machine water pressure level pressure sensor
Universal electronic washing machine water pressure level pressure sensor
Universal electronic washing machine water pressure level pressure sensor
Universal electronic washing machine water pressure level pressure sensor
Universal electronic washing machine water pressure level pressure sensor

Universal electronic washing machine water pressure level pressure sensor

Share on (1601020697661):


Price:$0.69 - $1.39

Quantity:


Product Overview

Description









Technical parameters
1.Smooth appearance, uniform color
2. Nominal voltage ：DC5.0±0.1V
3.Water level：customizable
4.Inlet strength：Apply force 49N/min, no air leakage
5.Air impermeability：Apply water pressure of 7.5kpa for 1min without air leakage
6.Destructive water pressure ：≥ 1000nm
7.Voltage withstandatility：Apply 1500V/ sec, no breakdown
8.Insulation resistance：>20 megohm
9.Durability test：Each minute 20 times, the water level in 550mm action 50000 times, the water level changes in the 15mm below
10.The experiment of damp and hot: Apply 1200 v/min, no breakdown under the condition of 40±3℃ and 95% relative humidity for 48 hours.








Type
Three-plug water level sensor
Character
Double capacitor Three-plug
Structural description
Without mounting bracket
Operating Voltage
DC5V
Environment
-10℃-50℃
Water level range
0-600mm Water column
