QBY P / QBW new type food grade AODD pump Air operated Sanitary Pneumatic Double Diaphragm Pump

Product Overview

Description

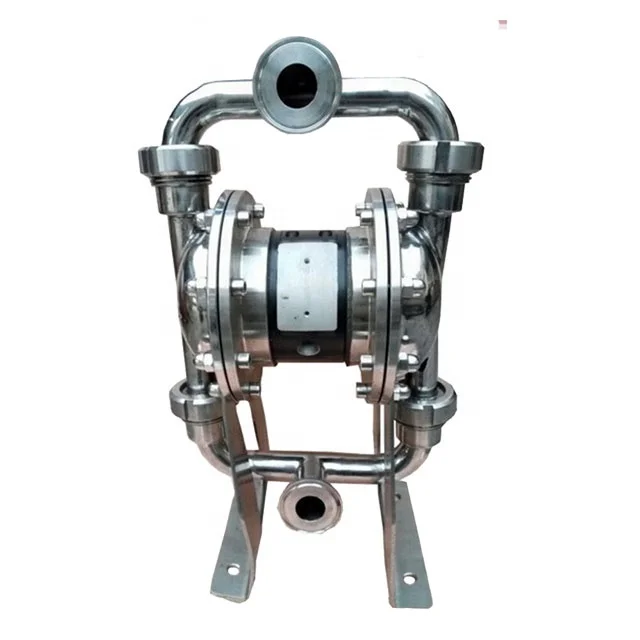

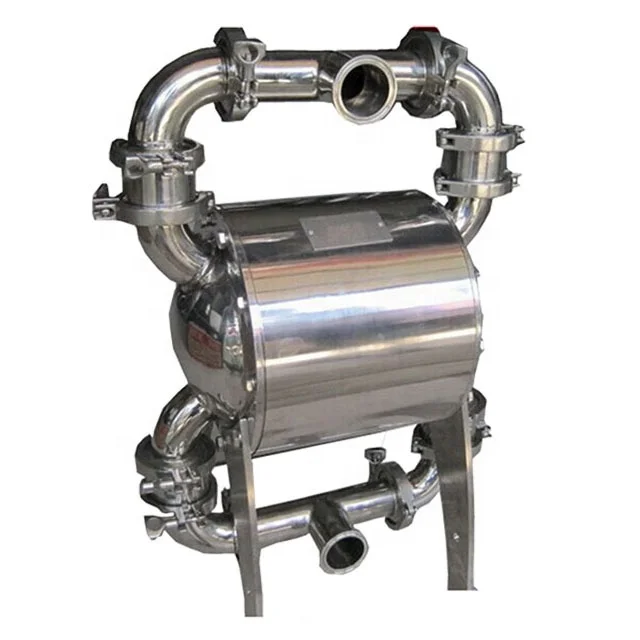

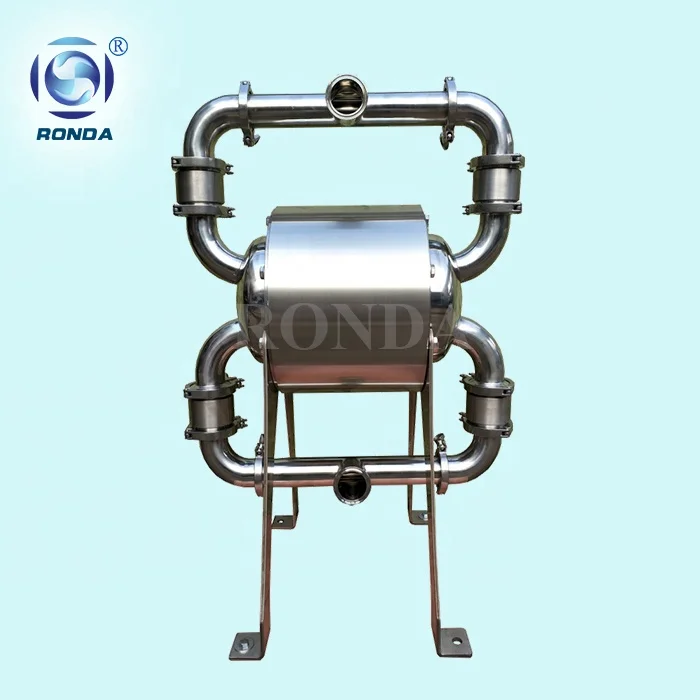

QBY-P / QBW new type food grade AODD pump Air operated Sanitary Pneumatic Double Diaphragm Pump

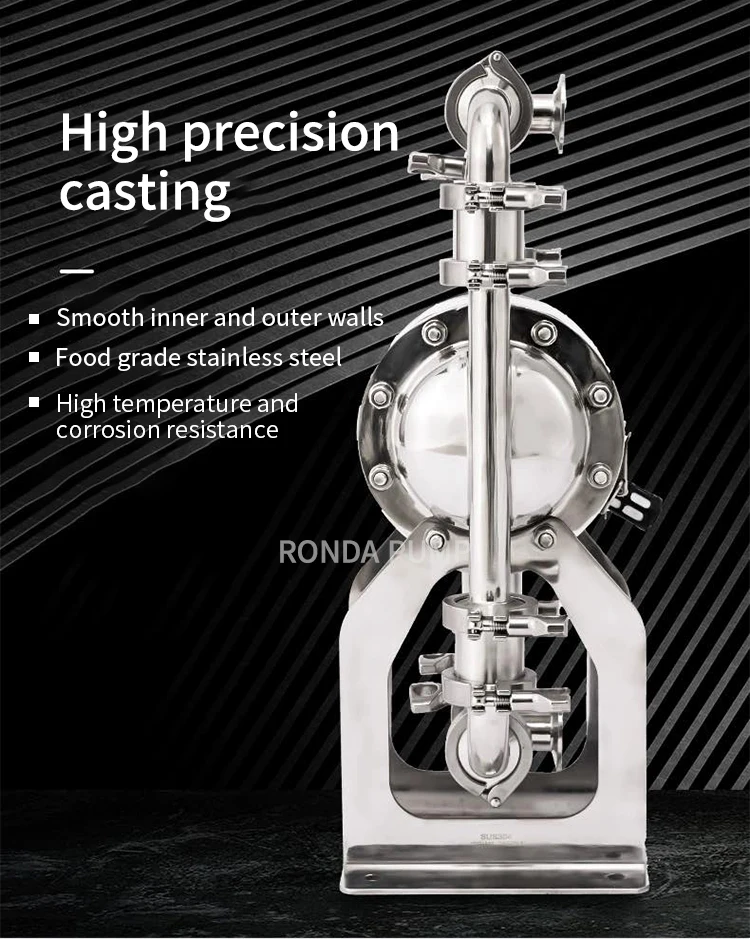

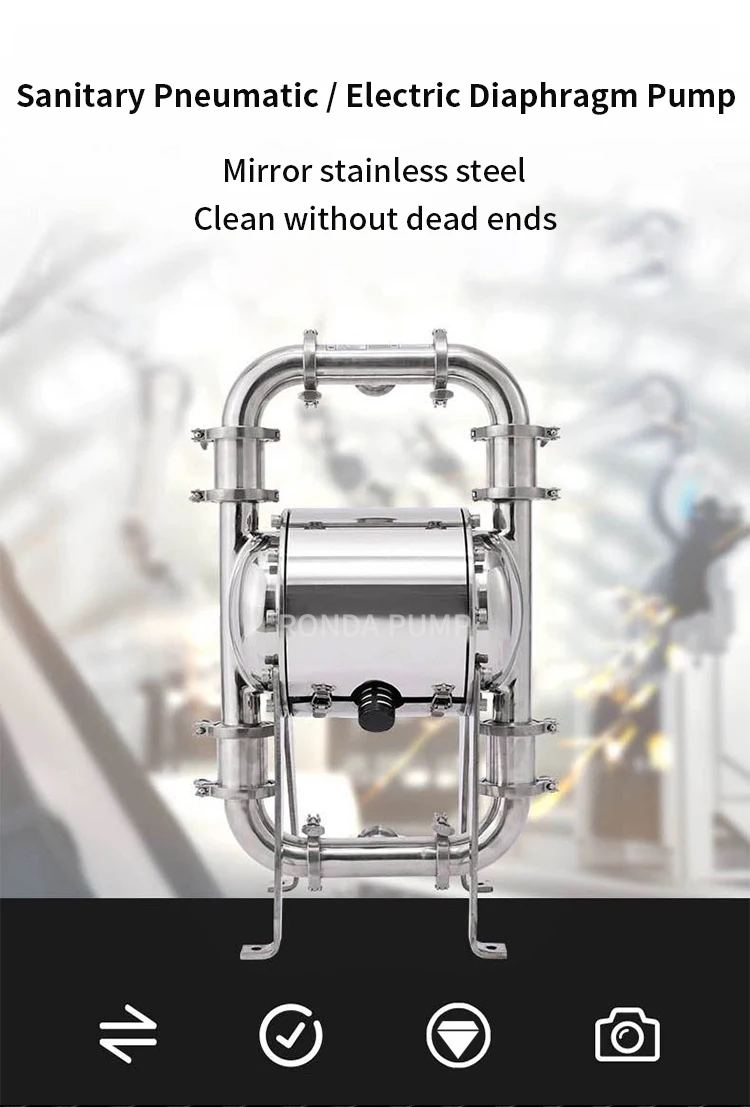

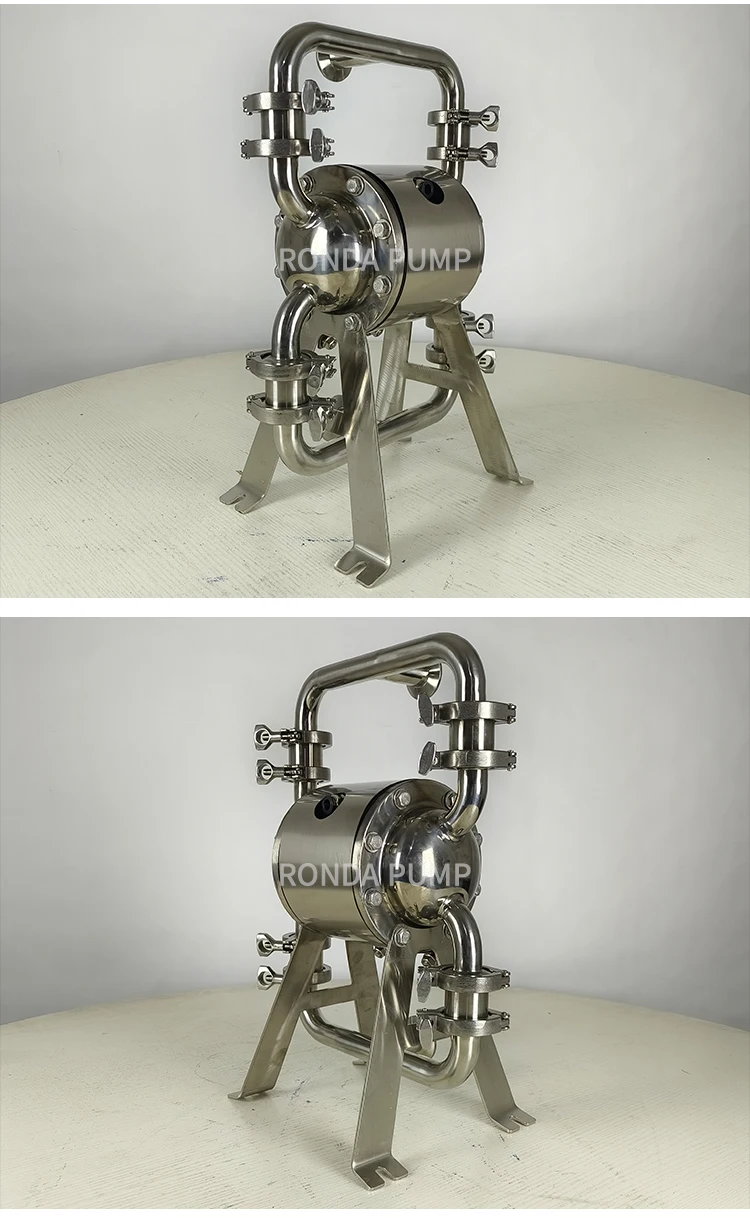

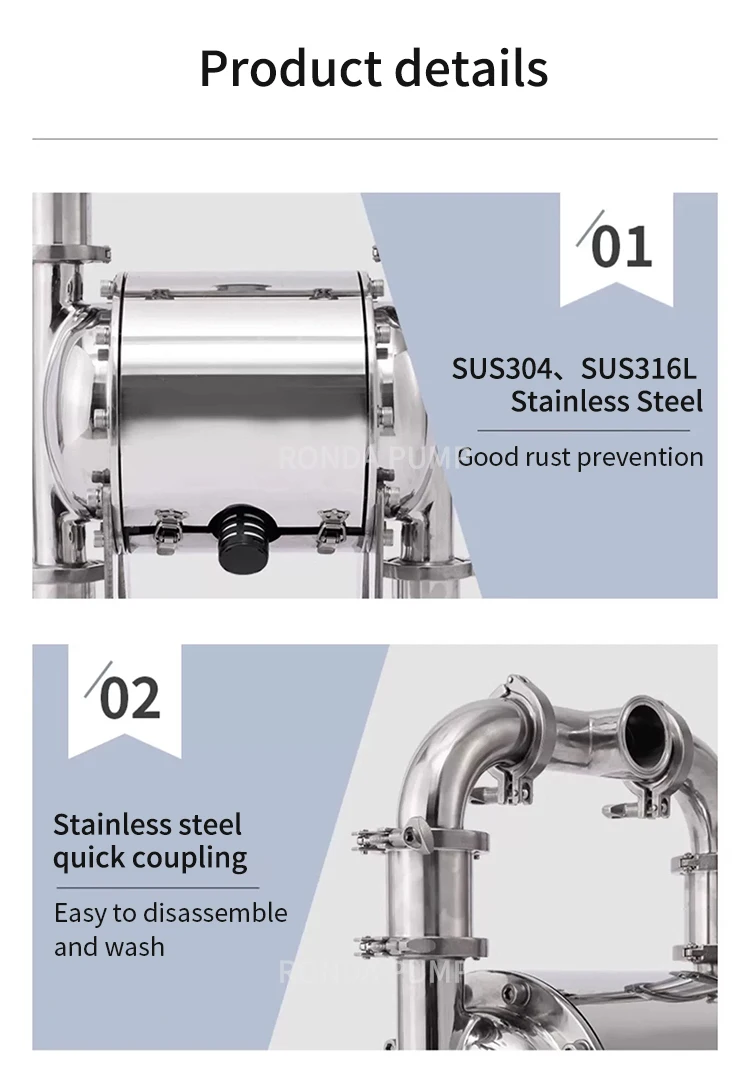

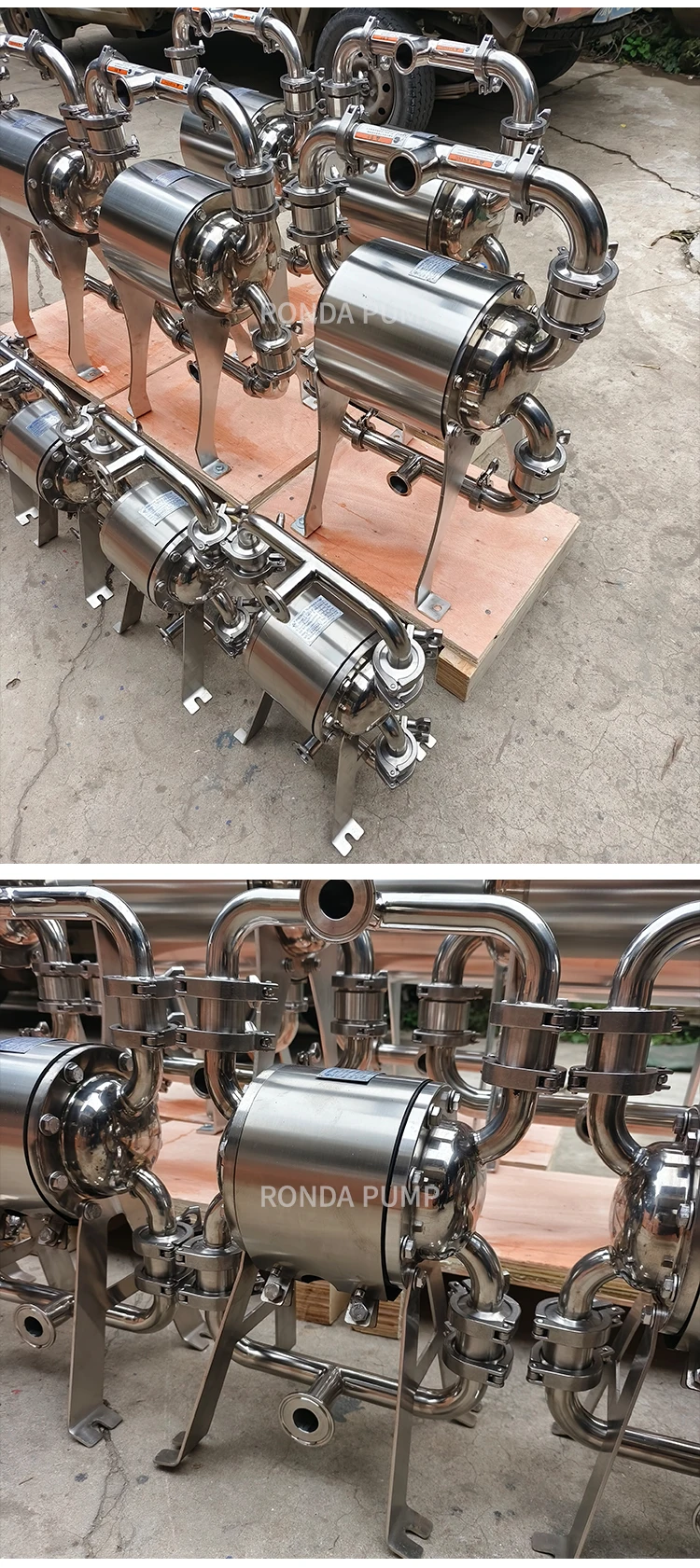

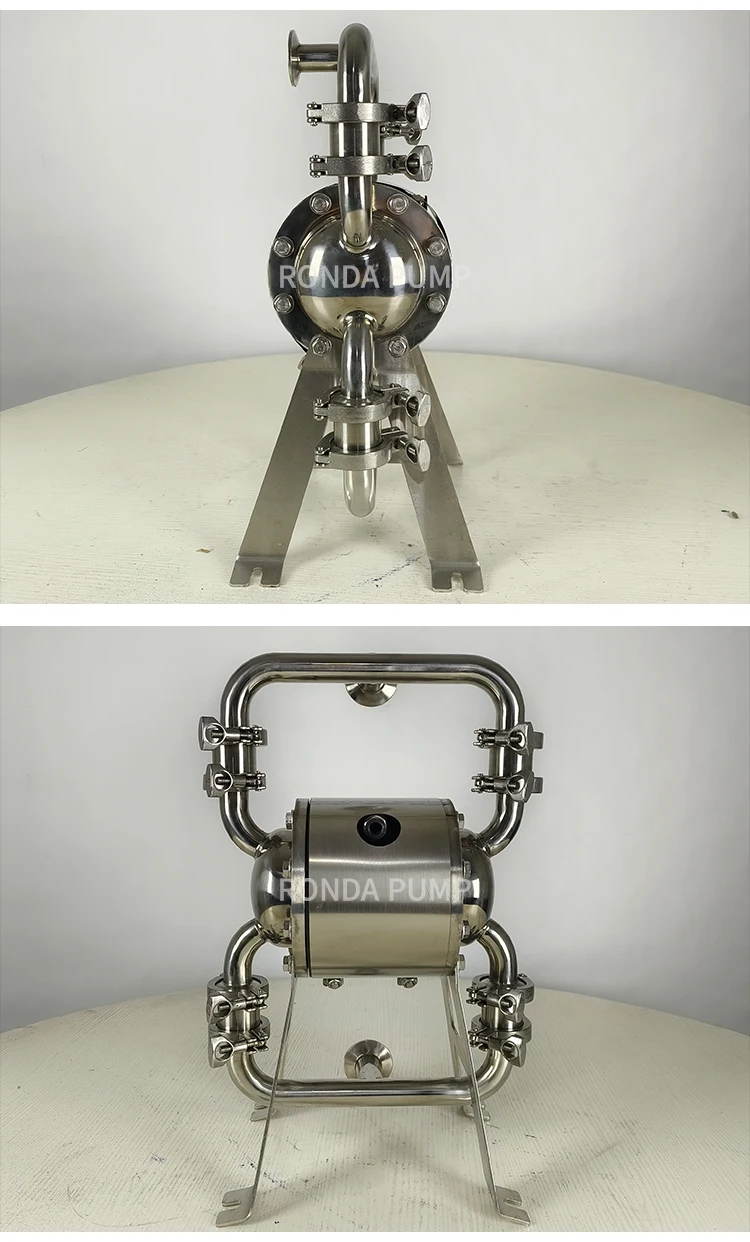

QBY-P / DBY-P series sanitary diaphragm pumps are made of stainless steel, which special for food liquid delivery.

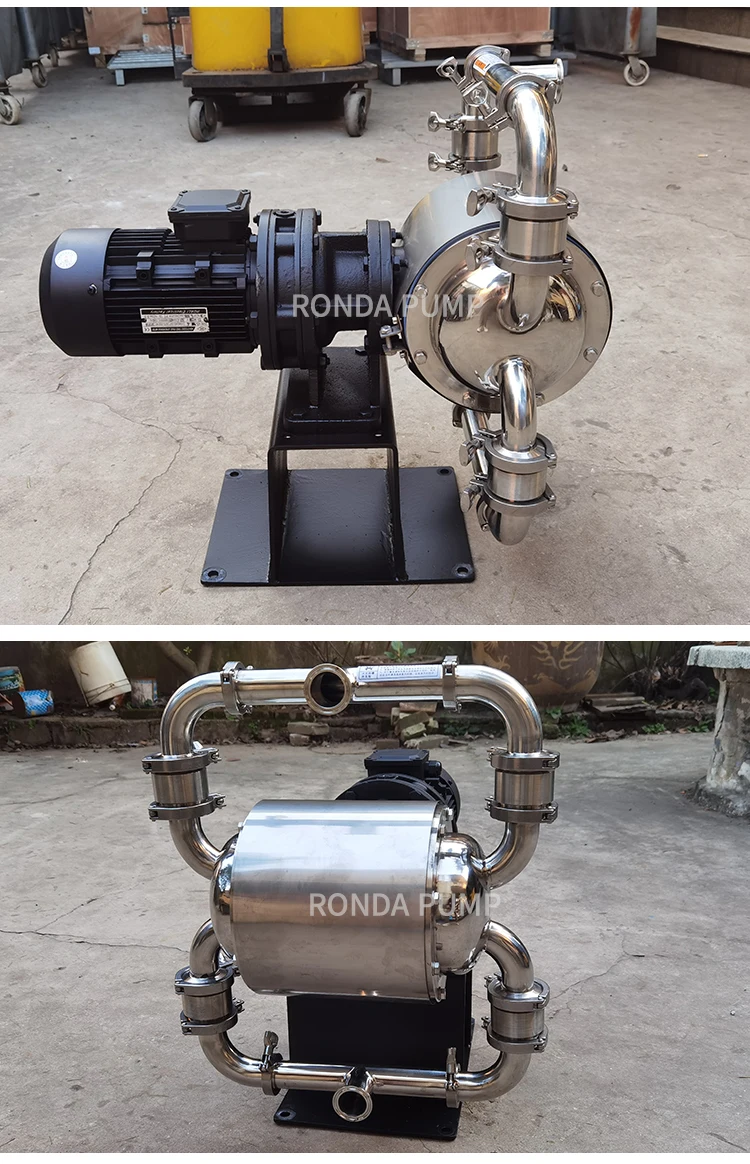

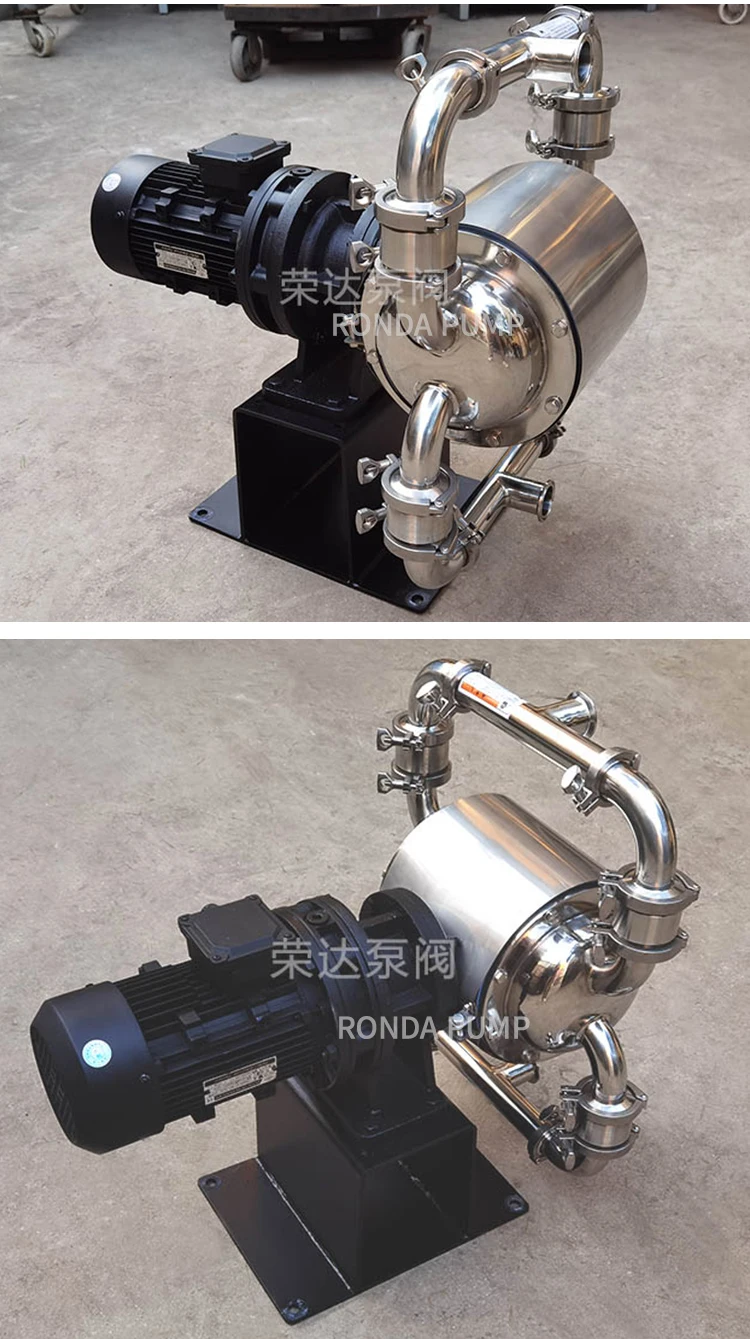

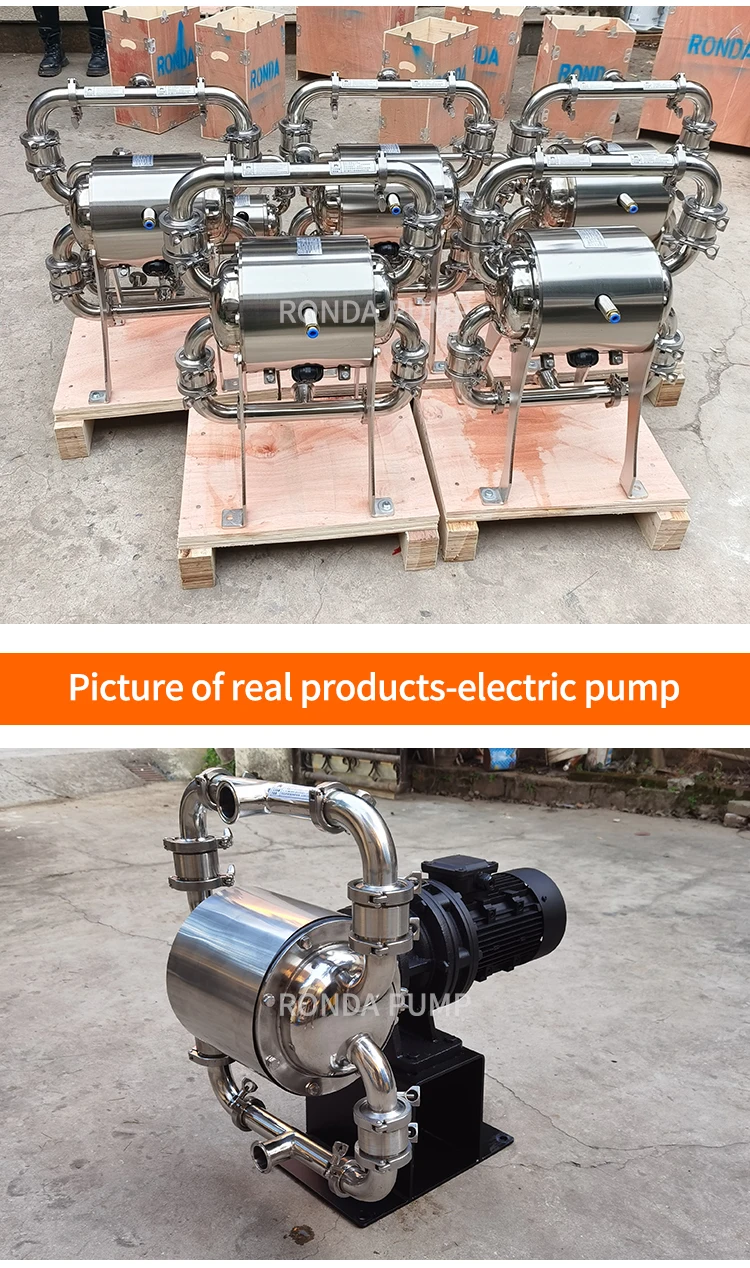

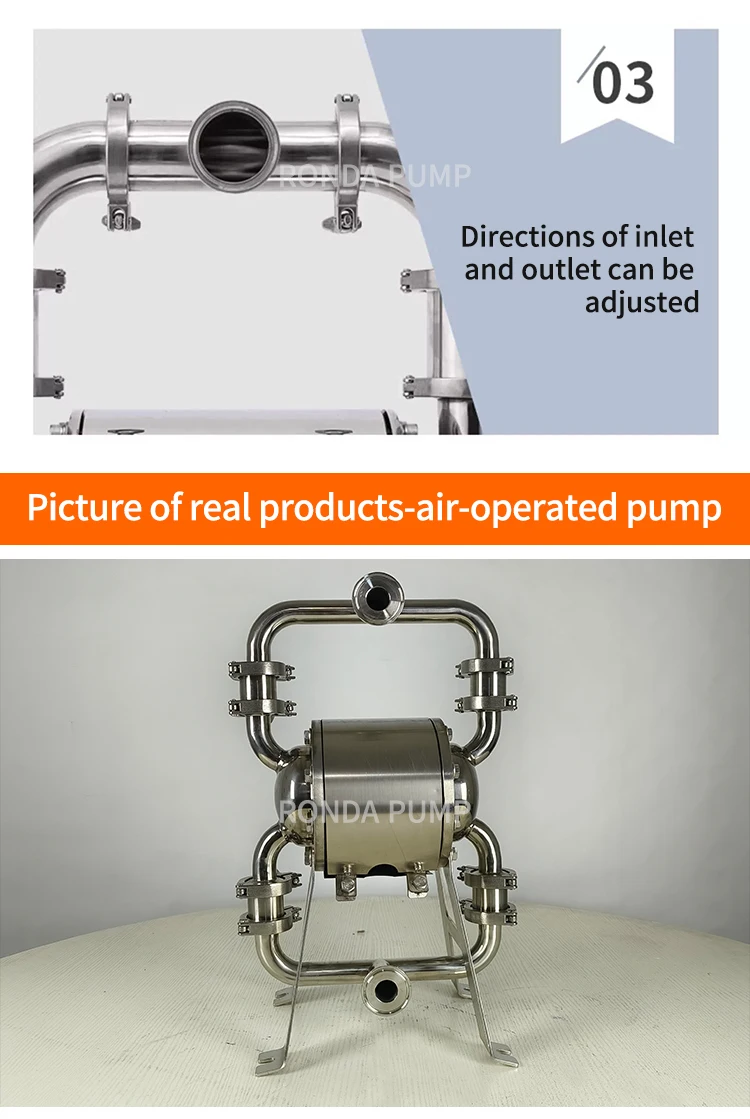

QBY-P is a pneumatic diaphragm pump, and DBY-P is an electric diaphragm pump.

They are available for the delivery of tomato paste, honey, fruit jam, peanut butter, yoghurt, etc.



Model	Max. capacity	Max. head	Supply air pressure	Caliber	Max grain  diameter	Power	Max. head	Max. capacity	Model
	(m³/h)	(m)	(bar)	(mm)	(mm)	(kw)	(m)	(m³/h)
QBY-P-20	2	50	2~7	25	2	0.55	30	2	DBY-P-20
QBY-P-25	2.4		2~7	25	2.5	0.75		2.4	DBY-P-25
QBY-P-32	6		2~7	38	3.2	1.5		6	DBY-P-32
QBY-P-40	8		2~7	38	4.5	1.5		8	DBY-P-40
QBY-P-50	12		2~7	51	8	2.2		12	DBY-P-50
QBY-P-65	16		2~7	63	8	2.2		16	DBY-P-65
QBY-P-80	24		2~7	76	10	3		24	DBY-P-80
QBY-P-100	30		2~7	89	10	3		30	DBY-P-100
QBY-P-125	50		2~7	108	10	4		50	DBY-P-125

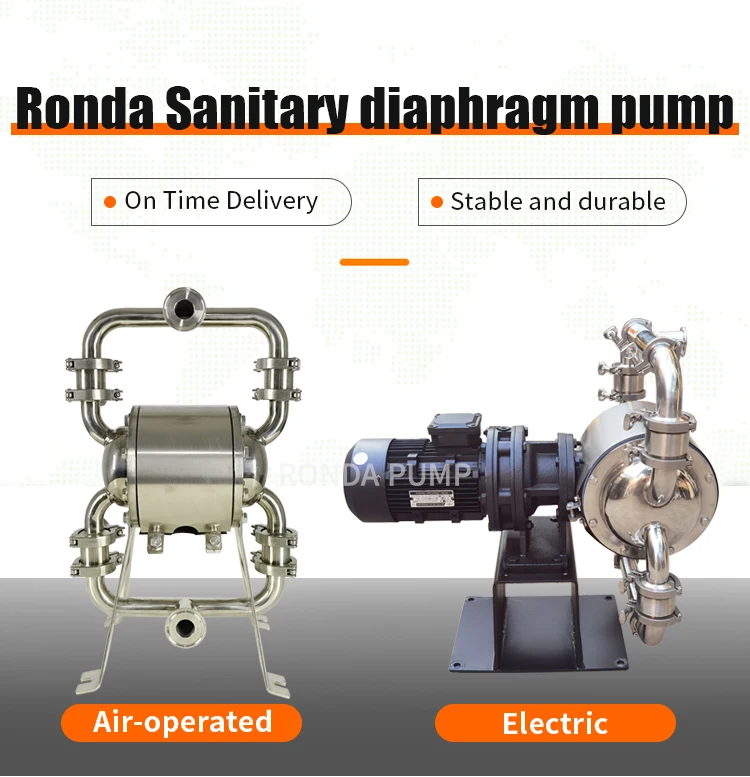

Air drive type and electric drive type
