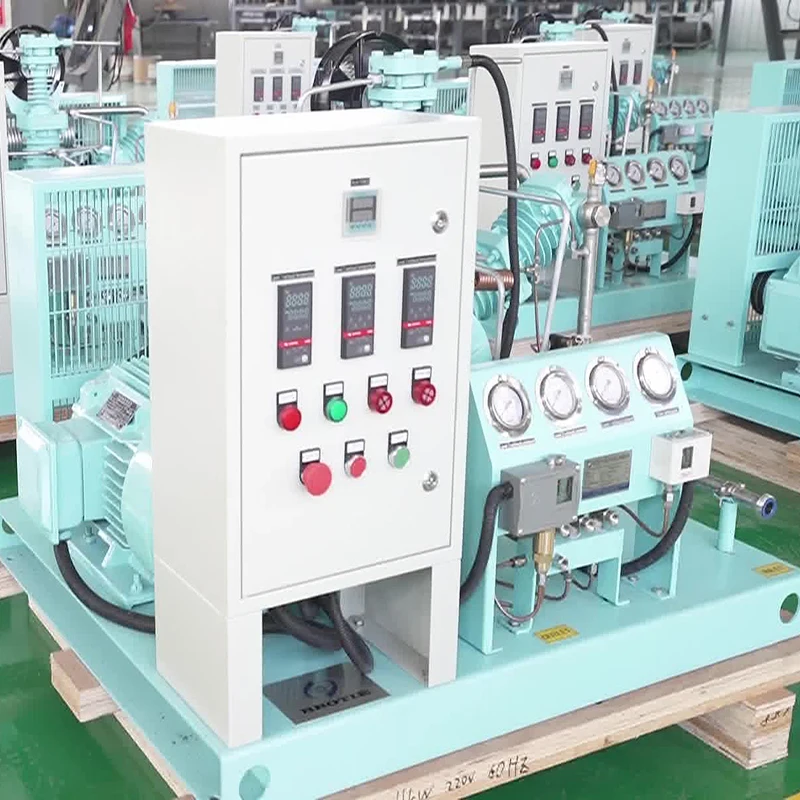

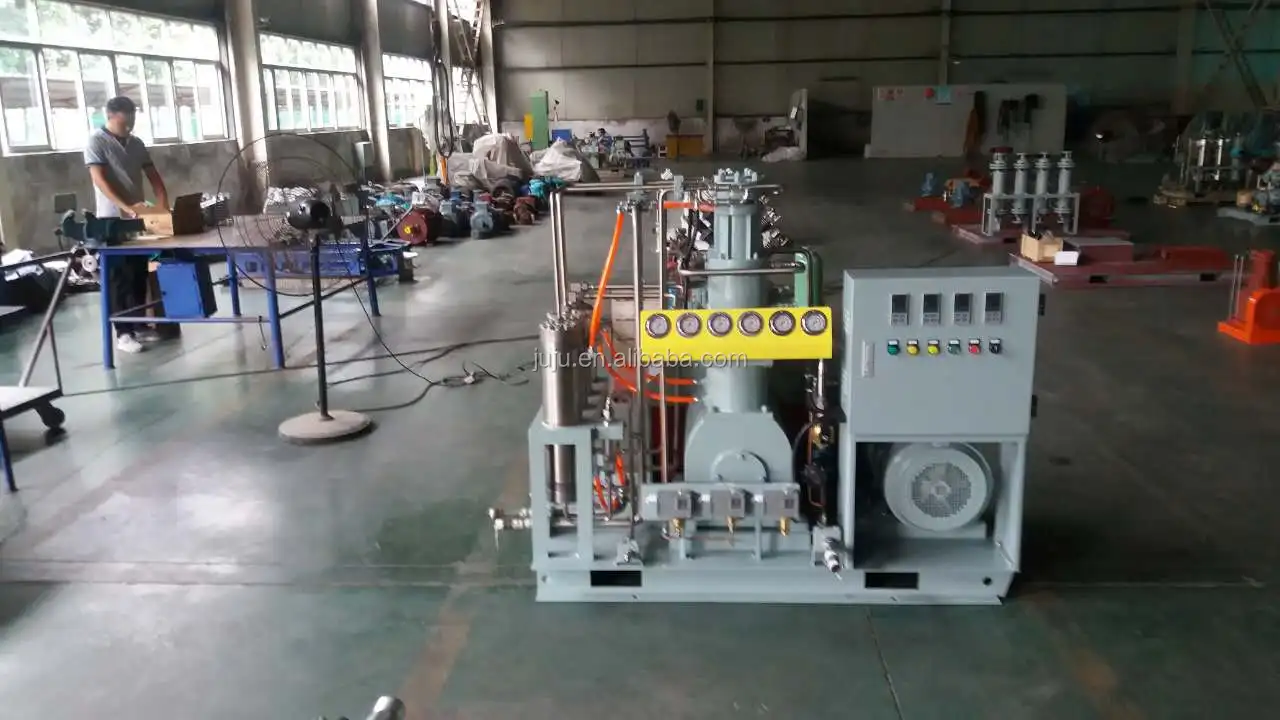

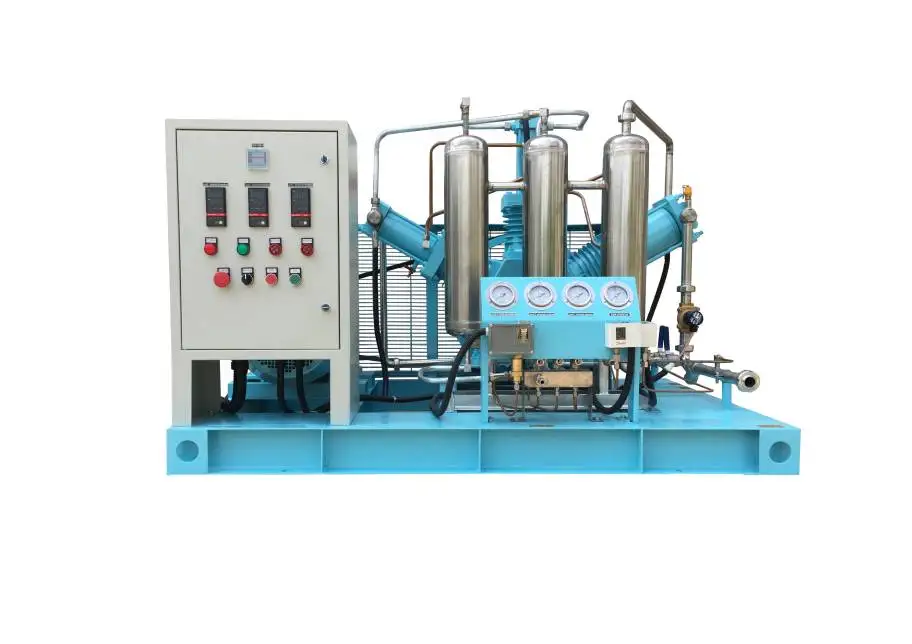

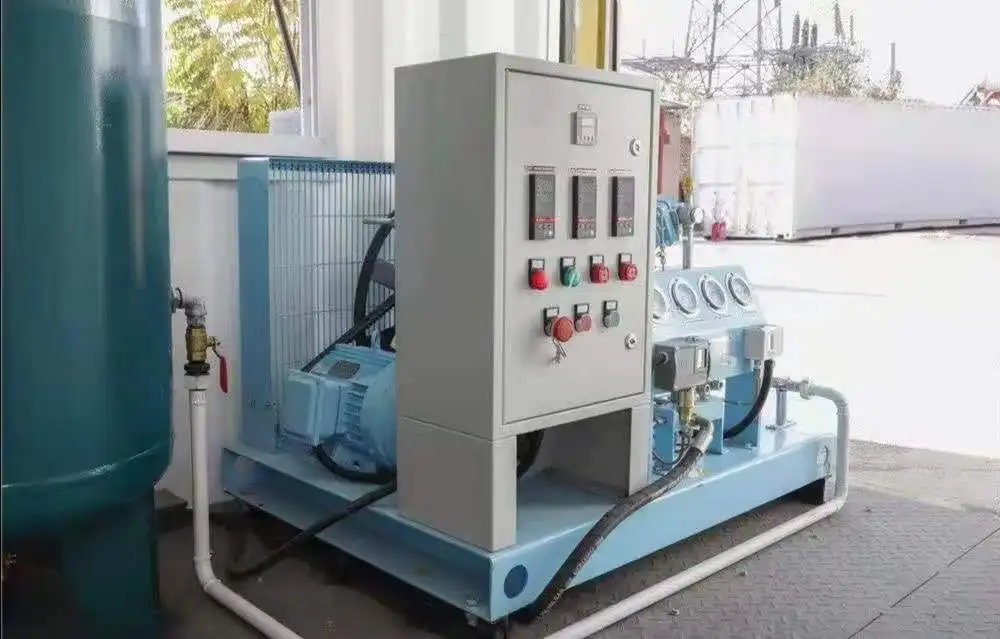

5m3/h 20m3/h 50m3/h 100m3/h oxygen fueling filling station compressor with 15mpa 40L oxygen tank cylinder
- Category: >>>
- Supplier: Henan Yuanju Machinery Equipment Co. Ltd.
Share on (1601020779111):
Product Overview
Description
Product Description
Oxygen is a strong combustion-supporting agent ,oxygen compressor will be prone to burn when contaminants ,oil and grease comes into contact with a tiny amount of oxygen.It is crucial for the oxygen air compressor to be fully degreased to achieve oil-free status before shipment.
automatic shut down
The automatic filling cylinder process can be achieved by means of automatically turning-on-and-off of compressor,Once the pressure in the oxygen storage tank reaches the rated value, the compressor stops;On the contrary, drops to a certain value seted, the compressor starts up automatically.
Feature
-- Low speed with long service life and low maintenance cost
-- 100% oil free design ,without lubrication oil inside of compressor.

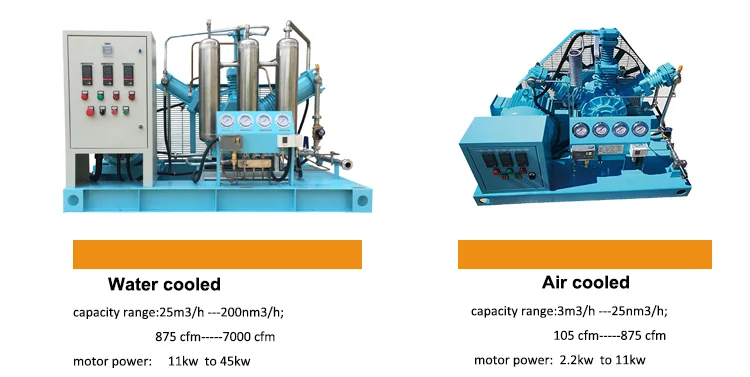

-- Air cooled or water cooled safety
-- Valves for each stage
-- Automatic shutdown when cylinder is full of O2
-- Supply customized solution in accordance with request
Safe protection
--when outlet temperature and pressure is high,compressor stop and alarm
-- when inlet temperature is low than the rated value,compressor stop and alarm
Name | Capacity | Outlet pressure | Power | dimension |
Oxygen compressor for cylinder filling | 5m3/h | 15MPa | 5.5kw | 1080x820x850mm |
Oxygen compressor for cylinder filling | 10m3/h | 15MPa | 7.5kw | 1080x870x850mm |
Oxygen compressor for cylinder filling | 12m3/h | 15MPa | 7.5kw | 1080x870x850mm |
Oxygen compressor for cylinder filling | 20m3/h | 15MPa | 15kw | 1150x970x850mm |
Oxygen compressor for cylinder filling | 30m3/h | 15MPa | 15kw | 1150x970x850mm |
FAQ
* Diving air cylinder filling
* Water treatment plants and petrochemical
* Paper plants and glass manufacturing
* Steel and chemical industry
* Hospital oxygen supplier center
Company Profile

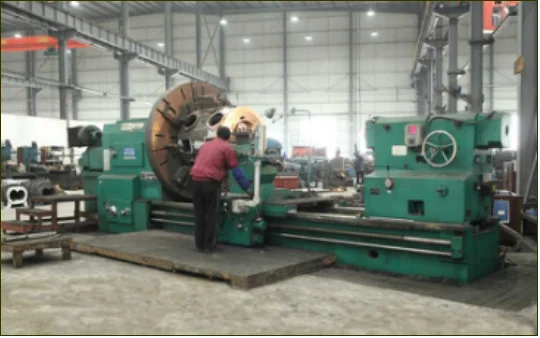

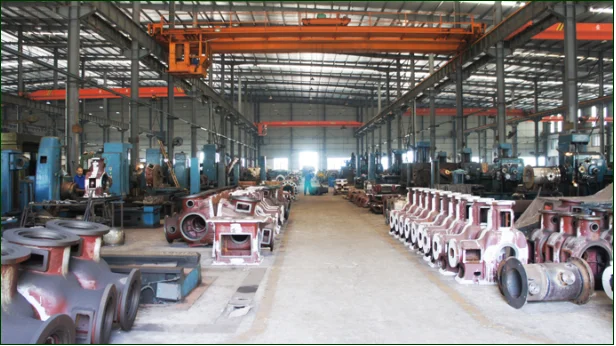

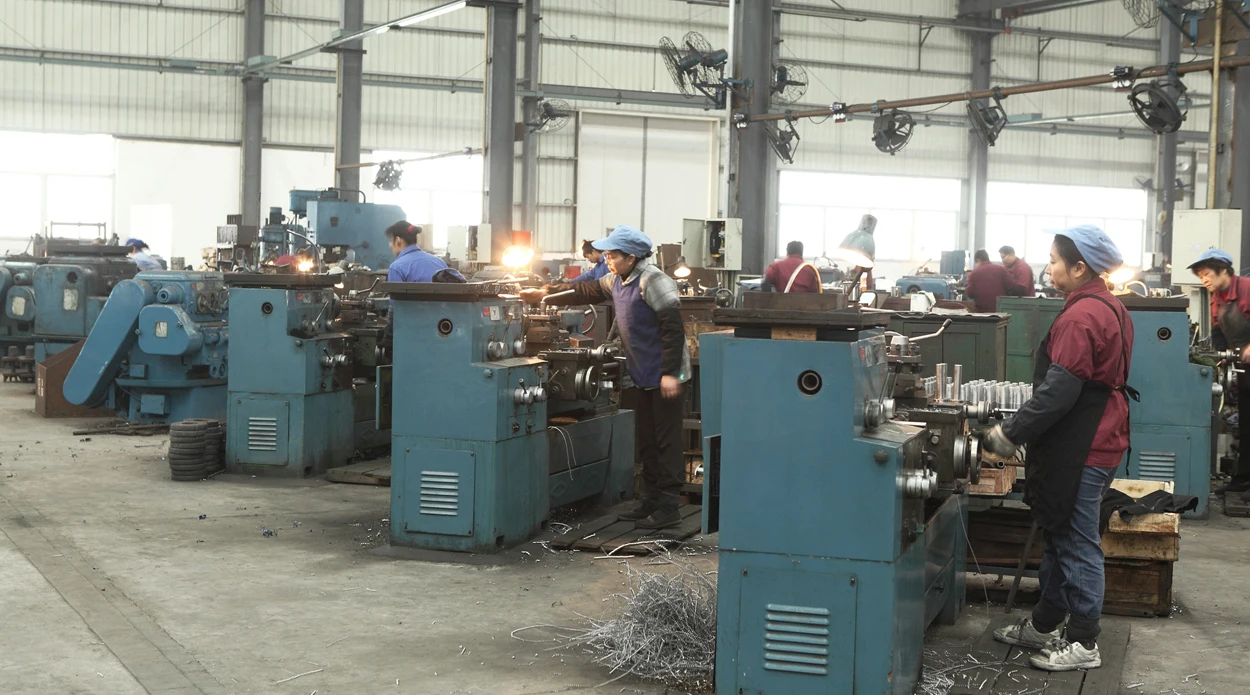

Yuanju compressor , china-based manufacture of reciprocating compressor for compressed air and other industrial gases,process gases.As china’s economic moves forwards for 42 years ,we focus on developing oil free compression technology to meet the specific project requirement in the application of chemical ,oil&gas, gas recovery and other industries worldwide.We has been satisfying customer all over the world with efficient ,reliable and highly quality customized compressor package.
After-sales service
Field service and spare parts
* High quality compressor parts from original manufacture can be delivered on time ;
* an extensive inventory of spare parts in warehouse meet the urgent parts request;
* Valves, piston and guidance rings, packing are the main wearing parts.
* Problem analysis, diagnosis, and corrective action.trouble shooting on site
* Installation ,commissioning , maintenance , repair on site or service calls
Training
* Experience technical and service engineers can be on the end-user site for Routine
Engineering service
* perform the calculations base on the Thermodynamic and Mechanical theory to
* perform the calculations base on the Thermodynamic and Mechanical theory to
design the compressor configuration and drive power.
* Ensuring that compressor will be in accordance with the data sheet,specifications,
design codes and engineering standards
* Providing engineering documents such as PID ,general assemble drawings,outline drawings
* Providing engineering documents such as PID ,general assemble drawings,outline drawings
Field service and spare parts
* High quality compressor parts from original manufacture can be delivered on time ;
* an extensive inventory of spare parts in warehouse meet the urgent parts request;
* Valves, piston and guidance rings, packing are the main wearing parts.
* Problem analysis, diagnosis, and corrective action.trouble shooting on site
* Installation ,commissioning , maintenance , repair on site or service calls
Training
* Experience technical and service engineers can be on the end-user site for Routine
maintenance, installation, and start-up
* We offer training from basic fundamentals to engineer-level operation at your facility or yours.
* training of the operation and maintenance make the stuff operate the compressor get a
* training of the operation and maintenance make the stuff operate the compressor get a
detailed understanding for the compressor ,reduce the overall maintenance costs.

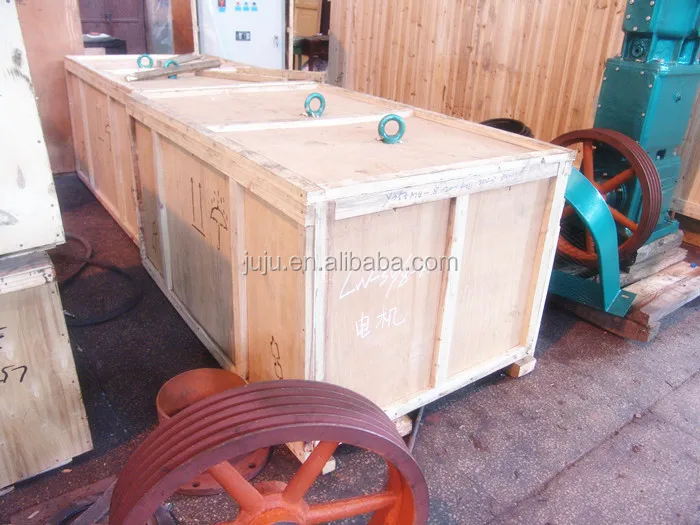

Package
the attached spare parts is put inside of the box.
The package standard meet international standards.
